Circles are fundamental shapes in geometry with unique properties and...
Geometry1,089 views·Updated Aug 23, 2026·2 pagesUnderstanding Circles: Central Angles, Arcs & Chords Worksheet
Mia@mialovesu16
1
of 2
Introduction to Circles and Basic Elements
Ever wonder why circles are so important in math? Let's break down the key parts of a circle that you need to know for your geometry class. A circle consists of several important elements: the radius (a line from center to edge), diameter (a line through the center connecting two points on the circle), and chords (lines connecting any two points).
When working with circles, you'll also encounter central angles which are formed by two radii. These angles create arcs along the circle's circumference. A minor arc is smaller than a semicircle, while a major arc is larger. A semicircle is exactly half of a circle.
Calculating a circle's measurements is straightforward using these formulas: Area = πr² and Circumference = 2πr. For example, a circle with radius 18 inches has an area of approximately 1017.87 square inches and a circumference of 113.09 inches. When you know a circle's area, you can work backward to find its diameter and circumference.
Pro Tip: When solving circle problems, always draw and label the diagram clearly. This makes it much easier to visualize the relationships between angles, arcs, and other elements!
Central angles have a direct relationship with their corresponding arcs. The measure of an arc (in degrees) equals the measure of its central angle. For instance, if a central angle measures 63°, the corresponding minor arc also measures 63°.
2
of 2

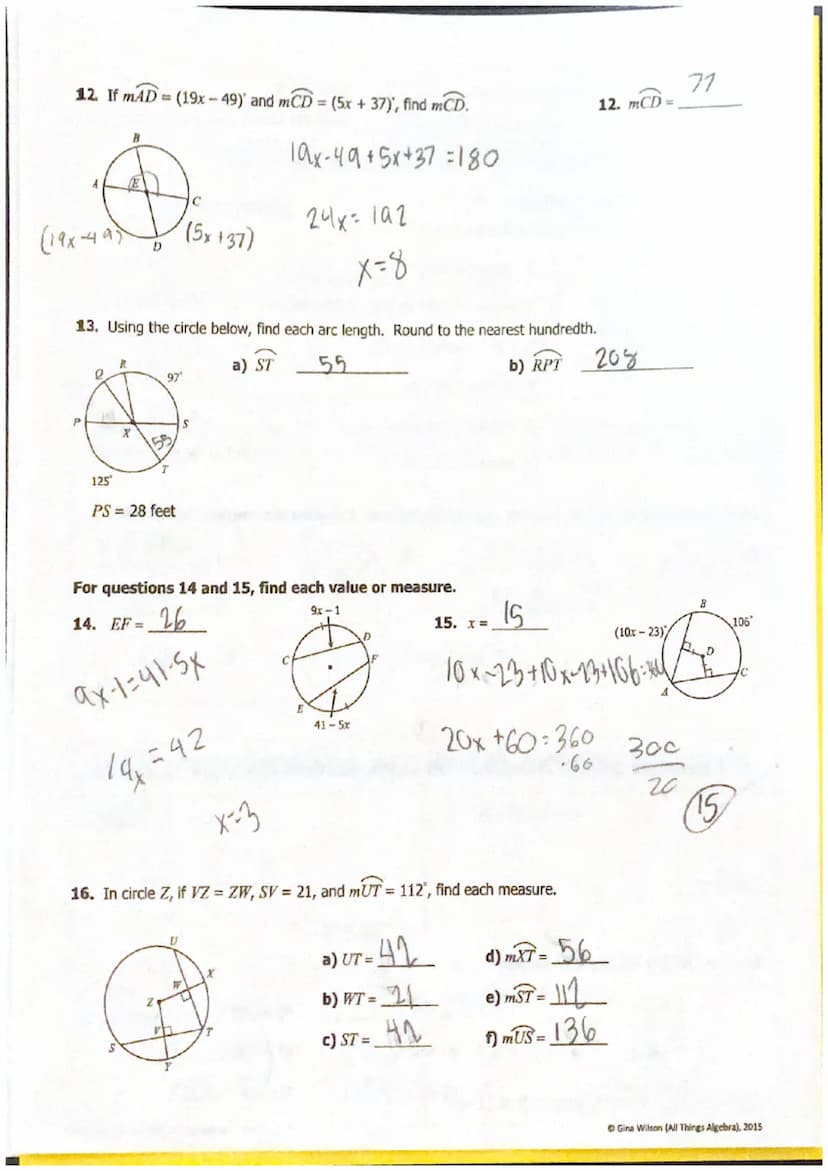

Arc Measures and Circle Relationships
Did you know that opposite arcs in a circle can help you solve equations? When you have a full circle, all angles must add up to 360°. This principle helps us solve problems with arc measures expressed as algebraic expressions. For example, if two arcs have measures ° and °, we can set up an equation to find the value of x.
Arc length is different from arc measure! Arc length is the actual distance along the curve, while arc measure is in degrees. To find arc length, use this formula: Arc Length = (arc measure/360°) × (2πr). This is super useful when you need to calculate actual distances along parts of a circle.
Circles contain many interesting relationships between chords, arcs, and central angles. When two chords are equal in length (like VZ = ZW in a circle), this creates equal arcs. Similarly, if you know one measurement in a circle problem, you can often use circle properties to find other related measurements.
Remember: The sum of all angles around a point is 360°. This fundamental fact is your key to solving many circle problems involving multiple angles and arcs!
When working with multiple arcs in a circle, remember that the entire circle measures 360°. This means you can find unknown arc measures by subtracting known arcs from 360°, or by setting up equations using this total.
