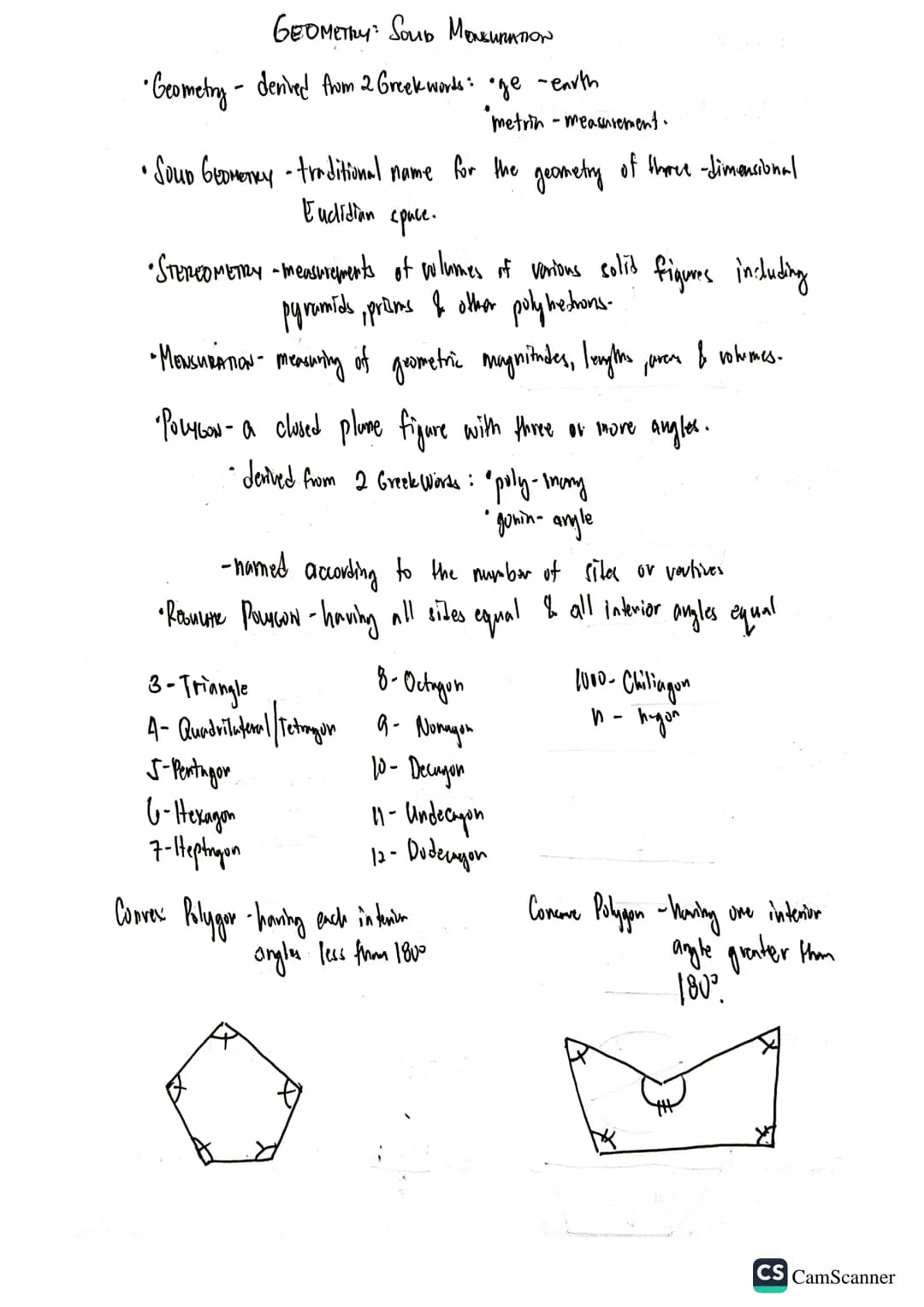

Introduction to Geometry and Polygons

Geometry comes from Greek words meaning "earth measurement" and helps us understand shapes and spaces. Solid geometry deals with three-dimensional figures, while mensuration focuses on measuring geometric magnitudes like lengths, areas, and volumes.

A polygon is a closed plane figure with three or more angles (from Greek: "poly" meaning many, "gonin" meaning angle). Polygons are named by their number of sides—triangles have 3 sides, quadrilaterals have 4, pentagons have 5, and so on up to complex shapes like the dodecagon (12 sides) or even the chiliagon (1000 sides)!

Regular polygons have all sides equal and all interior angles equal. Polygons can be either convex (all interior angles less than 180°) or concave (at least one interior angle greater than 180°).

Quick Tip: When identifying polygons, count either the sides or vertices (corners)—the number will always be the same!

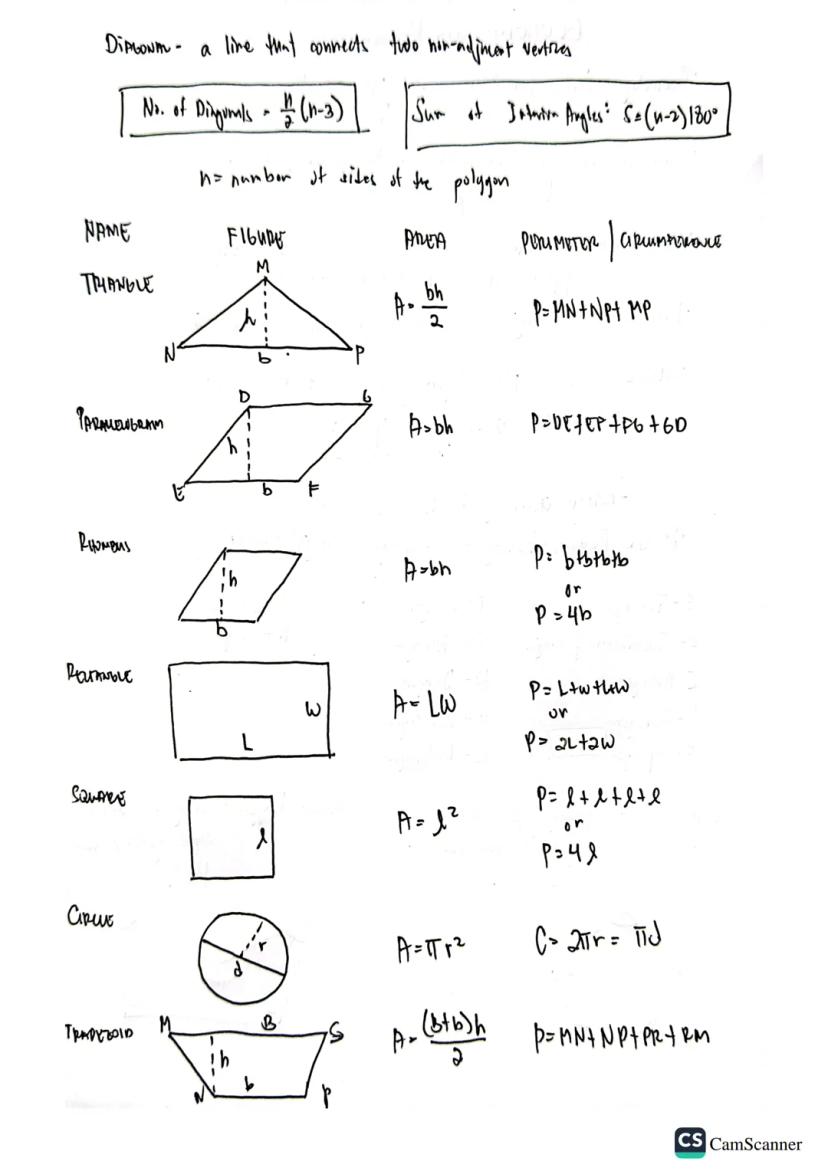

Polygon Properties and Area Formulas

A diagonal connects two non-adjacent vertices in a polygon. For any polygon with n sides, you can calculate the number of diagonals using the formula: Diagonals = n$n-3$/2. The sum of interior angles in any polygon equals $n-2$180°.

Different shapes have specific formulas for calculating their areas:

• Triangles: A = bh/2 (half the base times the height)
• Parallelograms: A = bh (base times height)
• Rectangles: A = LW (length times width)
• Squares: A = l² (length squared)
• Circles: A = πr² (pi times radius squared)

The perimeter measures the distance around a shape. For circles, we call this the circumference (C = 2πr or πd). Regular polygons have equal sides, making perimeter calculations straightforward (multiply the length of one side by the number of sides).

Remember: The trapezoid is special because its area formula uses both parallel sides: A = $b₁+b₂$h/2

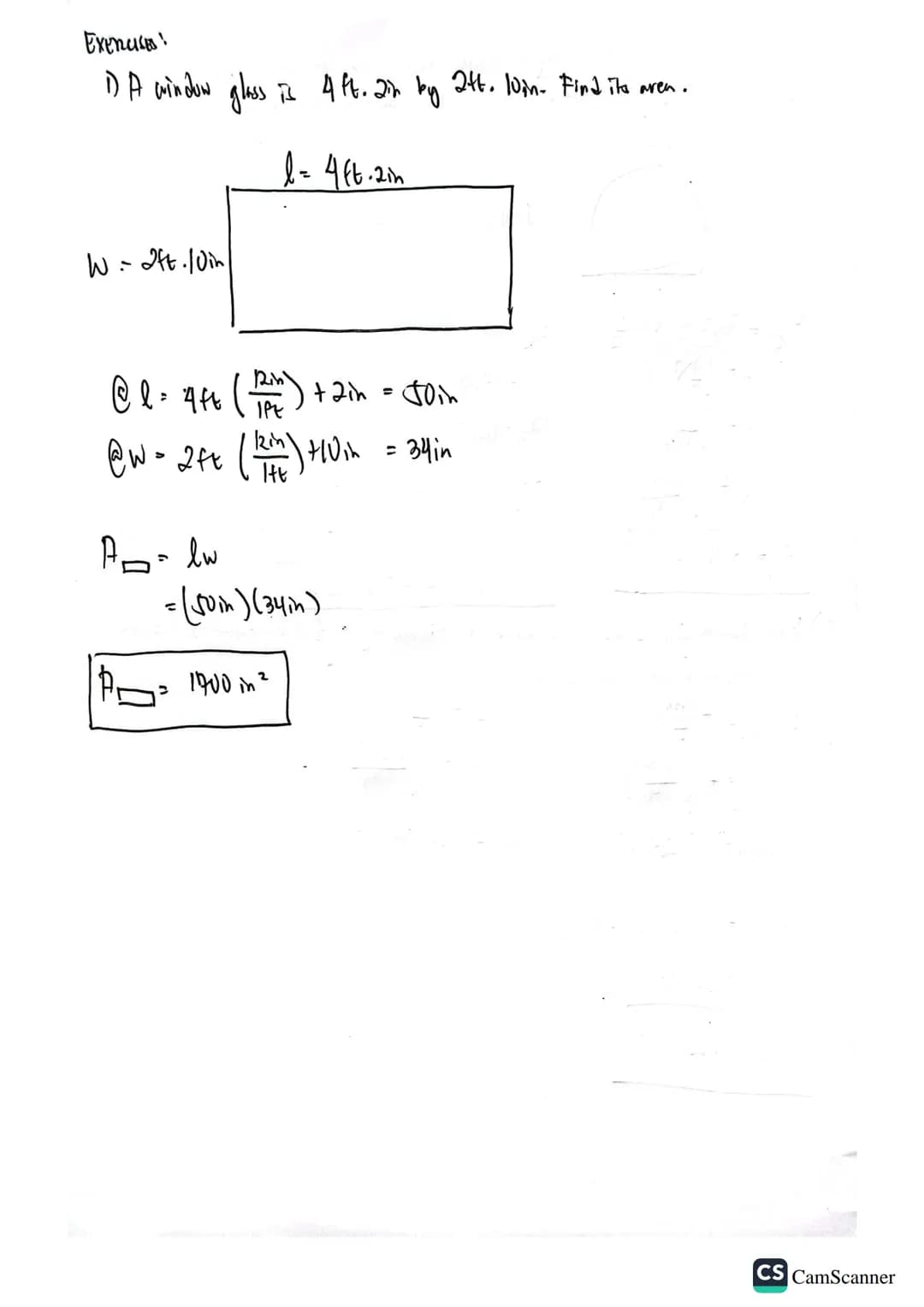

Solving Area Problems

When solving real-world geometry problems, you'll often need to convert between measurement units. For the window glass problem (4ft 2in by 2ft 10in), converting everything to inches makes the calculation cleaner.

First, convert the measurements to a single unit:

• Length: 4ft 2in = (4 × 12in) + 2in = 50in
• Width: 2ft 10in = (2 × 12in) + 10in = 34in

Then apply the rectangle area formula: A = L × W = 50in × 34in = 1700in²

This process shows how geometry helps with practical measurements. Whether you're calculating flooring, wall space, or window areas, the same principles apply.

Pro Tip: Always convert mixed measurements (like ft and in) to a single unit before calculating areas to avoid mistakes!

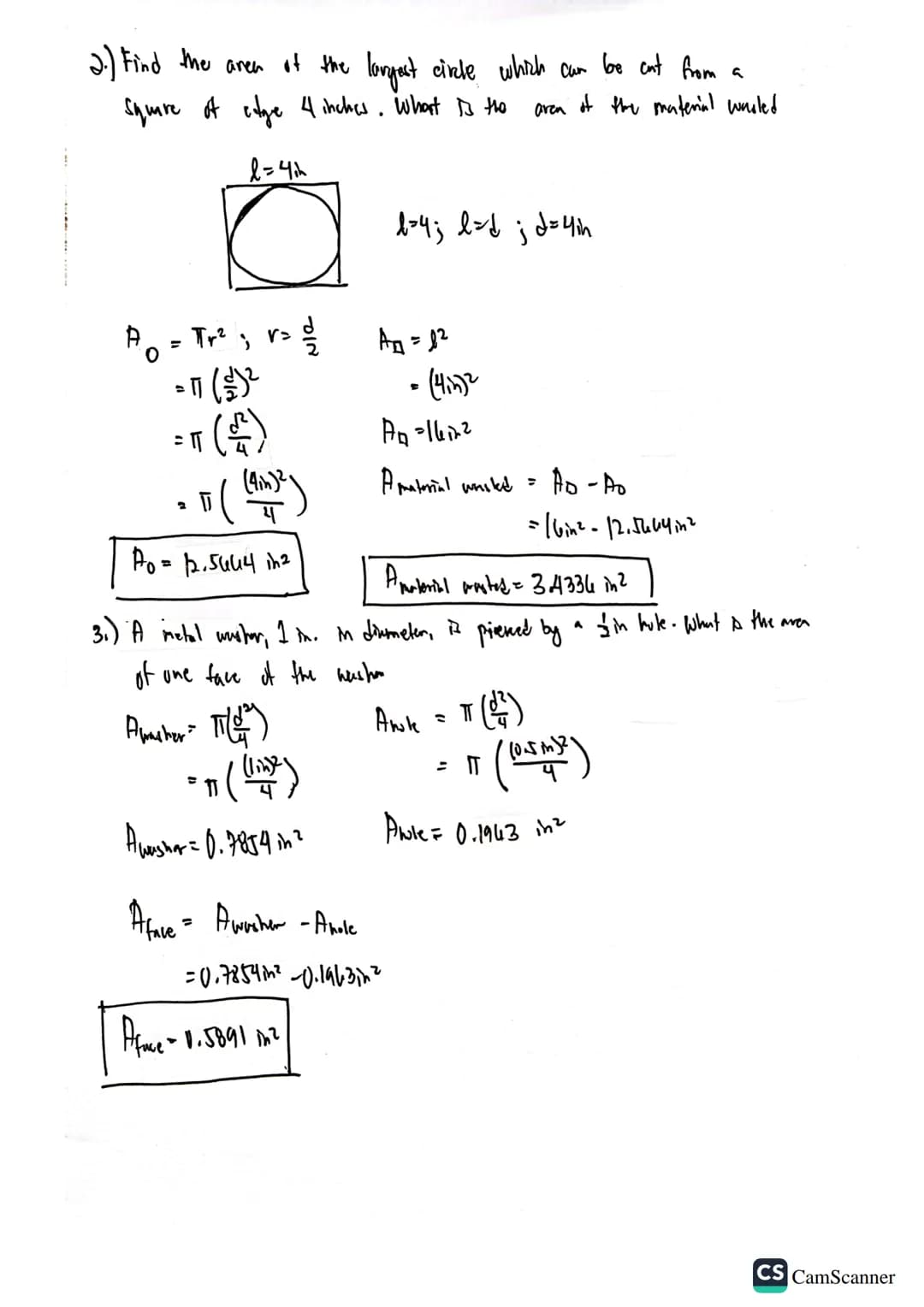

Applied Geometry Problems

When cutting a circle from a square, there's always some material wasted. For a 4-inch square, the largest possible circle has a diameter equal to the square's side (4 inches). The circle's area is πr² = π(2)² = 12.57in², while the square's area is 16in². The wasted material equals 3.43in².

Metal washers represent another practical application of geometry. For a 1-inch washer with a ½-inch hole, we calculate the face area by finding the difference between the full circle and the hole:

• Washer area: π(0.5)² = 0.79in²
• Hole area: π(0.25)² = 0.20in²
• Face area: 0.79in² - 0.20in² = 0.59in²

These examples show how geometry helps us calculate materials needed and wasted in manufacturing and construction projects.

Remember: When finding the area of a ring or washer, always subtract the area of the inner circle from the area of the outer circle!
