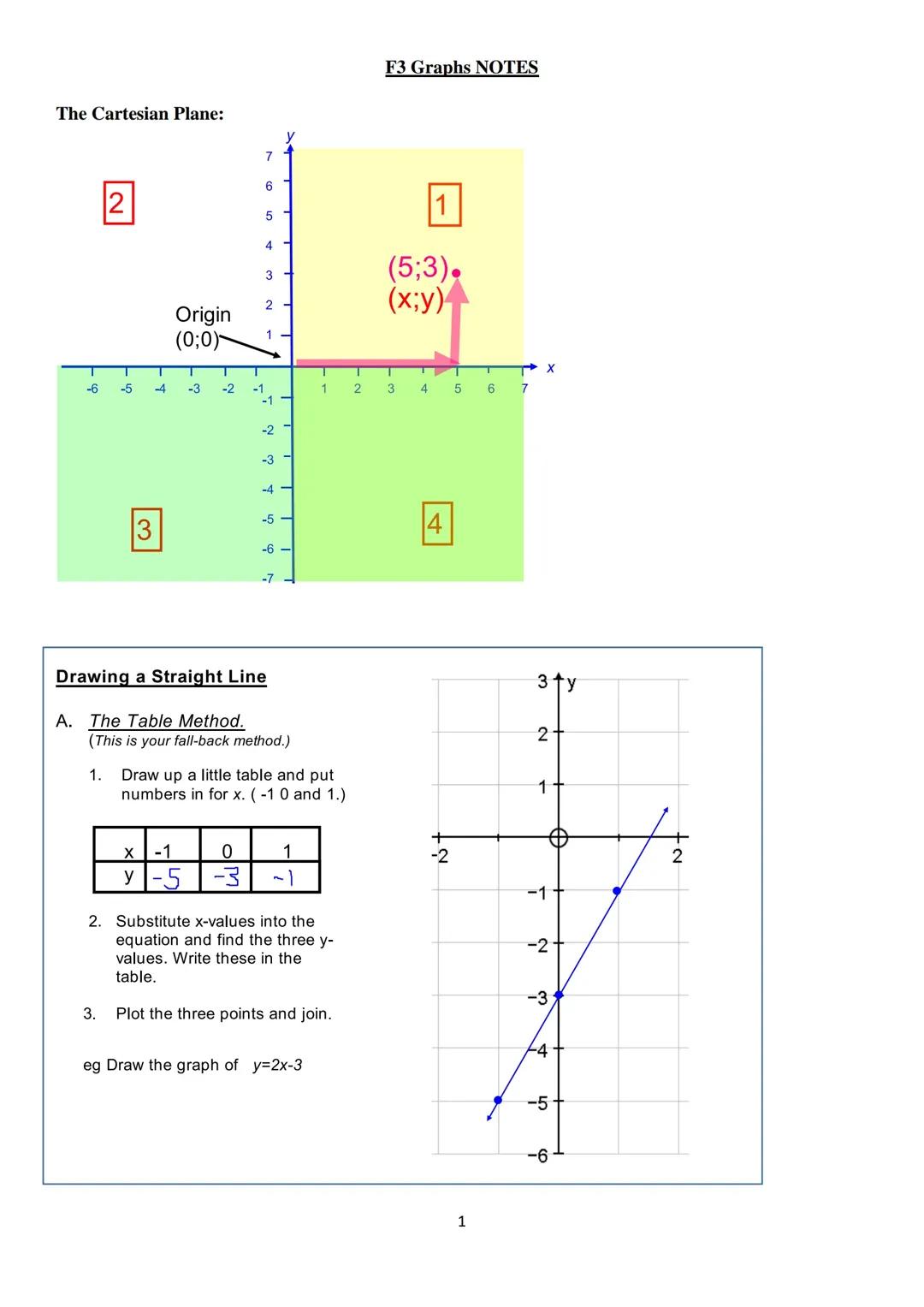

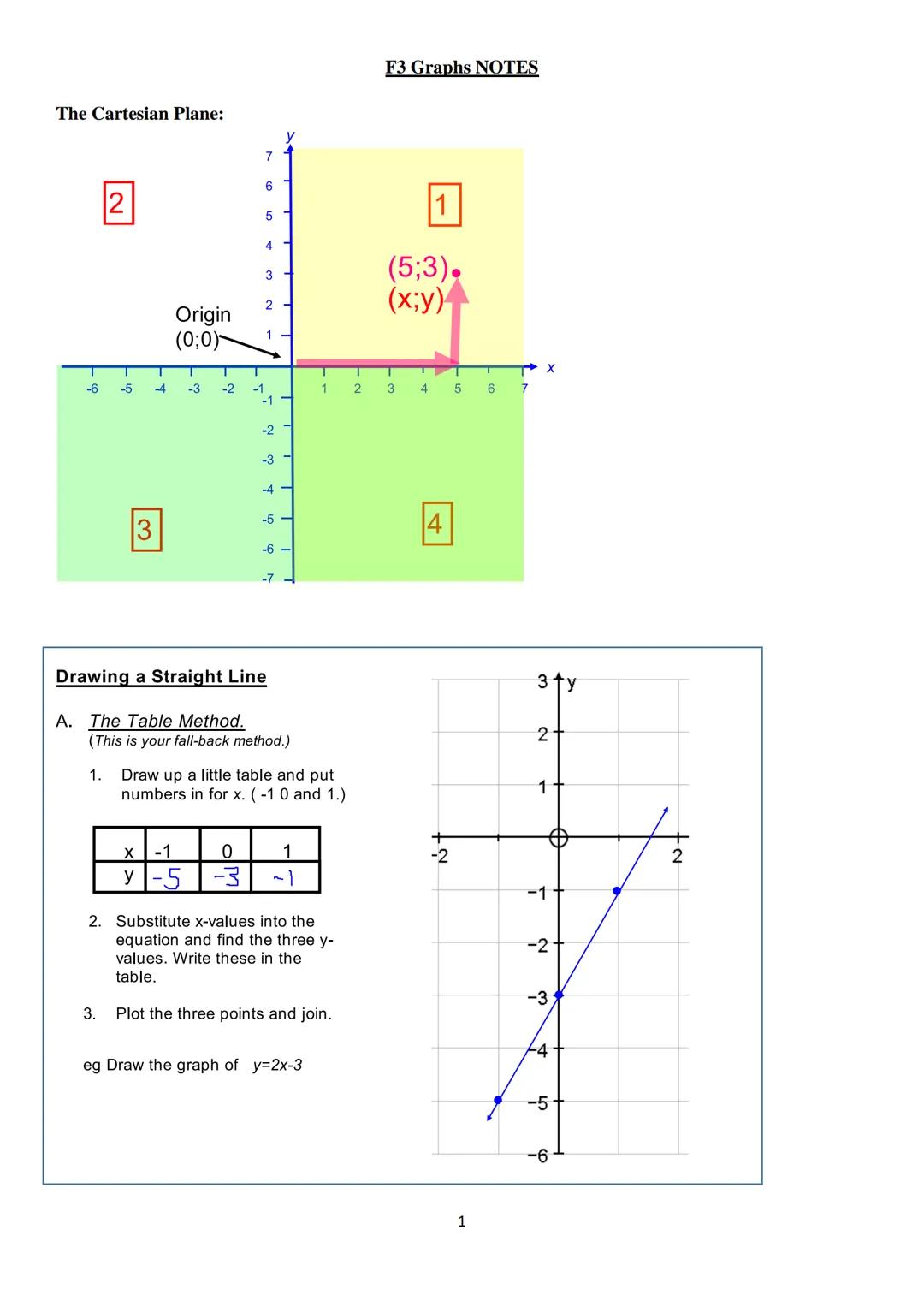

The Cartesian Plane and Drawing Straight Lines

The Cartesian plane has horizontal $x$ and vertical $y$ axes that intersect at the origin (0,0). Any point can be located using coordinates in the form (x,y).

When drawing straight lines, the table method is your reliable fallback approach. Start by creating a table with three x-values (usually -1, 0, and 1). Then substitute these values into your equation to calculate the corresponding y-values. Once you have three points, plot them on the graph and connect them with a straight line.

For example, to graph y = 2x - 3, substitute x = -1, 0, and 1 to get y-values of -5, -3, and -1. Plot these points and draw your line!

✨ Pro Tip: Always check your work by testing a fourth point that should fall on your line. If it doesn't, you've made a calculation error somewhere.

Graph Drawing Methods

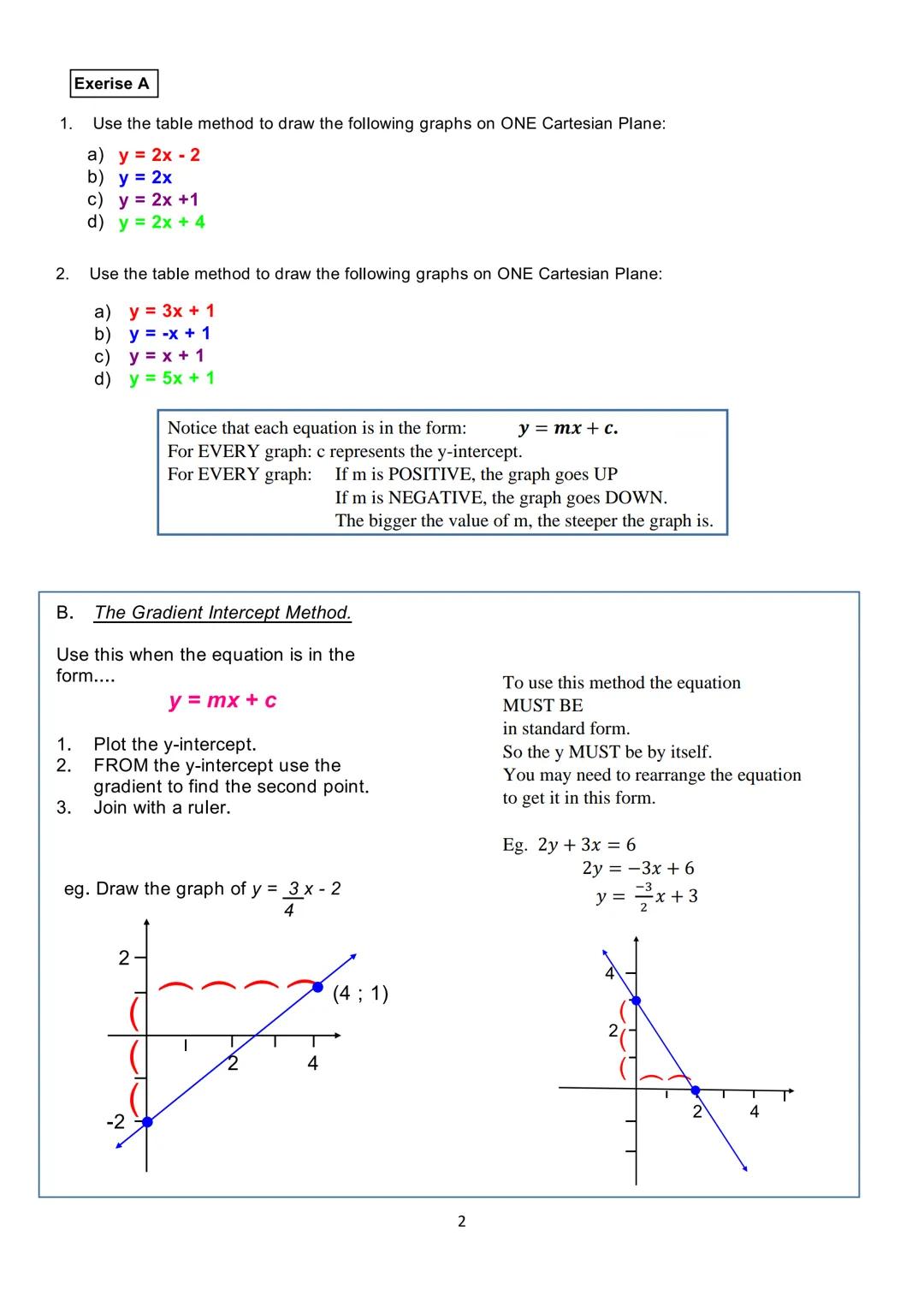

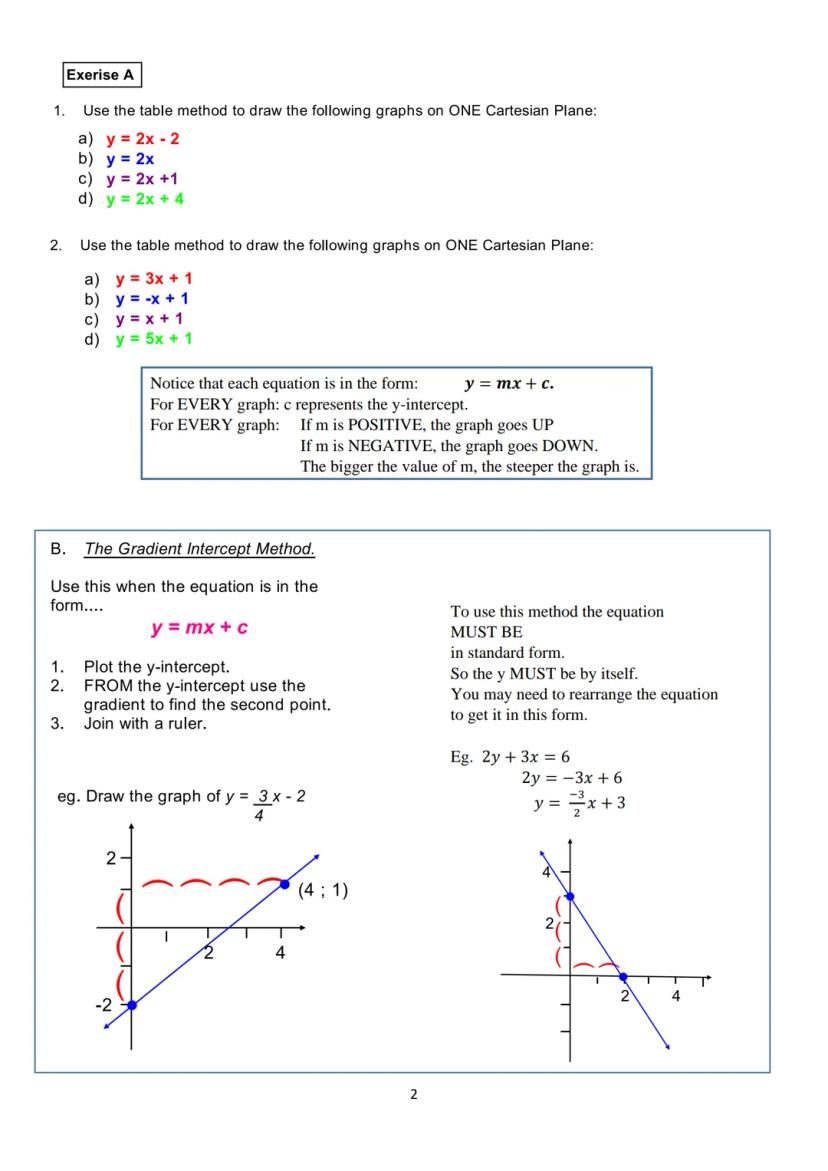

The gradient-intercept method is a faster way to draw lines when the equation is in the form y = mx + c. First, identify the y-intercept $c$ and plot it. Then use the gradient $m$ to find a second point by moving from the y-intercept. Connect these points with a ruler.

For equations not already in y = mx + c form, you'll need to rearrange them first. For example, 2y + 3x = 6 becomes y = -3/2x + 3.

When comparing multiple graphs with the same format (like y = 2x + 4, y = 2x + 1, etc.), notice the patterns: the value of c determines where the line crosses the y-axis, while m controls the steepness and direction. Positive m values make lines go up as x increases, while negative values make them go down.

🔑 Remember: The larger the absolute value of m, the steeper your line will be. A line with m = 5 is steeper than one with m = 2.

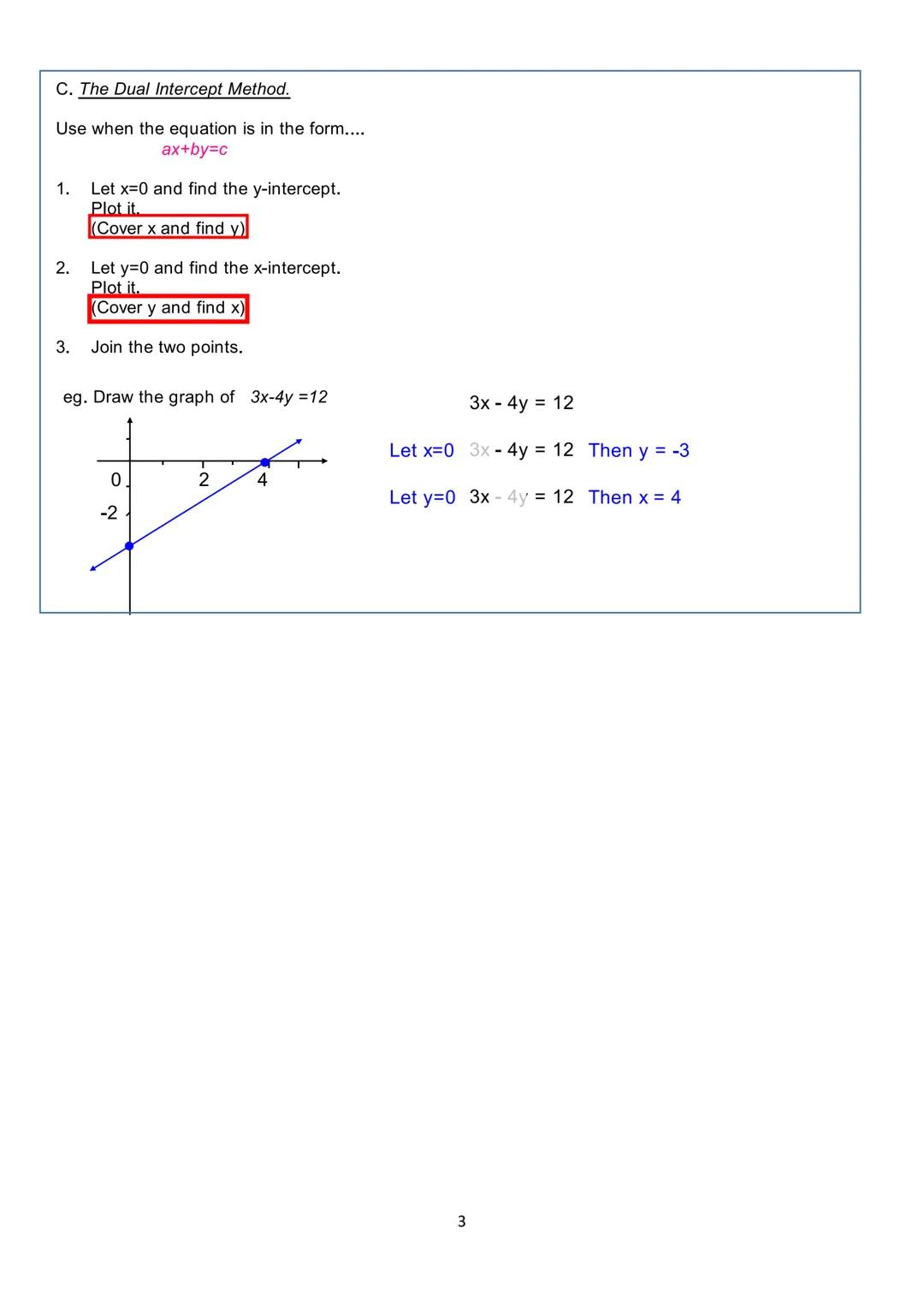

The Dual Intercept Method

The dual intercept method works well for equations in the form ax + by = c. This approach focuses on finding where the line crosses each axis.

To find the y-intercept, set x = 0 and solve for y. (A helpful trick is to mentally "cover" the x-term and solve what remains.) Plot this point on the y-axis.

To find the x-intercept, set y = 0 and solve for x. (Cover the y-term and solve.) Plot this point on the x-axis.

Once you have both intercepts, simply connect them with a straight line. For example, with 3x - 4y = 12, when x = 0, y = -3, and when y = 0, x = 4. Plot these points and draw your line!

💡 Quick Tip: This method works best when both intercepts are easy to find and plot on your graph paper.

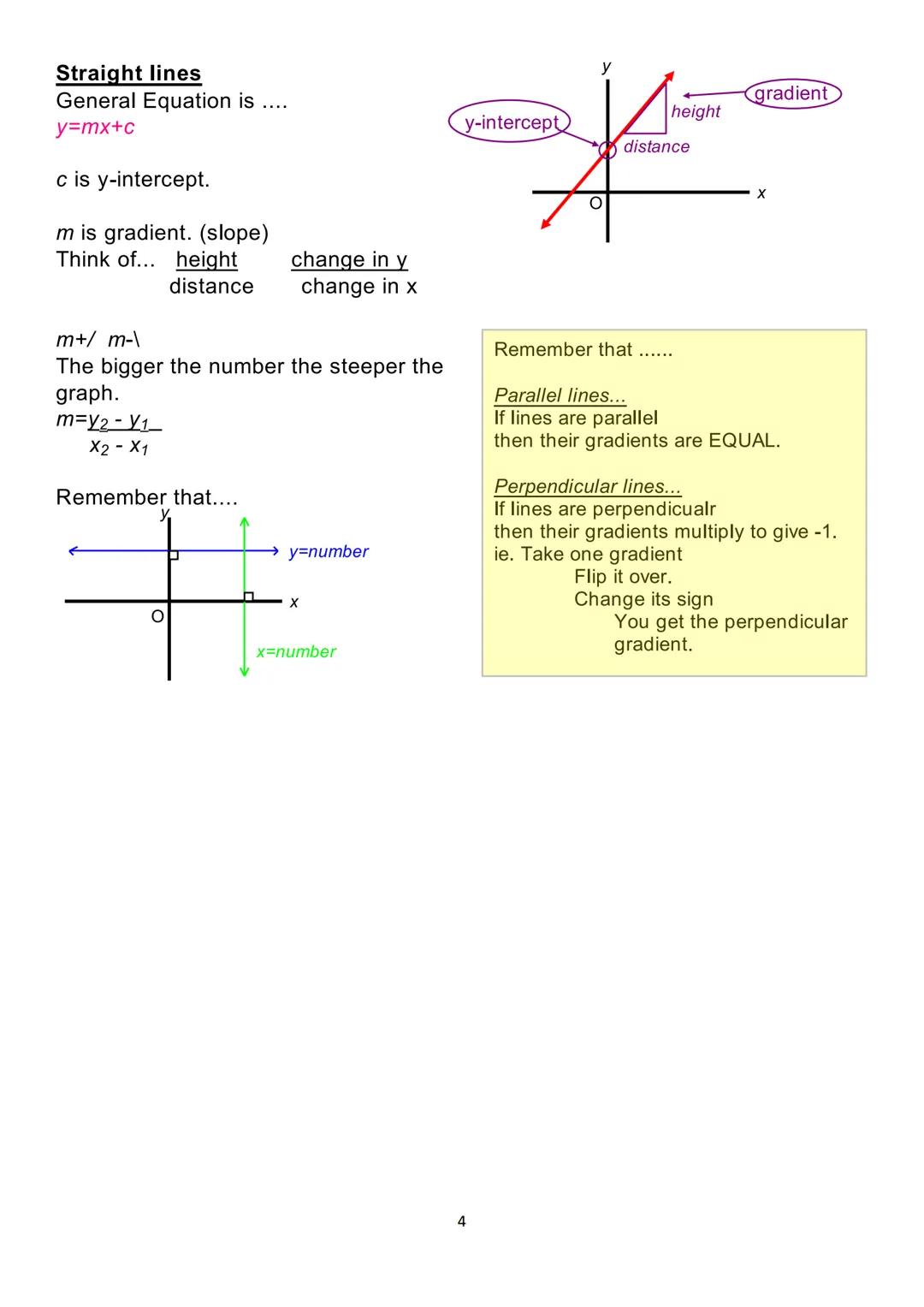

Understanding Line Properties

Every straight line can be written as y = mx + c, where c is the y-intercept (where the line crosses the y-axis) and m is the gradient or slope (how steep the line is).

The gradient represents the ratio of vertical change to horizontal change as you move along the line. Calculate it using m = $y₂ - y₁$/$x₂ - x₁$ between any two points on the line.

Horizontal lines follow the format y = number (with gradient = 0), while vertical lines follow x = number (with undefined gradient).

Parallel lines always have equal gradients. If you know two lines are parallel, their m-values must be identical.

Perpendicular lines have gradients that multiply to give -1. To find a perpendicular gradient, flip the fraction upside down and change its sign. For example, if one line has m = 2, a perpendicular line would have m = -1/2.

🎯 Test Prep Alert: Questions about parallel and perpendicular lines appear frequently on math tests, so make sure you understand how to identify and work with their gradients!
