Understanding Geometric Translations: A Comprehensive Guide

A translation in geometry involves moving every point of a figure the same distance and direction without changing its size or shape. When working with translation shapes examples, it's essential to understand how coordinates shift on a coordinate plane.

Definition: A translation is a transformation that slides a figure to a new position while maintaining its size and shape. The original figure and its image are always congruent.

In coordinate geometry, translations follow specific rules. The translation rule (x,y) shows how to move points on a coordinate plane. For example, if we translate a point 3 units right and 2 units up, we write the rule as (x,y) → $x+3, y+2$.

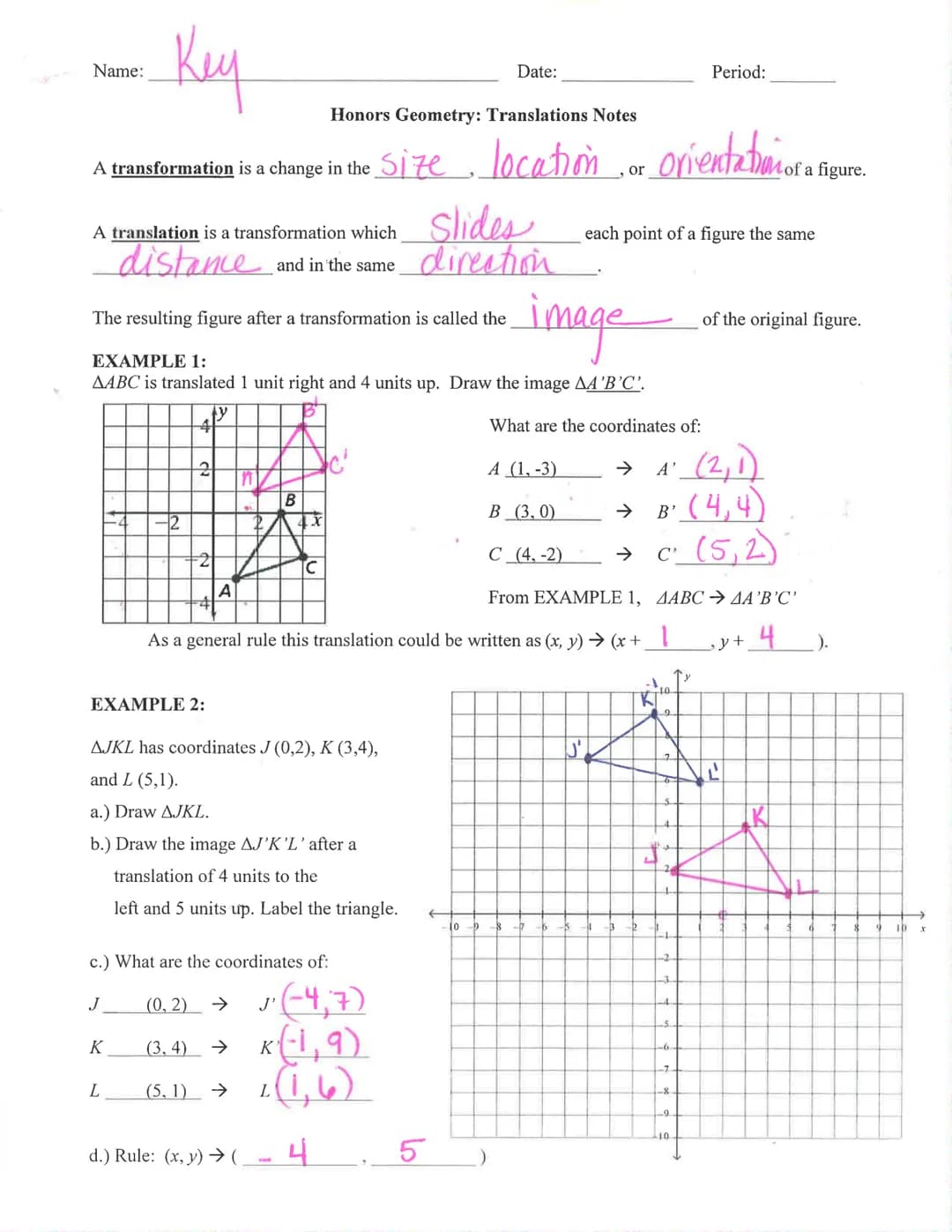

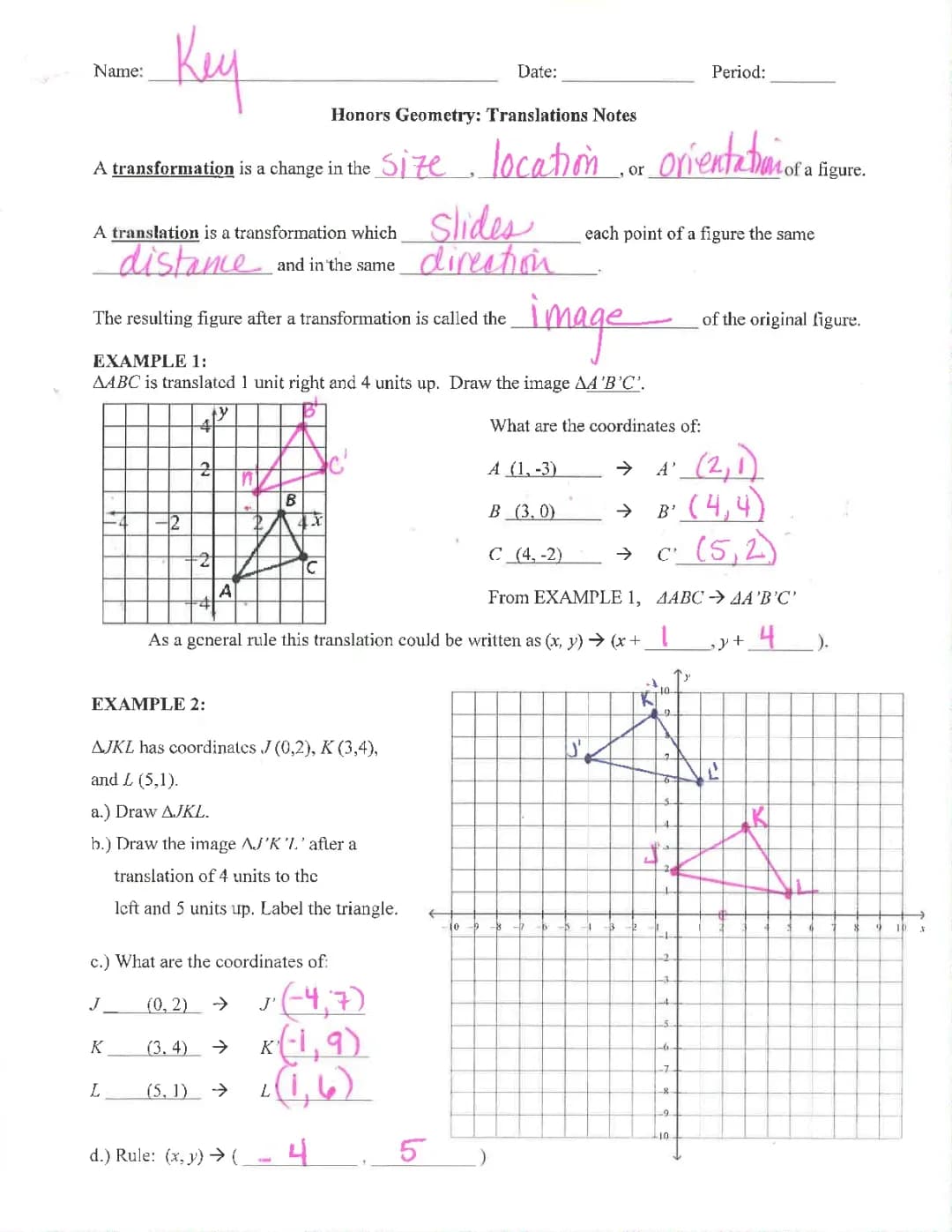

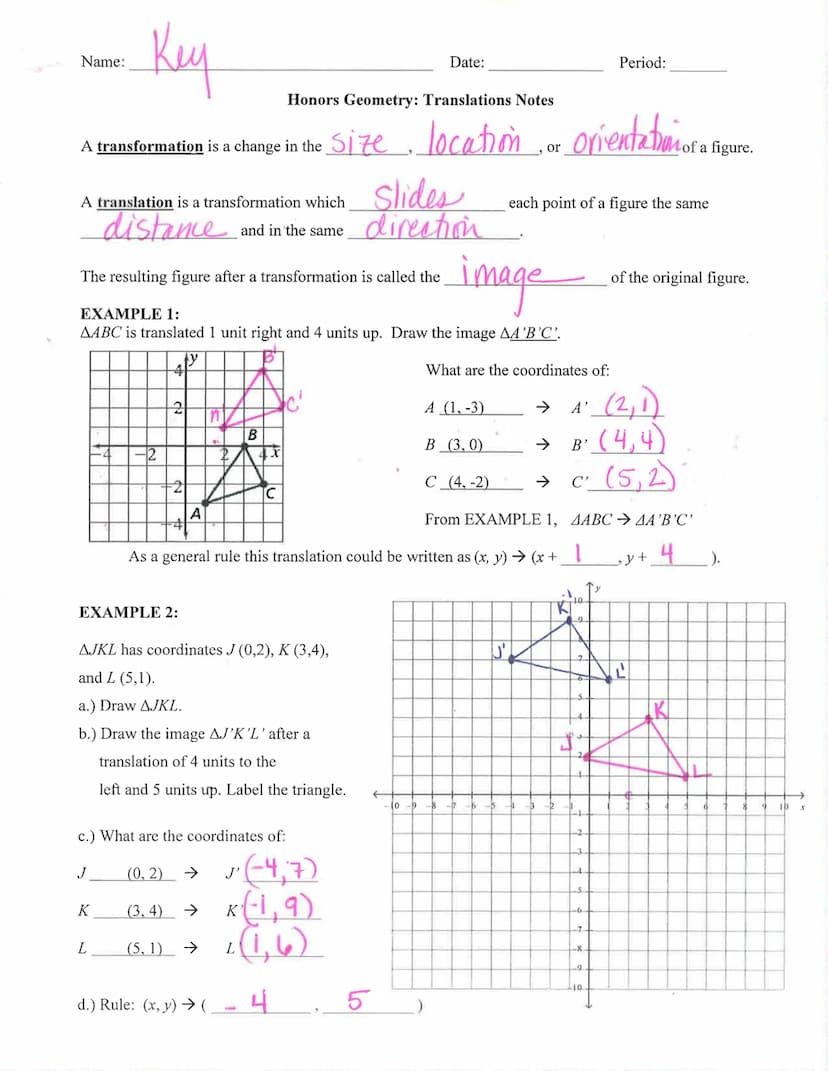

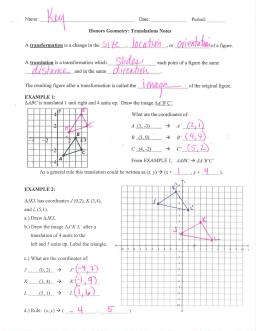

Example: Consider translating triangle ABC with coordinates A$1,-3$, B(3,0), and C$4,-2$ by moving it 1 unit right and 4 units up. The new coordinates would be A'(2,1), B'(4,4), and C'(5,2).

When performing translations in Math, remember that every vertex moves the same distance and direction. This maintains the figure's original shape and size, making the original and image congruent figures.

Advanced Translation Concepts and Applications

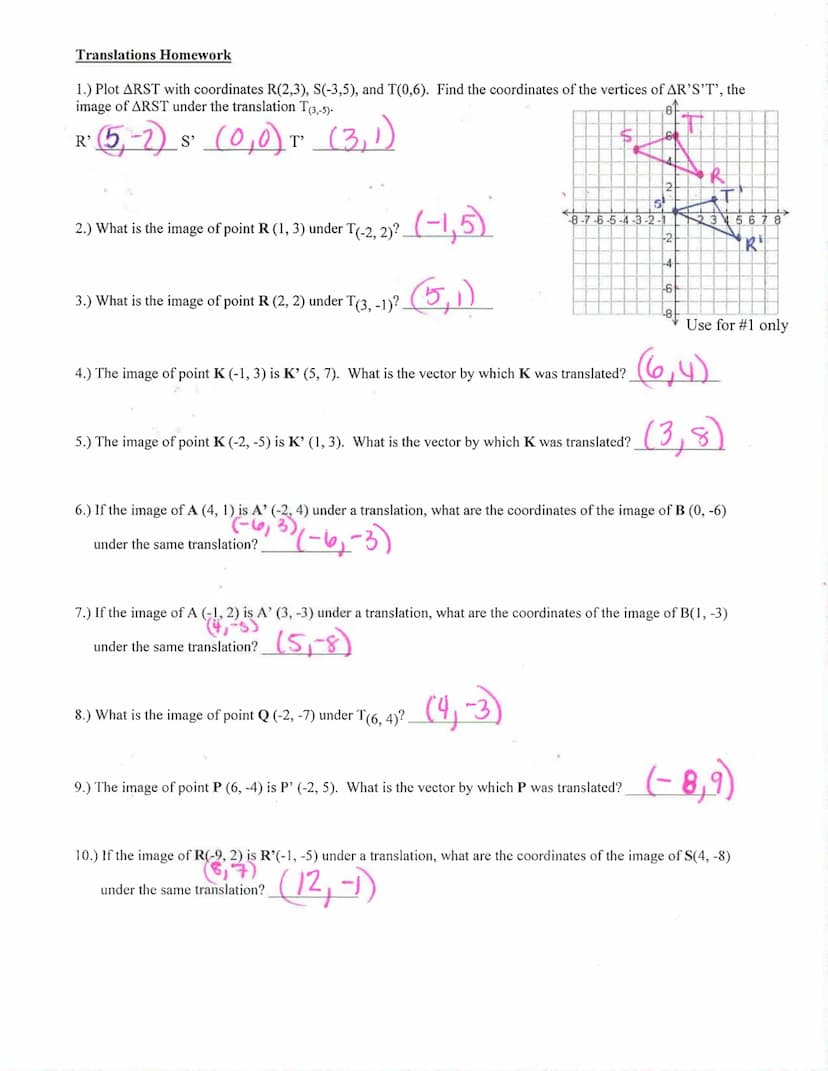

Understanding how to translate shapes by vectors requires mastering coordinate shifts. A vector represents both direction and distance of translation.

Vocabulary: A vector is written as T(a,b) where 'a' represents horizontal movement and 'b' represents vertical movement.

The translation rule formula can be written as:

• For x-coordinates: x' = x + a
• For y-coordinates: y' = y + b

Highlight: When translating figures, positive values move right/up, while negative values move left/down.

Working with translation of shapes in Maths involves systematic steps:

1. Plot the original figure
2. Apply the translation rule to each vertex
3. Connect the transformed points to create the image

Practical Applications of Geometric Translations

Translation of a figure geometry has numerous real-world applications. Understanding how to perform these transformations helps in:

• Computer graphics and animation
• Architecture and design
• Navigation and mapping
• Pattern creation

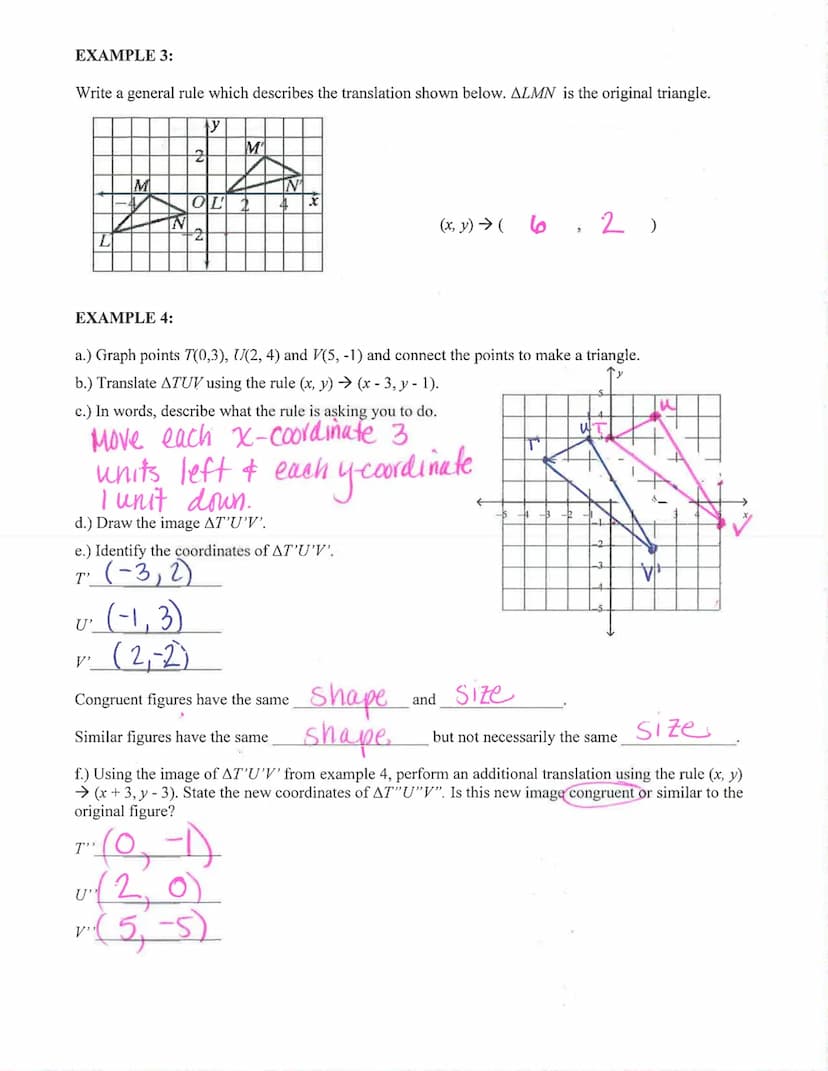

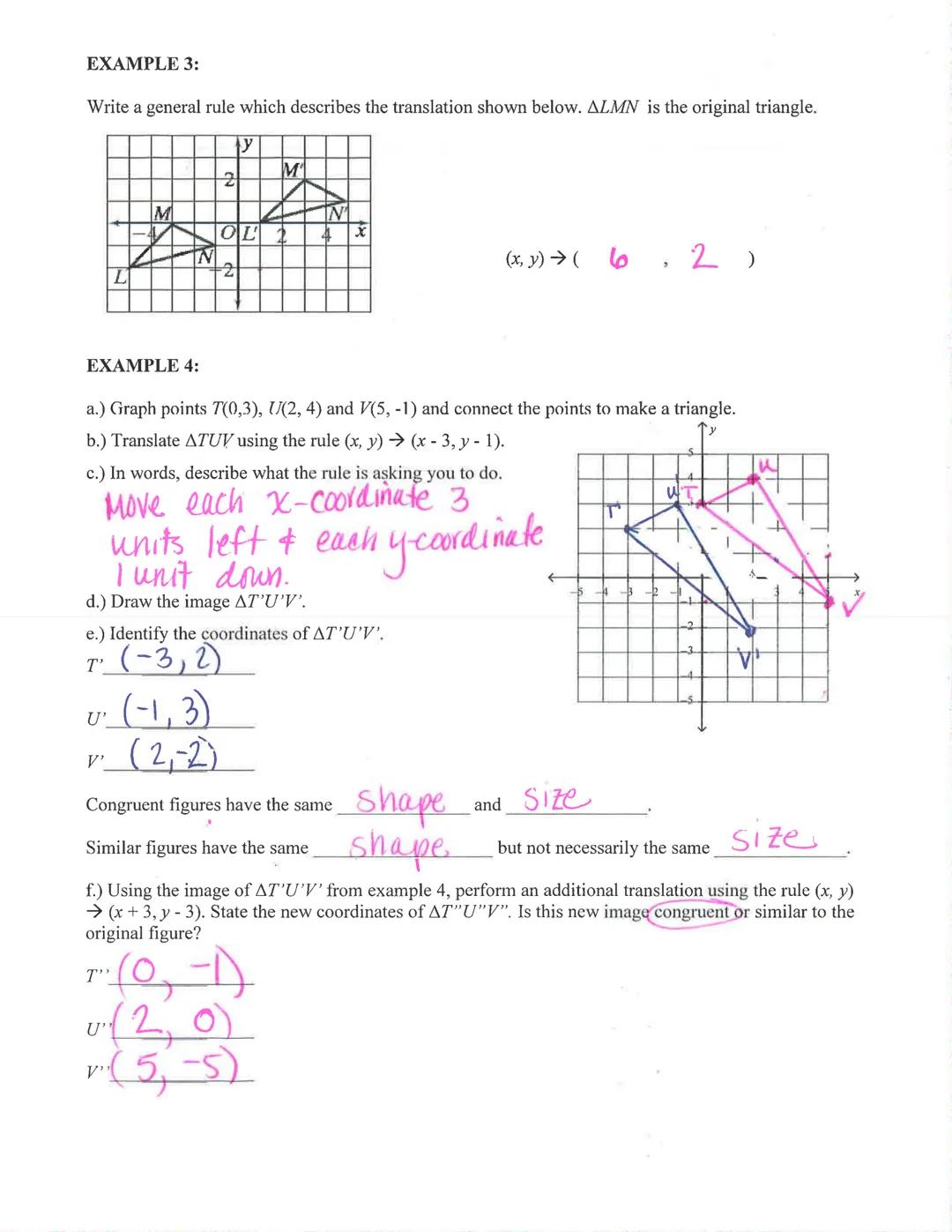

Example: To translate triangle TUV with coordinates T(0,3), U(2,4), and V$5,-1$ using the rule (x,y) → $x-3, y-1$:

1. Subtract 3 from each x-coordinate
2. Subtract 1 from each y-coordinate
3. New coordinates: T'$-3,2$, U'$-1,3$, V'$2,-2$

The translation rules algebra concepts connect directly to more advanced mathematical topics like vectors and functions.

Complex Translation Problems and Solutions

When working with multiple translations or composite transformations, it's crucial to follow each step carefully. The 4 types of transformation in geometry include translations, reflections, rotations, and dilations.

Definition: Composite transformations occur when multiple transformations are applied sequentially to a figure.

For example, if we translate a figure twice:

1. First translation: (x,y) → $x+2, y-3$
2. Second translation: (x,y) → $x-1, y+4$ The final translation can be combined: (x,y) → $x+1, y+1$

Highlight: When solving translation problems, always verify that:

• The distance between corresponding points remains constant
• The figure maintains its original shape and size
• All vertices move in the same direction and distance

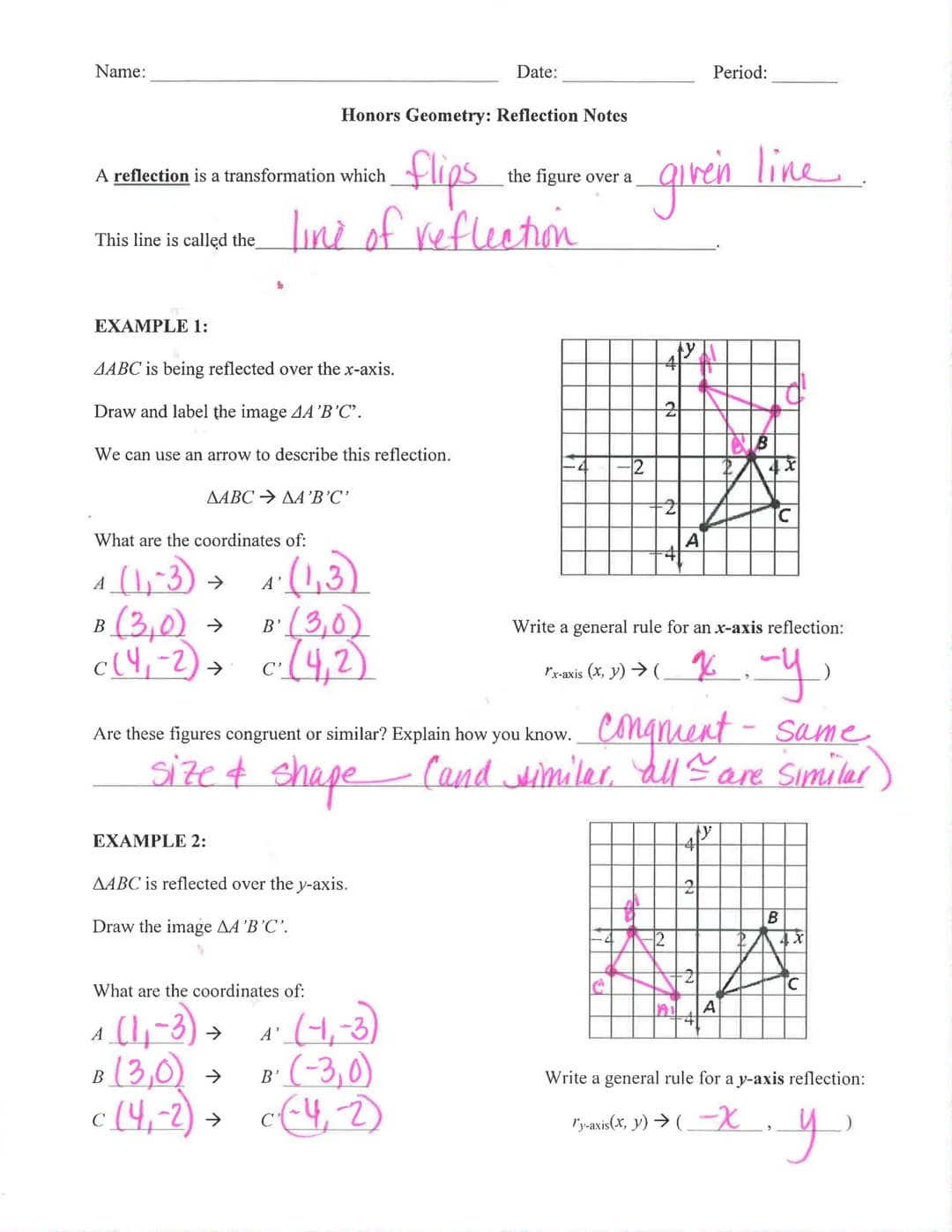

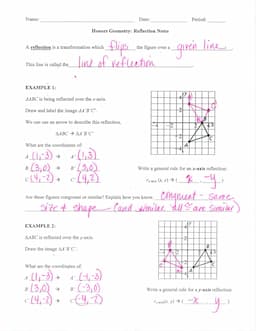

Understanding Geometric Reflections and Transformations

Translation of shapes in Maths involves precise movements of figures across a coordinate plane. When working with reflections, students must understand how figures are mirrored across various lines of reflection.

Definition: A reflection is a transformation that flips a figure across a line, creating a mirror image while preserving the figure's size and shape.

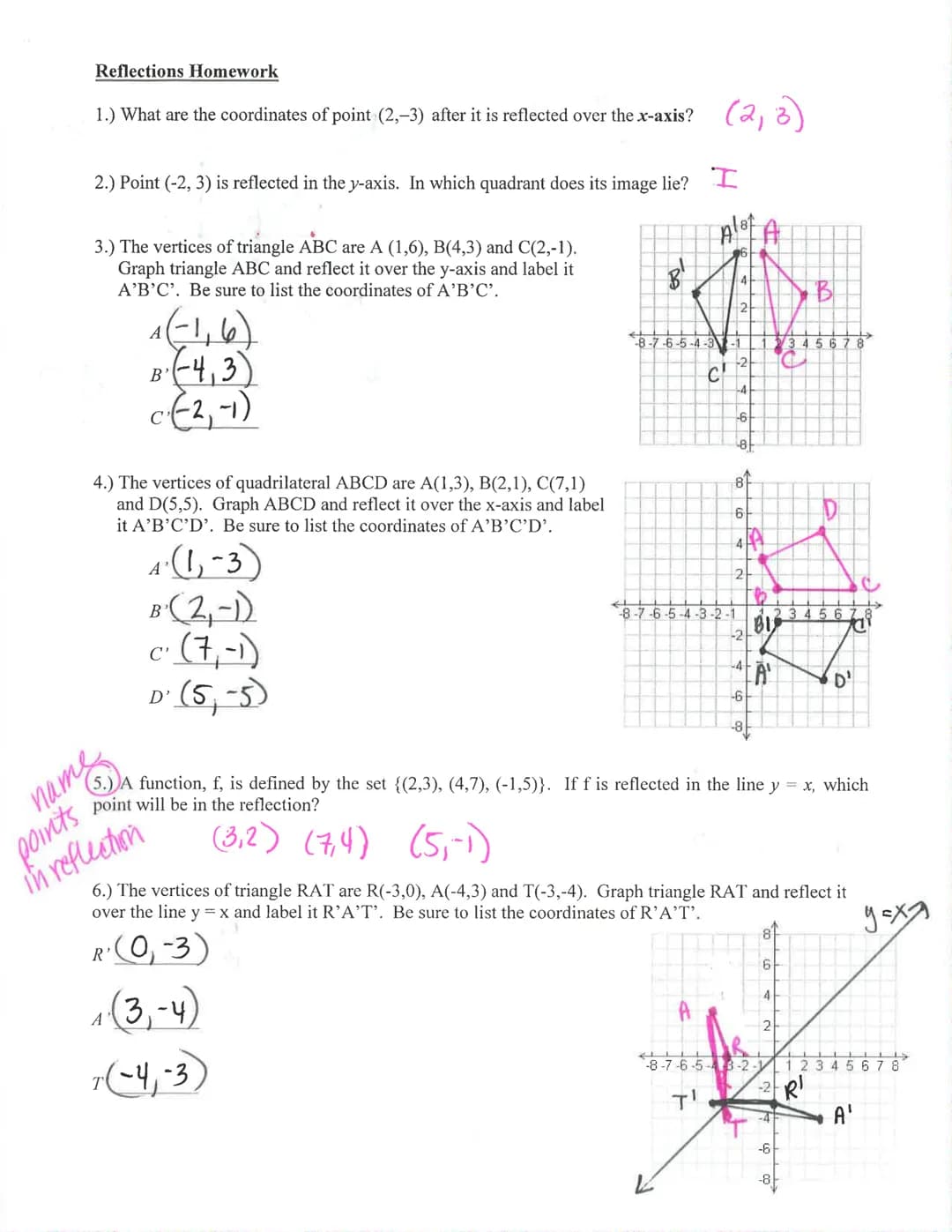

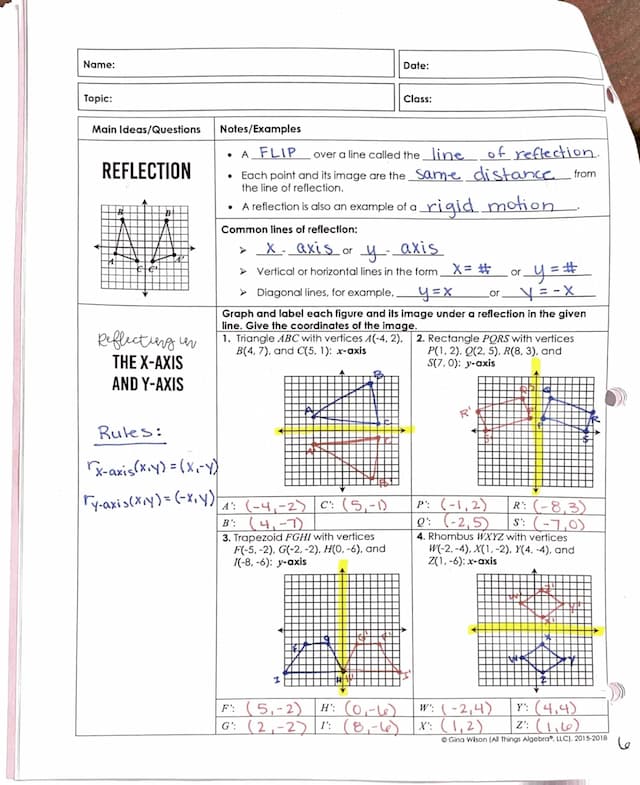

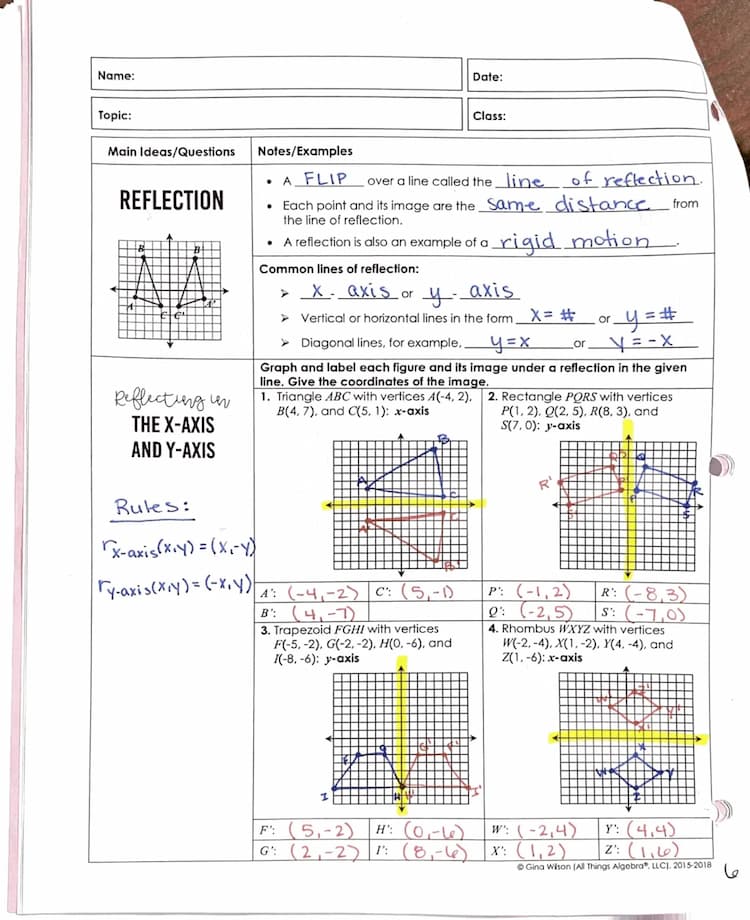

In working with reflections over the x-axis, the coordinates follow a specific pattern. For any point (x,y), its reflection over the x-axis becomes $x,-y$. This means the x-coordinate stays the same while the y-coordinate changes sign. This creates a perfect mirror image below the x-axis.

Example: When reflecting point A(1,3) over the x-axis, the image point A' becomes $1,-3$. The distance from the point to the line of reflection equals the distance from the image to the line.

For y-axis reflections, the rule changes slightly. Points reflected over the y-axis follow the rule (x,y) → $-x,y$. The y-coordinate remains unchanged while the x-coordinate changes sign. This creates a mirror image on the opposite side of the y-axis.

Advanced Reflection Transformations

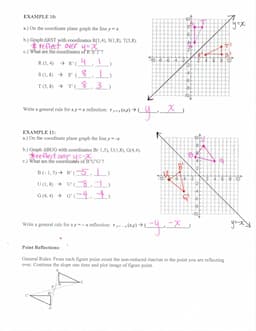

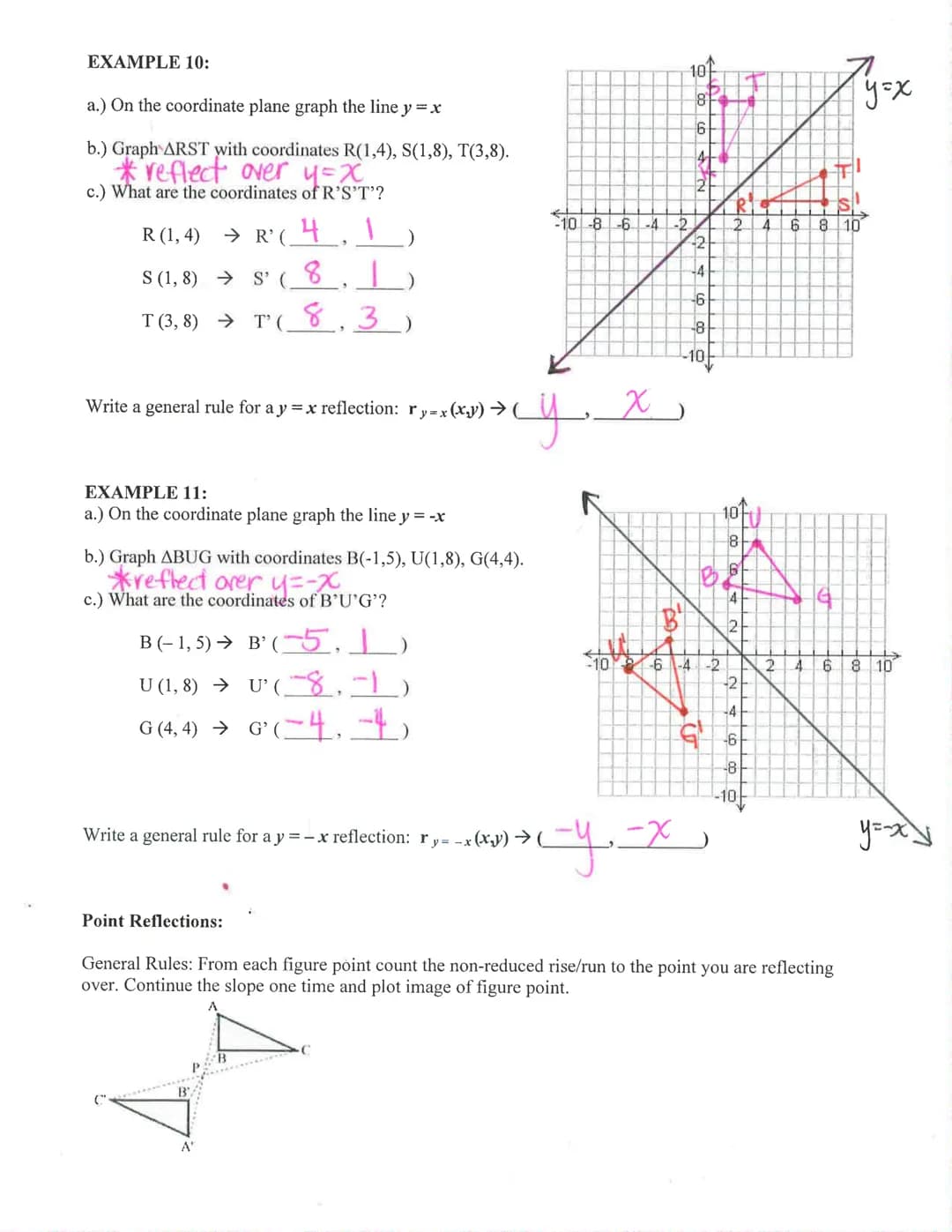

When working with diagonal lines of reflection like y=x or y=-x, the Translation rules algebra become more complex. For a reflection over y=x, coordinates are swapped: (x,y) → (y,x).

Vocabulary: Line of reflection - The line across which a figure is reflected, acting as a mirror line for the transformation.

Students practicing How to translate shapes by vectors should understand that reflections preserve:

• Distance from the line of reflection
• Size and shape of the original figure
• Angle measures
• Parallel relationships

Highlight: All reflections create congruent images, meaning the original figure and its reflection have exactly the same size and shape.

Complex Reflection Applications

Understanding Translation rule formula helps students work with multiple reflections. When combining reflections, the order of operations matters and can lead to different final positions.

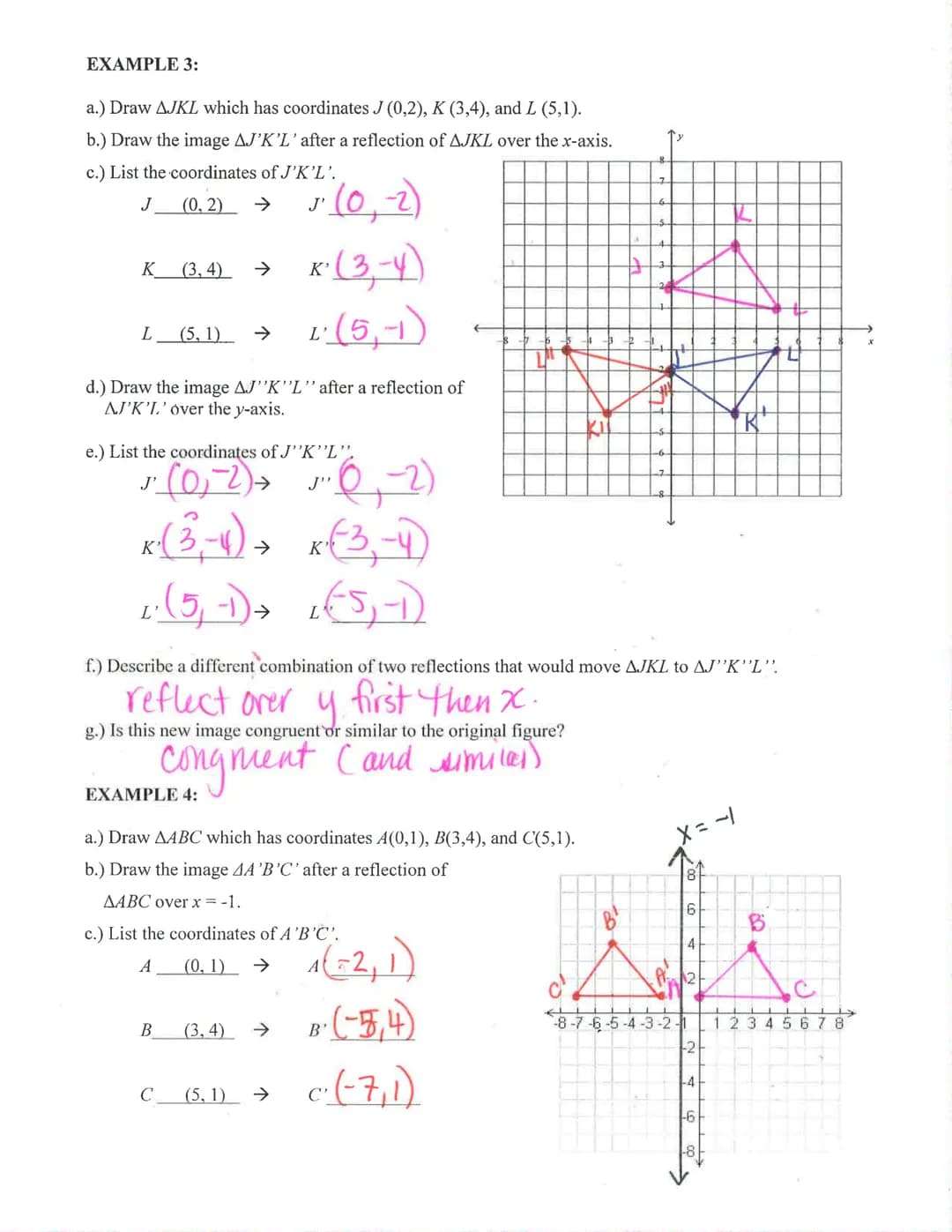

Example: Reflecting a triangle first over the x-axis and then over the y-axis produces a different result than reflecting first over the y-axis and then over the x-axis.

The Translation shapes examples demonstrate how to:

• Plot original coordinates accurately
• Measure distances from reflection lines
• Transfer angles precisely
• Verify congruence of reflected figures

Working with Translation of a figure geometry requires careful attention to:

• Coordinate plotting
• Distance preservation
• Angle measurement
• Parallel line relationships

Practical Applications and Problem-Solving

How to do translations in Math extends beyond basic reflections to real-world applications. Architects and designers use reflective symmetry in their work, while computer graphics rely on transformation matrices.

Definition: A transformation rule is a mathematical statement that describes how to map every point of a figure to its image position.

When solving reflection problems, students should:

1. Identify the line of reflection
2. Measure perpendicular distances
3. Transfer measurements precisely
4. Verify coordinate relationships

Highlight: Understanding Translation rule math 8th grade concepts builds foundation for advanced geometry and spatial reasoning skills.

Understanding Reflections in Coordinate Geometry

Transformation in mathematics involves various operations that change the position or orientation of geometric figures. One crucial type of transformation is reflection, which creates mirror images of points and shapes across a line of reflection. When working with translations, reflections and rotations, understanding how coordinates change during reflection is essential for mastering geometric transformations.

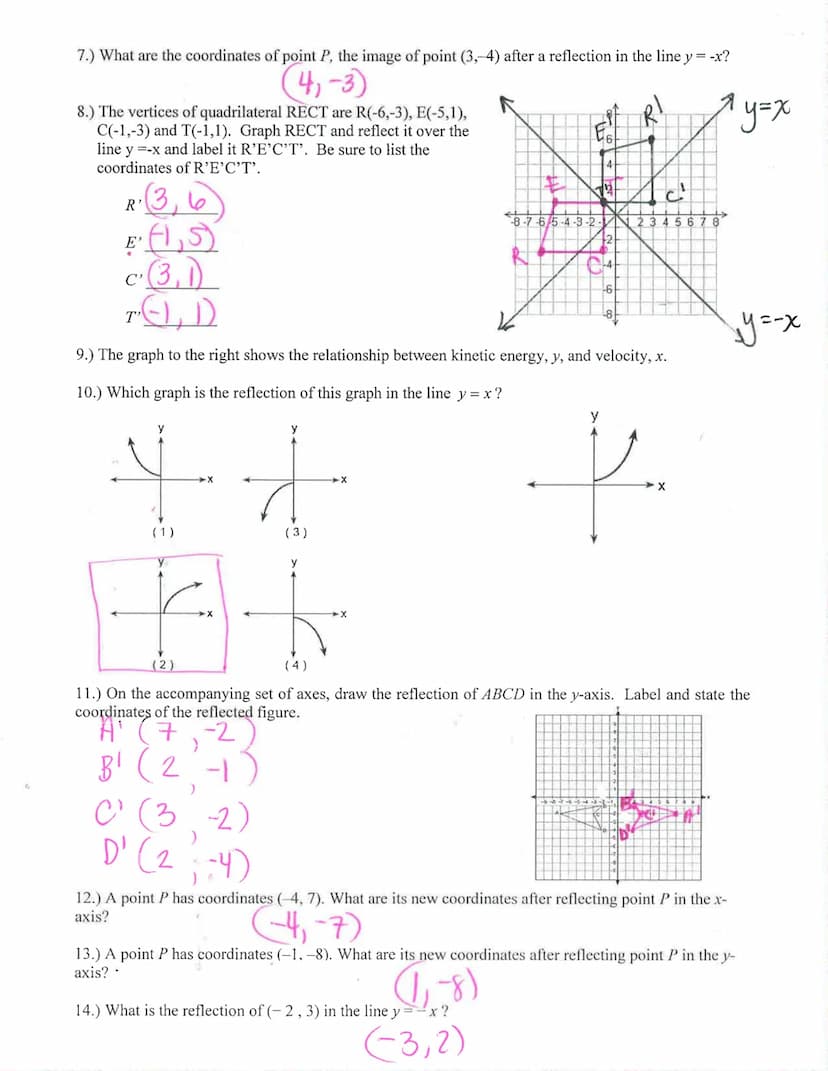

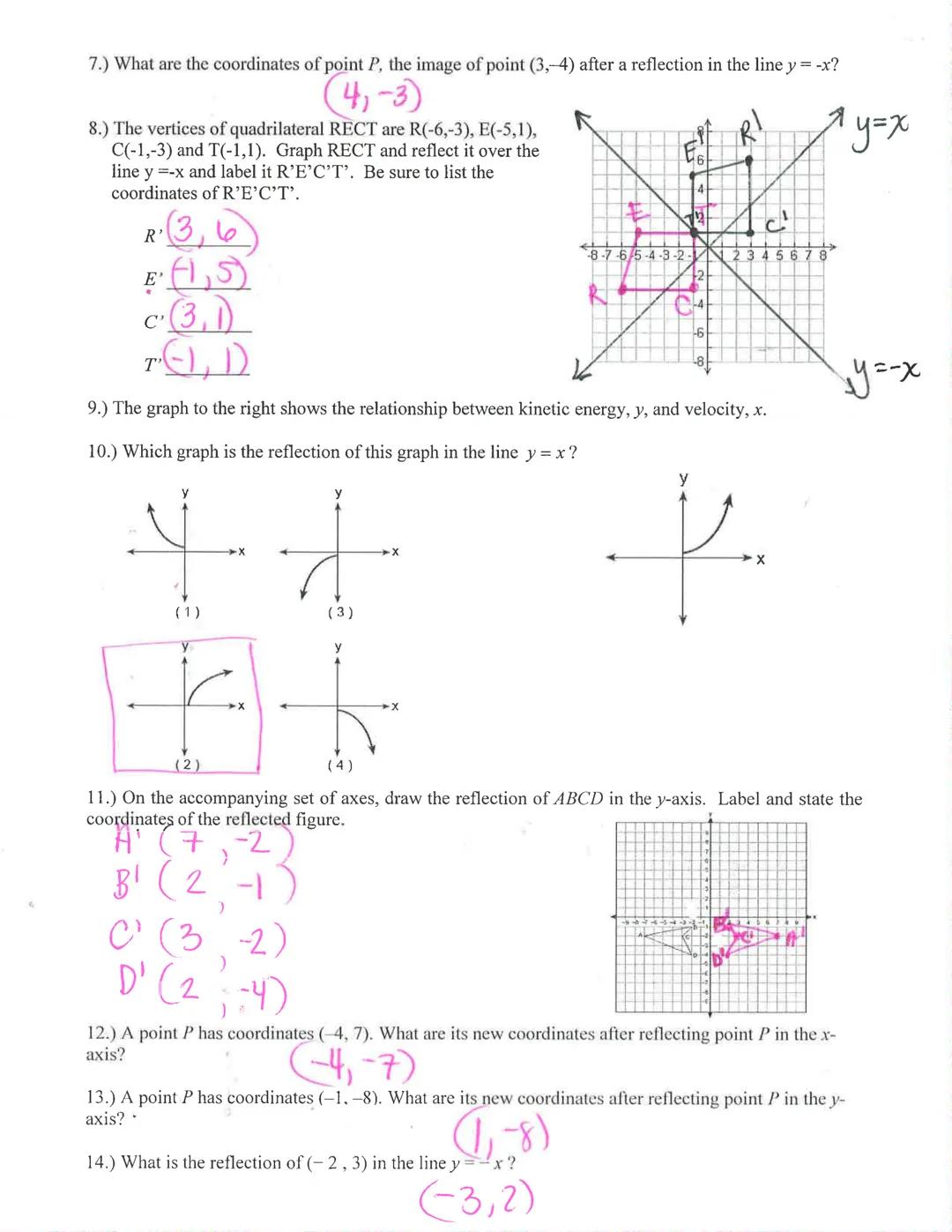

In coordinate geometry, reflecting points across different lines follows specific rules. When reflecting across the line y = -x, the x and y coordinates swap places and change signs. For example, when point $3, -4$ is reflected across y = -x, its image coordinates become $-4, 3$. This transformation creates a mirror image that appears to flip diagonally across the line y = -x.

Definition: A reflection is a transformation that produces a mirror image of a geometric figure across a line of reflection. The line of reflection acts as an invisible mirror.

When reflecting shapes across the y-axis, the x-coordinates change sign while y-coordinates remain the same. For instance, point $-4, 7$ reflected across the y-axis becomes (4, 7). Similarly, reflection across the x-axis keeps x-coordinates the same but changes the sign of y-coordinates. These rules are fundamental for understanding geometric transformations and translations.

Advanced Applications of Geometric Reflections

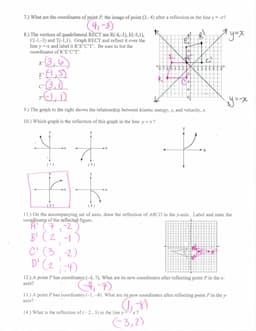

Working with complex shapes like quadrilaterals requires careful attention to each vertex during reflection. When reflecting quadrilateral RECT with vertices at R$-6,-3$, E$-5,1$, C$-1,-3$, and T$-1,1$ across y = -x, each vertex must be transformed individually following the reflection rules. This process demonstrates how Translation shapes examples work in practice.

Example: When reflecting point P$-1, -8$ across the y-axis:

• The x-coordinate changes sign: -1 → 1
• The y-coordinate stays the same: -8
• The reflected point P' has coordinates $1, -8$

Understanding these transformations is crucial for solving real-world problems involving symmetry and spatial relationships. The concepts of reflection apply to various fields, from architecture to computer graphics, making them essential components of 4 types of transformation in mathematics. Students should practice identifying reflection lines and determining coordinate changes to build strong geometric reasoning skills.

Highlight: Remember that the distance from any point to the line of reflection equals the distance from its image to the line of reflection. This property helps verify correct reflections.
