Understanding Triangle Congruence: Key Concepts and Examples

Triangle Congruence

Triangle congruence means that two triangles have exactly the same shape and size. When triangles are congruent, all their corresponding parts (sides and angles) match perfectly.

This concept forms the foundation for many geometric proofs and problem-solving techniques. You'll soon learn there are several ways to prove triangles are congruent without having to check every single side and angle.

Remember: When we say triangles are congruent, we use the symbol ≅, as in △ABC ≅ △DEF.

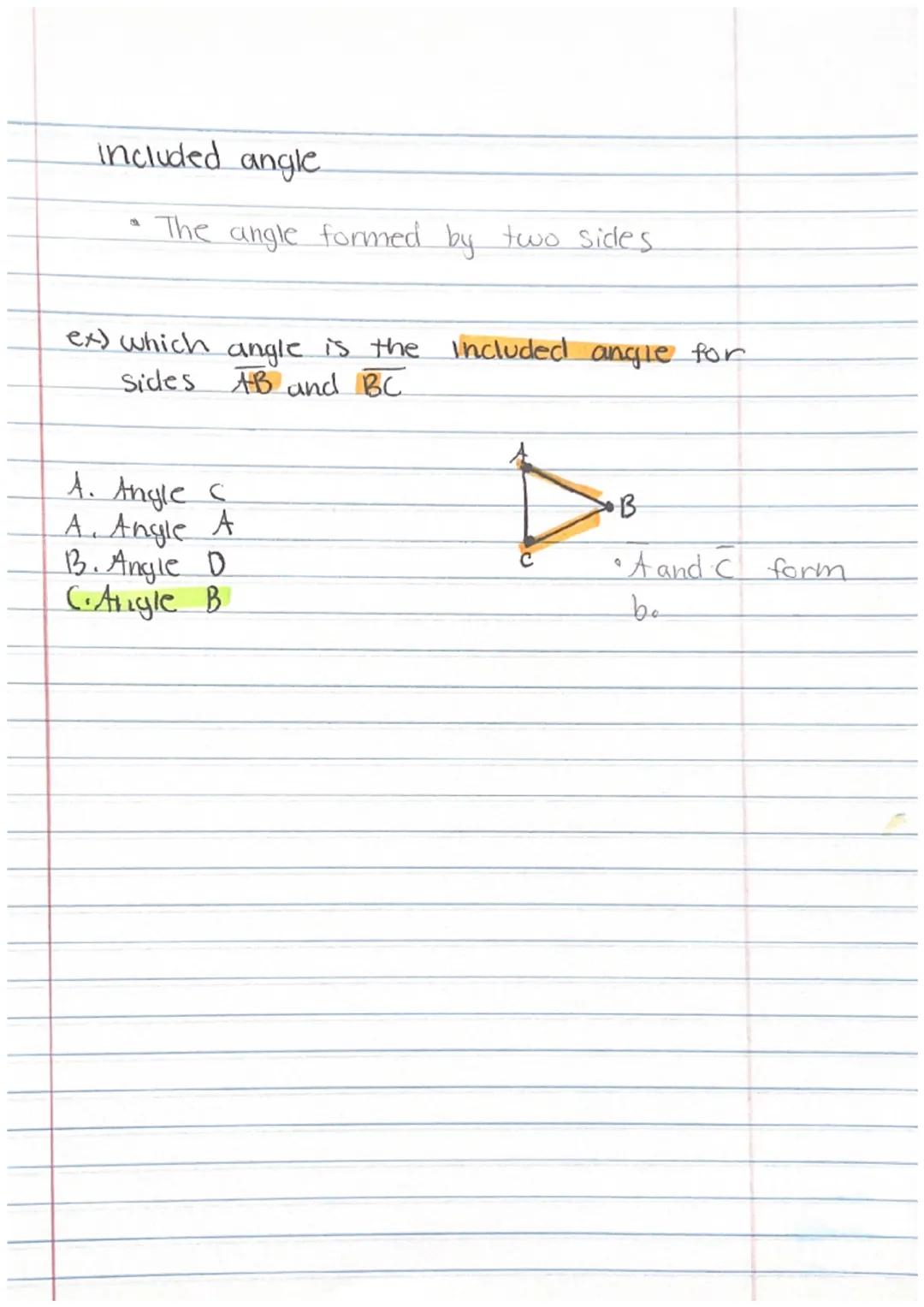

Included Angle

An included angle is the angle formed between two sides of a triangle. This concept is critical for understanding several congruence postulates.

For example, if you're looking at sides AB and BC, the included angle would be angle B, since it's formed by those two specific sides meeting at point B.

When identifying included angles, always look for the angle created at the point where your two sides intersect. This will be important when we work with the SAS congruence postulate.

Quick Tip: The included angle is always at the "shared" vertex of the two sides you're considering.

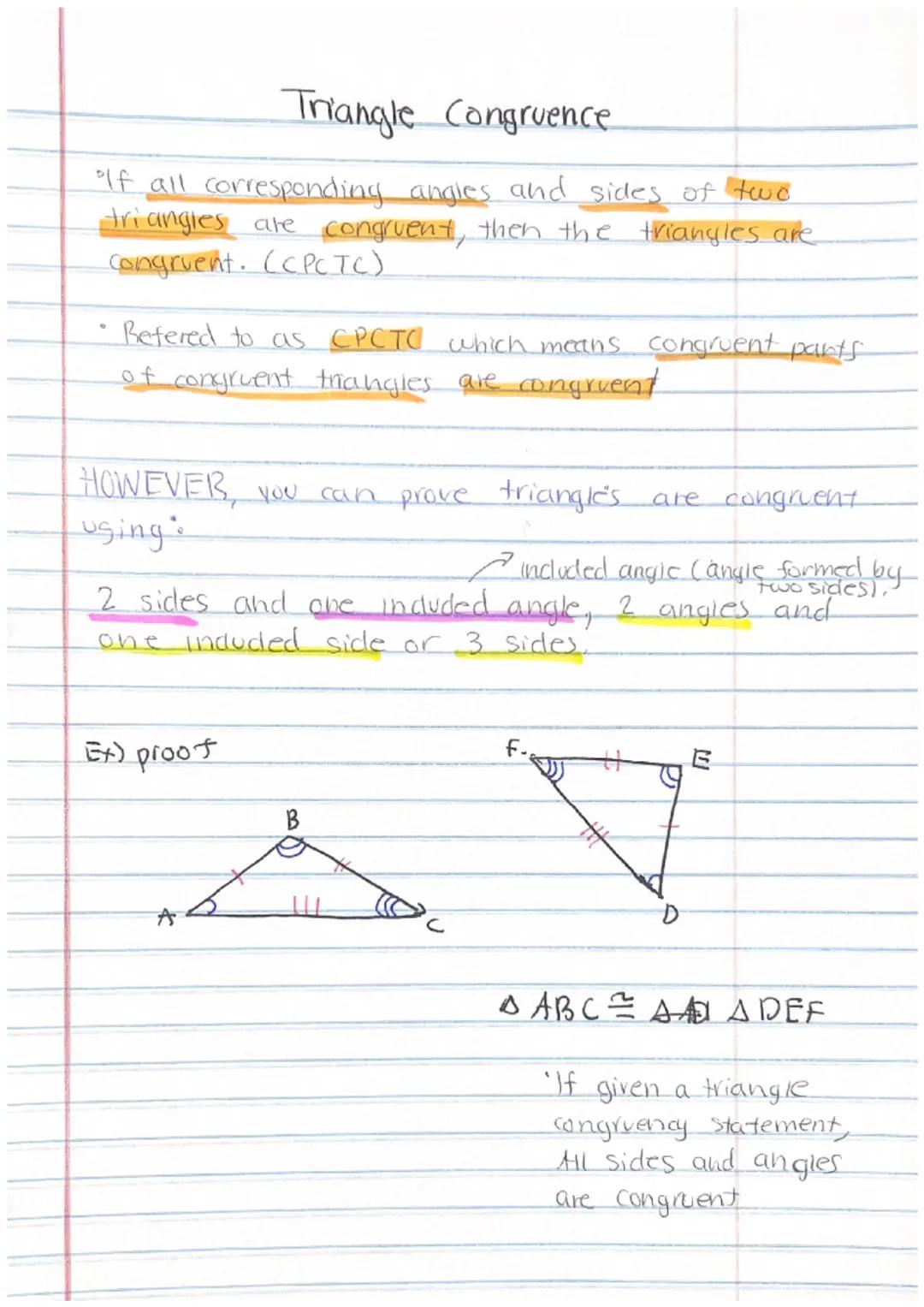

CPCTC Principle

When two triangles are congruent, all their corresponding parts are also congruent. This principle is known as CPCTC (Corresponding Parts of Congruent Triangles are Congruent).

However, you don't need to check all six parts (3 sides and 3 angles) to prove triangles are congruent. You can use shortcuts like: two sides and the included angle, two angles and the included side, or just three sides.

For example, if △ABC ≅ △DEF, then side AB equals side DE, angle A equals angle D, and so on for all corresponding parts. This makes CPCTC a powerful tool for solving geometric problems.

Important: Once you prove triangles are congruent, you can use CPCTC to state that any corresponding parts are equal!

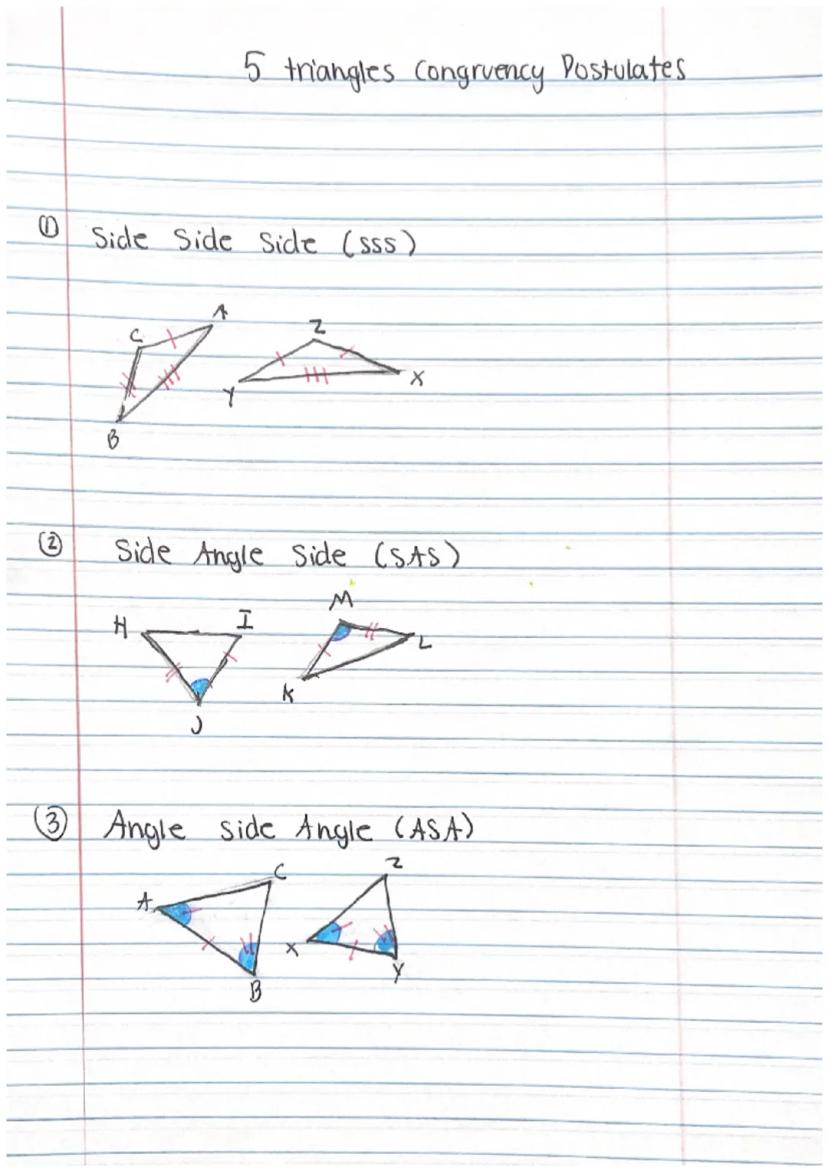

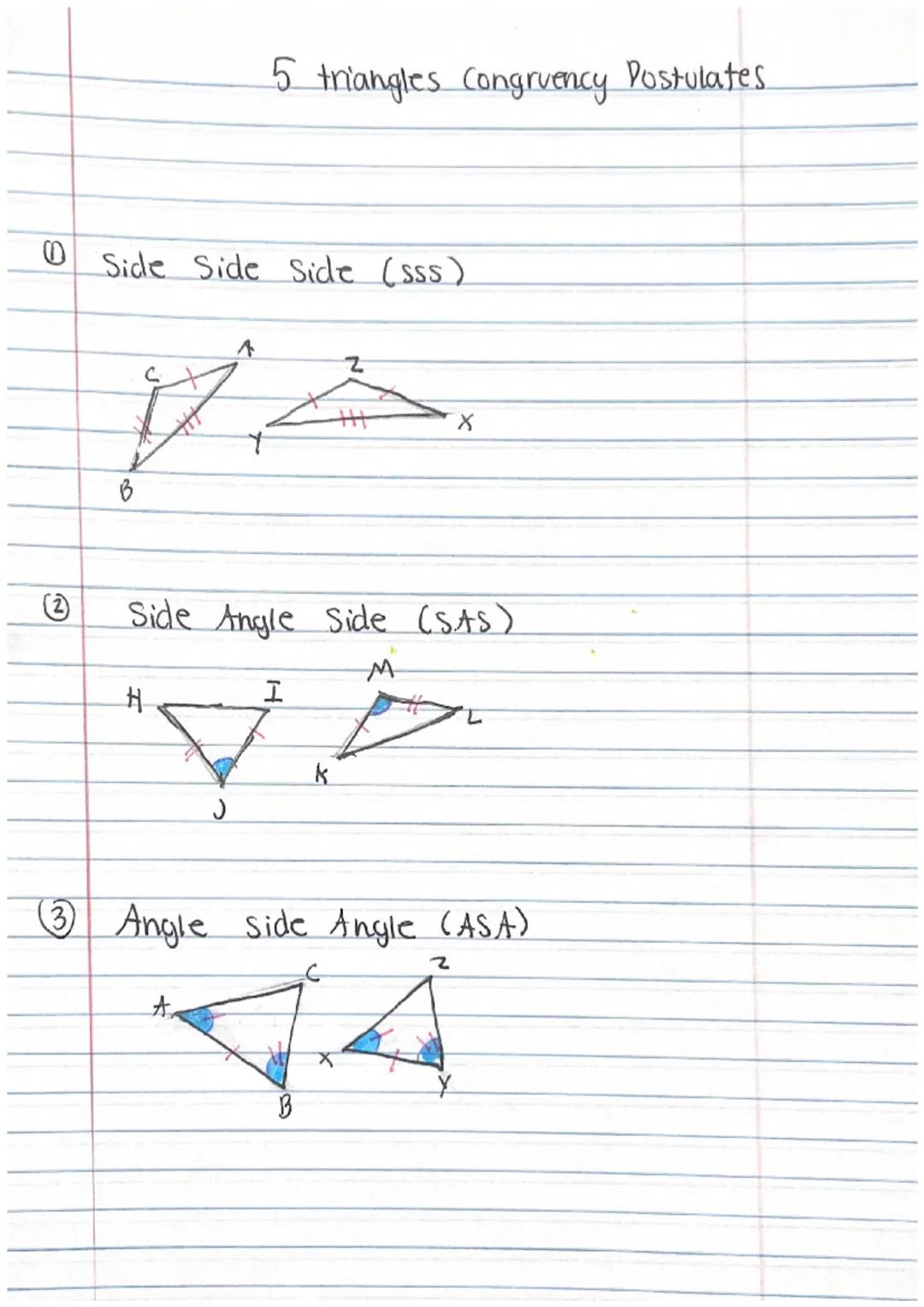

Triangle Congruence Postulates (Part 1)

There are five ways to prove triangles are congruent. Here are the first three:

1. SSS (Side-Side-Side): If all three sides of one triangle are equal to the corresponding sides of another triangle, the triangles are congruent.

2. SAS (Side-Angle-Side): If two sides and the included angle of one triangle are equal to the corresponding sides and included angle of another triangle, the triangles are congruent.

3. ASA (Angle-Side-Angle): If two angles and the included side of one triangle are equal to the corresponding angles and included side of another triangle, the triangles are congruent.

Learning Tip: Try creating a mental image for each postulate - SSS means matching all sides, SAS means two sides sandwiching an angle, and ASA means two angles sandwiching a side.

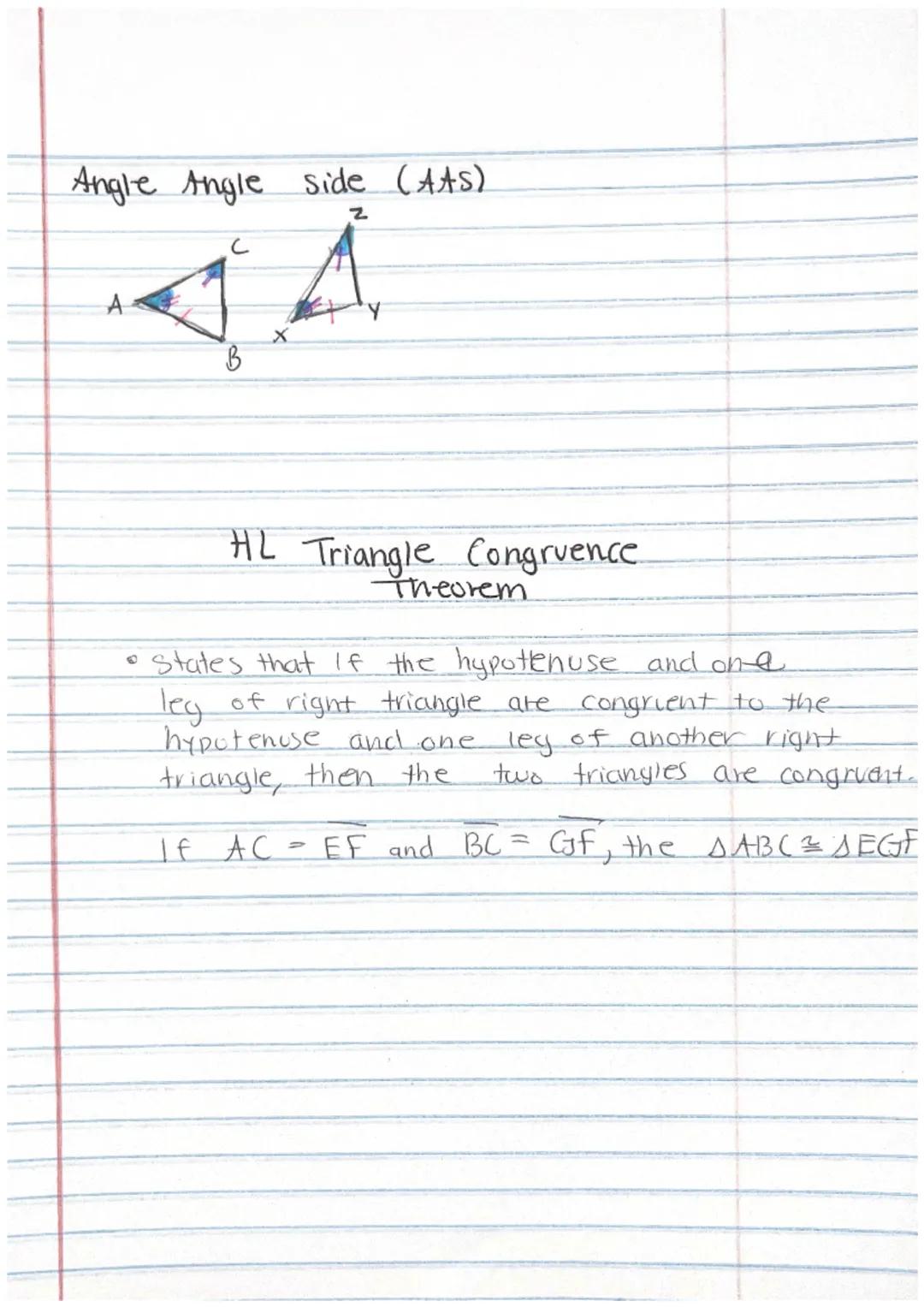

Triangle Congruence Postulates (Part 2)

Let's continue with the remaining congruence rules:

4. AAS (Angle-Angle-Side): If two angles and a non-included side of one triangle are equal to the corresponding angles and side of another triangle, the triangles are congruent.

5. HL (Hypotenuse-Leg): If the hypotenuse and one leg of a right triangle are equal to the hypotenuse and the corresponding leg of another right triangle, the triangles are congruent.

The HL Theorem is special because it only works for right triangles. For example, if AC = EF and BC = GF in right triangles ABC and EGF, then the triangles are congruent.

Remember: The HL Theorem is essentially a special case of the SSS postulate that only works for right triangles!

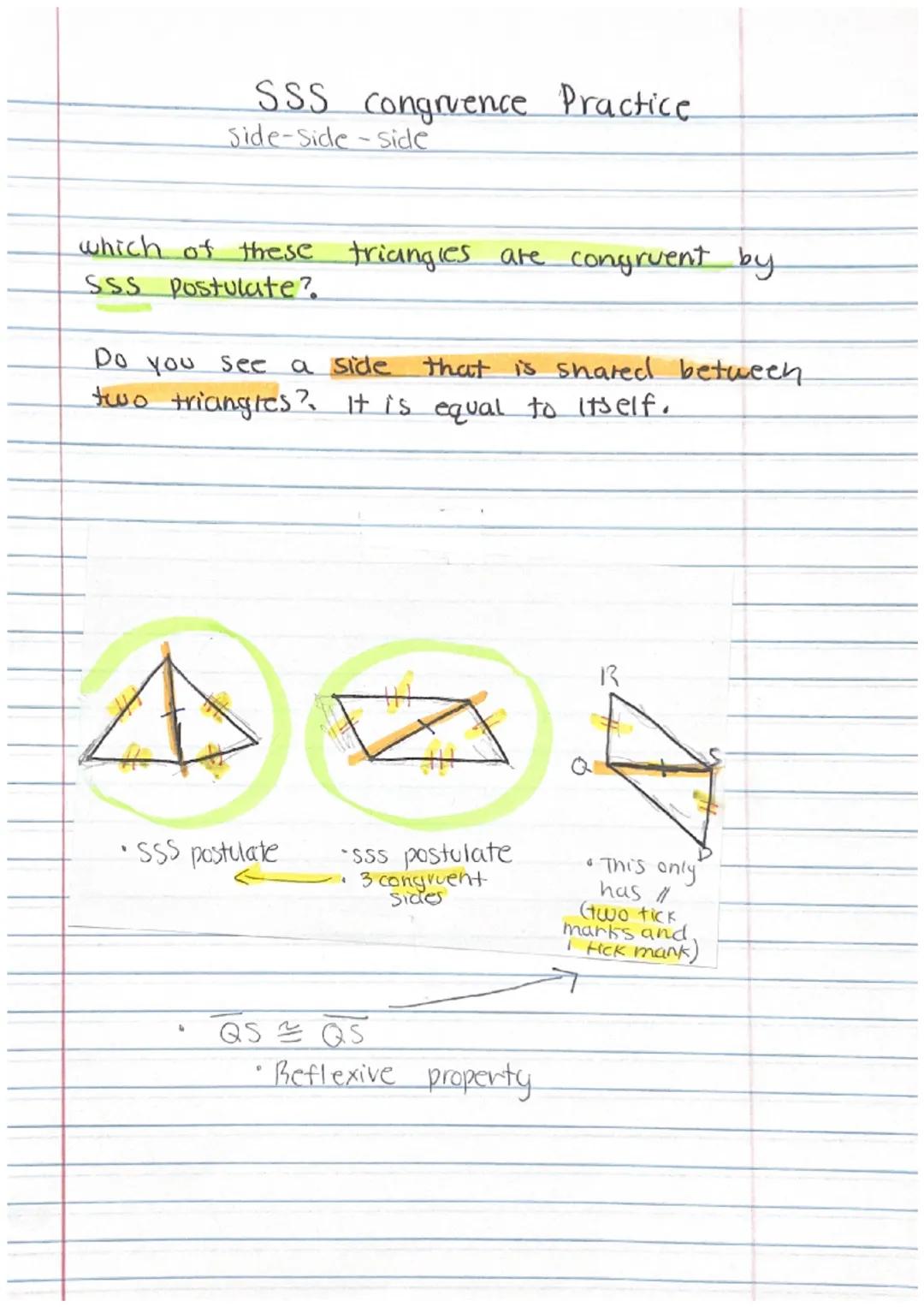

SSS Congruence Practice

The SSS postulate requires that all three sides of one triangle equal the corresponding sides of another triangle.

When looking for SSS congruence, watch for shared sides between triangles. A shared side is equal to itself by the reflexive property (like QS ≡ QS).

To apply SSS correctly, make sure you have three pairs of congruent sides. Look for matching tick marks that indicate equal sides. If you only have two pairs of equal sides, you can't use SSS.

Practice Tip: When checking for SSS, count the tick marks carefully. You need exactly three pairs of matching sides to use this postulate.

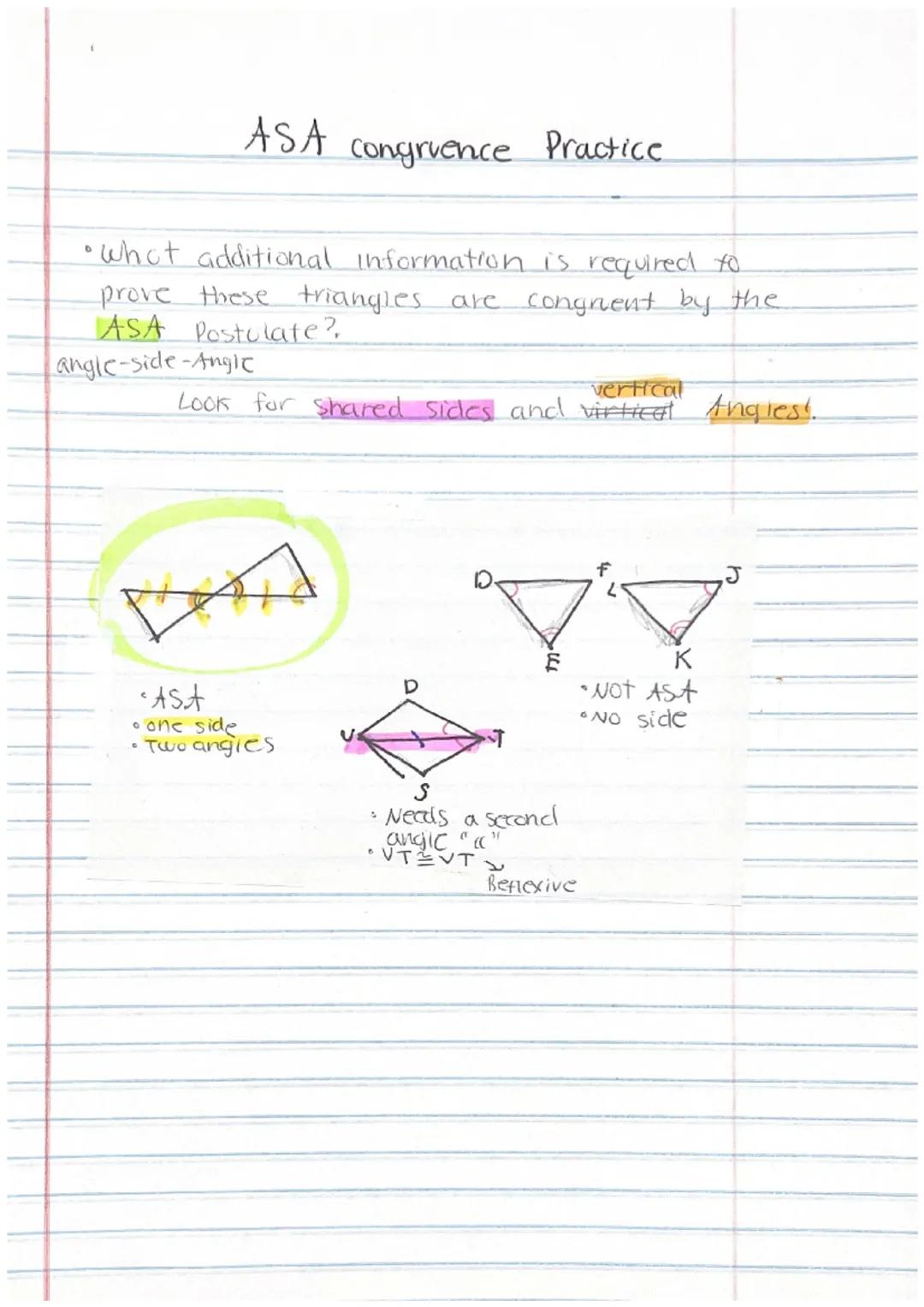

ASA Congruence Practice

The ASA postulate (Angle-Side-Angle) requires two angles and the included side to be congruent.

When working with ASA problems, look for:

• Two pairs of congruent angles
• One pair of congruent sides (between the angles)

Watch for vertical angles (opposite angles at an intersection) as they're always equal. Also remember that shared sides between triangles are congruent to themselves by the reflexive property.

Problem-Solving Tip: If you have two angles but the side isn't between them, you're using AAS, not ASA. Don't confuse these similar-sounding postulates!

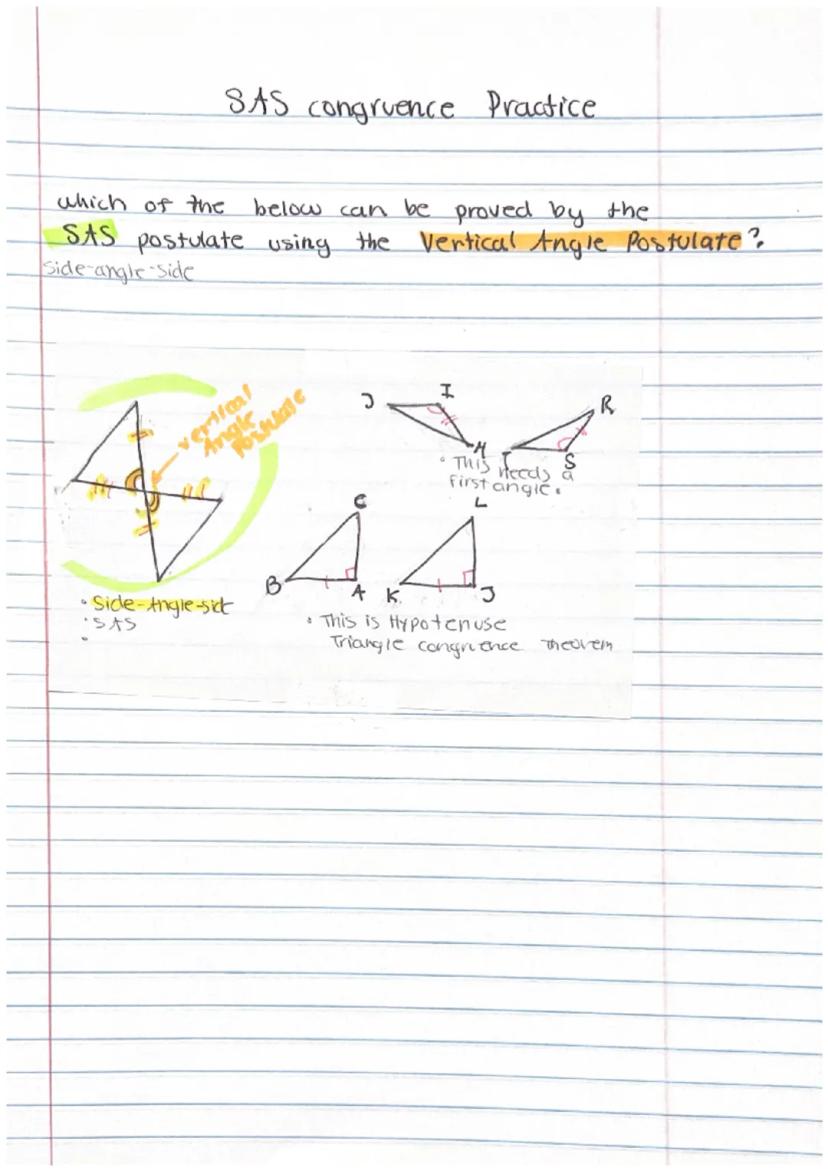

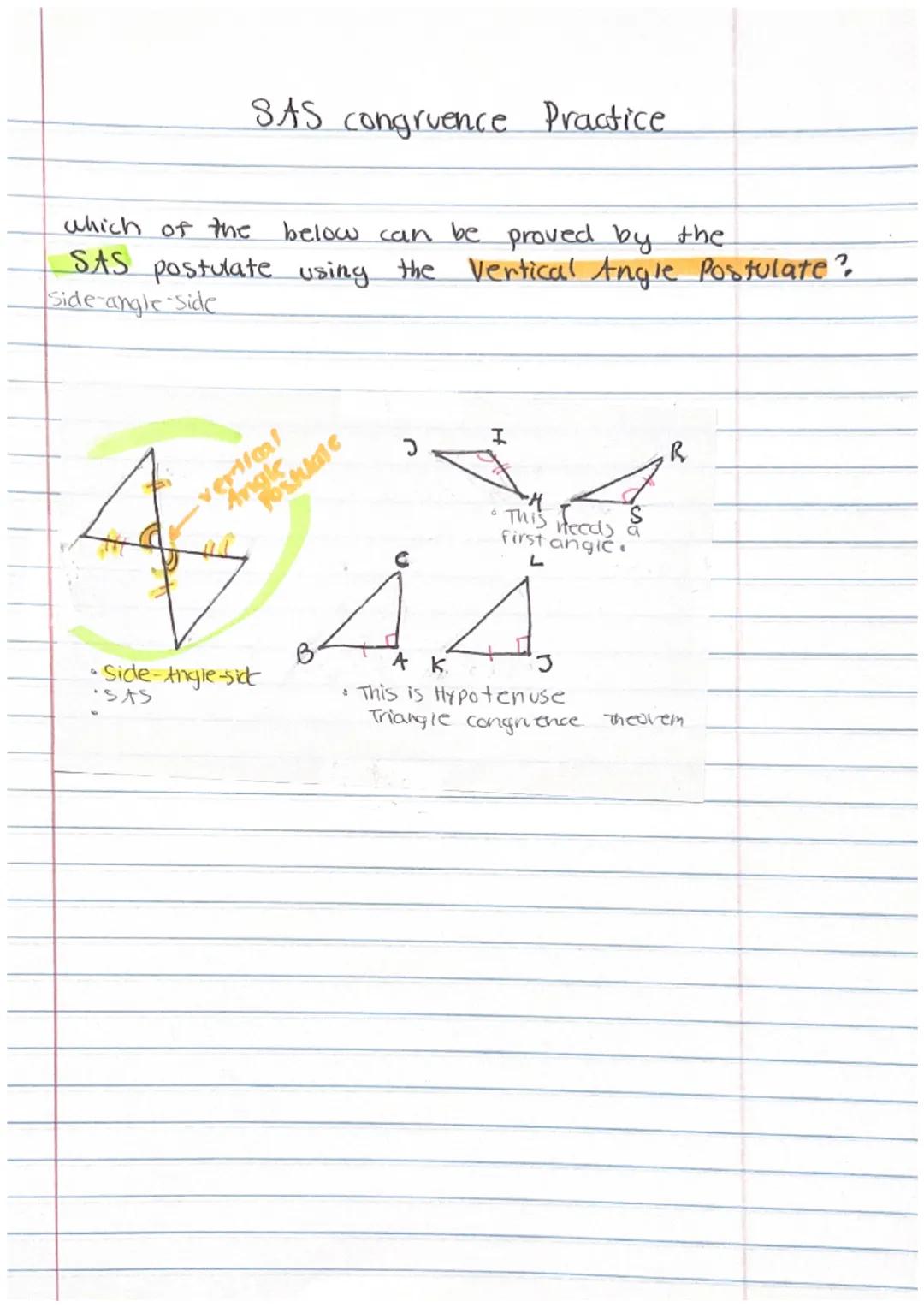

SAS Congruence Practice

The SAS postulate requires two sides and the included angle to be congruent. The angle must be formed by the two sides you're using.

When applying SAS, pay attention to:

• Two pairs of congruent sides
• One pair of congruent angles (between the sides)

The Vertical Angle Postulate can help identify equal angles at intersections. Remember that vertical angles are always congruent, which can give you the angle you need for SAS.

Watch out! If the angle isn't between the two sides, you can't use SAS. The "included" part is crucial for this postulate to work.

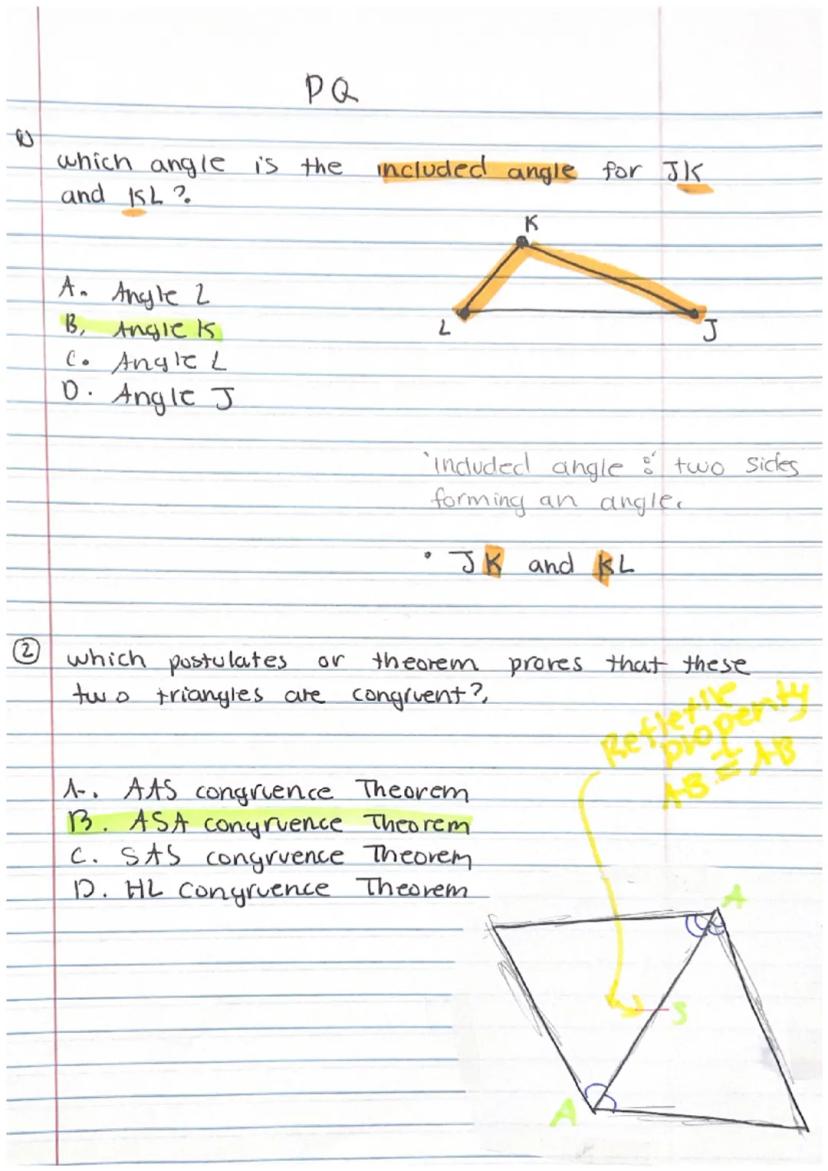

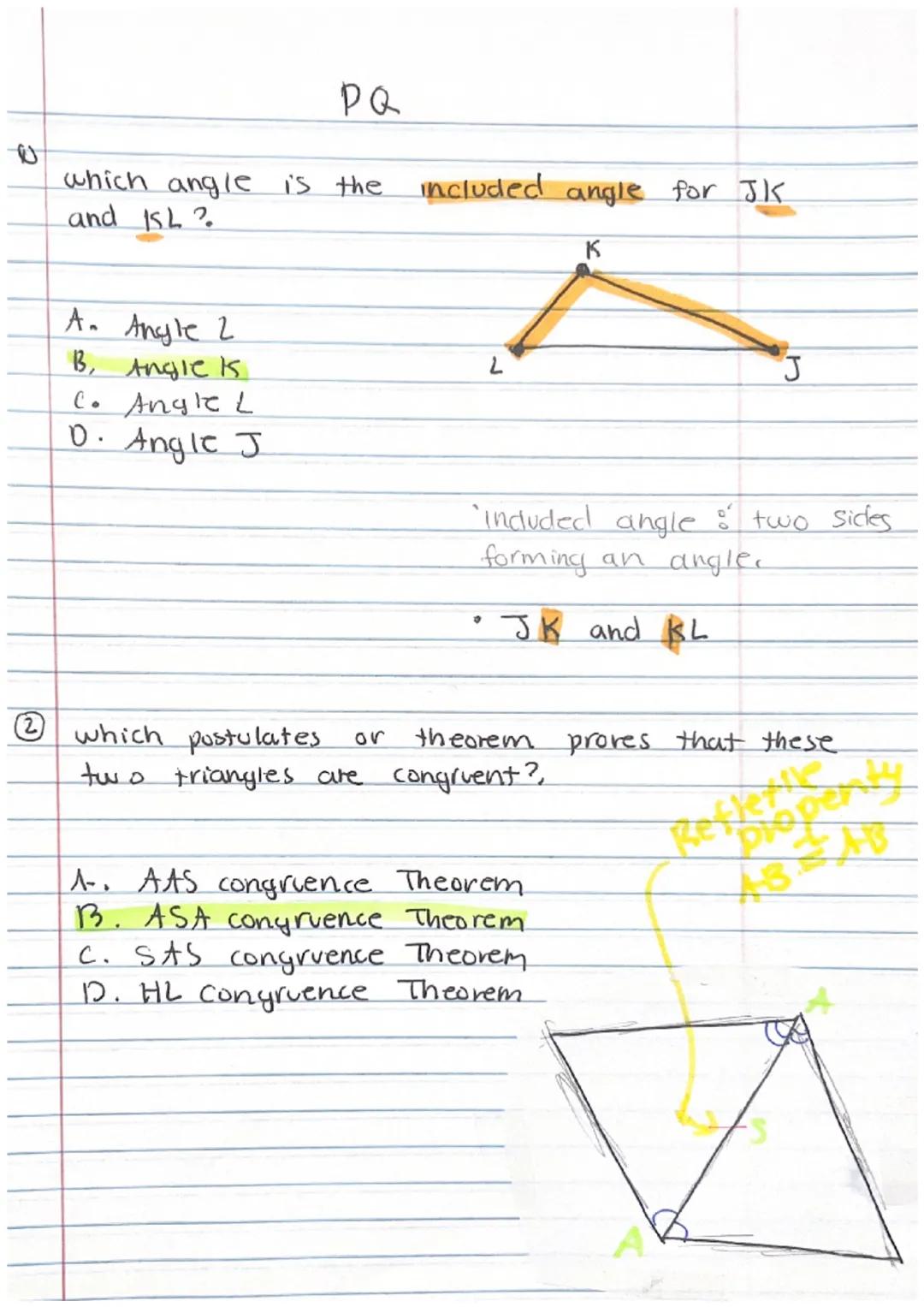

Congruence Review Problems

When identifying an included angle, remember it's formed by two sides meeting at a vertex. For sides JK and KL, the included angle would be angle K since it's where those sides meet.

When determining which postulate proves triangles are congruent, analyze what information you have:

• If you have 3 sides: use SSS
• If you have 2 angles and the side between them: use ASA
• If you have 2 sides and the angle between them: use SAS
• If you have 2 angles and a non-included side: use AAS
• If you have the hypotenuse and a leg of a right triangle: use HL

Test Tip: Always look for the reflective property (like AB = AB) when sides are shared between triangles—this gives you a congruent pair automatically!
