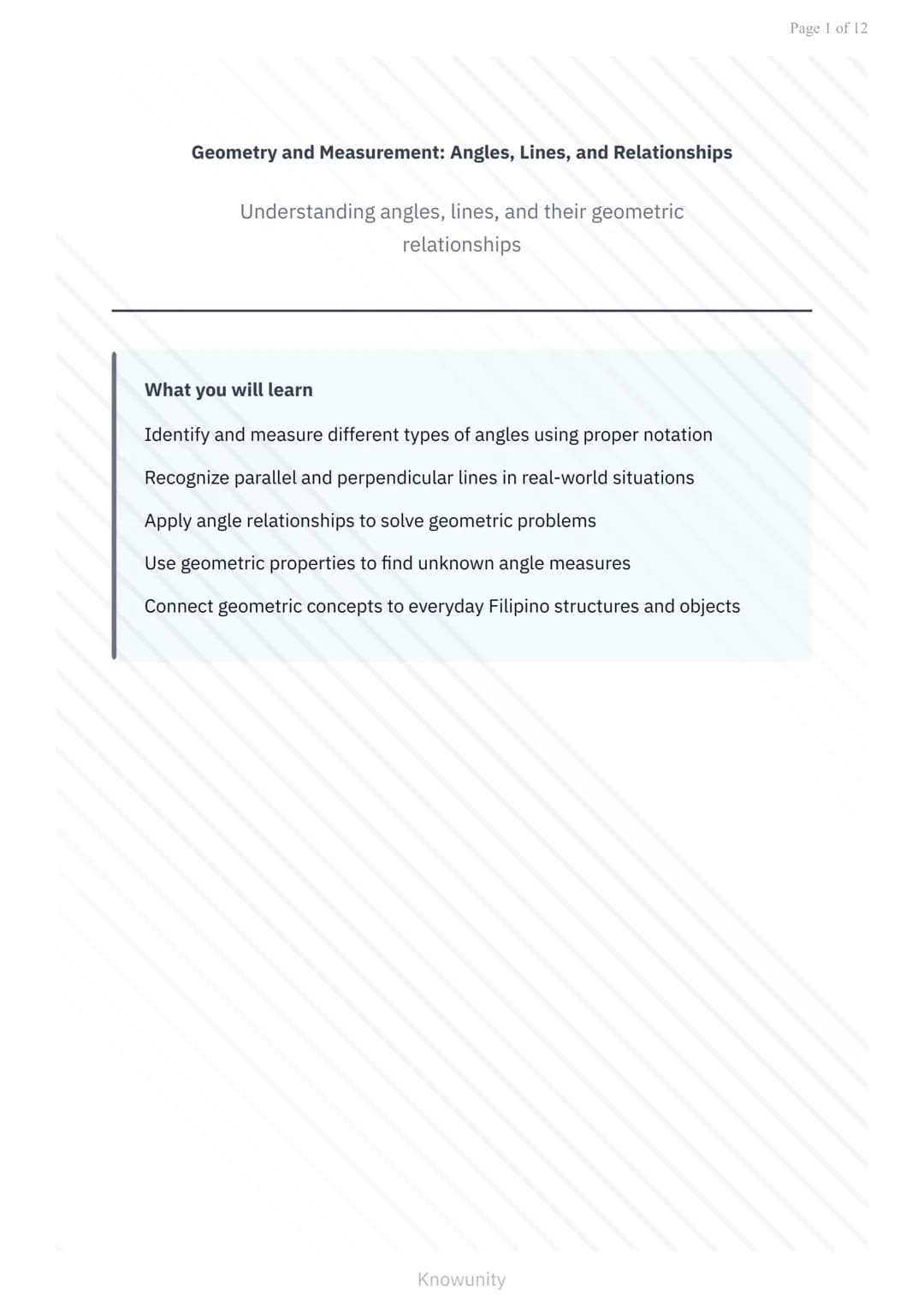

Getting Started with Angles and Lines

You're about to discover how geometry works in the real world! This topic will help you identify different types of angles, understand how lines relate to each other, and solve problems using geometric relationships.

Whether you're looking at traditional Filipino architecture or modern city planning, these concepts show up everywhere. You'll learn to measure angles properly, recognise parallel and perpendicular lines, and use these skills to find unknown measurements.

Quick Tip: Think of geometry as a toolbox - once you understand these basic tools, you can solve all sorts of problems!

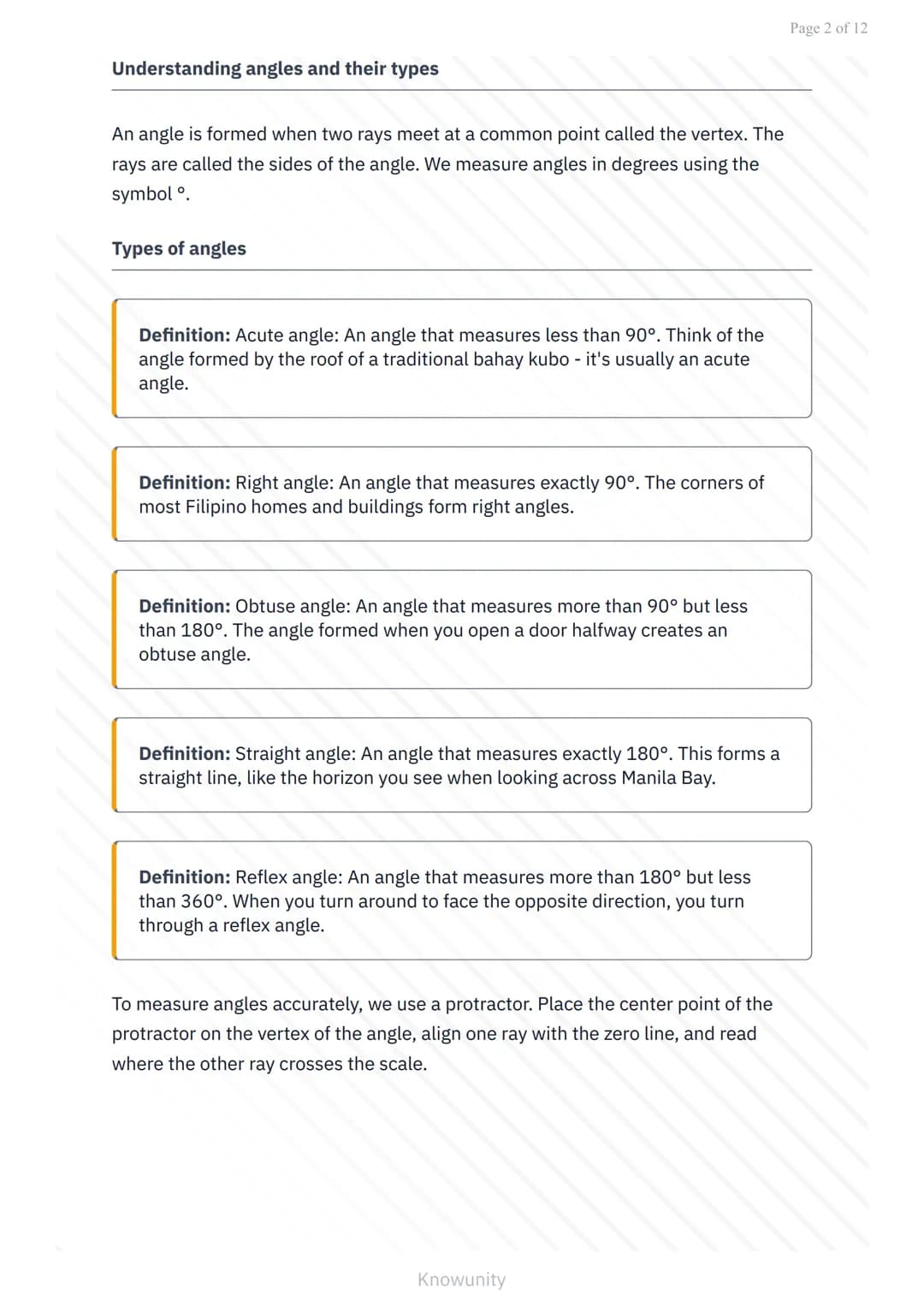

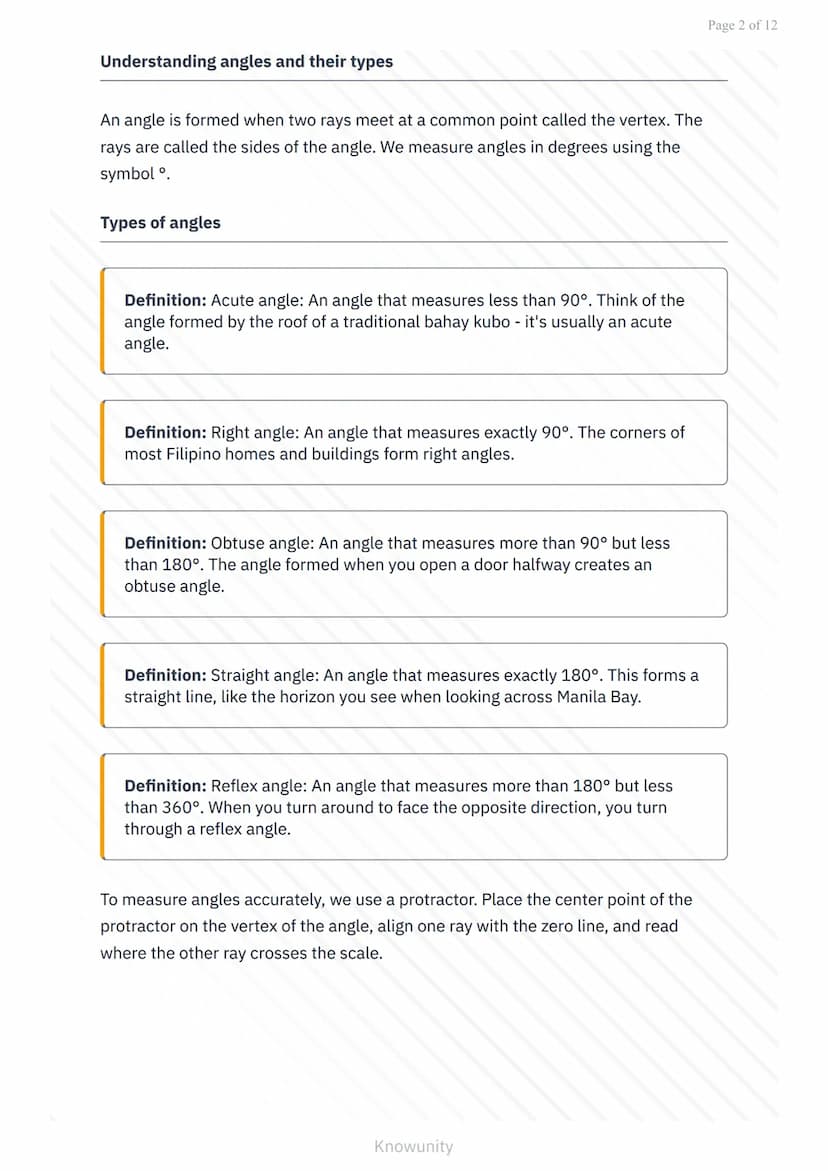

Understanding Different Types of Angles

An angle forms when two rays meet at a point called the vertex - think of it like opening a door! We measure angles in degrees using the symbol °.

Here's what you need to know about angle types: Acute angles measure less than 90° (like a roof peak), right angles are exactly 90° (like room corners), and obtuse angles are between 90° and 180° $like a half-open door$. Straight angles measure exactly 180° (forming a straight line), whilst reflex angles are greater than 180° (like turning around to face backwards).

To measure angles accurately, use a protractor. Place its centre on the vertex, align one ray with zero, and read where the other ray crosses the scale. It's easier than it sounds once you try it!

Remember: Most angles you see in buildings and furniture are right angles - they're everywhere once you start looking!

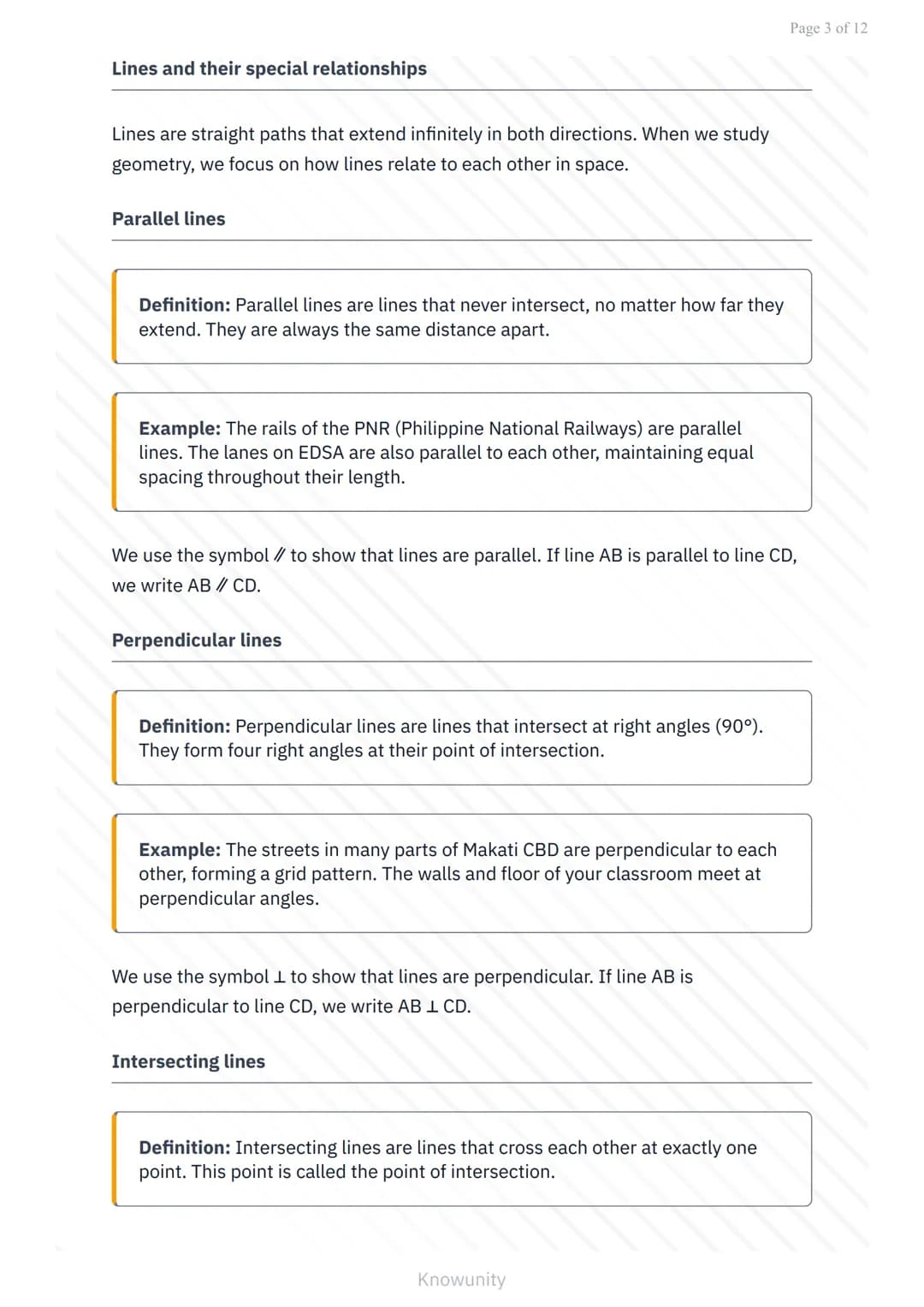

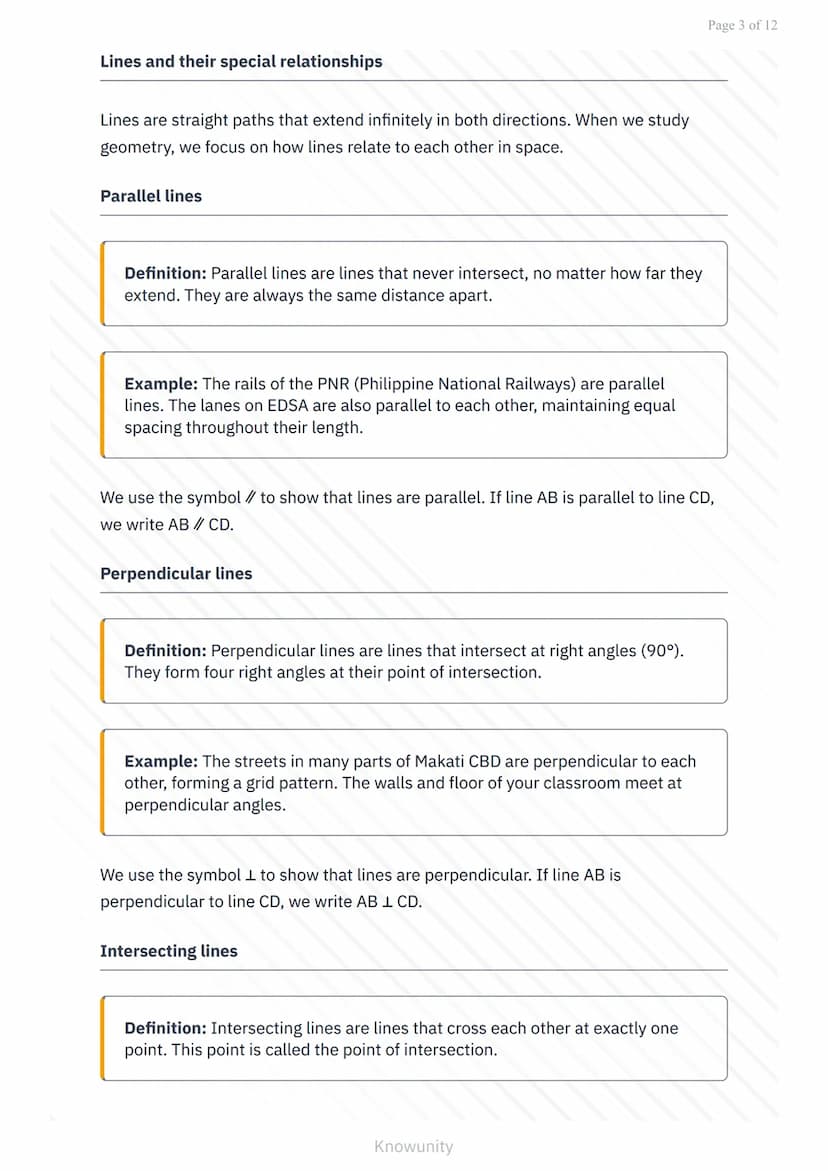

Lines and Their Special Relationships

Lines extend infinitely in both directions, but it's how they relate to each other that makes geometry interesting! Understanding these relationships helps you make sense of everything from railway tracks to street layouts.

Parallel lines never meet, no matter how far they extend - like train rails or motorway lanes. We show this with the symbol //. Perpendicular lines meet at right angles (90°), creating four equal corners where they intersect. We use the symbol ⊥ for this relationship.

Intersecting lines simply cross each other at one point. When this happens, they create four angles, and here's something brilliant: the angles opposite each other (called vertical angles) are always equal!

Cool Fact: When you see a grid pattern in city streets, you're looking at perpendicular lines creating perfect right angles at every intersection!

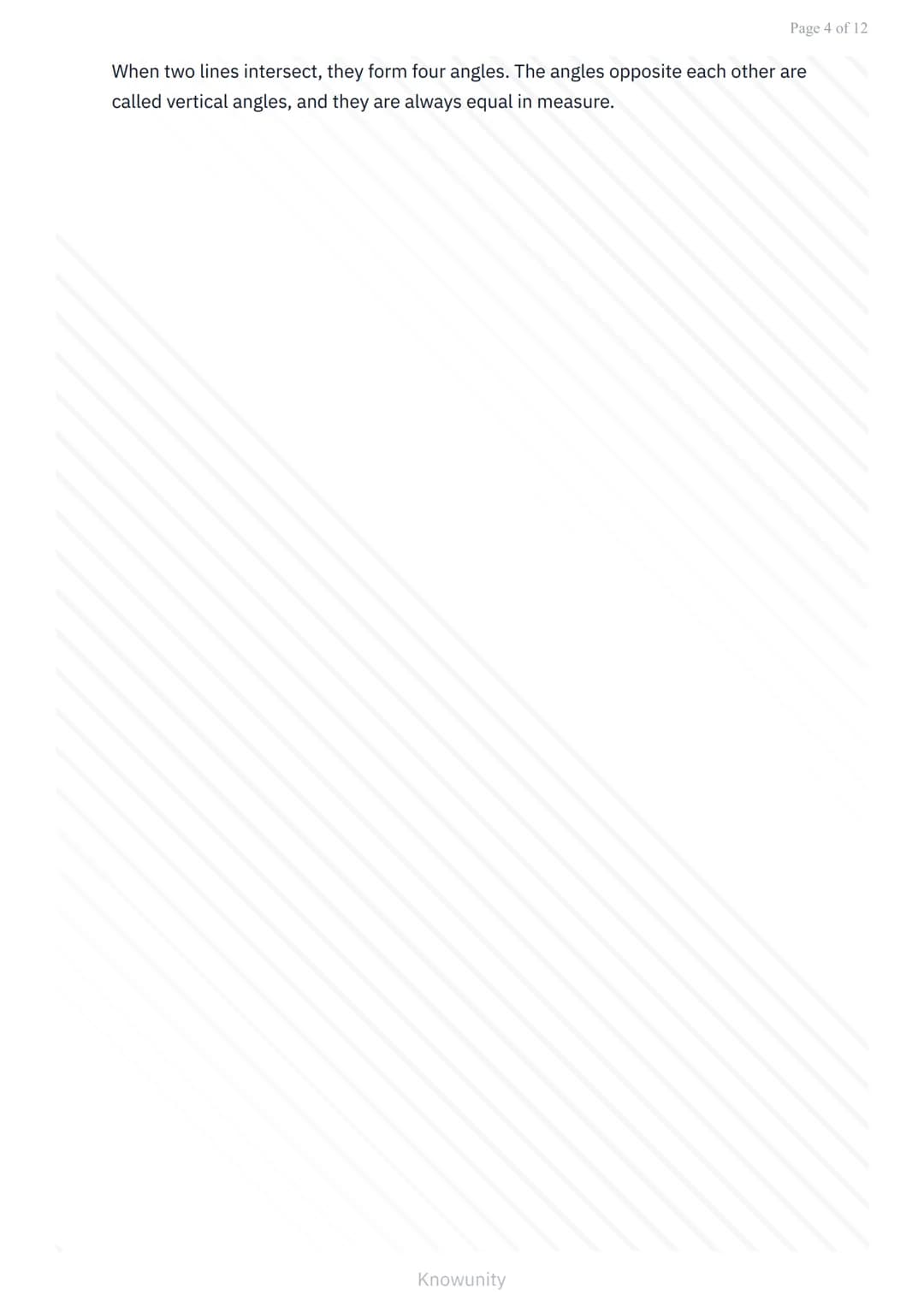

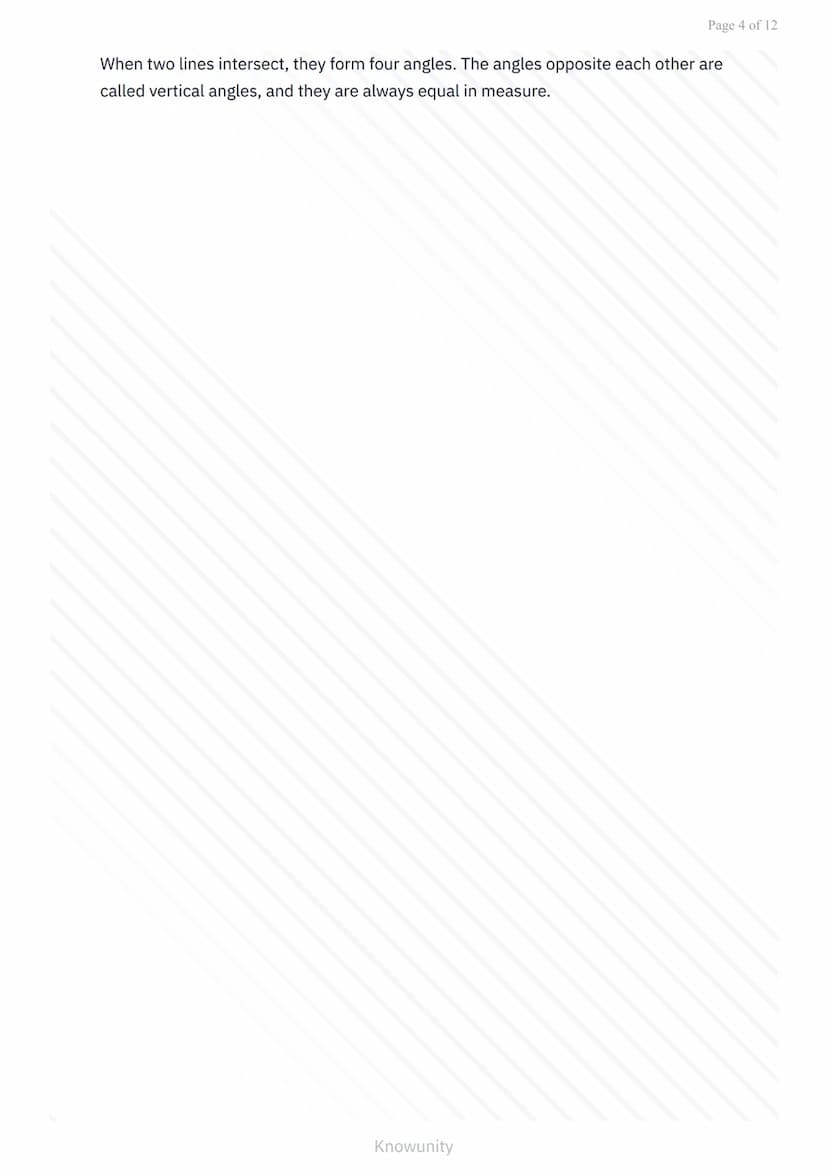

Vertical Angles Made Simple

When two lines intersect, they always form four angles at the crossing point. The magic happens with vertical angles - these are the angles sitting opposite each other, and they're always identical in size!

This isn't just a coincidence - it's a geometric rule that always works. If you know one angle at an intersection, you automatically know its vertical angle too.

Test Yourself: Next time you see two roads crossing, remember that opposite angles are always equal - it's like geometry's own special symmetry!

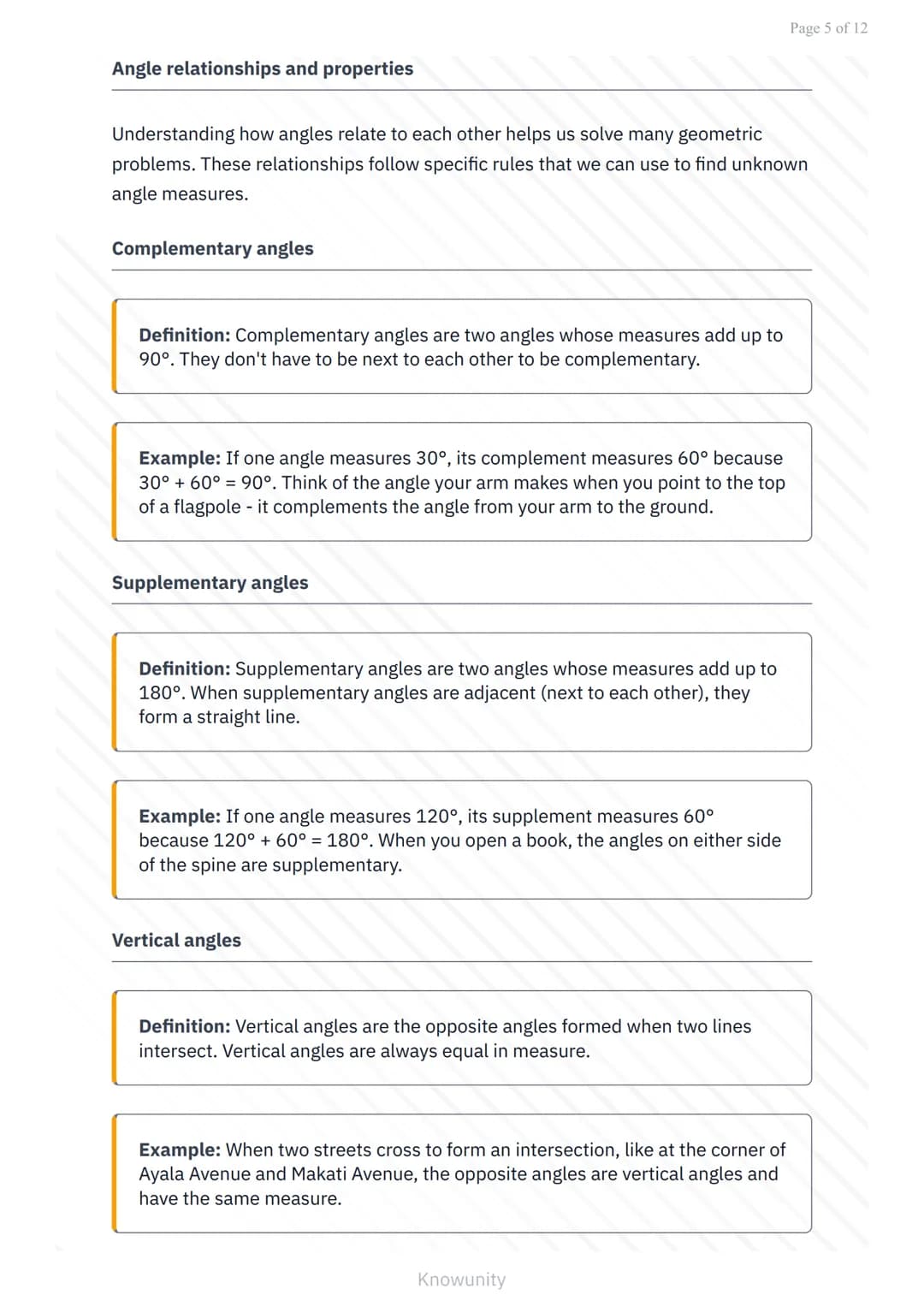

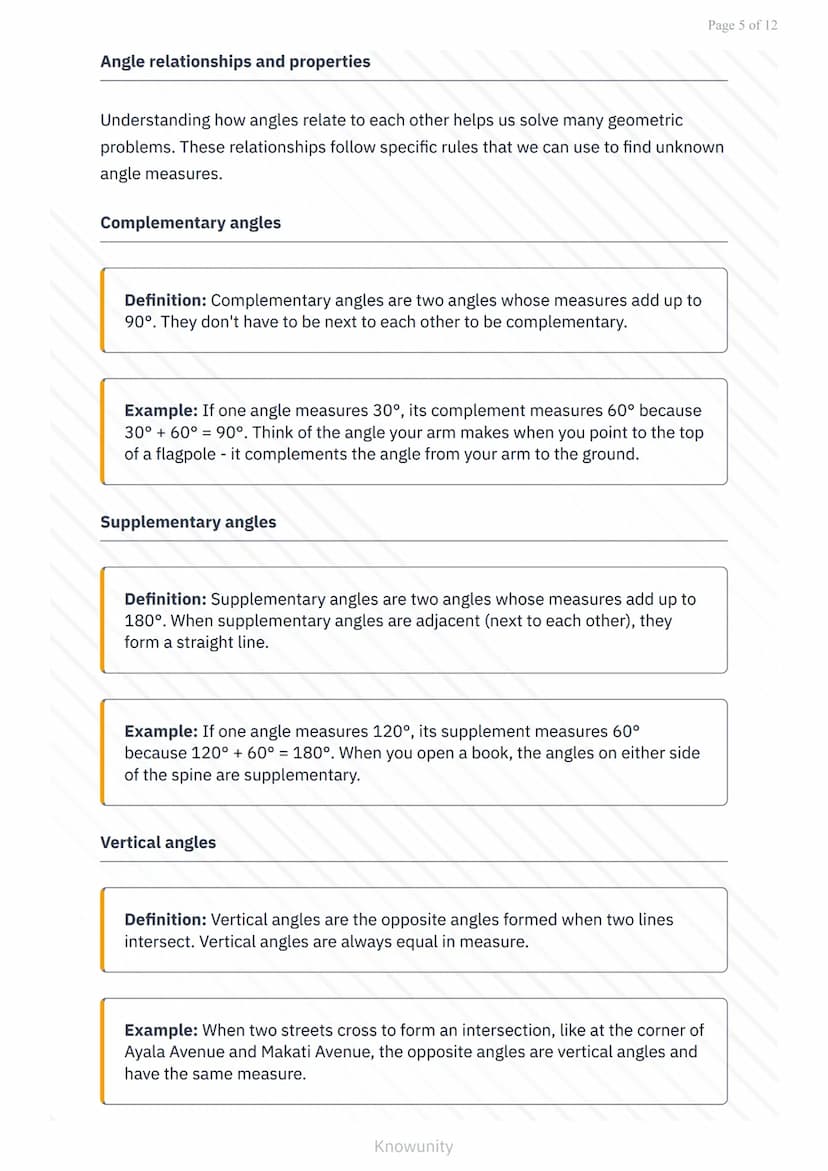

Angle Relationships That Always Work

Learning these angle relationships is like having a mathematical superpower - they help you solve problems quickly and confidently!

Complementary angles add up to exactly 90°. If one angle is 30°, its complement must be 60°. Supplementary angles add up to 180° - when they're next to each other, they form a straight line. Vertical angles are always equal when two lines cross.

Adjacent angles share a vertex and a side but don't overlap - they're simply neighbours! To find unknown angles, use these relationships: subtract from 90° for complements, subtract from 180° for supplements.

Memory Trick: Complementary = 90° (think "C" for Corner), Supplementary = 180° (think "S" for Straight line)!

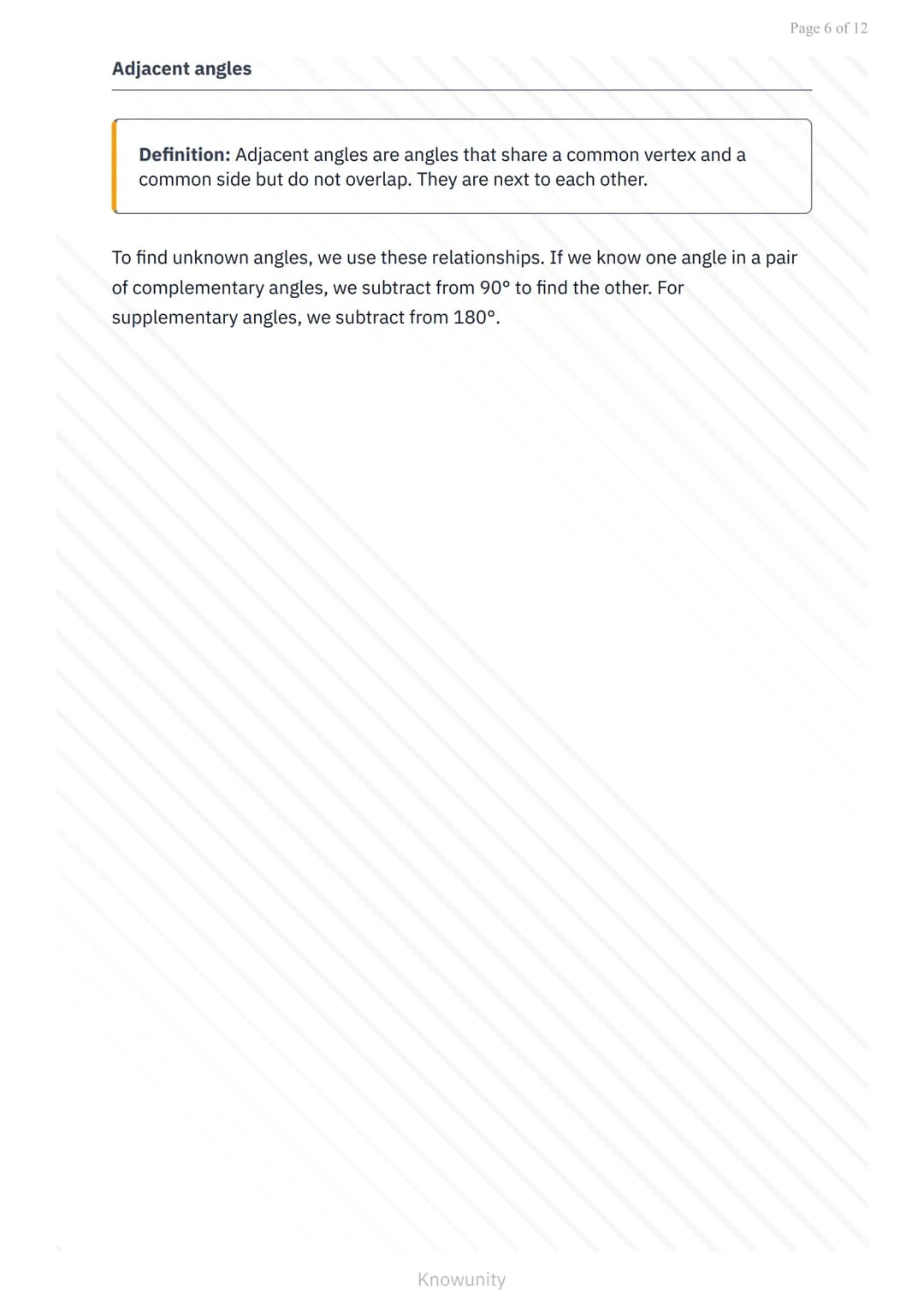

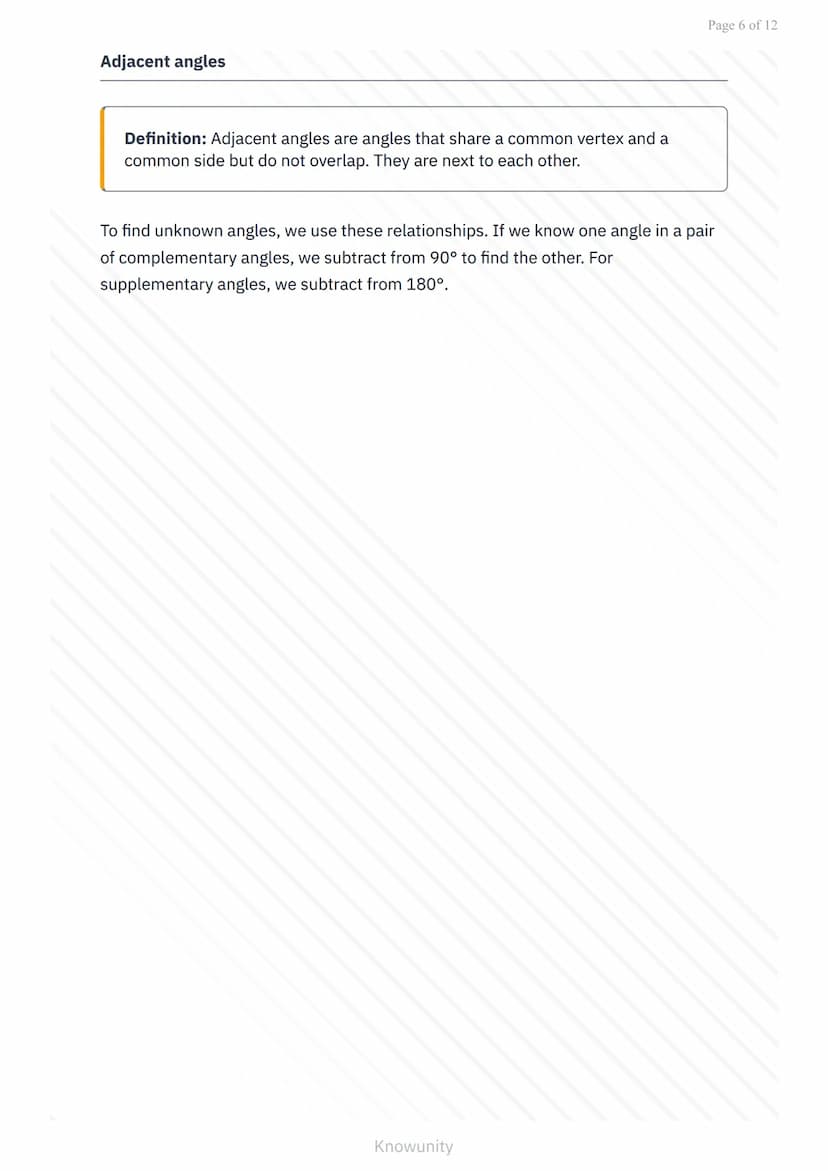

Adjacent Angles and Problem Solving

Adjacent angles are angle neighbours - they share a vertex and one side but don't overlap each other. Think of them as angles sitting side by side at a point.

These relationships become your problem-solving toolkit. When you know one angle in a complementary pair, subtract it from 90° to find the other. For supplementary pairs, subtract from 180°. It's that straightforward!

The key is identifying which relationship you're dealing with first, then applying the right rule. With practice, you'll spot these patterns everywhere and solve angle problems like a pro.

Pro Tip: Always check your answers make sense - angles in the real world should look right to your eyes too!

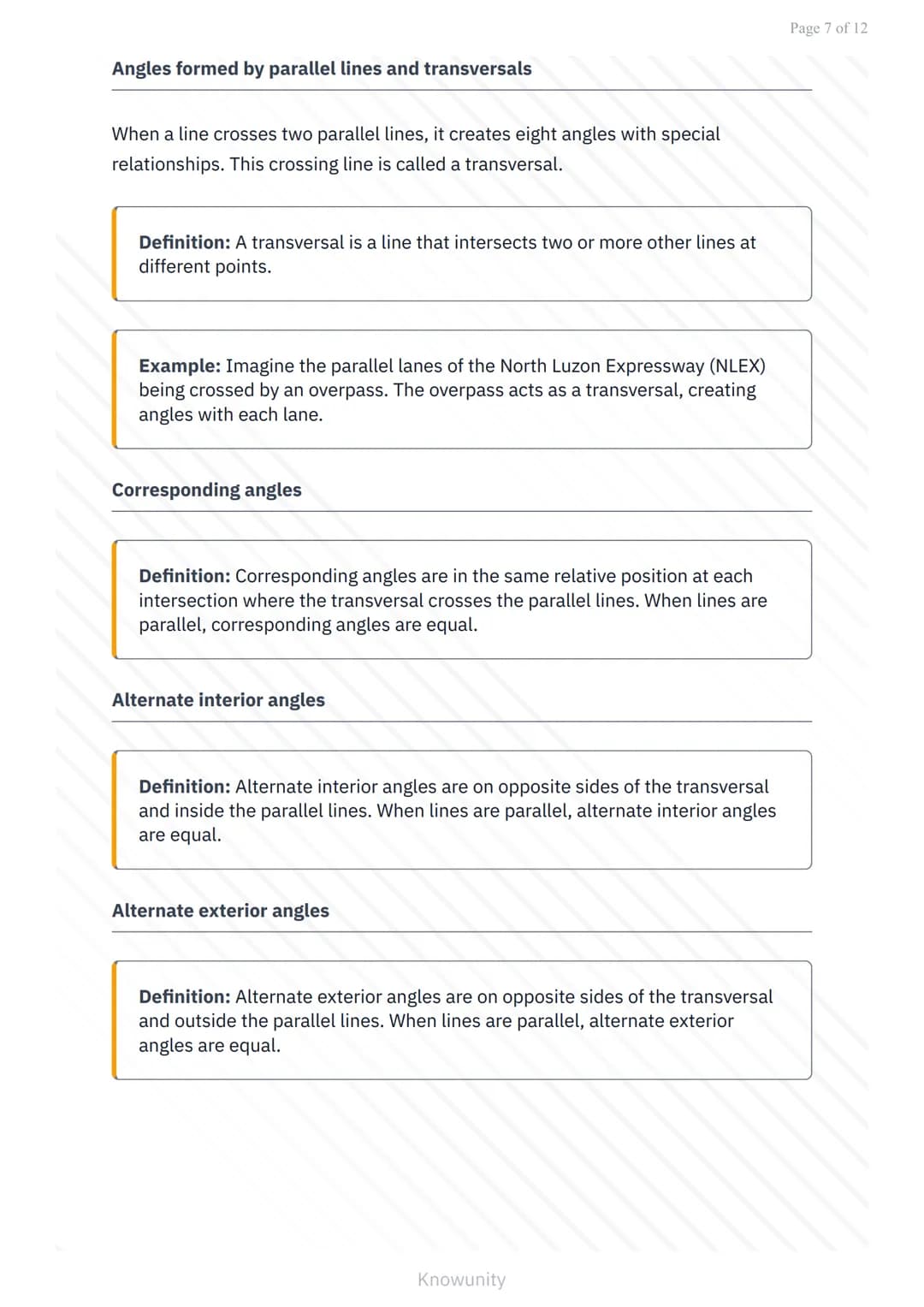

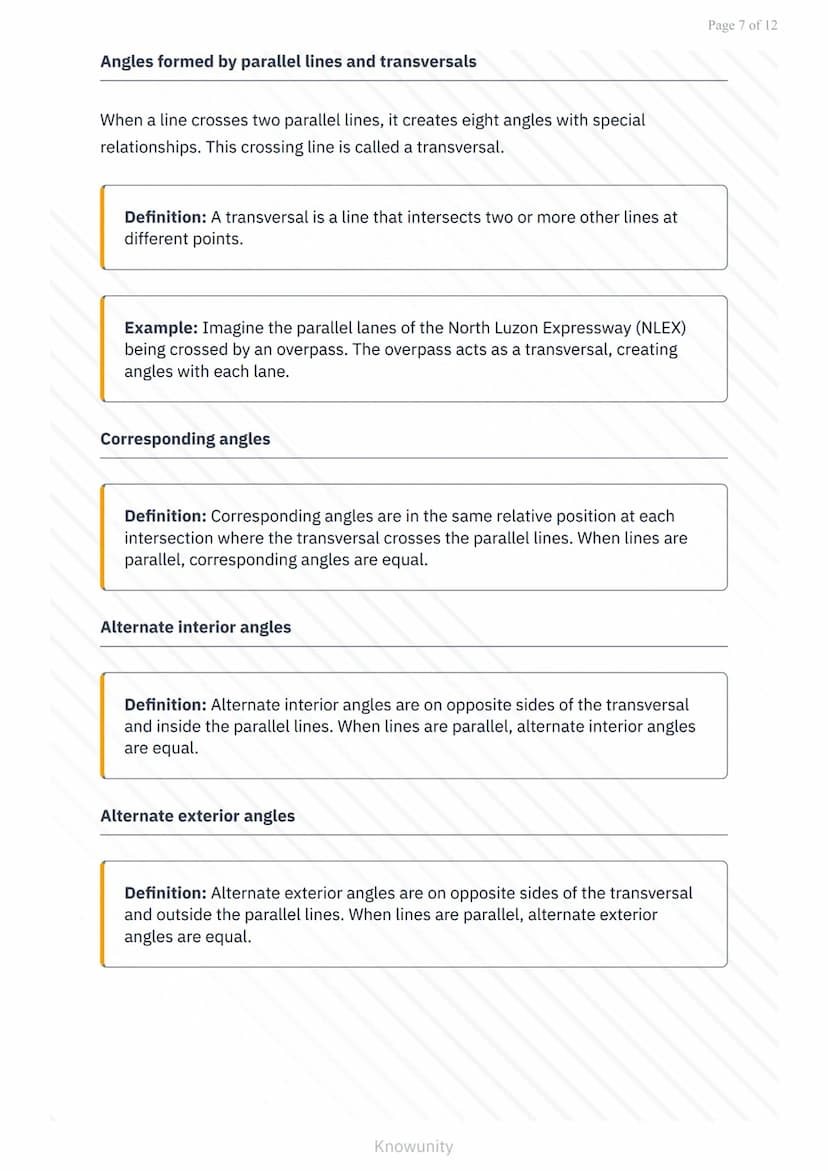

Parallel Lines and Transversals

When a line crosses two parallel lines, it creates eight angles with special relationships. This crossing line is called a transversal - imagine a bridge crossing parallel motorway lanes.

Corresponding angles sit in the same position at each intersection and are always equal when lines are parallel. Alternate interior angles are on opposite sides of the transversal, between the parallel lines, and they're equal too.

Alternate exterior angles work the same way but sit outside the parallel lines. These relationships only work when the lines are genuinely parallel - it's like a geometric contract!

Real-World Connection: Look at zebra crossings over parallel road lanes - the crossing acts as a transversal creating these special angle relationships!

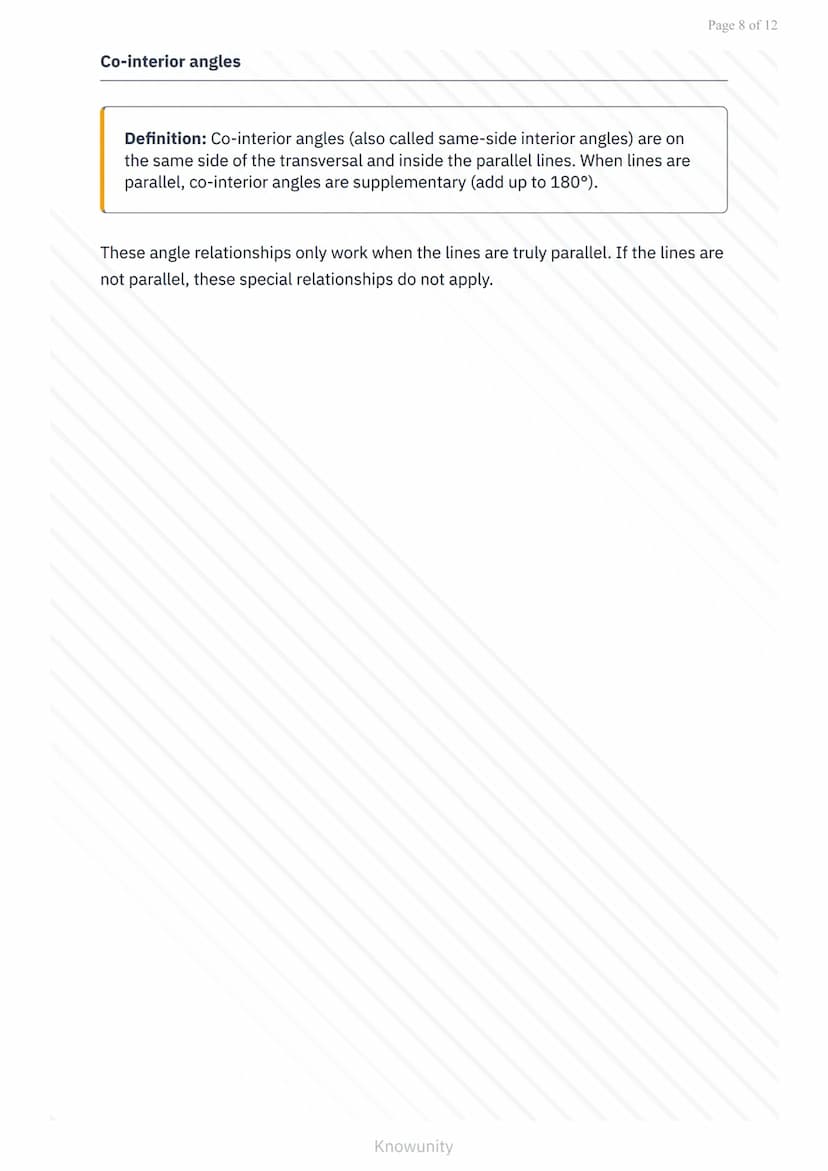

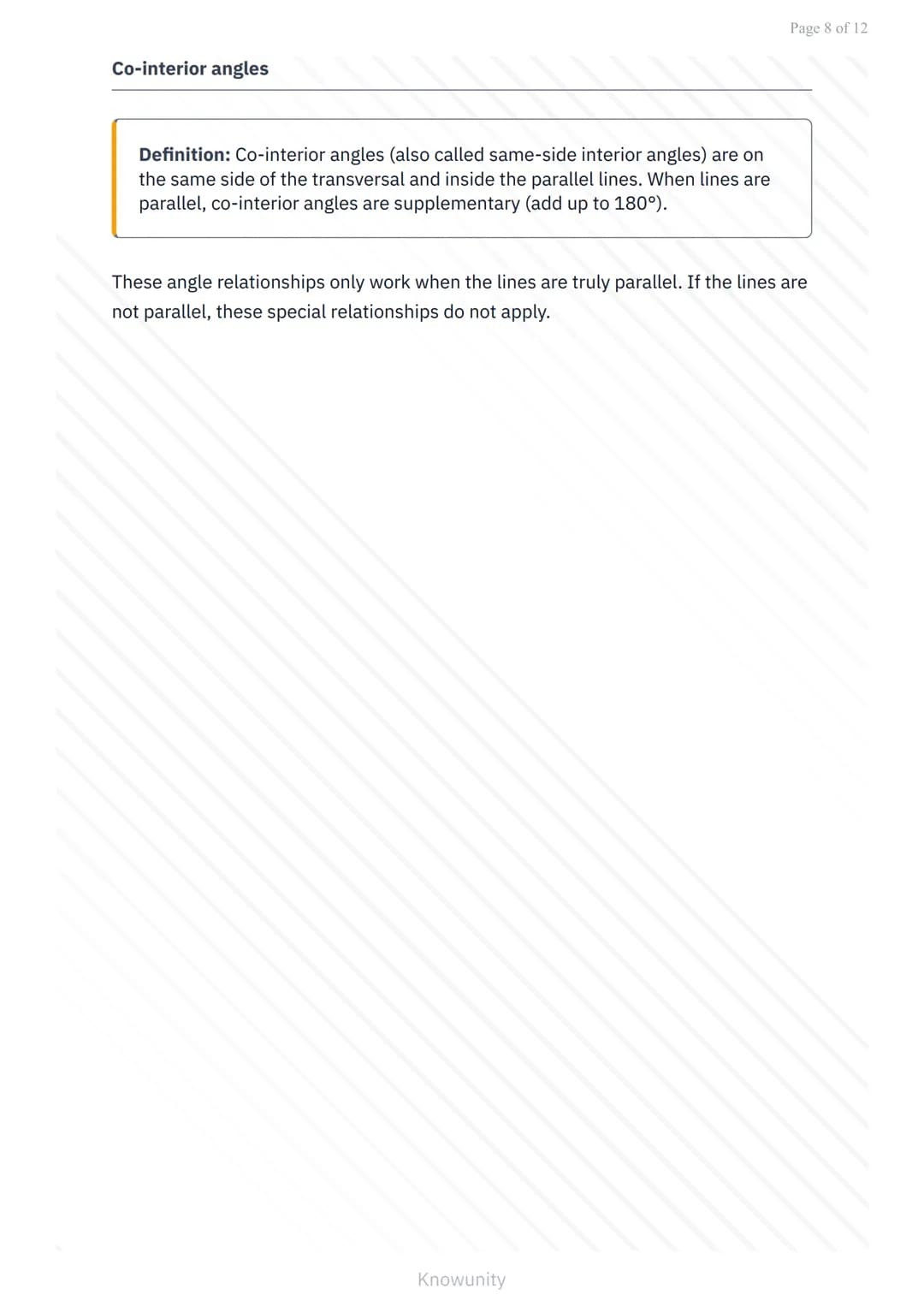

Co-Interior Angles

Co-interior angles $also called same-side interior angles$ sit on the same side of the transversal, between the parallel lines. Here's what makes them special: they always add up to 180° when the lines are truly parallel.

This is different from the other angle pairs we've learned - instead of being equal, co-interior angles are supplementary. They're like puzzle pieces that complete each other to make a straight line.

Remember, all these special relationships only work when dealing with parallel lines. If the lines aren't parallel, these rules don't apply!

Quick Check: If co-interior angles don't add up to 180°, the lines aren't actually parallel - it's a great way to test your work!

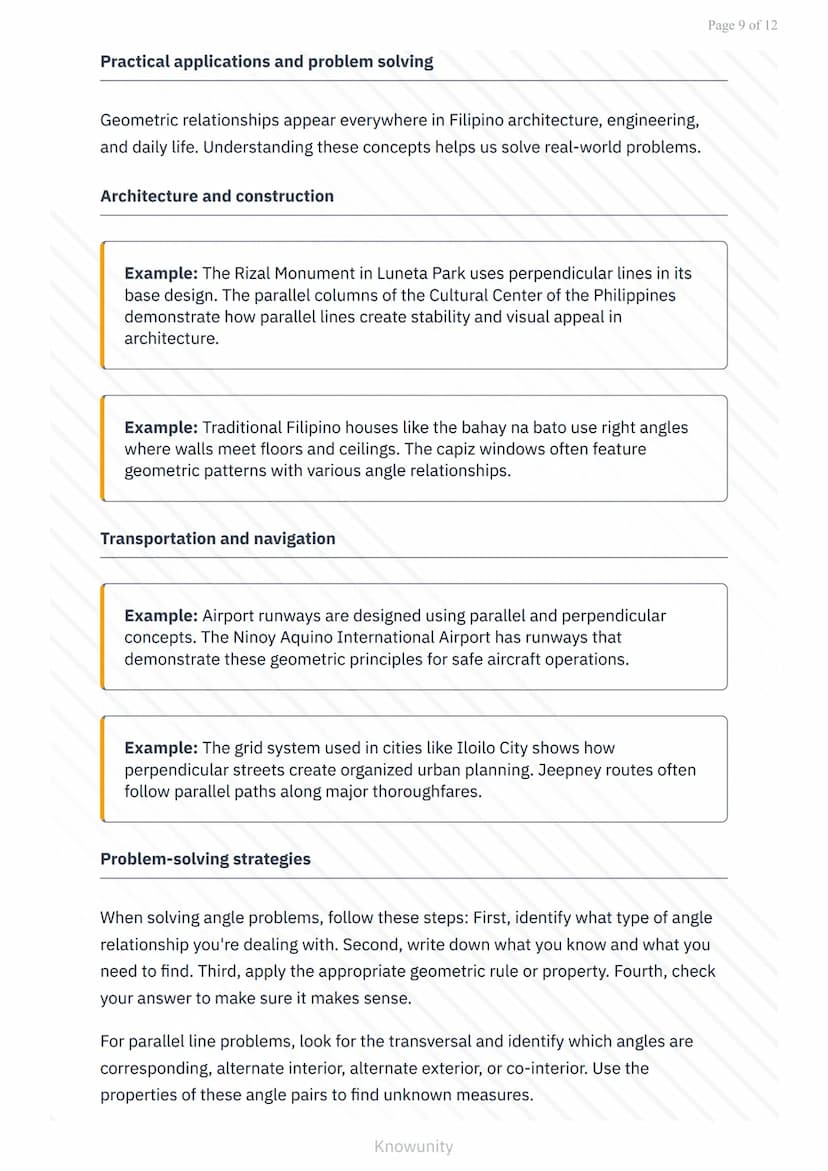

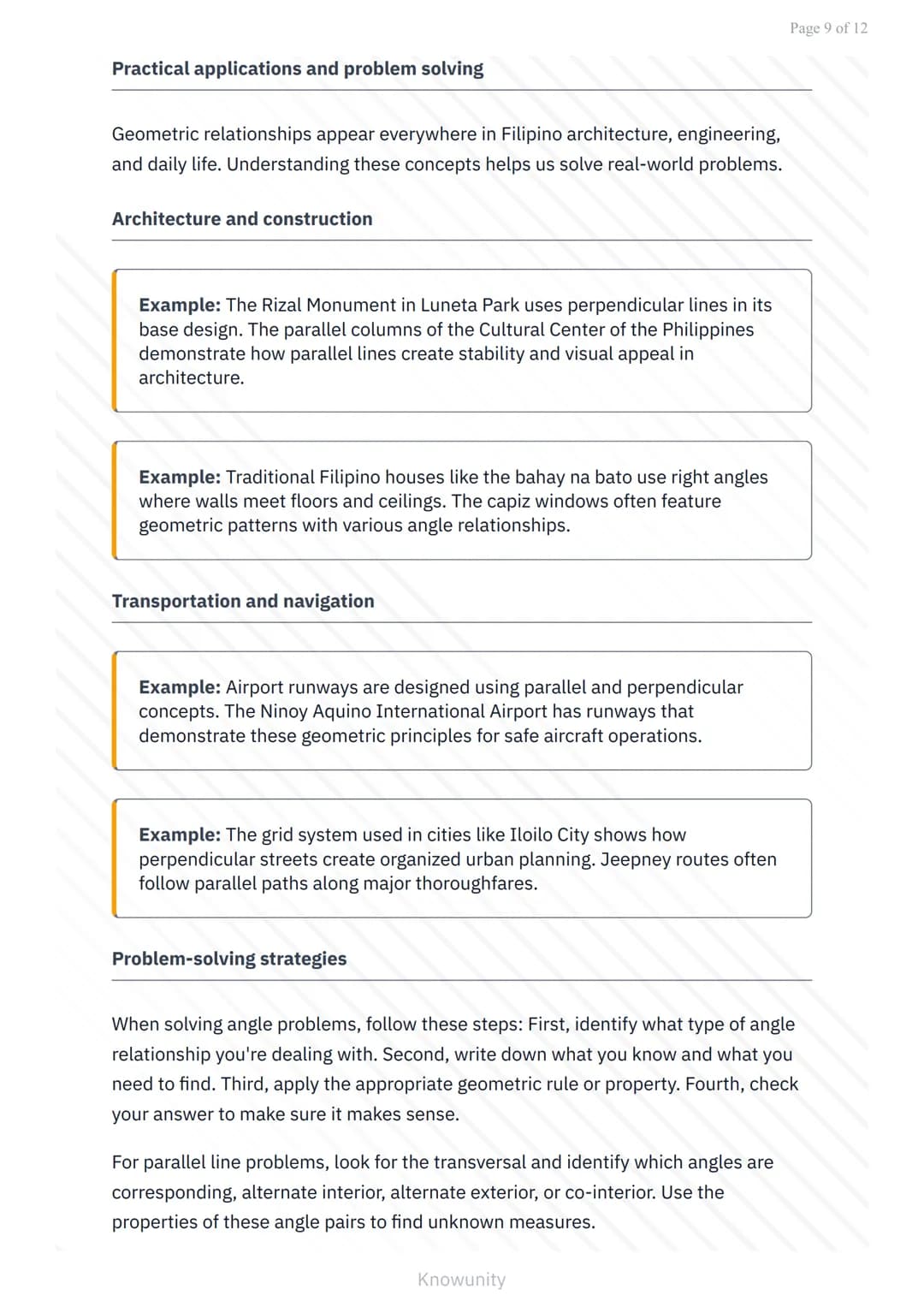

Real-World Applications

Geometric relationships aren't just classroom theory - they're the foundation of everything built around you! From the Rizal Monument's perpendicular base design to airport runways, these concepts ensure safety and stability.

Traditional Filipino architecture showcases these principles beautifully. Bahay na bato houses use right angles where walls meet floors, whilst capiz windows feature geometric patterns with various angle relationships. Modern city planning, like Iloilo City's grid system, demonstrates how perpendicular streets create organised urban spaces.

When solving angle problems, follow this strategy: identify the relationship type, write down known information, apply the correct rule, and check your answer makes sense. For parallel line problems, spot the transversal first, then identify which angle pairs you're working with.

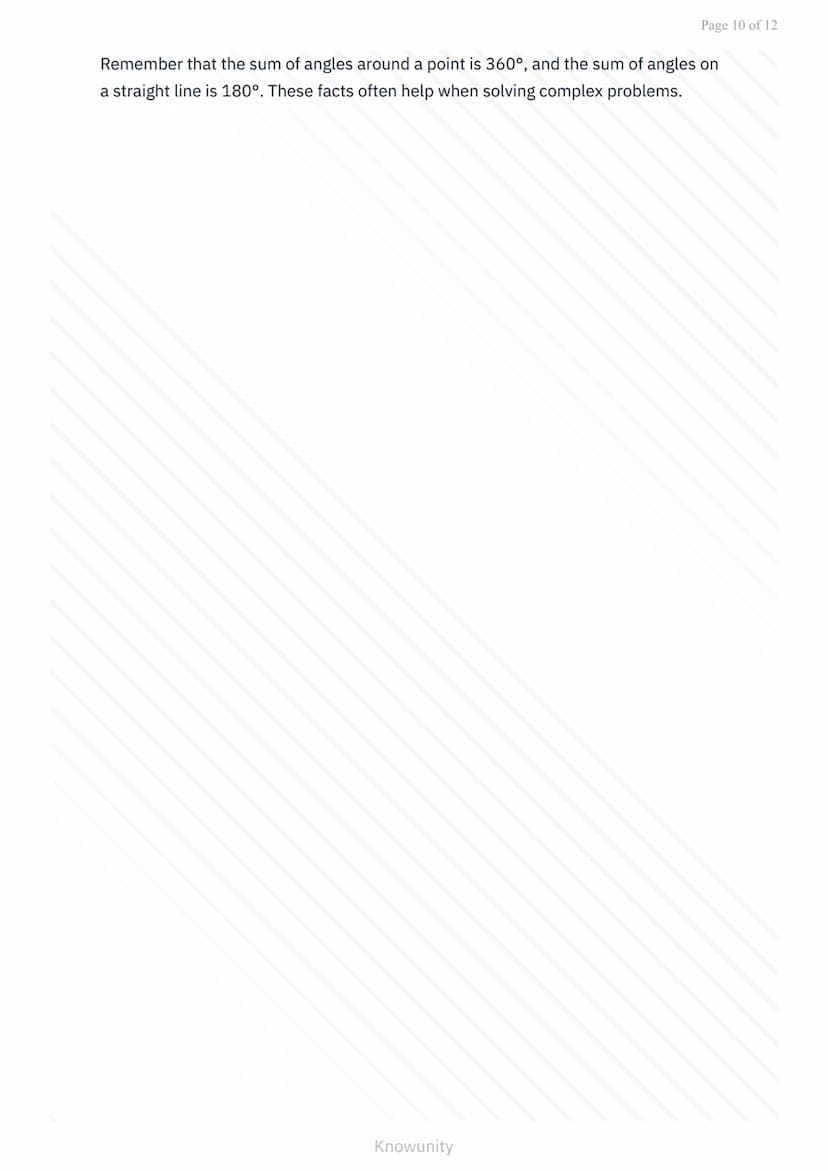

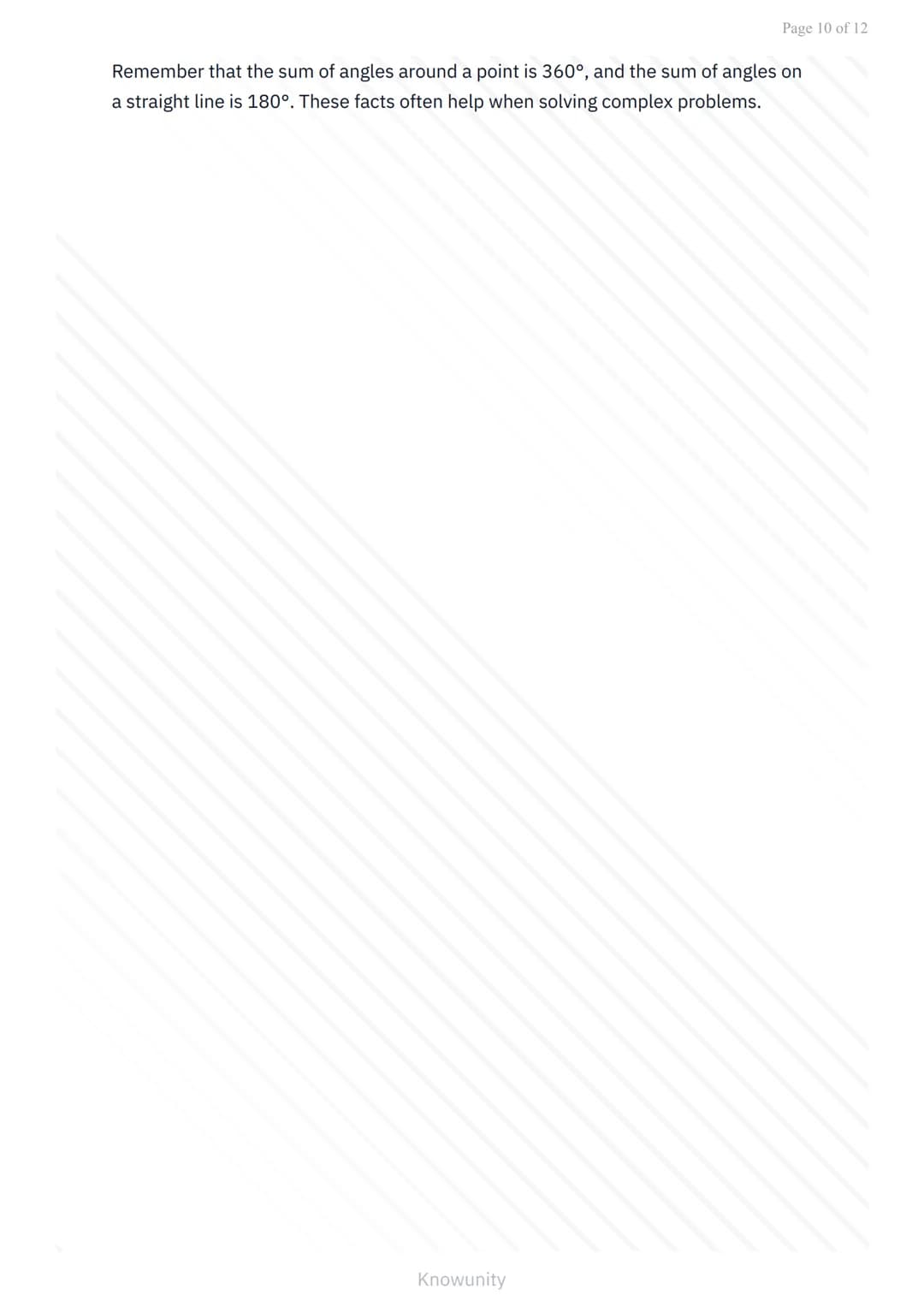

Success Strategy: Always remember that angles around a point total 360°, and angles on a straight line total 180° - these facts solve many tricky problems!

Essential Problem-Solving Facts

Keep these fundamental rules in your back pocket: angles around a point always total 360°, and angles on a straight line always total 180°. These facts often provide the key to solving complex geometric problems.

When you combine these basic rules with angle relationships like complementary, supplementary, and vertical angles, you've got everything needed to tackle most geometry challenges confidently.

Final Reminder: Trust these rules - they never fail! Geometry is reliable, and once you understand these relationships, you'll see them working everywhere in the world around you.
