Learn Circuit Fun: Simple Current and Ohm's Law
1 / 4

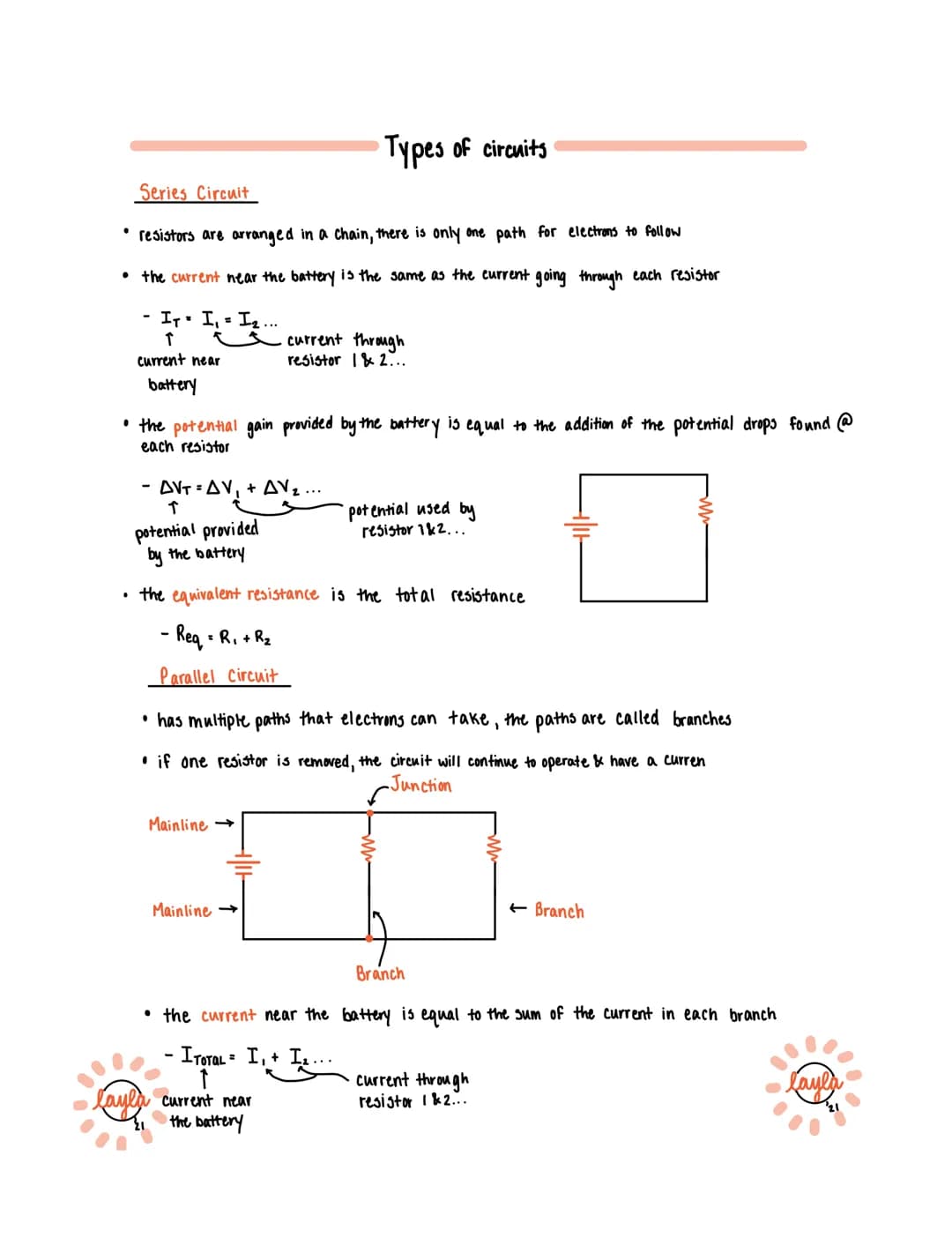

Circuit Types and Configurations
This section delves into the characteristics and behavior of series circuits, where components are arranged sequentially. The material explains current and voltage relationships in series configurations.
Definition: A series circuit is characterized by components arranged in a single path, where the same current flows through each element.
Vocabulary: Total resistance (Req) in a series circuit is the sum of individual resistances .
Example: In a series circuit with two resistors, the current through both resistors is identical to the current near the battery.
Highlight: The total voltage drop across all components equals the battery's voltage in a series circuit.
Advanced Circuit Analysis
This section examines parallel circuits and their unique properties, emphasizing how current and voltage behave differently compared to series circuits.
Definition: A parallel circuit features multiple branches through which current can flow independently.
Vocabulary: Junction points are locations where circuit branches split or reconnect.
Example: If one resistor is removed in a parallel circuit, the remaining branches continue to operate normally.
Highlight: The total current in a parallel circuit equals the sum of individual branch currents.
Circuit Modifications and Effects
This final section explores how adding or modifying components affects circuit behavior in both series and parallel configurations.

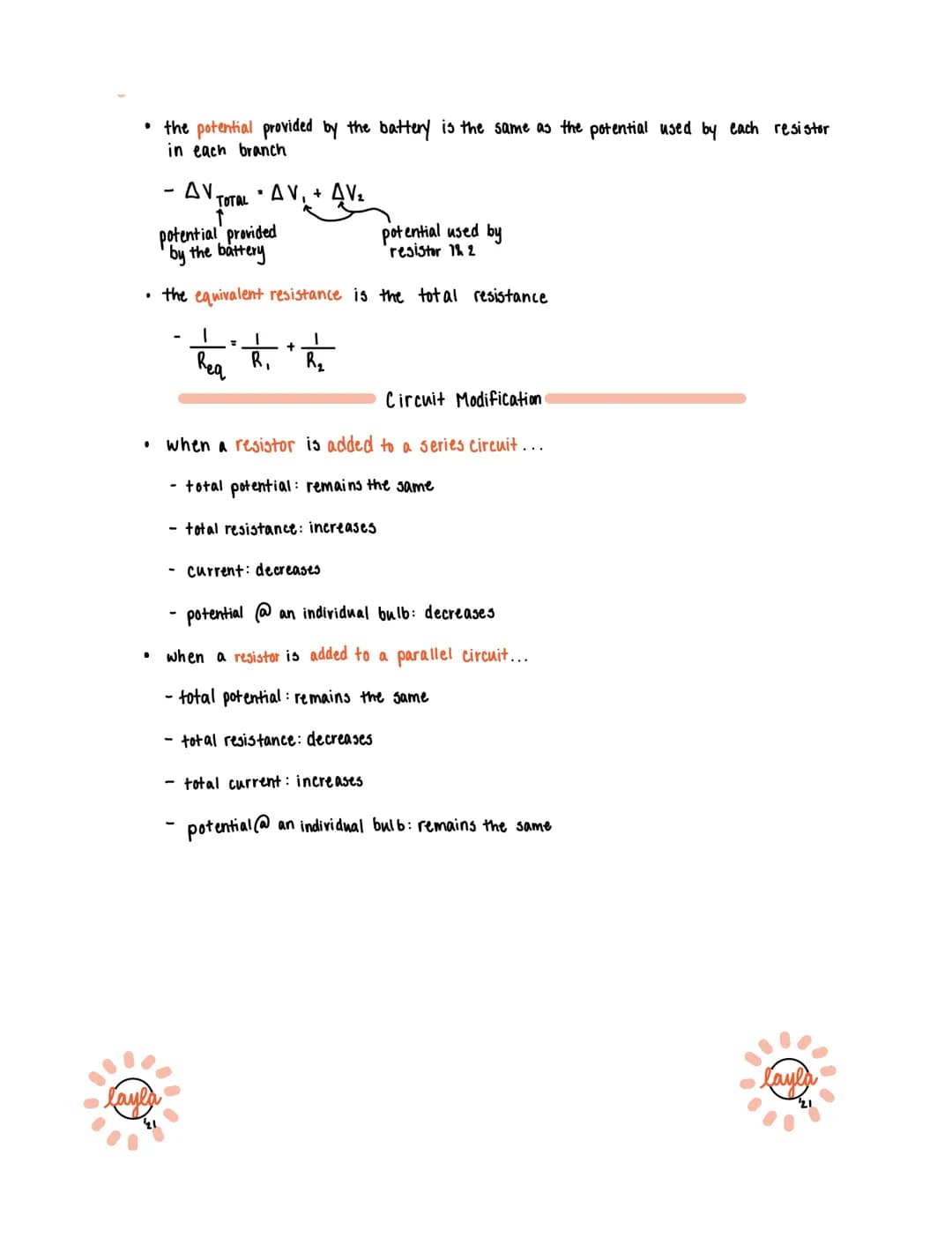

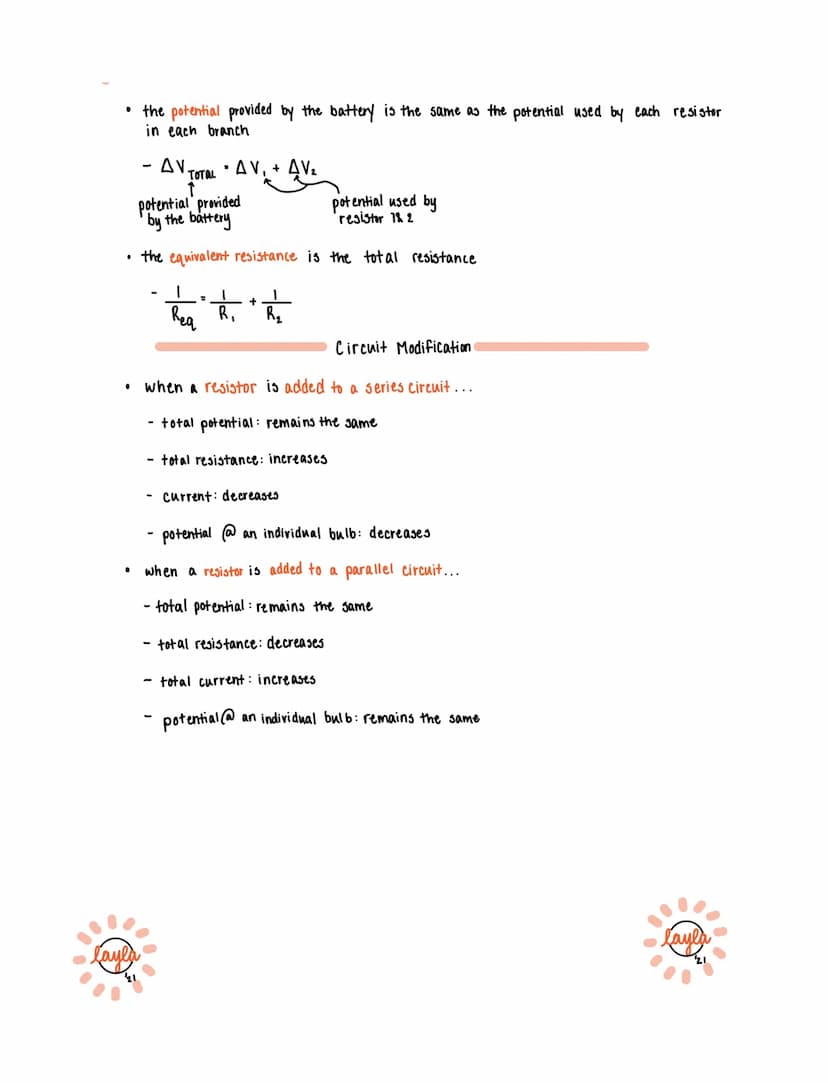

Definition: Circuit modification refers to changes in component values or configurations that affect overall circuit performance.

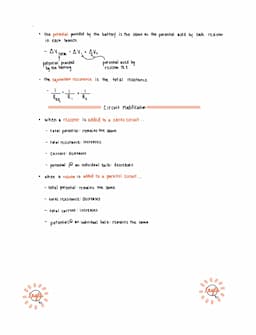

Example: Adding a resistor to a parallel circuit decreases total resistance while increasing total current.
Highlight: In parallel circuits, the voltage across each branch remains constant regardless of modifications to other branches.
Quote: "When a resistor is added to a series circuit, the total potential remains the same while current decreases."

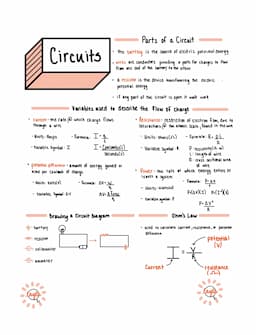

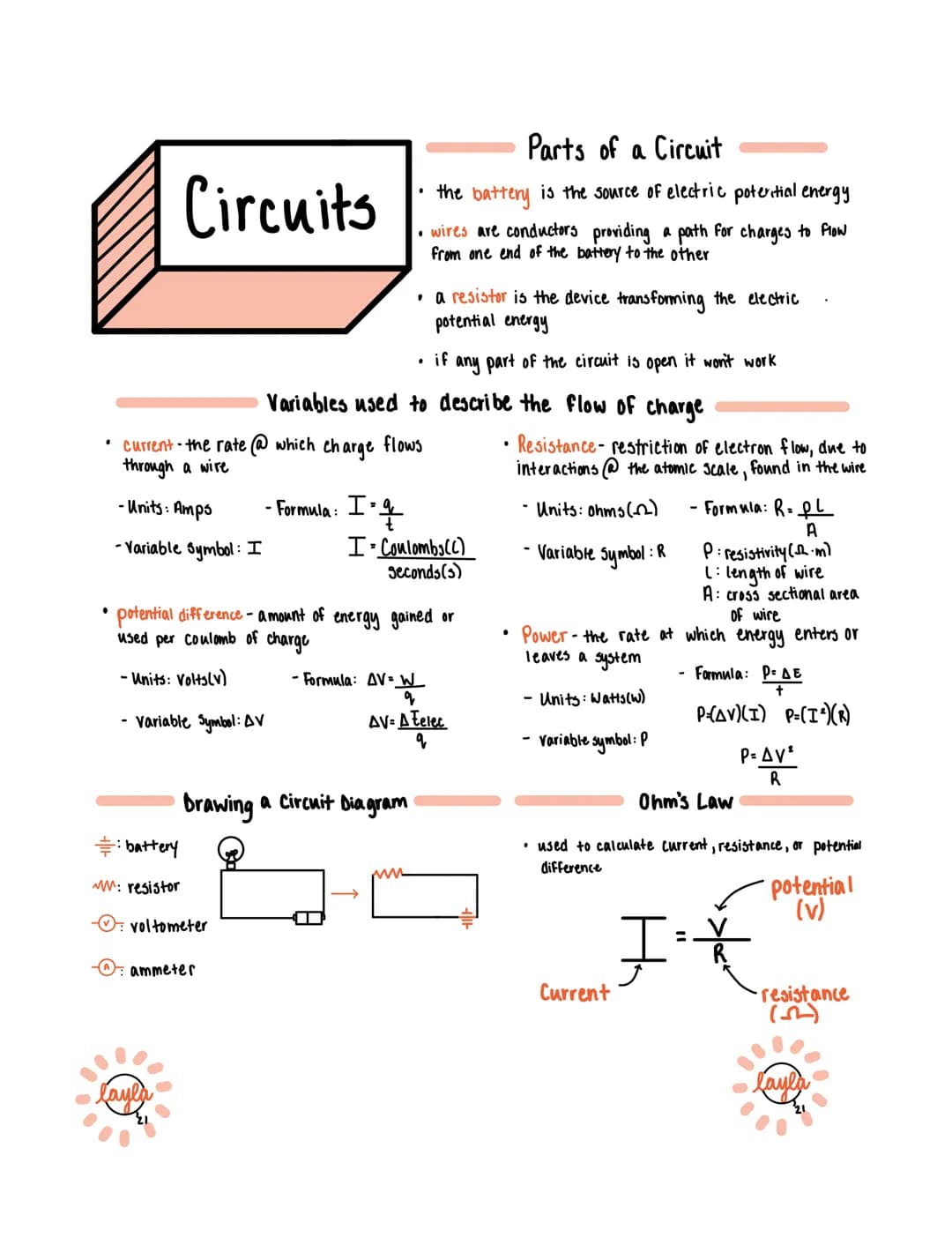

Basic Circuit Components and Fundamentals
This section introduces the foundational elements of electrical circuits and their mathematical relationships. The content explores essential circuit components and the variables used to describe charge flow.
Definition: Current is defined as the rate at which electrical charge flows through a wire, measured in Amperes (A).
Vocabulary: Potential difference represents the energy gained or used per coulomb of charge, measured in Volts (V).
Example: A circuit diagram must be complete (closed) to function, with all components properly connected.
Highlight: The relationship between voltage, current, and resistance is governed by Ohm's Law , which is fundamental to circuit analysis.
Quote: "Any part of the circuit that is open won't work."
