Understanding Rotational Motion in Physics: From Turntables to Ferris Wheels

A turntable rotating counterclockwise demonstrates fundamental principles of angular motion in Physics chapter 8 equations. When analyzing rotational motion, we must consider angular position, velocity, and acceleration - core concepts covered in University Physics Volume 1.

The relationship between linear and angular quantities becomes clear when examining real-world examples. For instance, a speck of dust on a turntable moving at 78 rpm (revolutions per minute) follows circular motion governed by the equation θ = ωt + θ₀, where θ is angular position, ω is angular velocity, and t is time.

Definition: Angular velocity (ω) measures the rate of rotation in radians per second $rad/s$. One complete revolution equals 2π radians.

When solving rotational motion problems, it's crucial to convert between different units like degrees and radians, and understand how angular quantities relate to their linear counterparts.

Angular Motion in Sports: The Softball Windmill Pitch

The softball windmill pitch provides an excellent example of angular acceleration in athletics, relevant to Angular acceleration in softball windmill pitch physics problem solution. During this motion, the pitcher's arm rotates through approximately half a circle, demonstrating varying angular velocities and accelerations.

Example: In a college softball pitch, the arm's angular velocity increases steadily for 0.15 seconds, followed by a final acceleration burst lasting 0.05 seconds before release.

The analysis involves calculating both angular and tangential accelerations, with the ball typically positioned 0.60 meters from the shoulder acting as the rotation axis. This real-world application demonstrates how Physics textbook for university students concepts apply to sports biomechanics.

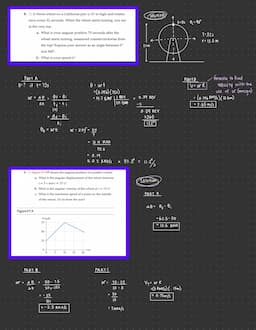

Circular Motion: The Physics of Ferris Wheels

Understanding Ferris wheel circular motion explanation requires applying principles of uniform circular motion. A typical Ferris wheel demonstrates perfect circular motion with constant angular velocity, making it an ideal example for studying periodic motion.

Highlight: The linear velocity of passengers depends on their distance from the center (radius) and the wheel's angular velocity: v = ωr

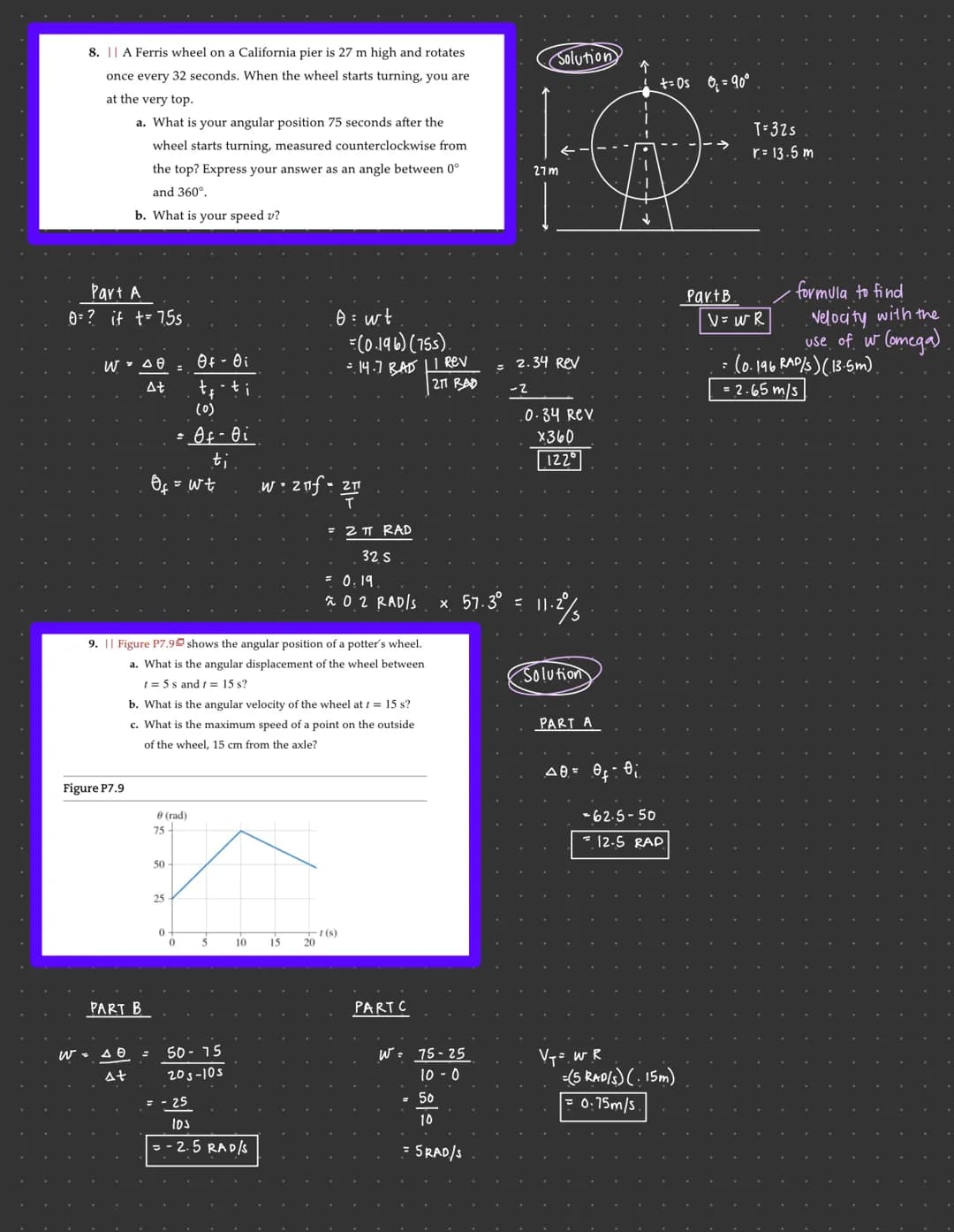

For a 27-meter high Ferris wheel completing one revolution every 32 seconds, we can calculate various parameters including angular position and speed at any point during the ride. This exemplifies How does a Ferris wheel work in physics terms.

Practical Applications of Angular Motion

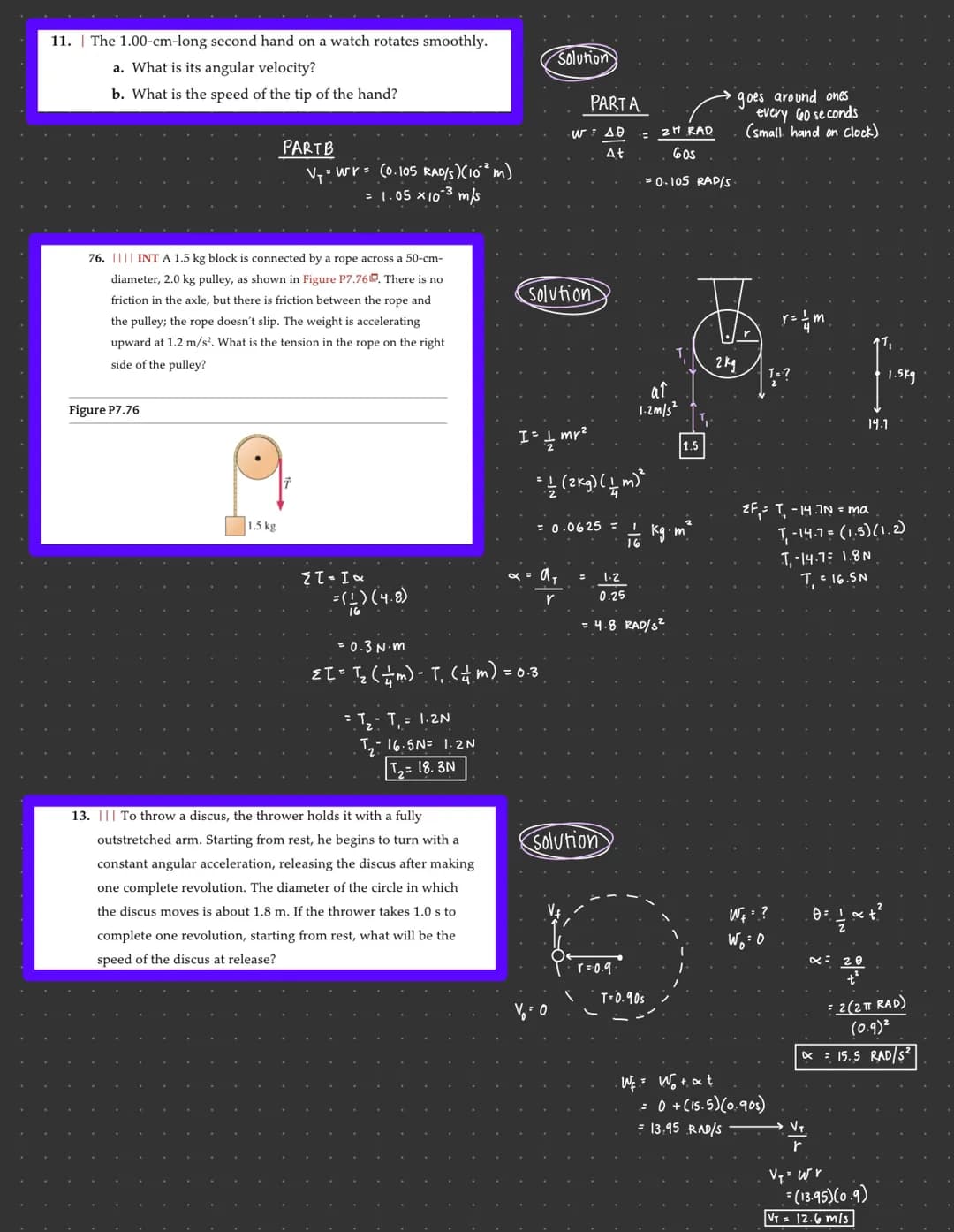

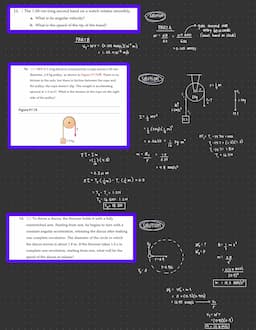

From watch hands to discus throwing, angular motion appears in numerous everyday situations. The second hand of a watch demonstrates uniform circular motion, while a discus throw shows angular acceleration from rest to release.

Vocabulary: Tangential velocity (v) is related to angular velocity (ω) by the equation v = ωr, where r is the radius of rotation.

These applications, covered in OpenStax Physics Chapter 8, demonstrate how rotational motion concepts apply to both simple mechanical systems and complex athletic movements. Understanding these principles is crucial for engineering, sports science, and many other fields.

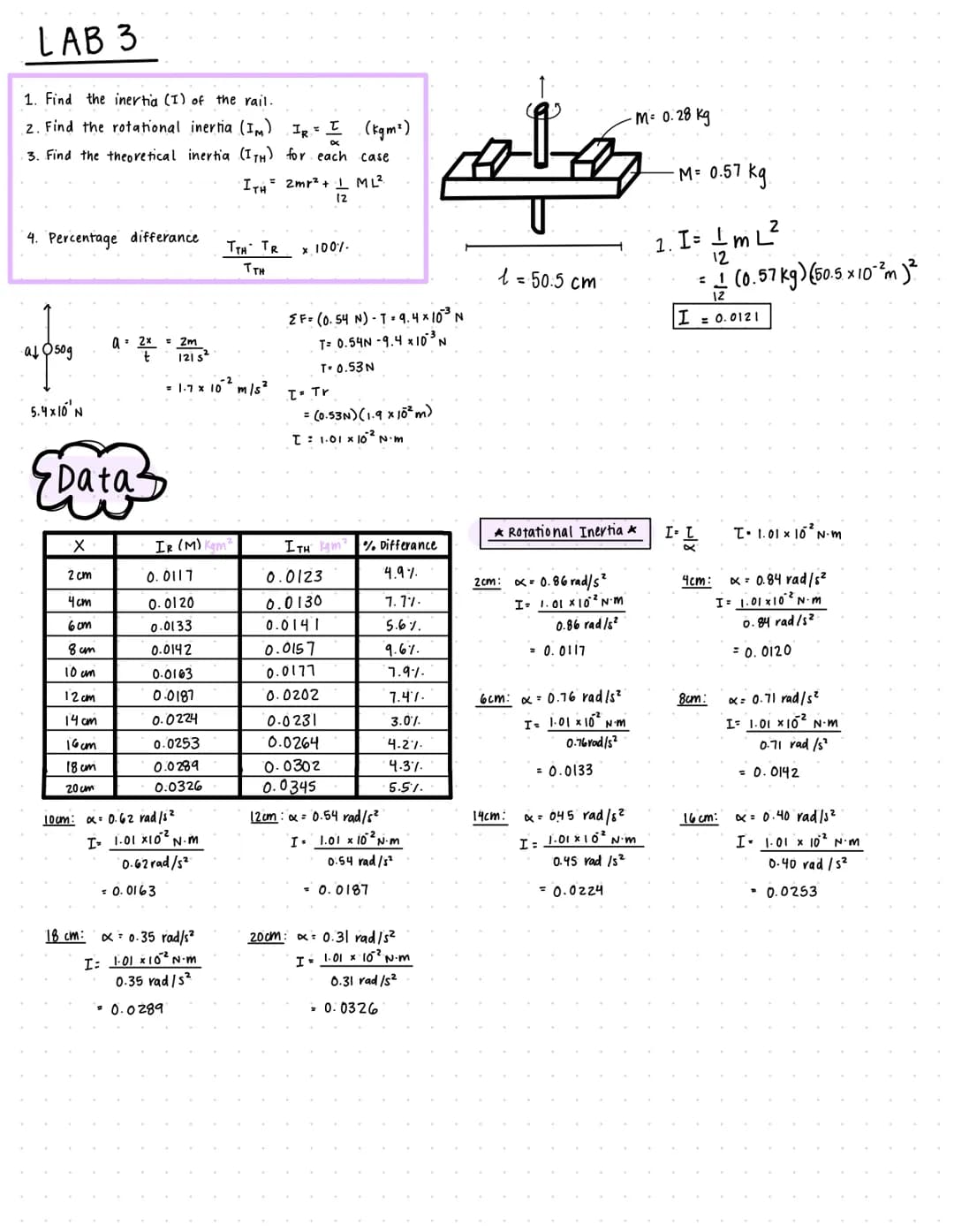

Understanding Rotational Inertia in Physics Laboratory Experiments

The study of rotational inertia is fundamental in University Physics Volume 1 and particularly relevant to OpenStax Physics Chapter 8. This laboratory experiment explores the relationship between theoretical and experimental rotational inertia measurements using a rail system.

In this detailed analysis, we examine how rotational inertia changes with varying distances from the axis of rotation. The experimental setup involves a rail of length 50.5 cm with a mass of 0.57 kg, allowing us to measure angular acceleration at different positions. The theoretical rotational inertia (ITH) is calculated using the equation I = (1/12)ML², where M represents the mass and L the length of the rail.

Definition: Rotational inertia (I) is a measure of an object's resistance to changes in its rotational motion, analogous to mass in linear motion.

The experimental measurements reveal fascinating patterns. At 2 cm from the axis, we observe an angular acceleration of 0.86 rad/s², resulting in a rotational inertia of 0.0117 kgm². As we increase the distance, the angular acceleration decreases while rotational inertia increases, following a predictable pattern that aligns with theoretical expectations. For instance, at 20 cm, the angular acceleration drops to 0.31 rad/s², corresponding to a rotational inertia of 0.0326 kgm².

Analyzing Experimental Results and Theoretical Comparisons

The comparison between experimental and theoretical values provides crucial insights into the accuracy of our measurements and the validity of our theoretical model. The percentage differences between measured and theoretical values range from 3.0% to 9.6%, indicating relatively good agreement.

Example: At 10 cm from the axis, the experimental rotational inertia is 0.0163 kgm² while the theoretical value is 0.0157 kgm², resulting in a 3.8% difference. This demonstrates the high precision of our experimental setup.

The torque calculations involve considering the effective force (0.54 N) and the moment arm, yielding a consistent torque value of 1.01 × 10² N·m across all measurements. This consistency validates our experimental methodology and supports the reliability of our rotational inertia calculations.

Highlight: The systematic increase in rotational inertia with distance from the axis demonstrates the fundamental principle that mass distribution significantly affects an object's resistance to rotational motion.

These findings have practical applications in various fields, from engineering design to sports science, where understanding rotational dynamics is crucial for optimizing performance and efficiency. The experimental methods and analysis techniques demonstrated here form the foundation for more advanced studies in rotational mechanics.

Angular Motion Examples

This section covers several example problems related to angular motion, including turntable rotation, softball pitching mechanics, and Ferris wheel motion.

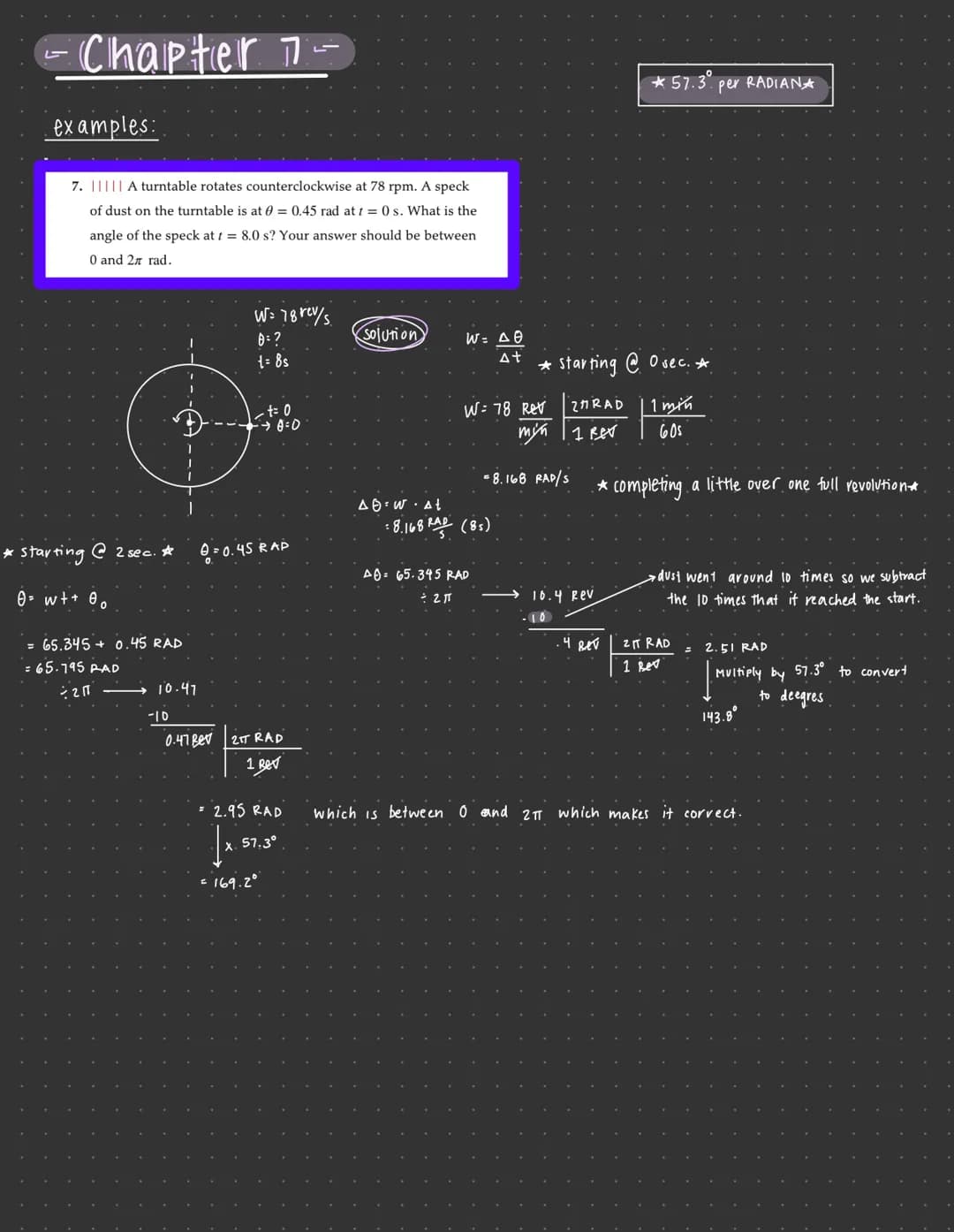

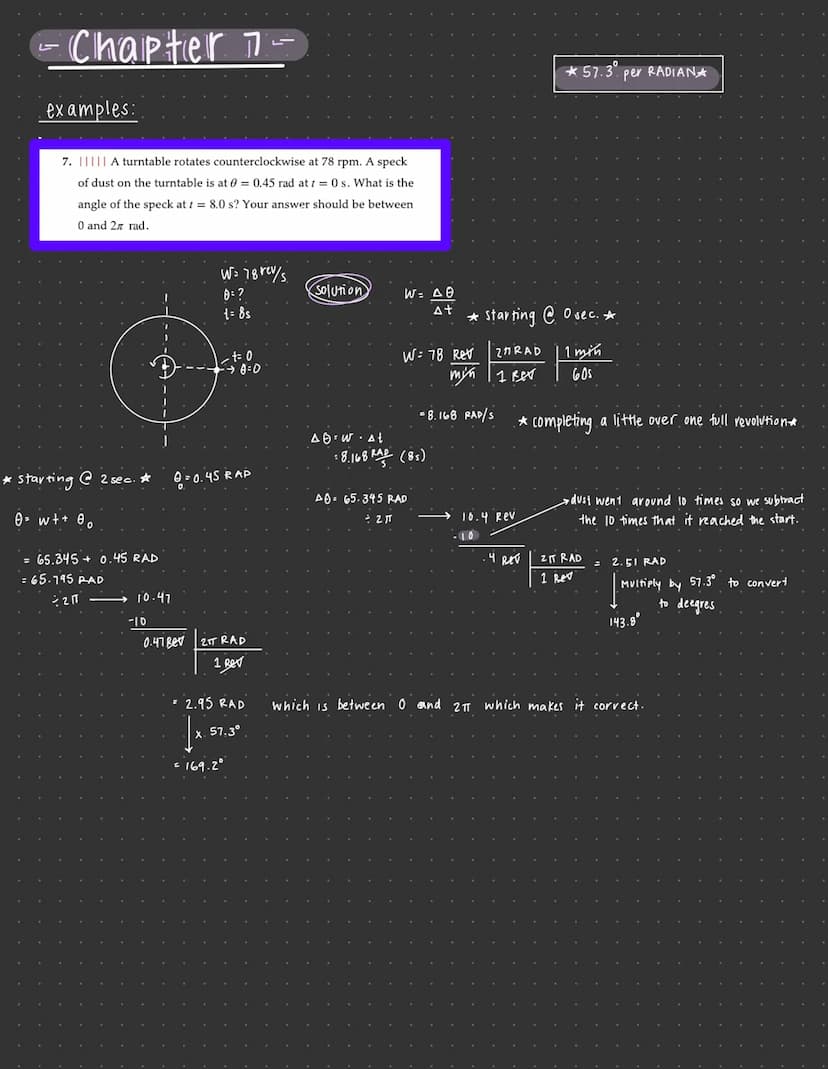

Example: A turntable rotating counterclockwise at 78 rpm with a speck of dust at an initial angle of 0.45 rad. After 8 seconds, the dust speck's new angular position is calculated to be 2.95 rad.

Highlight: The problem demonstrates how to convert between revolutions per minute and radians per second, as well as calculating angular displacement over time.

Vocabulary: Angular velocity (ω) - the rate of change of angular position with respect to time, measured in radians per second.

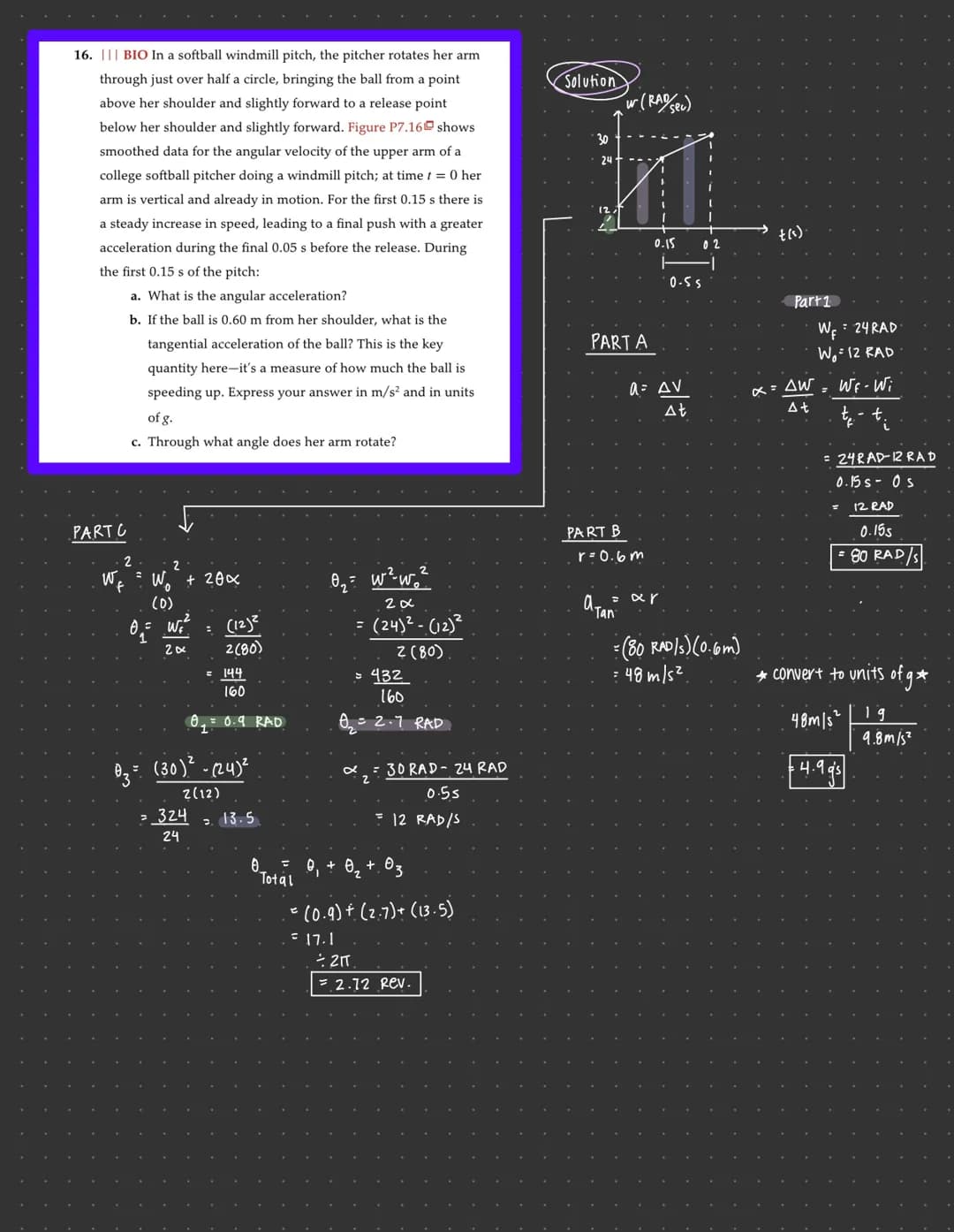

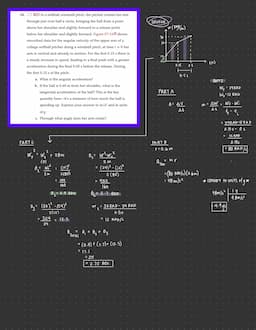

The softball windmill pitch example explores the angular acceleration and tangential acceleration of a pitcher's arm during the motion.

Example: In a softball windmill pitch, the pitcher's arm rotates through just over half a circle in 0.15 seconds, with increasing angular velocity.

Key calculations include:

• Angular acceleration of the arm
• Tangential acceleration of the ball (0.60 m from shoulder)
• Total angle of arm rotation

This problem highlights the application of rotational kinematics to sports biomechanics.
