A comprehensive guide to electric circuits Physics covering fundamental concepts of voltage, current, and resistance relationships. This educational material explains circuit components, Ohm's Law, and practical applications through detailed examples and calculations.

  • Electric circuits definition encompasses the relationship between voltage, current, and resistance
  • Explores the voltage, current resistance relationship through Ohm's Law (V=IR)
  • Covers both series and parallel circuits with practical examples
  • Includes detailed circuit symbols and component explanations
  • Features practice problems demonstrating real-world applications

11/1/2023

139

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

View

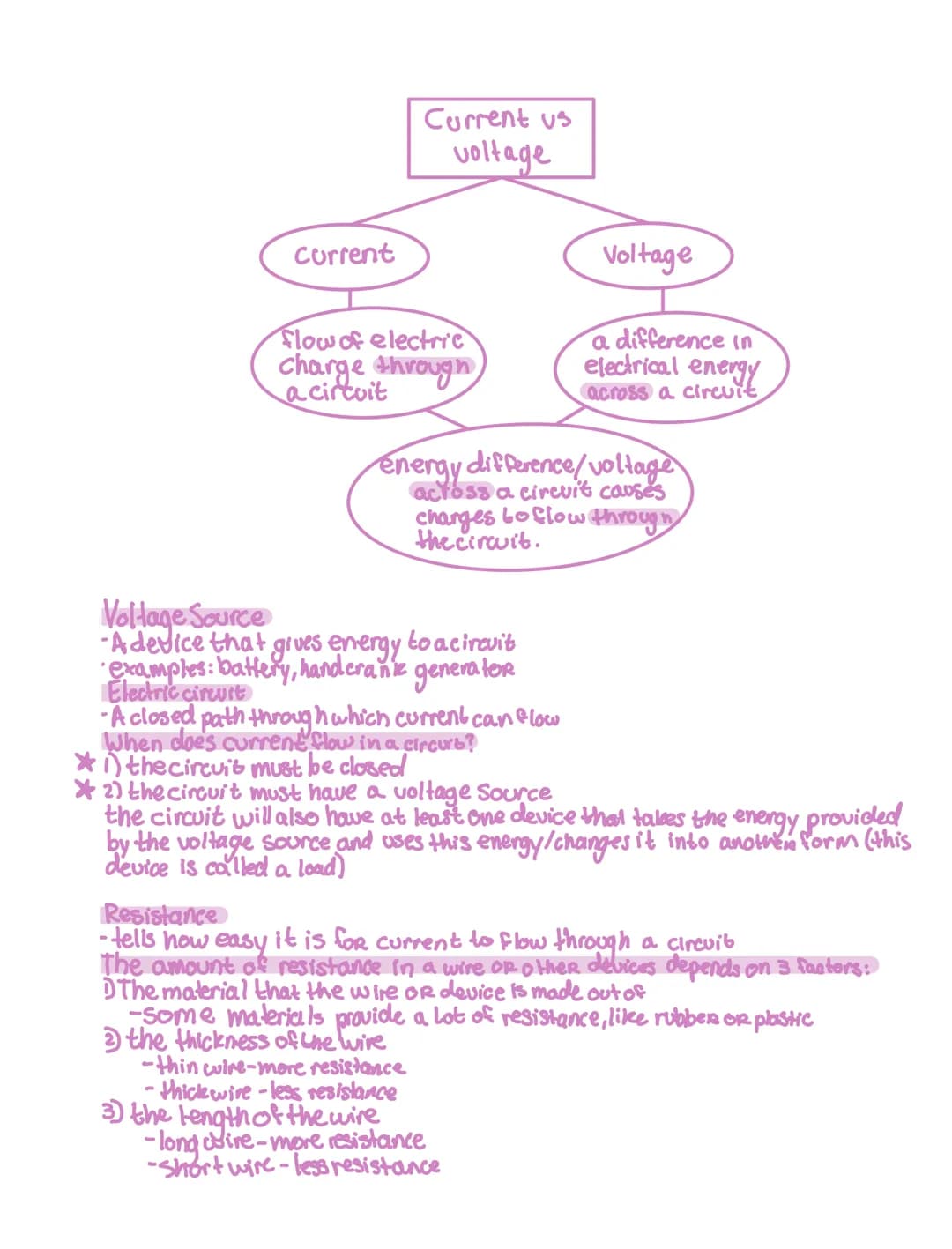

Electric Circuit Components and Relationships

This section delves deeper into the components of electric circuits and the relationships between voltage, current, and resistance. It introduces Ohm's Law and discusses various circuit configurations.

Circuit Components

  1. Voltage Source

    • Provides energy to the circuit
    • Examples: battery, hand-crank generator
  2. Load

    • A device that uses the energy provided by the voltage source
    • Converts electrical energy into another form

Resistance Factors

The resistance in a wire or device depends on three main factors:

  1. Material composition
  2. Wire thickness (thinner wire = more resistance)
  3. Wire length (longer wire = more resistance)

Example: A long, thin wire made of a highly resistive material will have more resistance than a short, thick wire made of a conductive material.

Ohm's Law

Ohm's Law describes the relationship between voltage, current, and resistance in an electric circuit.

Definition: Ohm's Law states that the current through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance.

The mathematical expression of Ohm's Law is:

V = IR

Where:

  • V is voltage (in volts)
  • I is current (in amperes)
  • R is resistance (in ohms)

Highlight: If voltage increases, current increases. If resistance increases, current decreases.

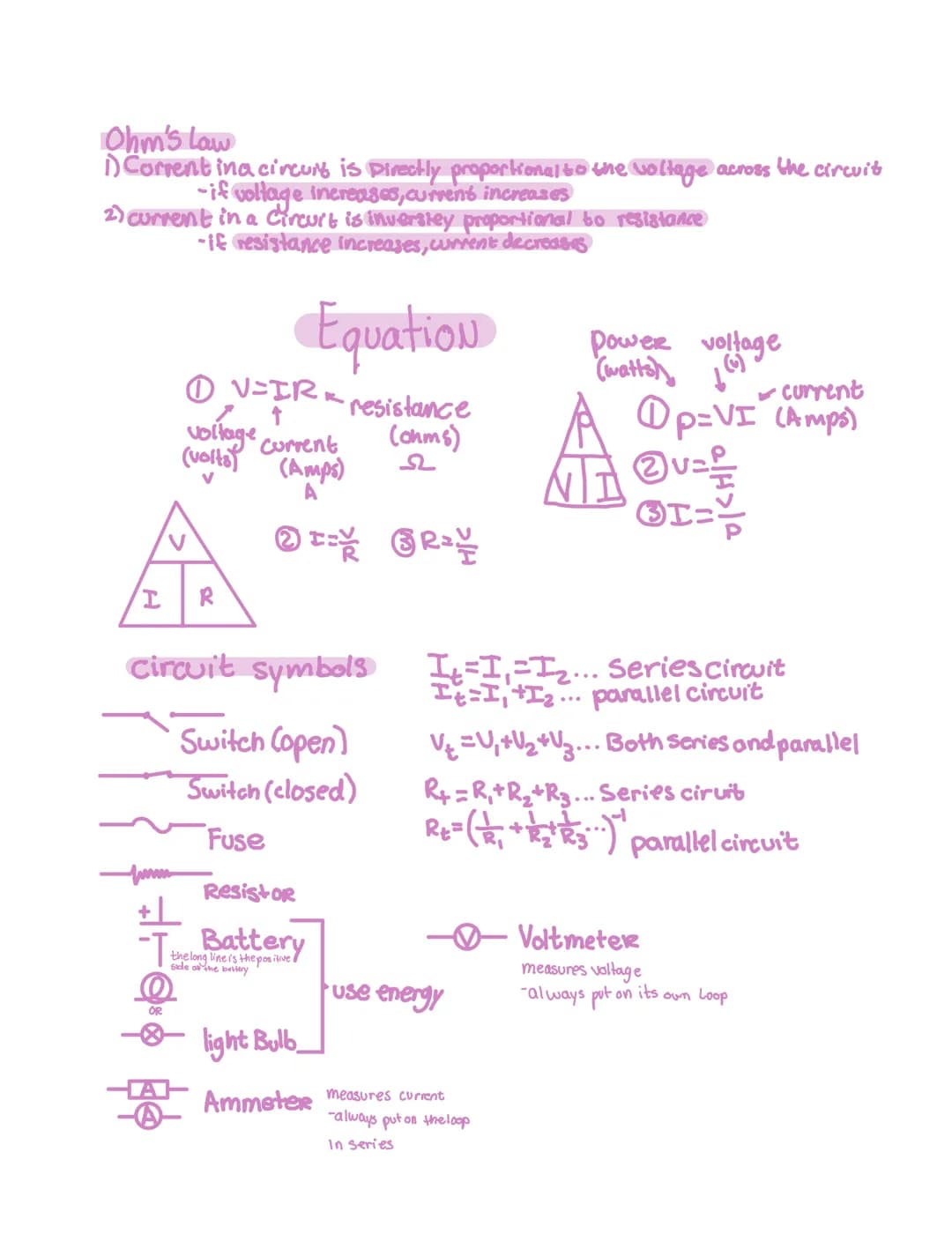

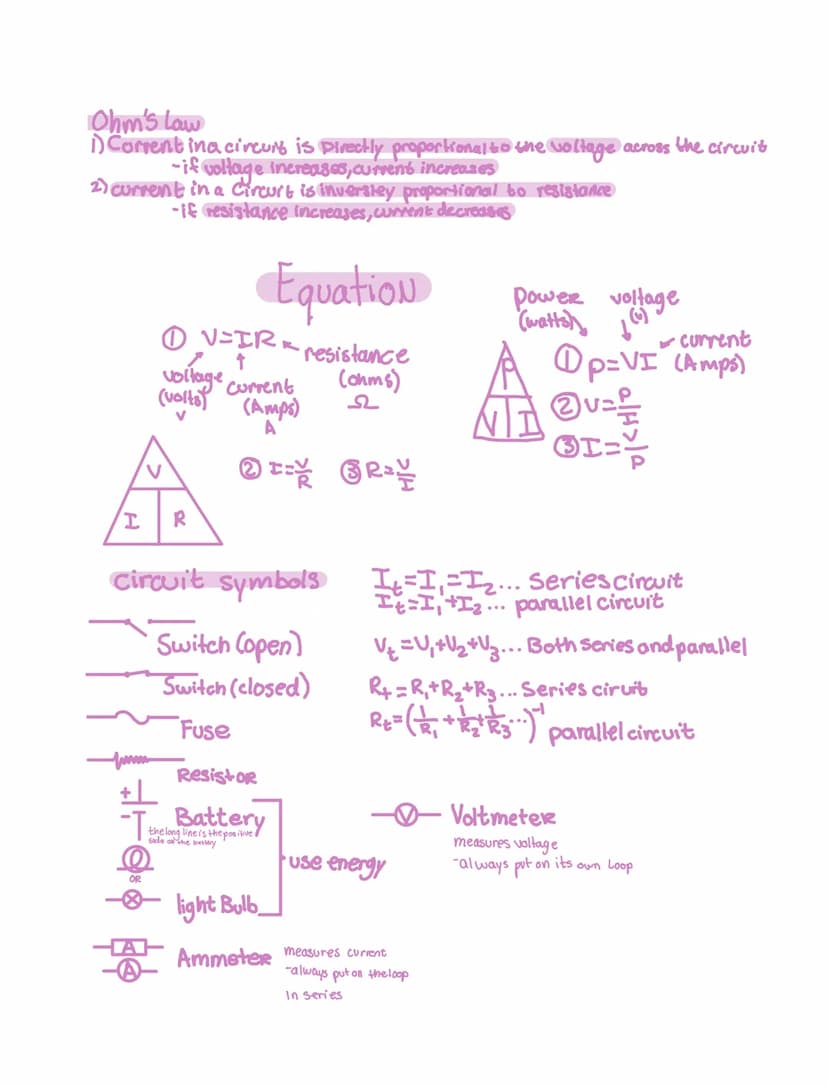

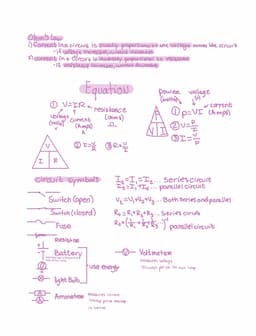

Circuit Symbols and Configurations

The document introduces common circuit symbols for components such as switches, fuses, resistors, and measuring devices (ammeter and voltmeter).

Vocabulary: An ammeter measures current and is always connected in series, while a voltmeter measures voltage and is connected in parallel.

Series and Parallel Circuits

  1. Series Circuit:

    • Current is the same throughout the circuit
    • Total resistance is the sum of individual resistances
  2. Parallel Circuit:

    • Voltage is the same across each branch
    • Total current is the sum of currents in each branch

Example: In a series circuit with three resistors, the total resistance is R_total = R1 + R2 + R3. In a parallel circuit, the reciprocal of the total resistance is 1/R_total = 1/R1 + 1/R2 + 1/R3.

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

View

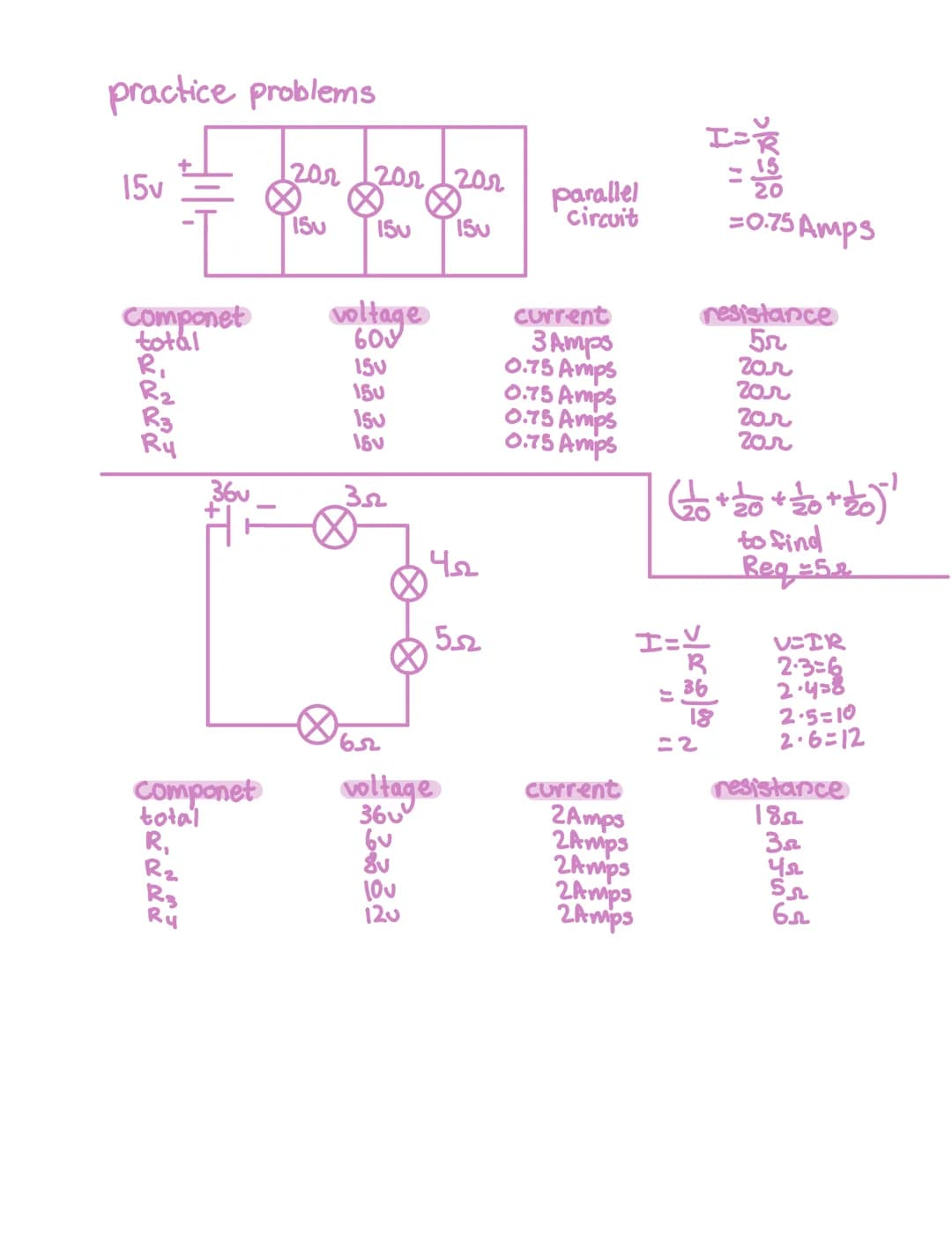

Practice Problems and Applications

This section provides practical examples and problems to reinforce the concepts of electric circuits, Ohm's Law, and circuit analysis.

Problem-Solving Approach

The document presents several practice problems involving both series and parallel circuits. These problems demonstrate how to:

  1. Calculate total resistance
  2. Determine current flow
  3. Find voltage across components

Example: In a series circuit with a 15V source and three resistors (20Ω, 15Ω, 20Ω), the total resistance is 55Ω, and the current is 0.75A throughout the circuit.

Parallel Circuit Analysis

A parallel circuit problem is presented with a 36V source and five resistors. The solution demonstrates that:

  1. Voltage is the same across all branches (36V)
  2. Current is divided among the branches
  3. Total current is the sum of individual branch currents

Highlight: In parallel circuits, the total current is always greater than the current in any individual branch.

Application of Ohm's Law

The problems showcase the application of Ohm's Law in various scenarios:

  1. Calculating current given voltage and resistance
  2. Determining resistance when voltage and current are known
  3. Finding voltage drops across components in a circuit

Example: Using Ohm's Law, I = V/R, we can calculate that a 36V source connected to an 18Ω resistor will produce a current of 2A.

Advanced Concepts

The document touches on more advanced concepts, including:

  1. Power calculations using P = VI
  2. Equivalent resistance in complex circuits
  3. Voltage division in series circuits
  4. Current division in parallel circuits

Vocabulary: Equivalent resistance is the single resistance value that can replace a combination of resistors in a circuit while maintaining the same overall circuit behavior.

These practice problems and applications provide students with hands-on experience in applying the principles of Electric Circuits Physics, reinforcing their understanding of voltage, current, and resistance relationships, and preparing them for more complex circuit analysis.

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

View

Page 4: Practice Problems and Applications

This page provides practical applications of Ohm's law examples with answers, featuring various circuit configurations and calculations.

Example: Sample calculation: In a 15V circuit with 20Ω resistance, current I = V/R = 15/20 = 0.75 Amps

Highlight: Problems demonstrate both series and parallel circuit calculations with varying resistances and voltages.

Vocabulary: Key formulas covered:

  • V = IR (Ohm's Law)
  • Series resistance: Rₜ = R₁ + R₂ + R₃
  • Parallel resistance: 1/Rₜ = 1/R₁ + 1/R₂ + 1/R₃
The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

View

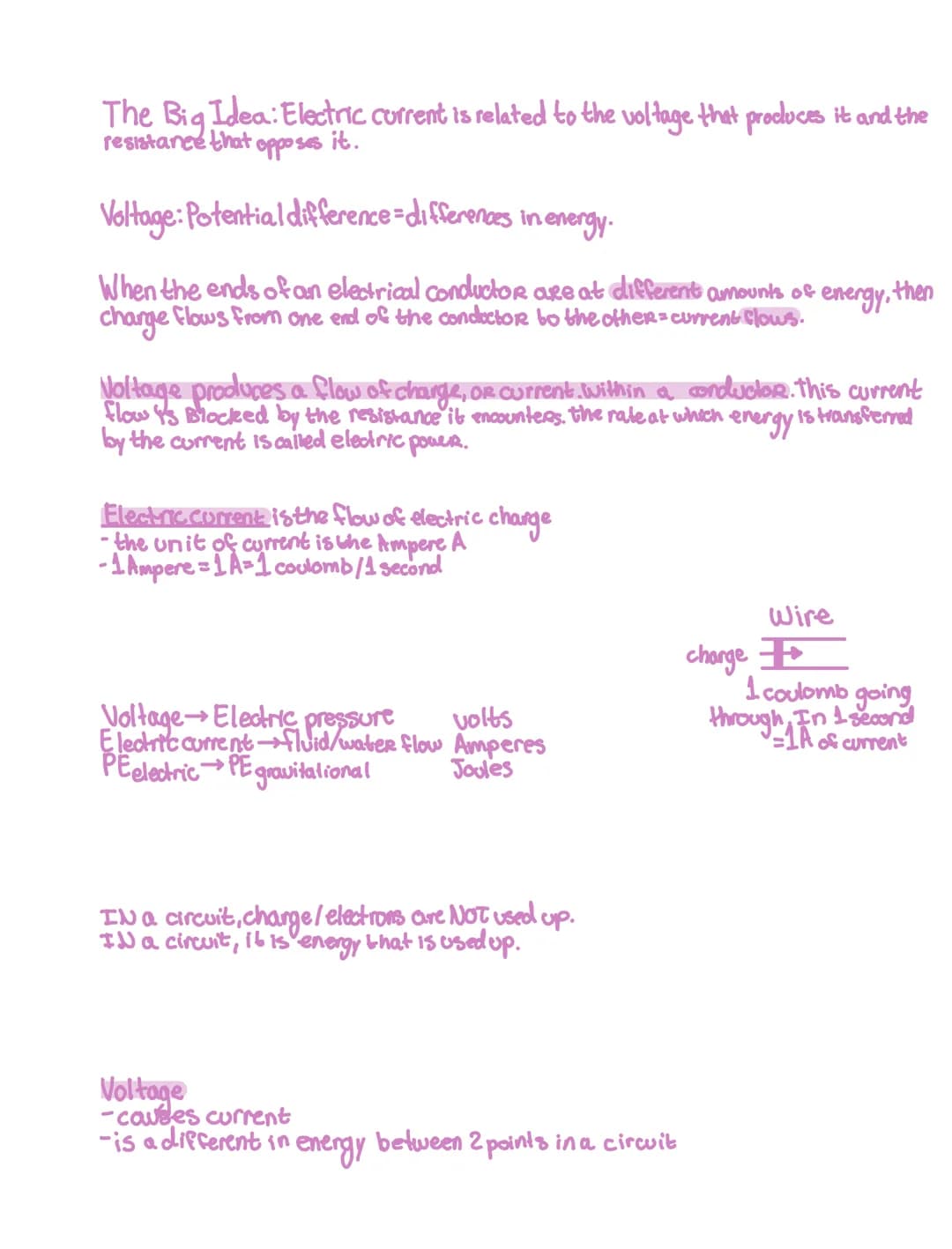

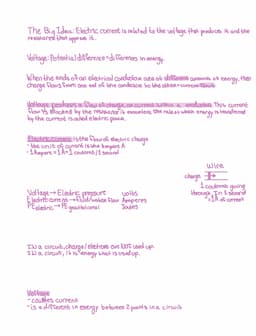

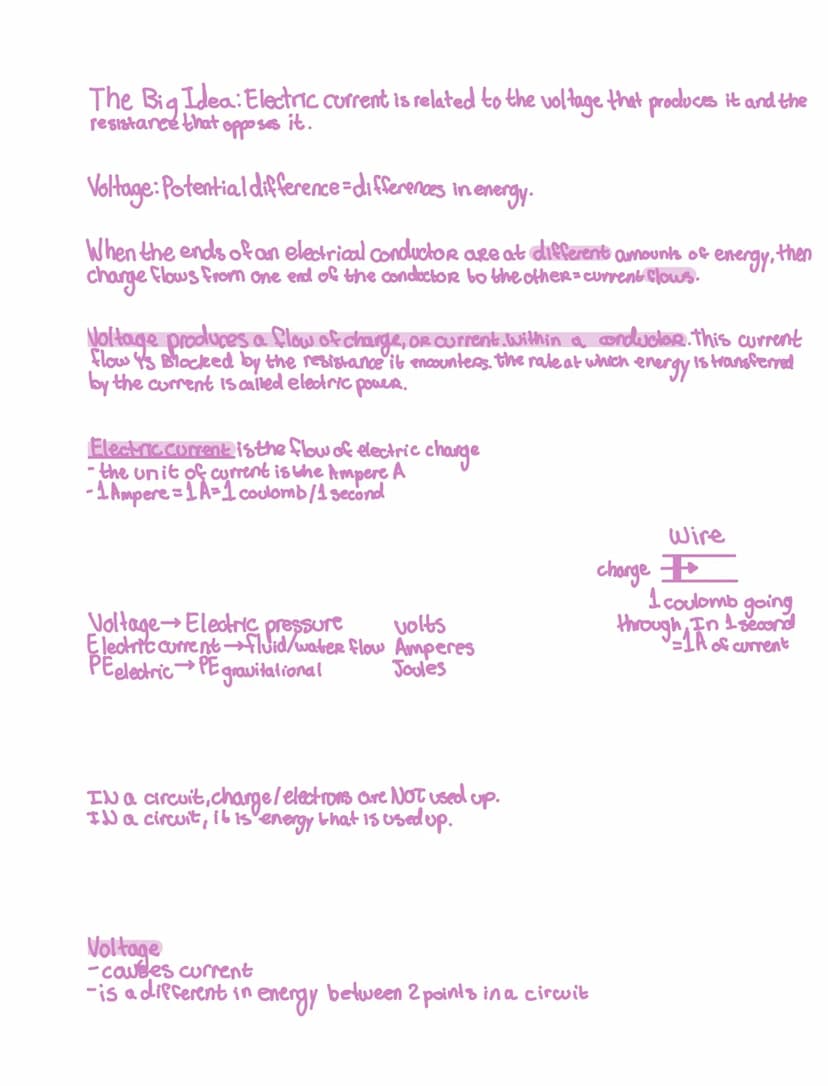

Introduction to Electric Circuits

This section provides an overview of the fundamental concepts in electric circuits, focusing on the relationships between voltage, current, and resistance. It introduces key terminology and explains the basic principles of electrical flow.

The Big Idea

Electric current is directly related to the voltage that produces it and inversely related to the resistance that opposes it. This fundamental concept forms the basis for understanding electric circuits.

Definition: Voltage is the potential difference or difference in energy between two points in a circuit.

When the ends of an electrical conductor have different energy levels, charge flows from one end to the other, creating an electric current.

Highlight: Voltage produces a flow of charge (current) within a conductor, which is impeded by the resistance it encounters.

Key Concepts

  1. Electric Current
    • The flow of electric charge
    • Measured in Amperes (A)
    • 1 Ampere = 1 Coulomb per second

Example: A current of 1A means that 1 Coulomb of charge is flowing through a point in the circuit every second.

  1. Voltage

    • Causes current flow
    • Represents the energy difference between two points in a circuit
    • Measured in Volts (V)
  2. Resistance

    • Opposes the flow of current
    • Measured in Ohms (Ω)

Vocabulary: Electric power is the rate at which energy is transferred by the current, measured in Watts (W).

Circuit Fundamentals

In a circuit:

  • Charge (electrons) is not consumed
  • Energy is transferred and used

Highlight: A circuit must be closed and have a voltage source for current to flow.

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

15 M

Students use Knowunity

#1

In Education App Charts in 12 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying

Sign up to see the content. It's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Introduction to Electric Circuits Notes for Kids - Easy PDF Guides

user profile picture

Aline 🙈

@alinemedeiros_08

·

14 Followers

Follow

A comprehensive guide to electric circuits Physics covering fundamental concepts of voltage, current, and resistance relationships. This educational material explains circuit components, Ohm's Law, and practical applications through detailed examples and calculations.

  • Electric circuits definition encompasses the relationship between voltage, current, and resistance
  • Explores the voltage, current resistance relationship through Ohm's Law (V=IR)
  • Covers both series and parallel circuits with practical examples
  • Includes detailed circuit symbols and component explanations
  • Features practice problems demonstrating real-world applications

11/1/2023

139



9th/11th



Physics

10

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

Electric Circuit Components and Relationships

This section delves deeper into the components of electric circuits and the relationships between voltage, current, and resistance. It introduces Ohm's Law and discusses various circuit configurations.

Circuit Components

  1. Voltage Source

    • Provides energy to the circuit
    • Examples: battery, hand-crank generator
  2. Load

    • A device that uses the energy provided by the voltage source
    • Converts electrical energy into another form

Resistance Factors

The resistance in a wire or device depends on three main factors:

  1. Material composition
  2. Wire thickness (thinner wire = more resistance)
  3. Wire length (longer wire = more resistance)

Example: A long, thin wire made of a highly resistive material will have more resistance than a short, thick wire made of a conductive material.

Ohm's Law

Ohm's Law describes the relationship between voltage, current, and resistance in an electric circuit.

Definition: Ohm's Law states that the current through a conductor is directly proportional to the voltage across it and inversely proportional to its resistance.

The mathematical expression of Ohm's Law is:

V = IR

Where:

  • V is voltage (in volts)
  • I is current (in amperes)
  • R is resistance (in ohms)

Highlight: If voltage increases, current increases. If resistance increases, current decreases.

Circuit Symbols and Configurations

The document introduces common circuit symbols for components such as switches, fuses, resistors, and measuring devices (ammeter and voltmeter).

Vocabulary: An ammeter measures current and is always connected in series, while a voltmeter measures voltage and is connected in parallel.

Series and Parallel Circuits

  1. Series Circuit:

    • Current is the same throughout the circuit
    • Total resistance is the sum of individual resistances
  2. Parallel Circuit:

    • Voltage is the same across each branch
    • Total current is the sum of currents in each branch

Example: In a series circuit with three resistors, the total resistance is R_total = R1 + R2 + R3. In a parallel circuit, the reciprocal of the total resistance is 1/R_total = 1/R1 + 1/R2 + 1/R3.

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

Practice Problems and Applications

This section provides practical examples and problems to reinforce the concepts of electric circuits, Ohm's Law, and circuit analysis.

Problem-Solving Approach

The document presents several practice problems involving both series and parallel circuits. These problems demonstrate how to:

  1. Calculate total resistance
  2. Determine current flow
  3. Find voltage across components

Example: In a series circuit with a 15V source and three resistors (20Ω, 15Ω, 20Ω), the total resistance is 55Ω, and the current is 0.75A throughout the circuit.

Parallel Circuit Analysis

A parallel circuit problem is presented with a 36V source and five resistors. The solution demonstrates that:

  1. Voltage is the same across all branches (36V)
  2. Current is divided among the branches
  3. Total current is the sum of individual branch currents

Highlight: In parallel circuits, the total current is always greater than the current in any individual branch.

Application of Ohm's Law

The problems showcase the application of Ohm's Law in various scenarios:

  1. Calculating current given voltage and resistance
  2. Determining resistance when voltage and current are known
  3. Finding voltage drops across components in a circuit

Example: Using Ohm's Law, I = V/R, we can calculate that a 36V source connected to an 18Ω resistor will produce a current of 2A.

Advanced Concepts

The document touches on more advanced concepts, including:

  1. Power calculations using P = VI
  2. Equivalent resistance in complex circuits
  3. Voltage division in series circuits
  4. Current division in parallel circuits

Vocabulary: Equivalent resistance is the single resistance value that can replace a combination of resistors in a circuit while maintaining the same overall circuit behavior.

These practice problems and applications provide students with hands-on experience in applying the principles of Electric Circuits Physics, reinforcing their understanding of voltage, current, and resistance relationships, and preparing them for more complex circuit analysis.

The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

Page 4: Practice Problems and Applications

This page provides practical applications of Ohm's law examples with answers, featuring various circuit configurations and calculations.

Example: Sample calculation: In a 15V circuit with 20Ω resistance, current I = V/R = 15/20 = 0.75 Amps

Highlight: Problems demonstrate both series and parallel circuit calculations with varying resistances and voltages.

Vocabulary: Key formulas covered:

  • V = IR (Ohm's Law)
  • Series resistance: Rₜ = R₁ + R₂ + R₃
  • Parallel resistance: 1/Rₜ = 1/R₁ + 1/R₂ + 1/R₃
The Big Idea: Electric current is related to the voltage that produces it and the
resistance that opposes it.
Voltage: Potential difference=

Introduction to Electric Circuits

This section provides an overview of the fundamental concepts in electric circuits, focusing on the relationships between voltage, current, and resistance. It introduces key terminology and explains the basic principles of electrical flow.

The Big Idea

Electric current is directly related to the voltage that produces it and inversely related to the resistance that opposes it. This fundamental concept forms the basis for understanding electric circuits.

Definition: Voltage is the potential difference or difference in energy between two points in a circuit.

When the ends of an electrical conductor have different energy levels, charge flows from one end to the other, creating an electric current.

Highlight: Voltage produces a flow of charge (current) within a conductor, which is impeded by the resistance it encounters.

Key Concepts

  1. Electric Current
    • The flow of electric charge
    • Measured in Amperes (A)
    • 1 Ampere = 1 Coulomb per second

Example: A current of 1A means that 1 Coulomb of charge is flowing through a point in the circuit every second.

  1. Voltage

    • Causes current flow
    • Represents the energy difference between two points in a circuit
    • Measured in Volts (V)
  2. Resistance

    • Opposes the flow of current
    • Measured in Ohms (Ω)

Vocabulary: Electric power is the rate at which energy is transferred by the current, measured in Watts (W).

Circuit Fundamentals

In a circuit:

  • Charge (electrons) is not consumed
  • Energy is transferred and used

Highlight: A circuit must be closed and have a voltage source for current to flow.
