Understanding Electric Flux in Physics

ELECTRIC FLUX

Electric flux represents the flow of an electric field through a surface or area. Think of it like counting how many electric field lines cross through a particular surface. The more charge present, the more field lines there are, and consequently, the greater the electric flux.

When you understand electric flux, you'll be able to analyze electric fields in three-dimensional space rather than just at individual points. This concept bridges the gap between isolated charges and their overall effect on the surrounding space.

Quick Connection: Just as water flow becomes stronger through a pipe with increased pressure, electric flux increases with stronger electric fields or larger surface areas.

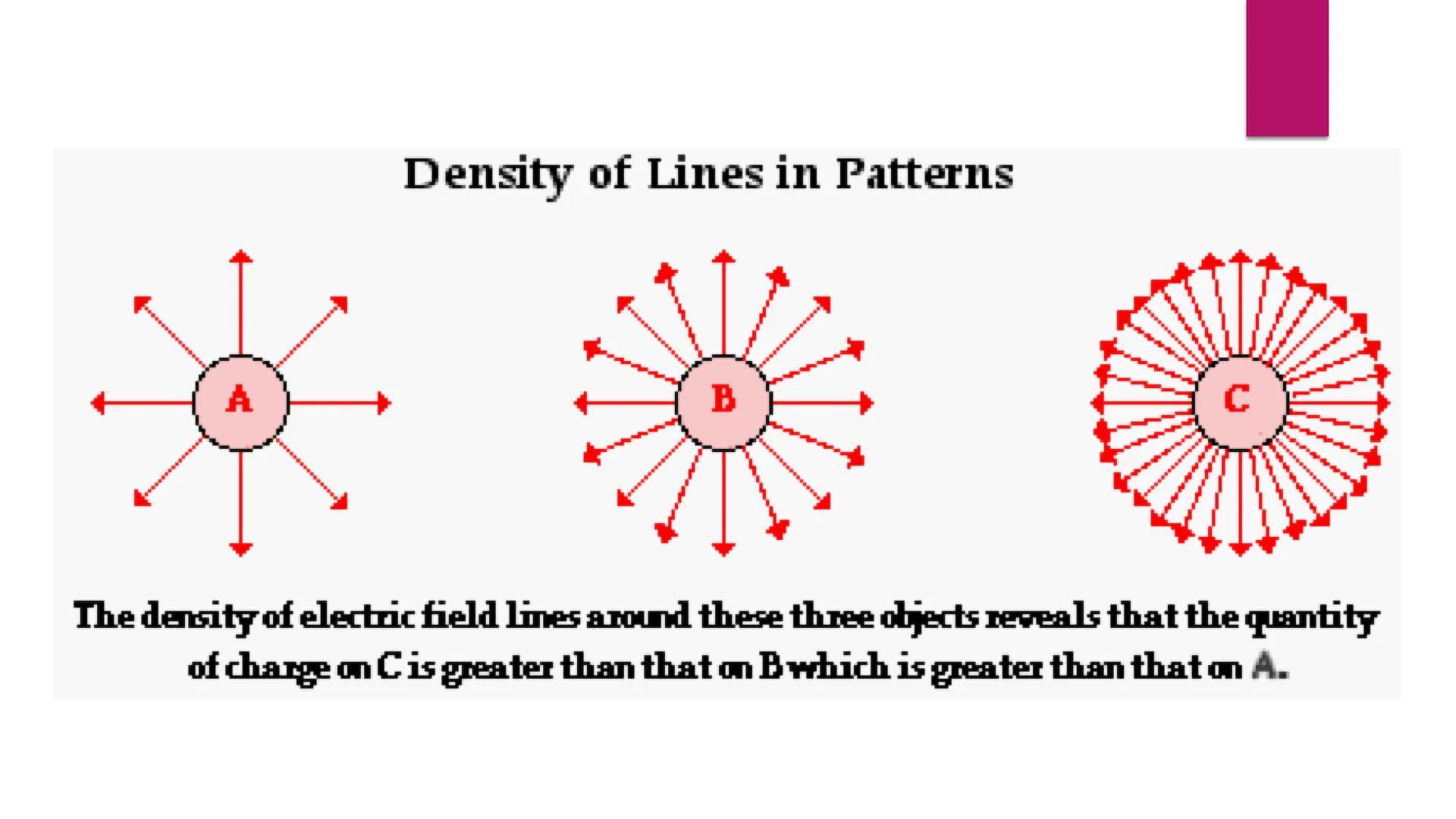

Density of Lines in Patterns

Electric field lines show us the strength of an electric field visually. The denser (closer together) the lines, the stronger the electric field in that region.

Looking at three objects labeled A, B, and C, we can see that C has the most densely packed field lines, followed by B, then A. This visual representation tells us that C has the greatest amount of charge, followed by B, then A.

This pattern illustrates an important principle: the density of electric field lines directly corresponds to the amount of charge present. You can use this visual cue to quickly compare relative charge strengths without complex calculations.

Remember: More densely packed field lines = stronger electric field = greater charge.

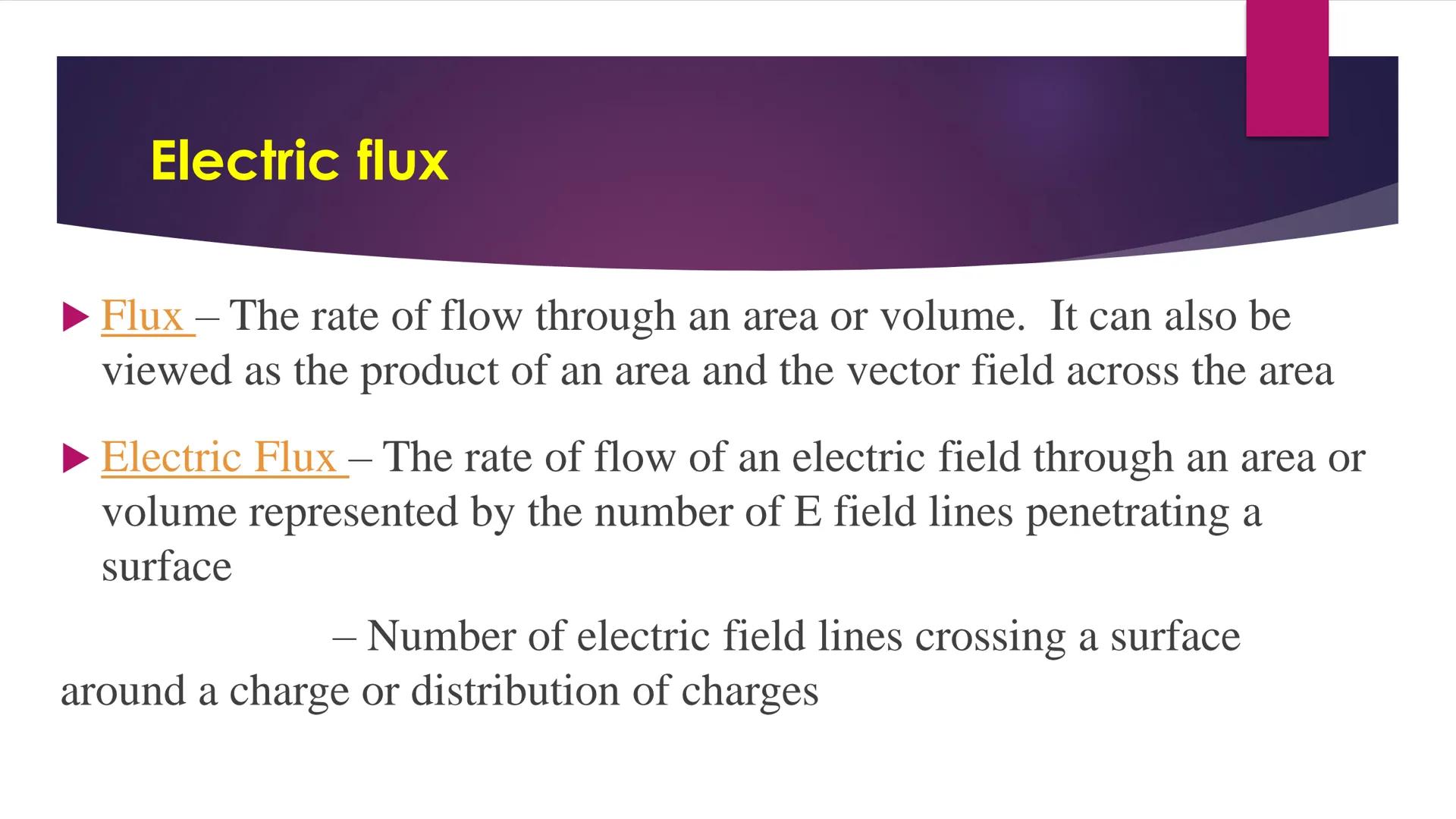

Electric Flux Defined

Flux is the rate of flow through an area or volume. You can think of it as counting how much of something passes through a surface.

Electric flux specifically measures how many electric field lines penetrate a surface. It quantifies the "flow" of the electric field through an area. When a charge creates an electric field, the flux counts how many of those field lines cross through a given surface around that charge.

The concept might seem abstract, but it's similar to counting how many streams of water pass through a net placed in a river. The more streams that pass through, the greater the flux.

Visualization Tip: Imagine holding a hoop in a rainstorm. The number of raindrops passing through the hoop is analogous to electric flux—it depends on both the rain intensity (field strength) and hoop size (area).

Electric Flux Formula

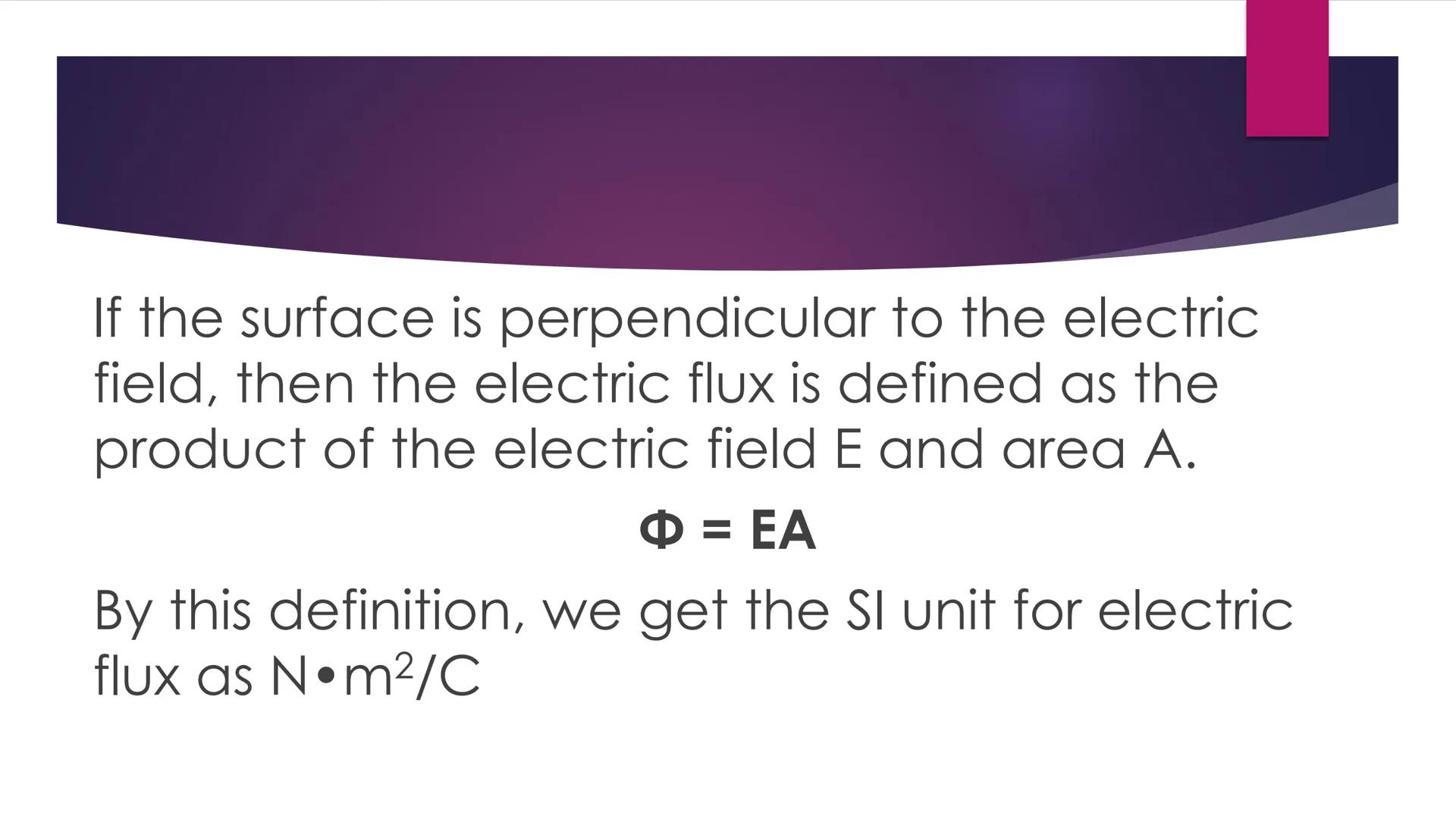

When a surface is perpendicular to an electric field, the electric flux can be calculated using a simple formula: Φ = EA

In this equation, E represents the electric field strength and A represents the area of the surface. The resulting unit for electric flux is N·m²/C (newton-meter squared per coulomb).

This straightforward relationship shows that increasing either the electric field strength or the surface area will proportionally increase the electric flux. Think of it like a window—a bigger window (larger area) or stronger wind (stronger field) will let more air through.

Application Note: This simple formula works perfectly when the surface is at right angles to the field. For other orientations, we'll need to account for the angle, as we'll see in upcoming pages.

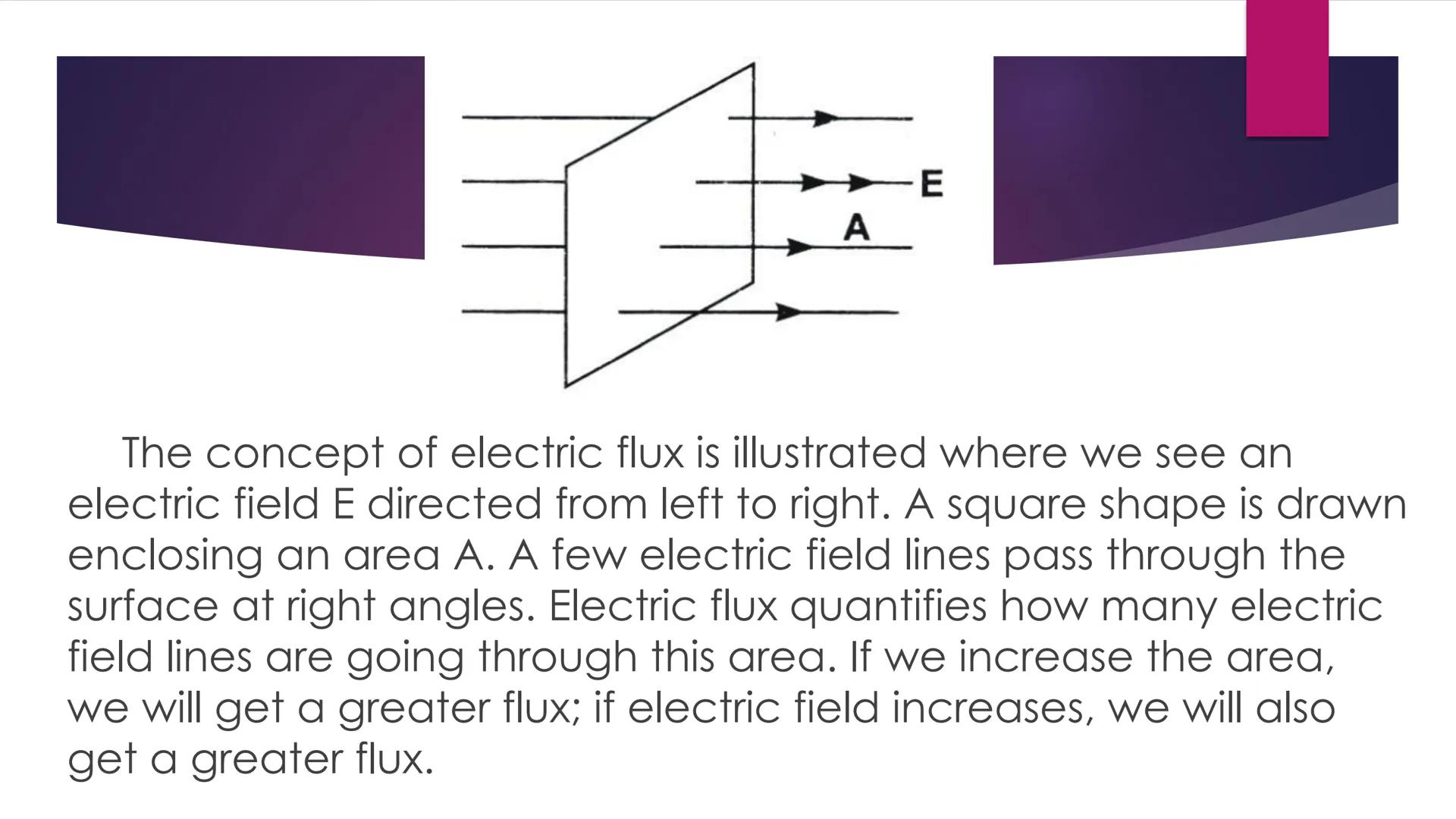

Visualizing Electric Flux

Imagine an electric field E pointing from left to right, with field lines crossing perpendicularly through a square area A. The electric flux measures how many of these field lines penetrate the square.

Two key factors affect the amount of flux: the strength of the electric field and the size of the area. If you increase the area while keeping the field strength constant, more field lines will pass through, increasing the flux. Similarly, if you strengthen the electric field while maintaining the same area, the density of field lines increases, also resulting in greater flux.

This relationship highlights why electric flux is a product (E×A) rather than a simple addition—both factors multiply the effect rather than just adding to it.

Physical Insight: Electric flux is like measuring water flow through a screen—both the water pressure (field strength) and screen size (area) determine how much water passes through.

Flux Properties

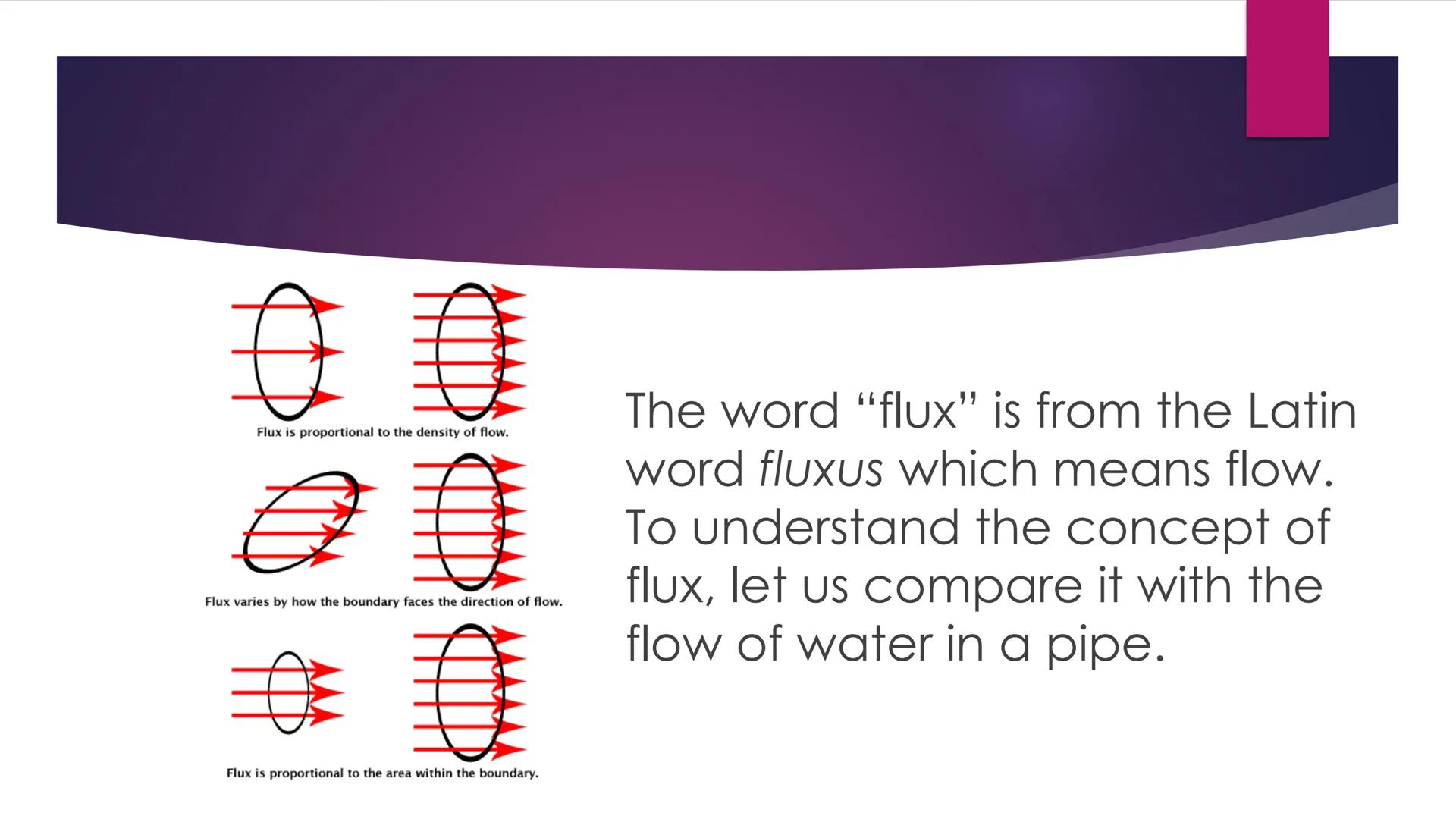

The word "flux" comes from the Latin "fluxus," meaning "flow," which perfectly captures its essence. Just like water flowing through a pipe, electric flux flows through surfaces in an electric field.

Flux depends on three critical factors:

1. The density of flow - stronger electric fields create greater flux
2. How the boundary faces the direction of flow - perpendicular surfaces capture maximum flux
3. The area within the boundary - larger surfaces intercept more field lines

These principles apply whether we're talking about water flowing through a pipe, air moving through a window, or electric field lines crossing through a surface. The fundamental concept remains consistent across different physical systems.

Connection Tip: Think of flux like catching rain in a bucket—the amount you collect depends on the rain intensity, bucket size, and how you orient the bucket.

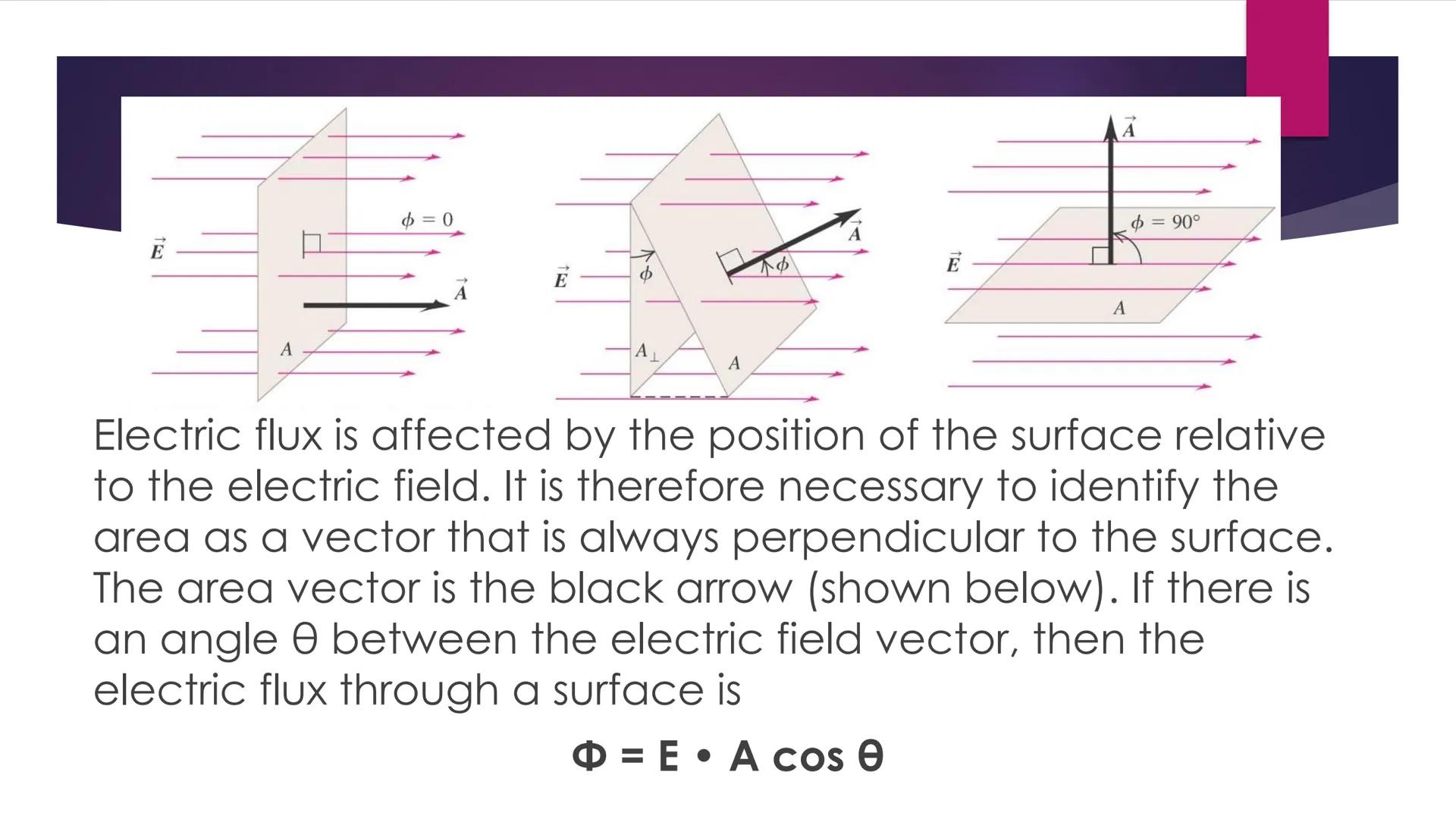

Electric Flux and Surface Orientation

The orientation of a surface relative to an electric field significantly affects the flux through it. For this reason, we treat area as a vector (A) that points perpendicular to the surface.

When there's an angle θ between the electric field vector (E) and the area vector, the electric flux is calculated using: Φ = E·A cos θ

This equation accounts for how the surface is positioned relative to the field. If the surface directly faces the field $θ = 0°$, maximum flux occurs. As the surface tilts away, the flux decreases, becoming zero when the surface is parallel to the field $θ = 90°$.

Visualization Aid: Think of a solar panel—it captures maximum energy when directly facing the sun, less when tilted away, and none when parallel to the sun's rays.

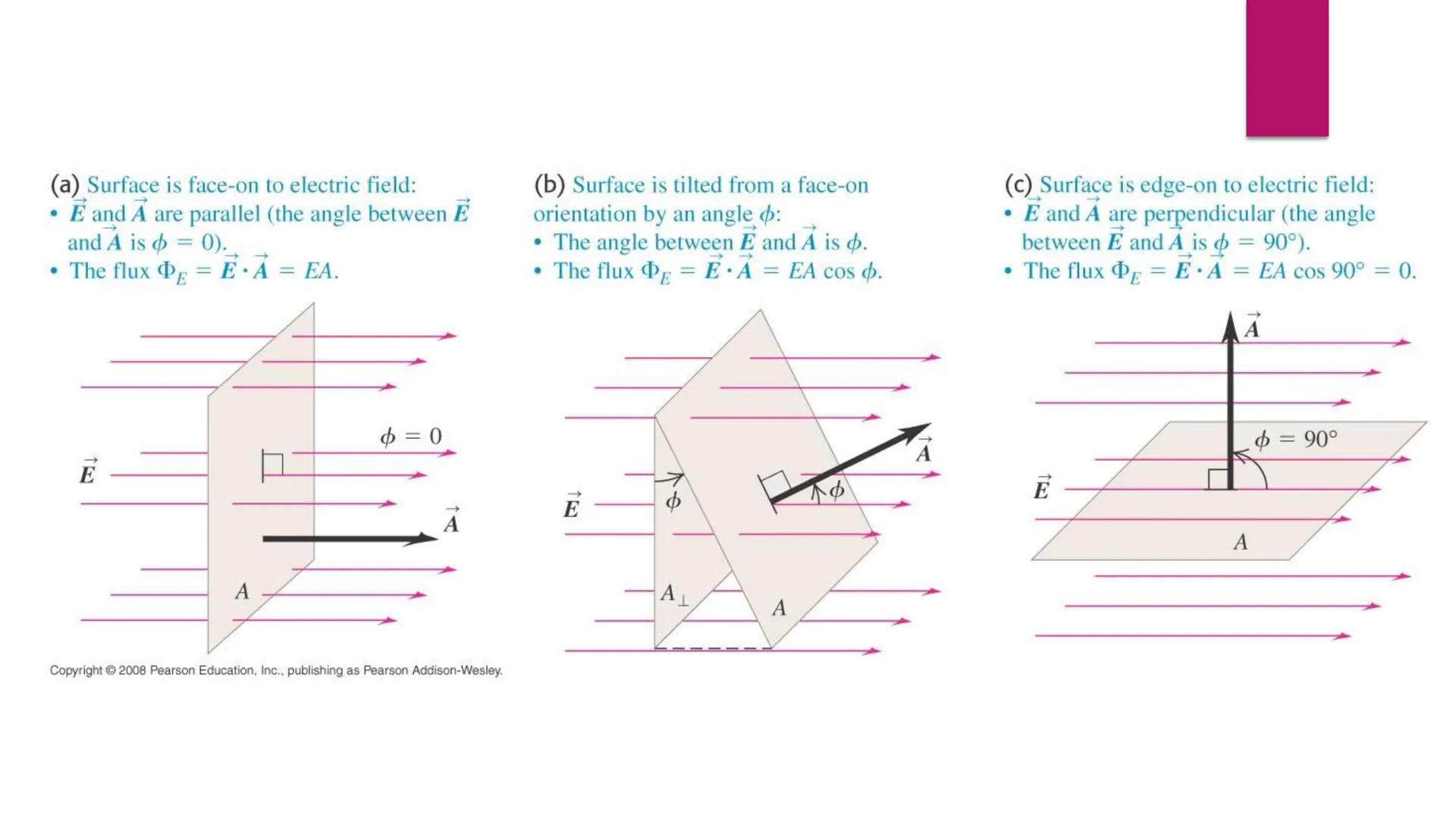

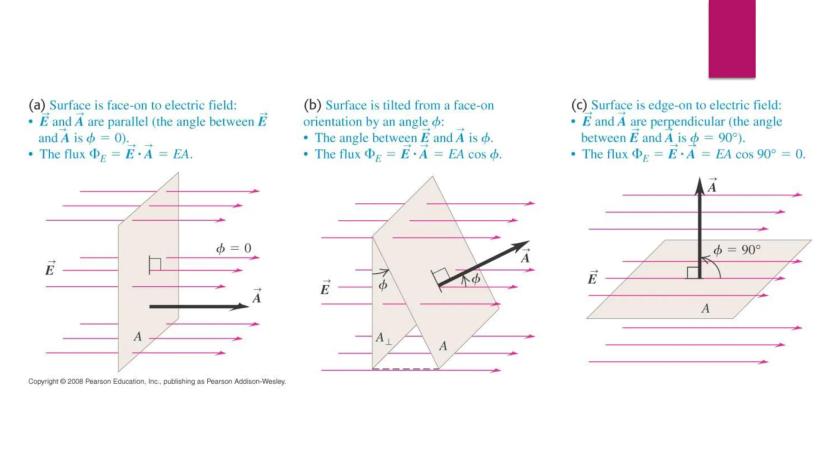

Surface Orientations and Flux Calculations

Face-on Orientation: When the surface directly faces the electric field, the area vector and electric field are parallel $φ = 0°$. The flux equals Φₑ = EA, which is the maximum possible flux for that field and area.

Tilted Orientation: When the surface is tilted at an angle φ from the face-on position, the flux becomes Φₑ = EA cos φ. The cosine factor reduces the flux proportionally to the tilt angle.

Edge-on Orientation: When the surface is positioned edge-on to the electric field $φ = 90°$, the flux equals Φₑ = EA cos 90° = 0. No electric field lines pass through the surface in this orientation.

Math Insight: The cos φ term in the flux equation represents the fraction of the field that passes through the surface—from 100% $cos 0° = 1$ to 0% $cos 90° = 0$.

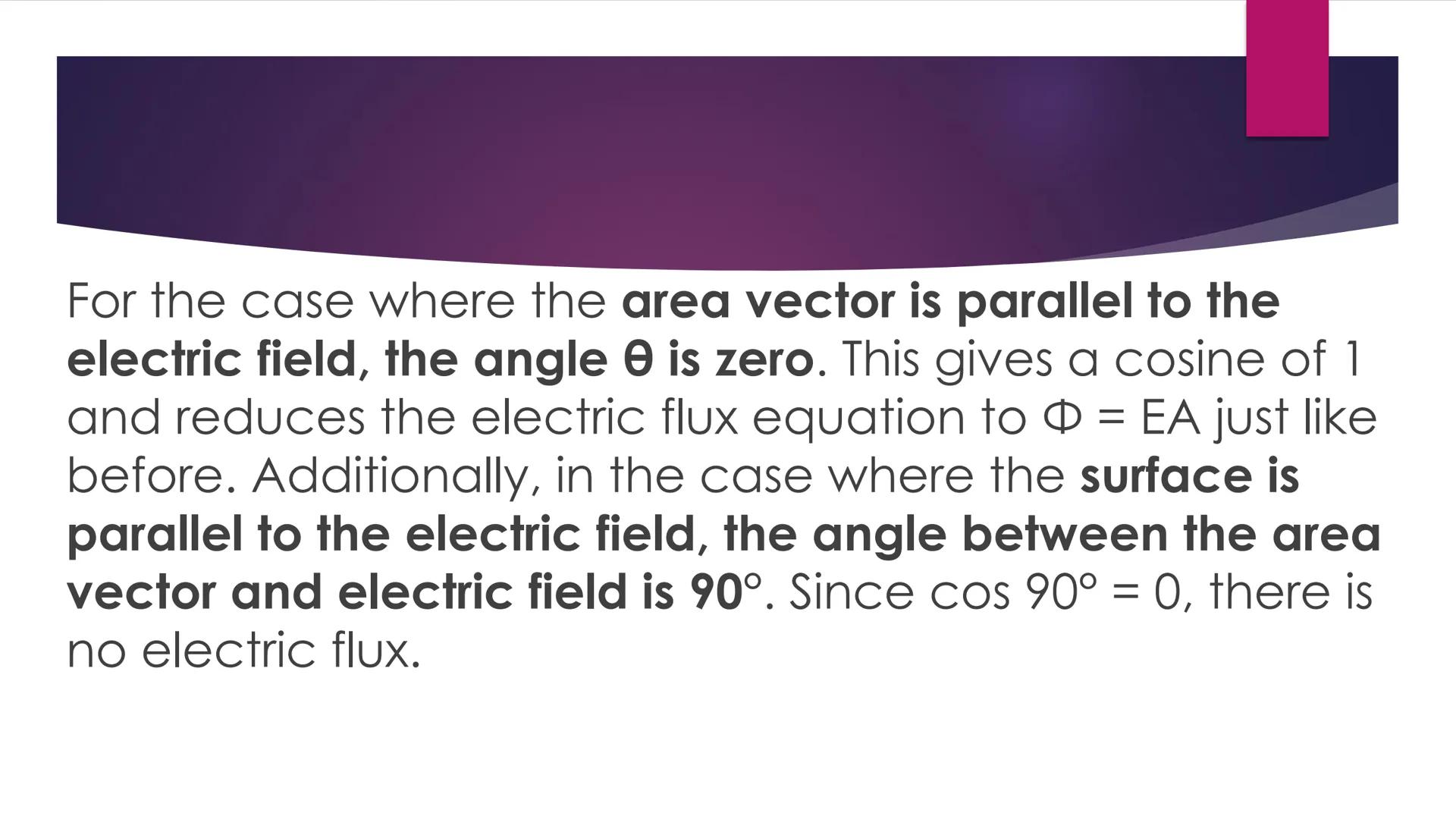

Special Cases of Electric Flux

When the area vector is parallel to the electric field $θ = 0°$, cos 0° equals 1, simplifying the electric flux equation to Φ = EA. This represents the maximum possible flux for a given area and field strength.

Conversely, when the surface is parallel to the electric field, the angle between the area vector and electric field becomes 90°. Since cos 90° equals 0, the electric flux is zero. This makes intuitive sense—no field lines cross through a surface when they run parallel to it.

These special cases help us quickly evaluate flux in situations with simple geometric arrangements. You'll use these shortcuts frequently in problem-solving to simplify your calculations.

Quick Check: If you're unsure about the flux through a surface, visualize the field lines and consider how many would physically pass through the surface.

Calculating Total Flux

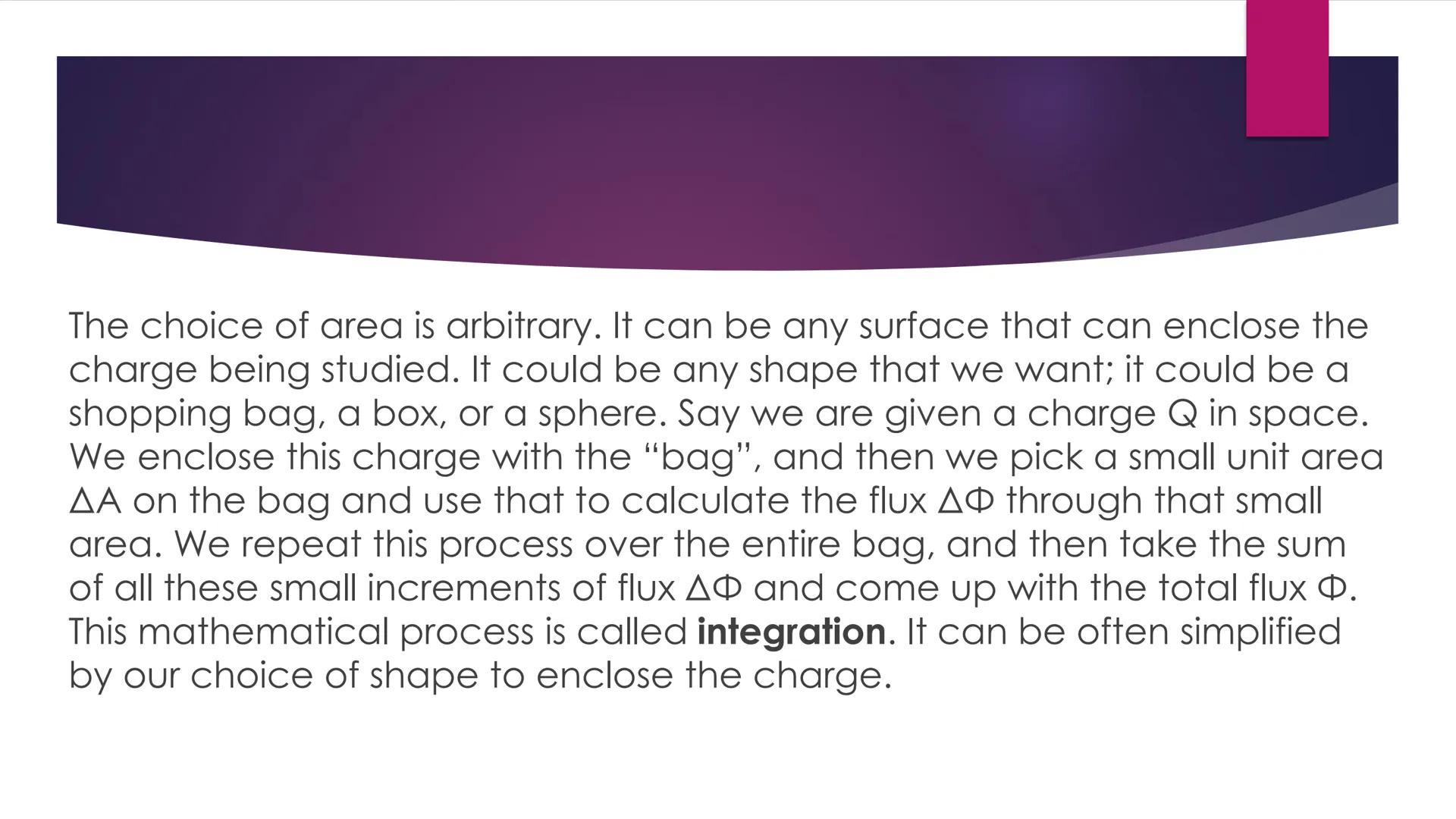

When calculating electric flux around a charge, we can choose any shape to enclose the charge—it could be a sphere, cube, or even an irregular "bag" shape. The choice is arbitrary and depends on what makes the math easiest.

For complex shapes, we divide the surface into small area elements (ΔA) and calculate the small flux (ΔΦ) through each element. The total flux is found by adding up (integrating) all these small contributions around the entire surface.

This integration process might sound complicated, but it can be simplified by choosing shapes with high symmetry relative to the charge distribution. For example, a spherical surface around a point charge allows for a straightforward calculation.

Problem-Solving Tip: When tackling flux problems, look for symmetry in the charge distribution and choose an enclosing surface that matches that symmetry to simplify your calculations.
