Understanding Gauss' Law: Key Principles and Practical Examples

Applications of Gauss' Law

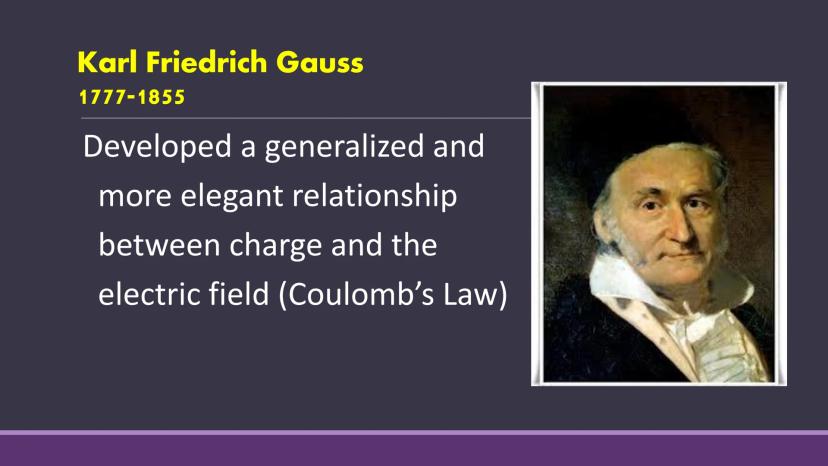

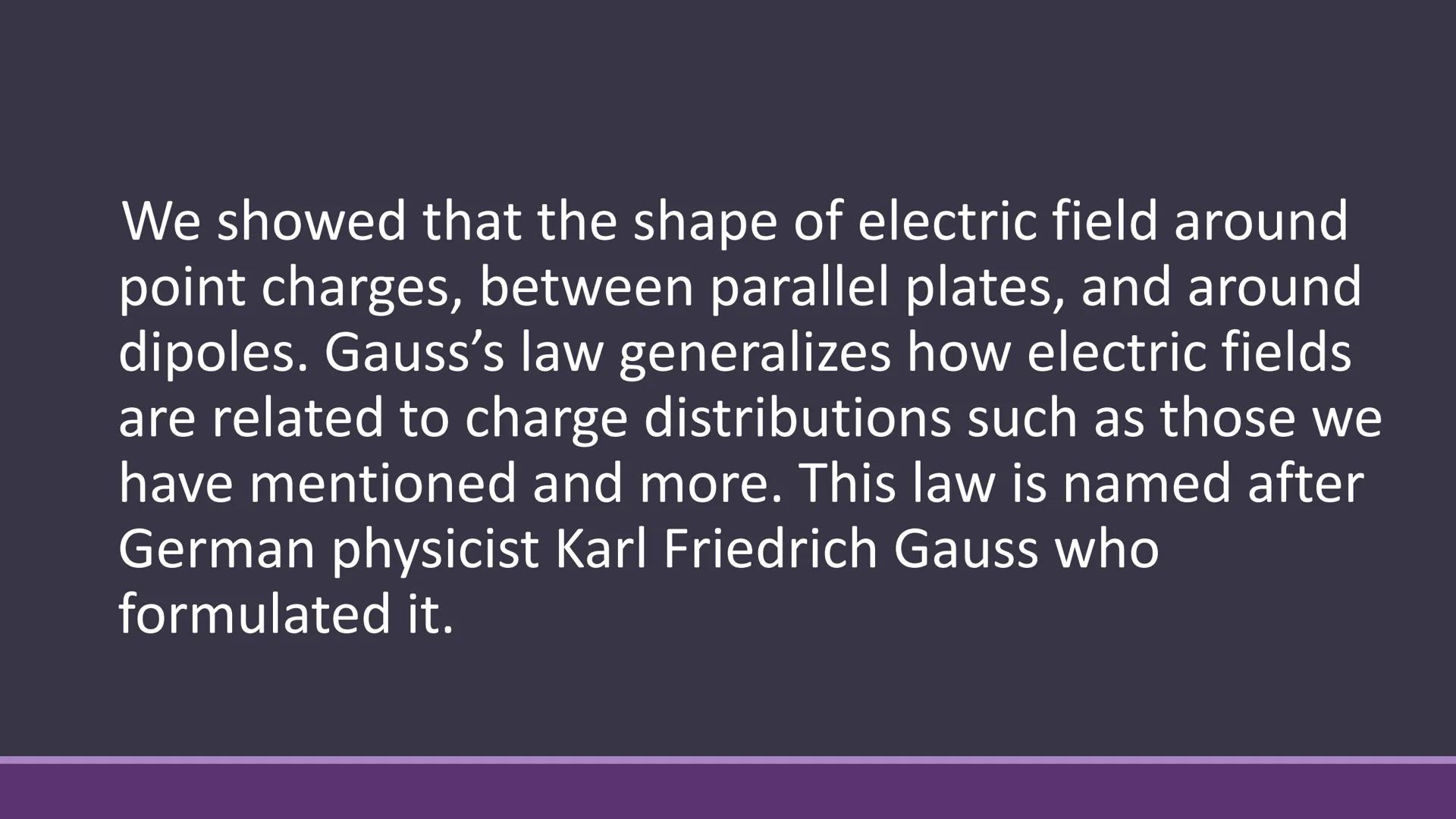

Gauss' Law gives us a clever way to connect electric fields with charge distributions. Named after German physicist Karl Friedrich Gauss $1777-1855$, this law offers a more elegant approach than calculating fields point-by-point using Coulomb's Law.

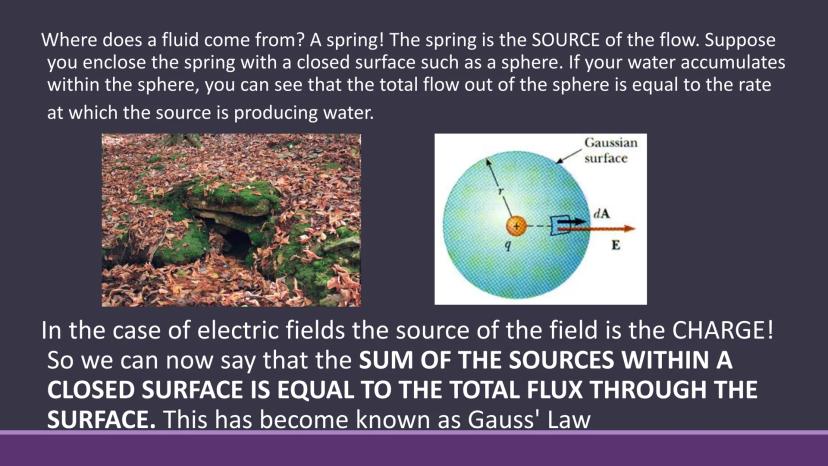

The principle is surprisingly intuitive: just as water flows from a spring, electric fields "flow" from positive charges. If you imagine enclosing a charge with a surface (like a bubble), the total electric "flow" (flux) through that surface is directly proportional to the charge inside.

Think of it this way: If you put a bubble around a water spring, all the water produced must flow out through the bubble's surface. Similarly, all electric field lines from a charge must pass through any surface surrounding it.

Understanding Gauss' Law Mathematically

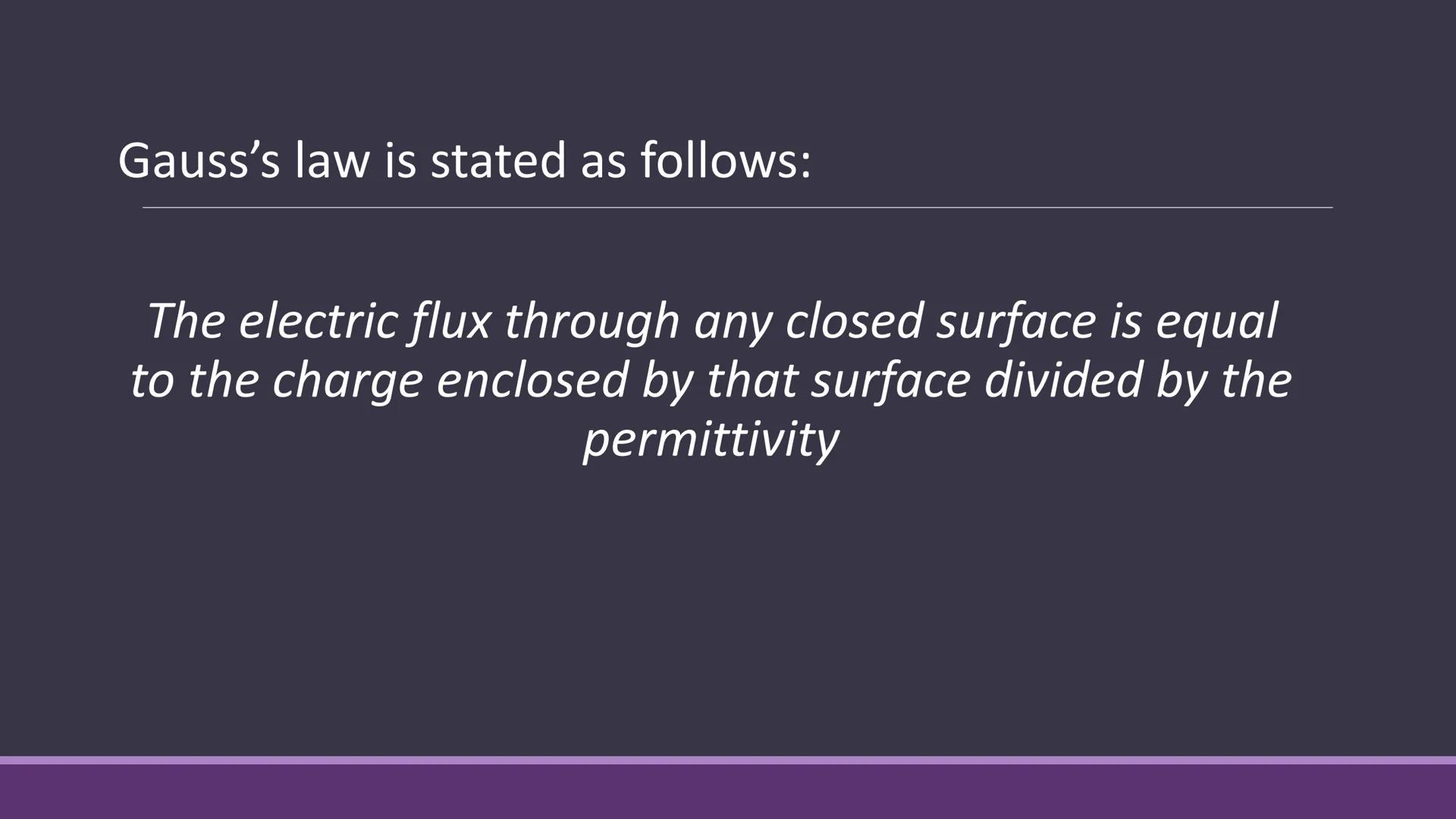

Gauss' Law is formally stated as: The electric flux through any closed surface equals the charge enclosed by that surface divided by the permittivity of free space. In equation form: Φ = Q/ε₀

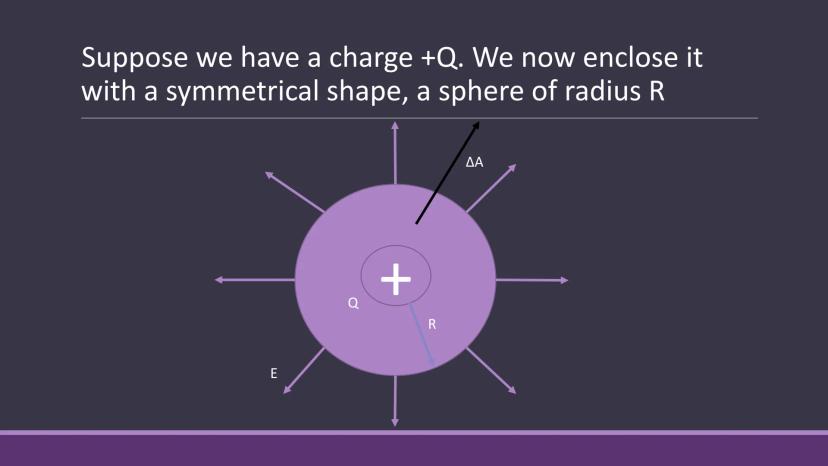

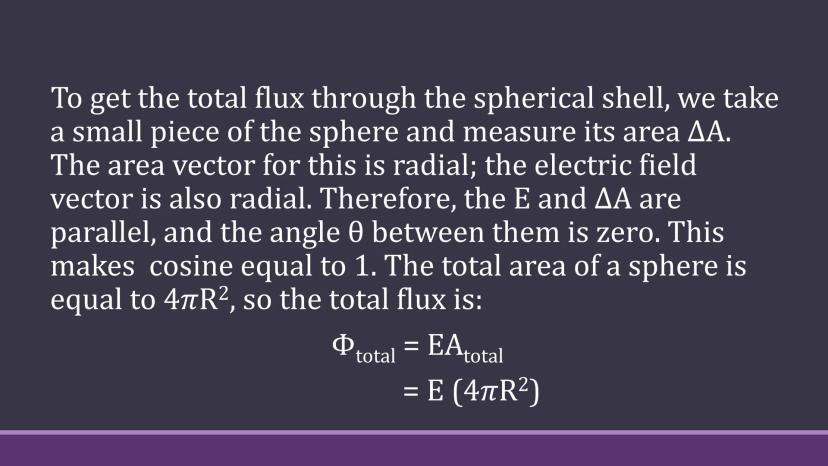

When we apply this to a spherical surface surrounding a point charge Q, the math works out beautifully. Since the electric field points radially outward and has the same strength at all points on the sphere, the flux calculation simplifies to Φ = E × 4πr².

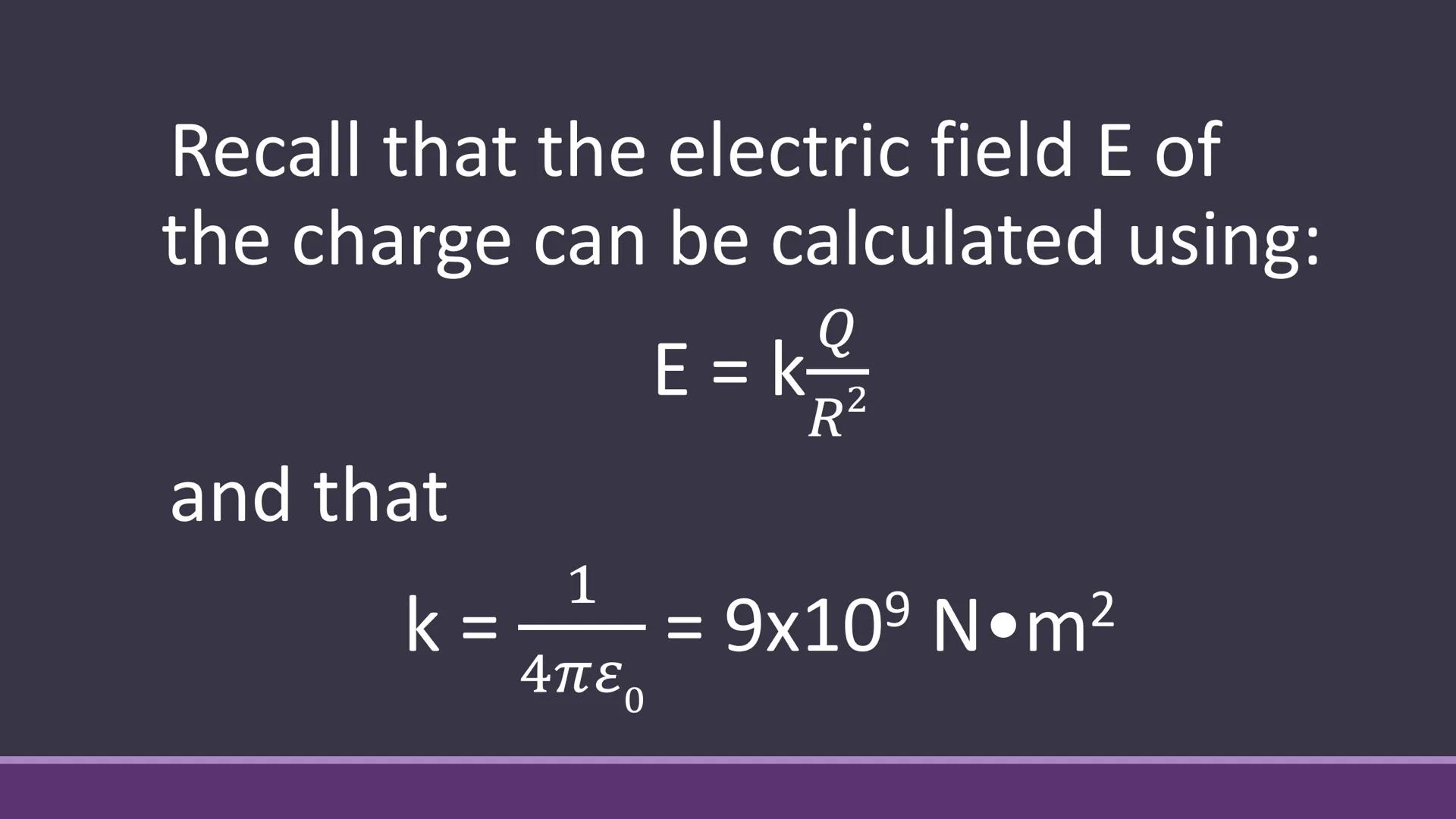

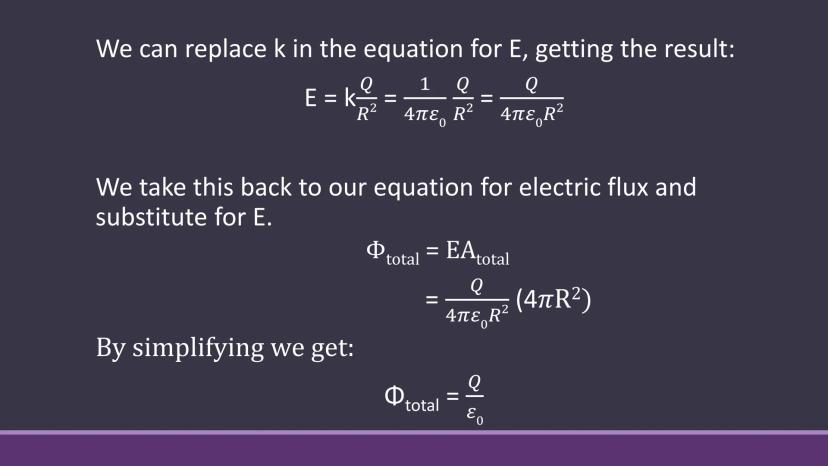

When we combine this with E = kQ/r² and substitute k = 1/(4πε₀), we get Φ = Q/ε₀ for any closed surface around the charge. This result is independent of the surface's size or shape!

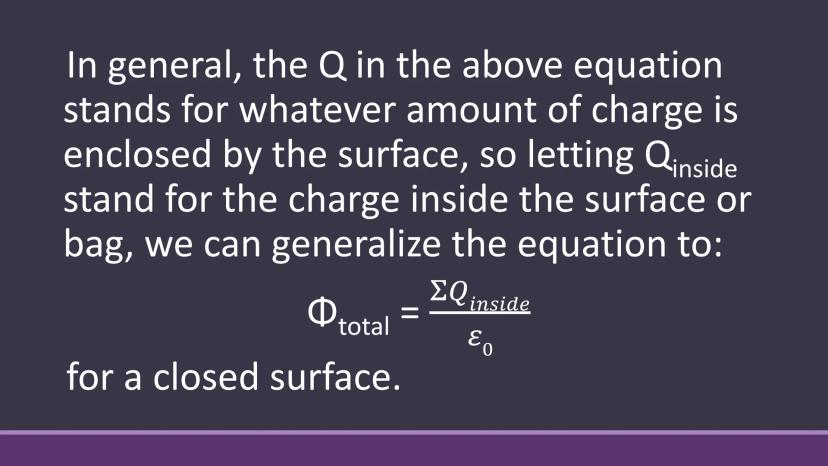

Remember: The charge Q represents the total enclosed charge, so if multiple charges are inside the surface, we use their algebraic sum (accounting for positive and negative charges).

Applications with Spherical Symmetry

Gauss' Law really shines when solving problems with symmetry. For a hollow conducting sphere with charge Q, we need to determine the electric field both inside and outside the sphere.

For points inside the sphere, we place a smaller Gaussian surface within the conductor. Since no charge is enclosed (all charge resides on the conductor's surface), the electric field inside must be zero. This is a fundamental property of hollow conductors!

For points outside the sphere at distance r, the enclosed charge is Q, giving us E = kQ/r² - exactly the same as a point charge. This shows that outside a spherical charge distribution, the electric field behaves as if all charge were concentrated at the center.

Key insight: When solving problems with Gauss' Law, always choose a Gaussian surface that matches the symmetry of your charge distribution to simplify calculations.

Cylindrical Symmetry Applications

When analyzing charges distributed along a long, thin wire (like a charged cylinder), cylindrical symmetry helps us find the electric field. If the charge per unit length is λ (measured in C/m), we use a cylindrical Gaussian surface surrounding the wire.

Due to symmetry, the electric field points radially outward from the wire and has the same magnitude at all points equidistant from it. The flux through the curved surface of our Gaussian cylinder is E × 2πrh, where r is the distance from the wire and h is the height of our cylinder.

The enclosed charge is λh, giving us E = λ/(2πε₀r) after applying Gauss' Law. This shows that the electric field decreases with distance, but more slowly $1/r$ than for a point charge $1/r²$.

Application note: This formula explains the electric fields around power lines and other charged linear conductors, important in electrical engineering and power transmission.

Planar Symmetry Applications

For an infinite flat sheet of charge with uniform charge density σ $C/m²$, we use a "pillbox" Gaussian surface - a short cylinder with its axis perpendicular to the sheet. Electric field lines point straight out from both sides of the sheet.

Only the flat ends of our pillbox contribute to the flux (the sides are parallel to the field lines). The total flux is 2EA, where A is the area of each end. The charge enclosed is σA.

Applying Gauss' Law gives us E = σ/(2ε₀), showing that the electric field near a charged sheet is constant regardless of distance! This is quite different from point charges and line charges.

For two parallel plates with opposite charges (±σ), the fields add together to give E = σ/ε₀ between the plates. This is the principle behind capacitors, essential components in electronic circuits.

Practical application: This uniform field between parallel plates is used in oscilloscopes, particle accelerators, and many other devices requiring controlled electric fields.
