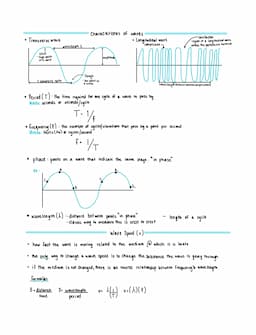

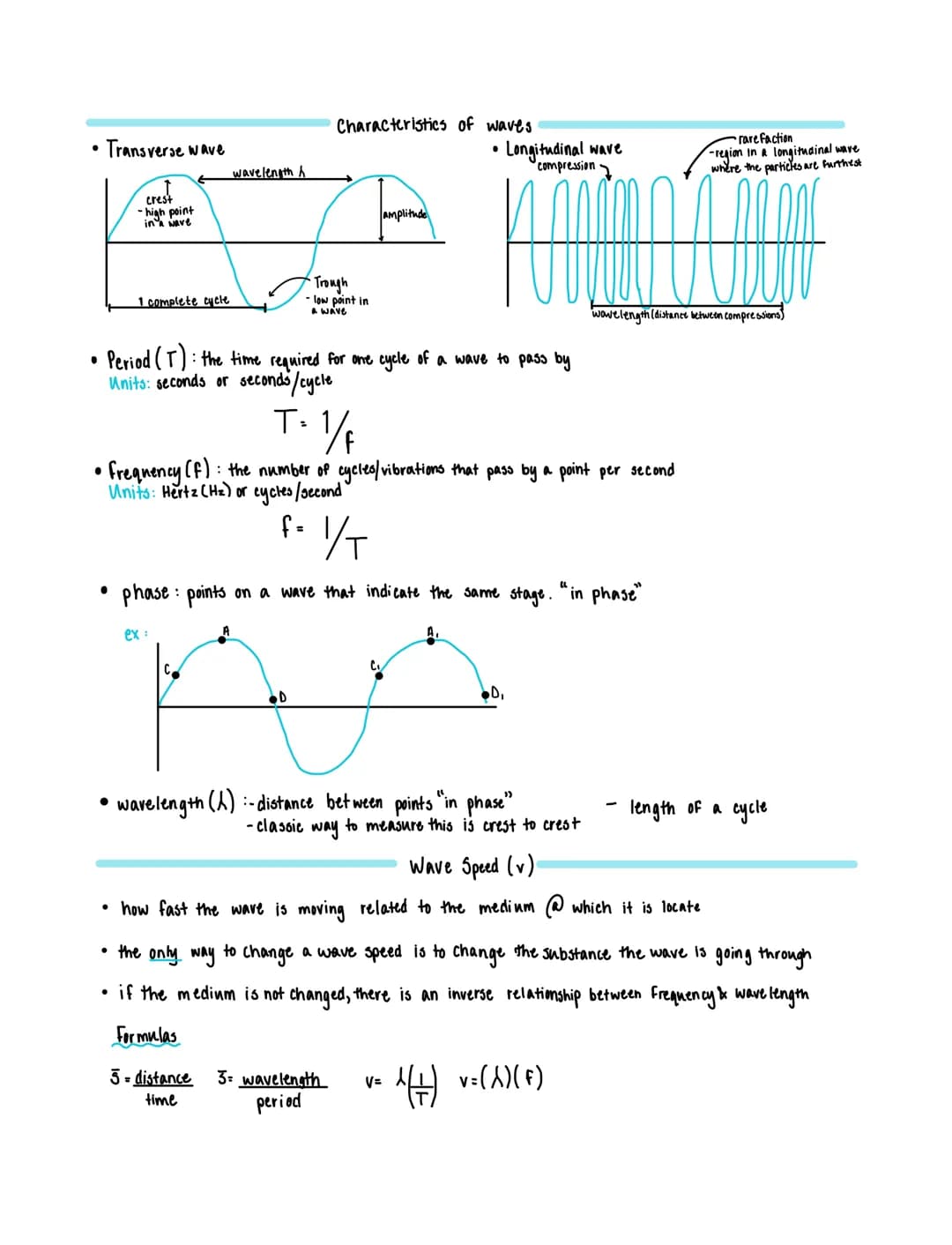

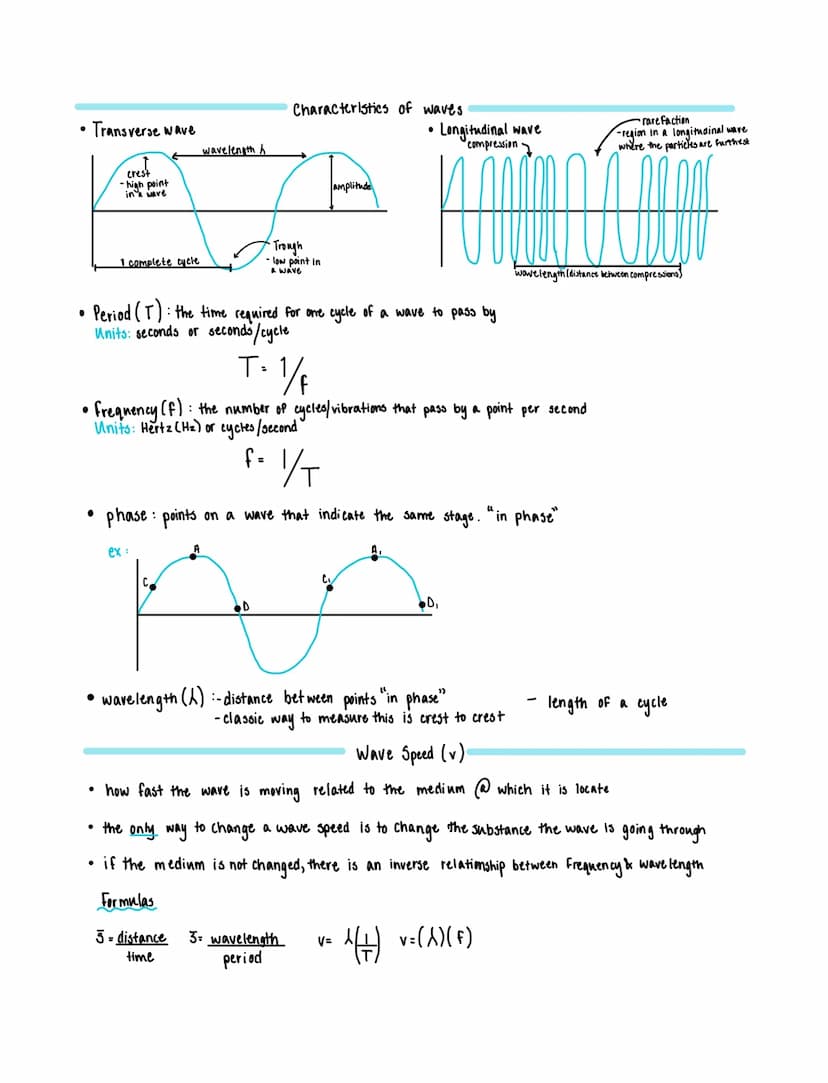

Page 2: Wave Characteristics and Measurements

This page delves into the mathematical and physical properties of waves, including detailed explanations of wave measurements and formulas. The relationship between frequency, period, and wavelength is thoroughly explored.

Definition: Period (T) is the time required for one complete wave cycle, measured in seconds.

Vocabulary: Frequency (F) - the number of cycles or vibrations passing a point per second, measured in Hertz (Hz).

Example: Wave speed can be calculated using the formula v = λf (wavelength × frequency).

Highlight: The speed of a wave can only be changed by altering the medium through which it travels.

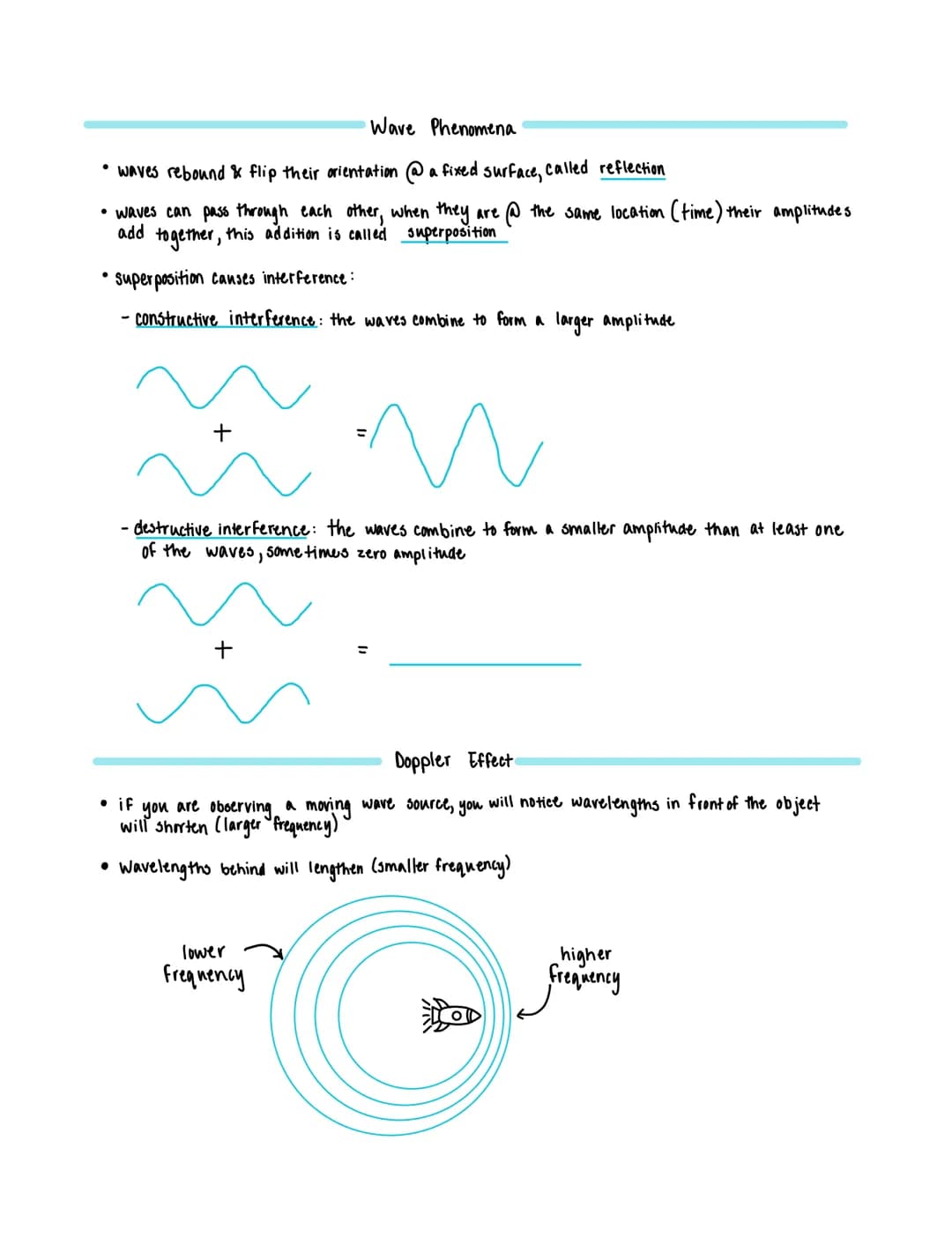

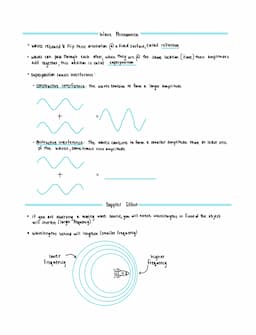

Page 3: Wave Phenomena and Interactions

This page explores various wave behaviors and interactions, including reflection, superposition, and the Doppler effect. These phenomena demonstrate how waves interact with surfaces and with each other.

Definition: Superposition occurs when waves overlap, resulting in either constructive or destructive interference.

Example: The Doppler effect explains why approaching sirens sound higher in pitch than receding ones.

Highlight: Constructive interference results in increased amplitude, while destructive interference can lead to decreased or zero amplitude.

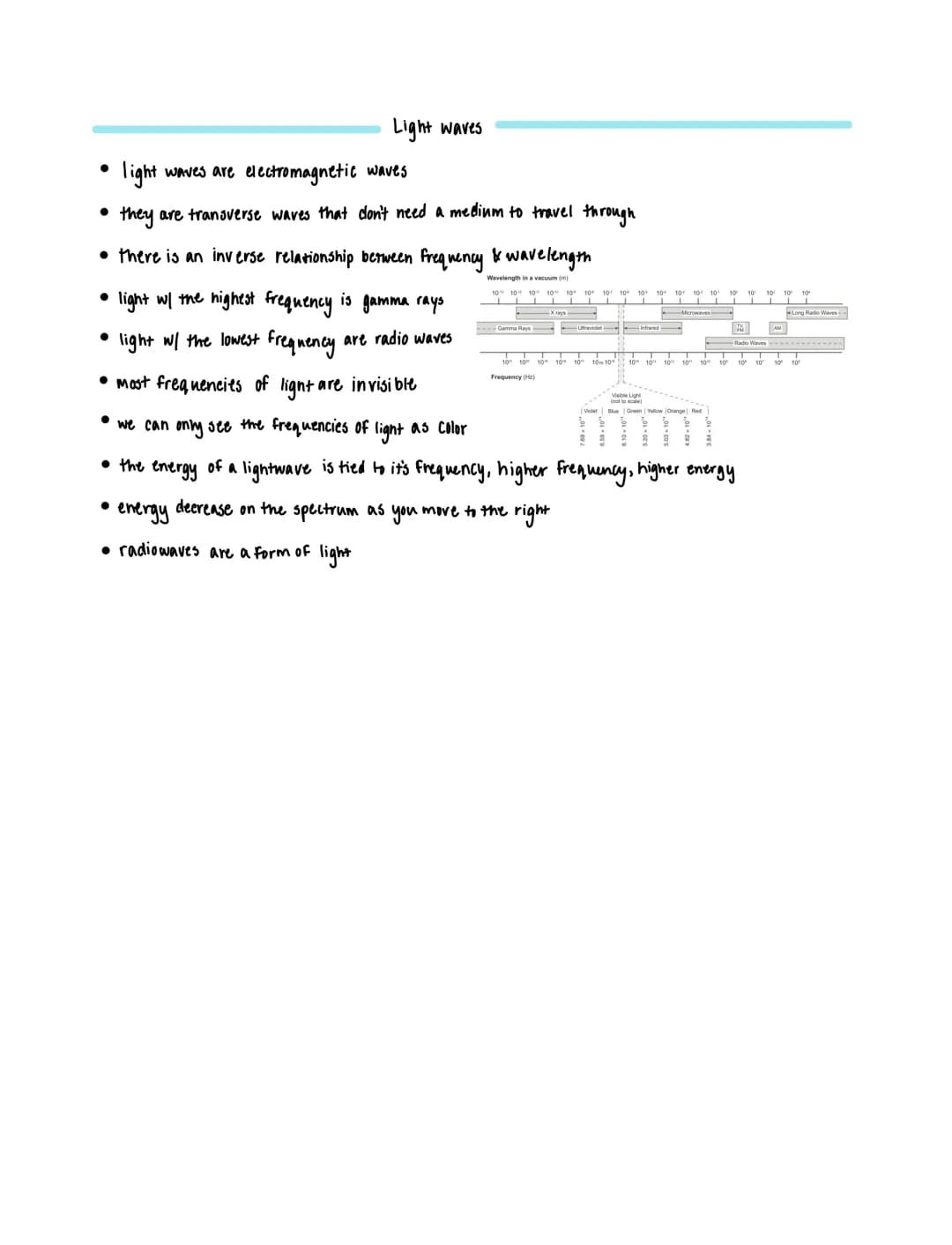

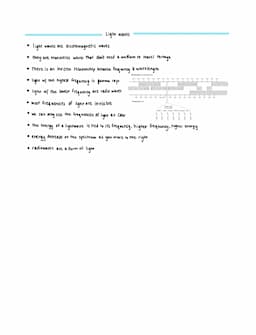

Page 4: Electromagnetic Spectrum and Light Waves

This page focuses on electromagnetic waves, particularly light waves, and their unique properties within the electromagnetic spectrum. The relationship between frequency, wavelength, and energy is extensively discussed.

Definition: Electromagnetic waves are transverse waves that can travel through vacuum.

Vocabulary: Gamma rays - electromagnetic waves with the highest frequency and energy.

Highlight: Only a small portion of the electromagnetic spectrum is visible to human eyes as colors.

Example: The visible spectrum ranges from violet (highest frequency) to red (lowest frequency) within visible light.

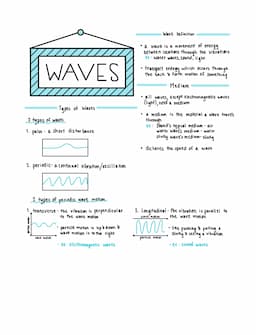

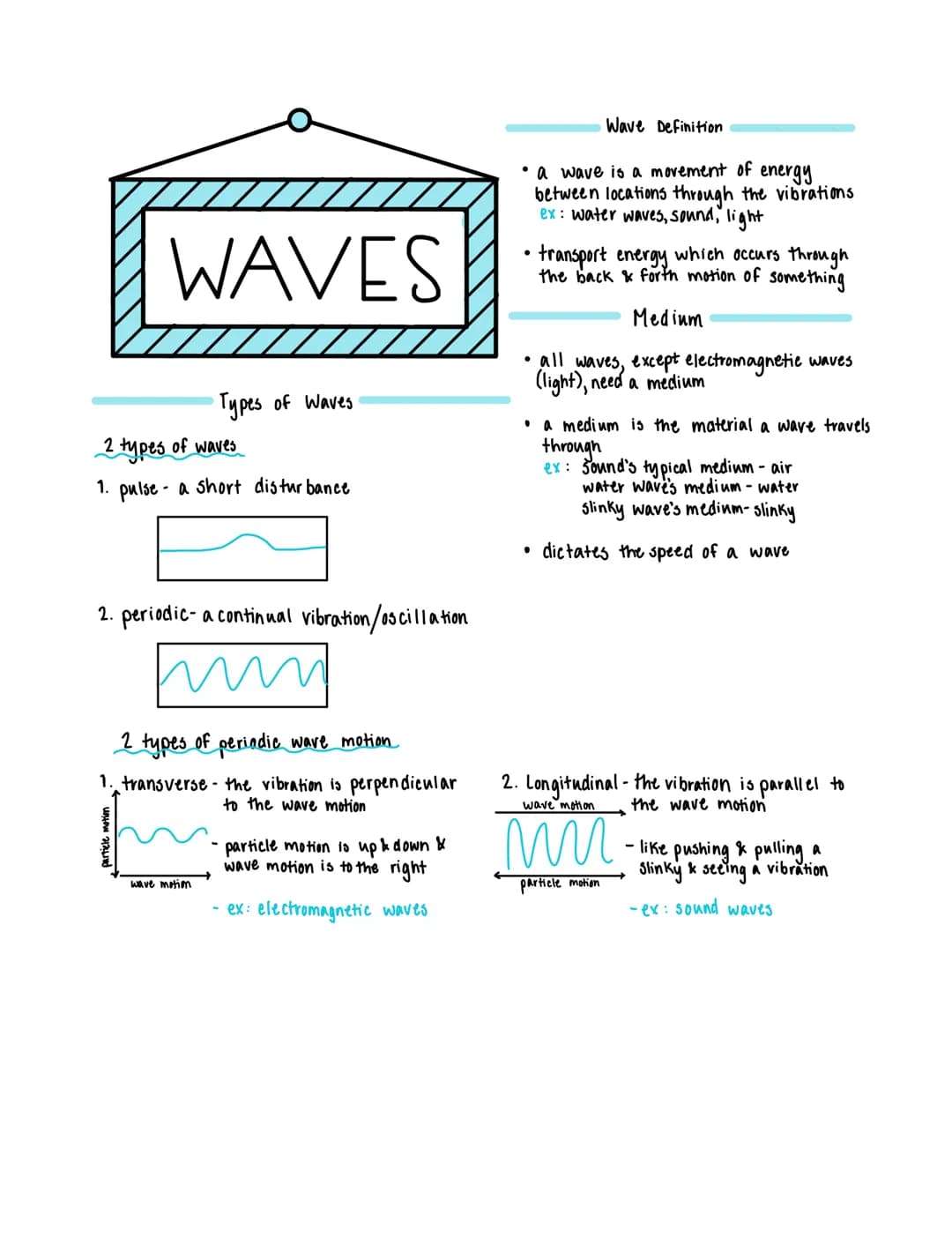

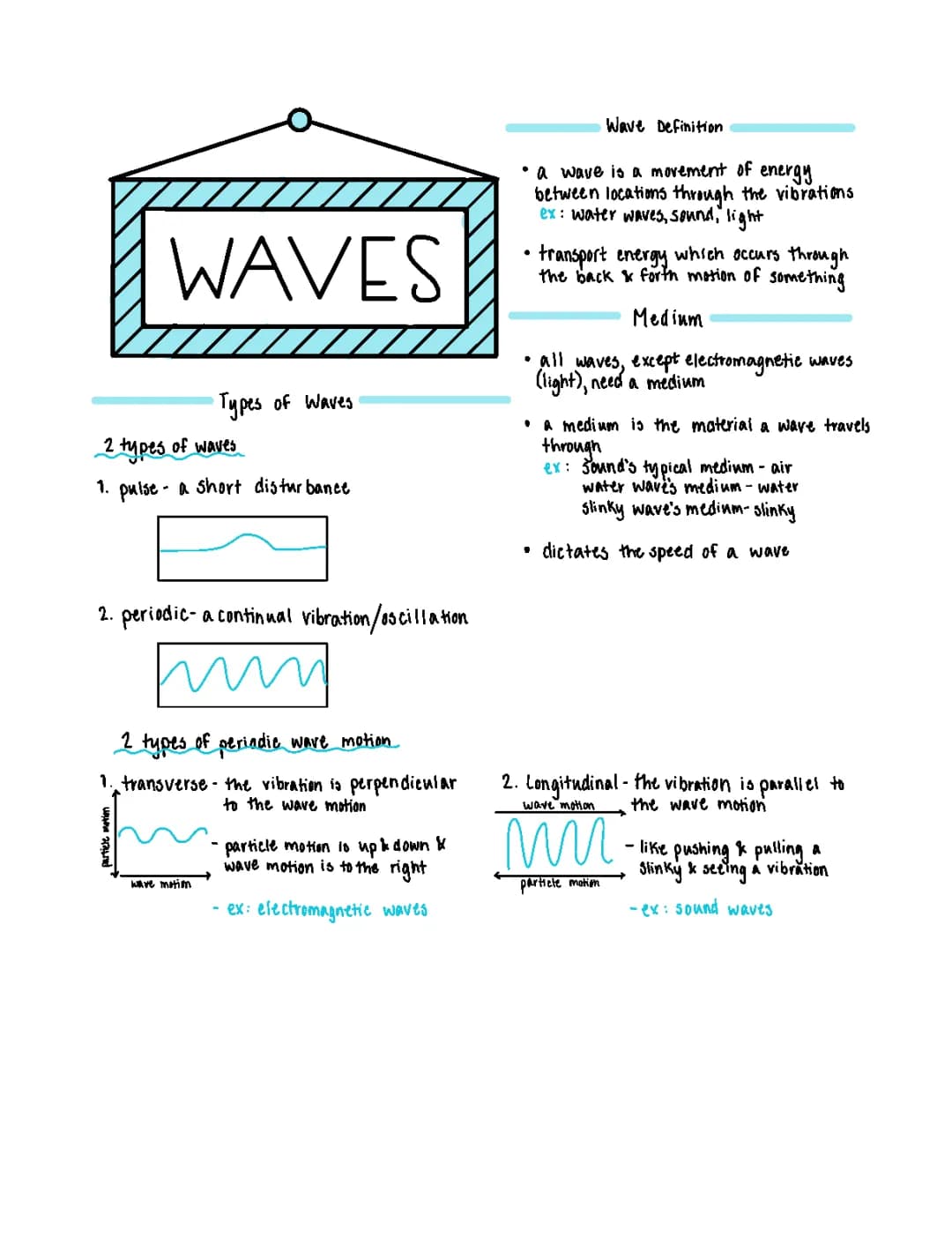

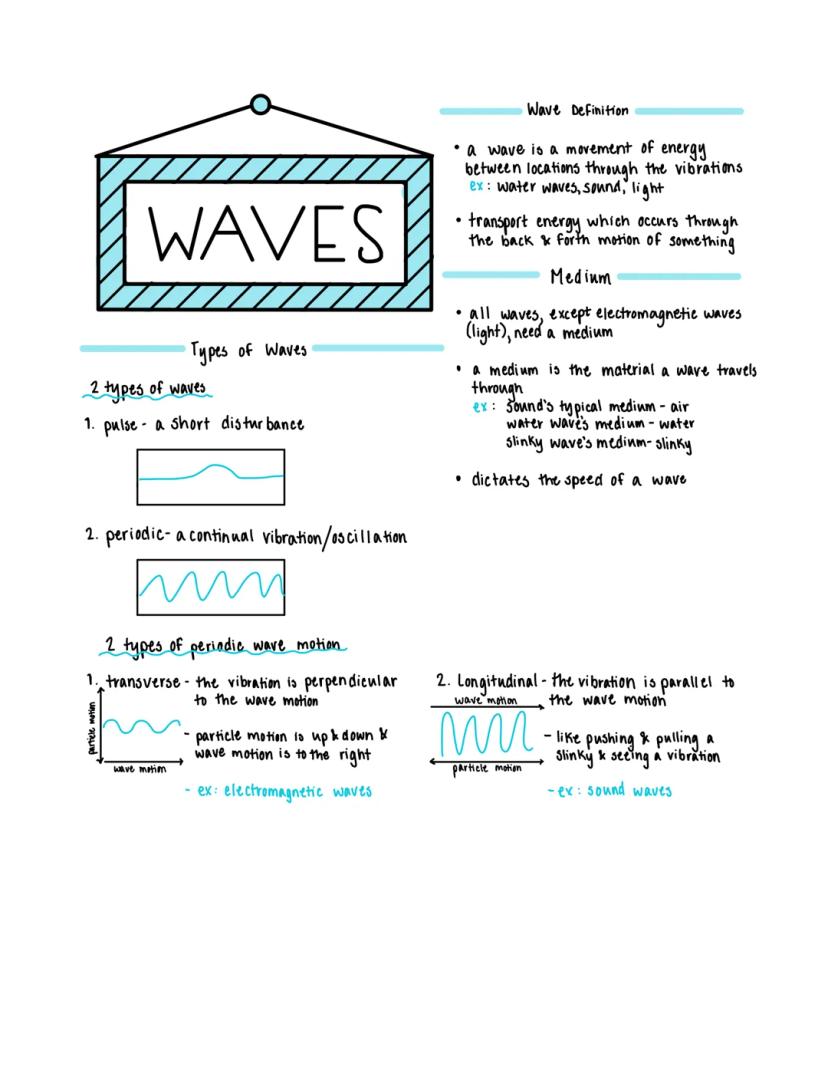

Page 1: Wave Fundamentals and Classifications

This page introduces the fundamental concepts of waves and their classifications. Waves are described as movements of energy through vibrations, with two main types being identified: pulse and periodic waves. The page elaborates on how waves transport energy through various media.

Definition: A wave is a movement of energy between locations through vibrations, exemplified by water waves, sound, and light.

Example: Sound waves travel through air as their medium, while water waves use water as their medium.

Vocabulary: Medium - the material through which a wave travels, directly affecting the wave's speed.

Highlight: All waves except electromagnetic waves require a medium for propagation.
