Simple Machines: An Introduction

This section introduces the concept of simple machines and their fundamental principles. Simple machines are devices that make work easier by using one or few movements. The key concepts of mechanical advantage, ideal mechanical advantage, and efficiency are explained in detail.

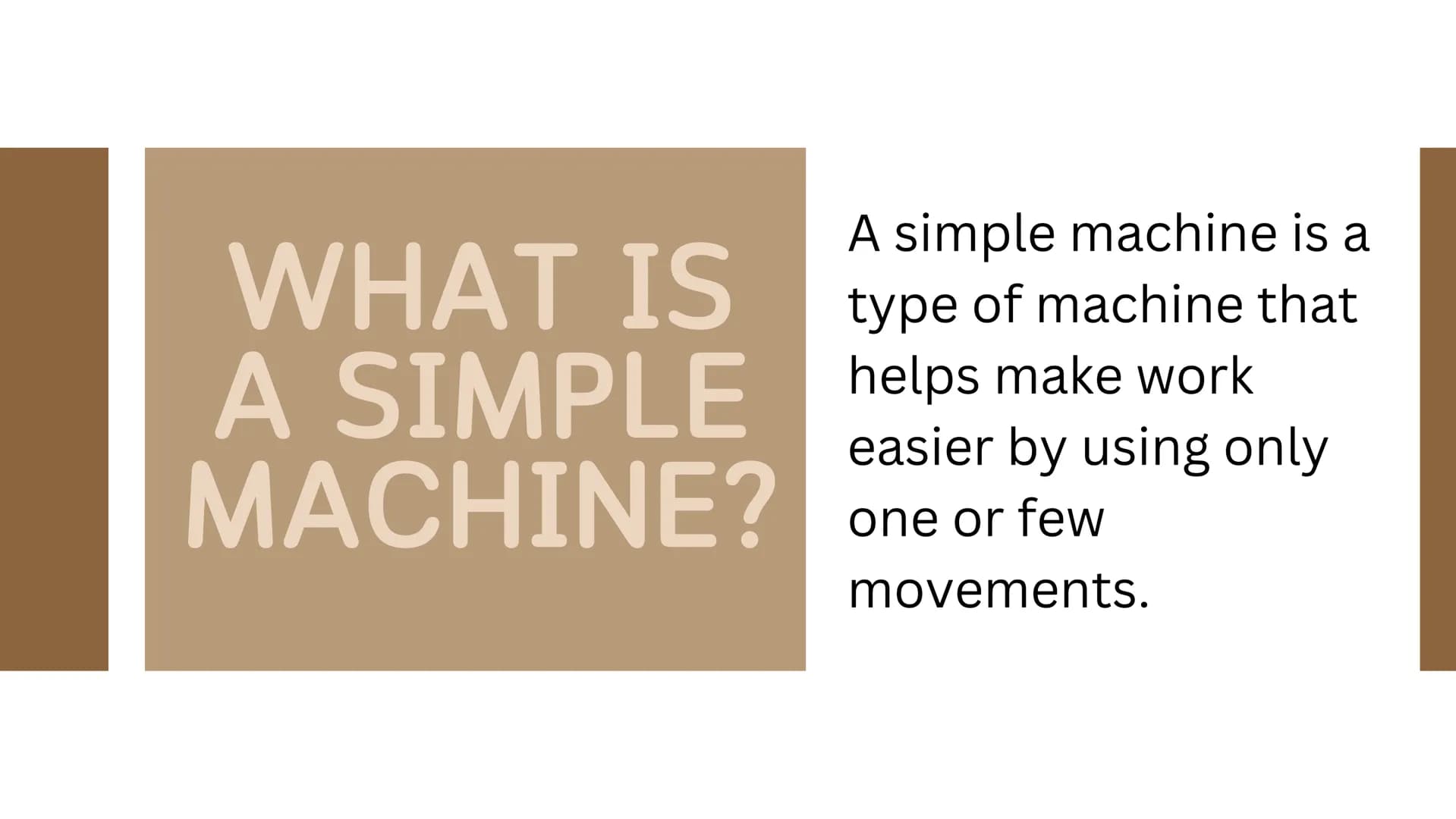

Definition: A simple machine is a type of machine that helps make work easier by using only one or few movements.

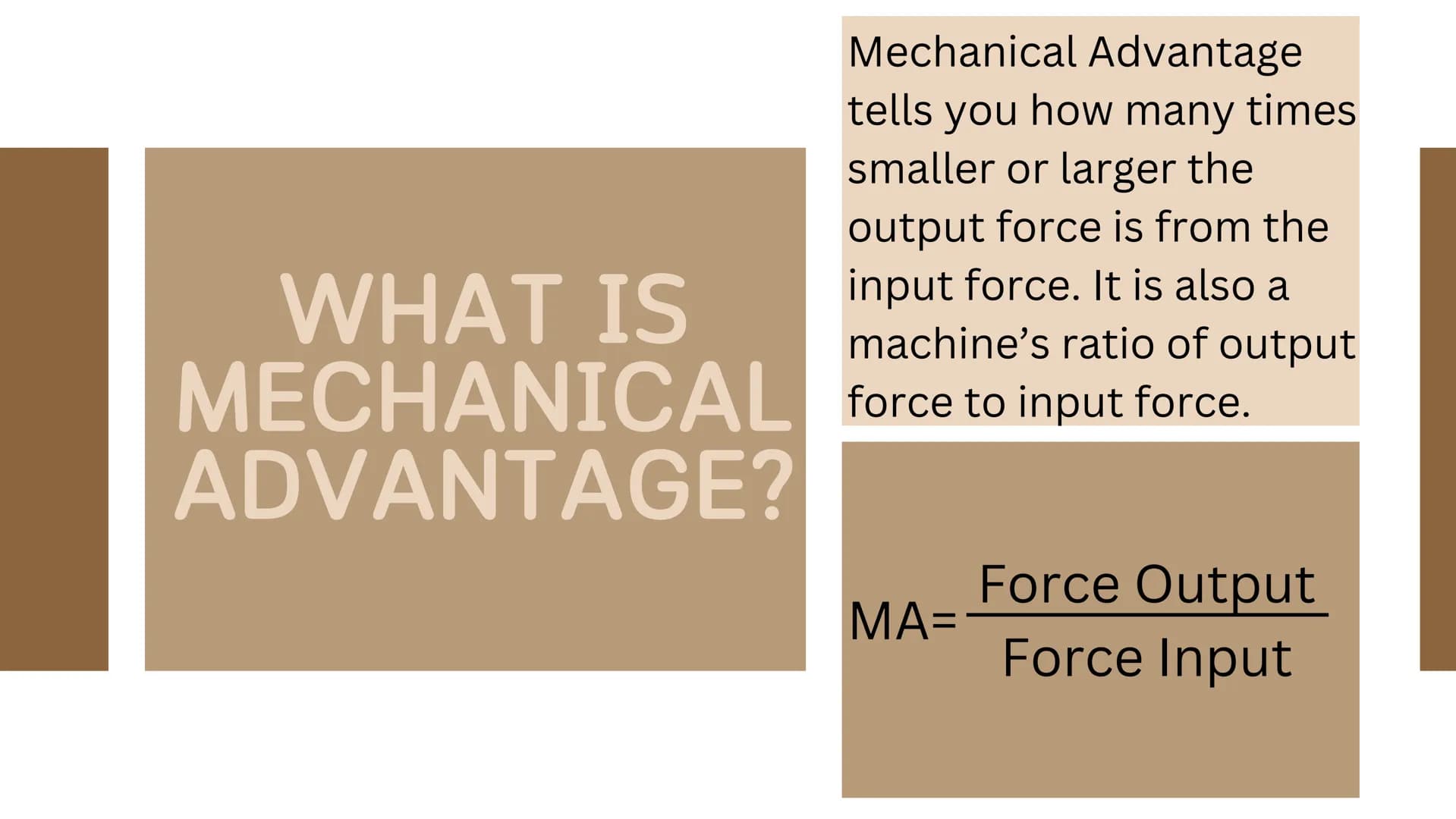

Vocabulary: Mechanical advantage is the ratio of output force to input force, indicating how many times smaller or larger the output force is compared to the input force.

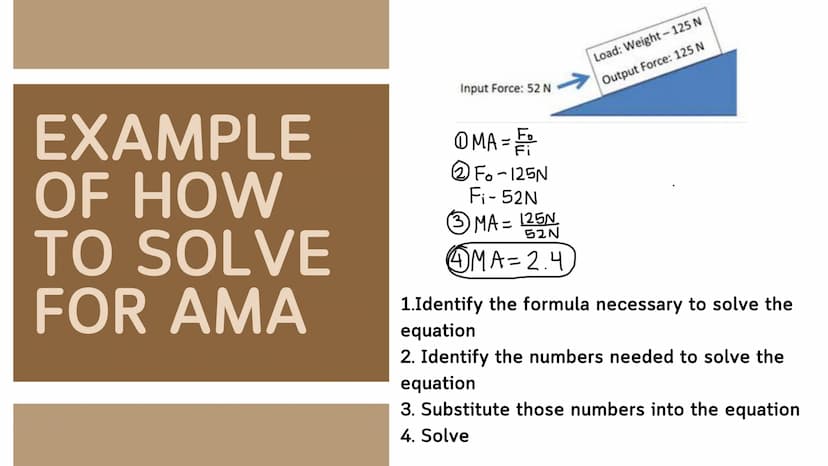

The formula for mechanical advantage is presented:

MA = Force Output / Force Input

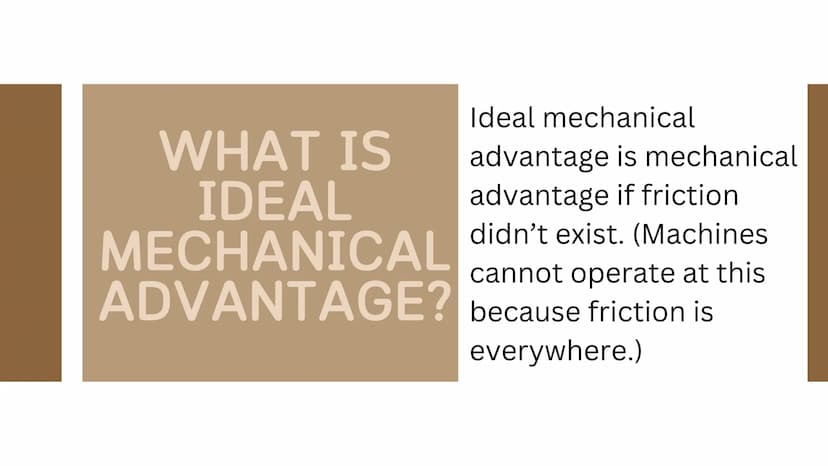

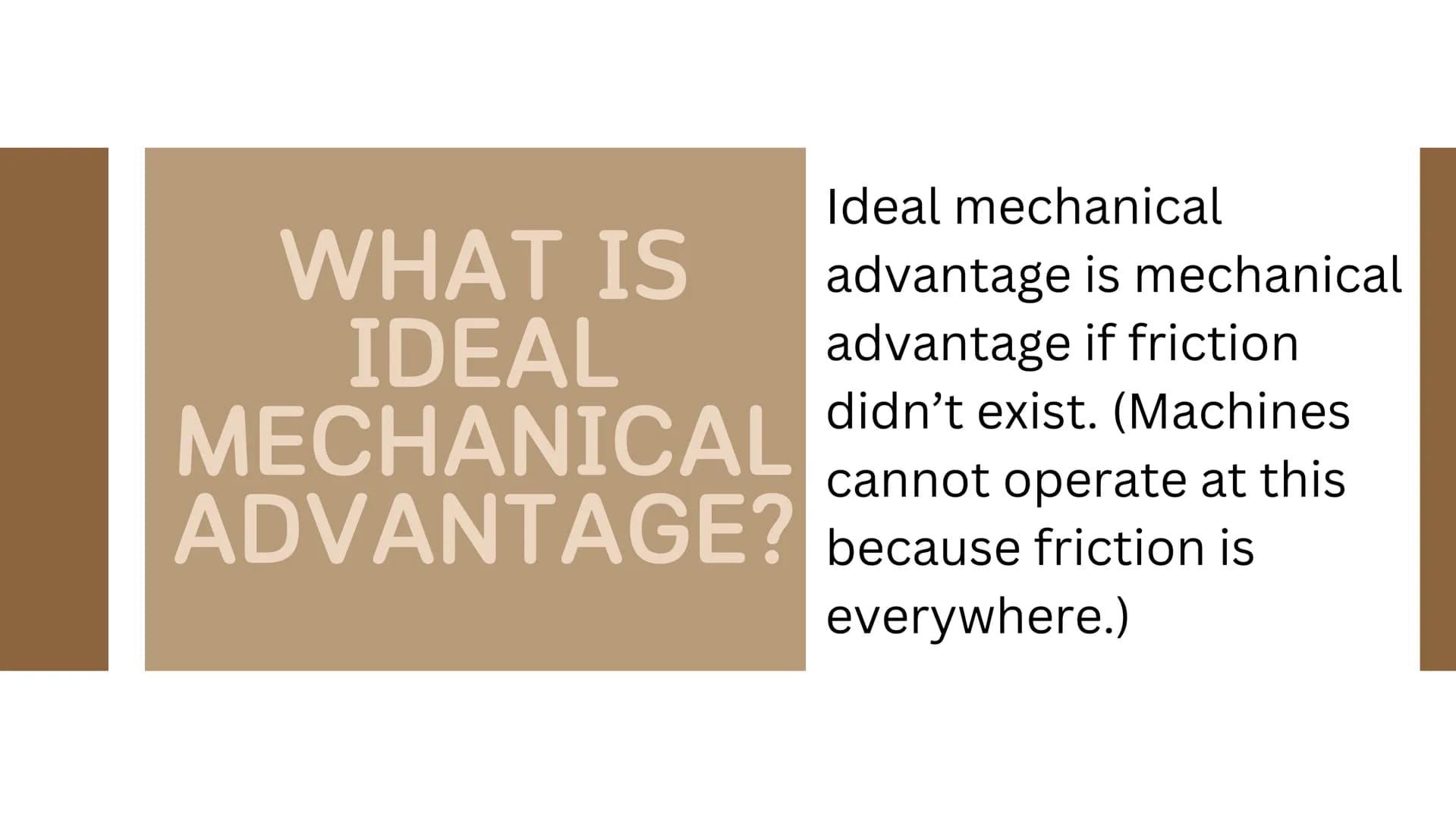

Definition: Ideal mechanical advantage is the theoretical mechanical advantage if friction didn't exist.

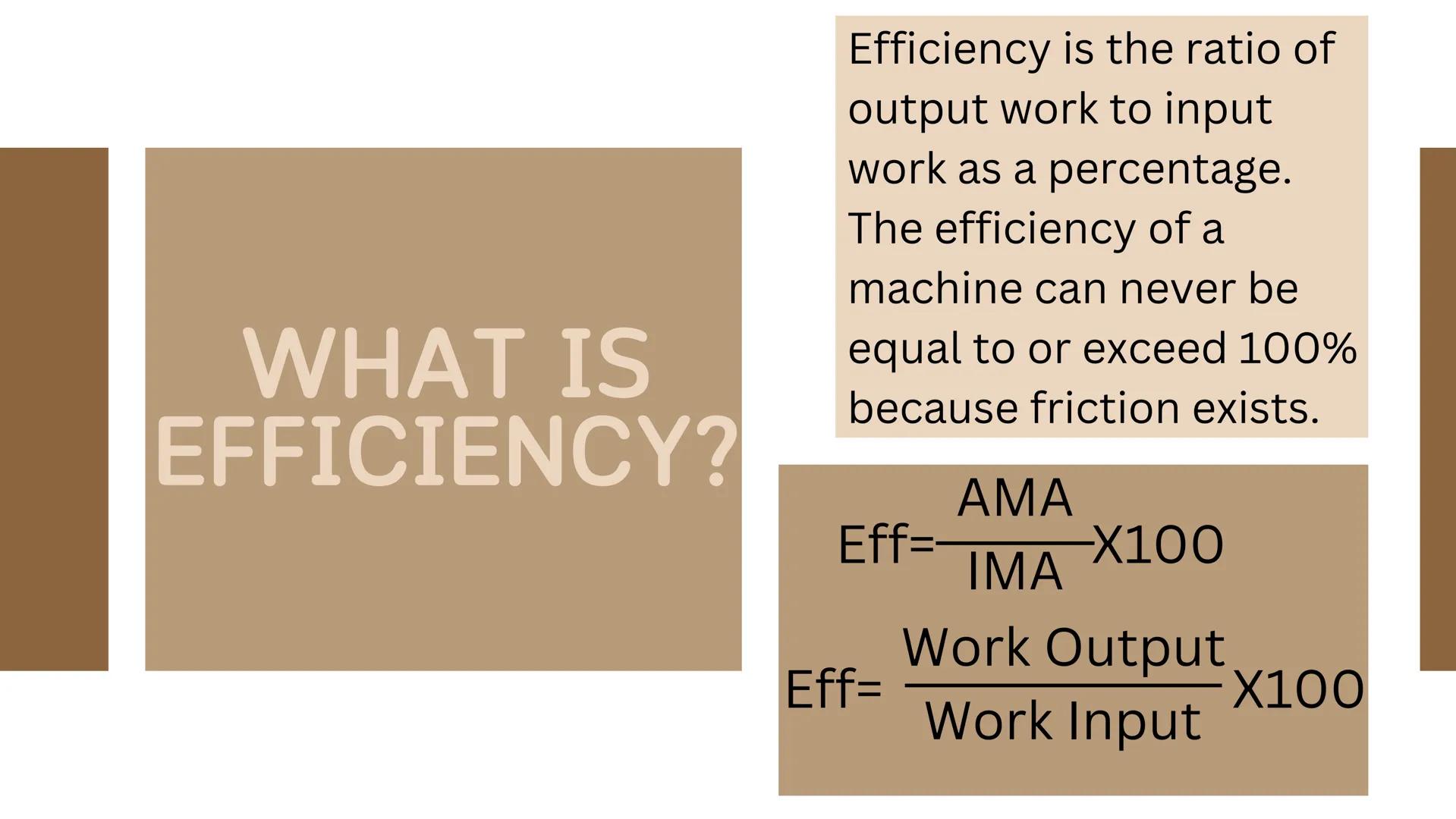

Highlight: Efficiency is the ratio of output work to input work as a percentage. It can never be equal to or exceed 100% due to the presence of friction.

The efficiency formula is provided:

Efficiency = (Work Output / Work Input) × 100

or

Efficiency = (AMA / IMA) × 100

Pulleys

This section covers pulleys, which are grooved wheels with a rope or cable wrapped around them. There are three types of pulleys: fixed pulleys, moveable pulleys, and pulley systems (compound pulleys).

Definition: Pulleys are grooved wheels with a rope or cable wrapped around them. They make work easier by changing the direction of a force or decreasing the effort force and increasing the distance.

The section describes the three types of pulleys:

1. Fixed Pulleys: Change the direction of a force.
2. Moveable Pulleys: Decrease the effort force and increase the distance.
3. Pulley Systems (Compound Pulleys): Combine fixed and moveable pulleys to decrease effort force and increase distance.

The formula for calculating the ideal mechanical advantage of a pulley is presented:

IMA = Number of rope segments pulling up on an object

Examples are provided to demonstrate how to calculate both ideal and actual mechanical advantage for pulley systems.

Highlight: To calculate the ideal mechanical advantage of a pulley system, simply count all the rope segments pulling up on the object.

This comprehensive guide provides a thorough understanding of simple machines, their types, and how to calculate their mechanical advantage and efficiency. It serves as an excellent resource for students learning about the principles of mechanics and engineering.
