Understanding Trigonometry: Exploring Cube Concepts and Calculations

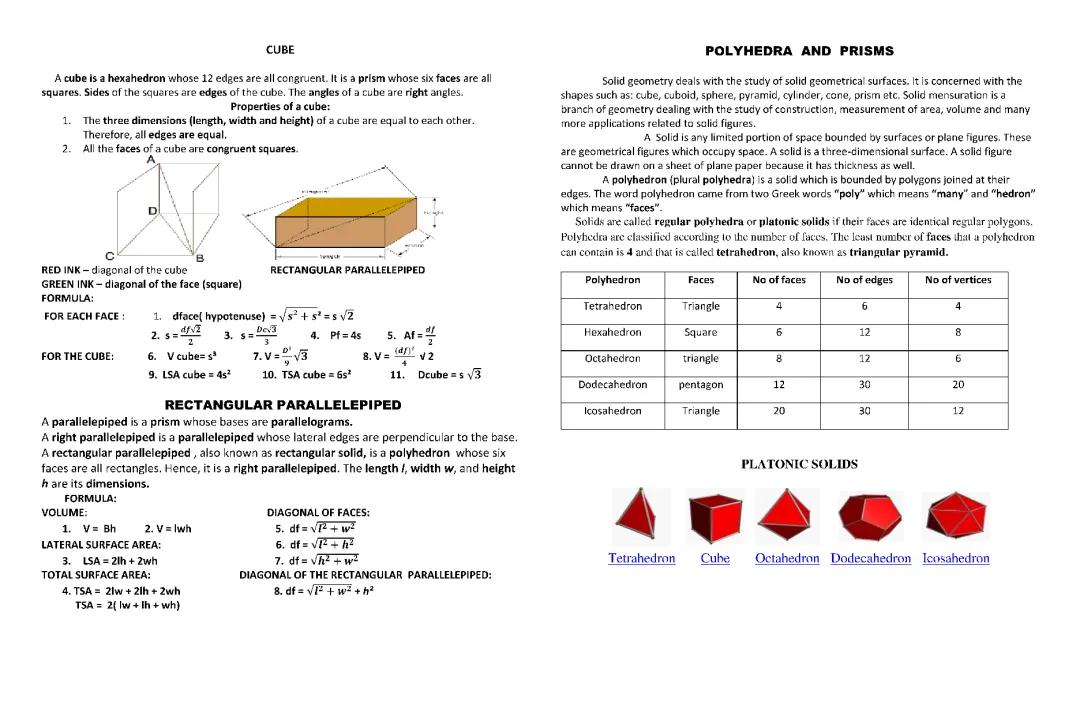

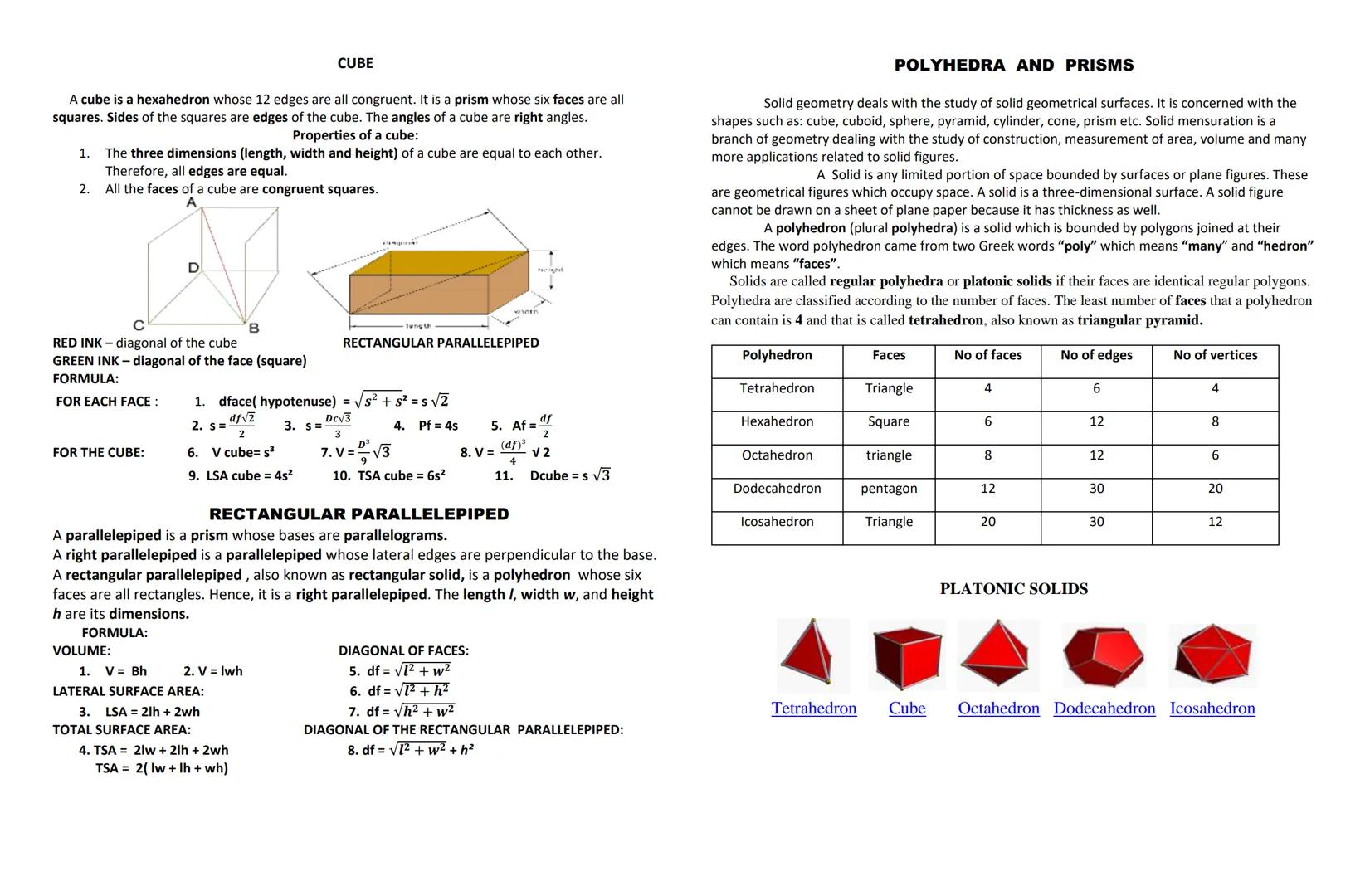

Understanding Cubes and Rectangular Parallelepipeds

A cube is a six-faced solid where all edges are equal and all faces are perfect squares. Imagine a dice—that's a cube! Every angle in a cube measures exactly 90 degrees, making it perfectly symmetrical.

Cubes have some special measurements worth knowing. The diagonal of a face (like drawing a line from one corner to the opposite corner of a square) equals the edge length times √2. The diagonal of the cube itself (going through the center from one vertex to the opposite) equals the edge length times √3.

Did you know? A cube with side length 1 has a diagonal that measures √3, which is approximately 1.732. This means you can fit something longer than the cube's side through the middle!

The rectangular parallelepiped (also called a rectangular solid) is like a stretched cube—think of a shoebox. It has three different dimensions: length, width, and height. All of its faces are rectangles, and like the cube, all of its angles are 90 degrees.

Both these shapes belong to a larger family called polyhedra—3D solids bounded by polygons. Regular polyhedra (also called Platonic solids) have identical regular polygons as faces. Besides the cube (hexahedron), there are four other Platonic solids: tetrahedron, octahedron, dodecahedron, and icosahedron.

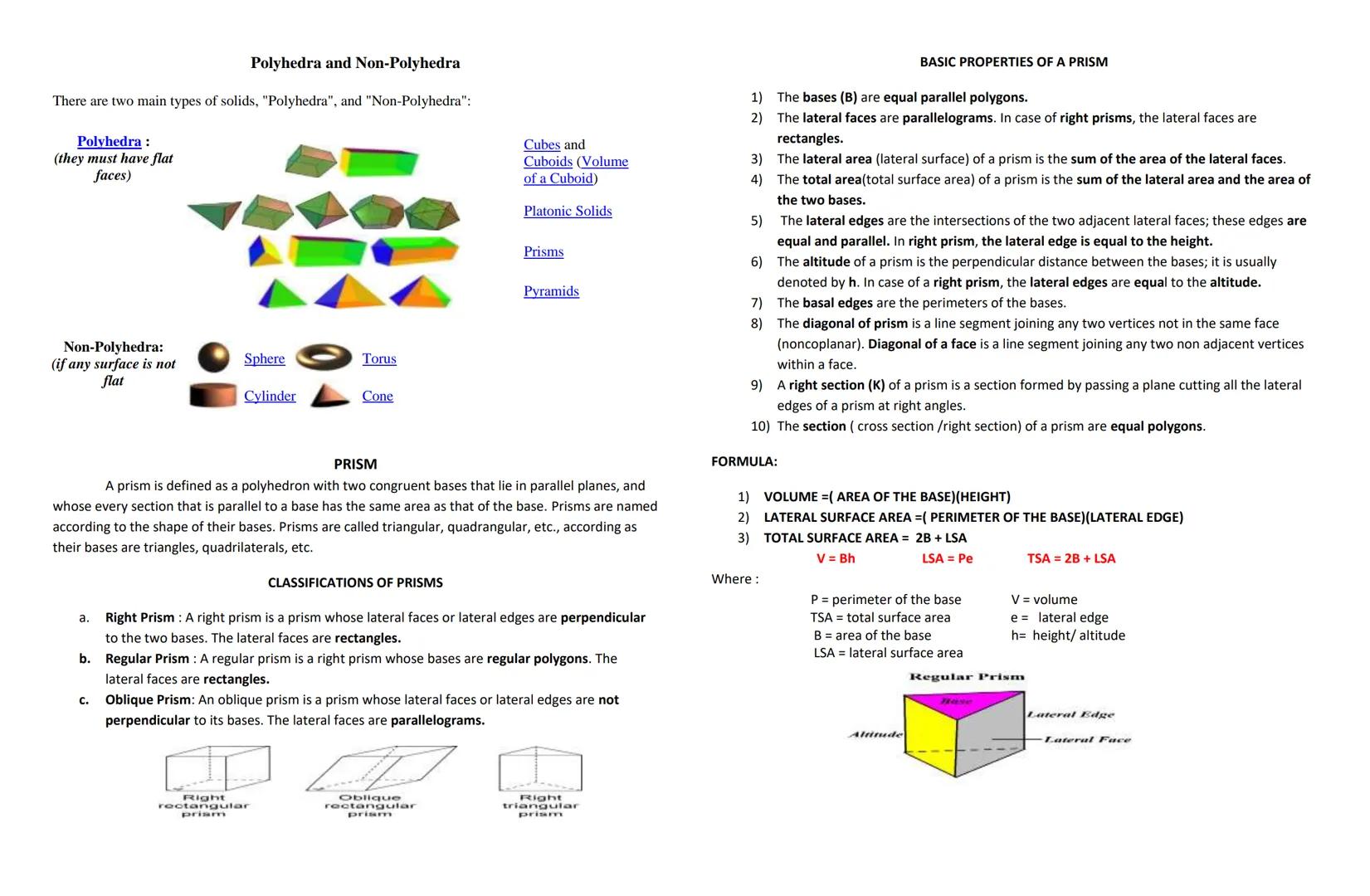

Prisms and Their Properties

Prisms are 3D shapes with identical, parallel polygons at each end (called bases), connected by rectangular or parallelogram sides. Think of a triangular prism as a triangle stretched out into 3D space, creating a tunnel-like shape.

There are several types of prisms based on their structure. A right prism has lateral edges perpendicular to its bases, making all side faces perfect rectangles. An oblique prism leans to one side, with non-perpendicular lateral edges. When a right prism has regular polygons as bases, it's called a regular prism.

Remember: The volume of any prism equals the area of its base multiplied by its height—a formula that works regardless of whether the prism is right or oblique!

The key measurements for any prism include:

• Volume = Base area × Height
• Lateral Surface Area = Perimeter of base × Lateral edge
• Total Surface Area = 2(Base area) + Lateral Surface Area

Prisms belong to the family of polyhedra (solids with flat faces), which contrast with non-polyhedra like spheres, cones, and cylinders that have curved surfaces. When studying 3D shapes, always identify whether the shape has all flat faces (polyhedron) or some curved surfaces (non-polyhedron) first.
