Understanding Earth's Mechanisms: Science 10 Lesson 4

N

notesnikots

@notesnikots

Ever wonder what causes earthquakes, volcanoes, and continental drift? The... Show more

Page 1
Page 2
Page 3
Page 4
Page 5
1 / 5

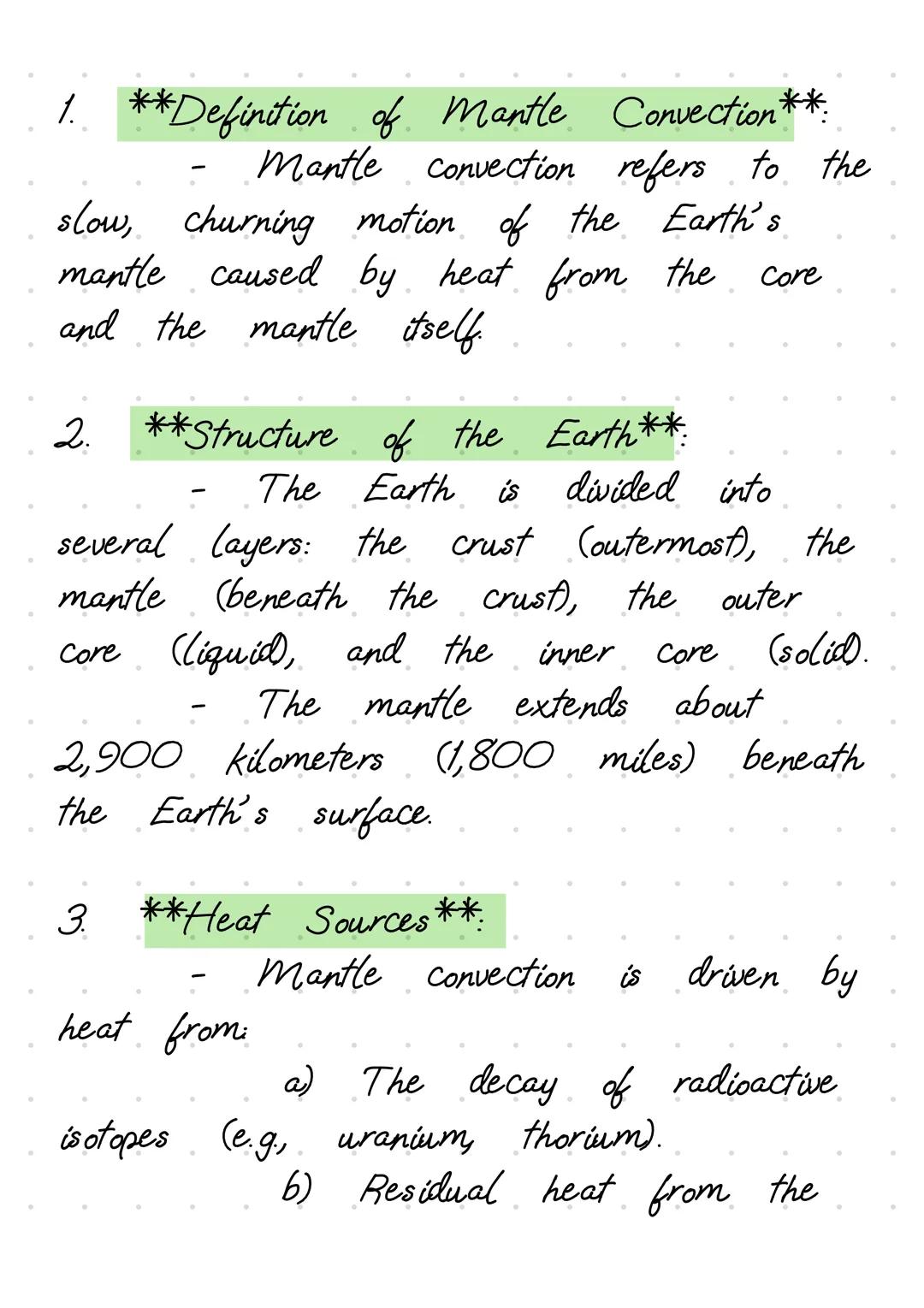

1. **Definition of Mantle Convection**:
- Mantle convection refers to the
slow, churning motion of the Earth's
mantle caused by heat from

What Is Mantle Convection and Earth's Structure?

Think of the Earth like a giant layered cake - but one that's constantly moving on the inside! Mantle convection is the slow, churning motion happening in the Earth's mantle, which is the thick layer of hot rock sitting between our thin crust and the super-hot core below.

The Earth has four main layers: the crust (where we live), the mantle (extending about 2,900 kilometers down), the outer core (liquid metal), and the inner core (solid metal). The mantle makes up about 84% of Earth's volume, so understanding what happens there is pretty important.

What keeps this massive rock layer moving? It's all about heat from three main sources: radioactive elements like uranium breaking down, leftover heat from when Earth first formed billions of years ago, and heat released when the outer core solidifies.

Quick Fact: The mantle is so thick that if Earth were the size of an apple, the mantle would be most of the fruit part!

1. **Definition of Mantle Convection**:
- Mantle convection refers to the
slow, churning motion of the Earth's
mantle caused by heat from

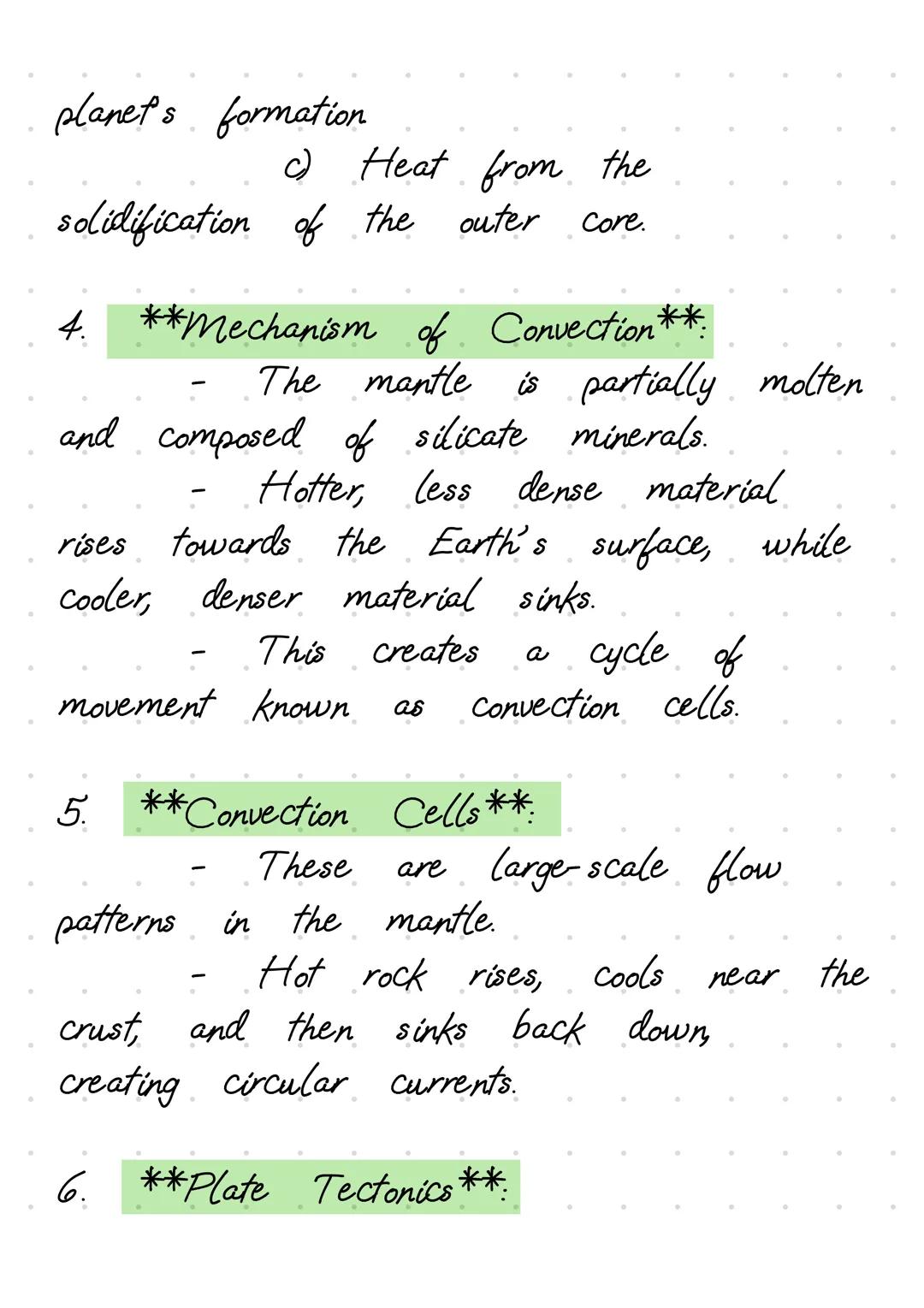

How Convection Actually Works

Here's where it gets really cool - the mantle acts like a super slow-motion lava lamp! The mechanism of convection works because the mantle is made of partially molten silicate minerals that can flow like thick honey over thousands of years.

Hot material near the core becomes less dense and rises toward the surface, while cooler material near the crust becomes denser and sinks back down. This creates massive convection cells - think of them as gigantic circular currents of flowing rock that can be thousands of kilometers wide.

These convection cells are like invisible conveyor belts moving at about the same speed your fingernails grow. The hot rock rises, cools off when it gets closer to the surface, then sinks back down to get heated up again.

Mind-Blowing: One complete cycle in a convection cell can take millions of years to complete!

1. **Definition of Mantle Convection**:
- Mantle convection refers to the
slow, churning motion of the Earth's
mantle caused by heat from

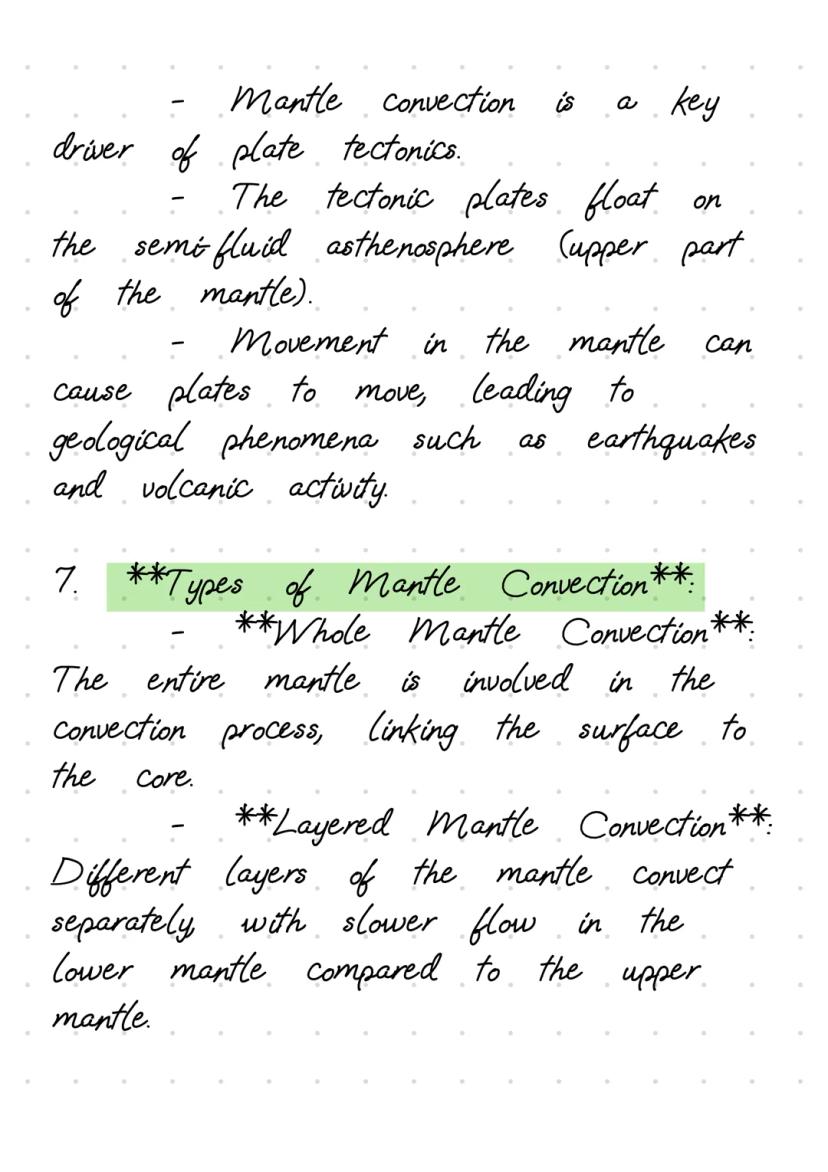

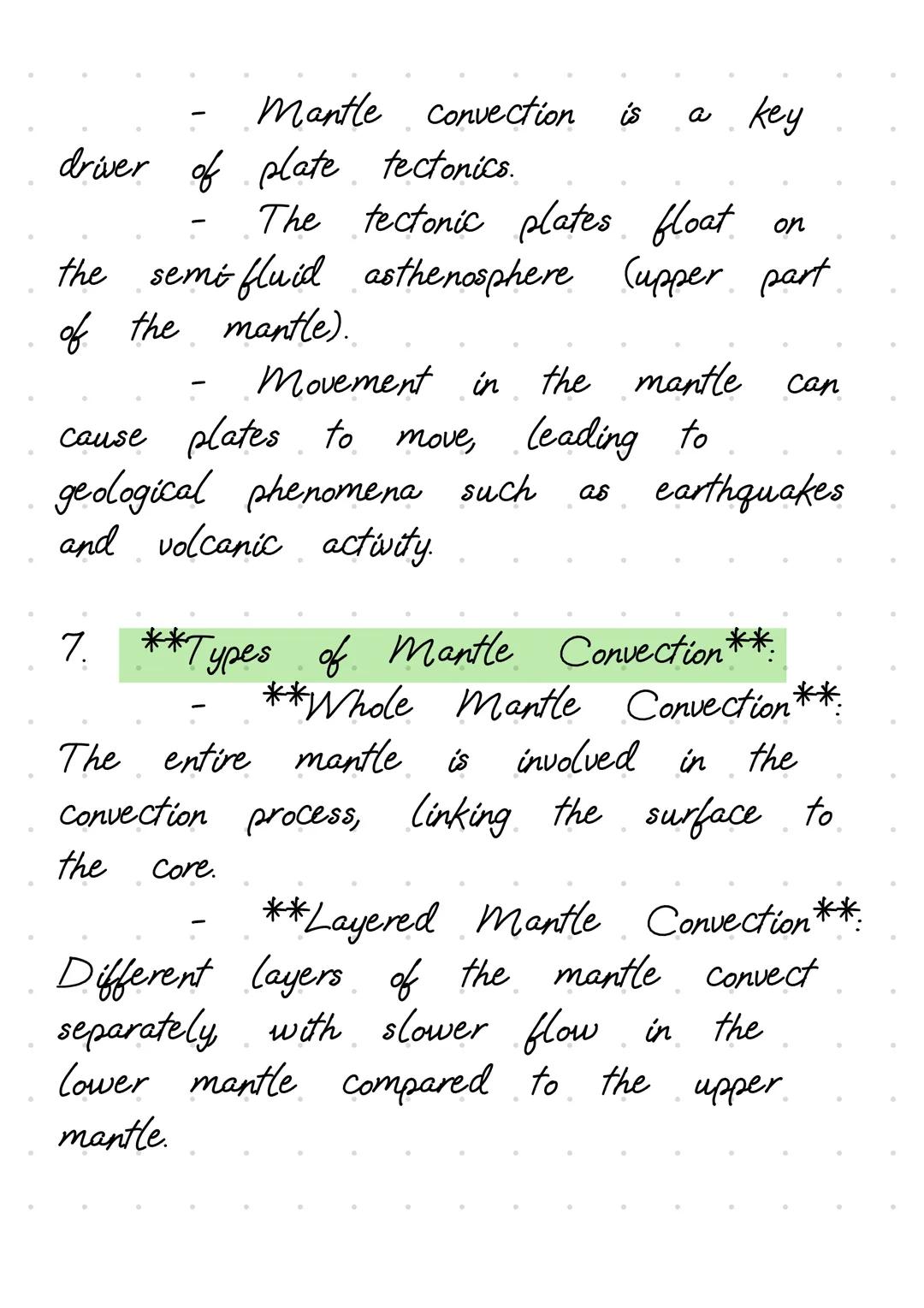

Connection to Plate Tectonics

This is where mantle convection becomes super relevant to your daily life! Plate tectonics - the movement of Earth's crustal plates - is directly driven by these convection currents below. The tectonic plates basically "float" on top of the flowing mantle like pieces of ice on a moving river.

The asthenosphere (the upper part of the mantle) acts like a semi-fluid layer that allows plates to glide around. When convection currents move, they drag the plates along, causing continents to drift and ocean floors to spread.

Scientists recognize two main types of mantle convection. Whole mantle convection involves the entire mantle from core to crust, while layered mantle convection suggests different parts of the mantle move separately, with the lower mantle flowing much slower than the upper parts.

Real Impact: The Philippines sits on several tectonic plate boundaries, making it one of the most geologically active regions on Earth!

1. **Definition of Mantle Convection**:
- Mantle convection refers to the
slow, churning motion of the Earth's
mantle caused by heat from

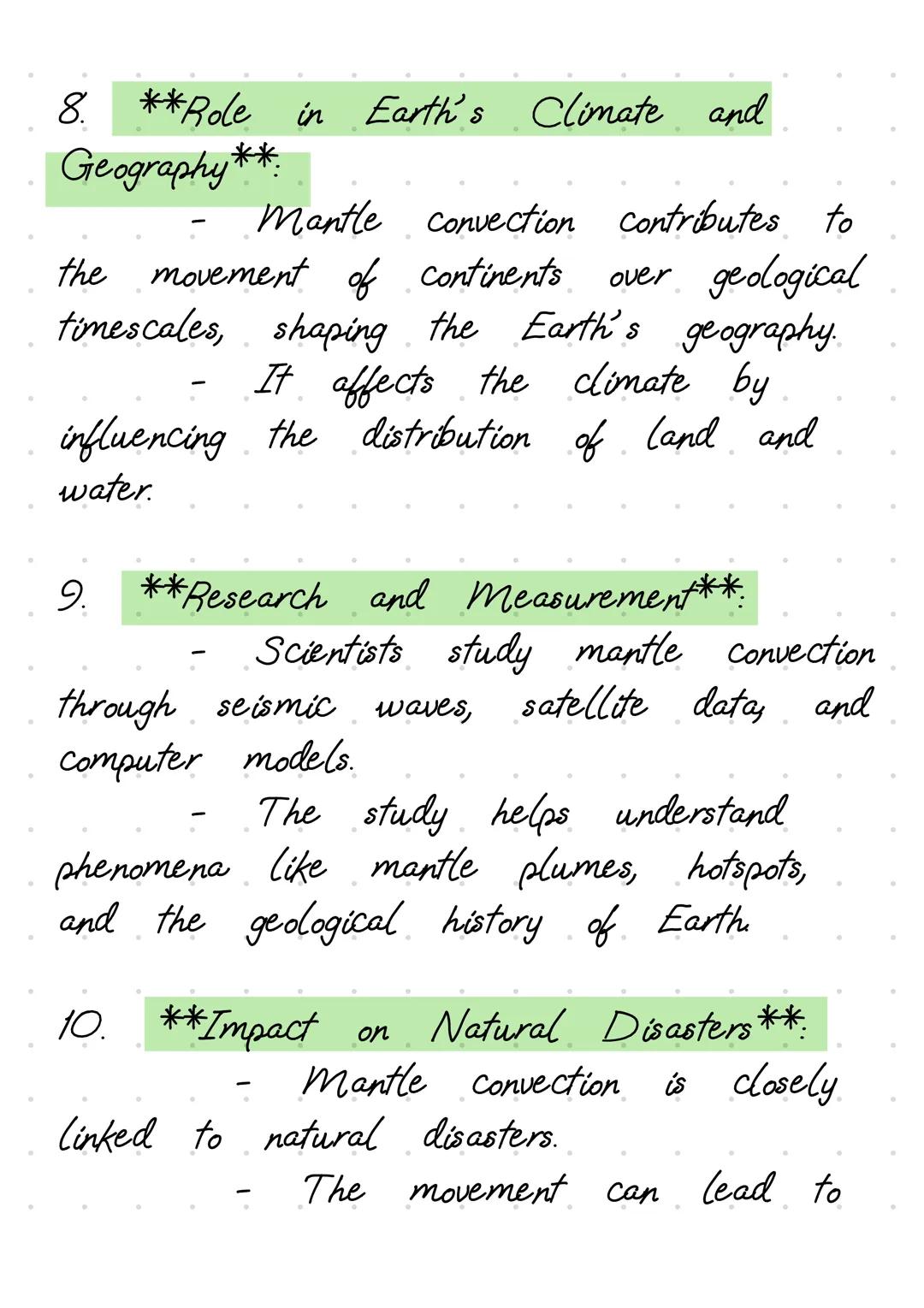

Effects on Climate, Geography, and Disasters

Mantle convection isn't just some abstract geological process - it literally shapes the world you live in! Over millions of years, this process moves continents around, changes the positions of mountains and oceans, and even influences Earth's climate by affecting how heat and moisture move around the planet.

Scientists study this amazing process using seismic waves from earthquakes, satellite measurements, and powerful computer models. These tools help them track how rock flows deep underground and predict where geological activity might happen next.

The connection to natural disasters is huge. When convection currents cause tectonic plates to suddenly shift, you get earthquakes. When hot material rises and breaks through the surface, you get volcanic eruptions - both of which are pretty common in the Philippines!

Local Connection: The "Ring of Fire" around the Pacific, which includes the Philippines, exists because of active mantle convection driving plate movements!

1. **Definition of Mantle Convection**:
- Mantle convection refers to the
slow, churning motion of the Earth's
mantle caused by heat from

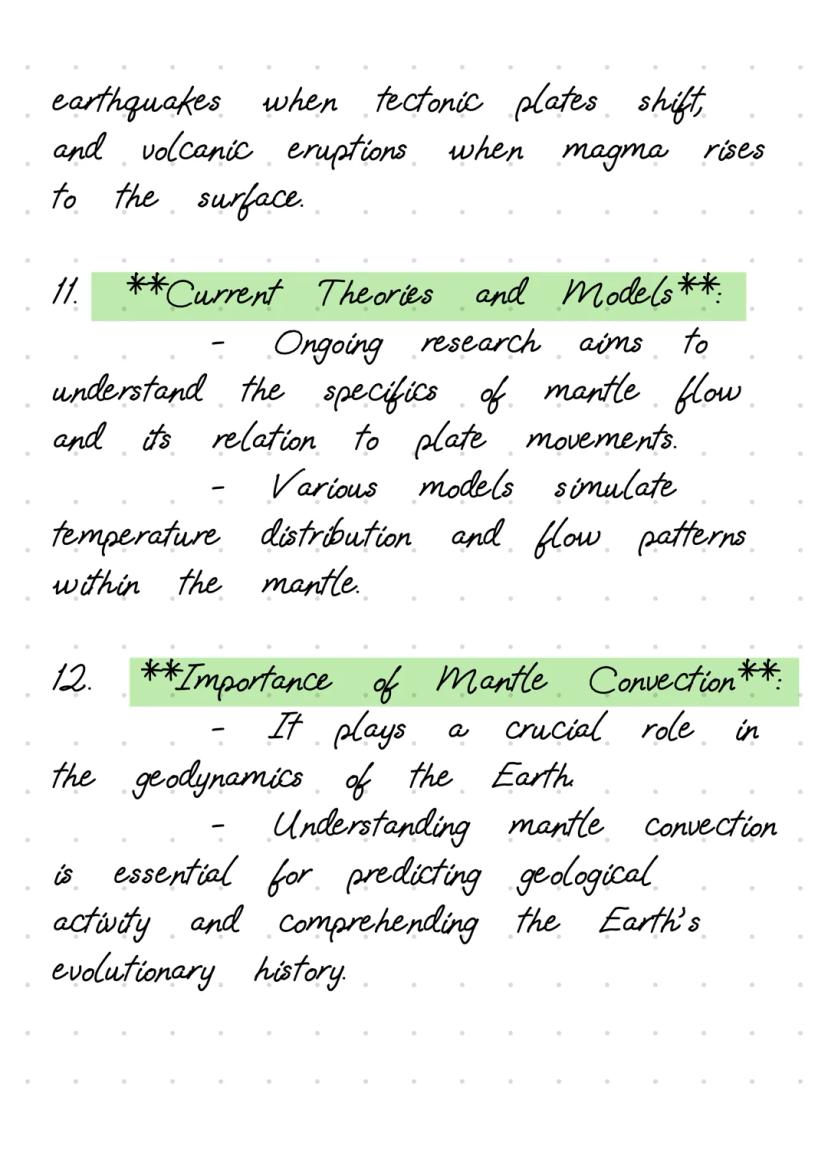

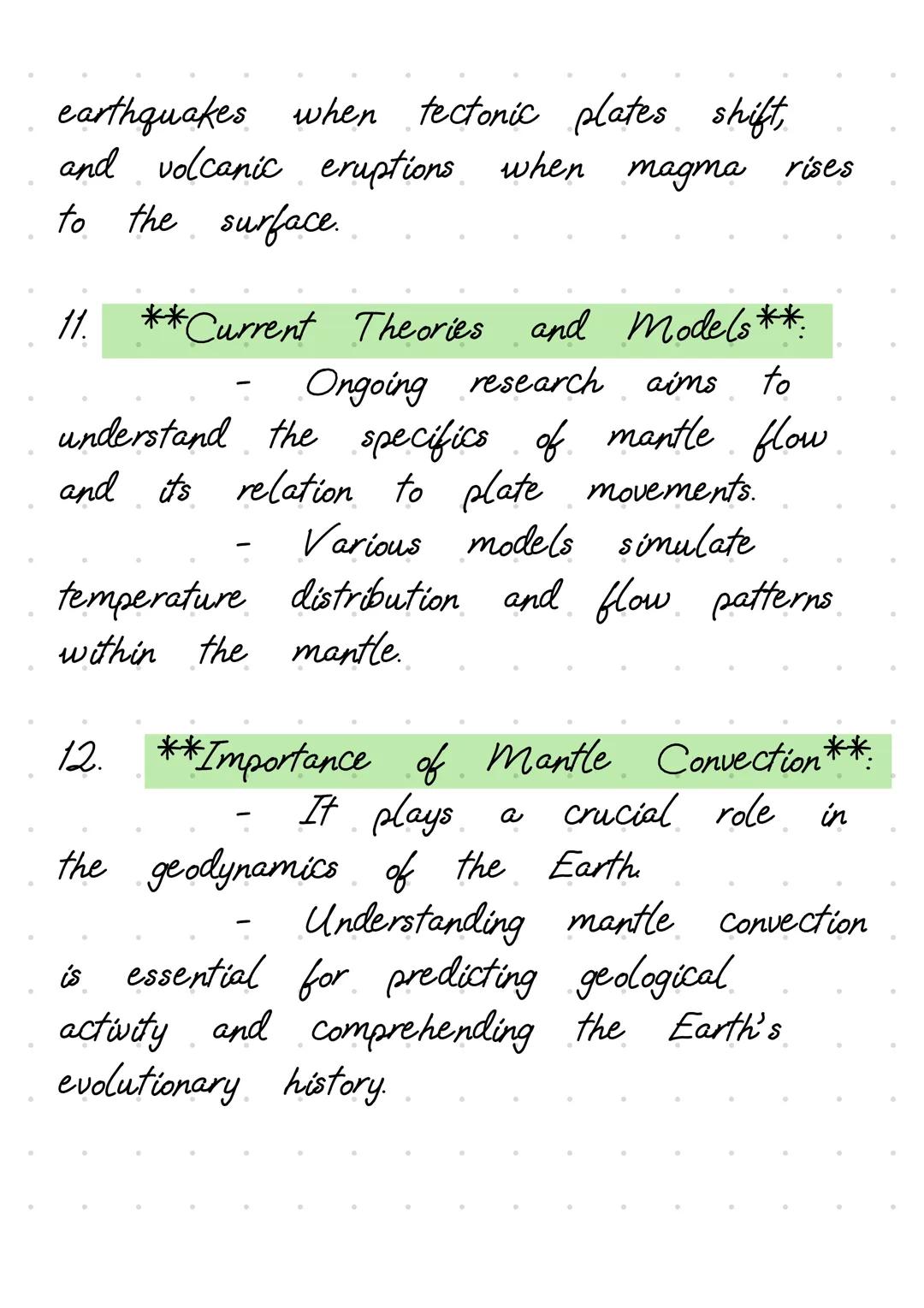

Current Research and Why It Matters

Scientists are constantly developing new theories and models to better understand exactly how mantle convection works. They use supercomputers to simulate temperature patterns and flow movements that would take millions of years to observe in real life.

This research isn't just academic curiosity - understanding mantle convection is crucial for predicting when and where earthquakes or volcanic eruptions might occur. It also helps explain how Earth has changed over billions of years and how it might change in the future.

The geodynamics of our planet - basically how Earth works as a dynamic system - all comes back to this fundamental process happening deep below the surface. From the formation of mountain ranges to the opening of ocean basins, mantle convection is the engine that powers it all.

Future Impact: Better understanding of mantle convection could help scientists improve earthquake and volcanic eruption predictions, potentially saving thousands of lives!
