Understanding Radian and Degree Measures: Key Concepts Explained

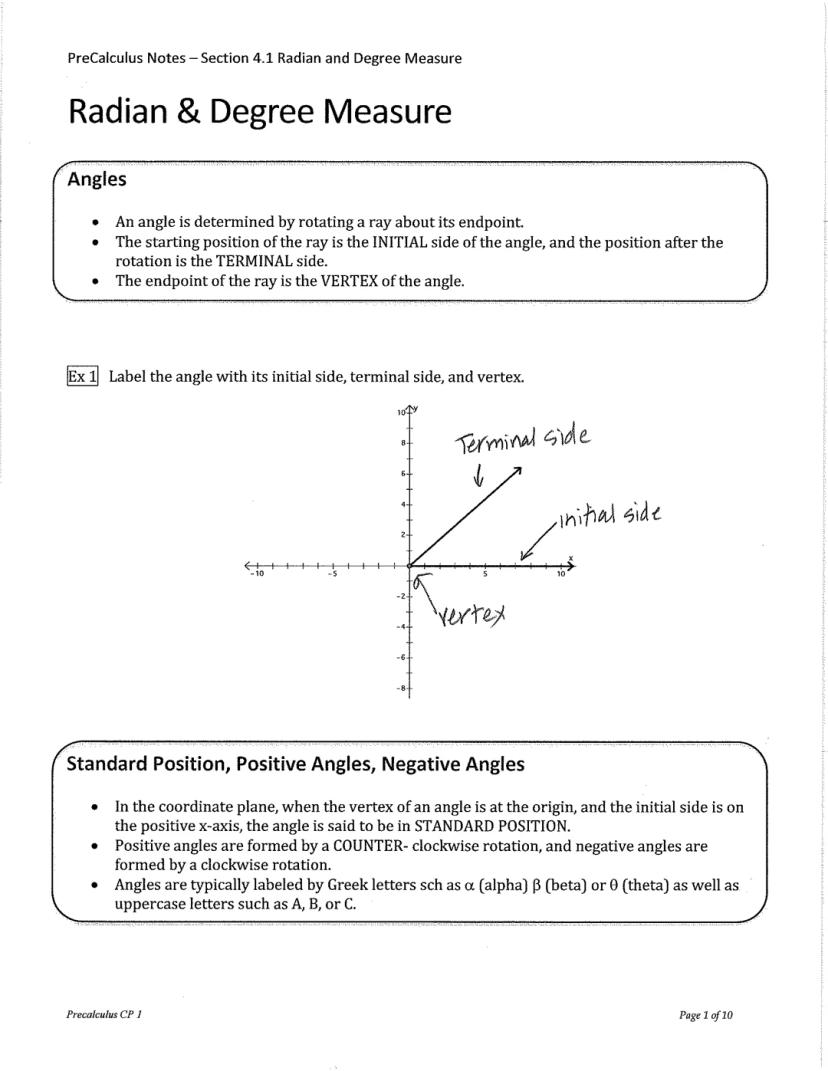

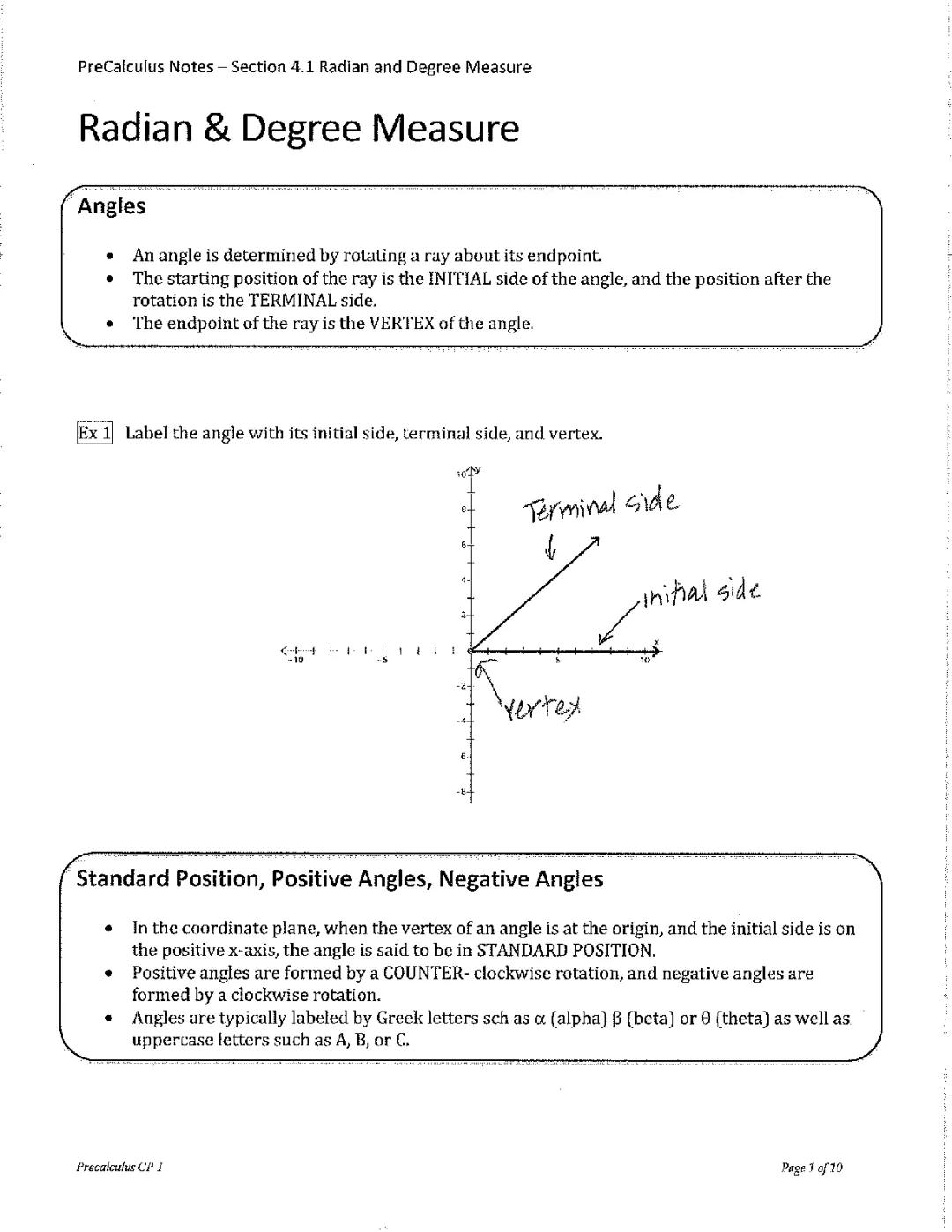

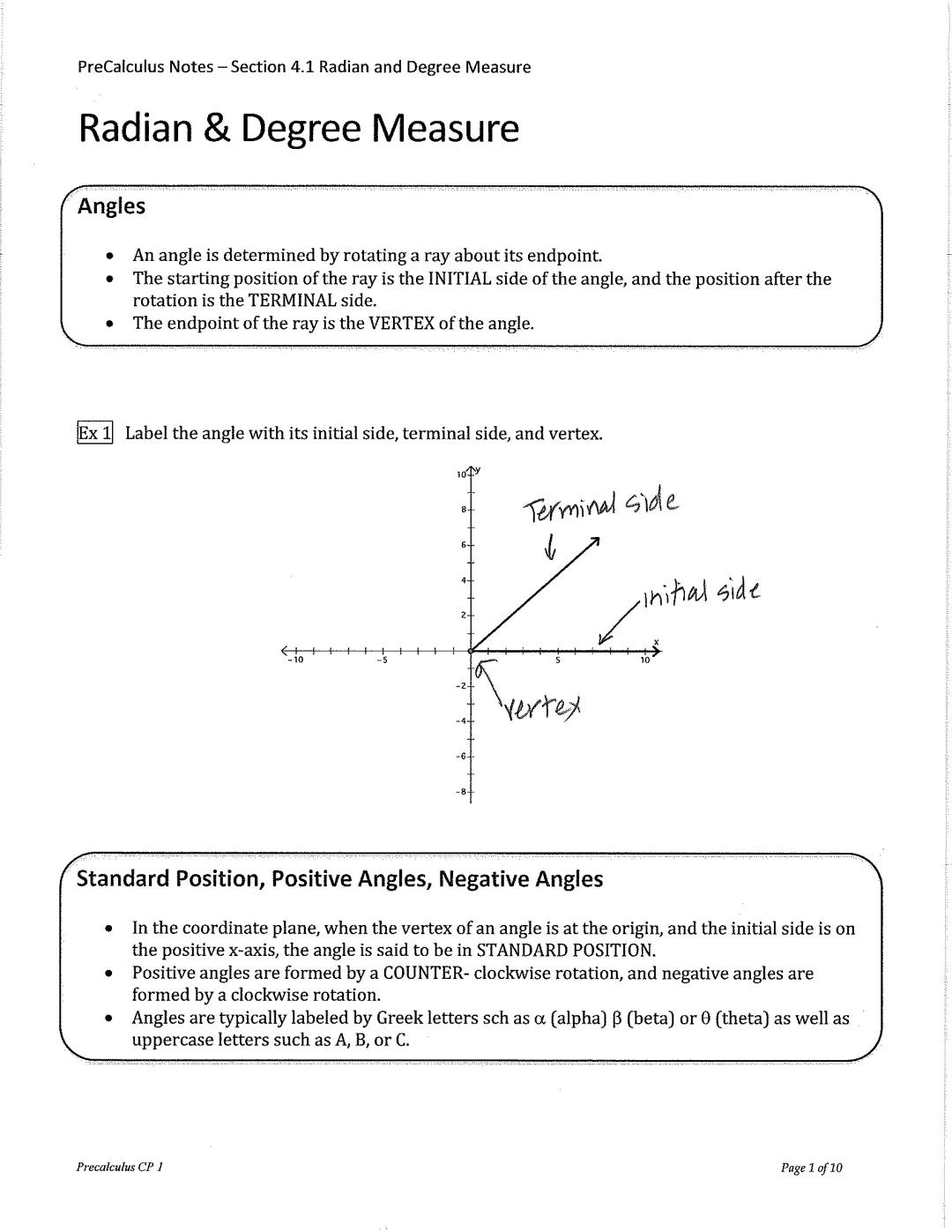

Understanding Angles

Angles are formed when a ray rotates around its endpoint. Every angle has three key parts: the initial side (starting position), the terminal side (position after rotation), and the vertex (the endpoint where rotation occurs).

When we place an angle in the coordinate system with its vertex at the origin and initial side along the positive x-axis, it's in standard position. This standard placement makes it easier to analyze angles consistently.

Remember that angles have direction! A positive angle forms through counterclockwise rotation, while a negative angle forms through clockwise rotation. Angles are typically labeled using Greek letters like θ (theta) or α (alpha).

Quick Tip: Think of angle measurement like turning a steering wheel - counterclockwise is positive, clockwise is negative!

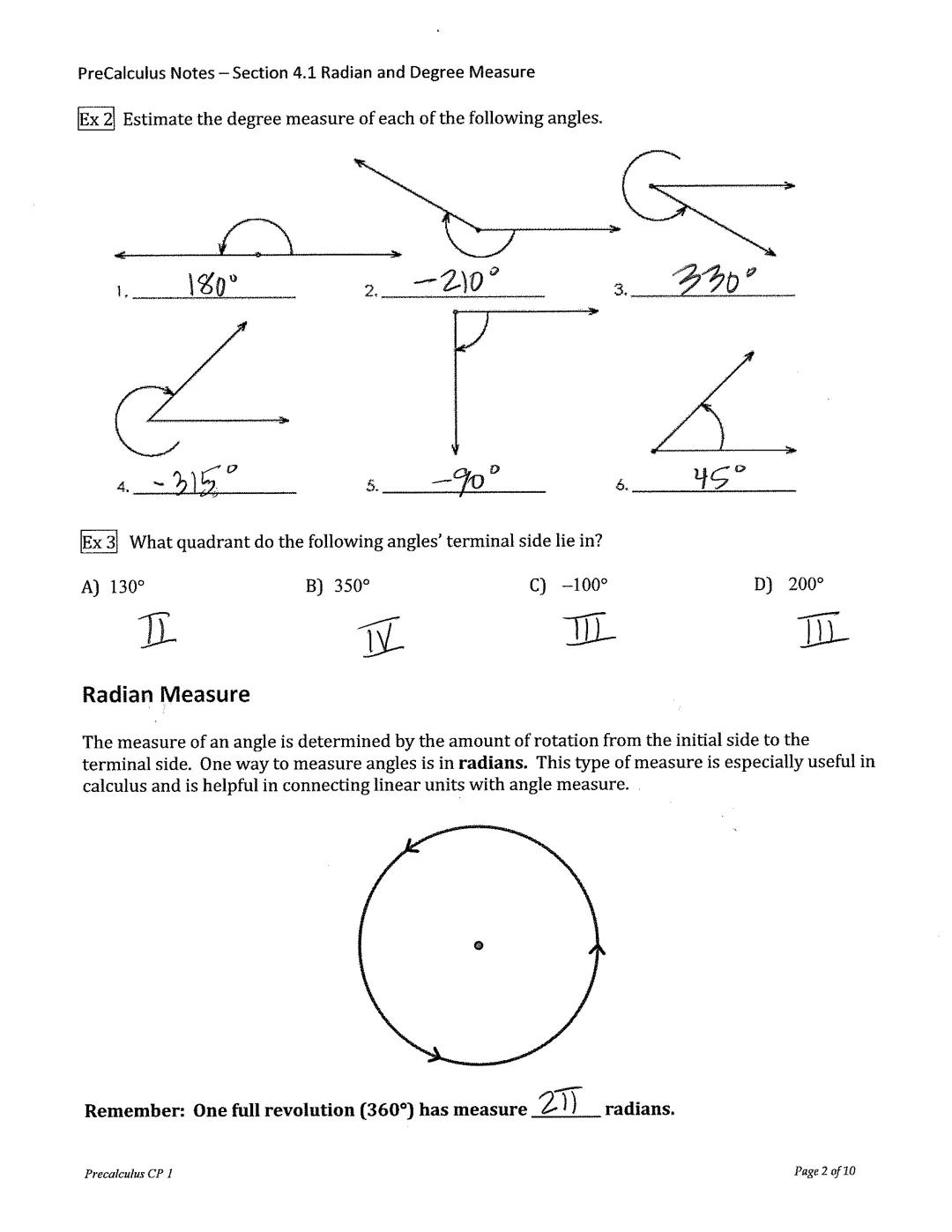

Radian Measure Basics

Radian measure connects angle size to the radius of a circle. While degrees might be more familiar, radians are especially important in calculus and higher math because they create a direct relationship between arc length and radius.

The key relationship to remember is that one complete circle (360°) equals 2π radians. This means that half a circle (180°) is π radians, and a quarter circle (90°) is π/2 radians.

When identifying where angles land, think about quadrants. For example, angles between 0° and 90° have their terminal side in Quadrant I, while angles between 90° and 180° end in Quadrant II.

Pro Tip: Quadrantal angles (those whose terminal sides fall directly on an axis) are especially important to memorize: 0, π/2, π, 3π/2, and 2π radians.

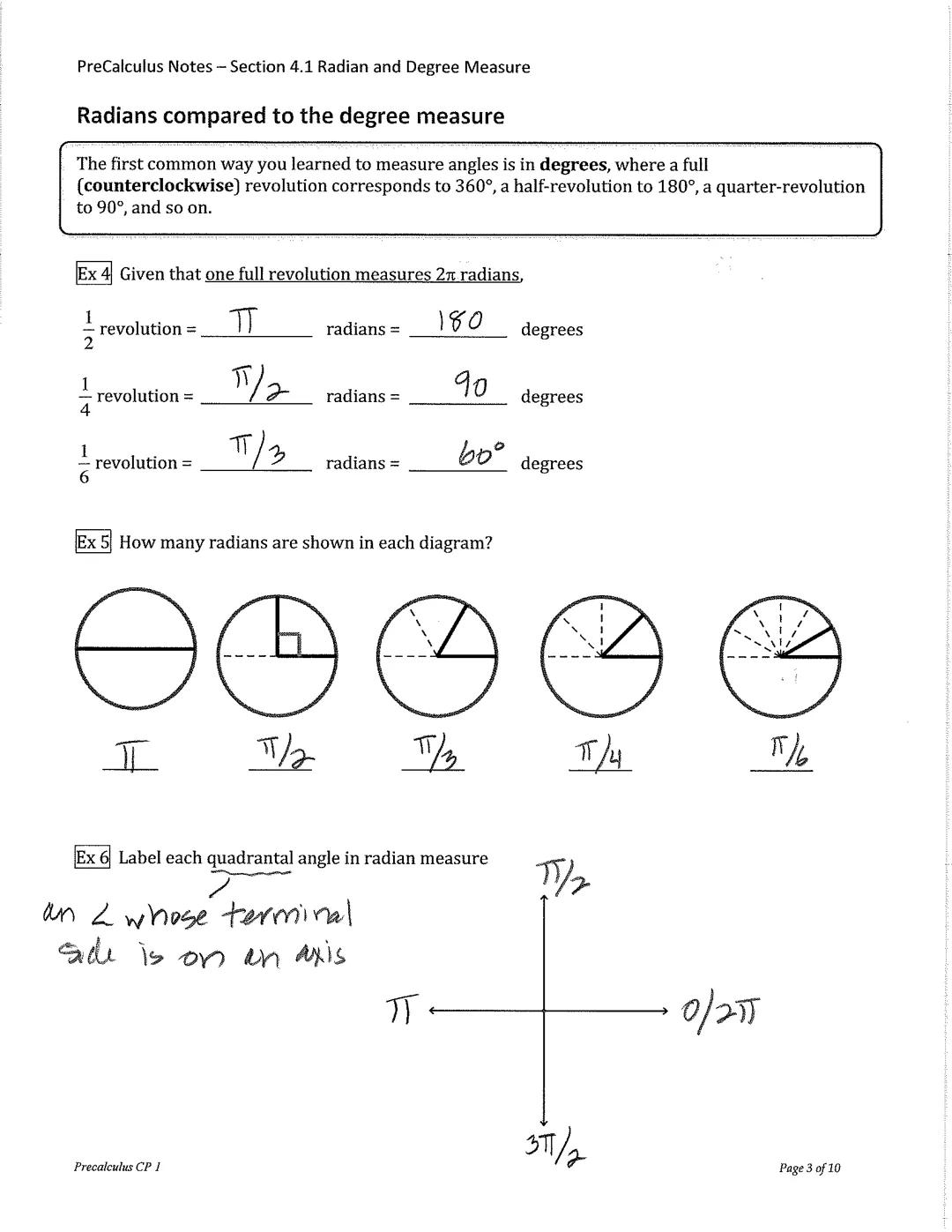

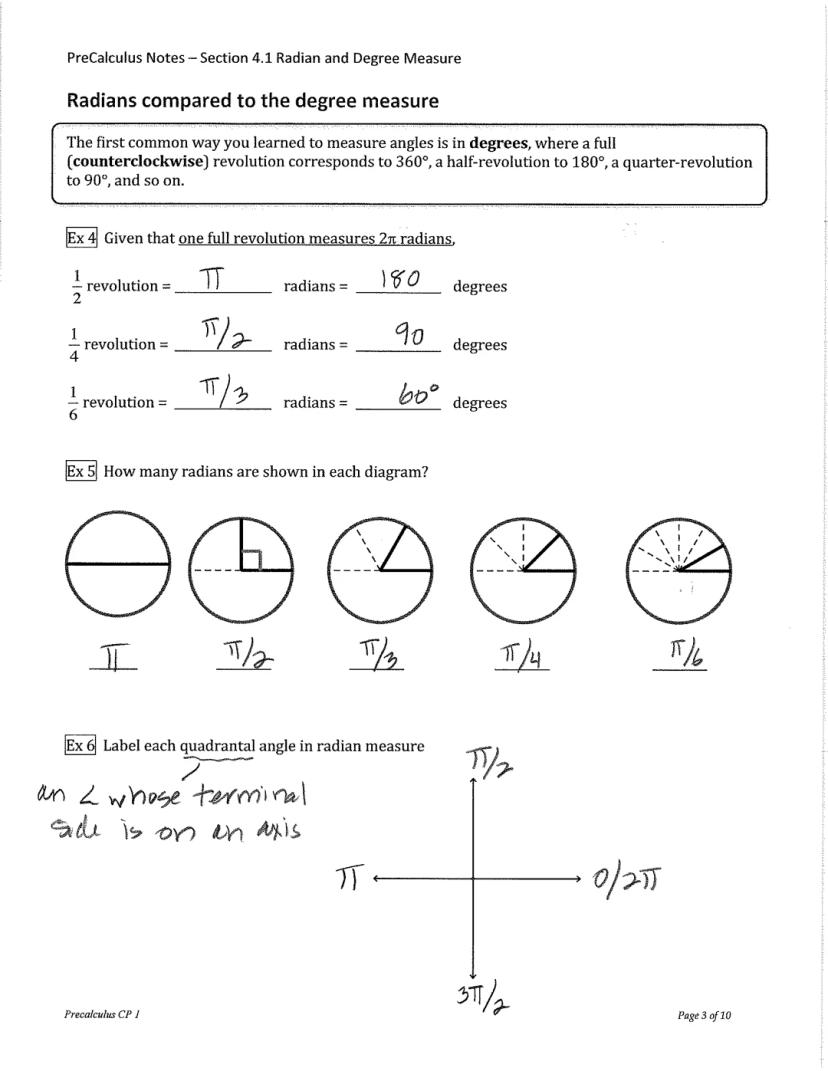

Comparing Degrees and Radians

Radians help us connect circular motion with linear measurements. Instead of dividing a circle into 360 equal parts (degrees), radian measure relates directly to the circle's radius.

The most frequently used radian measures correspond to common angles:

• A quarter-revolution (90°) equals π/2 radians
• A half-revolution (180°) equals π radians
• A sixth of a revolution (60°) equals π/3 radians

Remember that quadrantal angles have their terminal side directly on an axis. In radians, these special angles are 0, π/2, π, 3π/2, and 2π. Being able to quickly identify these values will make trigonometry much easier!

Remember: When drawing angles in radian measure, visualize fractions of the circle. For example, π/4 is 1/8 of the full circle (which is 2π).

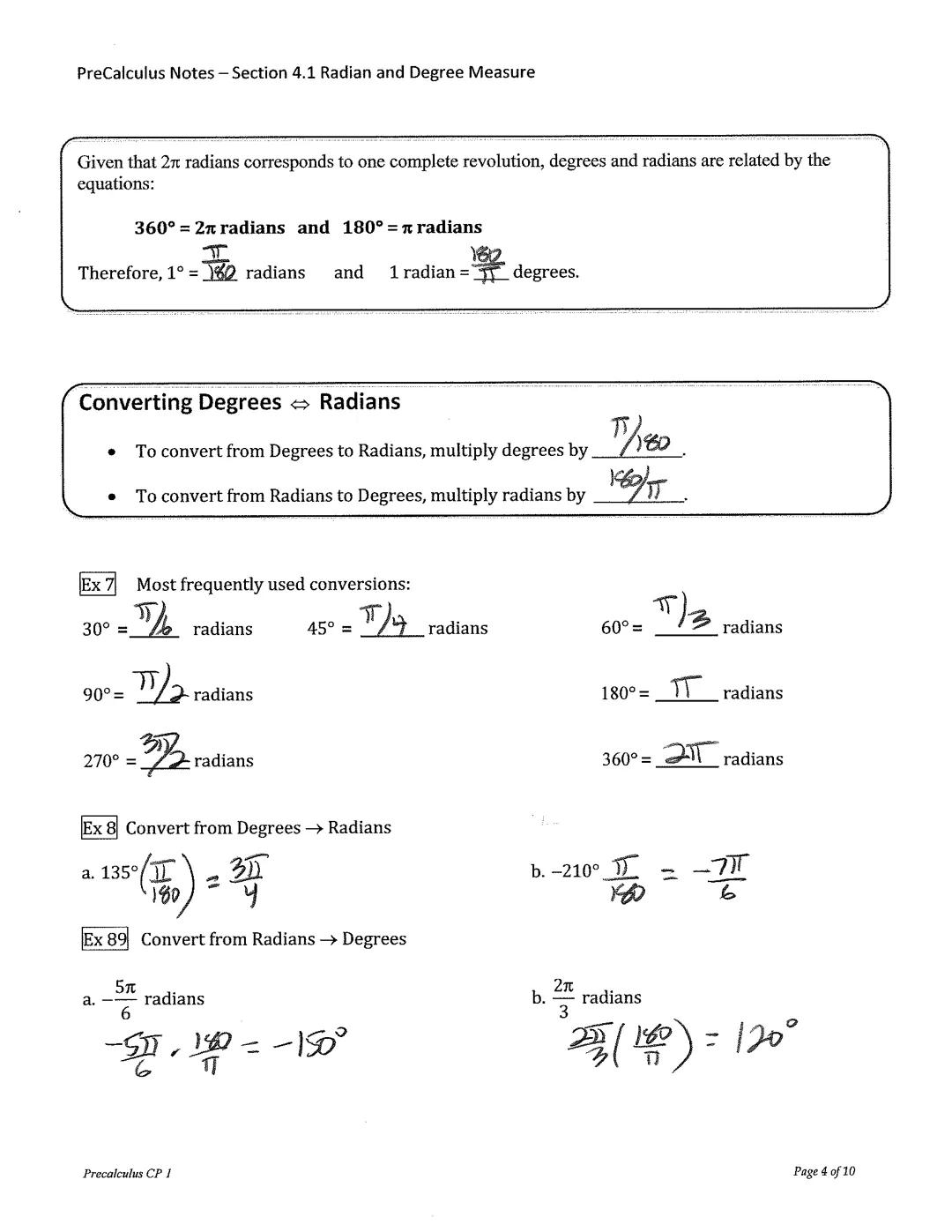

Converting Between Systems

Converting between degrees and radians is straightforward once you know the key relationship: 180° = π radians.

To convert from degrees to radians:

• Multiply degrees by π/180
• Example: 135° × $π/180$ = 3π/4 radians

To convert from radians to degrees:

• Multiply radians by 180/π
• Example: 5π/6 × $180/π$ = 150°

The most common angle measures you should memorize are:

• 30° = π/6 radians
• 45° = π/4 radians
• 60° = π/3 radians
• 90° = π/2 radians

Conversion Shortcut: Think of π radians as 180° and divide both sides equally. For example, π/3 radians is 1/3 of 180°, which equals 60°.

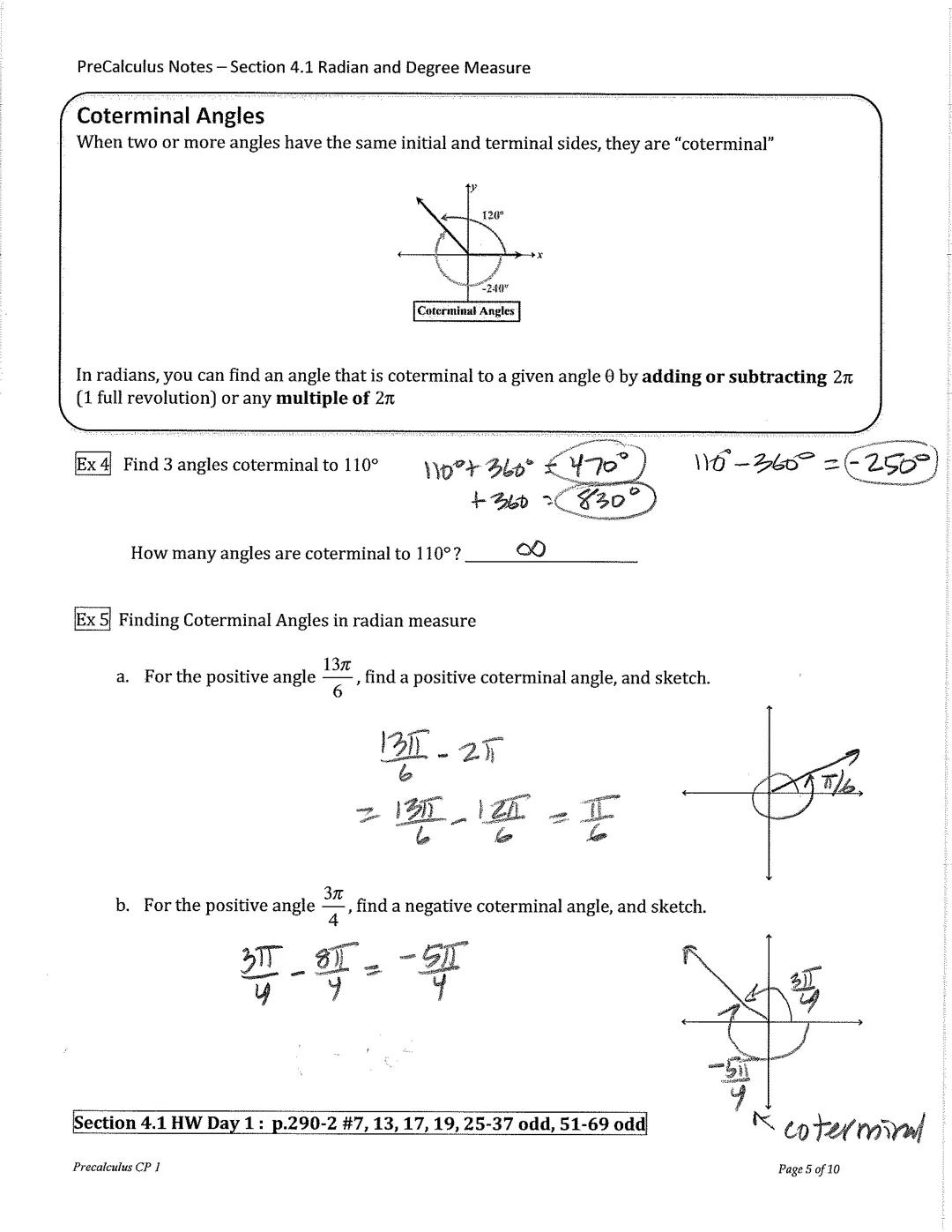

Coterminal Angles

Coterminal angles share the same initial and terminal sides, even though they have different measures. They're like different ways of describing the same final position!

To find coterminal angles:

• Add or subtract 360° (for degrees)
• Add or subtract 2π (for radians)

For example, 110° has coterminal angles at 470° (add 360°), -250° (subtract 360°), and many others. In fact, there are infinitely many coterminal angles for any given angle.

In radian measure, finding coterminal angles works the same way. For example, to find a positive angle coterminal with 13π/6:

• Calculate 13π/6 - 2π
• Simplify to 13π/6 - 12π/6 = π/6

Visualization Tip: Think of coterminal angles as "wrapping around" the circle multiple times but ending at the same spot. Like different paths that lead to the same destination!

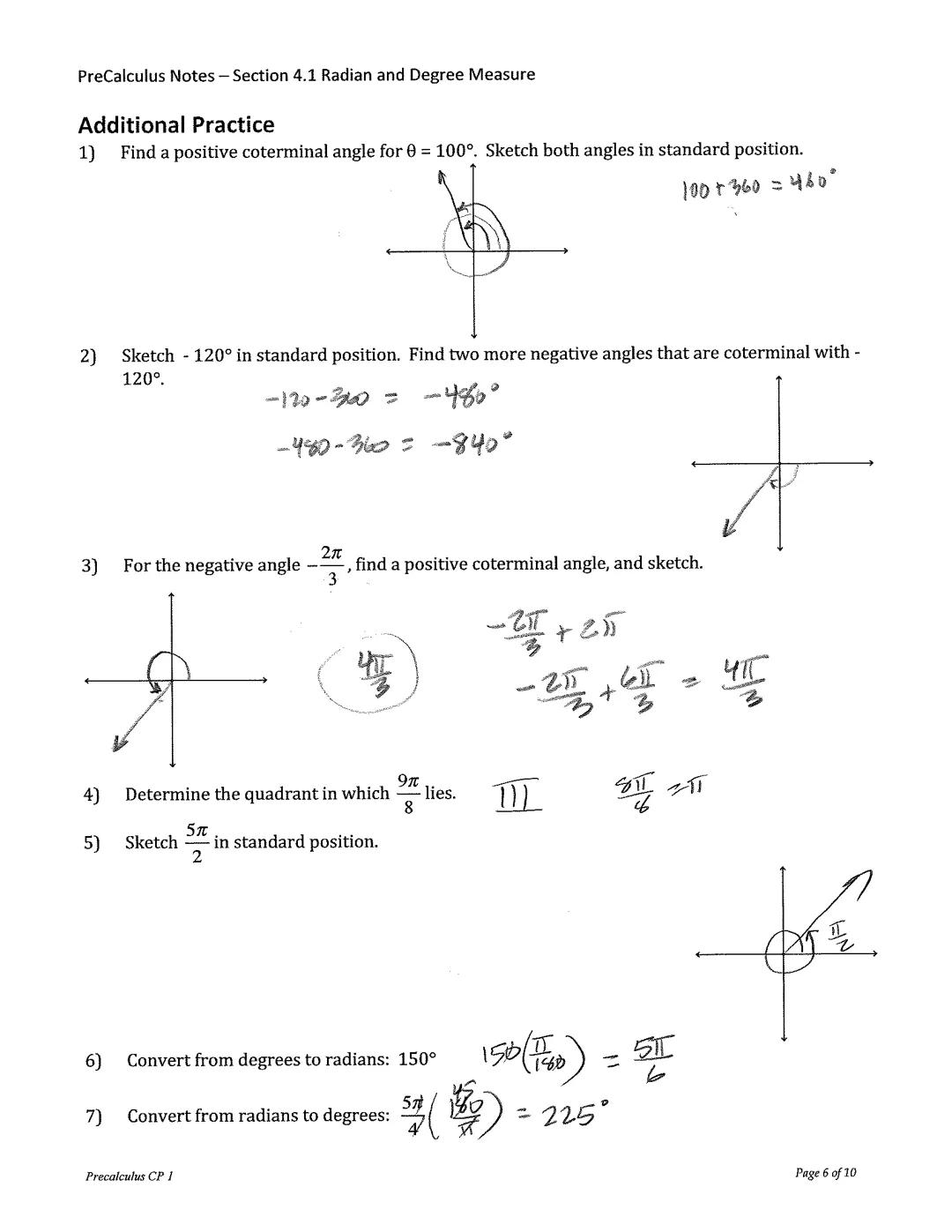

Working with Angles

When working with angles in standard position, you'll often need to:

1. Find coterminal angles
2. Determine which quadrant an angle lies in
3. Convert between measurement systems

For example, to find a positive angle coterminal with -2π/3, add one full revolution (2π): -2π/3 + 2π = -2π/3 + 6π/3 = 4π/3

Identifying the quadrant of an angle helps with trigonometric calculations. For example, 9π/8 is between π (180°) and 3π/2 (270°), so it's in Quadrant III.

When converting measurements, always remember:

• For degrees to radians: multiply by π/180
• For radians to degrees: multiply by 180/π

Practice Strategy: Sketch angles in standard position to visualize them better. This helps you understand where they lie and makes finding coterminal angles much easier!

Advanced Angle Measurements

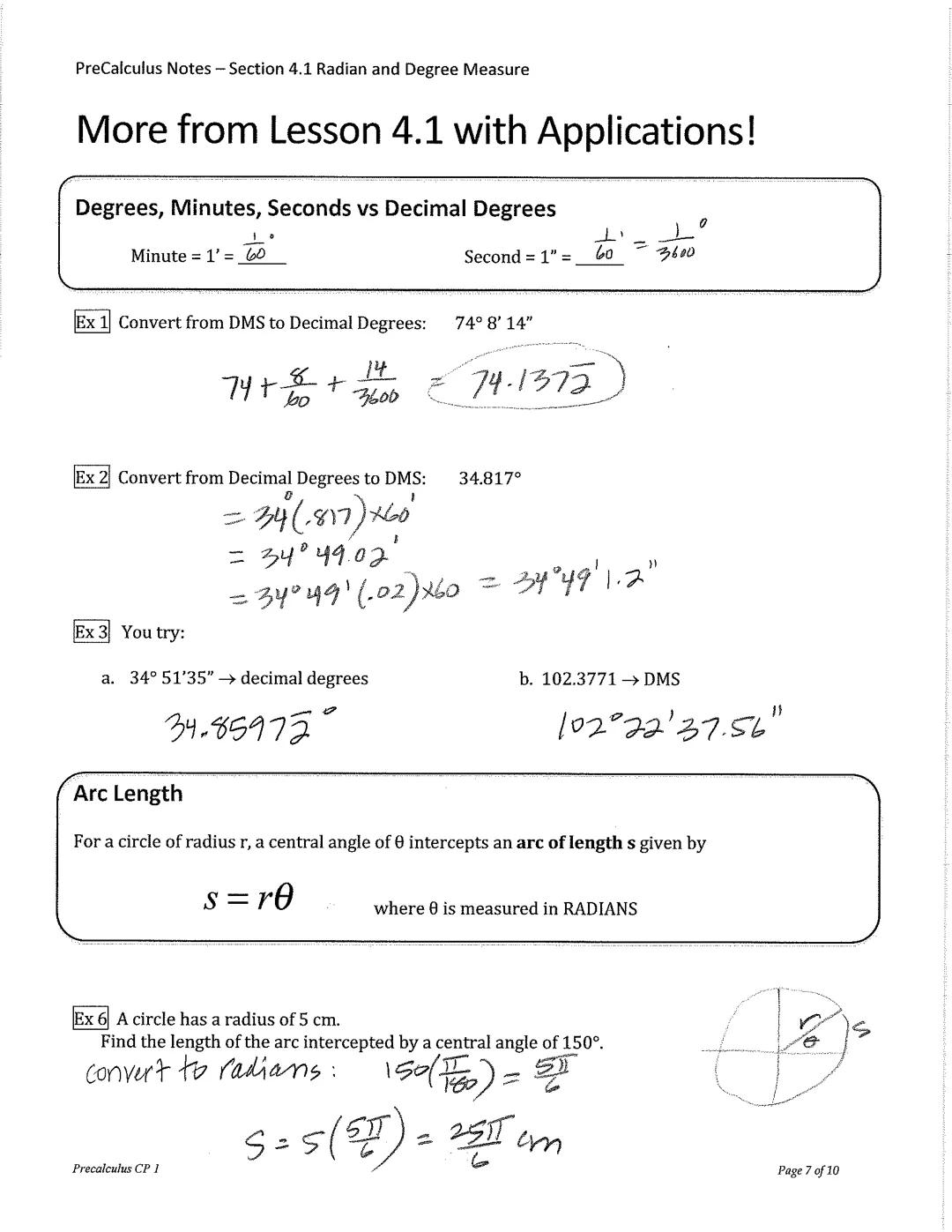

Beyond basic degrees and radians, you'll sometimes encounter degrees, minutes, and seconds (DMS) notation, where:

• 1 minute (1') = 1/60 of a degree
• 1 second (1") = 1/60 of a minute = 1/3600 of a degree

Converting from DMS to decimal degrees:

• Add the degrees, minutes/60, and seconds/3600
• Example: 34°51'35" = 34 + 51/60 + 35/3600 = 34.86°

Converting from decimal degrees to DMS:

1. Keep the whole number as degrees
2. Multiply the decimal by 60 to get minutes
3. Multiply any remaining decimal by 60 to get seconds

Arc length connects angles to distance along a circle. For a circle with radius r and central angle θ (in radians), the arc length is s = rθ. This formula only works when θ is in radians!

Real-world Connection: Arc length is used in everything from designing Ferris wheels to calculating how far a planet travels in its orbit during a specific time period.

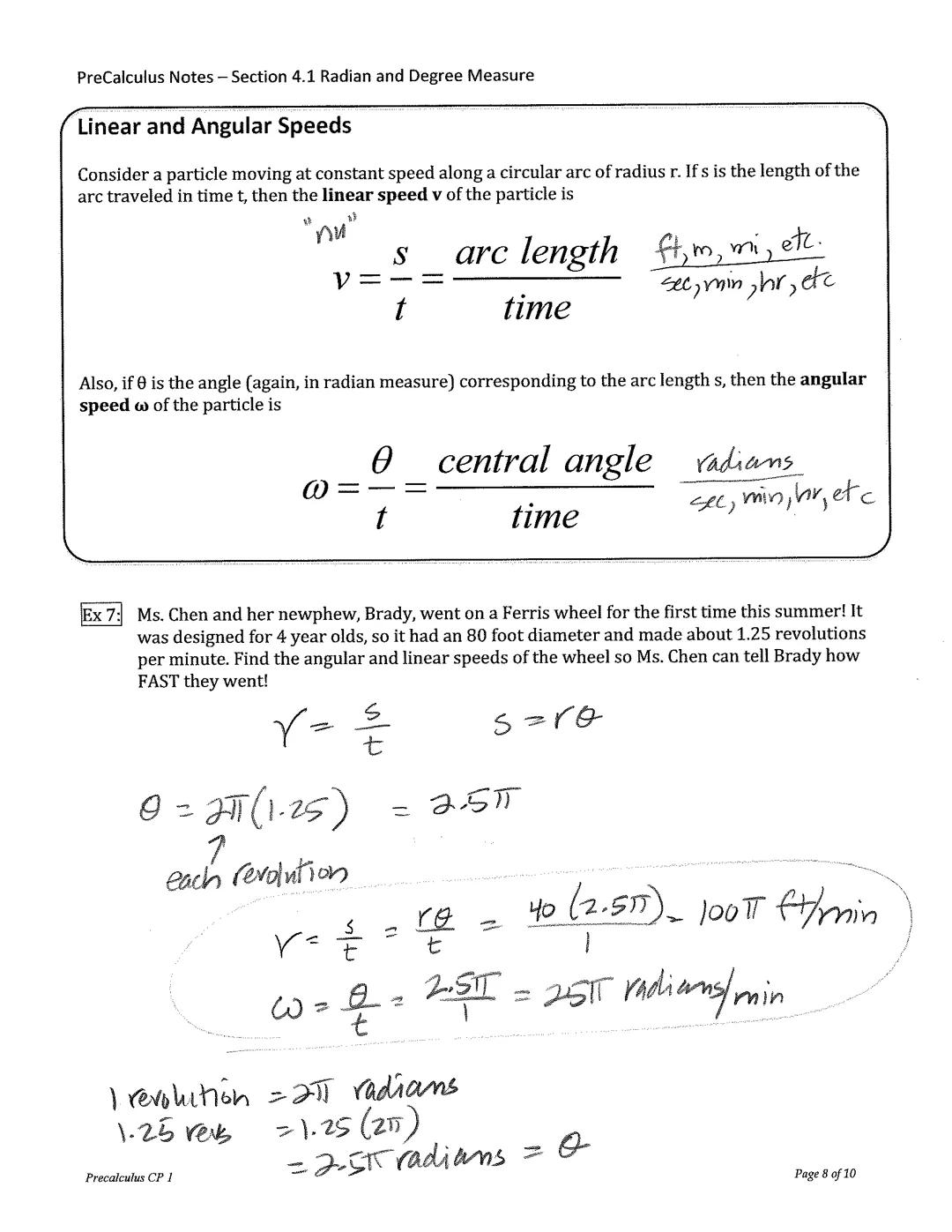

Linear and Angular Speed

When an object moves in a circular path, we can describe its motion in two ways:

• Linear speed $v$: how fast it travels along the arc (distance per time)
• Angular speed (ω): how fast the angle changes (radians per time)

These two measures are related by the formula: v = rω where r is the radius.

For example, on a Ferris wheel with a 40-foot radius making 1.25 revolutions per minute:

• Angular speed: ω = 2.5π radians/minute (since 1 rev = 2π radians)
• Linear speed: v = 40 × 2.5π = 100π feet/minute

Understanding both types of speed helps you analyze circular motion in real situations, from carnival rides to engineering problems!

Think About It: On a spinning record, points farther from the center have the same angular speed but faster linear speed. That's why the outer edge of a record moves faster than points near the center!

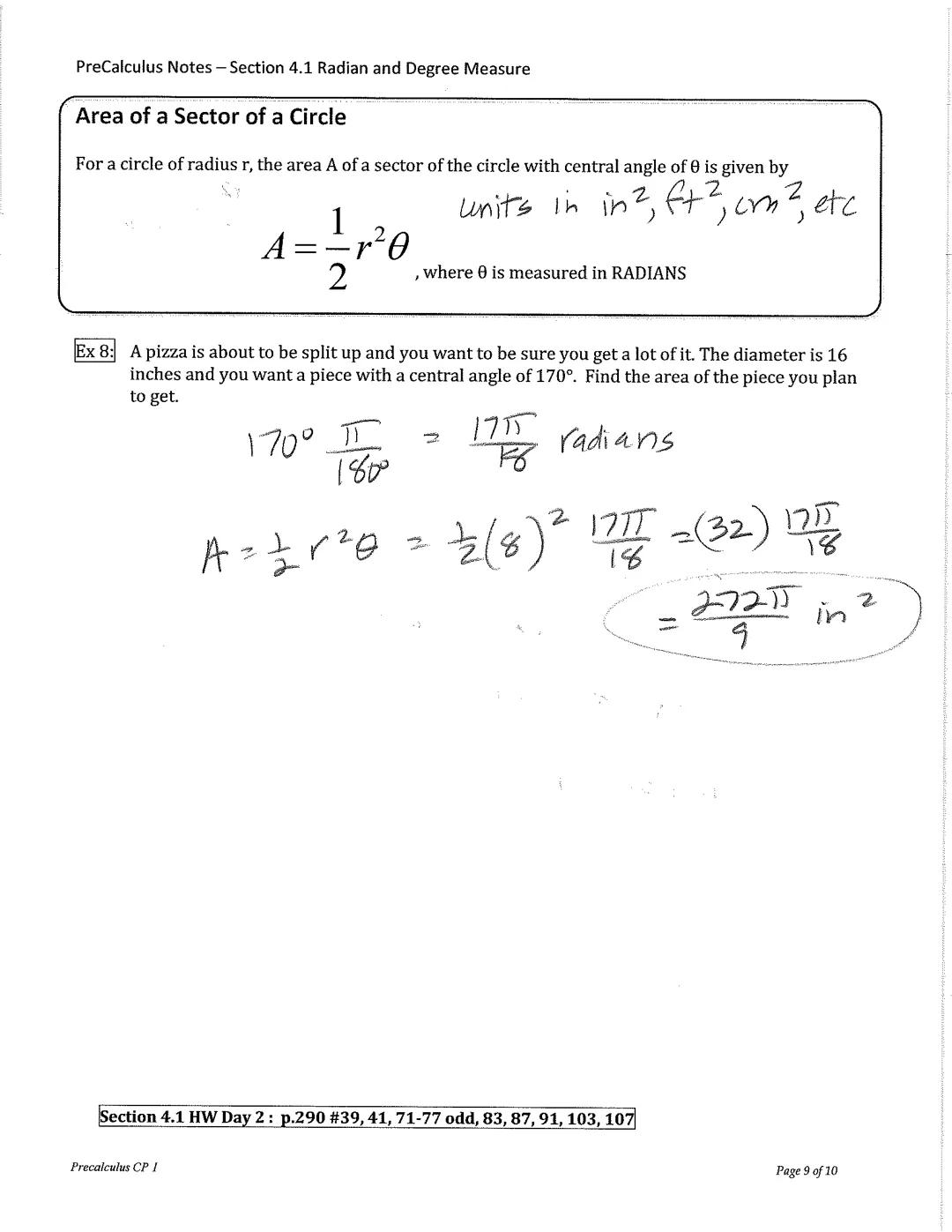

Area of a Sector

A sector is like a "pizza slice" of a circle. For a circle with radius r and central angle θ (in radians), the area of the sector is:

A = ½r²θ

Remember that θ must be in radians for this formula to work! If you're given an angle in degrees, convert it to radians first.

For example, to find the area of a pizza sector with radius 8 inches and central angle 170°:

1. Convert to radians: 170° = 17π/18 radians
2. Apply the formula: A = ½(8)²$17π/18$ = 32$17π/18$ = 272π/9 square inches

This formula has many real-world applications, from calculating land areas to determining material needed for circular sections.

Application Idea: The next time you share a pizza, you can calculate exactly how much pizza each person gets by finding the area of their slice!

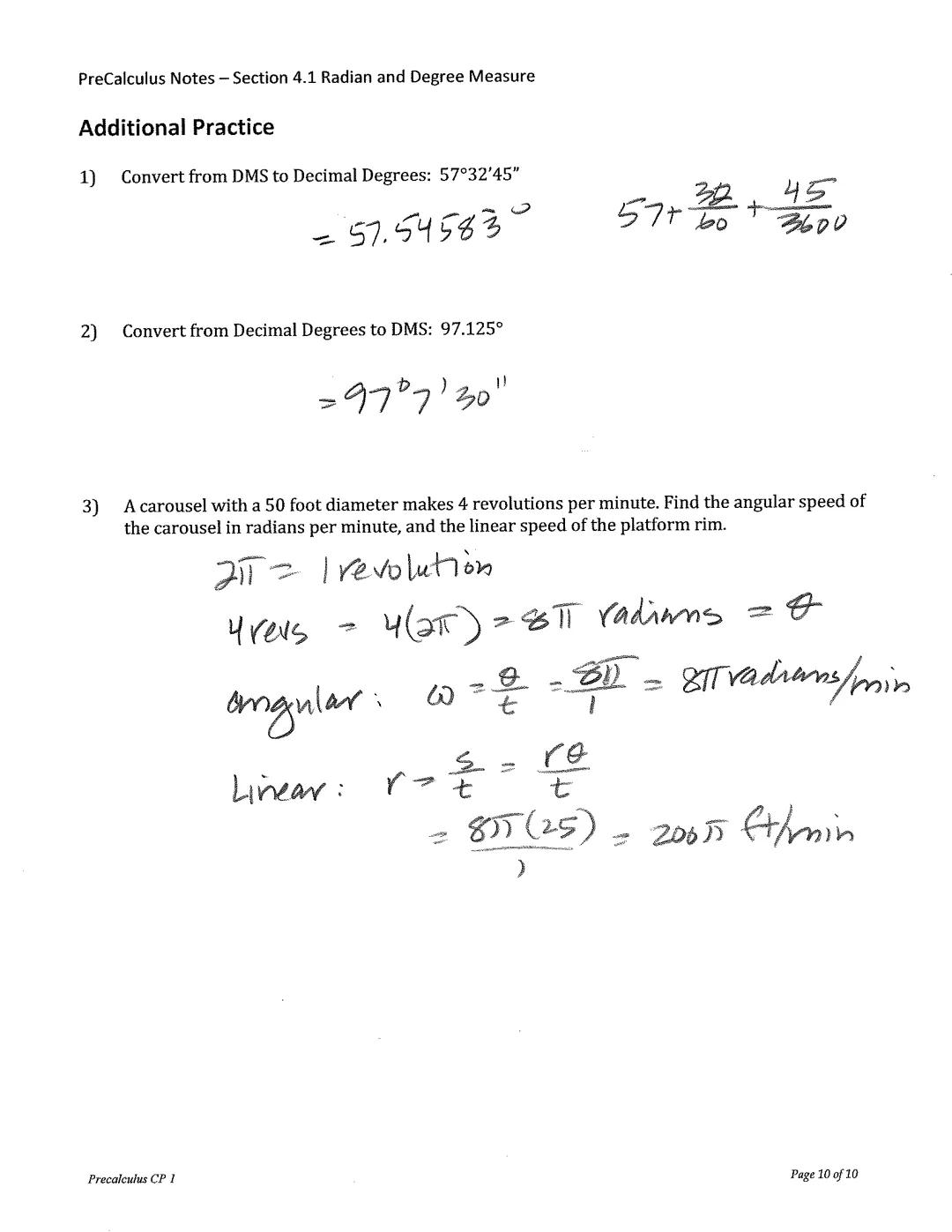

Applications and Practice

Converting between measurement systems is a skill you'll use throughout precalculus and calculus:

• 57°32'45" = 57 + 32/60 + 45/3600 = 57.546° (decimal degrees)
• 97.125° = 97° + 0.125(60)' = 97°7'30" (DMS)

Circular motion problems combine angular and linear concepts. For a carousel with a 50-foot diameter making 4 revolutions per minute:

• Radius = 25 feet
• Angular speed = 4 × 2π = 8π radians/minute
• Linear speed = r × ω = 25 × 8π = 200π feet/minute

These concepts apply to many real-world situations, from engineering (gears, wheels) to astronomy (planetary motion) and even to music (vinyl records).

Connecting Ideas: The relationship between linear and angular measurements is why radians are so useful in physics and engineering. When θ is in radians, the formula s = rθ directly connects the radius, angle, and arc length without needing any conversion factors!
