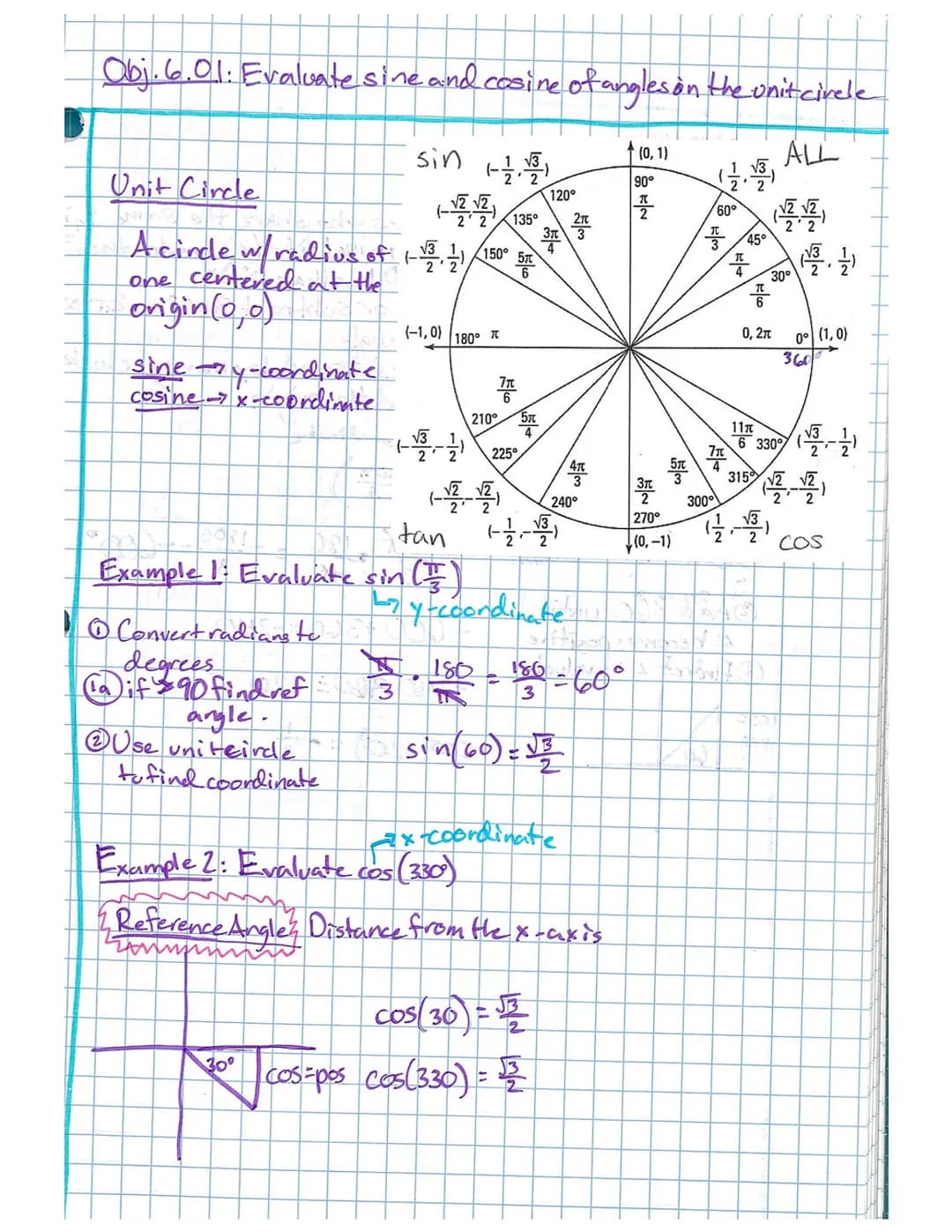

Understanding Sine and Cosine on the Unit Circle

The unit circle is a fundamental tool for understanding trigonometric functions. With a radius of 1 centered at the origin (0,0), it provides a visual way to evaluate sine and cosine values for any angle. The sine of an angle corresponds to the y-coordinate on the unit circle, while cosine corresponds to the x-coordinate.

Definition: The unit circle is a circle with radius 1 centered at (0,0). Sine represents the y-coordinate and cosine represents the x-coordinate of any point on this circle.

When evaluating trigonometric values, reference angles help simplify calculations. A reference angle is the acute angle formed with the x-axis, regardless of which quadrant you're working in. For example, to find sin(150°), first identify that 150° is in quadrant II. The reference angle is 30°, and since sine is positive in quadrant II, sin(150°) = 1/2.

Understanding special angles on the unit circle is crucial for trigonometry and calculus. Key points include (1,0) at 0°, (0,1) at 90°, (-1,0) at 180°, and (0,-1) at 270°. Common angles like 30°, 45°, and 60° have exact values that students should become familiar with. For instance, at 30°, the coordinates are (√3/2, 1/2), giving us cos(30°) = √3/2 and sin(30°) = 1/2.

Example: To evaluate cos(330°), first recognize that 330° is in quadrant IV. The reference angle is 30°. Since cosine is positive in quadrant IV, cos(330°) = √3/2.

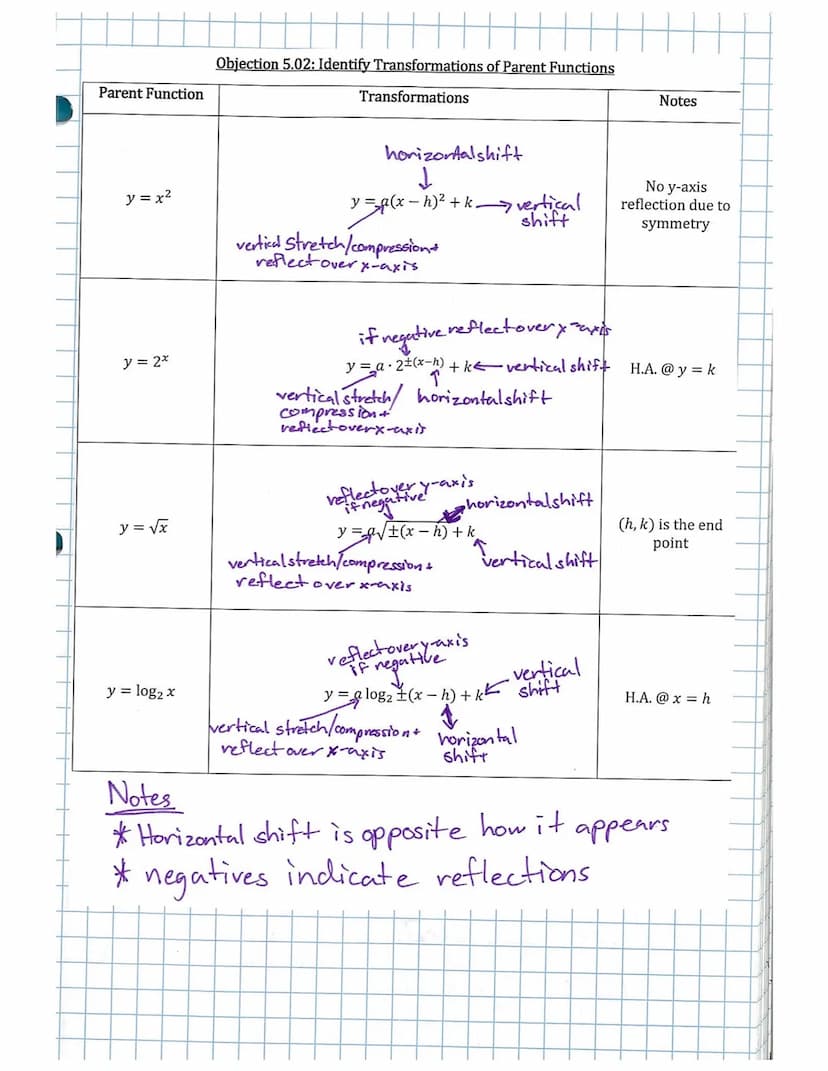

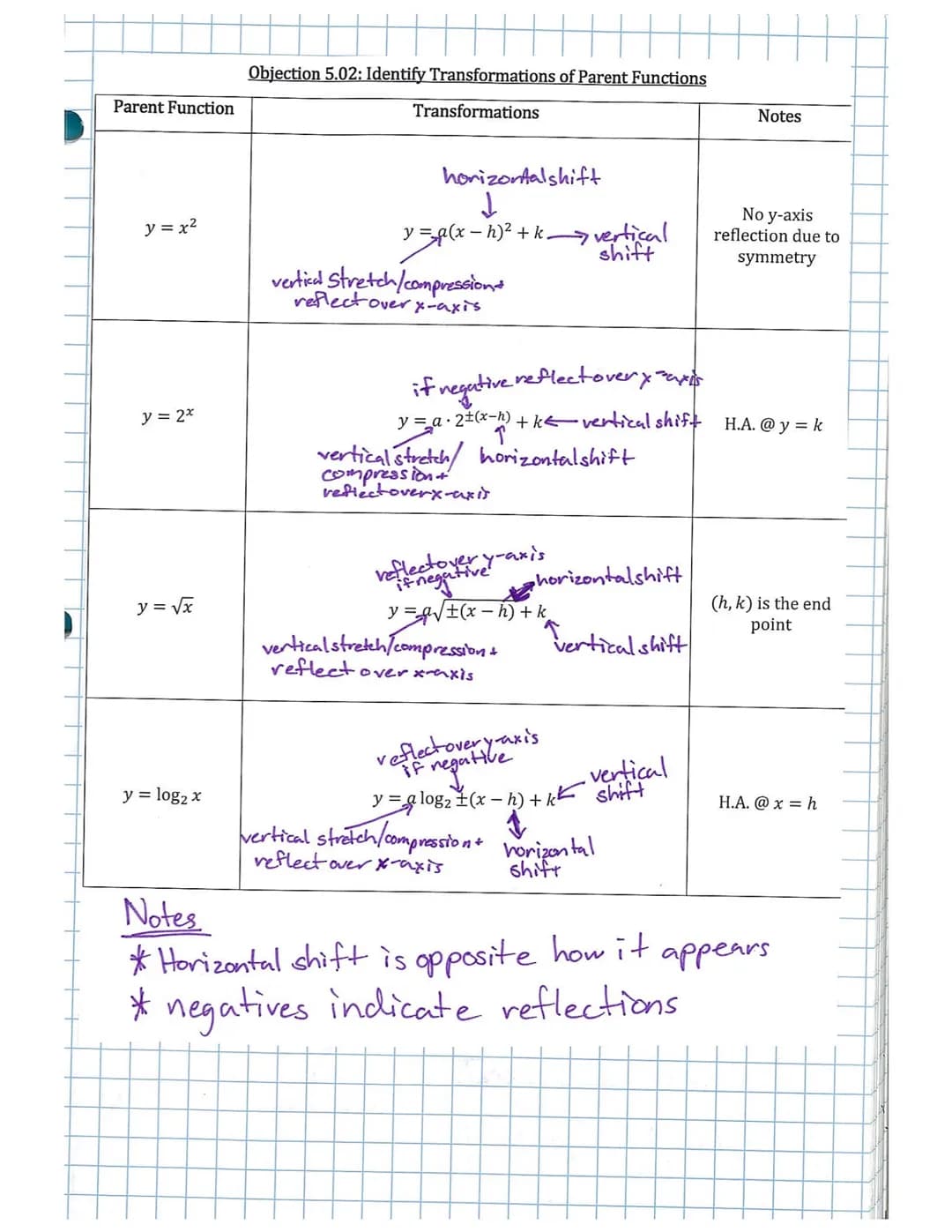

Identifying Transformations of Parent Functions

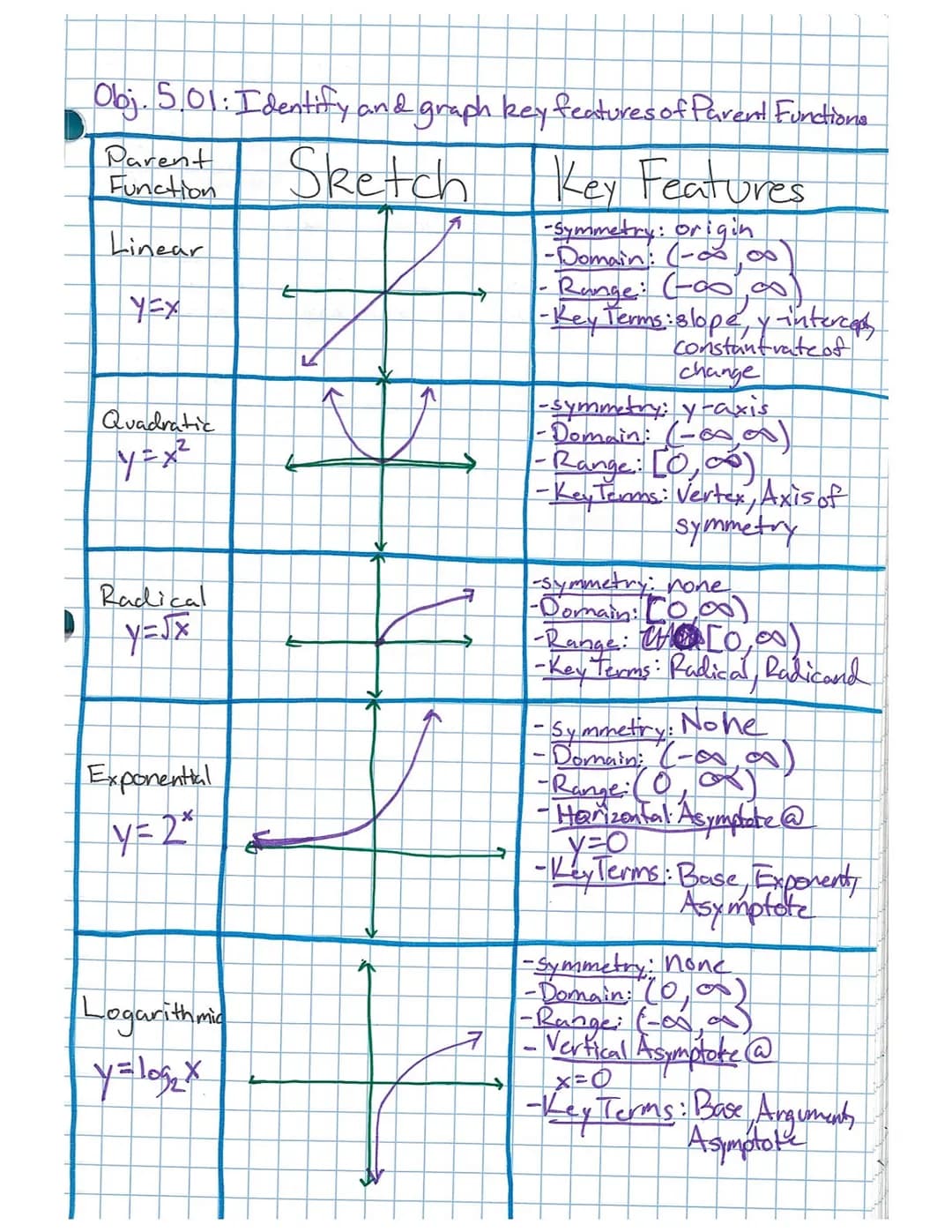

Understanding function transformations is essential for analyzing mathematical relationships. Parent functions serve as the basic forms from which more complex functions are derived through various transformations.

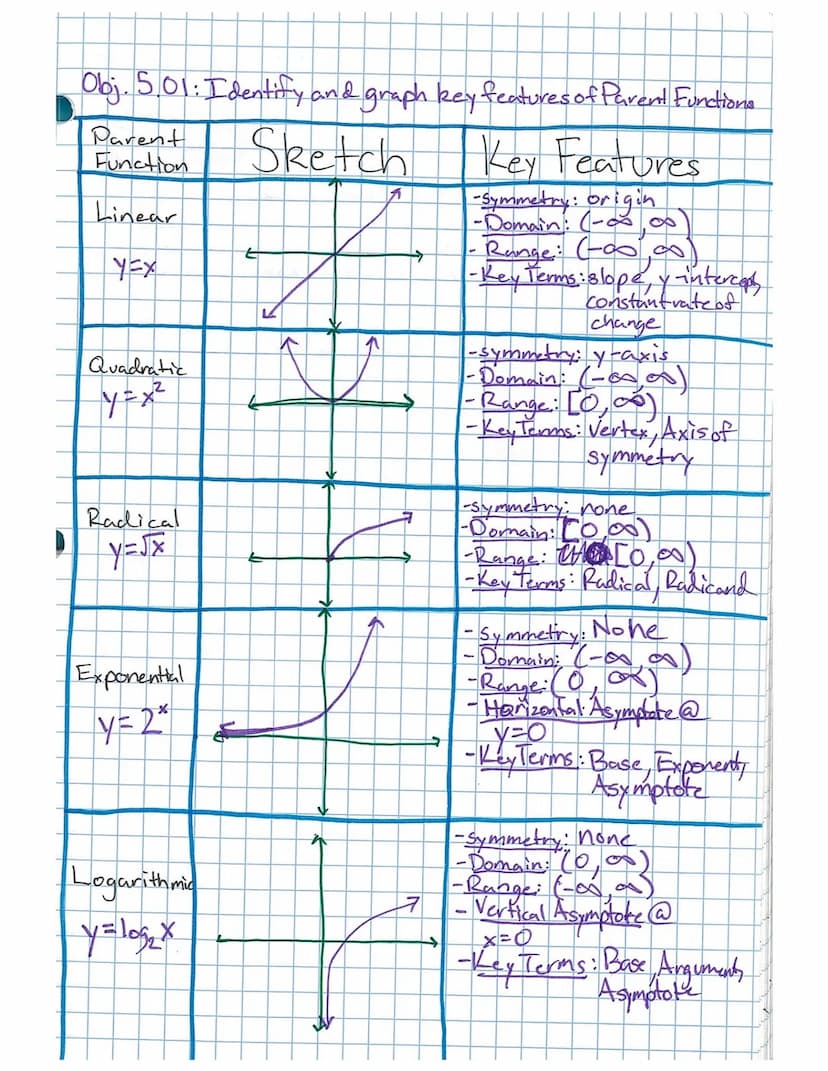

Vocabulary: Parent functions are the simplest form of a function family, such as y = x², y = √x, or y = log₂x.

The key transformations include vertical and horizontal shifts, stretches and compressions, and reflections. When working with function transformations, it's crucial to apply them in the correct order:

1. Horizontal transformations (shifts and stretches)
2. Vertical transformations (shifts and stretches)
3. Reflections over axes

For any function f(x), the general form a•f$b(x-h)$ + k represents:

• a: vertical stretch/compression (|a|>1 stretches, 0<|a|<1 compresses)
• b: horizontal stretch/compression
• h: horizontal shift (opposite of how it appears in equation)
• k: vertical shift

Highlight: Remember that horizontal shifts work opposite to how they appear in the equation. In y = $x-3$², the graph shifts 3 units right, not left.

Understanding Reciprocal Trigonometric Functions

Reciprocal trigonometric functions provide alternative ways to express relationships between angles and ratios. These functions - secant, cosecant, and cotangent - are derived from the primary functions sine, cosine, and tangent.

Definition:

• Secant (sec) = 1/cos
• Cosecant (csc) = 1/sin
• Cotangent (cot) = cos/sin = 1/tan

When evaluating reciprocal trigonometric functions, first find the value of the primary function, then take its reciprocal. For example, to find sec(210°), first evaluate cos(210°) = -√3/2, then take its reciprocal: sec(210°) = -2/√3.

The domains of reciprocal functions exclude values where the denominator equals zero. This means:

• sec(x) is undefined when cos(x) = 0
• csc(x) is undefined when sin(x) = 0
• cot(x) is undefined when sin(x) = 0

Making Trigonometric Functions Invertible

For a function to be invertible, it must pass the horizontal line test, meaning each y-value corresponds to exactly one x-value. Standard trigonometric functions are periodic, so they naturally fail this test.

Definition: A function is invertible if and only if it is one-to-one, meaning each element in the codomain is paired with at most one element in the domain.

To make trigonometric functions invertible, we must restrict their domains. Standard restrictions include:

• sin⁻¹(x): [-π/2, π/2]
• cos⁻¹(x): [0, π]
• tan⁻¹(x): (-π/2, π/2)

These restrictions ensure that each output value corresponds to exactly one input value within the specified interval, making the functions invertible. The choice of interval is based on maintaining continuity and including the most commonly used angle values.

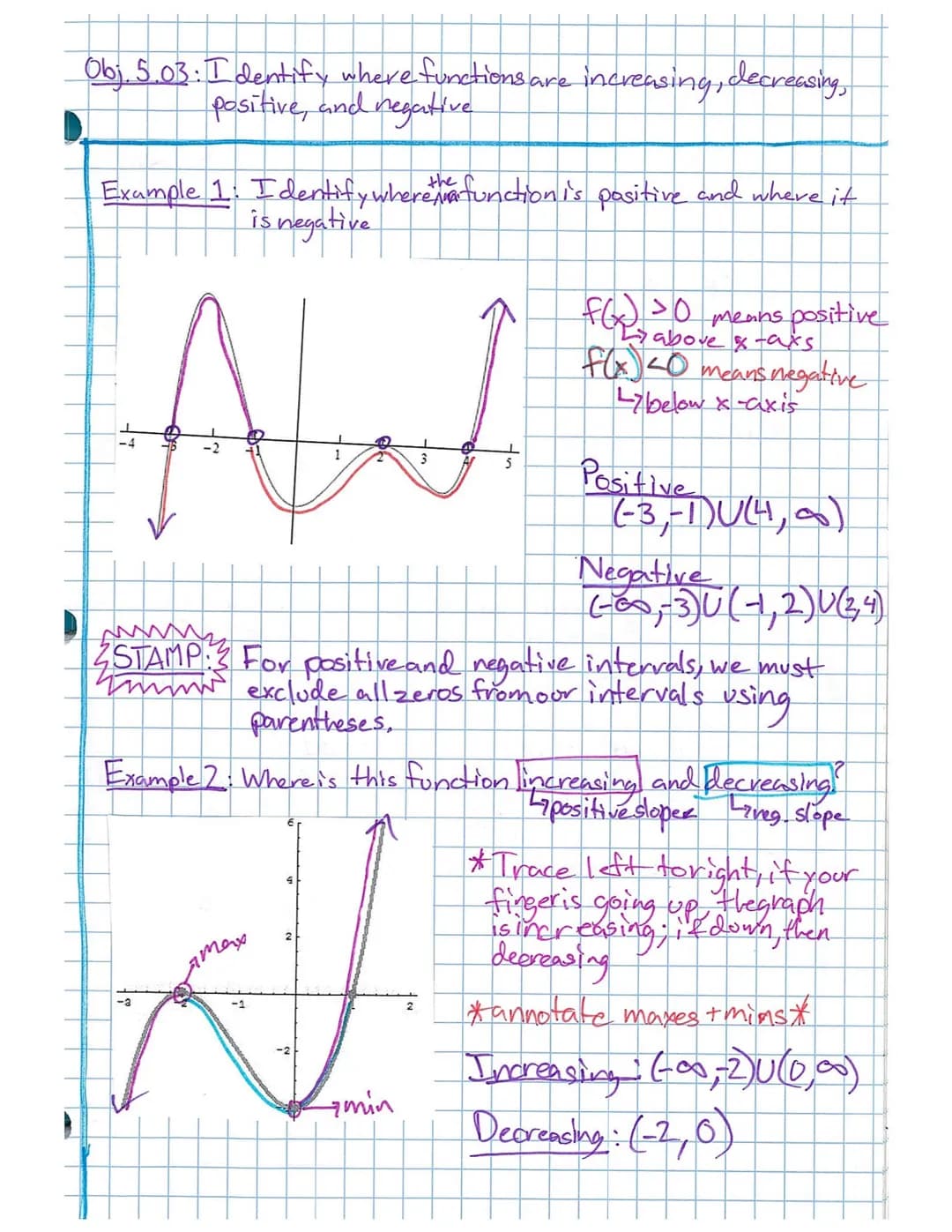

Understanding Increasing and Decreasing Functions in Calculus

When analyzing functions in calculus, identifying where they are increasing and decreasing is fundamental for understanding their behavior. This skill is particularly crucial for AP Calculus AB students who need to master function analysis.

To determine where a function is increasing or decreasing, we examine the graph's behavior from left to right. When the graph moves upward as we trace from left to right, the function is increasing. Conversely, when the graph moves downward, the function is decreasing. This concept ties directly to the derivative - positive derivatives indicate increasing functions, while negative derivatives indicate decreasing functions.

Definition: A function is increasing on an interval if for any two points in that interval, a larger input value yields a larger output value. A function is decreasing if larger input values yield smaller output values.

For identifying positive and negative intervals, we look at where the function lies above or below the x-axis. Points where the graph crosses the x-axis (zeros) are crucial boundaries between positive and negative regions. When writing intervals, we must carefully use parentheses to exclude these zero points.

Example: Consider f(x) = x² - 4x + 3

• Increasing: (-∞, 2)
• Decreasing: (2, ∞)
• Positive: (-∞, 1) ∪ (3, ∞)
• Negative: (1, 3)

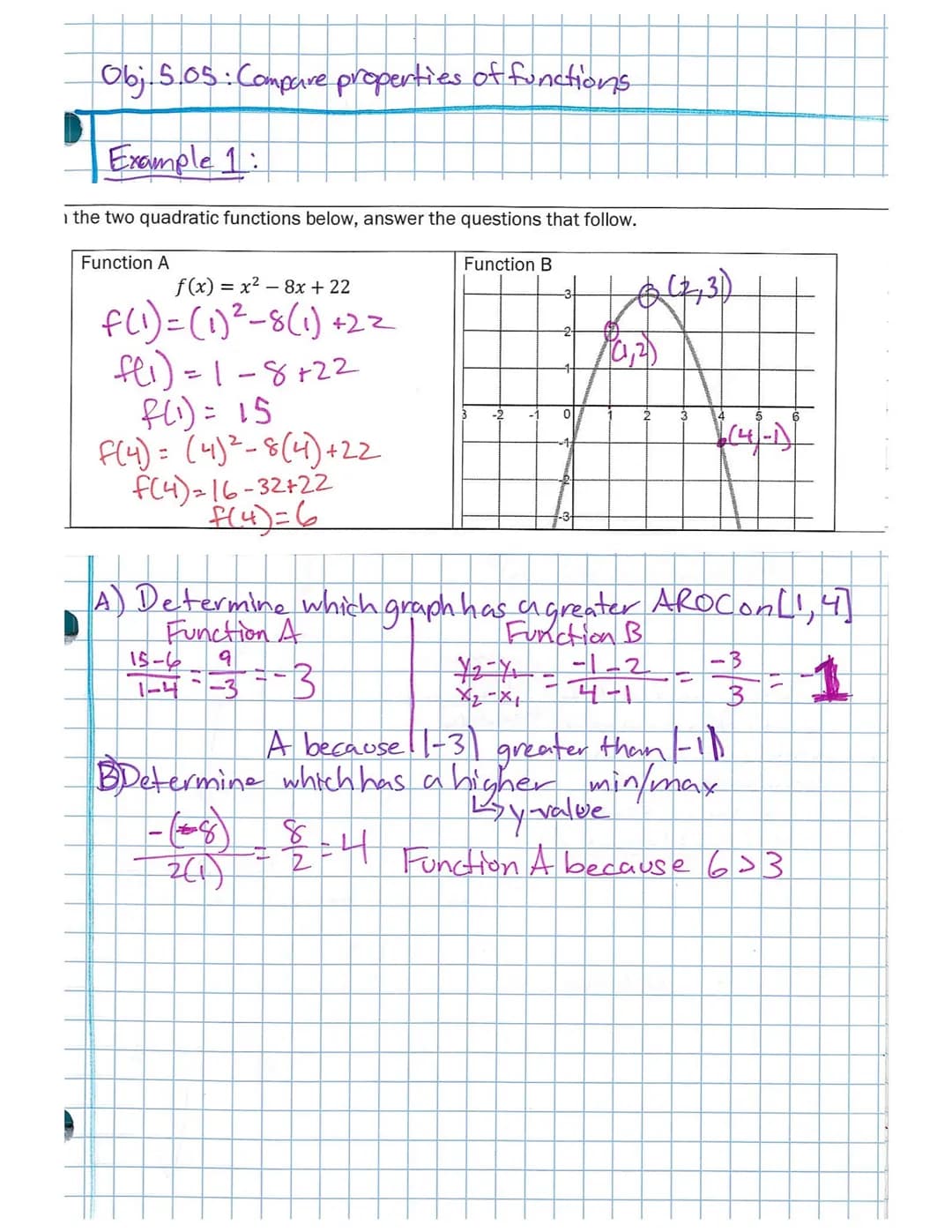

Function Transformations and Comparisons

Understanding how to identify transformations from an equation and compare different functions is essential in calculus. Function transformation rules follow a specific order and can dramatically affect a function's behavior and properties.

When comparing functions, we often analyze their key characteristics including average rate of change (AROC), maximum and minimum values, and overall behavior. The AROC between two points can be calculated using the slope formula: $y₂-y₁$/$x₂-x₁$. This helps us understand how quickly functions change relative to each other.

Highlight: Function transformations follow this order:

1. Inside transformations (horizontal shifts and stretches)
2. Outside transformations (vertical shifts and stretches)
3. Reflections

Comparing functions requires careful attention to detail and understanding of multiple concepts. For quadratic functions, we can compare their vertices, axis of symmetry, and opening direction. The vertex form of a quadratic function $a(x-h)²+k$ directly shows the maximum or minimum point.

Inverse Trigonometric Functions

For students wondering how to find sine and cosine on unit circle, understanding inverse trigonometric functions is crucial. These functions allow us to find angles when given trigonometric ratios, essentially "undoing" the original trigonometric functions.

Vocabulary:

• sin⁻¹(x) or arcsin(x): inverse sine function
• cos⁻¹(x) or arccos(x): inverse cosine function
• tan⁻¹(x) or arctan(x): inverse tangent function

The ranges of inverse trigonometric functions are restricted to ensure each output is unique:

• sin⁻¹(x): [-π/2, π/2]
• cos⁻¹(x): [0, π]
• tan⁻¹(x): (-π/2, π/2)

When evaluating inverse trigonometric functions, we must consider the quadrant of the angle and reference angles. This process often involves identifying the correct quadrant, finding the reference angle, and then determining the actual angle based on the function being used.

Trigonometric Transformations and Graphs

Understanding transformations of trigonometric functions is essential for sketching their graphs. The standard forms y = a sin$b(x-c)$ + d and y = a cos$b(x-c)$ + d help us identify key characteristics of these functions.

Definition:

• Amplitude (|a|): distance from midline to maximum/minimum
• Period $2π/|b|$: horizontal distance for one complete cycle
• Phase shift (c): horizontal shift of the graph
• Vertical shift (d): position of the midline

When sketching transformed trigonometric functions, follow these steps:

1. Identify the midline $y = d$
2. Calculate the amplitude (|a|)
3. Determine the period $2π/|b|$
4. Apply the phase shift (c)
5. Plot key points in order (varies for sine vs. cosine)

Tools like GeoGebra can help visualize these transformations, but understanding the underlying concepts is crucial for success in AP Calculus AB.

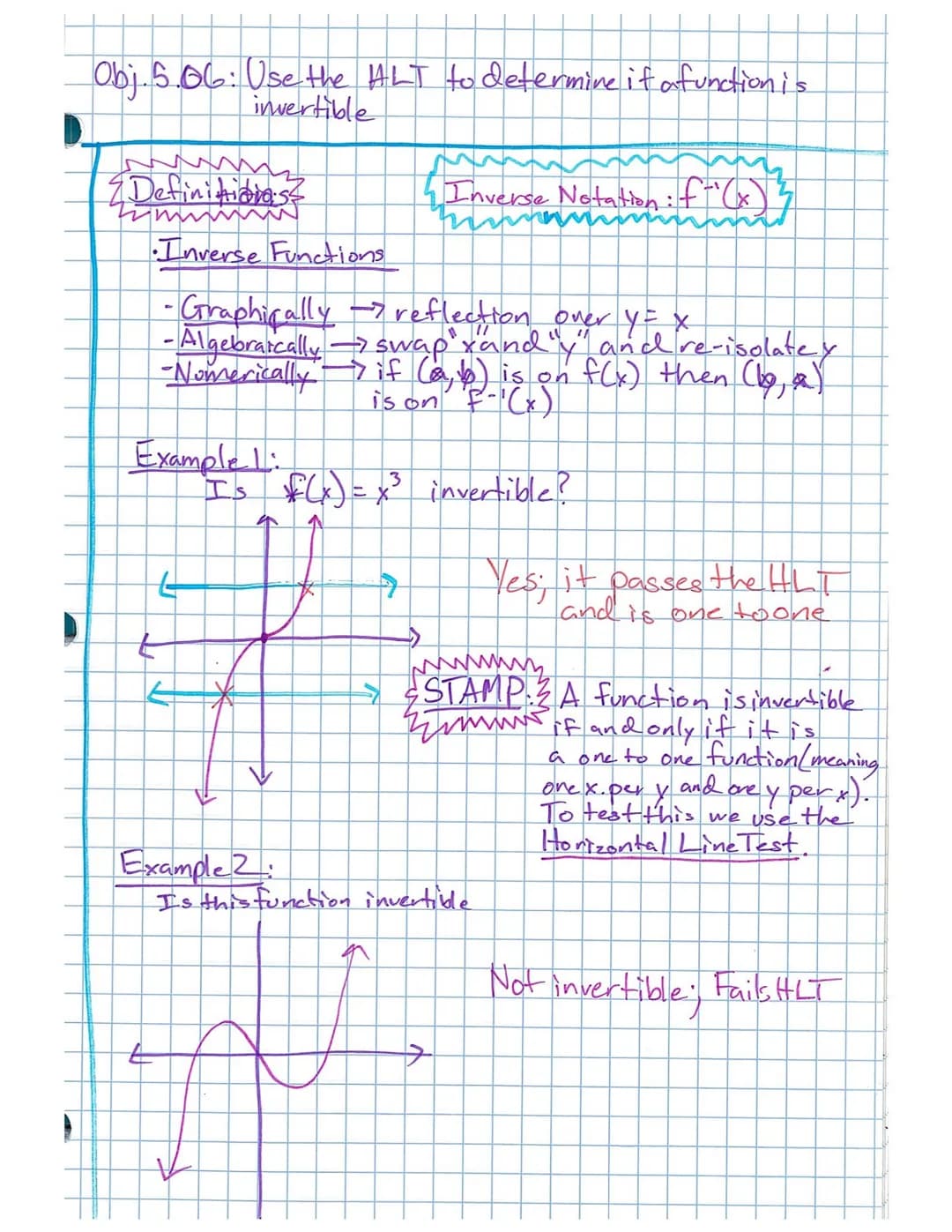

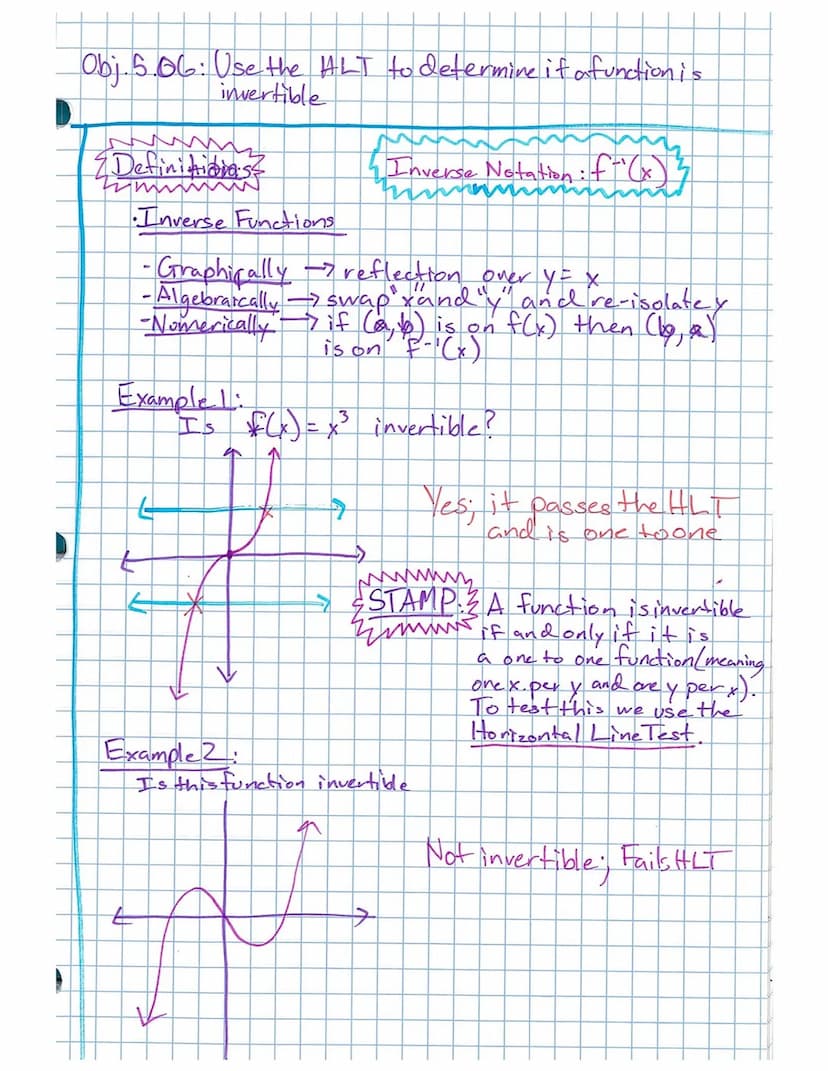

Understanding Invertible Functions and the Horizontal Line Test

The concept of function transformations plays a crucial role in understanding invertible functions. A function's invertibility is determined by examining whether it maintains a one-to-one relationship between input and output values. This relationship ensures that each x-value corresponds to exactly one y-value, and vice versa.

Definition: A function is invertible if and only if it is a one-to-one function, meaning there is exactly one x-value for each y-value and one y-value for each x-value. The Horizontal Line Test (HLT) is used to verify this property.

The Horizontal Line Test provides a visual method for determining if a function is invertible. When applying the HLT, draw horizontal lines across the graph - if any horizontal line intersects the graph more than once, the function fails the test and is not invertible. This concept is particularly important when identifying transformations of parent functions in AP Calculus AB, as it helps students understand how changes to a function affect its invertibility.

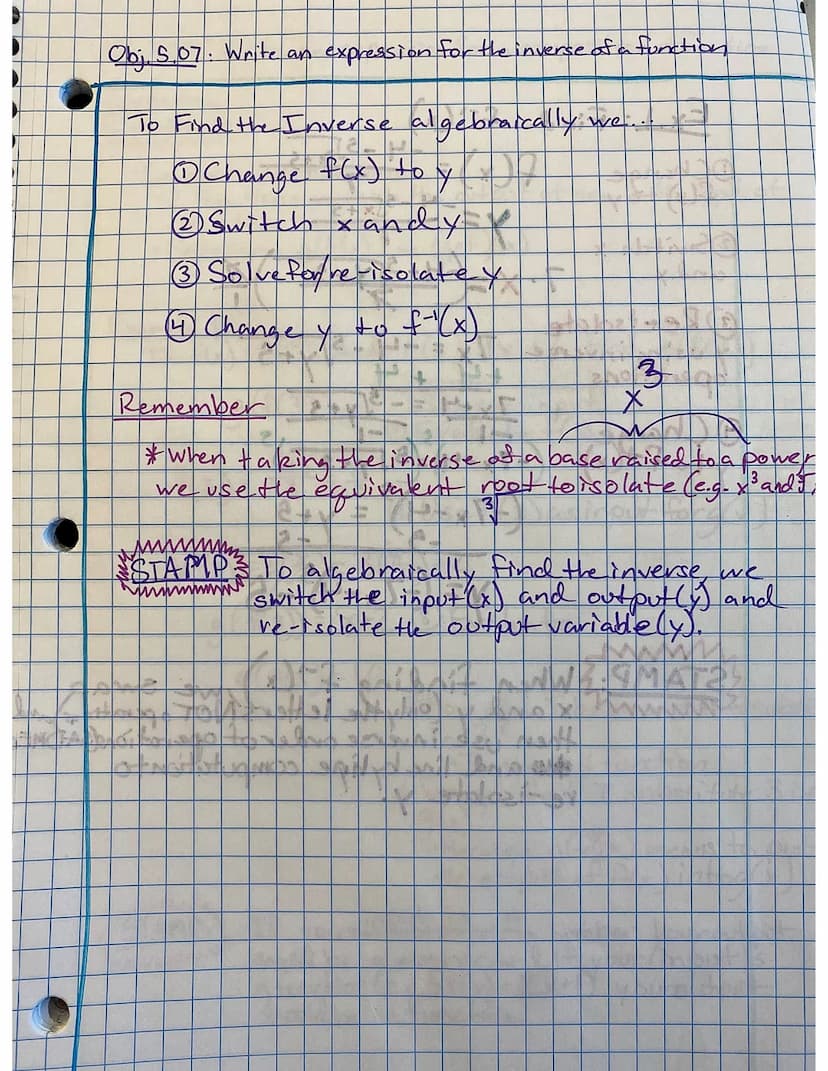

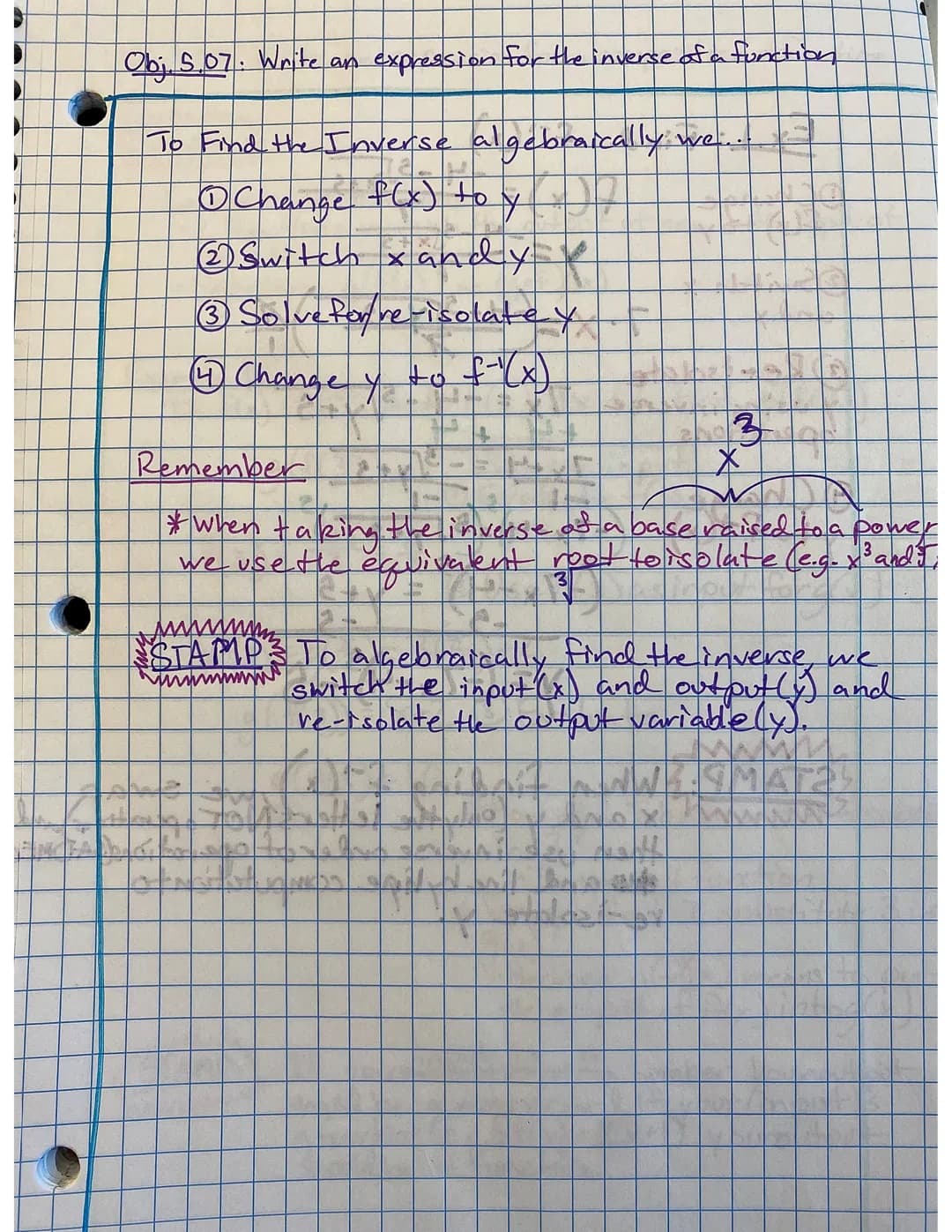

Consider the example of f(x) = x³. This function is invertible because it passes the Horizontal Line Test - any horizontal line will intersect the curve exactly once. The inverse of this function exists and can be found through both algebraic and graphical methods. Graphically, the inverse is a reflection over the line y = x. Algebraically, we can find the inverse by swapping x and y variables and solving for y. This relationship demonstrates how function transformation rules apply to creating inverse functions.

Example: For a function f(x), if point (a,b) lies on the graph, then point (b,a) must lie on the graph of its inverse function f⁻¹(x). This property helps verify the one-to-one relationship visually.

Practical Applications of Inverse Functions and Transformations

Understanding inverse functions and their transformations has practical applications across various fields. In calculus, these concepts are essential for solving real-world problems involving increasing and decreasing functions. The ability to identify whether a function is invertible helps in analyzing relationships between variables in physics, economics, and other scientific disciplines.

Highlight: Tools like GeoGebra can help visualize function transformations and inverse relationships. These digital resources make it easier to understand how changes in a function affect its invertibility.

When working with inverse functions, it's crucial to understand that not all functions are invertible. For example, a parabola $y = x²$ is not invertible because it fails the Horizontal Line Test - multiple x-values correspond to the same y-value. However, we can make non-invertible functions invertible by restricting their domain. This concept is particularly important when finding increasing and decreasing intervals or analyzing function behavior.

The notation for inverse functions (f⁻¹(x)) should not be confused with reciprocal functions or negative exponents. This distinction is crucial for students studying calculus and higher-level mathematics. Understanding inverse functions helps in solving equations, modeling real-world situations, and analyzing relationships between variables. Tools like Photomath can assist in verifying calculations, but understanding the underlying concepts is essential for mastery.

Vocabulary: Inverse notation f⁻¹(x) represents the inverse function, where input and output values are swapped from the original function f(x).
