Modern chemical analysis relies heavily on determining a compound's elemental composition to understand its structure and properties. When calculating empirical formula from combustion data, chemists follow specific procedures to identify the elements present and their ratios within compounds.

The empirical formula represents the simplest whole-number ratio between atoms in a molecule. For example, ethene (C2H4), propene (C3H6), and butene (C4H8) all share the empirical formula CH2, though their molecular structures differ. This fundamental concept helps chemists understand molecular relationships and predict chemical behaviors.

Definition: The empirical formula shows the simplest whole-number ratio of atoms in a compound, while the molecular formula shows the actual number of atoms present.

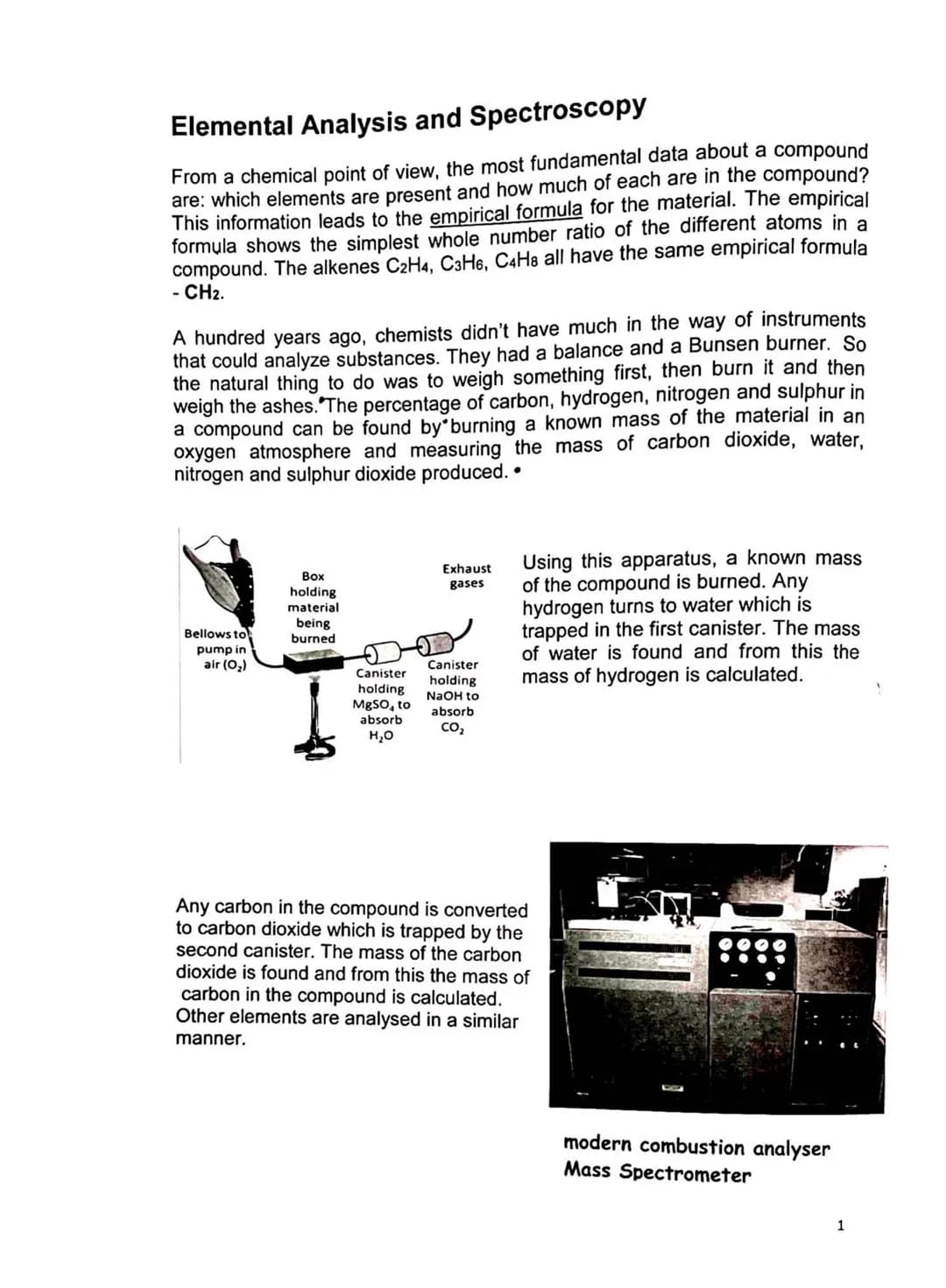

Elemental analysis using modern combustion analyzer has evolved significantly from historical methods. Modern instruments can precisely determine the percentage of carbon, hydrogen, nitrogen, and sulfur by burning samples in pure oxygen and measuring the resulting compounds. The process involves:

1. Burning a known mass of the sample in oxygen
2. Collecting water vapor to determine hydrogen content
3. Capturing carbon dioxide to calculate carbon content
4. Analyzing other combustion products for additional elements

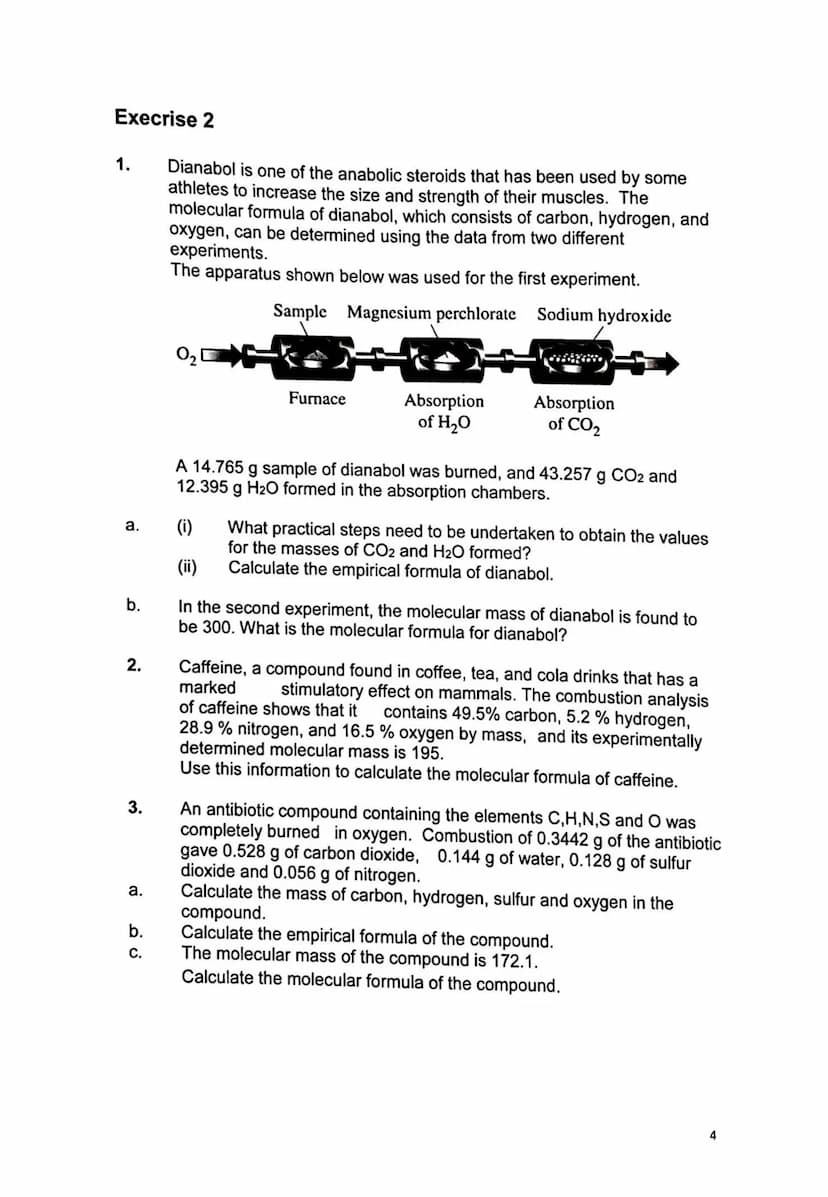

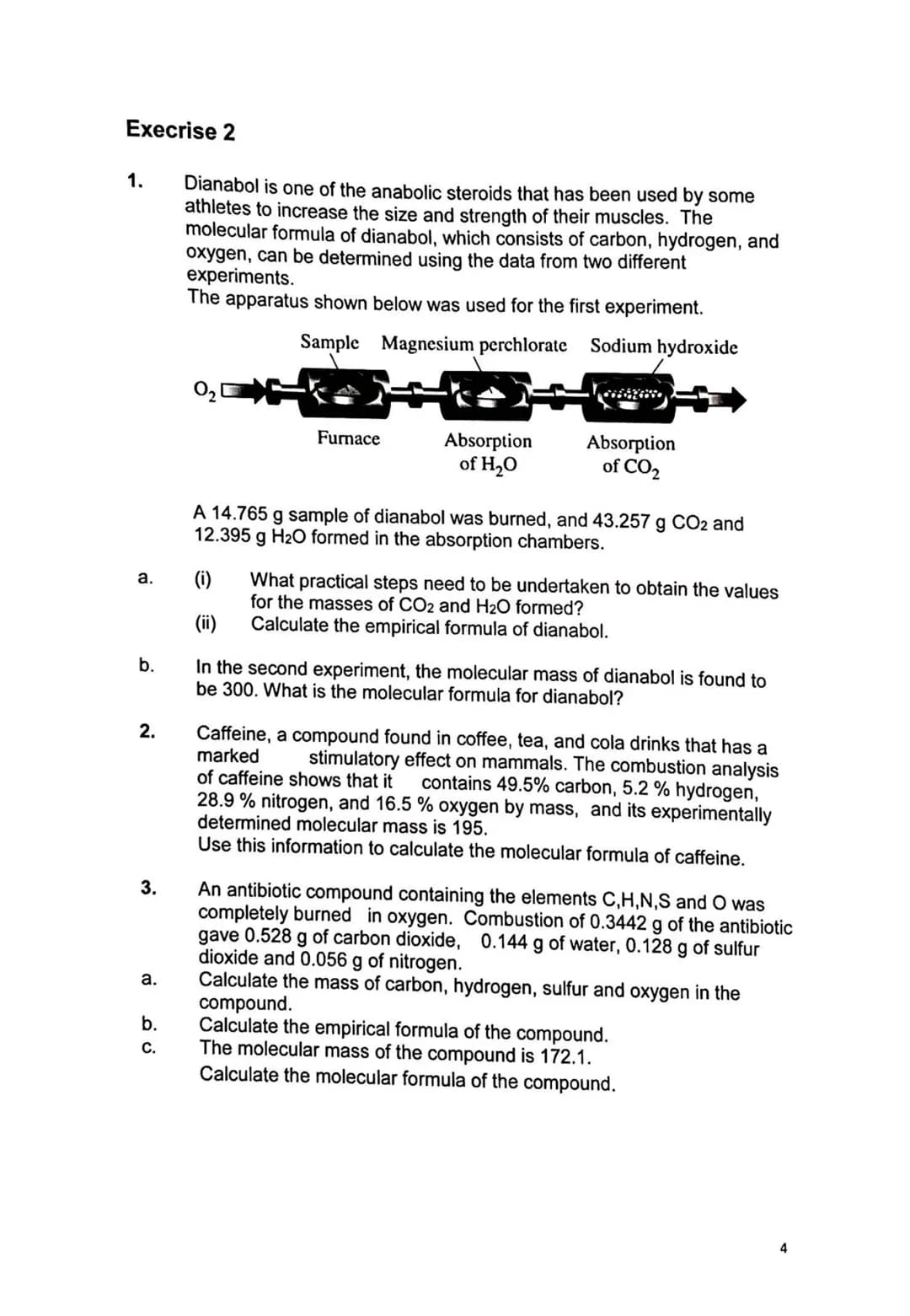

Example: When analyzing an organic compound, water vapor is trapped in magnesium sulfate, while carbon dioxide is absorbed by sodium hydroxide. The mass increase in these collection vessels allows precise calculation of elemental composition.

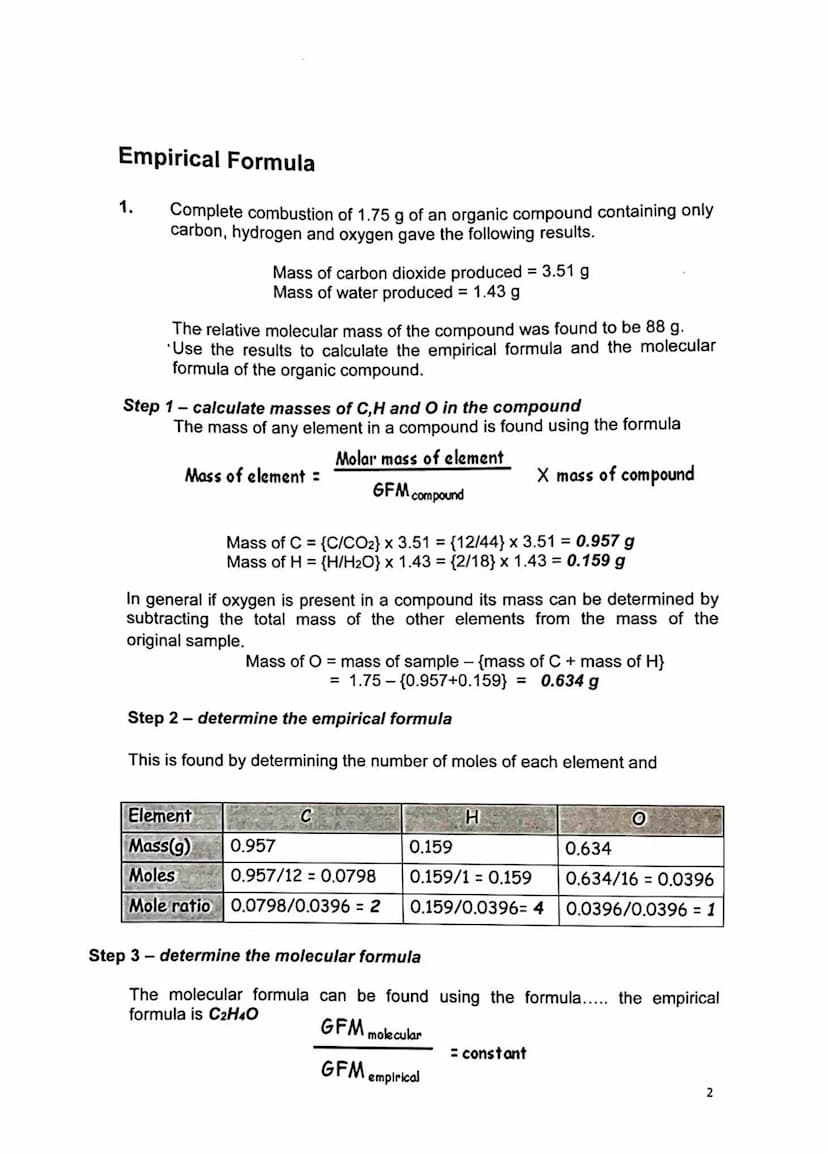

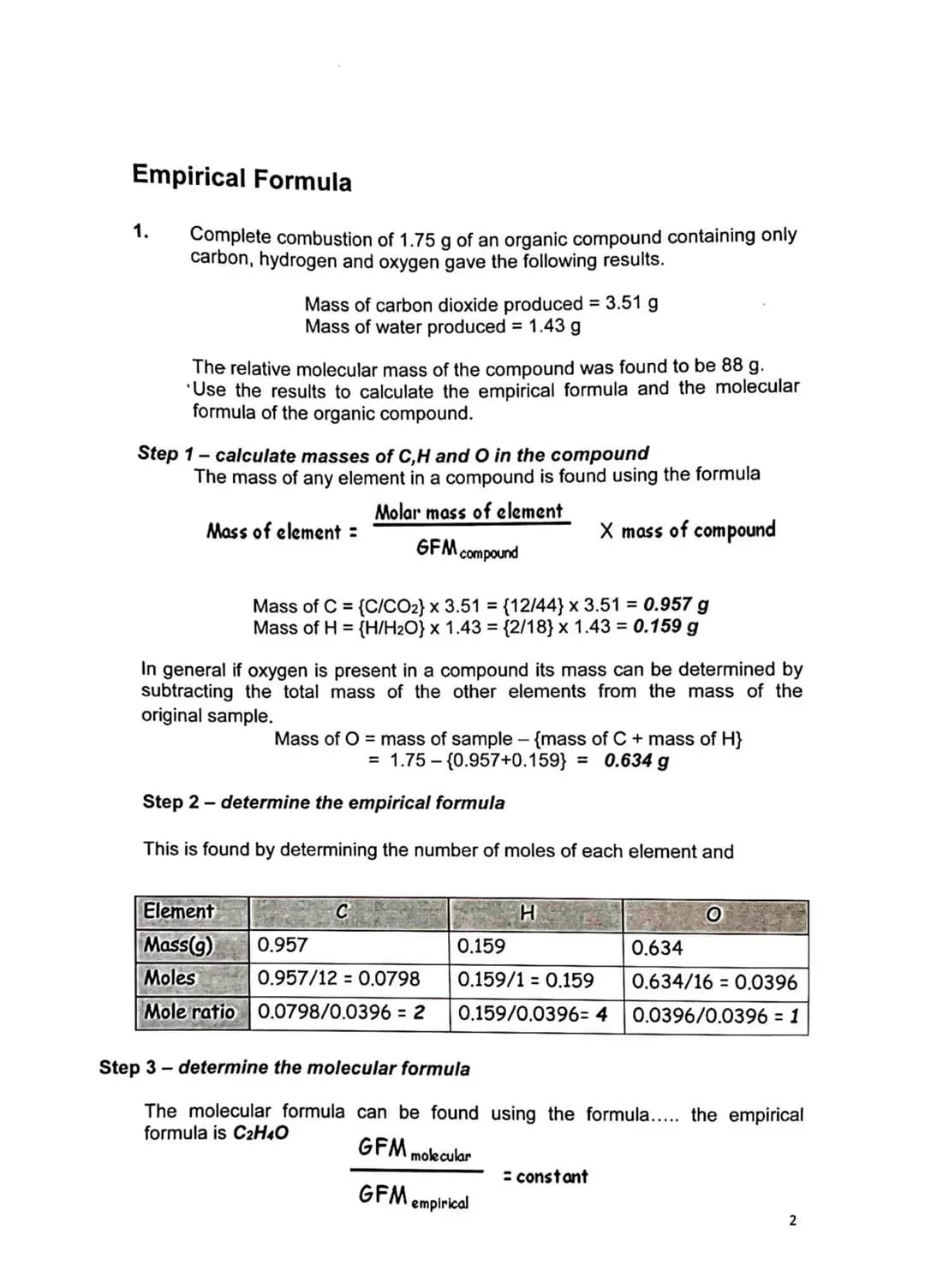

To find molecular formula from empirical data, chemists must combine empirical formula calculations with molecular mass determination. This process requires careful attention to stoichiometric relationships and precise measurements.

The procedure involves three key steps:

1. Calculate the mass of each element from combustion data
2. Convert masses to moles and determine the simplest whole-number ratio
3. Use the molecular mass to scale up from empirical to molecular formula

Highlight: The relationship between molecular and empirical formulas is expressed through a whole-number ratio: Molecular Mass ÷ Empirical Formula Mass = Formula Units

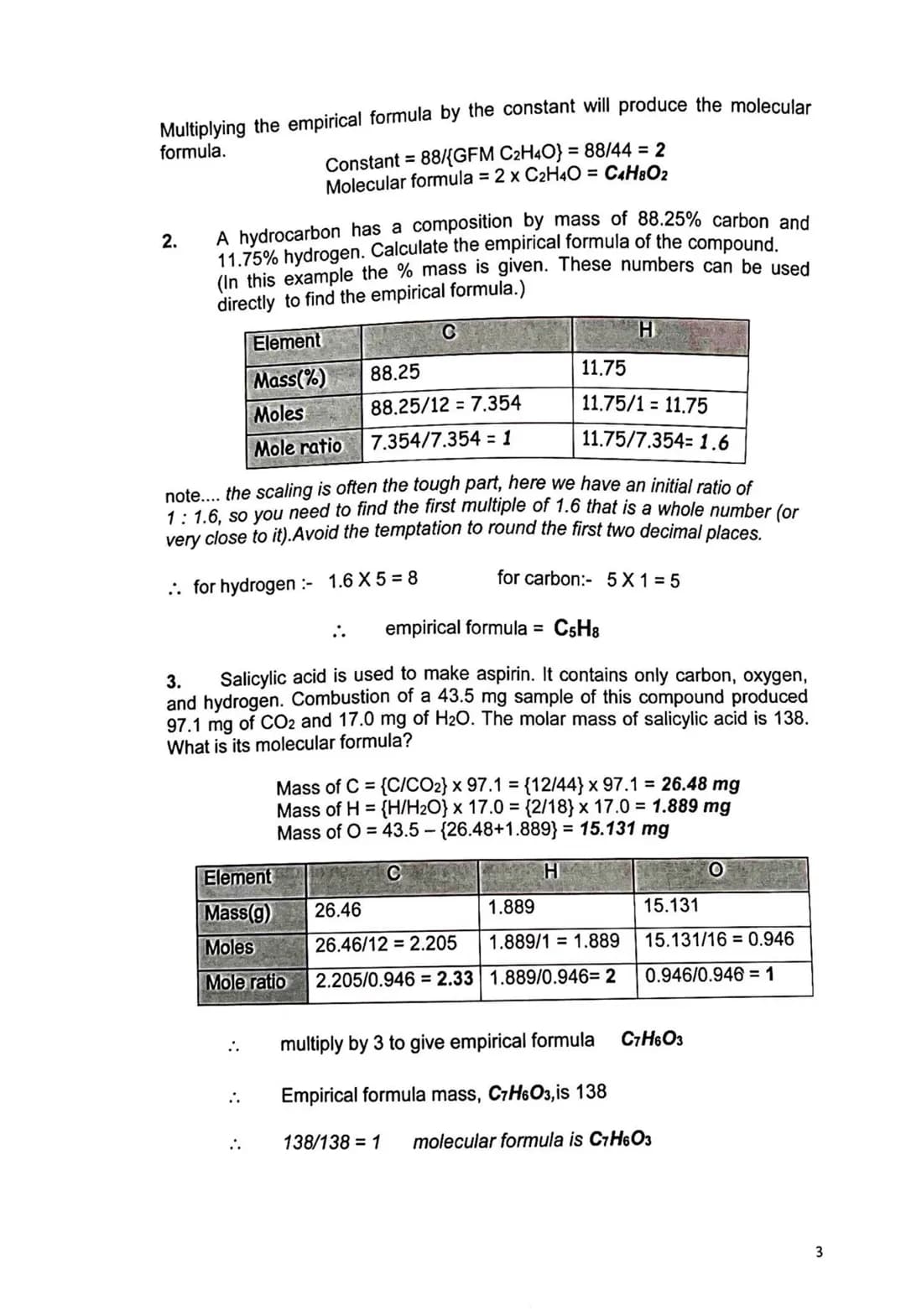

When working with percentage composition data, the calculations begin by assuming a 100g sample, which simplifies the conversion to moles. This approach is particularly useful when analyzing compounds with known molecular masses but unknown structures.

Vocabulary: Stoichiometry refers to the quantitative relationships between reactants and products in chemical reactions, essential for empirical formula calculations.

Modern chemical analysis extends beyond basic empirical formula determination to include complex organic compounds and pharmaceutical substances. Understanding molecular composition helps researchers develop new drugs, analyze environmental pollutants, and verify product quality.

The analysis of biological compounds often requires sophisticated techniques combining combustion analysis with mass spectrometry. This dual approach provides both elemental composition and molecular mass information, enabling precise structure determination.

Example: When analyzing pharmaceutical compounds, researchers must account for multiple elements (C, H, N, O, S) and complex molecular structures. The presence of multiple functional groups requires careful interpretation of combustion data.

Laboratory techniques have evolved to include automated systems that can analyze microscopic samples with high precision. These advances have made it possible to determine molecular formulas for complex compounds using minimal material.

The accuracy of elemental analysis depends heavily on proper experimental technique and careful attention to detail. Analysts must consider several critical factors when performing combustion analysis:

Sample purity is essential for accurate results, as contaminants can significantly affect the calculated ratios. Additionally, complete combustion must be ensured to avoid errors in elemental composition calculations.

Highlight: Modern combustion analyzers can detect elements present in quantities as small as 0.01%, making them invaluable tools for quality control and research applications.

The interpretation of analytical data requires understanding both theoretical principles and practical limitations. Factors such as instrumental precision, sample handling, and environmental conditions can all impact the final results.

Definition: Quality control in elemental analysis involves regular calibration, standard sample analysis, and careful monitoring of experimental conditions to ensure reliable results.

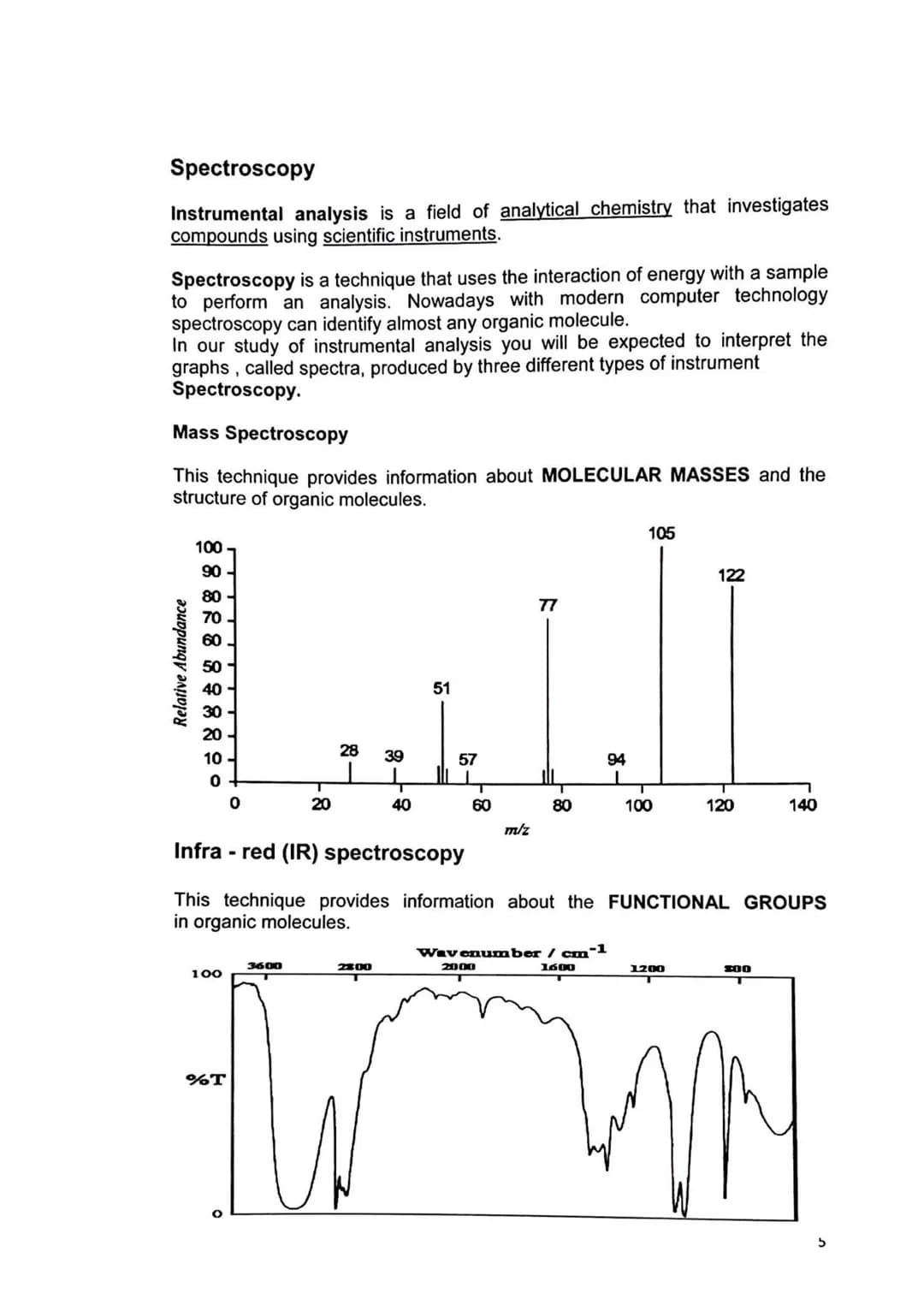

Modern analytical chemistry relies heavily on instrumental analysis to investigate and identify compounds. Spectroscopy, a cornerstone technique, examines how energy interacts with chemical samples to reveal their composition and structure. With advanced computer technology, spectroscopic methods can identify virtually any organic molecule by producing distinctive spectra - graphical representations of how compounds interact with different forms of energy.

Definition: Spectroscopy is an analytical technique that studies how matter interacts with electromagnetic radiation or other types of energy to determine chemical structure and composition.

Three primary spectroscopic techniques are essential for chemical analysis:

1. Mass Spectroscopy - Provides critical information about molecular masses and molecular structure by fragmenting molecules into charged particles
2. Infrared (IR) Spectroscopy - Reveals functional groups present in organic molecules through their characteristic absorption patterns
3. Proton Nuclear Magnetic Resonance (NMR) - Uses radio waves to determine the number and environment of hydrogen atoms in molecules

Highlight: Mass spectrometry is particularly powerful because it can determine both molecular mass and structural information by analyzing how molecules break apart into charged fragments.

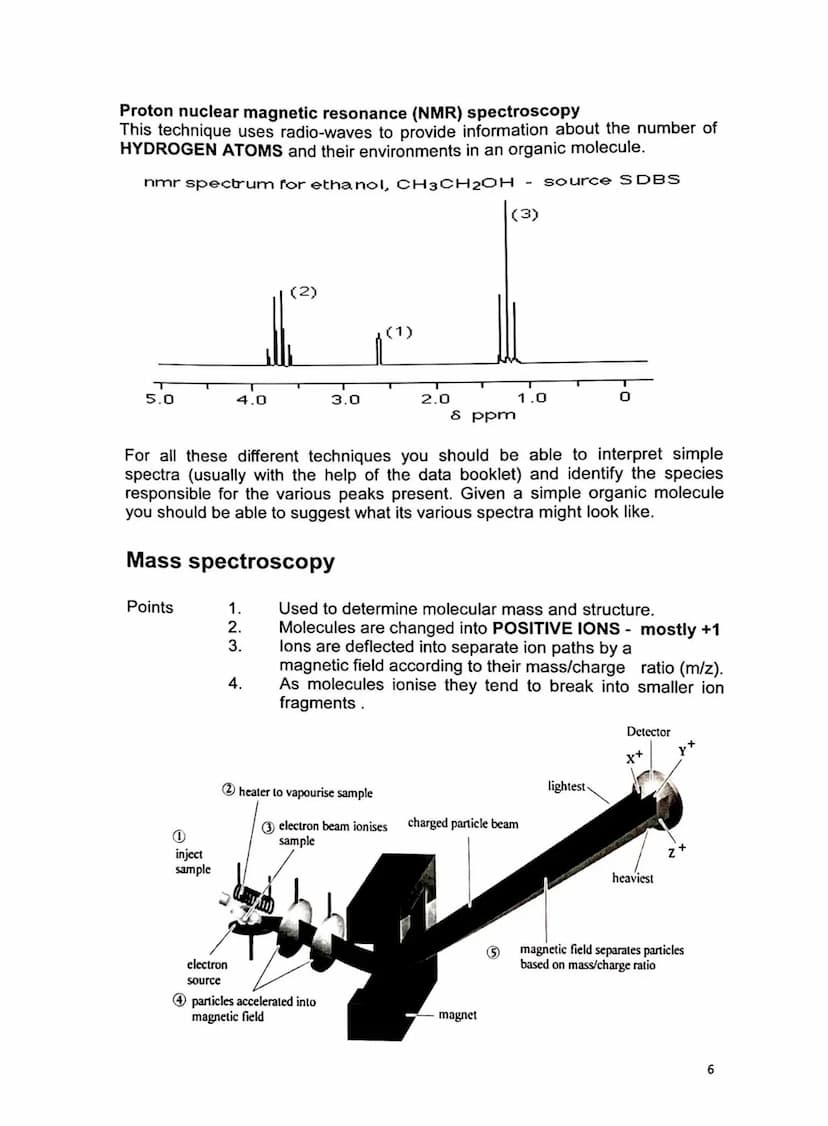

The mass spectrometer operates through a systematic process: First, the sample is vaporized and ionized using an electron beam. These ions are then accelerated through a magnetic field, which separates them based on their mass-to-charge ratio $m/z$. The resulting mass spectrum shows peaks corresponding to different molecular fragments, with the highest mass typically representing the intact molecular ion.

Understanding mass spectra requires careful analysis of fragmentation patterns and peak intensities. Each peak represents an ion fragment with a specific mass-to-charge ratio, providing valuable clues about molecular structure. The molecular ion peak, typically the highest mass peak, confirms the compound's molecular mass.

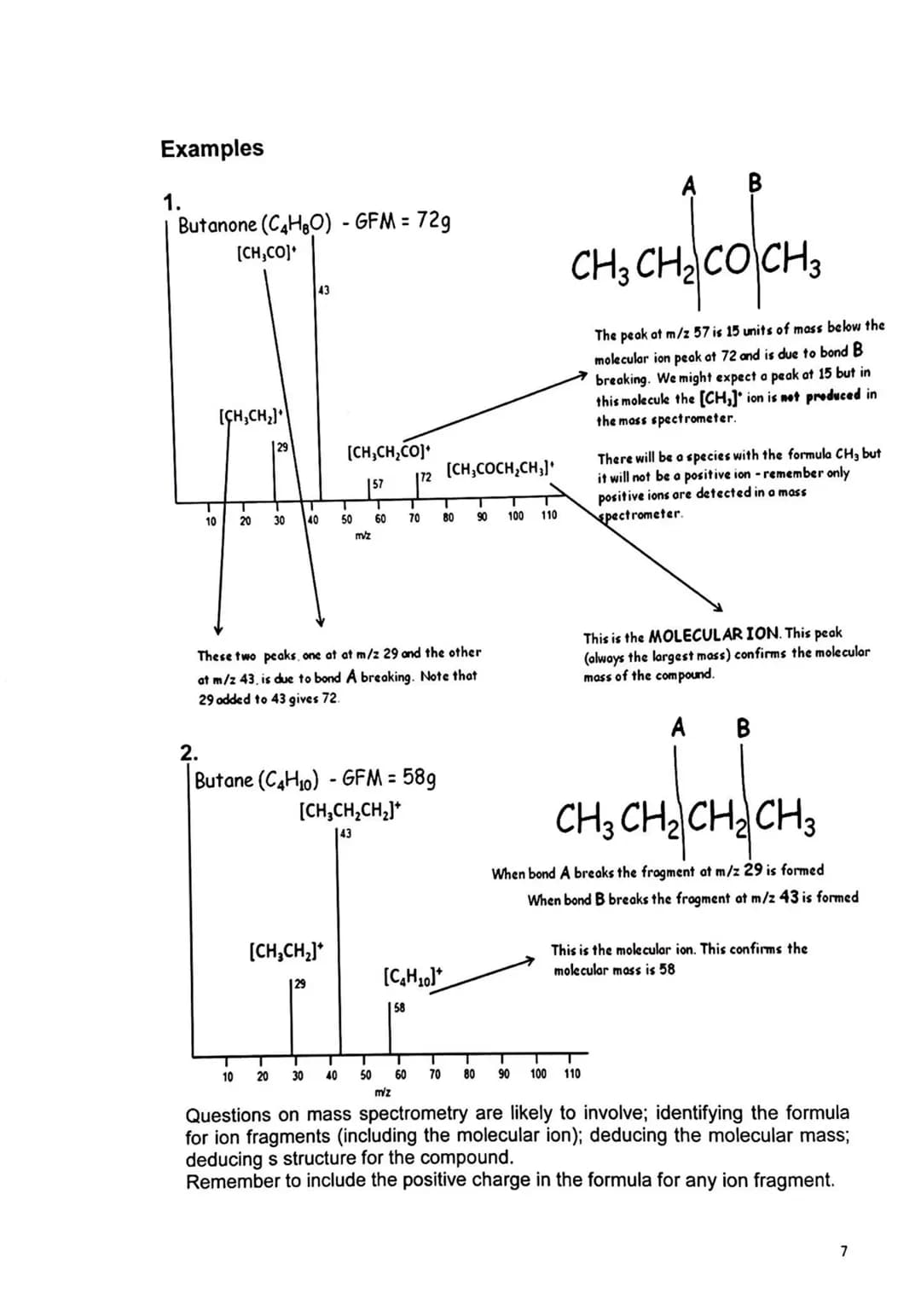

Example: In the mass spectrum of butanone (C₄H₈O):

• The molecular ion peak appears at m/z = 72
• Major fragments at m/z = 43 and 29 indicate specific bond breakage
• The pattern of peaks helps identify the molecular structure

When analyzing mass spectra, chemists look for characteristic fragmentation patterns that correspond to common molecular features:

• Loss of 15 mass units often indicates removal of a methyl group (CH₃)
• Even-mass molecular ions typically indicate an even number of nitrogen atoms
• The base peak (most intense) represents the most stable fragment ion

Vocabulary: The mass-to-charge ratio $m/z$ is the fundamental measurement in mass spectrometry, representing the mass of an ion divided by its charge.

Mass spectrometry has become an indispensable tool for elemental analysis using modern combustion analyzer systems. When combined with combustion analysis, it provides comprehensive information about molecular composition and structure. This technique is particularly valuable for calculating empirical formula from combustion data and subsequent determination of molecular formulas.

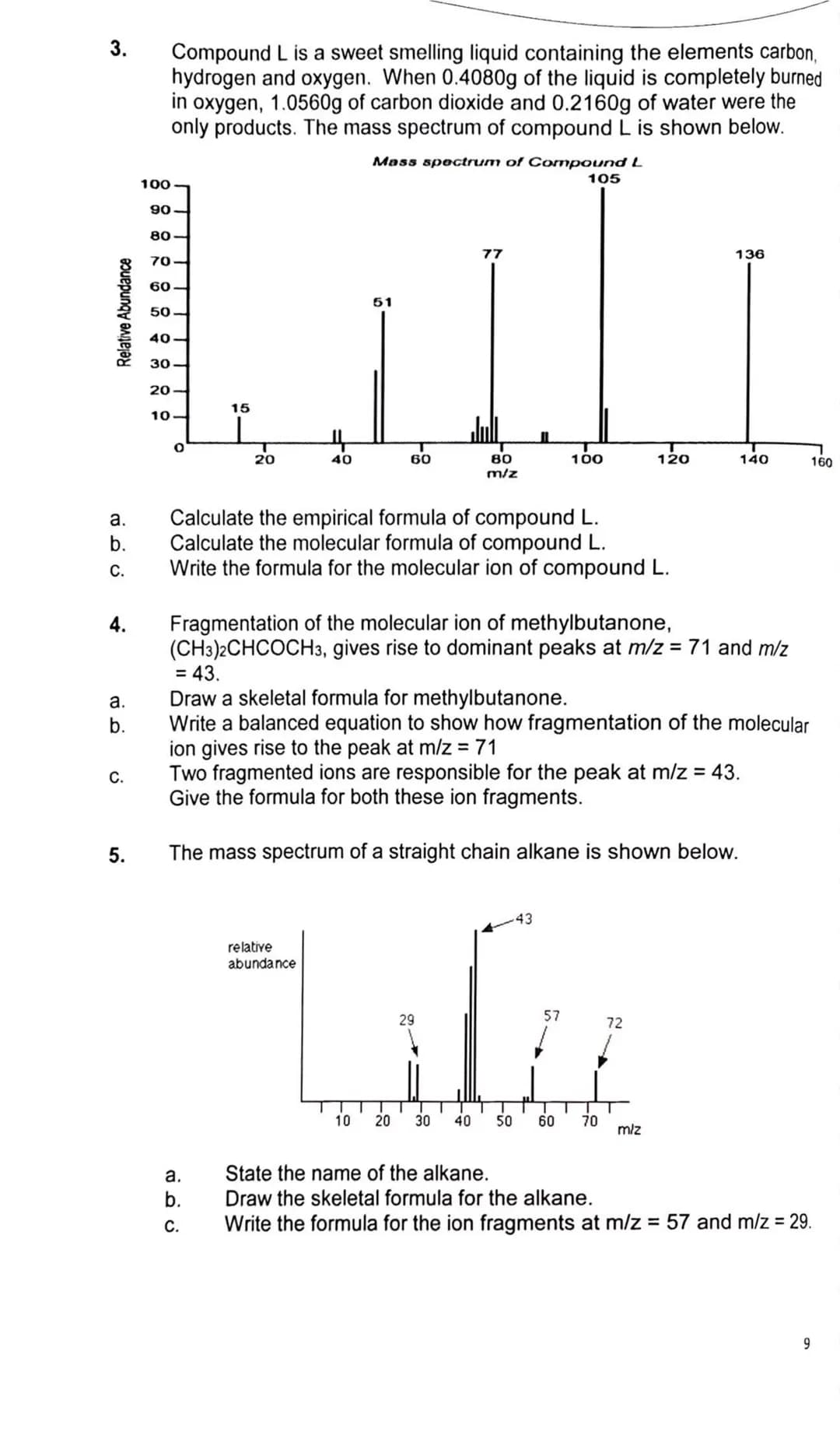

Example: Analysis of a sweet-smelling liquid compound:

1. Combustion analysis provides elemental composition
2. Mass spectrum confirms molecular mass
3. Combined data allows determination of both empirical and molecular formulas

The relationship between empirical and molecular formulas becomes clear through mass spectrometric analysis. Scientists can find molecular formula from empirical data by comparing the empirical formula mass with the molecular ion mass shown in the spectrum.

Highlight: Modern mass spectrometers can detect trace amounts of compounds with extremely high precision, making them essential tools in fields ranging from environmental analysis to pharmaceutical research.

Mass spectrometry's applications extend beyond basic molecular analysis to include specialized techniques for complex molecules. Understanding isotope patterns in mass spectra provides additional structural information, particularly for compounds containing elements with multiple natural isotopes like chlorine and bromine.

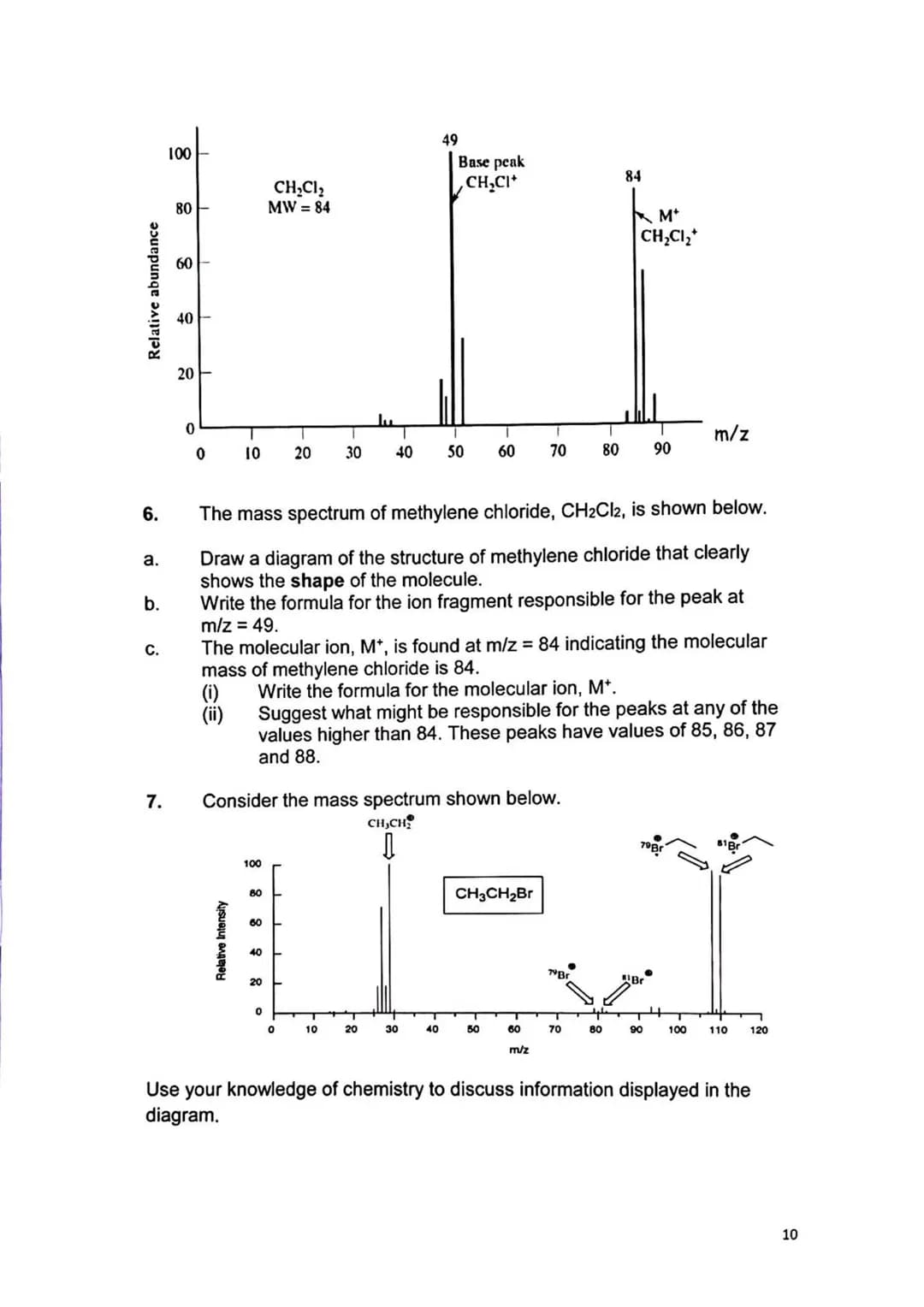

Example: Methylene chloride (CH₂Cl₂) shows characteristic isotope patterns:

• Multiple peaks around the molecular ion $M+$ due to chlorine isotopes
• Peak intensity ratios reflect natural isotope abundances
• Fragment ions also show isotope patterns

The interpretation of these complex spectra requires consideration of:

• Natural isotope abundances
• Molecular fragmentation patterns
• Ion stability and rearrangement reactions
• Relationship between structure and fragmentation behavior

Definition: Isotope patterns are distinctive clusters of peaks in mass spectra caused by the natural occurrence of different isotopes of elements within a molecule.

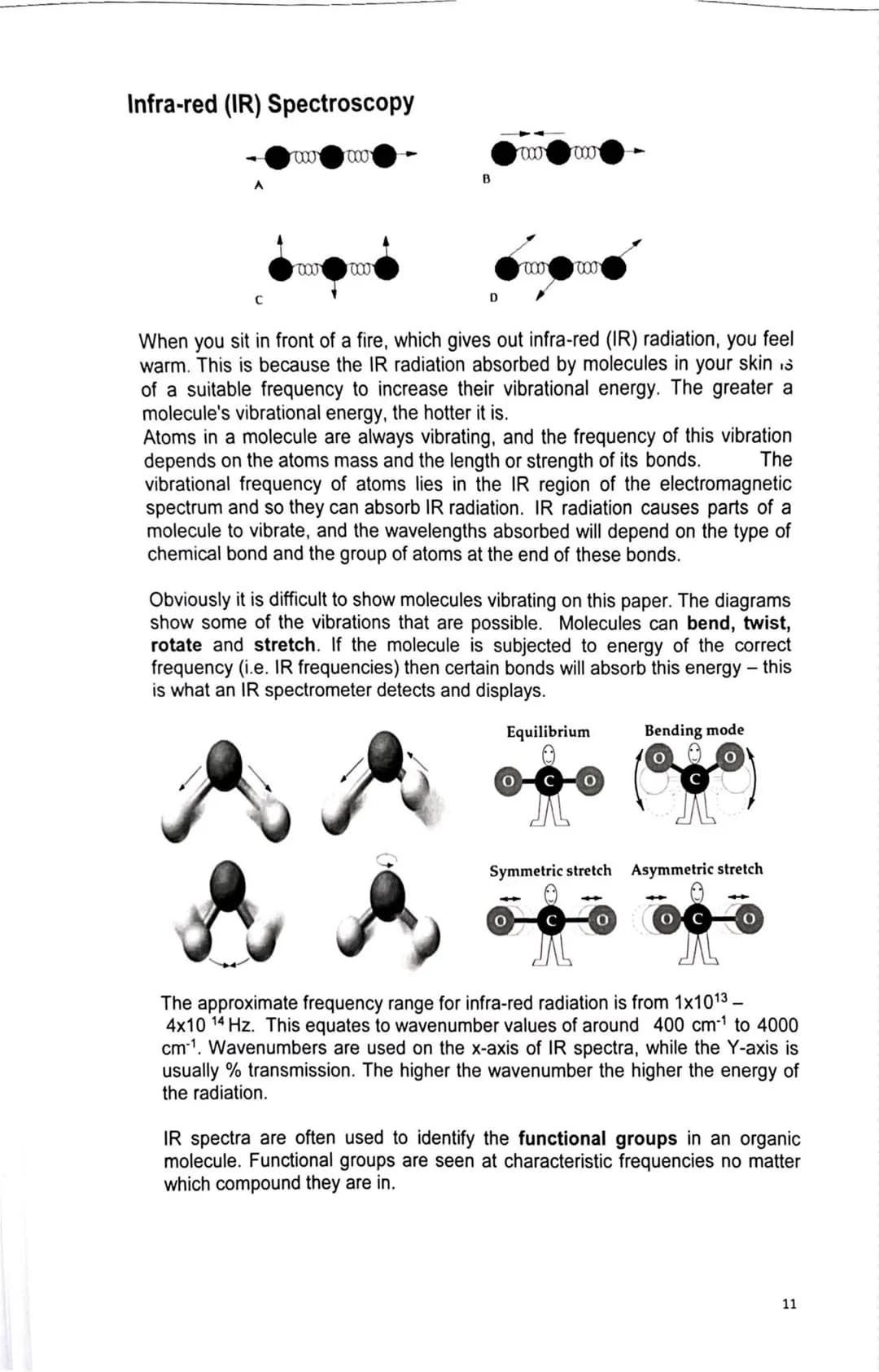

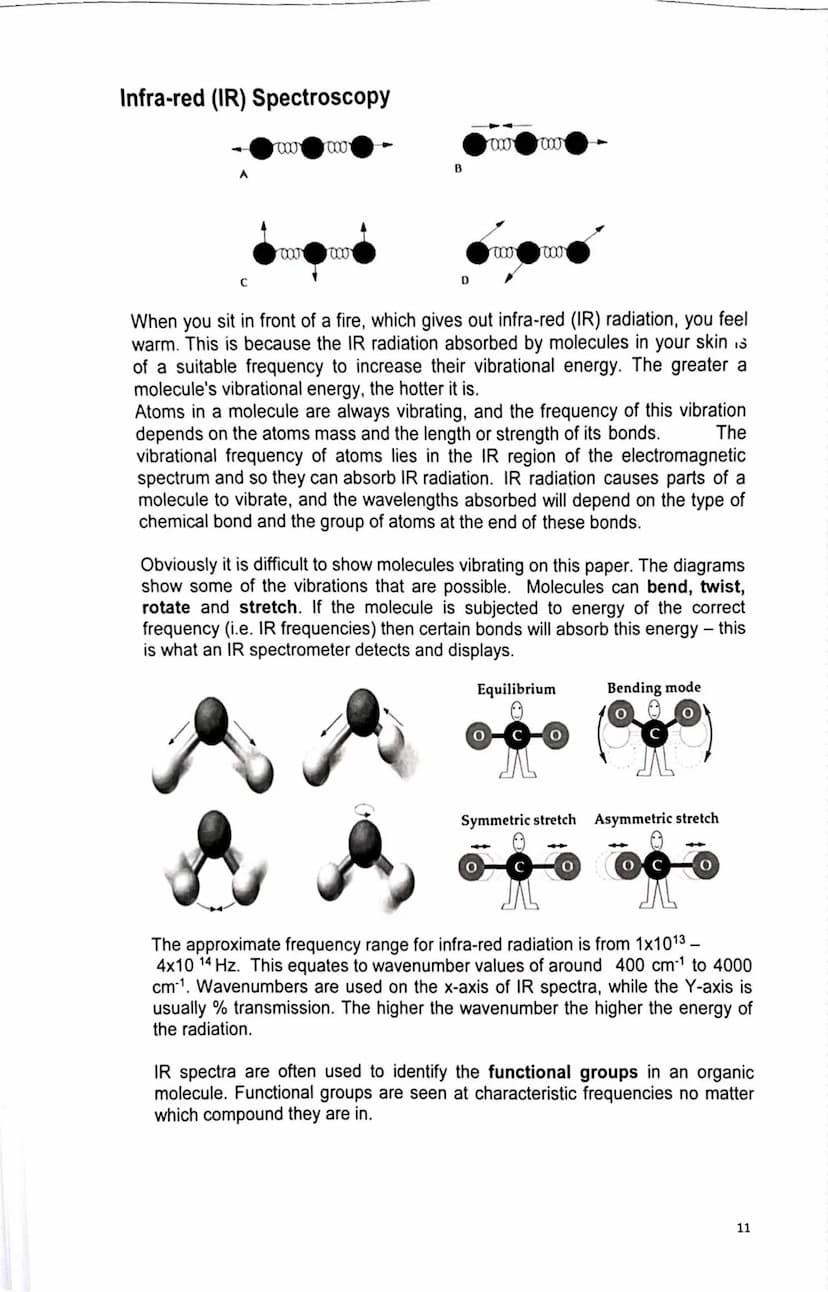

Infrared spectroscopy serves as a powerful analytical tool that helps chemists identify molecular structures by examining how molecules interact with infrared radiation. When molecules absorb infrared radiation, their atoms begin vibrating in specific patterns that reveal important details about their chemical bonds and structure.

Definition: Infrared (IR) spectroscopy is an analytical technique that identifies molecular structures by measuring how chemical bonds absorb and vibrate in response to infrared radiation.

The fundamental principle behind IR spectroscopy relates to molecular vibrations. Chemical bonds between atoms are not rigid - they constantly vibrate at specific frequencies determined by factors like atomic mass and bond strength. These vibrational frequencies align with the infrared region of the electromagnetic spectrum, typically between 400-4000 wavenumbers (cm⁻¹). When IR radiation matches these natural frequencies, molecules absorb the energy and their vibrations increase in amplitude.

Molecules can vibrate in several distinct ways, including stretching (where bonds lengthen and contract), bending (where bond angles change), twisting, and rotating. Each type of molecular motion absorbs IR radiation at characteristic frequencies, creating a unique spectral fingerprint. Symmetric stretching occurs when bonds extend and contract in phase, while asymmetric stretching involves out-of-phase bond movements. Bending modes involve changes in bond angles while maintaining bond lengths.

Example: Consider a water molecule (H₂O). It can undergo symmetric stretching where both O-H bonds stretch simultaneously, asymmetric stretching where one O-H bond stretches while the other contracts, and bending where the H-O-H angle changes.

The practical applications of IR spectroscopy are extensive in chemical analysis. Scientists use IR spectrometers to identify unknown compounds by matching their absorption patterns to known molecular fingerprints. The technique is particularly valuable for identifying functional groups in organic molecules, as these groups absorb IR radiation at consistent, characteristic frequencies regardless of the larger molecular structure they're part of.

Understanding how to interpret IR spectra requires knowledge of both the instrumentation and data presentation. Modern IR spectrometers display results as spectra with wavenumbers on the x-axis $typically 400-4000 cm⁻¹$ and percent transmission on the y-axis. Higher wavenumbers correspond to higher energy radiation, and the absorption peaks indicate specific molecular vibrations.

Highlight: The region between 1500-4000 cm⁻¹ is particularly useful for identifying functional groups, as most organic functional groups show characteristic absorption patterns in this range.

The power of IR spectroscopy lies in its ability to provide detailed structural information non-destructively. When analyzing an unknown compound, chemists first look for characteristic absorption patterns that indicate specific functional groups. For example, carbonyl groups $C=O$ typically show strong absorption around 1700 cm⁻¹, while O-H stretching produces a broad peak around 3300-3600 cm⁻¹.

Scientists combine IR spectroscopy with other analytical techniques to build a complete picture of molecular structure. The technique's sensitivity to different types of chemical bonds makes it particularly valuable in quality control, forensic analysis, and research applications where understanding molecular structure is crucial.

Vocabulary: Wavenumber - a measure of spatial frequency of a wave, typically expressed in reciprocal centimeters (cm⁻¹) in IR spectroscopy. Higher wavenumbers indicate higher energy radiation.
