Newton's 2nd Law of Motion and Fun Physics Experiments for Class 9 and 11
Emma Corden
@emmacorden_rpll

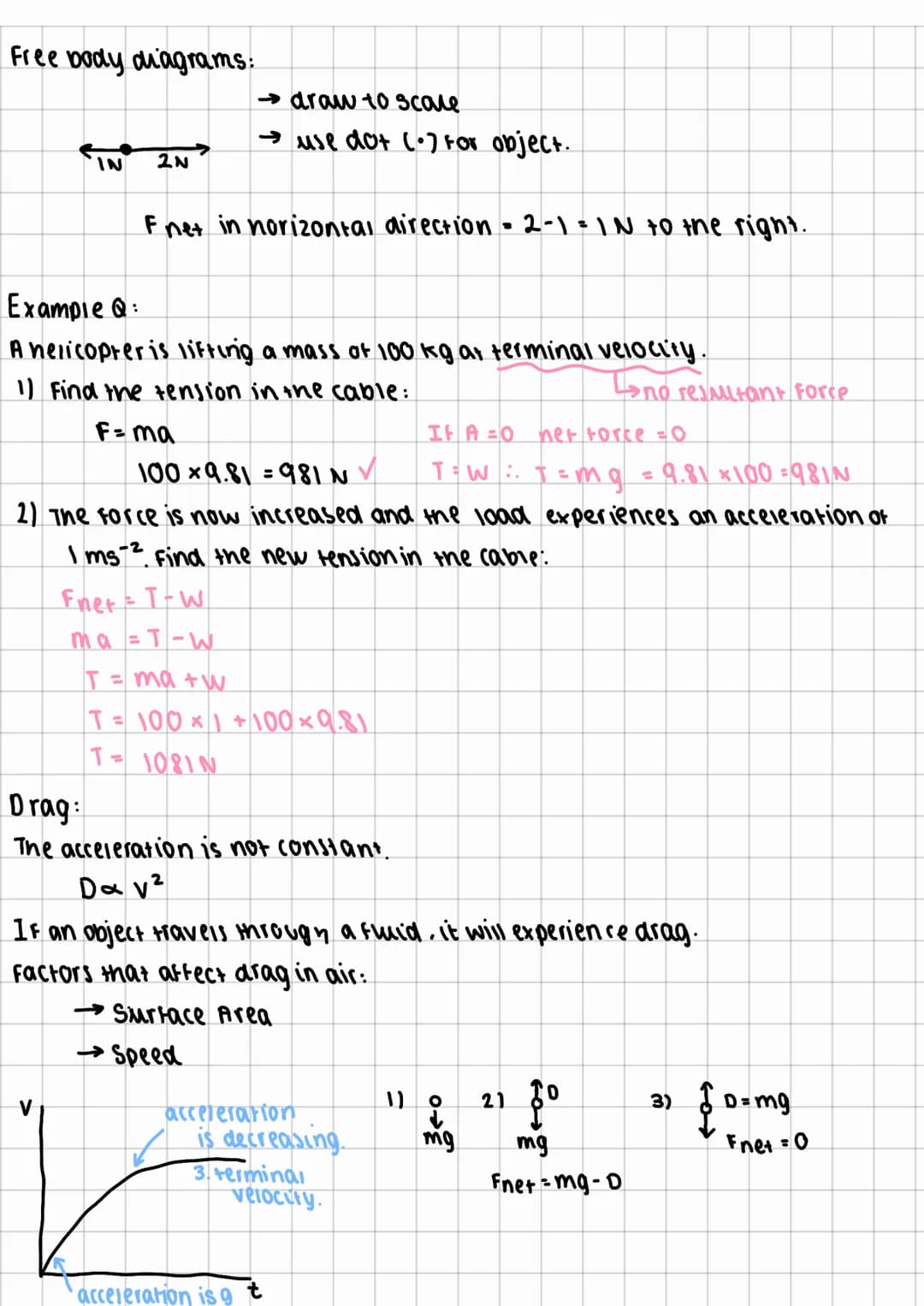

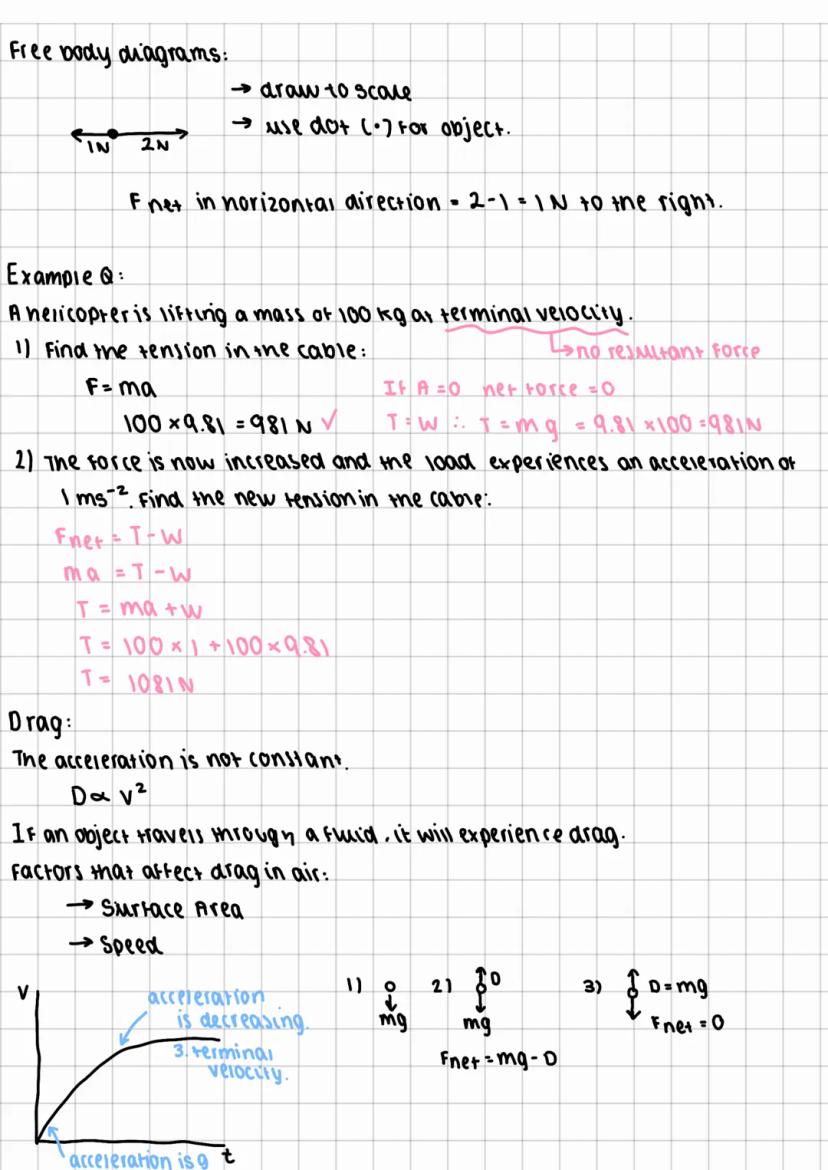

Free Body Diagrams and Force Analysis
This page covers free body diagrams and provides examples of force analysis in various scenarios.
Key concepts:
- Free body diagrams use dots to represent objects and arrows to show forces.
- A detailed example of a helicopter lifting a mass is provided, demonstrating force calculations in different situations.
Highlight: When drawing free body diagrams, always use arrows to scale and a dot to represent the object.
Example: In the helicopter example, when the load experiences acceleration, the tension in the cable increases from 981N to 1081N.

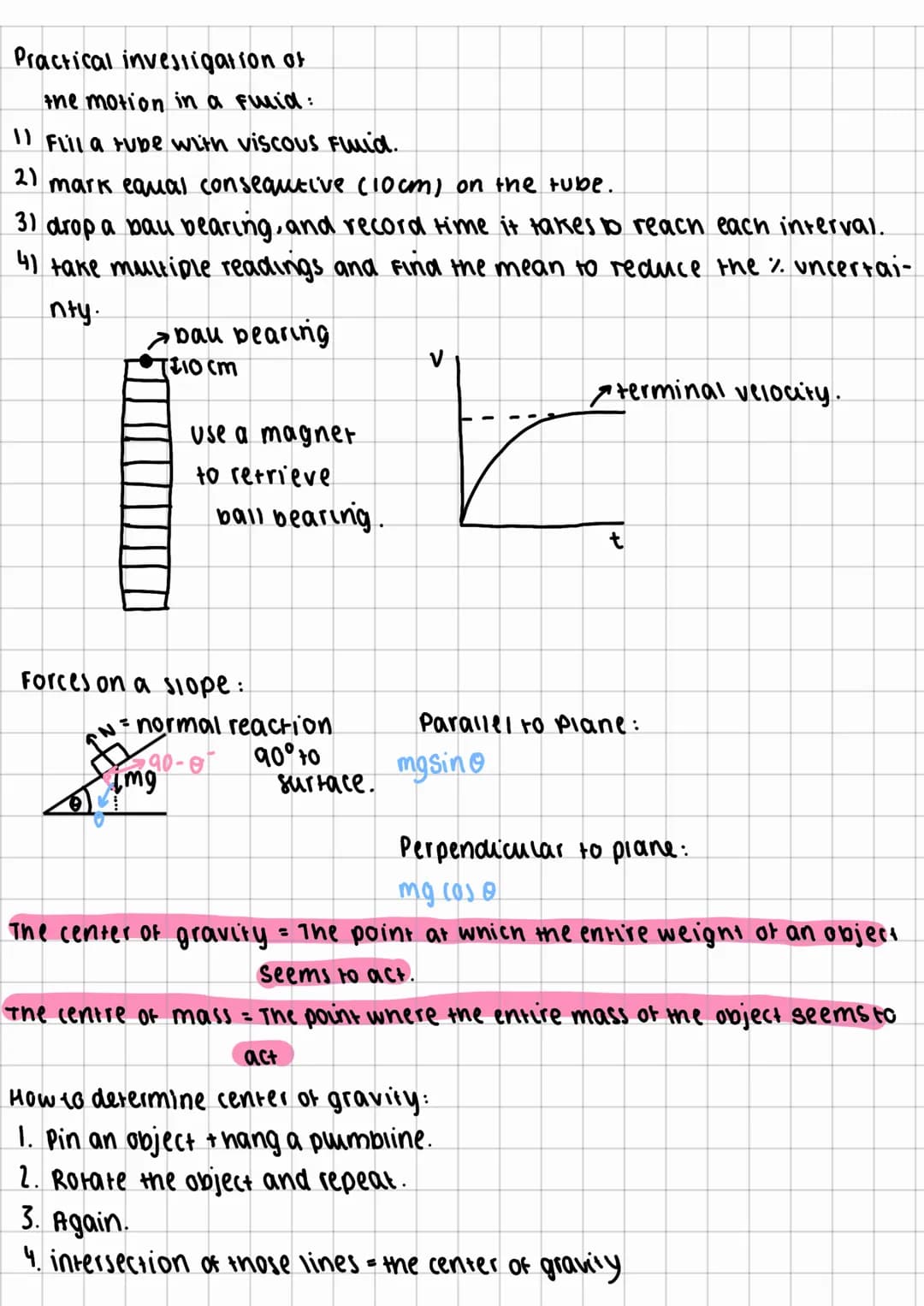

Practical Investigation of Motion in Fluid
This page describes a practical investigation of motion in fluid and introduces forces on a slope.
Key points:
- The practical investigation involves dropping a ball bearing through a viscous fluid and measuring its motion.
- Forces on a slope are broken down into components parallel and perpendicular to the plane.
Vocabulary: Terminal velocity is the constant speed reached by an object falling through a fluid when the drag force equals the gravitational force.
Definition: The center of gravity is the point at which the entire weight of an object seems to act.

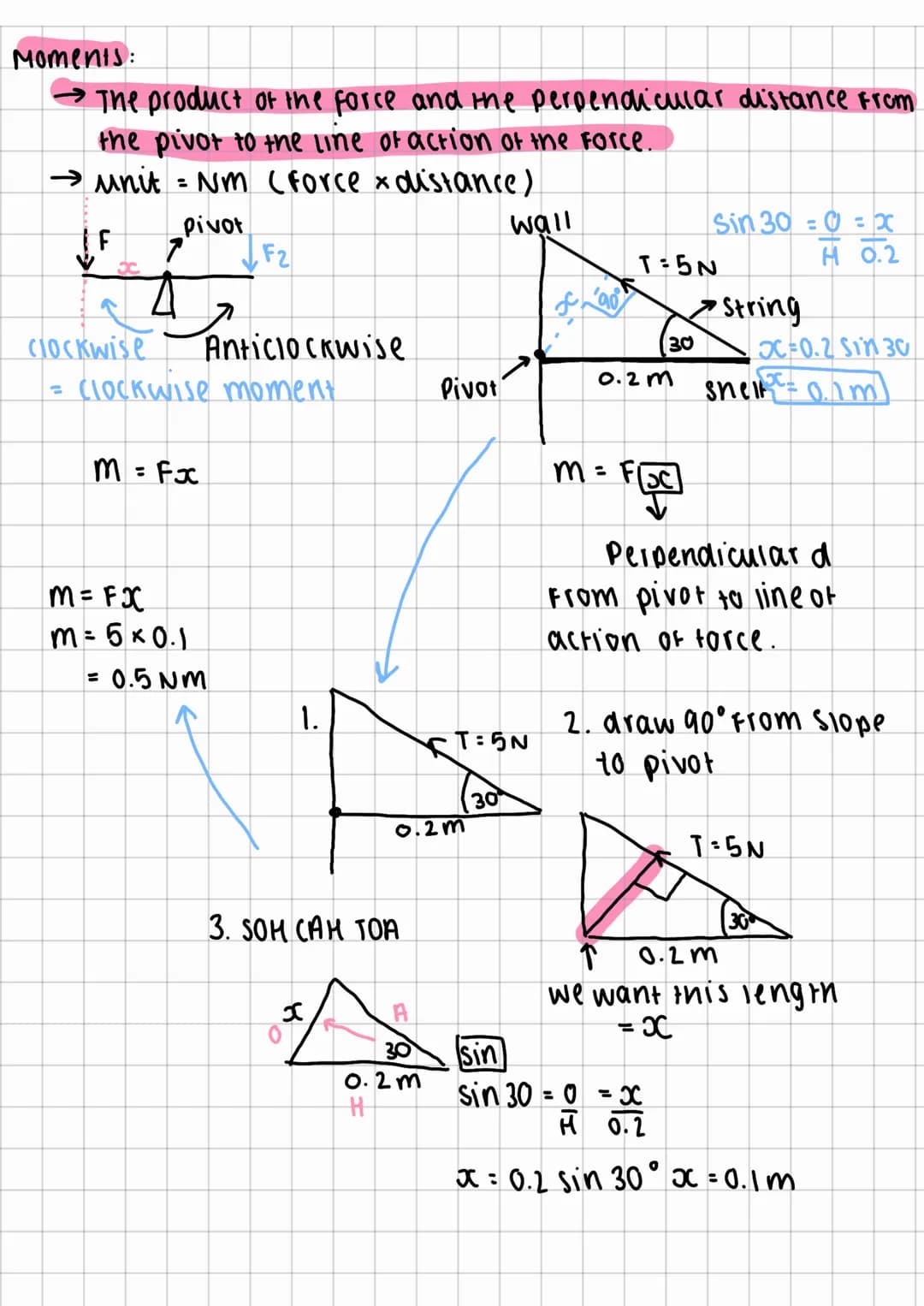

Moments and Force Analysis
This page introduces the concept of moments and provides examples of force analysis using trigonometry.
Key points:
- A moment is the product of force and the perpendicular distance from the pivot to the line of action of the force.
- The unit of moment is Newton-meter .
Definition: A moment is the turning effect of a force, calculated as the product of the force and the perpendicular distance from the pivot to the line of action of the force.
Example: For a force of 6N applied 0.1m from a pivot, the moment is 0.5 Nm.

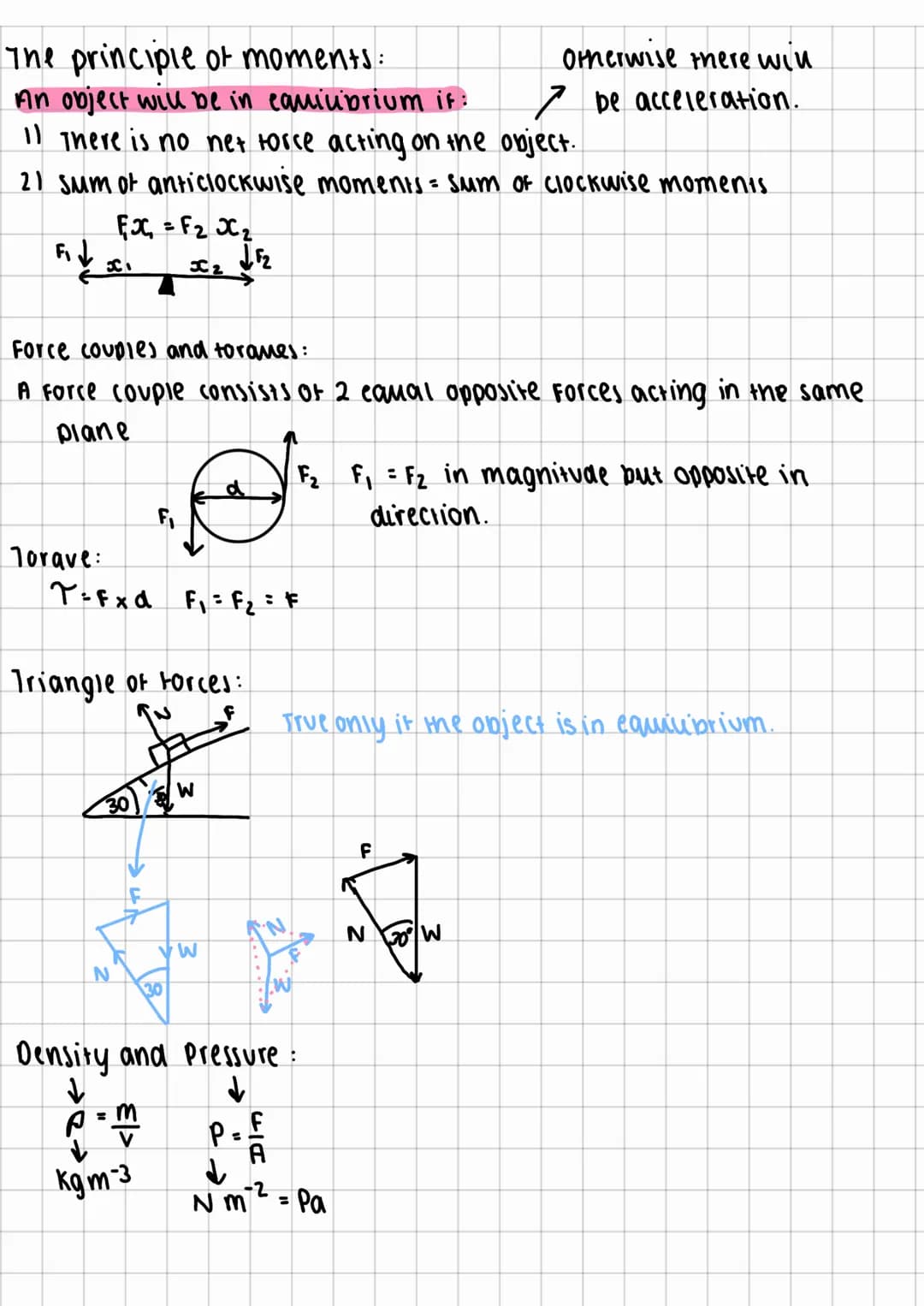

The Principle of Moments and Force Couples
This page explains the principle of moments and introduces force couples and torques.
Key concepts:
- An object is in equilibrium when there is no net force acting on it and the sum of clockwise moments equals the sum of anticlockwise moments.
- Force couples consist of two equal and opposite forces acting in the same plane.
Definition: The principle of moments states that for an object in equilibrium, the sum of clockwise moments equals the sum of anticlockwise moments.
Vocabulary: A force couple consists of two equal and opposite forces acting in the same plane, creating a pure rotational effect.

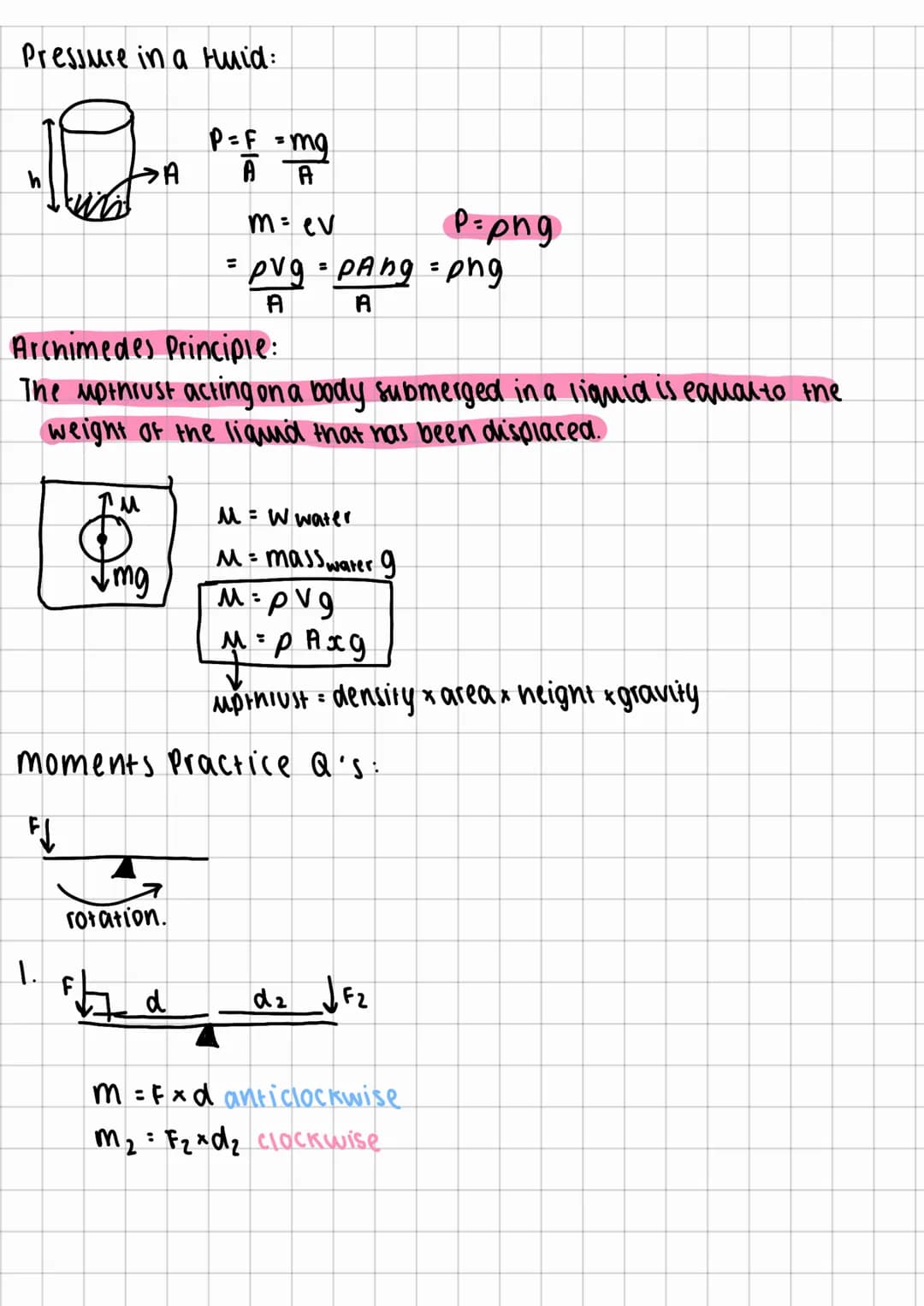

Pressure in Fluids and Archimedes' Principle
This page covers pressure in fluids and introduces Archimedes' Principle.
Key points:
- Pressure in a fluid is calculated as P = F/A = mg/A = ρgh
- Archimedes' Principle states that the upthrust on a submerged object equals the weight of fluid displaced.
Definition: Archimedes' Principle states that the upthrust acting on a body submerged in a liquid is equal to the weight of the liquid that has been displaced.
Formula: Pressure in a fluid is given by P = ρgh, where ρ is density, g is gravitational acceleration, and h is depth.
Moments Practice Questions
This page provides practice questions on moments and their solutions.
Key points:
- Detailed solutions for moment calculations are provided, including trigonometric analysis.
- The principle of moments is applied to solve equilibrium problems.
Example: For a force of 5N applied at a 30° angle to a 0.2m lever arm, the moment is calculated as 5 × 0.1 = 0.5 Nm.
Highlight: When solving moment problems, always identify the perpendicular distance from the pivot to the line of action of the force.

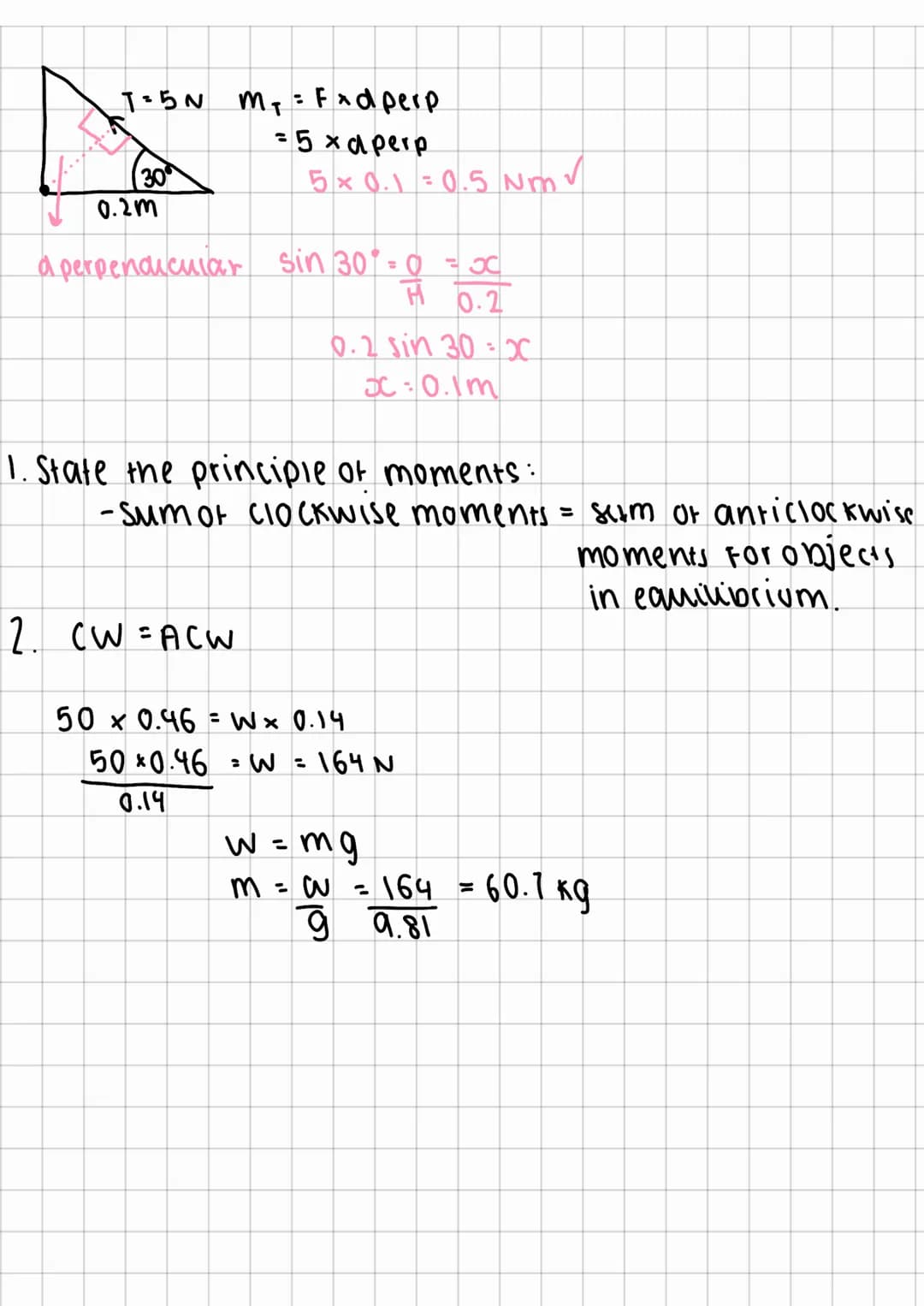

Additional Moment Problems and Solutions
This page continues with more practice problems on moments and their detailed solutions.
Key points:
- A comprehensive problem involving a balanced beam is solved step-by-step.
- The principle of moments is restated and applied to find unknown weights and masses.
Example: In a balanced beam problem, the unknown weight is calculated to be 164 N, corresponding to a mass of 16.7 kg.
Highlight: When solving equilibrium problems, always equate the sum of clockwise moments to the sum of anticlockwise moments.

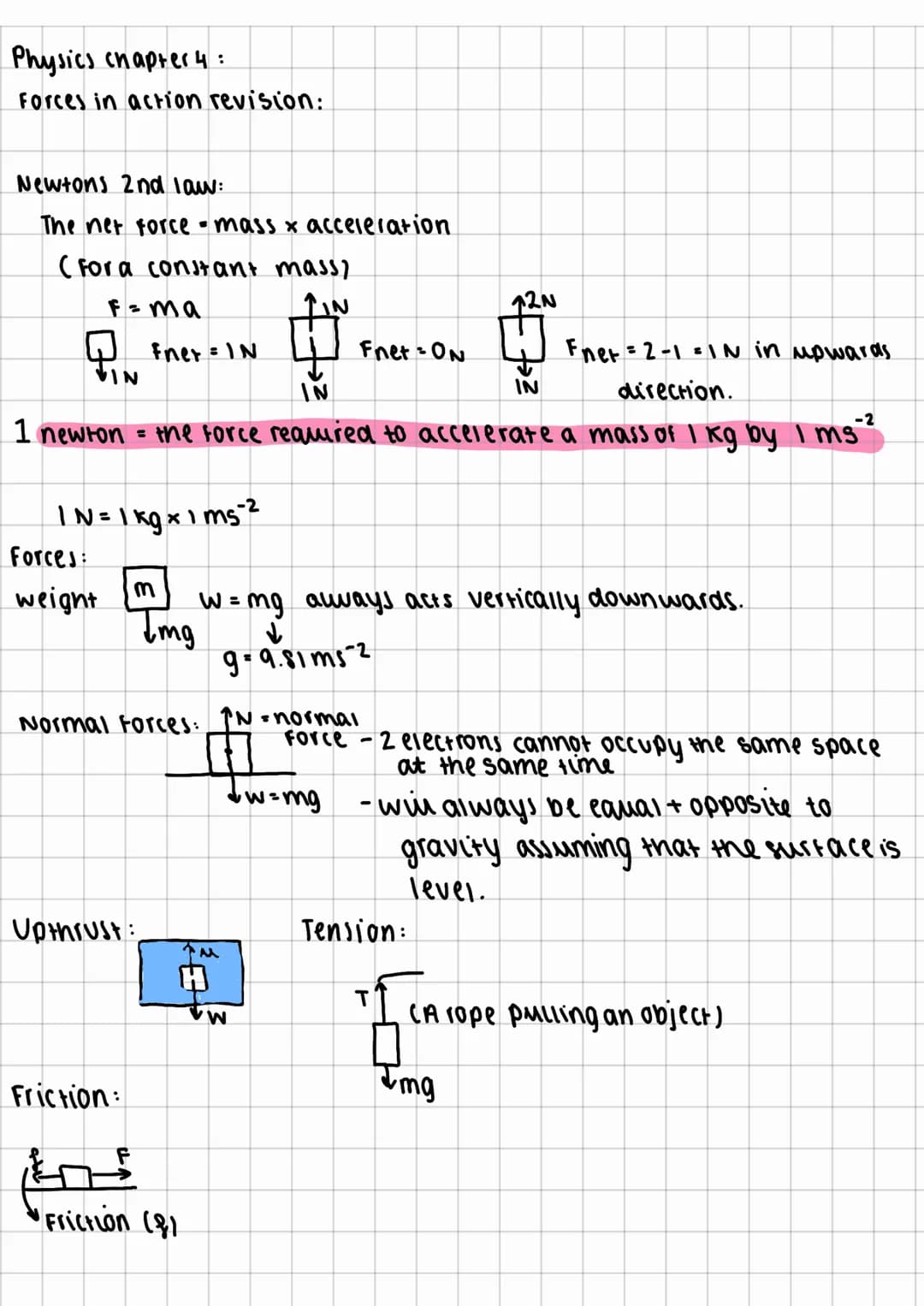

Forces in Action: Newton's Second Law
This page introduces Newton's second law of motion, which states that the net force acting on an object is equal to its mass multiplied by its acceleration .
Key points:
- One newton is defined as the force required to accelerate a 1 kg mass by 1 m/s².
- Various forces are discussed, including weight, upthrust, friction, and normal forces.
Definition: Newton's second law of motion states that F = ma, where F is the net force, m is mass, and a is acceleration.
Example: For a constant mass, if two forces of 2N upward and 1N downward are applied, the net force is 1N upward.
Vocabulary: Normal force is the force exerted by a surface on an object in contact with it, always perpendicular to the surface.
