Why Semiconductors Need N-Type and P-Type Doping

A comprehensive guide to n-type and p-type doping in semiconductors, exploring how semiconductor materials are modified to enhance conductivity through strategic atomic manipulation.

  • Understanding how doping affects covalent bonds in silicon through the introduction of specific group elements
  • Exploring the fundamental principles of n-type doping using group 5 atoms and p-type doping using group 3 atoms
  • Examining the role of p-n junctions in transistors and diodes and their significance in creating potential differences
  • Analyzing the electron migration process and charge buildup at semiconductor junctions
  • Investigating the formation and importance of the 0.7V potential difference in doped semiconductors
...

8/1/2022

78

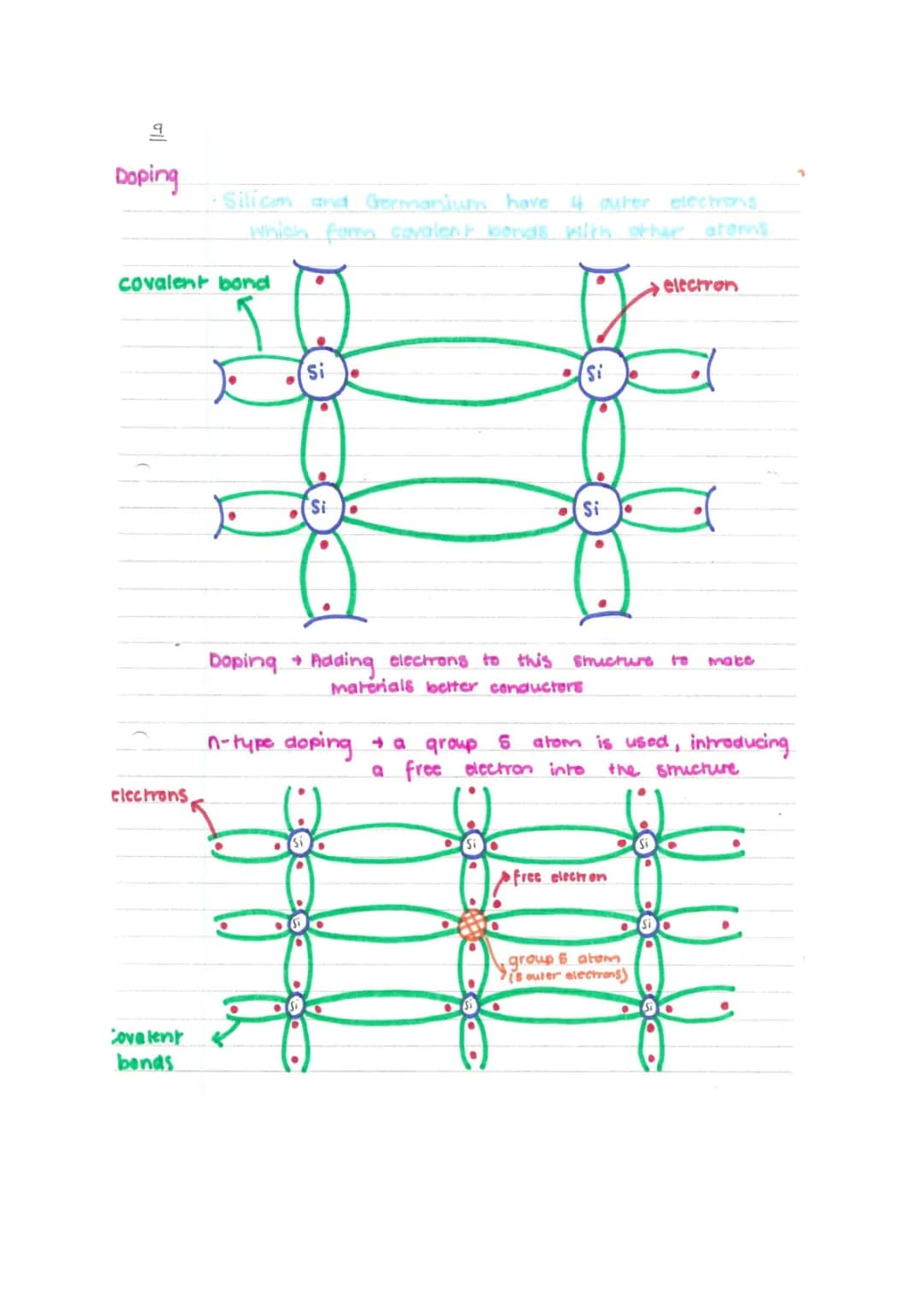

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

View

P-Type Doping and Junction Formation

This section details the process of p-type doping and introduces the concept of p-n junctions. The formation of holes and their role in semiconductor behavior is thoroughly explained.

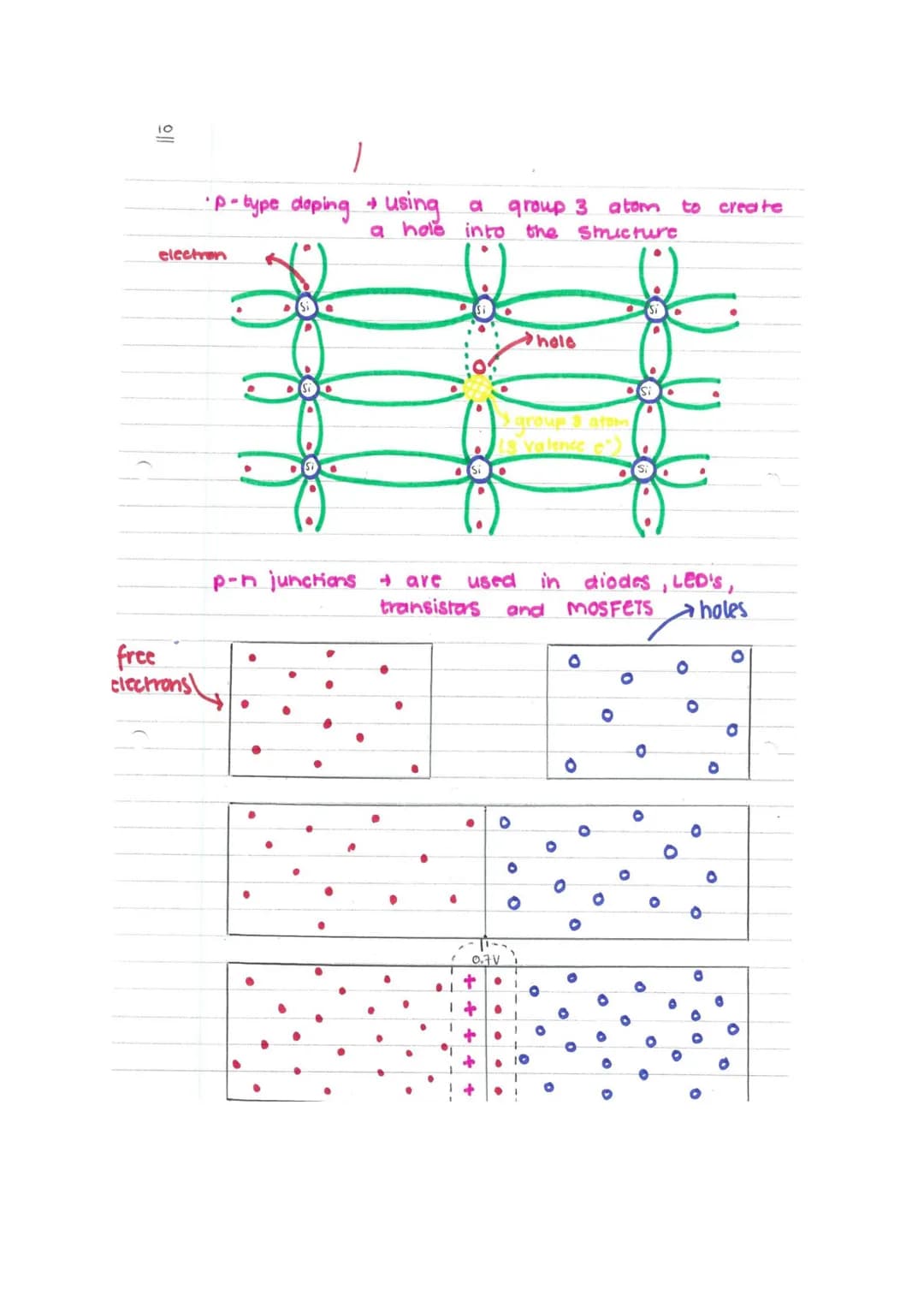

Definition: P-type doping occurs when group 3 atoms are introduced into the semiconductor structure, creating holes that act as charge carriers.

Highlight: P-n junctions are crucial components in various electronic devices including diodes, LEDs, transistors, and MOSFETs.

Example: When a group 3 atom is introduced into the silicon structure, it creates a hole due to having one fewer electron than silicon.

Doping covalent bond electrons, •Silicm and Germanium have 4 outer electrons which form covalent bonds with other aroms Covalent bands Si Si

View

Electron Migration and Potential Difference

This section examines the behavior of electrons at p-n junctions and the resulting electrical characteristics. The migration of free electrons and the establishment of potential difference are key concepts.

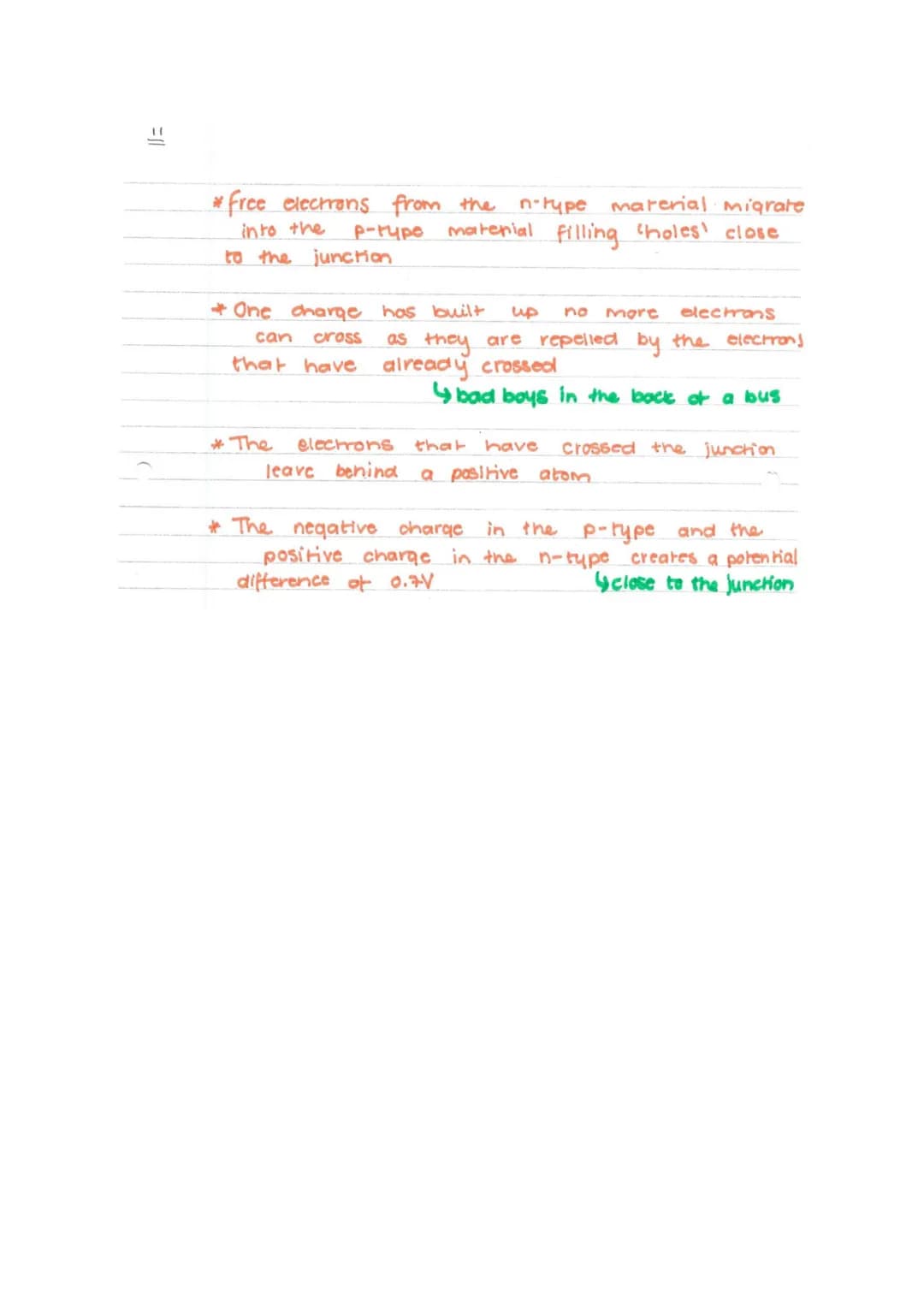

Highlight: Free electrons from the n-type material migrate to fill holes in the p-type material near the junction.

Definition: The potential difference of 0.7V is created by the separation of charges across the p-n junction.

Example: The migration of electrons leaves behind positive atoms in the n-type region while creating negative charge in the p-type region.

Quote: "The electrons that have crossed the junction leave behind a positive atom."
