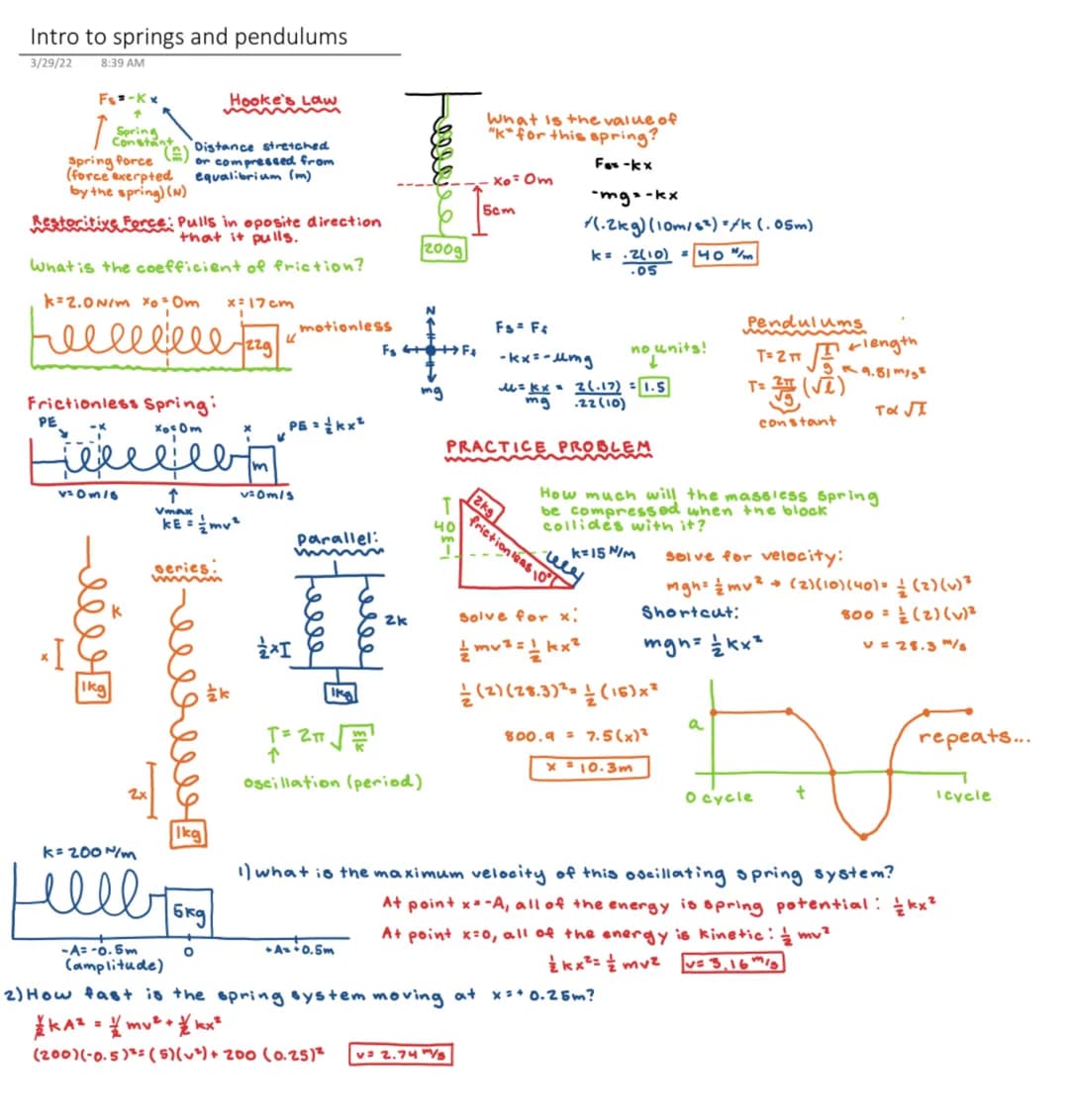

Spring Systems and Pendulums: Core Principles
This page covers the fundamental concepts of spring systems and pendulums, focusing on Understanding Hooke's Law and spring force calculations. The content explores various aspects of oscillating systems, including force calculations, energy conservation, and practical problem-solving approaches.
Definition: Hooke's Law states that the force exerted by a spring is directly proportional to its displacement from equilibrium, expressed as Fs = -kx.
Vocabulary: Restoring Force - A force that pulls in the opposite direction of displacement, attempting to return the system to equilibrium.
Example: For a spring with k = 2.0 N/m, stretching it 0.5m results in a force of -1.0N (opposite to stretch direction).
Highlight: The maximum velocity in spring systems occurs at the equilibrium position where all potential energy converts to kinetic energy.
The page includes detailed calculations for:
- Spring constant determination
- Maximum velocity calculations using energy conservation
- Period of oscillation for both springs and pendulums
- Force analysis in various spring configurations (series and parallel)
Example: A practical problem demonstrates calculating spring compression when a block collides with a spring , utilizing energy conservation principles.
The material concludes with pendulum mechanics, introducing the period formula T=2π√(L/g), connecting the concepts of periodic motion between springs and pendulums.
