Easy Guide: Current-Voltage Graphs for Resistors, Bulbs, and Diodes

The document explains how to investigate current voltage graphs for resistors, bulbs, and diodes in a standard test circuit. It covers the experimental setup, method, and evaluation of results for each component.

Key points:

  • The experiment aims to explore the relationship between current and potential difference
  • A standard test circuit is used with an ammeter in series and voltmeter in parallel
  • Graphs are plotted for each component to analyze their behavior
  • Different components exhibit unique characteristics in their current-voltage relationships
...

1/28/2023

193

Standard fest Standard test, circuit. Circulit Required practical-investigate current -voltage graphs. Aim of experiment: to investigate the

View

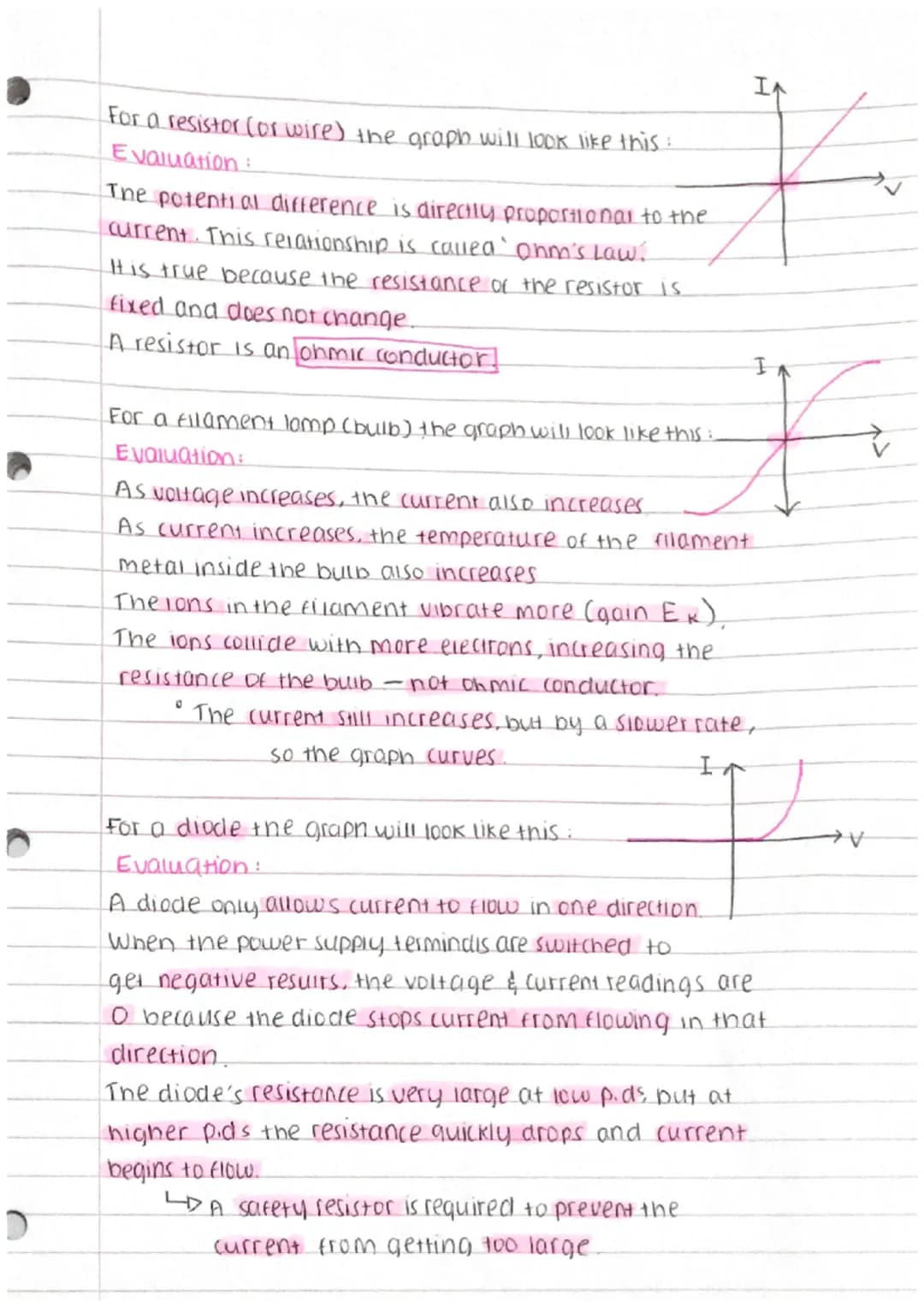

Analysis of Current-Voltage Graphs for Different Components

This page presents the current-voltage graphs for a resistor, filament lamp bulbbulb, and diode, along with evaluations of their characteristics.

For a resistor:

  • The graph is a straight line passing through the origin.
  • Potential difference is directly proportional to current, following Ohm's Law.
  • Resistors are ohmic conductors with fixed resistance.

Definition: Ohm's Law states that the current through a conductor is directly proportional to the voltage across it, given that physical conditions remain constant.

For a filament lamp:

  • The graph is curved, showing a non-linear relationship.
  • As voltage increases, current increases at a decreasing rate.
  • The lamp's resistance increases with temperature due to increased ion vibration and electron collisions.

Highlight: A filament lamp is not an ohmic conductor because its resistance changes with temperature.

For a diode:

  • The graph shows current flow in only one direction.
  • At low voltages, the diode has high resistance.
  • Current begins to flow rapidly once a certain voltage threshold is reached.

Vocabulary: Safety resistor - A resistor used in a diode circuit to prevent excessive current flow.

Example: The diode graph shows zero current for negative voltages, illustrating its unidirectional conduction property.

Similar Content

Know Physics Paper 1 - Required practicals thumbnail

32

1930

11/9

Physics Paper 1 - Required practicals

Walkthrough of all the required practicals you need to know for P1.

Know Paper 1 Physics - Required Practicles thumbnail

36

1474

11/9

Paper 1 Physics - Required Practicles

summary of practicles

Know resistance physics ks3 thumbnail

5

81

7/8

resistance physics ks3

These are my notes that I took about resistance and it can help you loads with your phsyiccs work I hope you do good on your test or revision :)

Know Electric circuit symbols thumbnail

12

578

7/11

Electric circuit symbols

Electric circuit component symbols for physics

Know Electricity thumbnail

5

801

10/11

Electricity

notes on electricity (physics)

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

21 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying

Subjects

Physics

Electricity

Resistance



Physics

•

193

•

Jan 28, 2023

•

2 pages

Easy Guide: Current-Voltage Graphs for Resistors, Bulbs, and Diodes

A

ayna

@aynna_ynkz

The document explains how to investigate current voltage graphs for resistors, bulbs, and diodes in a standard test circuit. It covers the experimental setup, method, and evaluation of results for each component.

Key points:

  • The experiment aims to explore the... Show more

Standard fest Standard test, circuit. Circulit Required practical-investigate current -voltage graphs. Aim of experiment: to investigate the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

Analysis of Current-Voltage Graphs for Different Components

This page presents the current-voltage graphs for a resistor, filament lamp bulbbulb, and diode, along with evaluations of their characteristics.

For a resistor:

  • The graph is a straight line passing through the origin.
  • Potential difference is directly proportional to current, following Ohm's Law.
  • Resistors are ohmic conductors with fixed resistance.

Definition: Ohm's Law states that the current through a conductor is directly proportional to the voltage across it, given that physical conditions remain constant.

For a filament lamp:

  • The graph is curved, showing a non-linear relationship.
  • As voltage increases, current increases at a decreasing rate.
  • The lamp's resistance increases with temperature due to increased ion vibration and electron collisions.

Highlight: A filament lamp is not an ohmic conductor because its resistance changes with temperature.

For a diode:

  • The graph shows current flow in only one direction.
  • At low voltages, the diode has high resistance.
  • Current begins to flow rapidly once a certain voltage threshold is reached.

Vocabulary: Safety resistor - A resistor used in a diode circuit to prevent excessive current flow.

Example: The diode graph shows zero current for negative voltages, illustrating its unidirectional conduction property.

Standard fest Standard test, circuit. Circulit Required practical-investigate current -voltage graphs. Aim of experiment: to investigate the

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

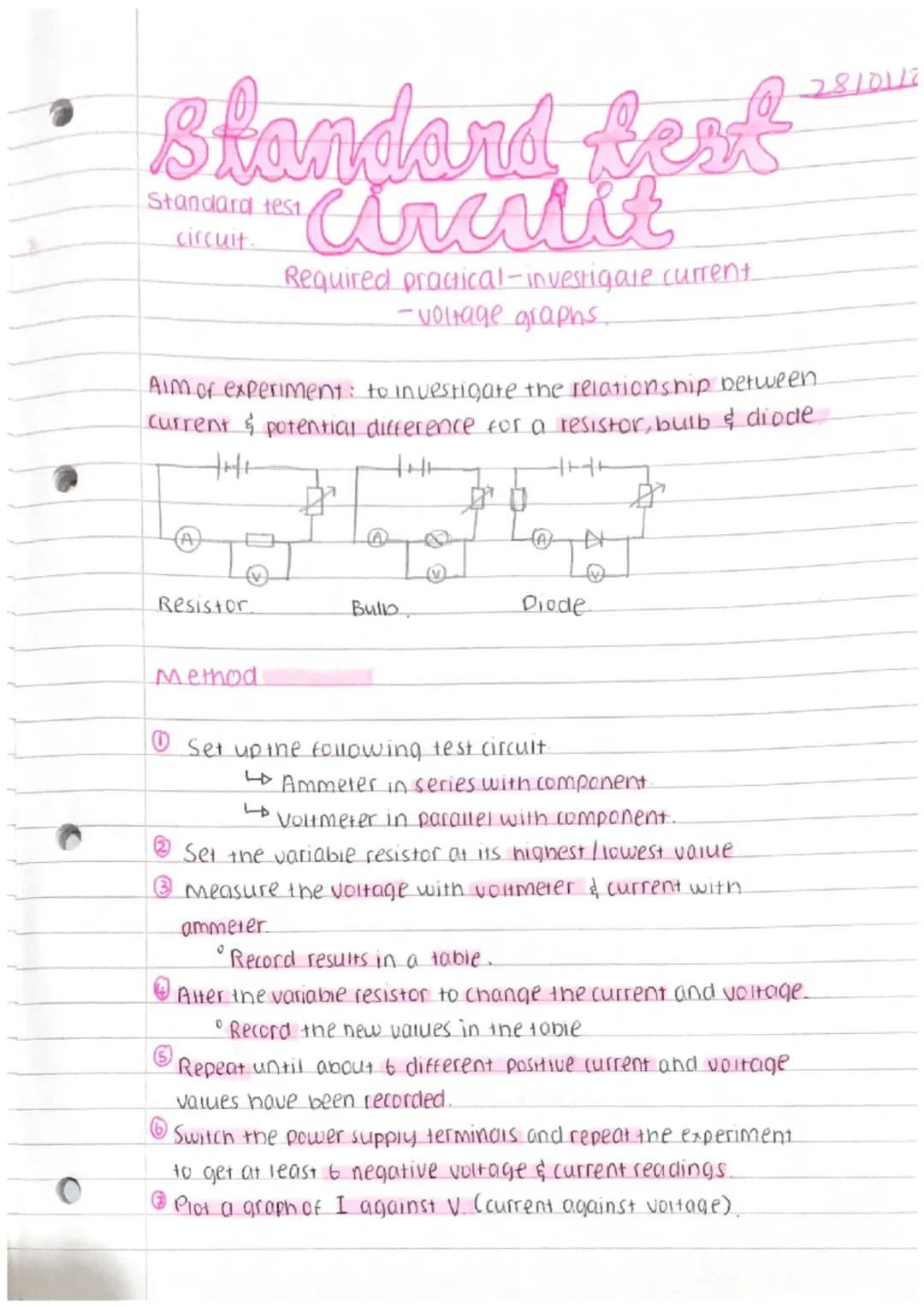

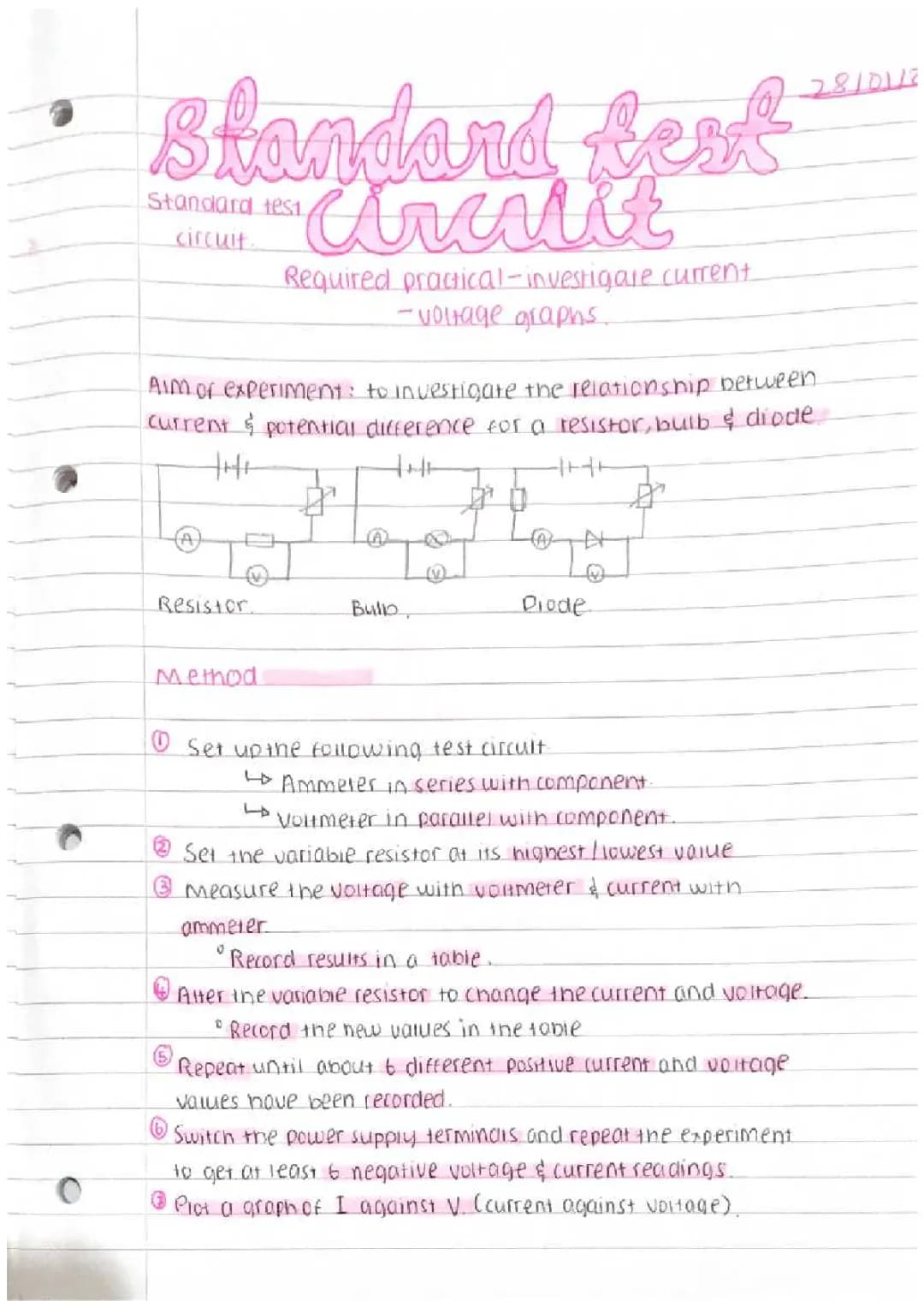

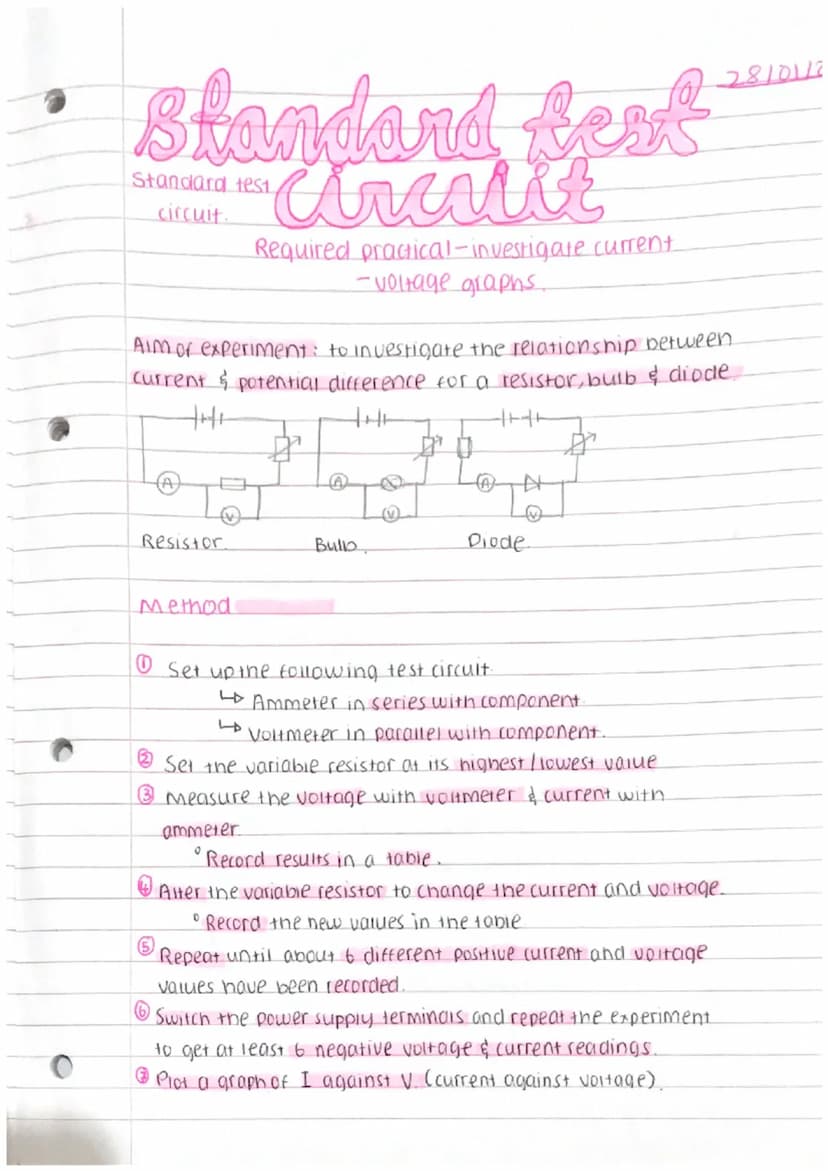

Investigating Current-Voltage Graphs for Resistors, Bulbs, and Diodes

This page outlines the experimental procedure for investigating the relationship between current and potential difference in various electrical components. The standard test circuit setup is described, along with the step-by-step method for conducting the experiment.

Definition: A standard test circuit is a setup used to measure the current and voltage characteristics of electrical components.

The method involves the following steps:

  1. Set up the test circuit with an ammeter in series and voltmeter in parallel with the component.
  2. Adjust the variable resistor to change current and voltage.
  3. Record measurements in a table.
  4. Collect both positive and negative readings by switching power supply terminals.
  5. Plot a graph of current against voltage.

Highlight: The experiment requires measuring and recording at least 6 different positive and negative current and voltage values for each component.

Vocabulary: Variable resistor - A resistor with an adjustable resistance value used to control current in a circuit.

Example: The circuit diagram shows the ammeter connected in series with the component being tested, while the voltmeter is connected in parallel.
