The National Grid: Transformers and High Voltage Transmission

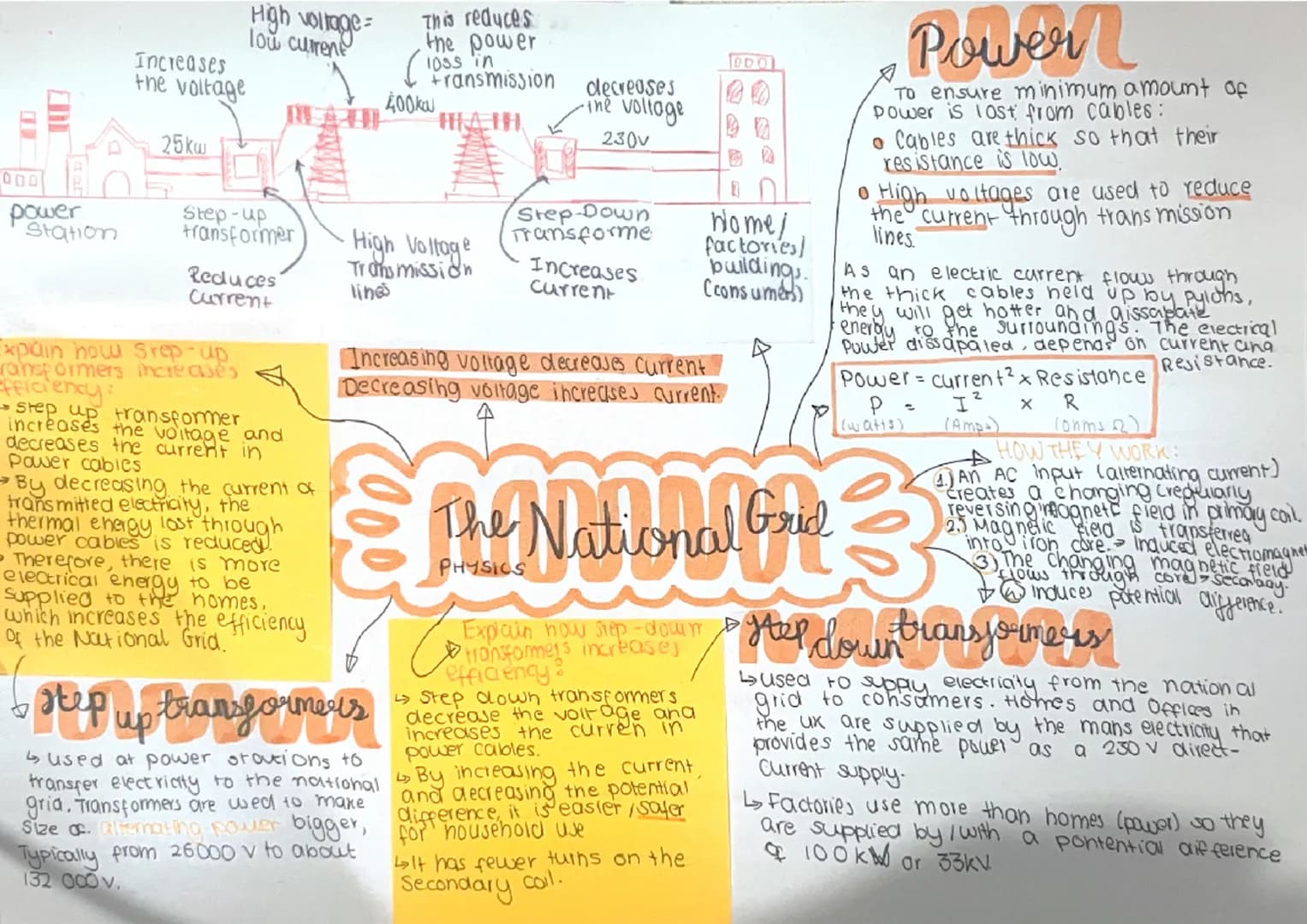

The National Grid employs a sophisticated system of transformers and high-voltage transmission lines to efficiently distribute electricity from power stations to consumers. This page explains the key components and principles of this system, focusing on the role of step-up and step-down transformers in managing voltage and current levels.
Highlight: The National Grid uses step-up transformers at power stations to increase voltage and decrease current, which improves transmission efficiency.
Step-Up Transformers at Power Stations
Step-up transformers play a crucial role in the initial stage of power transmission. They increase the voltage from about 25,000V to approximately 132,000V or even 400,000V for long-distance transmission.
Definition: A step-up transformer is a device that increases voltage while decreasing current in an electrical circuit.
The efficiency of step-up transformers is explained as follows:
- They increase voltage and decrease current in power cables.
- By reducing the current, thermal energy losses through power cables are minimized.
- This results in more electrical energy being available for supply to homes, increasing the overall efficiency of the National Grid.
Example: A step-up transformer might increase voltage from 25kV to 400kV while proportionally decreasing the current.
High Voltage Transmission Lines
After the voltage is stepped up, electricity is transmitted through high voltage transmission lines. These lines are designed to minimize power losses during long-distance transmission.
Vocabulary: High voltage transmission lines are thick cables supported by pylons that carry electricity at high voltages over long distances.
The efficiency of high voltage transmission is based on the following principles:
- High voltages reduce the current flowing through the transmission lines.
- Lower current results in less power dissipation due to the resistance of the cables.
- The power loss in transmission lines is calculated using the formula: Power = Current² × Resistance.
Highlight: Thick cables with low resistance are used to further minimize power losses in transmission lines.
Step-Down Transformers for Consumer Use
As electricity approaches consumer areas, step-down transformers are employed to reduce the voltage to safe levels for household and industrial use.
Definition: A step-down transformer decreases voltage while increasing current in an electrical circuit.
The efficiency and safety aspects of step-down transformers are:
- They decrease voltage and increase current in power cables near consumer areas.
- This makes the electricity safer and more suitable for household use, typically providing 230V AC in the UK.
- For industrial consumers with higher power requirements, step-down transformers may provide voltages of 11kV or 33kV.
Example: A step-down transformer might decrease voltage from 400kV to 230V for household use.
Transformer Operation
Both step-up and step-down transformers operate on the same principle:
- An AC input creates a changing magnetic field in the primary coil.
- This magnetic field is transferred through an iron core.
- The changing magnetic field induces a potential difference in the secondary coil.
The number of turns in the primary and secondary coils determines whether the transformer steps up or steps down the voltage.
Highlight: The National Grid's use of transformers and high voltage transmission lines ensures efficient and safe electricity distribution from power stations to consumers.
