Fleming's Rules and How Particle Accelerators Work

Name: Knowunity
Brand: Knowunity

Ahmed Nour ✓™

@ahmednour

Electromagnetic Fields and Particle Accelerators: A Comprehensive Guide

This guide... Show more

.
Note:. density of field lines is representative of the strength of the field at that point.
direction of field lines is North to South. In

Page 2: Magnets, Coils, and Particle Accelerators

This page delves into magnetic fields around coils, forces between current-carrying wires, and introduces particle accelerators.

Magnetic Fields Around Coils

The magnetic field strength around a wire depends on:

Current magnitude
Distance from the wire
Permeability of the space

For a long straight wire: B = μI / $2πr$

Where:

μ = Permeability $μ0 for free space/vacuum$
I = Current
r = Distance from wire

For a solenoid: B = μnI

Where:

n = Number of coils in the solenoid

Highlight: The strongest magnetic field in a solenoid is at its center.

Forces Between Current-Carrying Wires

Wires with current flowing in the same direction attract each other, while those with opposite currents repel.

Example: This principle is used in the design of electric motors and generators.

Particle Accelerators

Three types of particle accelerators are discussed:

Linear Accelerators $Linacs$
Cyclotrons
Synchrotrons

Definition: Particle accelerators are machines that propel charged particles to very high speeds using electromagnetic fields.

Linear Accelerators $Linacs$

Linacs accelerate particles in a straight line using alternating potential differences.

Highlight: What are particle accelerators used for? They are crucial in particle physics research, medical treatments, and industrial applications.

Example: The alternating voltage in the gaps between drift tubes creates electric fields that accelerate particles.

Vocabulary: Electromagnetic induction in particle accelerators refers to the process of using changing magnetic fields to induce electric fields that accelerate particles.

This comprehensive guide provides a solid foundation for understanding electromagnetic fields and their applications in particle accelerators, suitable for young physics students.

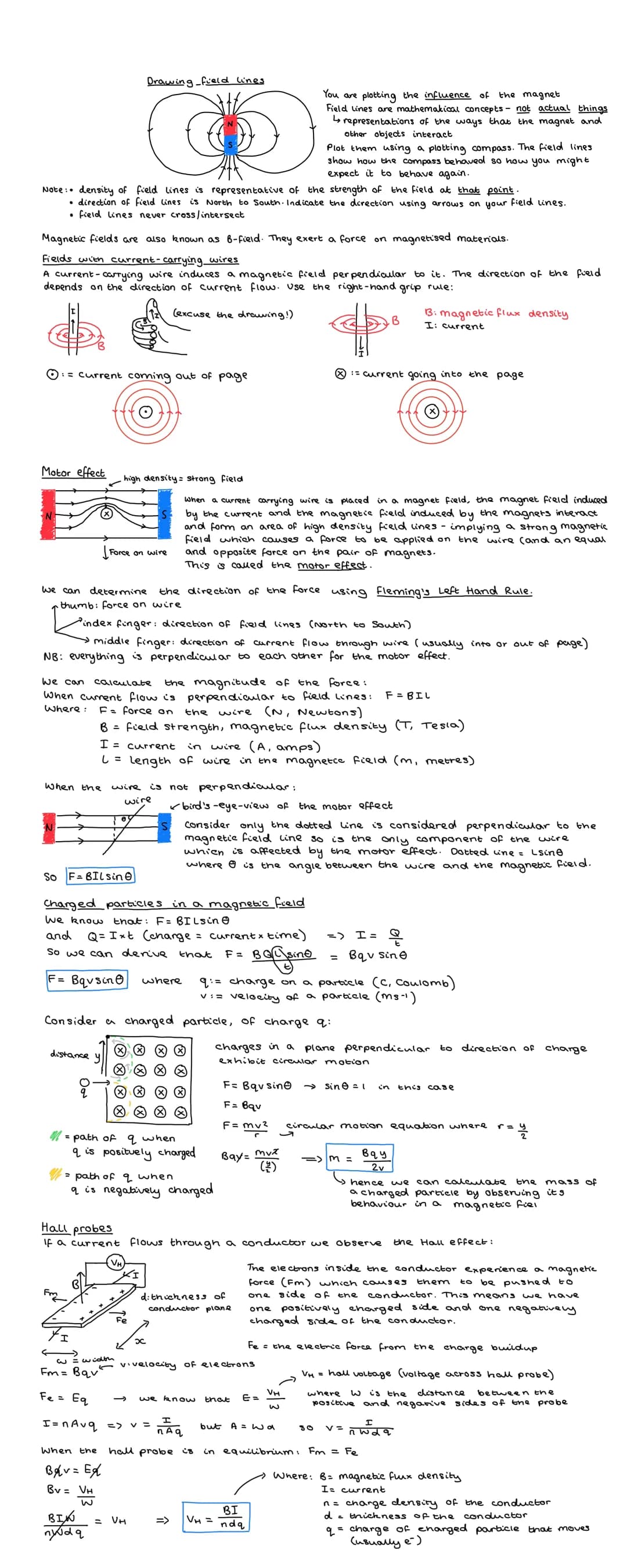

Page 1: Magnetic Fields and the Motor Effect

This page covers the fundamentals of magnetic fields, the motor effect, and charged particles in magnetic fields.

Magnetic Fields

Magnetic fields, also known as B-fields, exert force on magnetized materials. When drawing field lines:

Higher density of lines indicates a stronger field
Field lines never intersect
Arrows show direction from North to South

Highlight: The density of field lines represents the strength of the field at that point.

Fields with Current-Carrying Wires

A current-carrying wire induces a magnetic field perpendicular to it. The right-hand grip rule determines the field direction:

Thumb: Force on wire
Index finger: Field line direction $North to South$
Middle finger: Current flow direction

Definition: The motor effect occurs when a current-carrying wire in a magnetic field experiences a force due to the interaction of magnetic fields.

Force on Wire

The magnitude of force on a wire in a magnetic field is calculated using:

F = BIL sinθ

Where:

F = Force on wire $Newtons$
B = Magnetic flux density $Tesla$
I = Current in wire $Amperes$
L = Length of wire in magnetic field $meters$
θ = Angle between wire and magnetic field

Vocabulary: Tesla $T$ is the unit of magnetic flux density.

Charged Particles in a Magnetic Field

For charged particles, the force equation is modified to:

F = Bqv sinθ

Where:

q = Charge on particle $Coulombs$
v = Velocity of particle $m/s$

Example: A positively charged particle in a magnetic field will follow a curved path, while a negatively charged particle will curve in the opposite direction.

Fleming's Left Hand Rule

Highlight: Fleming's left hand rule for motors is used to determine the direction of force on a current-carrying wire in a magnetic field.

Hall Probes

Hall probes utilize the Hall effect to measure magnetic field strength. When current flows through a conductor perpendicular to a magnetic field, a voltage $Hall voltage$ is produced across the conductor.

Definition: The Hall effect is the production of a voltage difference across an electrical conductor when a magnetic field is applied perpendicular to the current flow.

The Hall voltage is given by:

VH = $BI$ / $ndq$

Where:

VH = Hall voltage
B = Magnetic flux density
I = Current
n = Charge density of conductor
d = Thickness of conductor
q = Charge of moving particle $usually electron$

Highlight: Using hall probes to measure magnetic field strength is a common technique in physics experiments.
