Understanding Kinematics and 2D Motion - AP Physics 1 Guide

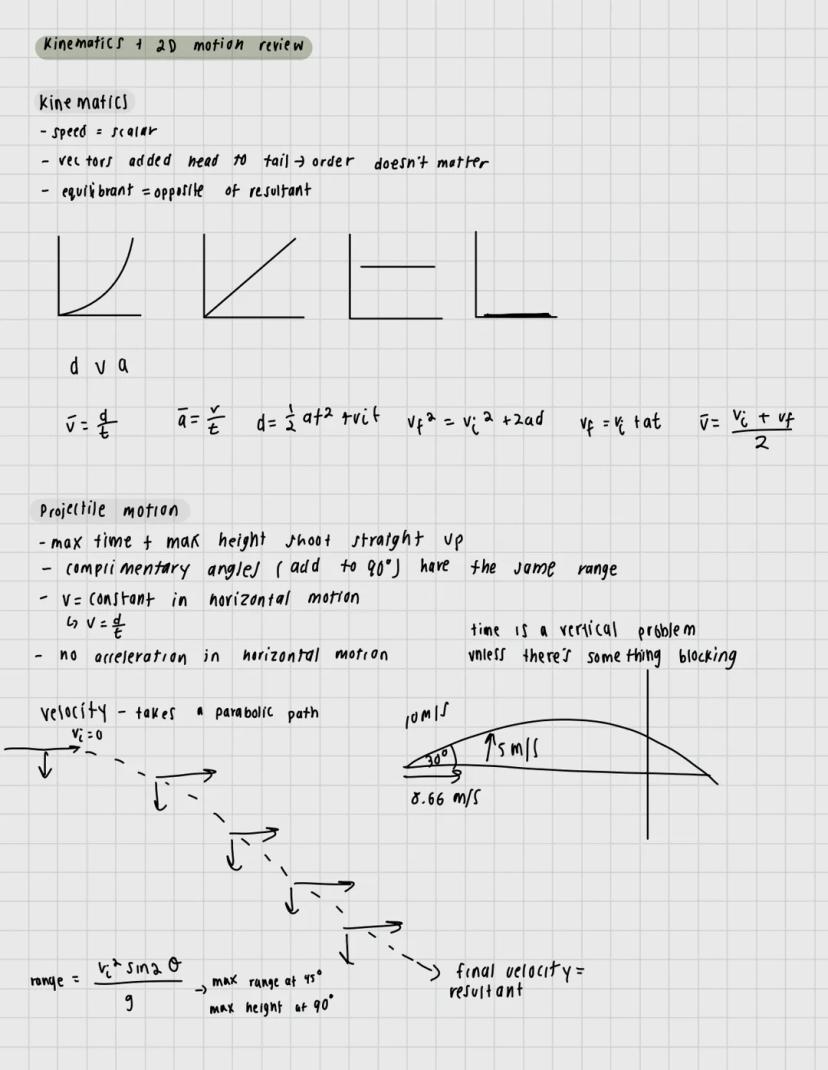

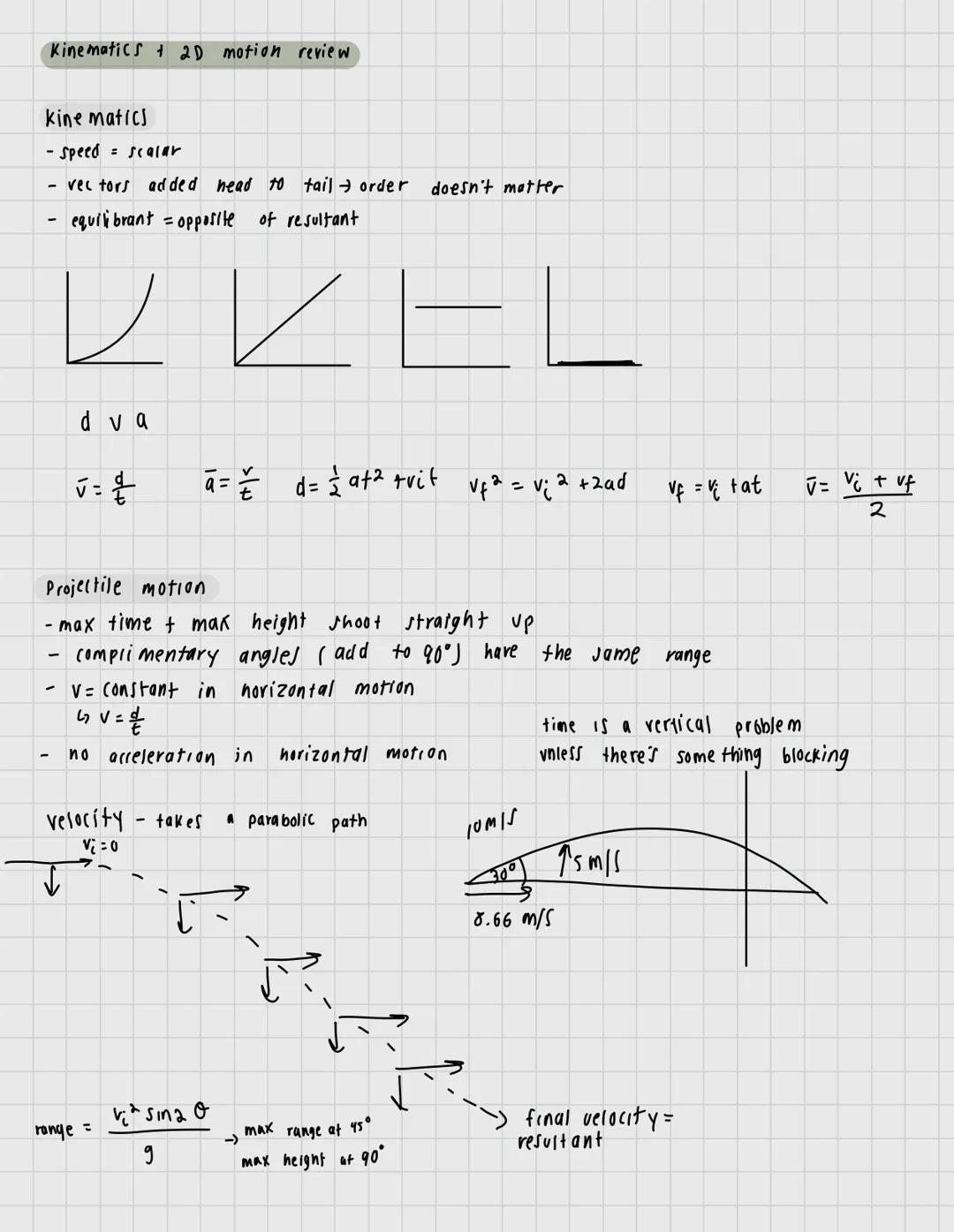

Kinematics Fundamentals

Kinematics deals with the mathematics of motion without considering forces. Remember that speed is a scalar quantity (magnitude only), while velocity is a vector (has both magnitude and direction). Vectors are added head-to-tail, and the order doesn't matter.

The essential kinematic equations you need to know are:

• Average velocity: v̄ = d/t
• Average acceleration: ā = v/t
• Distance with acceleration: d = ½at² + vᵢt
• Final velocity squared: vf² = vᵢ² + 2ad
• Final velocity: vf = vᵢ + at
• Average velocity: v̄ = (vᵢ + vf)/2

In projectile motion, remember that horizontal and vertical motions are independent. There's constant velocity in the horizontal direction (no acceleration) and constant acceleration due to gravity in the vertical direction. The path of a projectile forms a parabola, with maximum range occurring at a 45° angle.

💡 For projectile problems, always separate horizontal and vertical components! The horizontal velocity remains constant while the vertical velocity changes due to gravity.

The range equation for projectile motion is: range = (vᵢ²sin2θ)/g

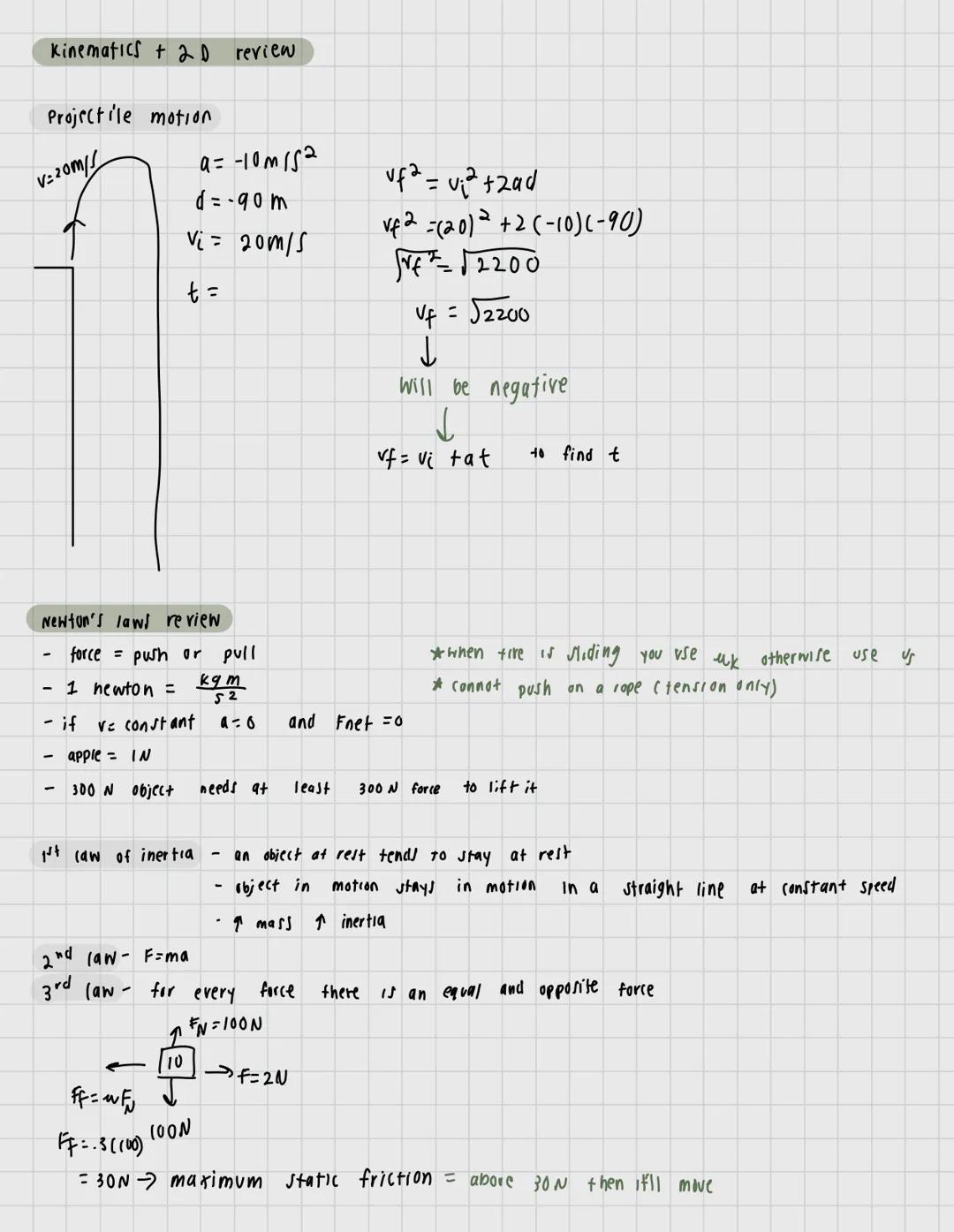

Newton's Laws and Friction

Newton's laws describe the relationship between forces and motion. Force is simply a push or pull, measured in newtons $1 N = 1 kg·m/s²$. An interesting fact: an apple weighs approximately 1 N!

The three fundamental laws are:

• 1st Law (Inertia): Objects at rest stay at rest, and objects in motion stay in motion at constant speed in a straight line unless acted upon by a force. The greater the mass, the greater the inertia.
• 2nd Law: F = ma (Force equals mass times acceleration)
• 3rd Law: For every action, there's an equal and opposite reaction

When dealing with friction problems, remember that static friction (μₛ) applies when an object isn't moving, while kinetic friction (μₖ) applies when it's sliding. The maximum static friction is calculated as Fₛ = μₛFₙ, where Fₙ is the normal force.

💡 If an object has constant velocity, the net force must be zero $Fₙₑₜ = 0$! This is a direct application of Newton's 1st law and can simplify many problems.

For an object to start moving, you need to apply a force greater than the maximum static friction. Once moving, the friction force decreases to kinetic friction.

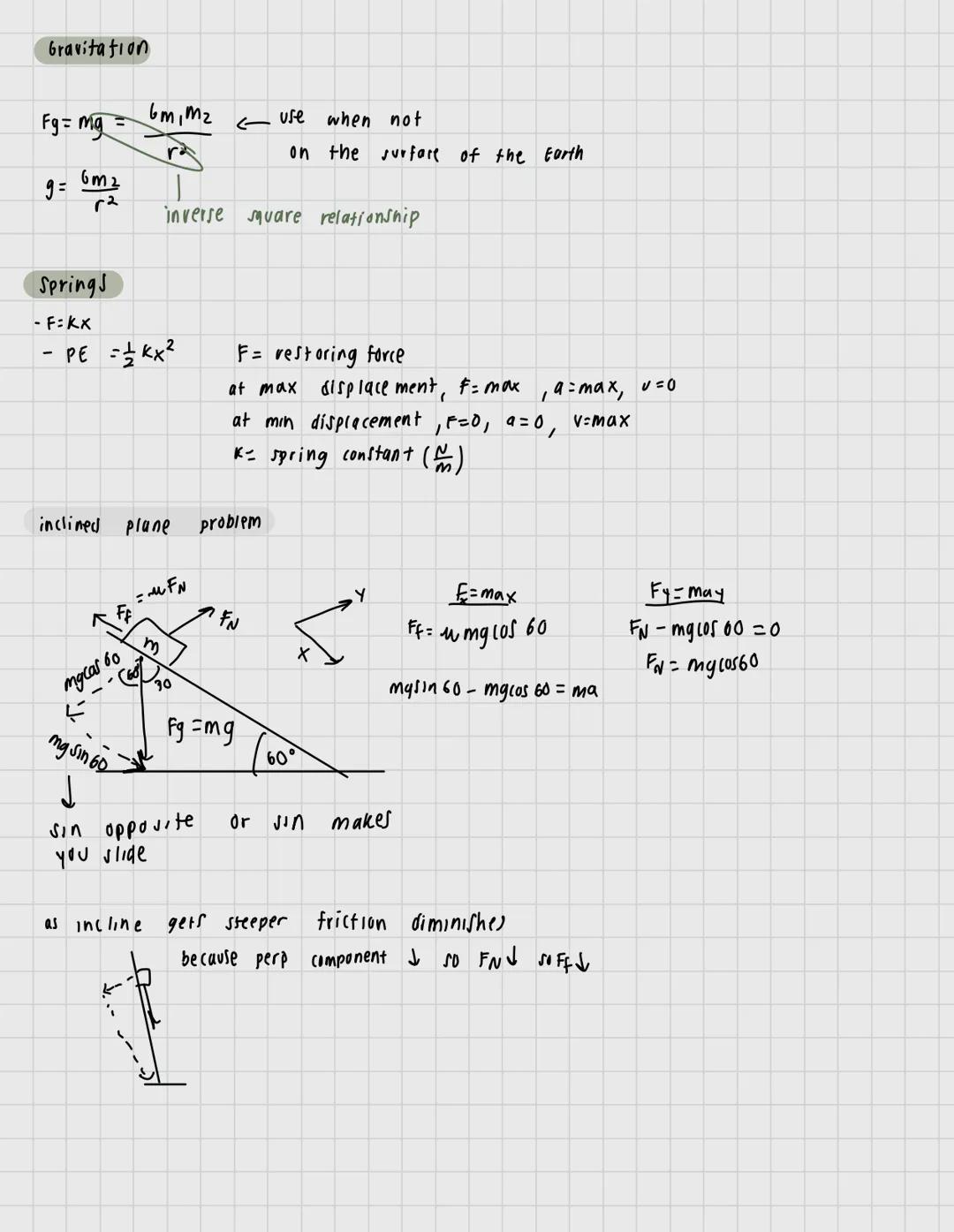

Gravitation and Springs

The force of gravity between two objects is given by Fg = Gm₁m₂/r² where G is the gravitational constant, m₁ and m₂ are the masses, and r is the distance between them. On Earth's surface, we simplify this to Fg = mg. Gravity follows an inverse square relationship - double the distance, and the force becomes ¼ as strong.

Spring force is described by Hooke's Law: F = kx, where k is the spring constant (N/m) and x is the displacement from equilibrium. The potential energy stored in a spring is PE = ½kx². Understanding the relationship between force, displacement, and velocity in a spring is crucial:

• At maximum displacement: force is maximum, acceleration is maximum, but velocity is zero
• At equilibrium position: force is zero, acceleration is zero, but velocity is maximum

When solving inclined plane problems, remember to break forces into components. As the incline gets steeper, the normal force decreases, which reduces friction. The component of gravity parallel to the slope (mgsinθ) causes objects to slide, while the perpendicular component (mgcosθ) creates the normal force.

💡 When analyzing forces on an inclined plane, the sine component (mgsinθ) makes things slide while the cosine component (mgcosθ) determines the normal force and friction!

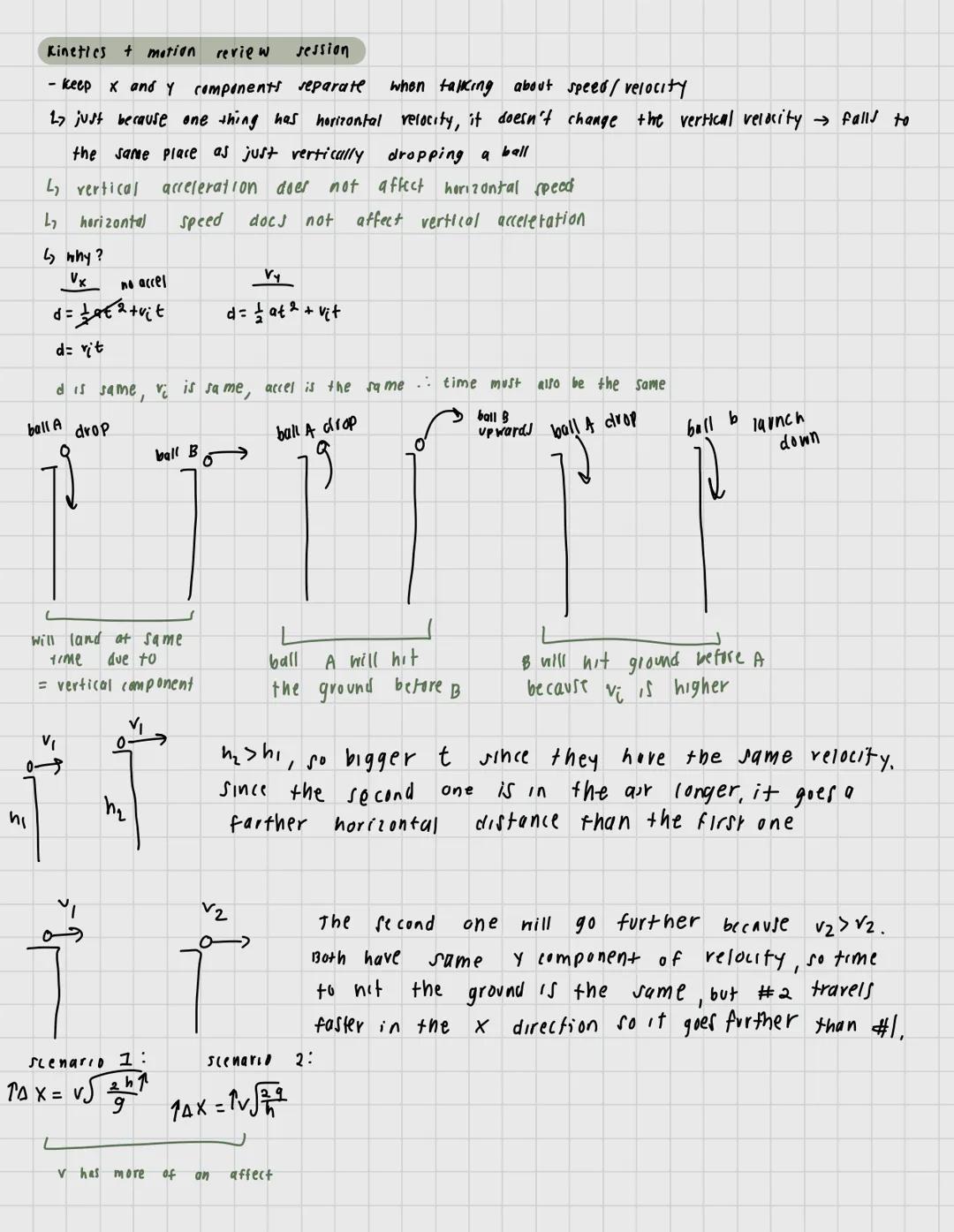

Key Concepts in 2D Motion

In 2D motion, it's crucial to keep horizontal $x$ and vertical $y$ components separate. Even though they're happening simultaneously, they don't affect each other. Vertical acceleration does not affect horizontal speed, and horizontal speed does not affect vertical acceleration.

This explains why two objects - one dropped straight down and one projected horizontally - will hit the ground at the same time if dropped from the same height. The horizontal motion doesn't change the fact that gravity pulls both objects down at the same rate.

When comparing projectiles with different initial velocities:

• Objects with the same vertical component but different horizontal components will land at the same time
• Objects launched from the same height with different initial velocities will travel different horizontal distances
• The horizontal distance traveled can be calculated as Δx = v√$2h/g$ for horizontal launches

💡 The horizontal distance a projectile travels depends more on its velocity than on height! This is why increasing the speed of a projectile has a greater effect on range than increasing its height.

Remember that the time an object is in the air depends only on its vertical motion, but the distance it travels horizontally depends on both its horizontal velocity and that time.

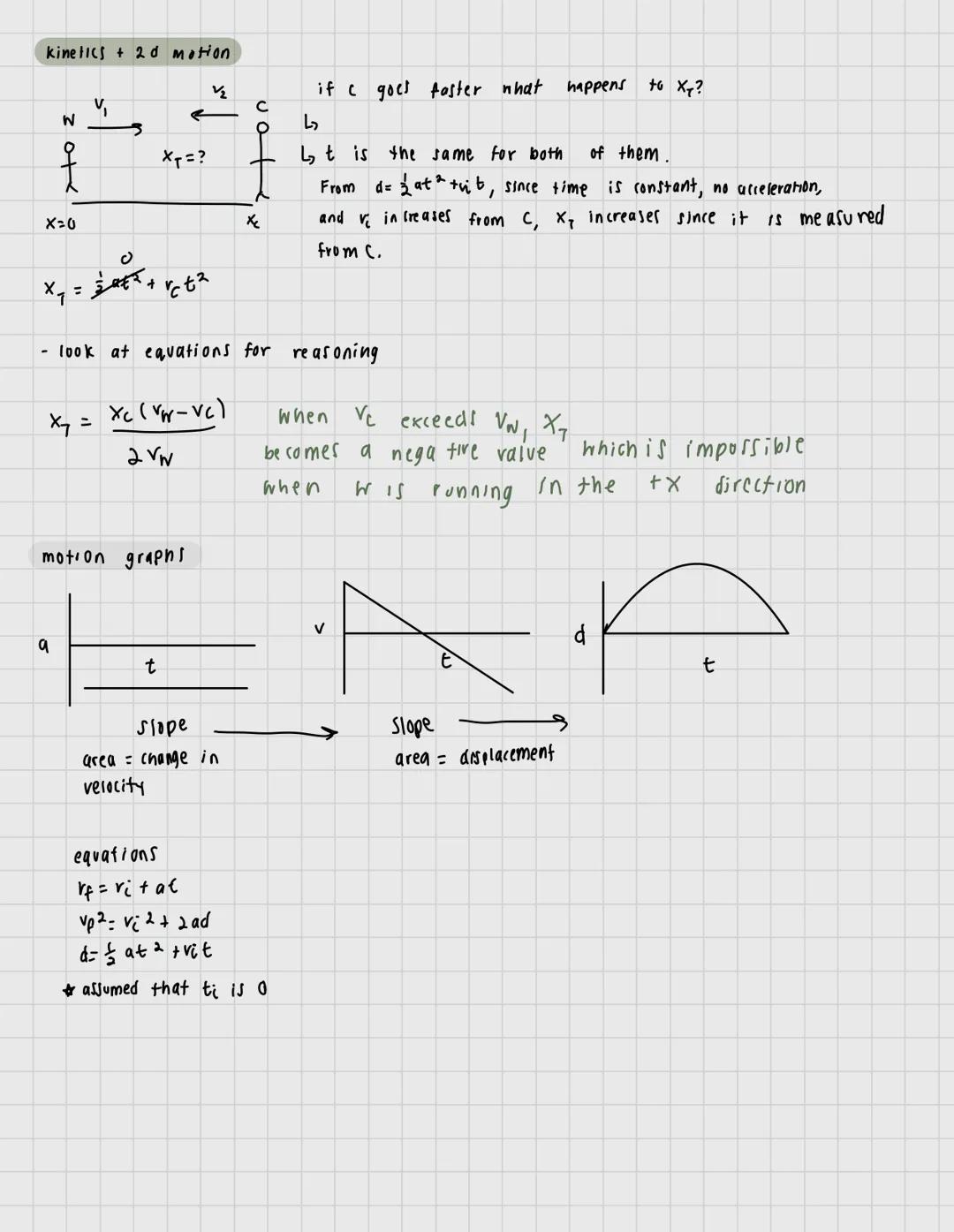

Motion Graphs and Problem-Solving

Motion graphs provide visual representations of position, velocity, and acceleration. For these graphs:

• The slope of a position-time graph gives velocity
• The area under a velocity-time graph gives displacement
• The slope of a velocity-time graph gives acceleration

When solving problems involving relative motion (like objects moving in flowing water), remember that the total velocity is the vector sum of the individual velocities. For an object in a flowing medium: vₜₒₜₐₗ = vₒbⱼₑcₜ + vₘₑdᵢᵤₘ

The key kinematic equations for problem-solving are:

• vf = vi + at
• vf² = vi² + 2ad
• d = ½at² + vit (These equations assume initial time is zero)

💡 When in doubt about which approach to use for a physics problem, write down what you know, identify what you're looking for, and select the equation that connects them with the fewest unknown variables!

For any motion problem, start by clearly identifying the known variables and what you're solving for, then select the appropriate kinematic equation that will get you to the answer most efficiently.
