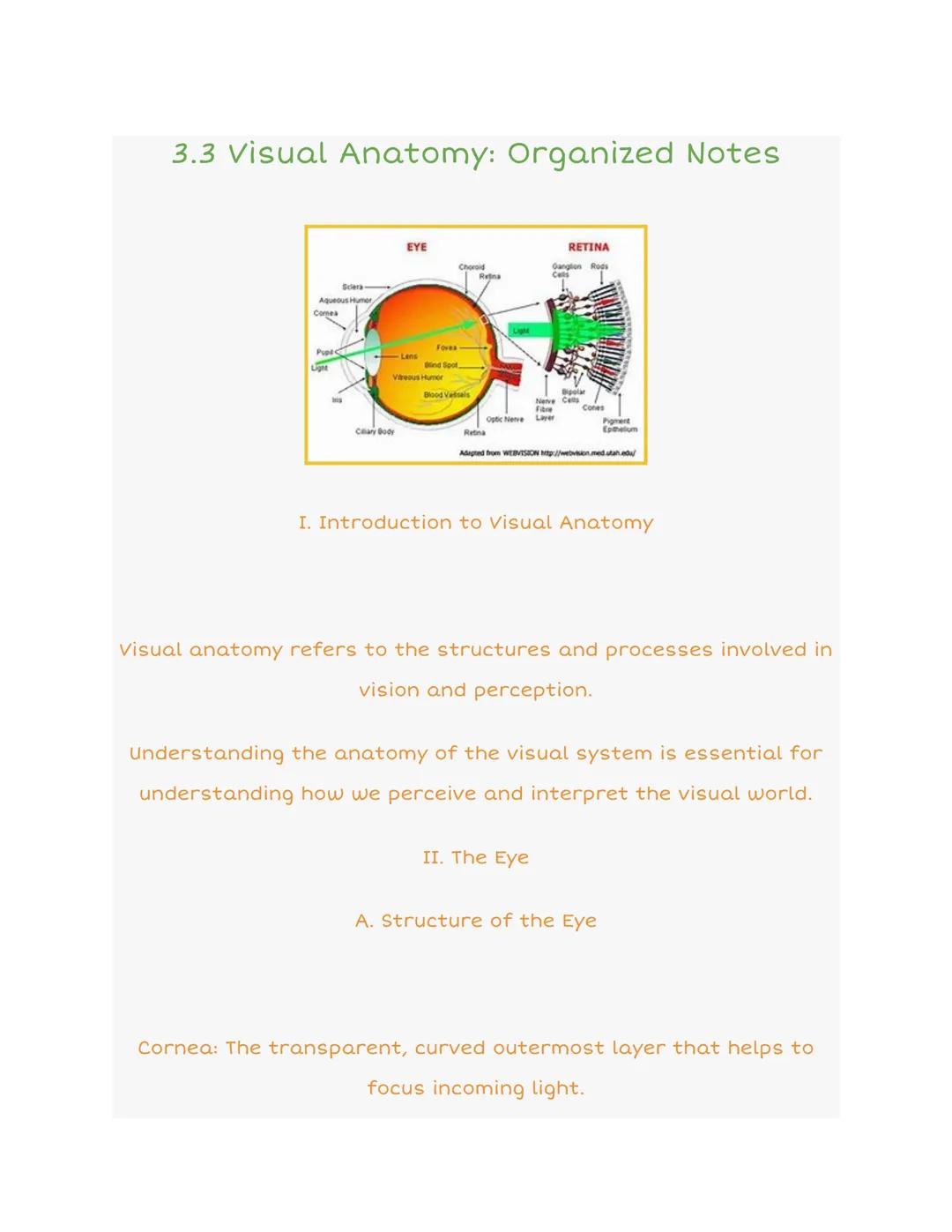

The Eye and Its Basic Structure
Ever wondered how your eyes actually work? The eye is an incredible organ that functions like a sophisticated camera. At the front, the transparent cornea bends incoming light, working as your eye's first focusing system.
Behind the cornea, the iris (the colored part of your eye) controls the size of your pupil, which is that black circle in the middle. The pupil expands or contracts to regulate how much light enters your eye—just like the aperture on a camera!
The lens sits behind the iris and further focuses light onto the retina, which lines the back of your eye. Think of the retina as the "film" or "sensor" of your eye-camera, where special cells convert light into electrical signals.
Fun Fact: Your eyes don't actually "see" anything—they just capture light! It's your brain that transforms these signals into the images you perceive.
2
of 5

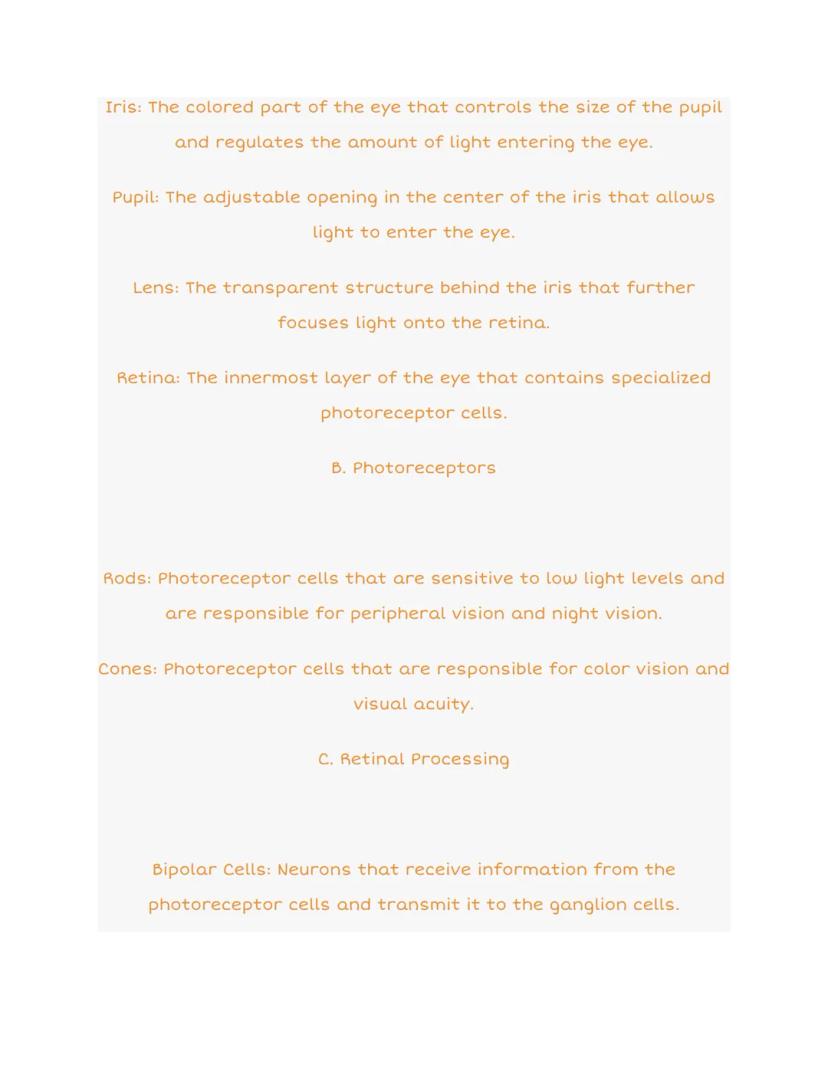

The Retina's Specialized Cells
Your retina contains two types of amazing photoreceptor cells that make vision possible. Rods are super sensitive to light but don't detect color. They help you see in dim light and are responsible for your peripheral (side) vision.
Cones, on the other hand, need more light to work but give you color vision and sharp detail. This is why colors seem to fade in low light—your eyes are switching from cone-dominant to rod-dominant vision!
After light hits these photoreceptors, the information travels to bipolar cells, which act like the middle managers of your visual system. They process the signals from rods and cones before passing them along to ganglion cells.
Vision Insight: You have about 120 million rods but only 6 million cones in each eye—that's why your peripheral vision is less colorful but more sensitive to movement!
3
of 5

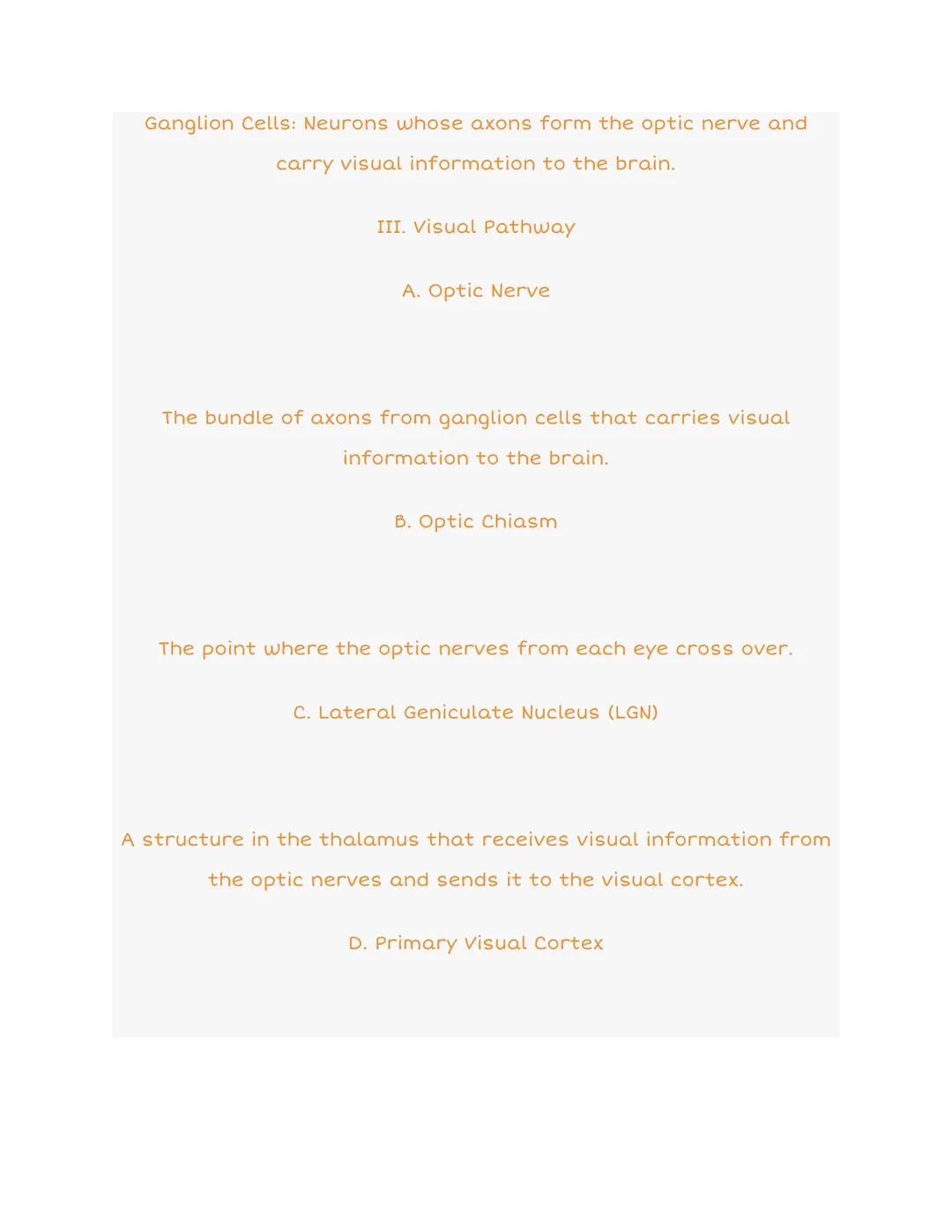

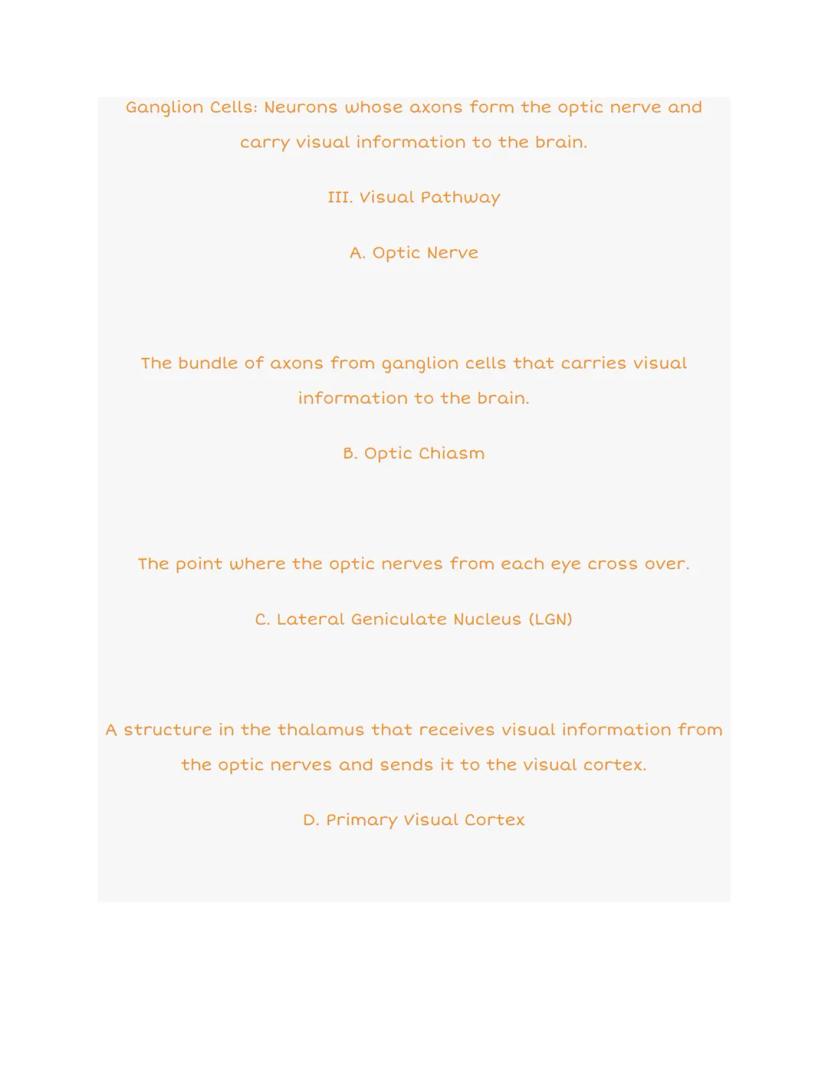

The Visual Pathway to Your Brain
The ganglion cells in your retina have long fibers that bundle together to form the optic nerve, which carries visual information from your eye to your brain. It's like a high-speed data cable transmitting everything you see.
At the optic chiasm, something fascinating happens—the information from the left half of each eye's vision crosses over to the right side of the brain, and vice versa. This crossing helps your brain create a complete picture from both eyes.
The visual information then travels to the Lateral Geniculate Nucleus (LGN) in the thalamus, which acts like a relay station. From there, signals travel to the primary visual cortex in the back of your brain, where the real magic of visual perception begins.
Mind-Blowing Fact: Your optic nerve has about one million fibers, yet this creates a "blind spot" in each eye where the nerve exits the retina—your brain fills in this gap so you never notice it!
4
of 5

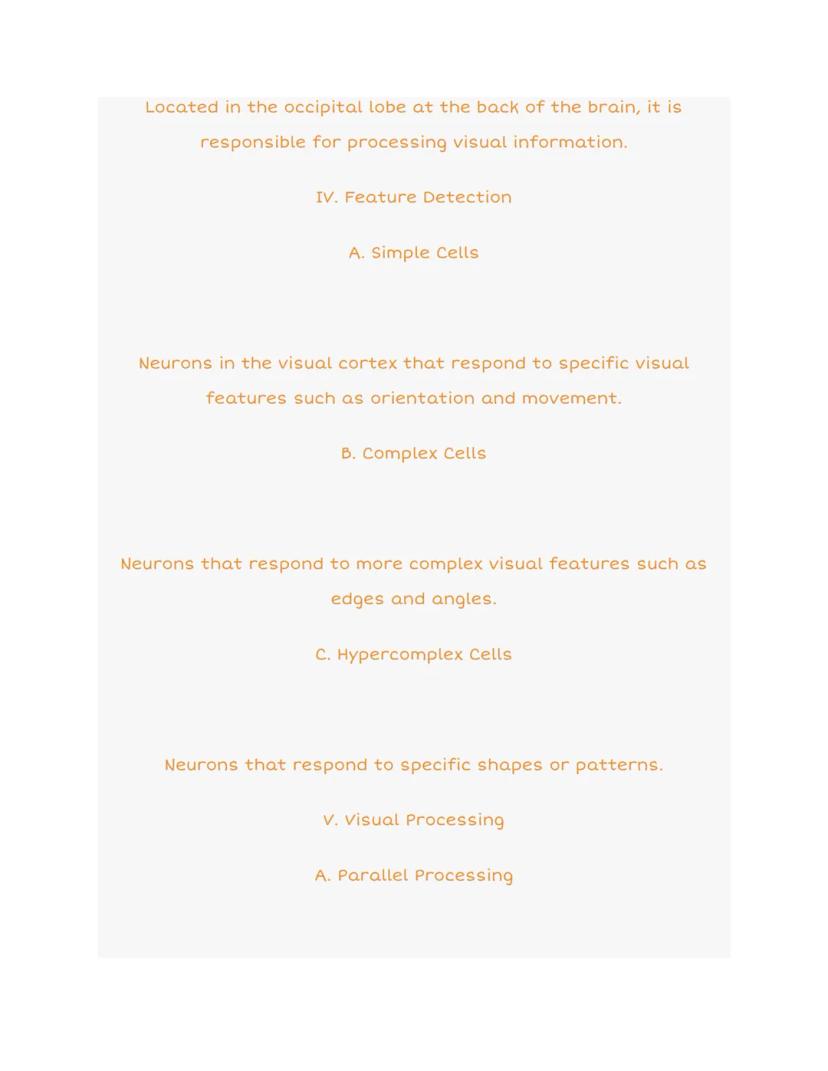

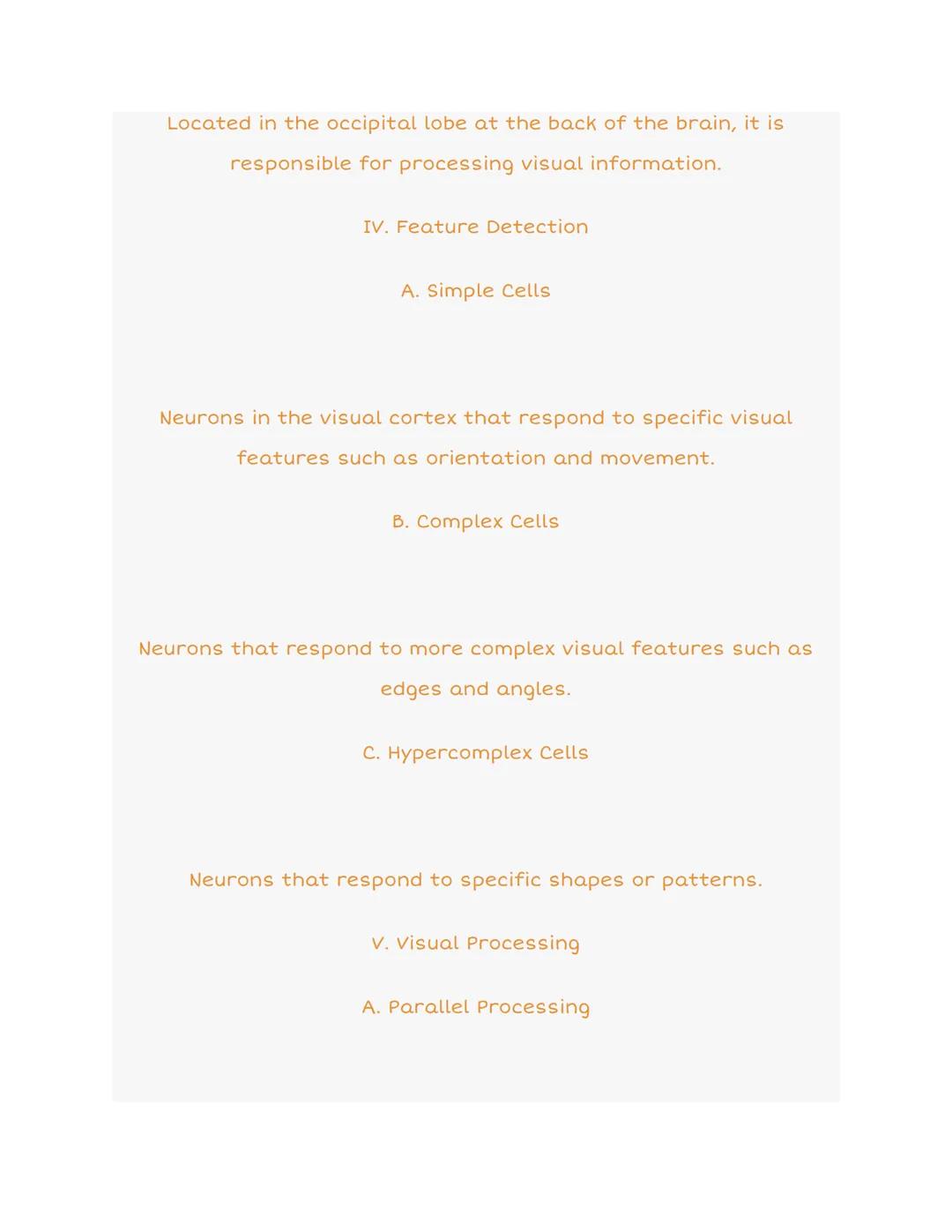

How Your Brain Detects Visual Features
In your visual cortex, specialized neurons called simple cells detect basic visual elements like lines and edges with specific orientations. Think of them as the most basic pattern detectors in your visual system.
One level up, complex cells recognize more sophisticated visual features regardless of their exact position. They might respond to a vertical edge moving across your visual field, helping you track moving objects.
At an even higher level, hypercomplex cells respond to very specific shapes and patterns. These cells help you recognize complex objects like faces or letters, making reading and recognizing friends possible.
Try This: Look around the room and notice how quickly you recognize objects. Your brain is using all these different cells to instantly process shapes, colors, and textures!
5
of 5

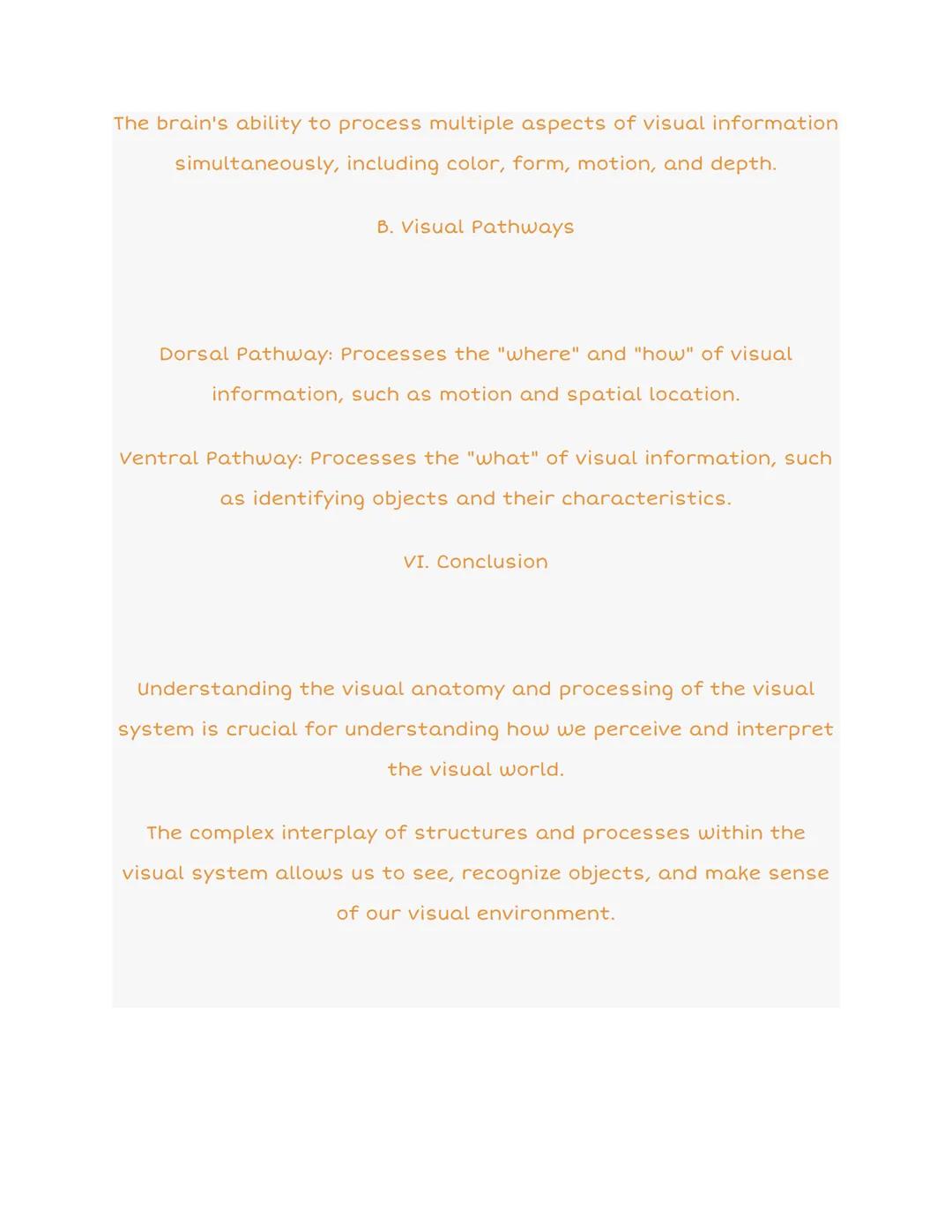

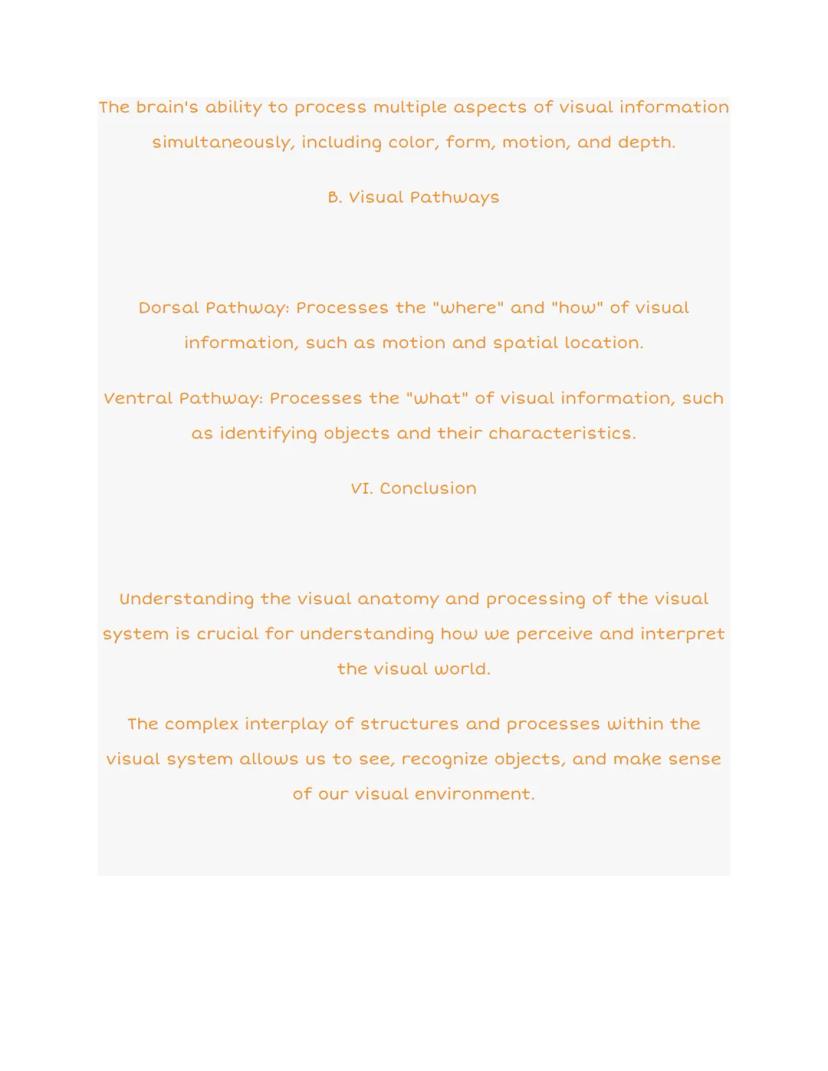

Advanced Visual Processing
Your brain is incredibly efficient, using parallel processing to analyze multiple aspects of vision simultaneously. While one set of neurons works on color, others focus on motion, form, or depth—all at the same time!
This processing happens along two main pathways. The dorsal pathway handles motion and spatial awareness, helping you catch a ball or navigate a crowded hallway.
Meanwhile, the ventral pathway (the "what" pathway) focuses on identifying objects and their features. This pathway helps you recognize faces, read text, and tell the difference between similar objects like a pencil and pen.
Learning Connection: When you struggle to find something that's right in front of you, it might be because your ventral pathway is working overtime while your dorsal pathway hasn't quite registered the object's location yet!
