Cool Brain Parts and How They Talk to Each Other!

The brain's complex neural architecture enables information processing through synaptic transmission in neural pathways and specialized regions. The anatomy of brain hemispheres and hypothalamus work together with other structures to control vital functions, while voltage-gated channels in nerve impulses facilitate neural communication.

• The brain consists of multiple interconnected regions including the cerebral cortex, brain stem, and cerebellum, each serving distinct functions
• Neural communication occurs through precisely controlled electrical and chemical signals
• The hypothalamus and pituitary gland regulate essential autonomic processes and hormone release
• Synaptic transmission involves specialized cellular structures and neurotransmitters
• Nerve impulses propagate through voltage-dependent ion channels in a coordinated sequence

...

10/15/2023

32

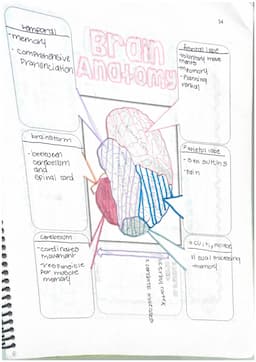

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

View

Brain Regions and Functions

The cerebral cortex contains specialized regions called lobes, each responsible for specific functions. The temporal lobe processes memory, while the cerebellum coordinates movement and muscle memory.

Definition: The cerebral cortex is the outer layer of the brain consisting of three distinct layers that process different types of information.

Highlight: The frontal lobe controls voluntary movements, memory, and planning, while the parietal lobe processes sensations and pain.

Example: The occipital lobe specifically handles visual processing and visual memory, demonstrating how brain regions specialize in specific functions.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

View

Synaptic Transmission Process

Synaptic transmission involves a complex sequence of events at the junction between neurons, utilizing specialized cellular structures and chemical messengers.

Definition: Synaptic transmission is the process by which neurons communicate through chemical signals called neurotransmitters.

Highlight: The process begins when an action potential arrives at the presynaptic terminal, triggering the release of neurotransmitters.

Example: Neurotransmitters are stored in synaptic vesicles and released into the synapse, where they bind to specific receptors on the postsynaptic neuron.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

View

Nerve Impulse Propagation

The propagation of nerve impulses involves precisely coordinated changes in membrane voltage through the action of ion channels.

Definition: A nerve impulse is an all-or-none response that either fully propagates through the neuron or doesn't occur at all.

Highlight: Voltage-gated sodium and potassium channels open and close in sequence to create the action potential.

Example: When the membrane voltage reaches threshold, sodium channels open, allowing sodium ions to enter the cell, creating a rapid change in voltage.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

View

Neural Signal Transmission

The transmission of nerve impulses involves complex changes in electrical charge across the neuronal membrane and chemical signaling at synapses.

Definition: The resting state of a neuron maintains a negative internal charge relative to the external environment.

Highlight: During an action potential, sodium rushes into the neuron, temporarily reversing the membrane charge.

Example: At synapses, the arrival of an action potential triggers neurotransmitter release, which opens channels on the next neuron to continue signal propagation.

Similar Content

Know Biology notes thumbnail

14

148

11

Biology notes

Enjoy!

Know Cancer notes thumbnail

3

56

10th

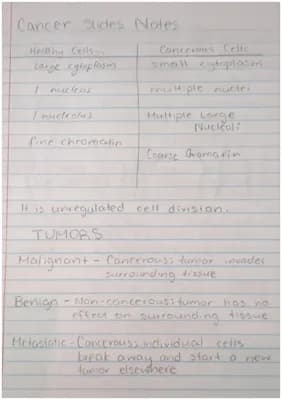

Cancer notes

Tumors, cell cycle checkpoints, cell cycle control, causes, checkpoint regulation, related genes, development, treatments

Know Protein Synthesis thumbnail

96

1052

9th/10th

Protein Synthesis

biology protein synthesis presentation

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

21 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying

Subjects

Biology

Genes

Gene Expression and Regulation

Gene Expression and Regulation



Biology

•

32

•

Oct 15, 2023

•

5 pages

Cool Brain Parts and How They Talk to Each Other!

E

Evie

@evie_mova

The brain's complex neural architecture enables information processing through synaptic transmission in neural pathways and specialized regions. The anatomy of brain hemispheres and hypothalamus work together with other structures to control vital functions, while voltage-gated channels in nerve impulsesfacilitate... Show more

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

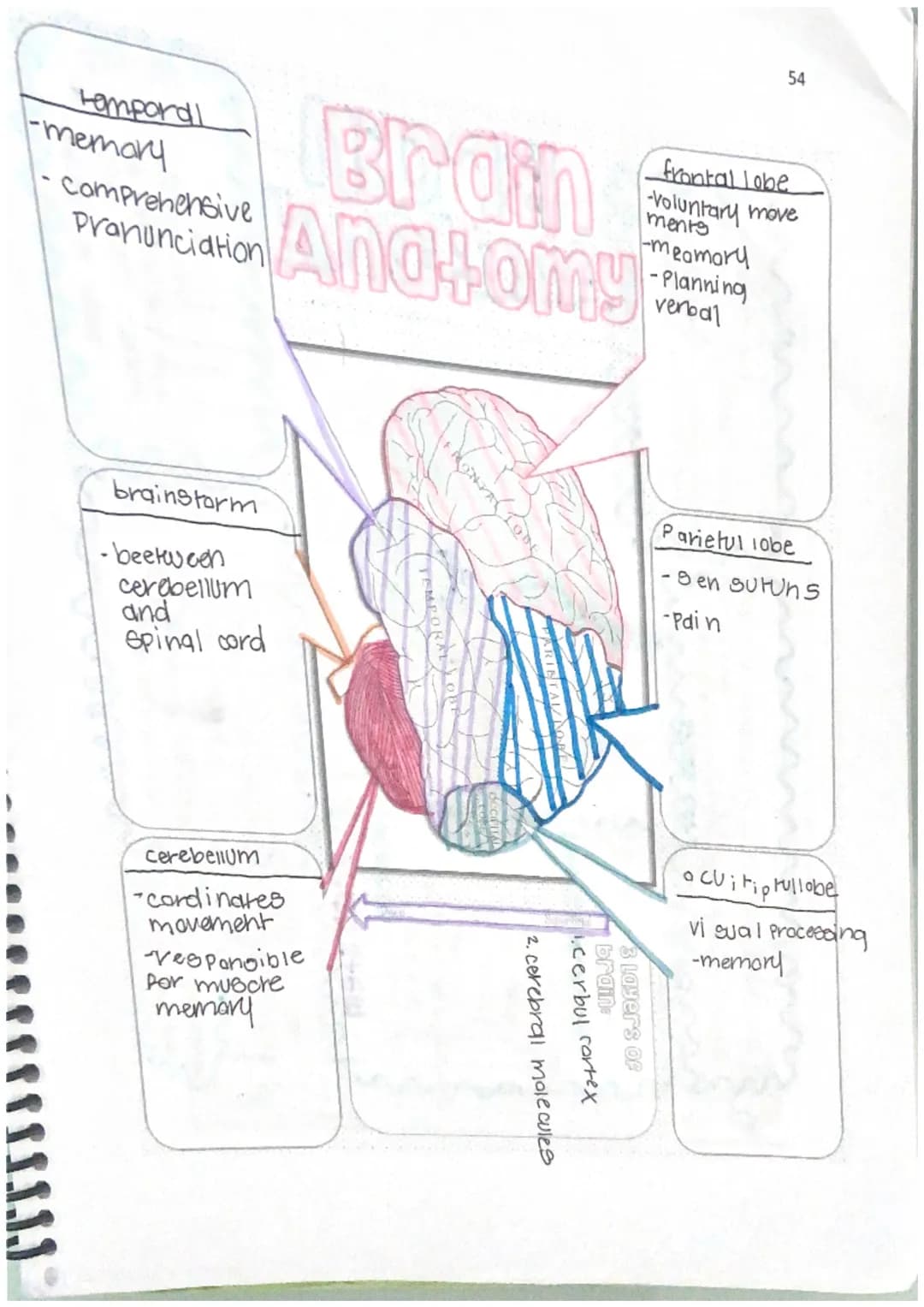

Brain Regions and Functions

The cerebral cortex contains specialized regions called lobes, each responsible for specific functions. The temporal lobe processes memory, while the cerebellum coordinates movement and muscle memory.

Definition: The cerebral cortex is the outer layer of the brain consisting of three distinct layers that process different types of information.

Highlight: The frontal lobe controls voluntary movements, memory, and planning, while the parietal lobe processes sensations and pain.

Example: The occipital lobe specifically handles visual processing and visual memory, demonstrating how brain regions specialize in specific functions.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

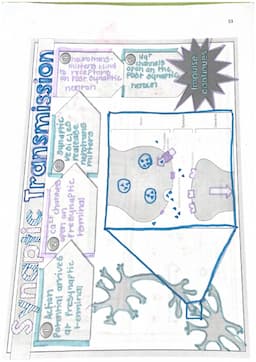

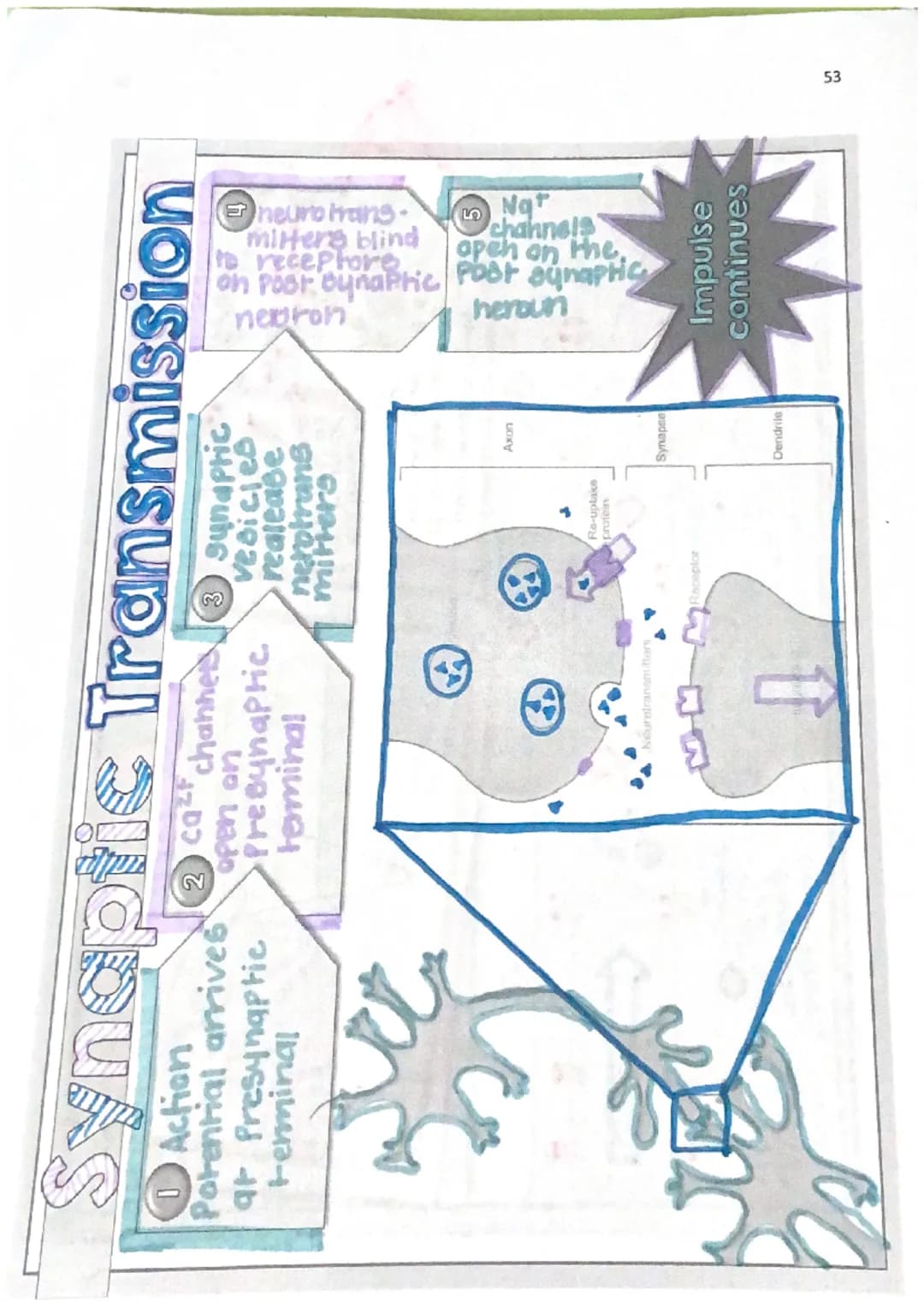

Synaptic Transmission Process

Synaptic transmission involves a complex sequence of events at the junction between neurons, utilizing specialized cellular structures and chemical messengers.

Definition: Synaptic transmission is the process by which neurons communicate through chemical signals called neurotransmitters.

Highlight: The process begins when an action potential arrives at the presynaptic terminal, triggering the release of neurotransmitters.

Example: Neurotransmitters are stored in synaptic vesicles and released into the synapse, where they bind to specific receptors on the postsynaptic neuron.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

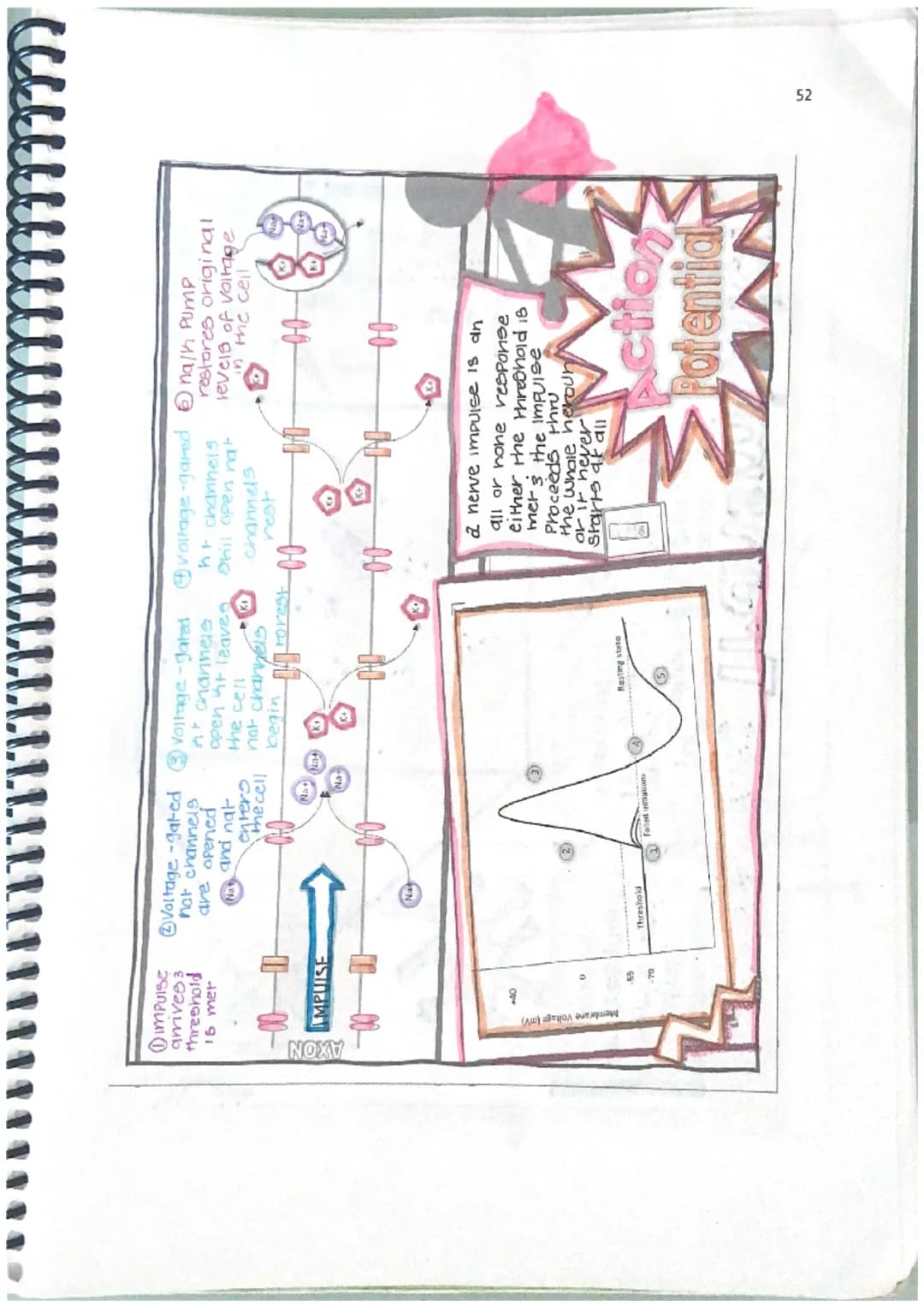

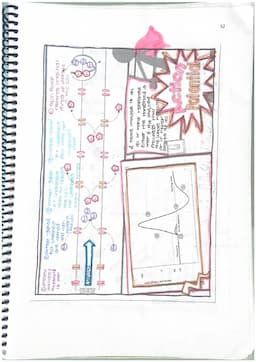

Nerve Impulse Propagation

The propagation of nerve impulses involves precisely coordinated changes in membrane voltage through the action of ion channels.

Definition: A nerve impulse is an all-or-none response that either fully propagates through the neuron or doesn't occur at all.

Highlight: Voltage-gated sodium and potassium channels open and close in sequence to create the action potential.

Example: When the membrane voltage reaches threshold, sodium channels open, allowing sodium ions to enter the cell, creating a rapid change in voltage.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

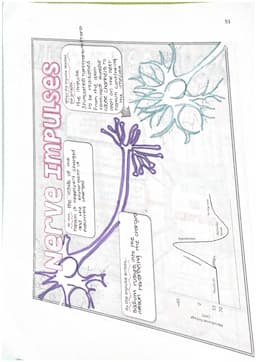

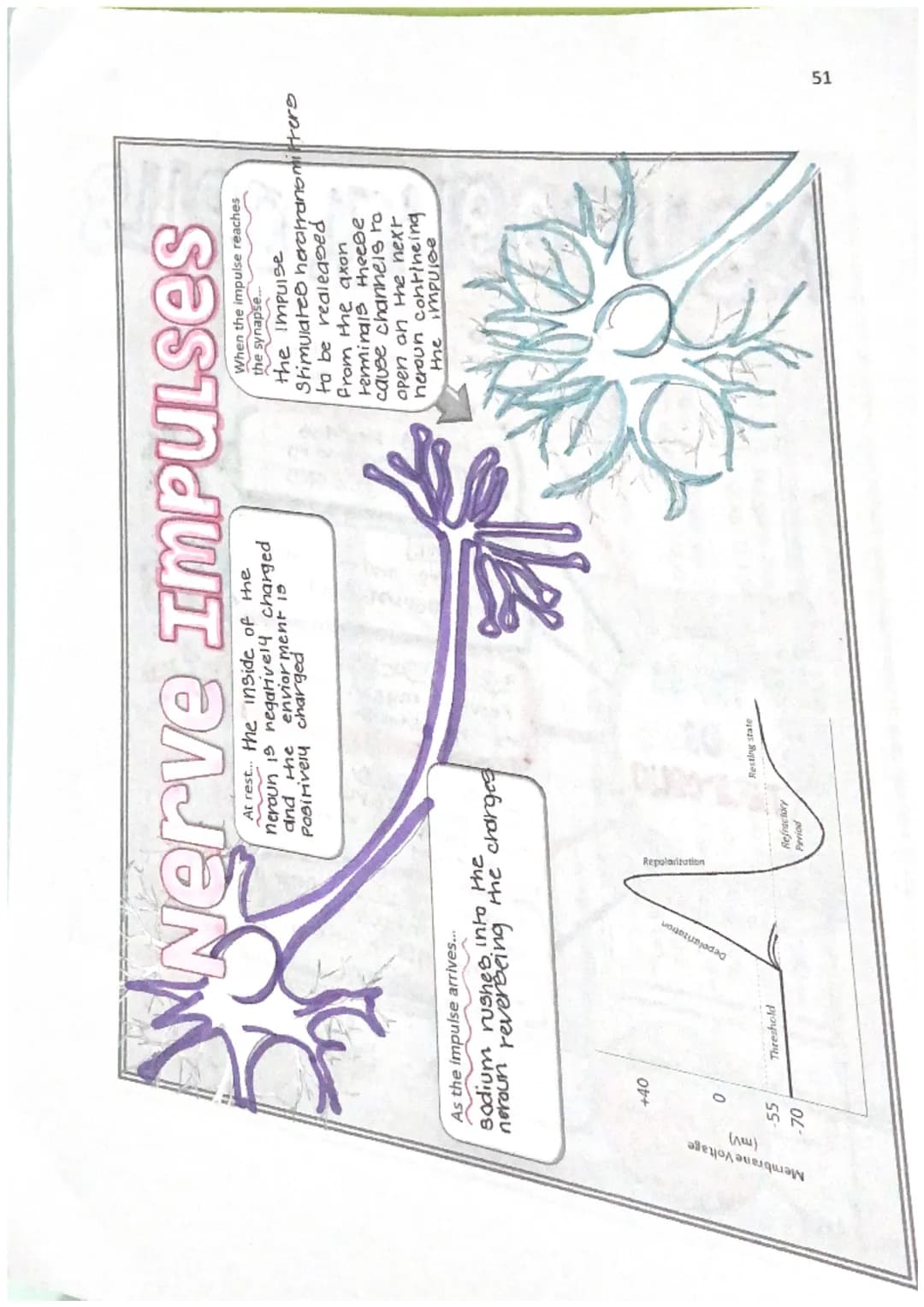

Neural Signal Transmission

The transmission of nerve impulses involves complex changes in electrical charge across the neuronal membrane and chemical signaling at synapses.

Definition: The resting state of a neuron maintains a negative internal charge relative to the external environment.

Highlight: During an action potential, sodium rushes into the neuron, temporarily reversing the membrane charge.

Example: At synapses, the arrival of an action potential triggers neurotransmitter release, which opens channels on the next neuron to continue signal propagation.

55 corpus wNSOTIDS Bundle of newe fibers that connect the right and left hemisphere Brain Anatomy Hypothalamus & Pruntary Gland Below thalam

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

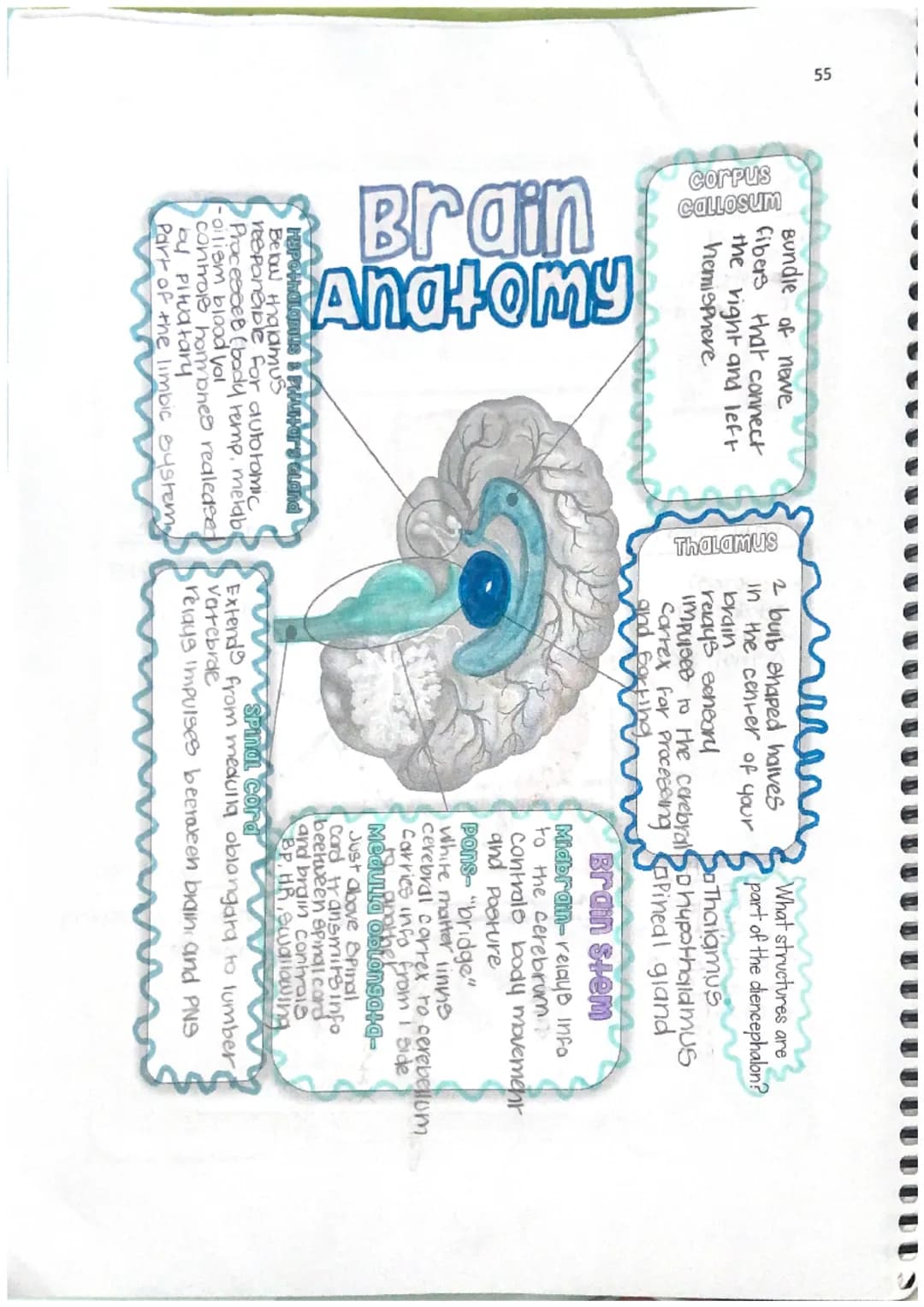

Brain Anatomy and Structure

The brain's fundamental organization includes two hemispheres connected by nerve fiber bundles, with the hypothalamus and thalamus forming key components of the diencephalon. The brain stem consists of three main parts that control essential functions.

Definition: The corpus callosum is a bundle of nerve fibers connecting the right and left brain hemispheres, enabling communication between them.

Highlight: The hypothalamus, located below the thalamus, controls autonomous processes like body temperature, metabolism, and blood volume while regulating hormone release by the pituitary gland.

Example: The brain stem's components work together like a relay system - the midbrain processes information to the cerebrum, the pons acts as a bridge linking different regions, and the medulla oblongata controls vital functions like blood pressure and heart rate.

Vocabulary: The medulla oblongata is the lowest part of the brain stem, responsible for transmitting information between the spinal cord and brain.
