Exploring Microscopy, Staining Techniques, and Microbial Classification

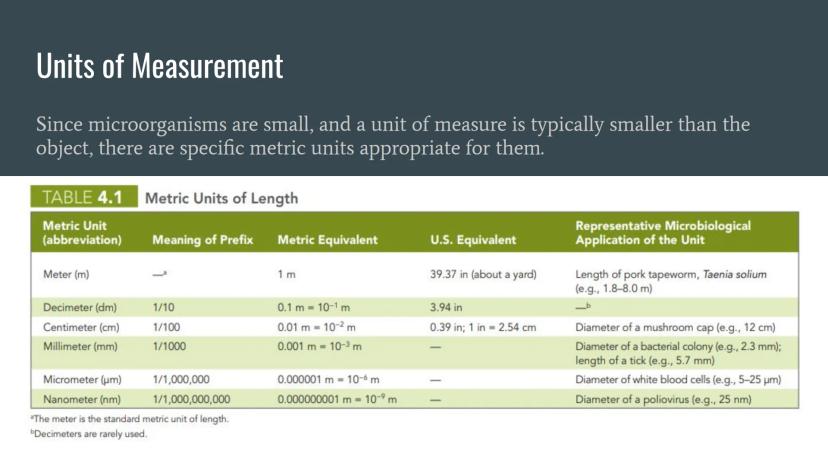

Units of Measurement in Microbiology

When studying microorganisms, scientists use special metric units because the organisms are so tiny. The standard metric unit is the meter $m$, but microbiologists often work with much smaller measurements.

Microbiologists commonly use micrometers (µm) and nanometers (nm) to describe microscopic organisms. A micrometer is one-millionth of a meter $10^-6 m$ and works well for measuring bacteria and white blood cells. A nanometer is one-billionth of a meter $10^-9 m$ and is perfect for measuring viruses.

To put these tiny measurements in perspective, a typical bacterium might measure 2-3 µm in diameter, while a virus could be just 25 nm wide. These organisms are far too small to see with the naked eye, which is why microscopes are essential tools in microbiology.

Did you know? The human eye can only see objects down to about 200 micrometers (0.2 mm) in size. That's why we need microscopes to observe most microorganisms!

Introduction to Microscopy

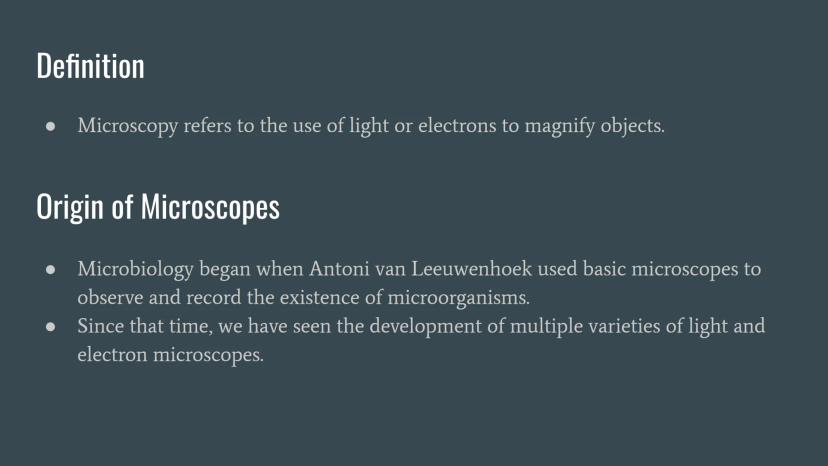

Microscopy is the use of light or electrons to magnify objects that are too small to see with the naked eye. The field of microbiology began when Antoni van Leeuwenhoek used basic microscopes to discover the existence of microorganisms in the 1670s.

Since Leeuwenhoek's time, scientists have developed many different types of microscopes. Each type offers different capabilities for observing microorganisms and their structures. Modern microscopes can reveal incredible details about microbes that help scientists identify and understand them.

Today's microscopes range from basic light microscopes used in school labs to powerful electron microscopes that can show the tiniest structures inside cells. The type of microscope used depends on what the scientist needs to observe and how much detail they need to see.

General Principles of Microscopy

All microscopes work by manipulating radiation to create magnified images of tiny objects. The type of radiation used affects how much detail you can see in the specimen.

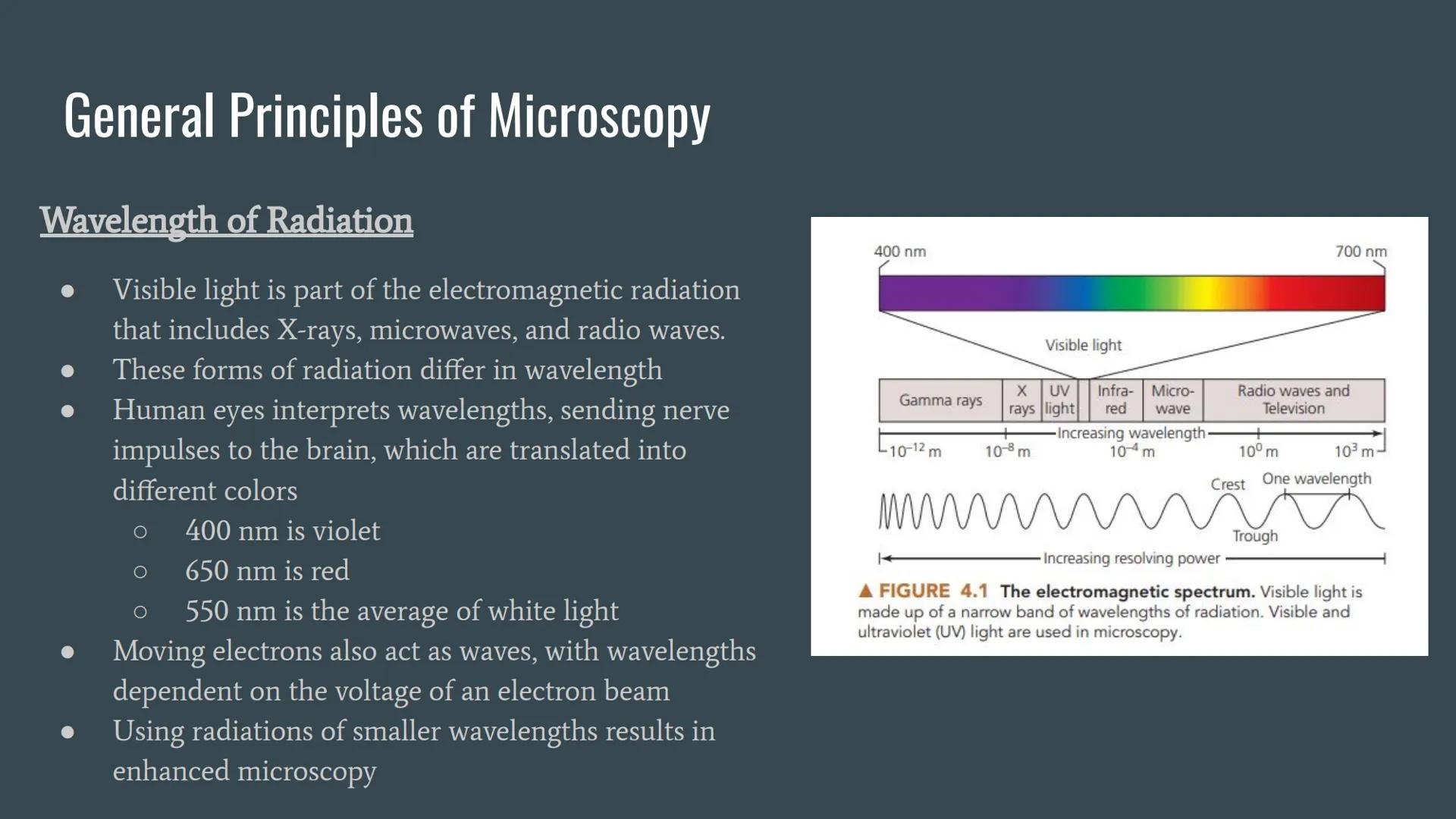

Wavelength plays a crucial role in microscopy. Visible light ranges from 400 nm (violet) to 700 nm (red). Shorter wavelengths provide better resolution, which is why electron microscopes (with wavelengths of about 0.001 nm) can show much more detail than light microscopes.

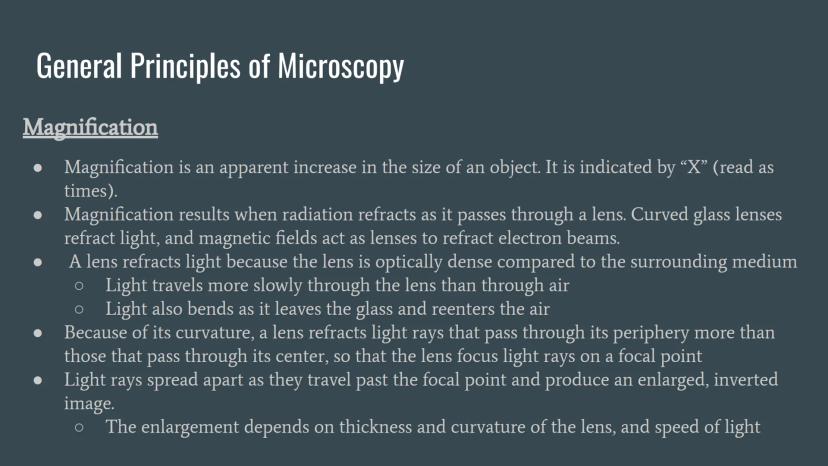

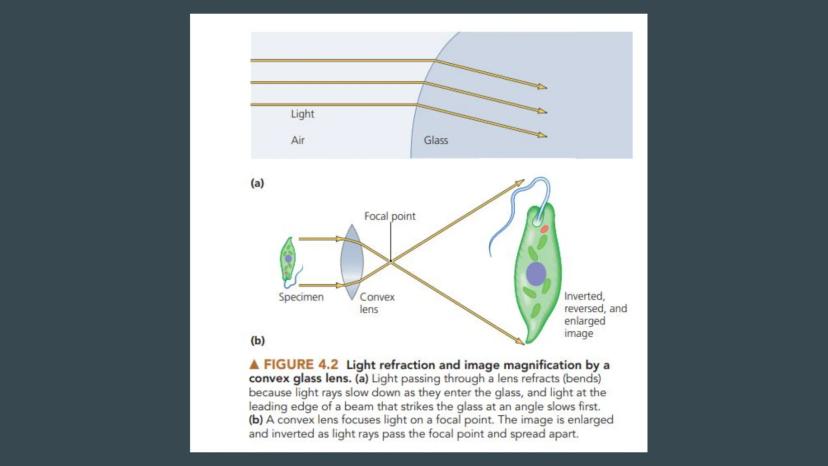

Magnification happens when radiation passes through a lens. For light microscopes, curved glass lenses refract (bend) light rays as they pass through. The light slows down in the glass and bends due to the lens curvature, creating an enlarged image. For electron microscopes, magnetic fields act as lenses to bend electron beams.

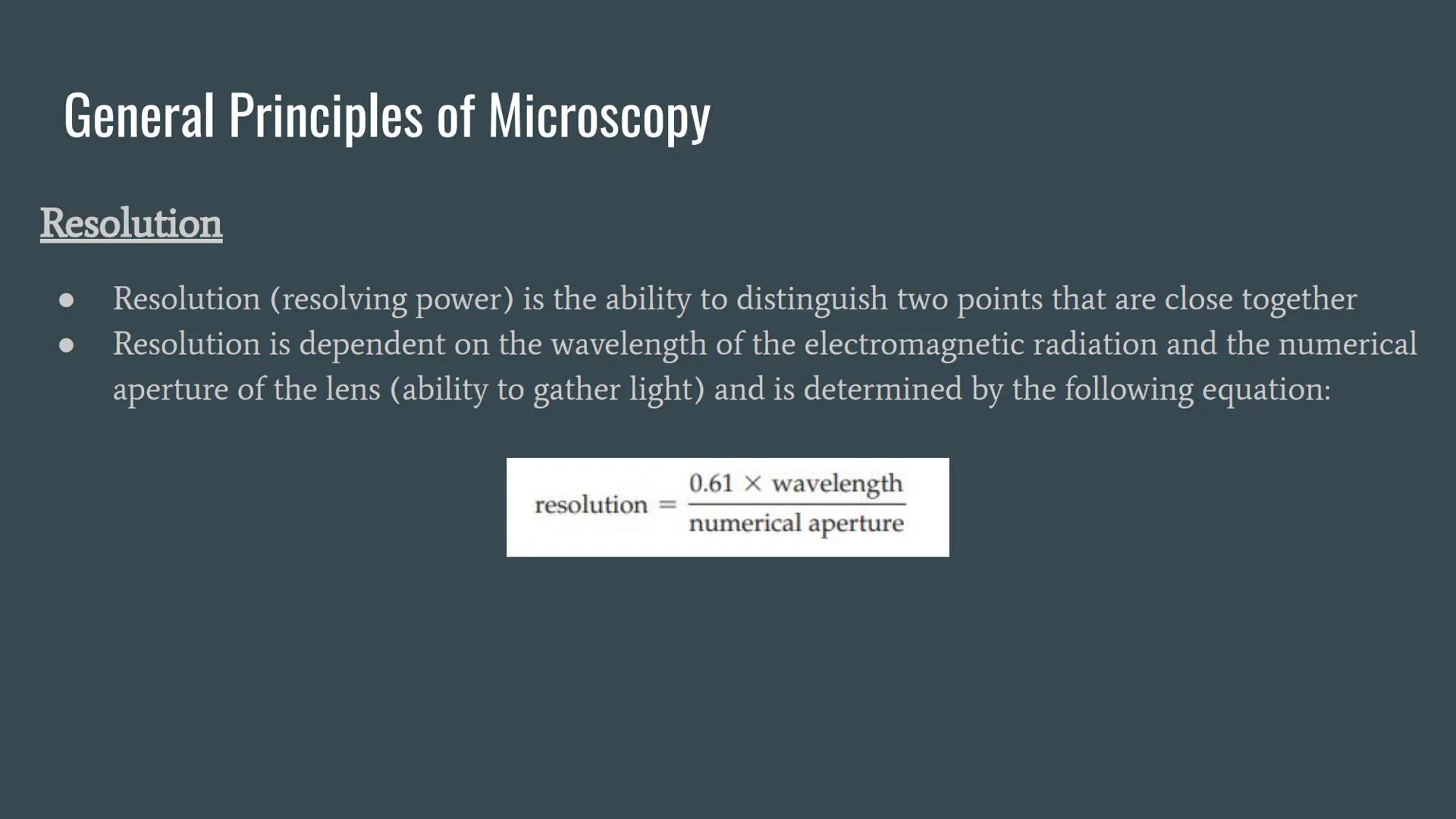

Resolution (or resolving power) refers to the ability to distinguish two points that are close together. Better resolution means seeing finer details. Resolution depends on both wavelength and the numerical aperture of the lens.

Think about it: Why can electron microscopes show much more detail than light microscopes? Because they use electron beams with wavelengths about 1,000 times shorter than visible light!

General Principles of Microscopy (Continued)

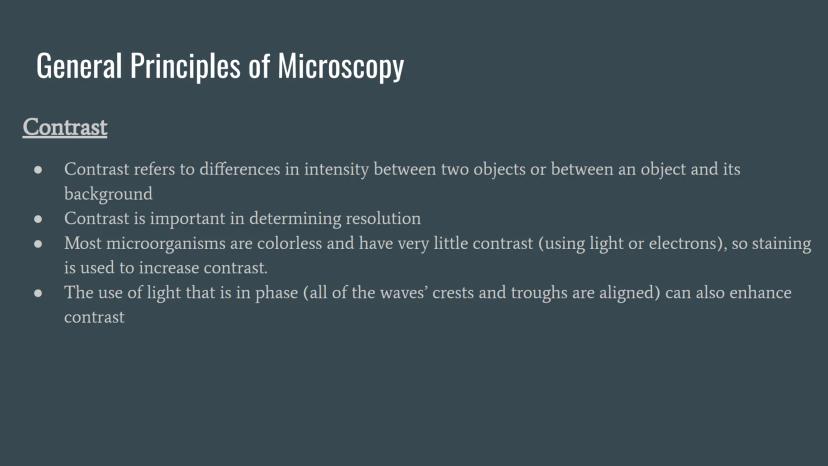

Contrast is critical for seeing details in microscopy. It refers to differences in intensity between an object and its background. Most microorganisms are nearly colorless and have very little natural contrast, making them difficult to see.

To improve contrast, scientists use several techniques:

• Staining specimens with dyes to add color
• Using special types of illumination
• Employing phase contrast techniques that enhance differences in refractive index

Without good contrast, even high magnification and resolution won't help you see microscopic details clearly. This is why staining techniques are so important in microbiology.

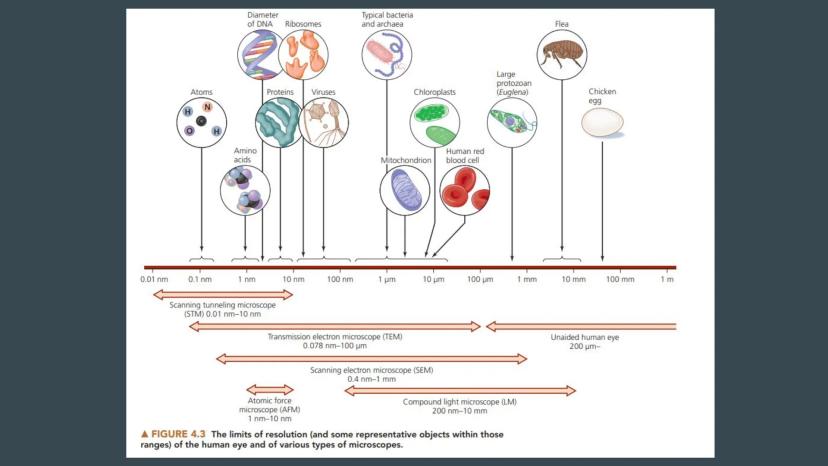

The human eye can see objects as small as 200 μm, but many microorganisms are much smaller. Different microscopes have different resolution limits, ranging from 200 nm for light microscopes to as small as 0.01 nm for specialized probe microscopes. This range allows scientists to observe everything from whole bacteria to individual atoms.

Light Microscopy Overview

Light microscopes use visible light to examine specimens and are the most common microscopes in microbiology labs. There are several types, each with unique advantages:

Bright-field microscopes are the standard microscopes most people are familiar with. They illuminate the specimen from below, creating a bright background with darker objects. They're great for basic observation but provide limited contrast for colorless specimens.

Dark-field microscopes make specimens appear bright against a dark background, improving visibility of pale or transparent specimens. This technique is useful for observing spirochetes and other thin bacteria.

Phase microscopes enhance contrast by using light wave alignment techniques. They're excellent for viewing living, unstained cells and revealing internal structures without harming the specimen.

Fluorescence microscopes use ultraviolet light to make specimens glow. Some organisms naturally fluoresce, while others can be stained with fluorescent dyes. This technique is valuable for detecting specific bacteria or cell components.

Confocal microscopes use lasers to illuminate thin sections of a specimen, creating sharp images without blurring from surrounding areas. They're especially useful for examining complex microbial communities like biofilms.

Bright-Field Microscopy

Bright-field microscopes are the workhorses of microbiology labs. They come in two main varieties:

Simple microscopes have just a single magnifying lens, similar to a magnifying glass. Leeuwenhoek used this type to make his groundbreaking discoveries in the 1670s, achieving about 300× magnification. Despite their simplicity, his handcrafted lenses revealed microorganisms never before seen.

Compound microscopes use multiple lenses to achieve greater magnification and clarity. They've been around since 1590, but only in the 1830s did they surpass Leeuwenhoek's simple microscopes in performance. Today's compound microscopes are what you typically see in labs.

Modern compound microscopes have a series of objective lenses mounted on a revolving nosepiece, typically offering:

• Scanning lens (4×)
• Low-power lens (10×)
• High-power lens (40×)
• Oil immersion lens (100×)

The oil immersion lens is particularly important because it improves resolution by eliminating air between the slide and lens. This allows more light rays to enter the lens, producing clearer images of tiny structures.

Pro tip: When using a compound microscope, always start with the lowest power objective lens and work your way up to higher magnifications. This makes it easier to locate and focus on your specimen!

Bright-Field Microscopy (Continued)

In a compound microscope, the objective lens creates the initial magnified image. This image is then further magnified by the ocular lens (eyepiece), which typically provides 10× magnification.

To calculate the total magnification, simply multiply the power of the objective lens by the power of the ocular lens. For example, using a 40× objective with a 10× ocular gives 400× total magnification.

Light microscopes have a practical magnification limit of about 2000×. Beyond this, increasing magnification doesn't reveal more detail because the resolution is limited by the wavelength of visible light (about 550 nm for white light).

Modern compound microscopes include several important components:

• A condenser lens that focuses light through the specimen
• Mirrors or prisms that direct light along the optical path
• Coarse and fine focus knobs for precise focusing
• A diaphragm to control the amount of light

These features allow scientists to observe microorganisms clearly and make detailed observations about their size, shape, and arrangement.

Special Light Microscopy Techniques

Standard bright-field microscopy works well for stained specimens, but microbiologists often need to view specimens in different ways. Special techniques enhance contrast or highlight specific features.

Dark-field microscopy makes pale objects appear bright against a dark background. This technique directs light at an angle so that only light scattered by the specimen enters the objective lens. Dark-field microscopy is excellent for viewing small, transparent organisms like spirochetes that might be nearly invisible with bright-field illumination.

Phase-contrast microscopy takes advantage of light wave properties to create contrast in unstained specimens. It converts tiny differences in refractive index into visible differences in brightness. This technique is invaluable for examining living cells without having to kill and stain them.

Differential interference contrast (DIC) microscopy creates a three-dimensional appearance with enhanced contrast and sometimes produces colorful images that highlight cellular structures. This makes internal features stand out dramatically.

These special techniques allow microbiologists to observe living microorganisms in their natural state, revealing details about movement, internal structures, and cellular processes that might be lost during staining procedures.

Fluorescence and Confocal Microscopy

Fluorescence microscopy utilizes special molecules that absorb invisible ultraviolet (UV) light and emit visible light in response. This technique creates stunning images with exceptional contrast.

Some microorganisms naturally fluorescence, while others can be stained with fluorescent dyes. For example, fluorescein isothiocyanate specifically stains Bacillus anthracis cells. One powerful application is immunofluorescence, where fluorescent dyes are attached to antibodies that bind to specific targets. This allows scientists to locate specific proteins or identify particular pathogens.

Confocal microscopy takes fluorescence techniques further by using UV lasers to illuminate just a thin section of the specimen at a time. This eliminates the blurring caused by light from other planes and increases resolution by about 40%. The microscope captures a series of these "optical slices" that can be combined by a computer to create detailed 3D images.

Confocal microscopy is particularly valuable for studying biofilms, which are complex communities of microorganisms living together in a shared matrix. The 3D visualization helps scientists understand the spatial relationships between different organisms within these communities.

Amazing fact: With fluorescence microscopy, scientists can tag specific proteins or DNA sequences with different colored dyes, allowing them to track multiple cellular components simultaneously!

Electron Microscopy Basics

Light microscopes are limited by the wavelength of visible light, which means they can't resolve structures closer than about 200 nm apart. To see smaller structures, scientists use electron microscopy.

Electron microscopes use beams of electrons instead of light. Since electrons have wavelengths around 0.001 nm (much shorter than visible light), electron microscopes can achieve much higher resolution and magnification. This allows scientists to see the smallest bacteria, viruses, and internal cell structures that would be invisible with light microscopy.

There are two main types of electron microscopes:

Transmission Electron Microscopes (TEM) pass electrons through an ultra-thin specimen. The electrons that pass through create an image on a fluorescent screen or photographic film. TEMs reveal incredible internal detail but require very thin samples.

Scanning Electron Microscopes (SEM) scan a beam of electrons across the surface of a specimen. The electrons that bounce off create a detailed image of the surface topography. SEMs produce striking three-dimensional images of specimen surfaces.

Electron microscopes require a vacuum environment because air molecules would scatter the electron beam. This means that specimens must be specially prepared and cannot be observed alive.
