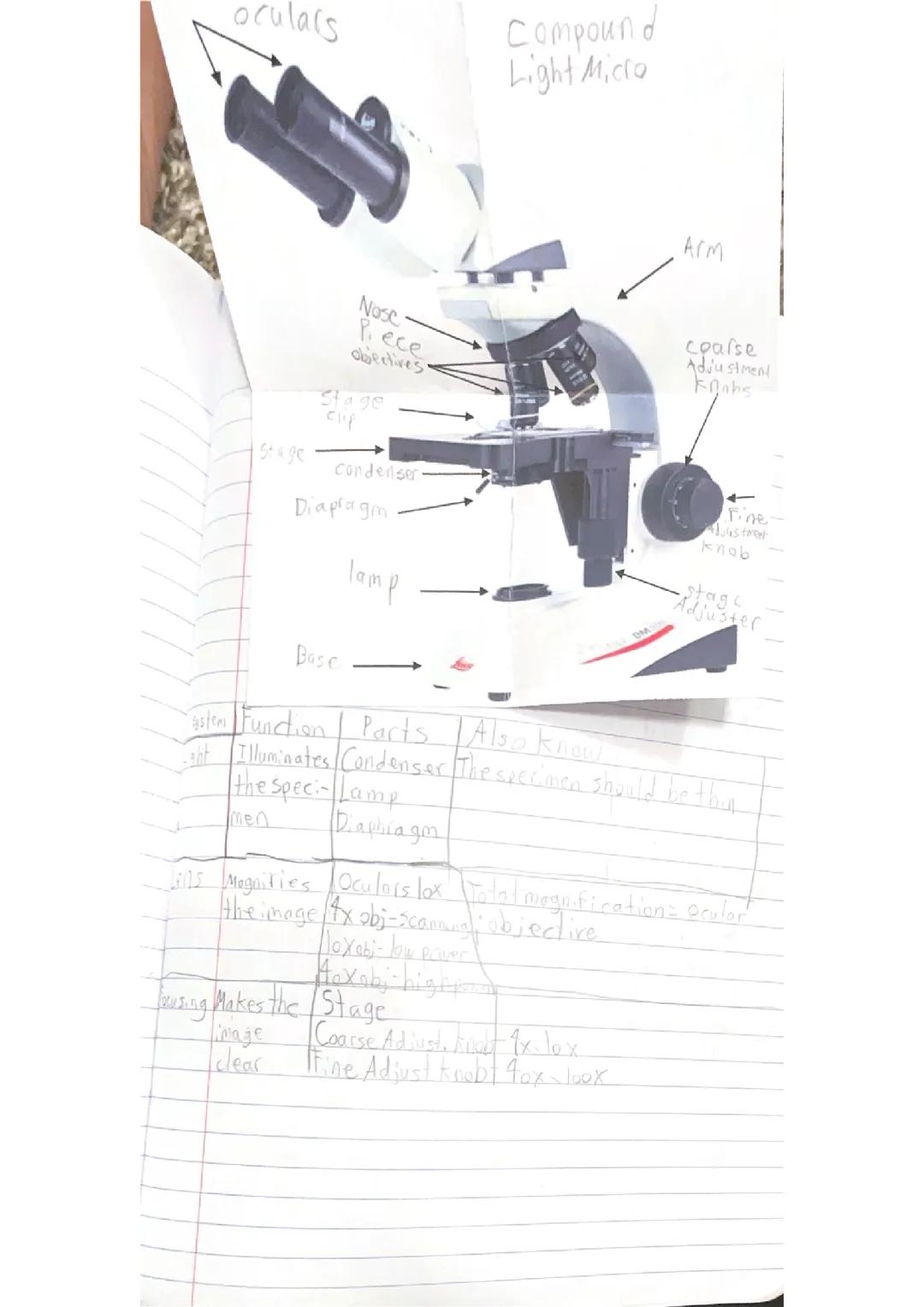

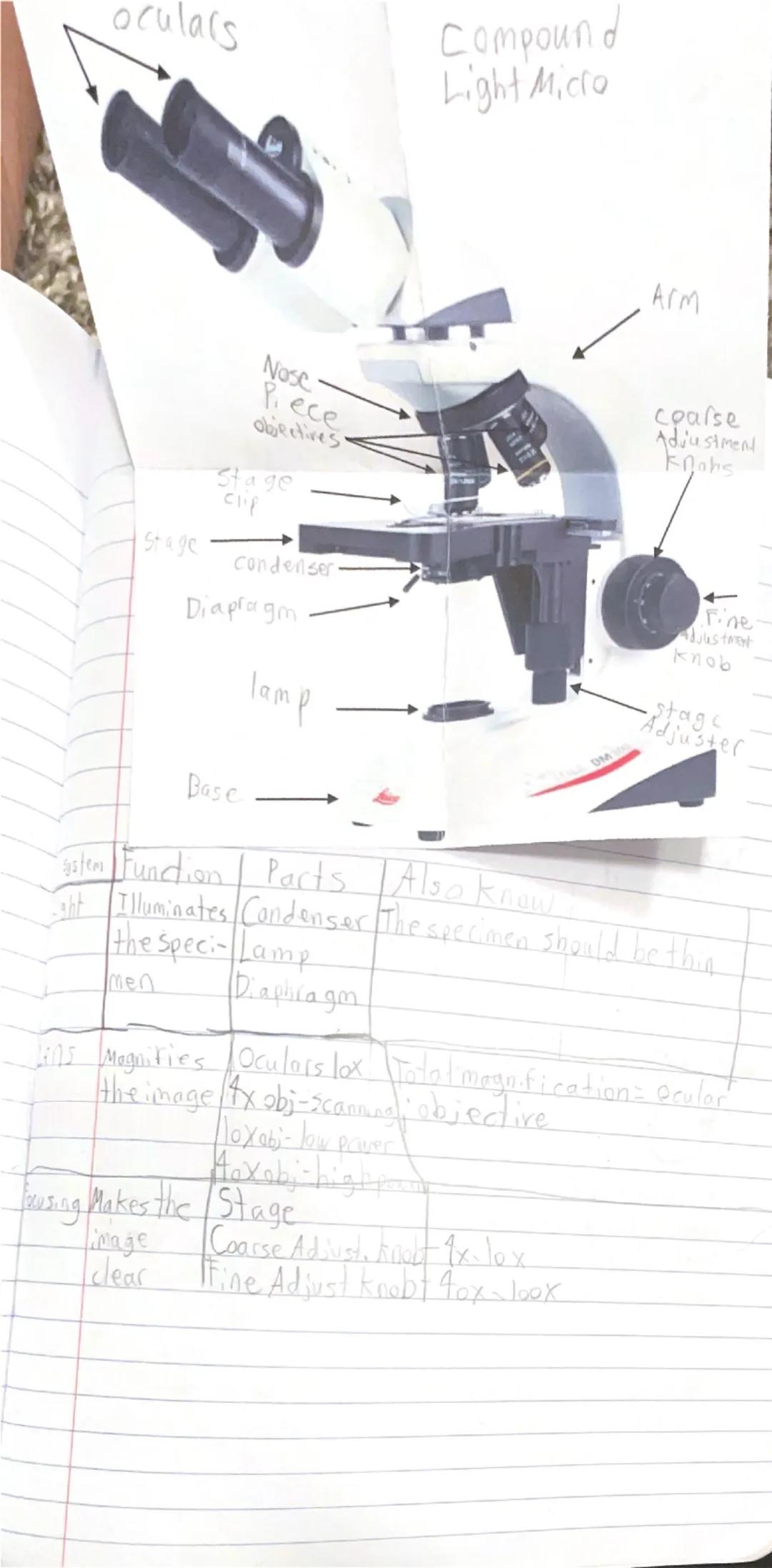

Parts of a Compound Light Microscope
Ever wondered how scientists see things that are invisible to the naked eye? A compound light microscope has several key parts that work together to magnify tiny specimens. At the top, you'll find the oculars (eyepieces), typically providing 10× magnification, where you look through to see the magnified image.
The microscope body includes the arm for carrying, and the nose piece which holds multiple objective lenses (scanning, low power, and high power). These objectives provide different magnification levels - typically 4×, 10×, and 40× or 100×. The stage holds your specimen with stage clips, while adjustment knobs help you focus.
Light travels from the lamp in the base through the diaphragm and condenser to illuminate your specimen. The coarse adjustment knob makes large focusing movements, while the fine adjustment knob allows precise focusing for clear viewing.
Remember: Total magnification equals ocular magnification multiplied by objective magnification. For example, using the 10× ocular with the 40× objective gives you 400× total magnification!
For successful viewing, specimens should be thin enough for light to pass through. Different objectives work at different distances - the scanning (4×) and low power (10×) are safer to use first before switching to high power , which requires closer positioning to the specimen.
