DNA Replication, Transcription, and Translation in Eukaryotes and Prokaryotes: A Comprehensive Guide

This guide provides an in-depth overview of DNA replication, transcription, and translation processes in both eukaryotes and prokaryotes. It covers the key differences between these cell types, the central dogma of molecular biology, and the detailed steps involved in each process. The guide also explores gene regulation mechanisms in bacteria and eukaryotes, as well as introduces basic biotechnology techniques.

• Key topics include nucleotide structure, DNA and RNA composition, the semi-conservative nature of DNA replication, the roles of various enzymes in replication, the steps of transcription and translation, and the mechanisms of gene regulation in different organisms.

• The guide emphasizes the importance of understanding these fundamental processes for comprehending cellular function, genetic inheritance, and the application of biotechnology in various fields.

11/5/2023

250

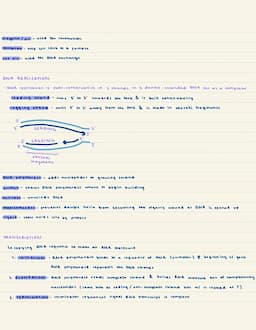

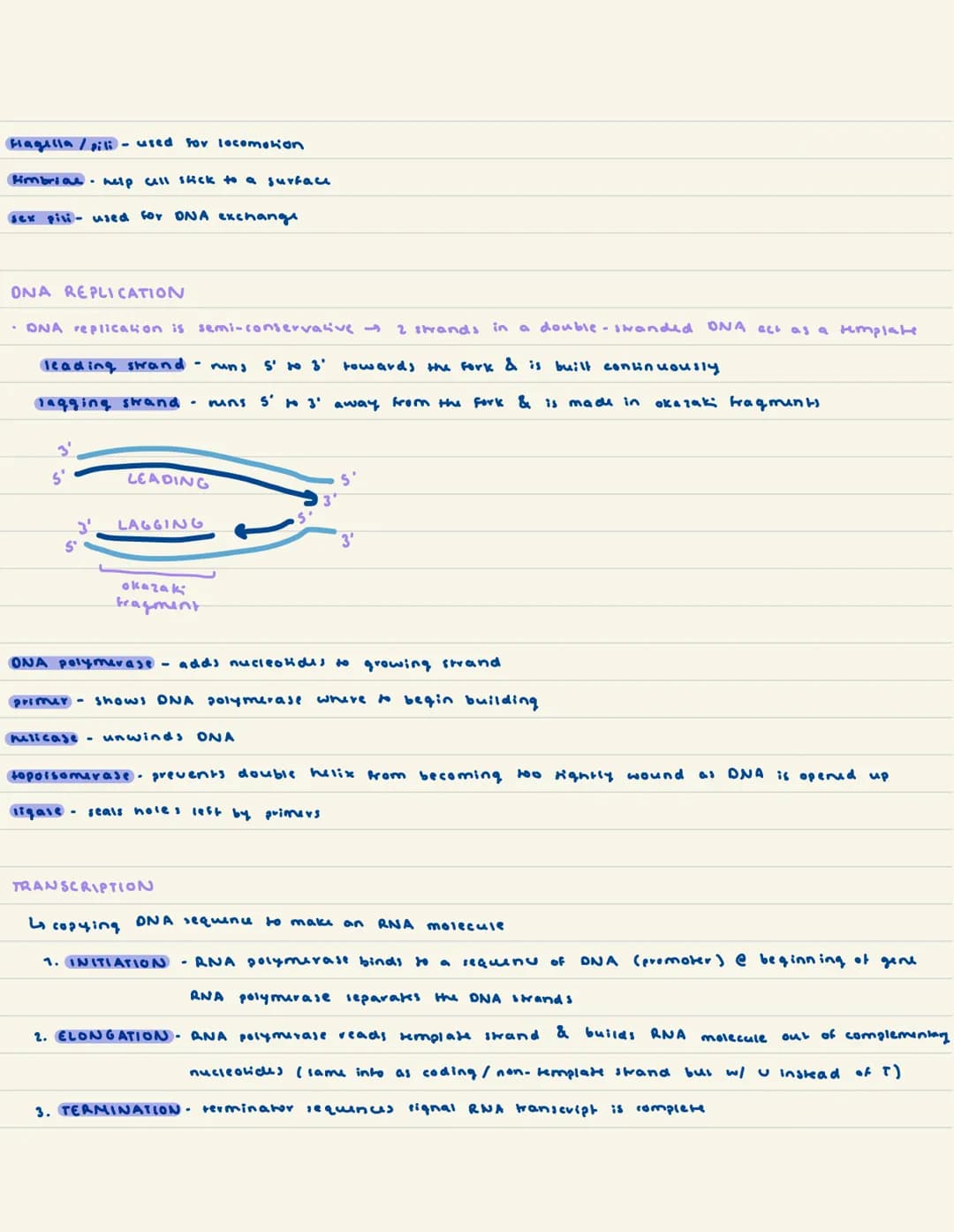

DNA Replication and Transcription

This section delves into the processes of DNA replication and transcription, providing detailed explanations of the mechanisms involved in both prokaryotes and eukaryotes.

DNA Replication is described as a semi-conservative process, where each strand of the original DNA molecule serves as a template for the synthesis of a new complementary strand. The guide explains the concept of leading and lagging strands:

  • Leading strand: Runs 5' to 3' towards the replication fork and is built continuously
  • Lagging strand: Runs 5' to 3' away from the fork and is made in Okazaki fragments

Definition: Okazaki fragments are short segments of DNA synthesized on the lagging strand during DNA replication.

The roles of various enzymes involved in DNA replication are outlined:

  • DNA polymerase: Adds nucleotides to the growing strand
  • Helicase: Unwinds the DNA double helix
  • Topoisomerase: Prevents the double helix from becoming too tightly wound
  • Ligase: Seals the gaps left by primers

Highlight: The enzymes involved in DNA replication work together to ensure accurate and efficient copying of genetic material.

Transcription is described as the process of copying a DNA sequence to make an RNA molecule. The guide breaks down transcription into three main steps:

  1. Initiation: RNA polymerase binds to a sequence of DNA called the promoter at the beginning of a gene
  2. Elongation: RNA polymerase reads the template strand and builds an RNA molecule using complementary nucleotides
  3. Termination: Specific sequences signal that the RNA transcript is complete

Example: During transcription, the DNA sequence ATGCTA would be transcribed to the RNA sequence UACGAU, with uracil (U) replacing thymine (T).

The guide emphasizes that transcription is a crucial step in gene expression, producing various types of RNA molecules that play different roles in cellular function.

Unit 6
eukaryoles. ONA found in nucleus
pro karyores: DNA not enclosed in membranous envelope located in the nucleoid region
chromosomus in

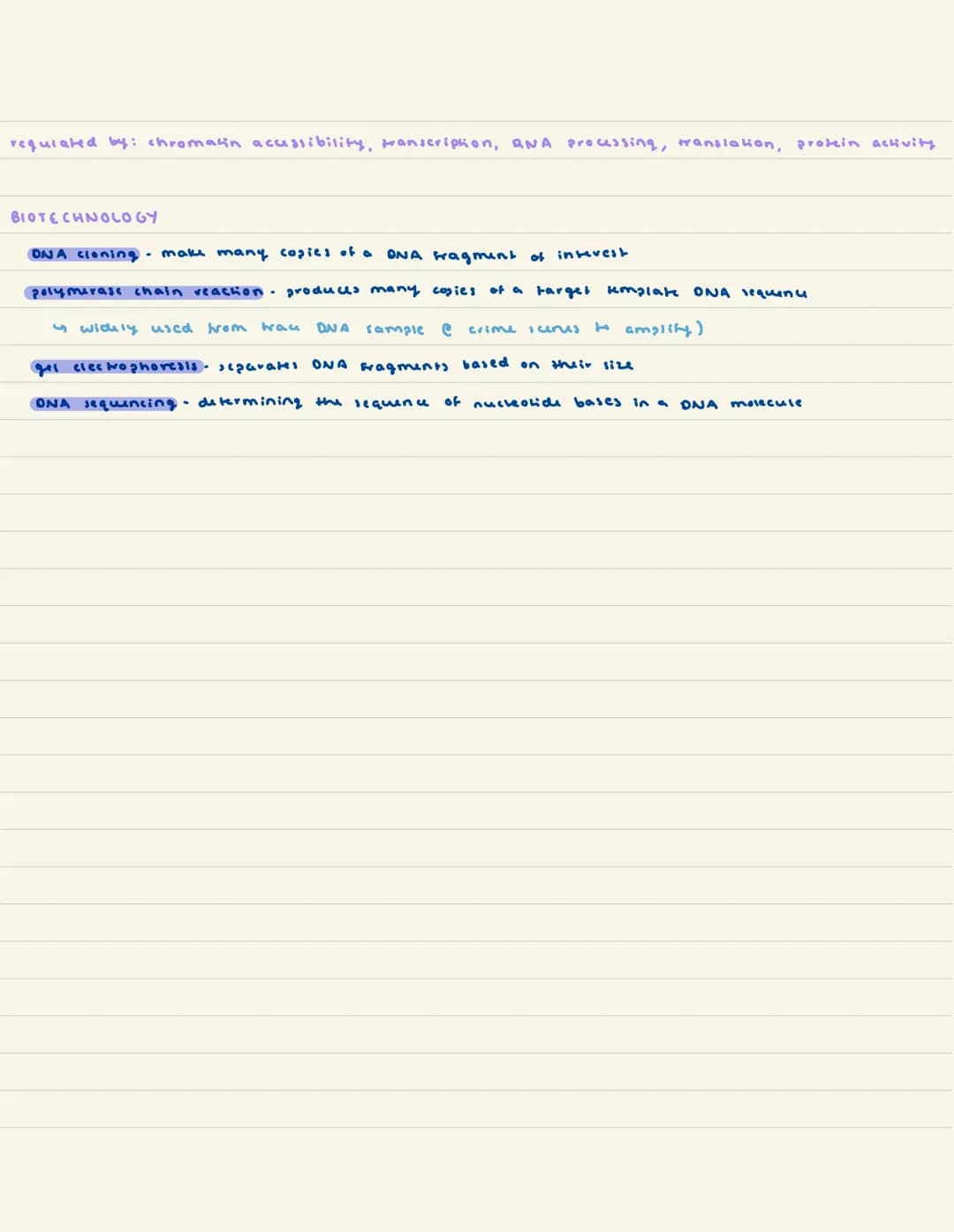

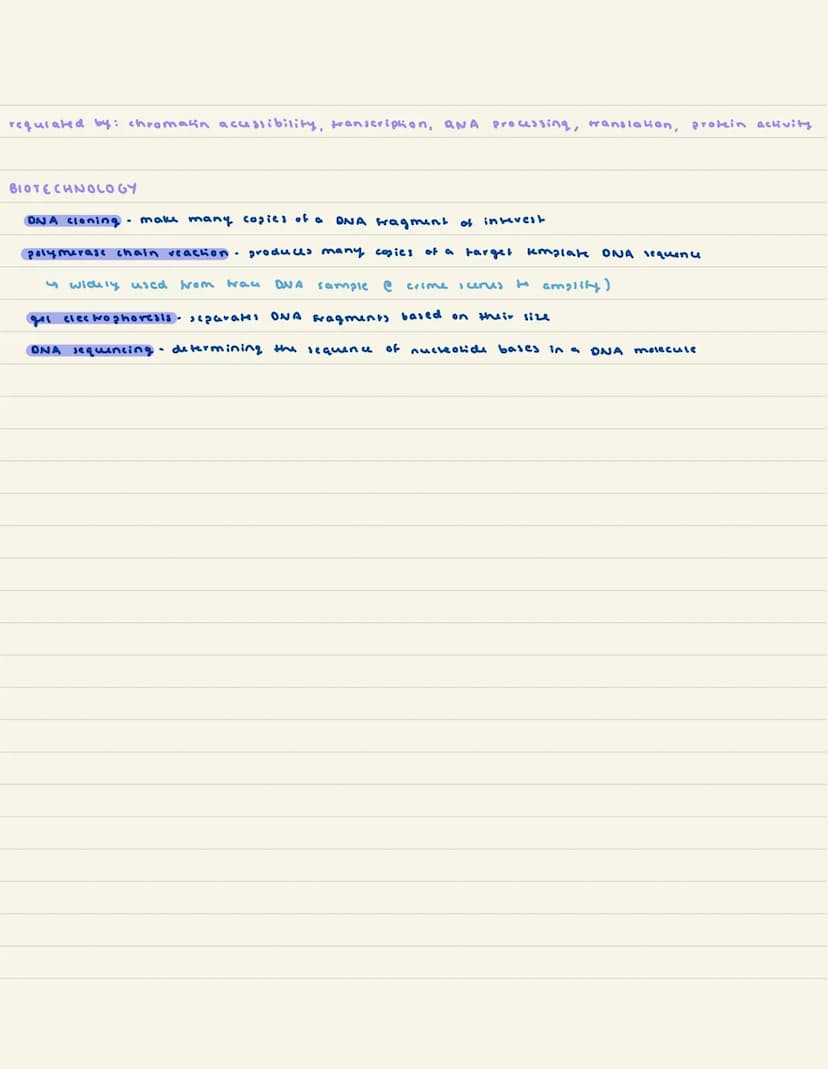

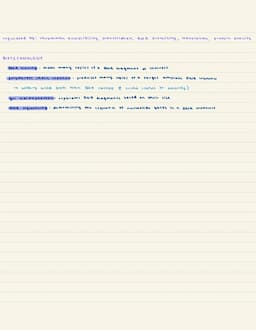

Biotechnology Techniques

This final section introduces some basic biotechnology techniques that utilize the principles of DNA replication, transcription, and translation.

DNA cloning is described as a method to make many copies of a DNA fragment of interest. The guide explains that this technique is essential for studying specific genes or producing large quantities of a particular DNA sequence.

Polymerase Chain Reaction (PCR) is introduced as a powerful technique that can produce many copies of a target DNA sequence quickly. The guide highlights its applications in various fields:

  • Forensic science for analyzing DNA samples from crime scenes
  • Medical diagnostics for detecting genetic diseases or pathogens
  • Research for amplifying specific genes for further study

Definition: PCR (Polymerase Chain Reaction) is a technique that uses repeated cycles of heating and cooling to amplify a specific DNA sequence.

Gel electrophoresis is described as a method to separate DNA fragments based on their size. The guide explains that this technique is commonly used in conjunction with PCR and DNA cloning to analyze and purify DNA samples.

DNA sequencing is introduced as the process of determining the sequence of nucleotide bases in a DNA molecule. The guide emphasizes the importance of this technique in modern biology and medicine, enabling researchers to:

  • Identify genes and their functions
  • Detect genetic variations associated with diseases
  • Study evolutionary relationships between organisms

Highlight: Advances in DNA sequencing technologies have revolutionized many areas of biology and medicine, including personalized medicine and genomics research.

The section concludes by emphasizing the interconnectedness of these biotechnology techniques with the fundamental processes of DNA replication, transcription, and translation, highlighting how understanding these basic cellular mechanisms has led to powerful tools for scientific research and medical applications.

Unit 6
eukaryoles. ONA found in nucleus
pro karyores: DNA not enclosed in membranous envelope located in the nucleoid region
chromosomus in

View

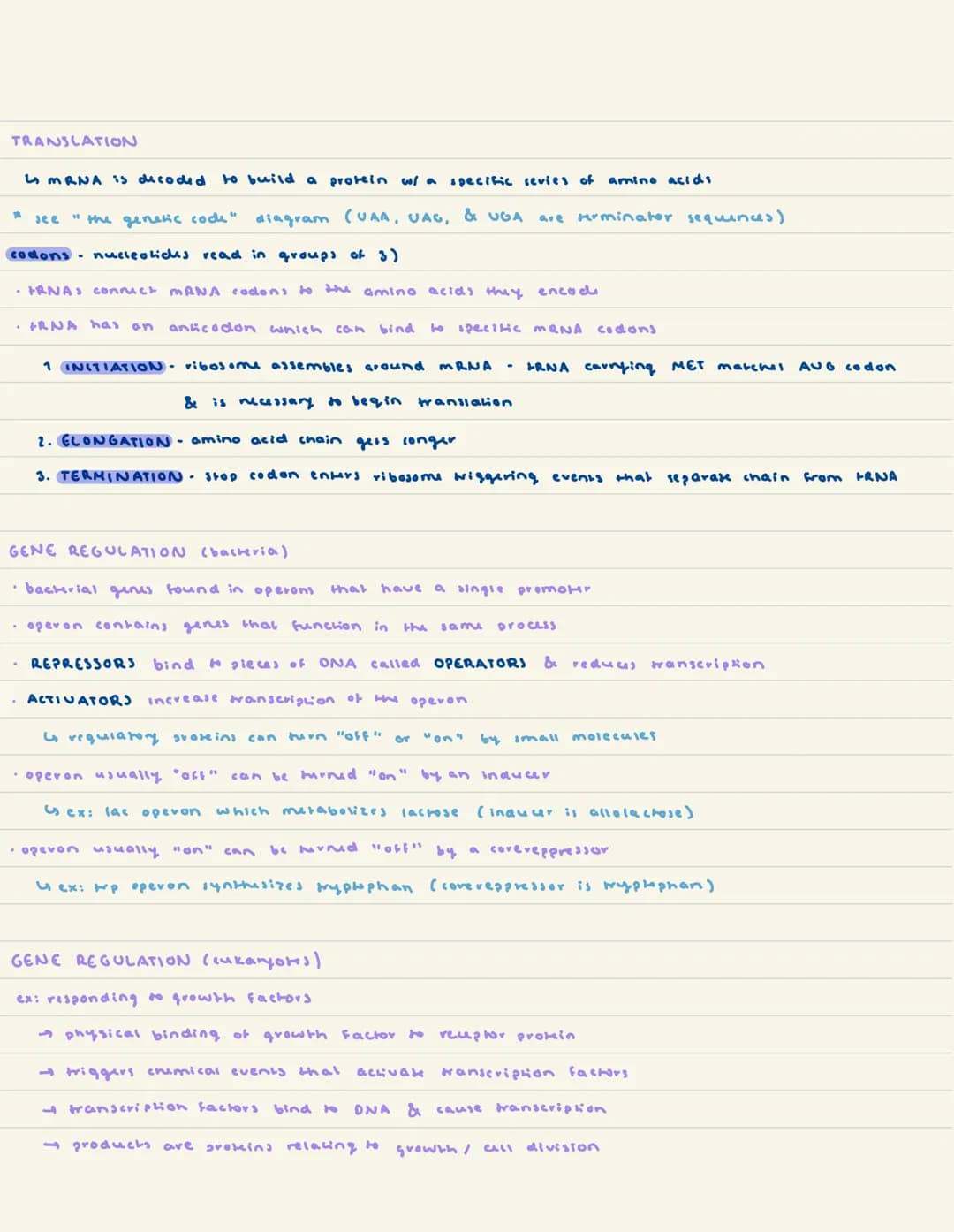

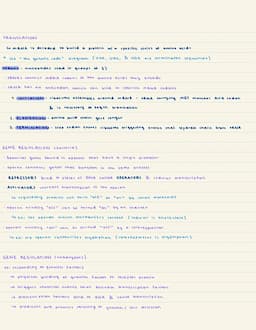

Translation and Gene Regulation

This section focuses on the process of translation and the mechanisms of gene regulation in both prokaryotes and eukaryotes.

Translation is described as the process where mRNA is decoded to build a protein with a specific sequence of amino acids. The guide explains the concept of the genetic code, where codons (groups of three nucleotides) specify amino acids or signal the start or stop of translation.

The three main steps of translation are outlined:

  1. Initiation: The ribosome assembles around the mRNA, with a special tRNA carrying methionine binding to the start codon (AUG)
  2. Elongation: The amino acid chain grows as tRNAs bring amino acids to the ribosome based on the mRNA codons
  3. Termination: A stop codon (UAA, UAG, or UGA) enters the ribosome, triggering the release of the completed protein

Vocabulary: tRNA (transfer RNA) molecules have an anticodon that can bind to specific mRNA codons, bringing the corresponding amino acid to the ribosome.

The guide then explores gene regulation in bacteria, introducing the concept of operons:

  • Operons are groups of genes with a single promoter that function in the same process
  • Repressors and activators can turn genes "off" or "on" by binding to specific DNA sequences
  • Inducible operons (e.g., lac operon) are usually "off" and can be turned "on" by an inducer molecule
  • Repressible operons (e.g., trp operon) are usually "on" and can be turned "off" by a corepressor

Example: The lac operon, which controls genes for lactose metabolism, is induced by the presence of allolactose (a derivative of lactose).

Gene regulation in eukaryotes is described as more complex, involving multiple levels of control:

  • Chromatin accessibility
  • Transcription factor binding
  • RNA processing
  • Translation
  • Protein activity

The guide uses the example of growth factor signaling to illustrate how external signals can lead to changes in gene expression in eukaryotic cells.

Highlight: Understanding gene regulation is crucial for comprehending how cells respond to environmental changes and control their growth and development.

Unit 6
eukaryoles. ONA found in nucleus
pro karyores: DNA not enclosed in membranous envelope located in the nucleoid region
chromosomus in

View

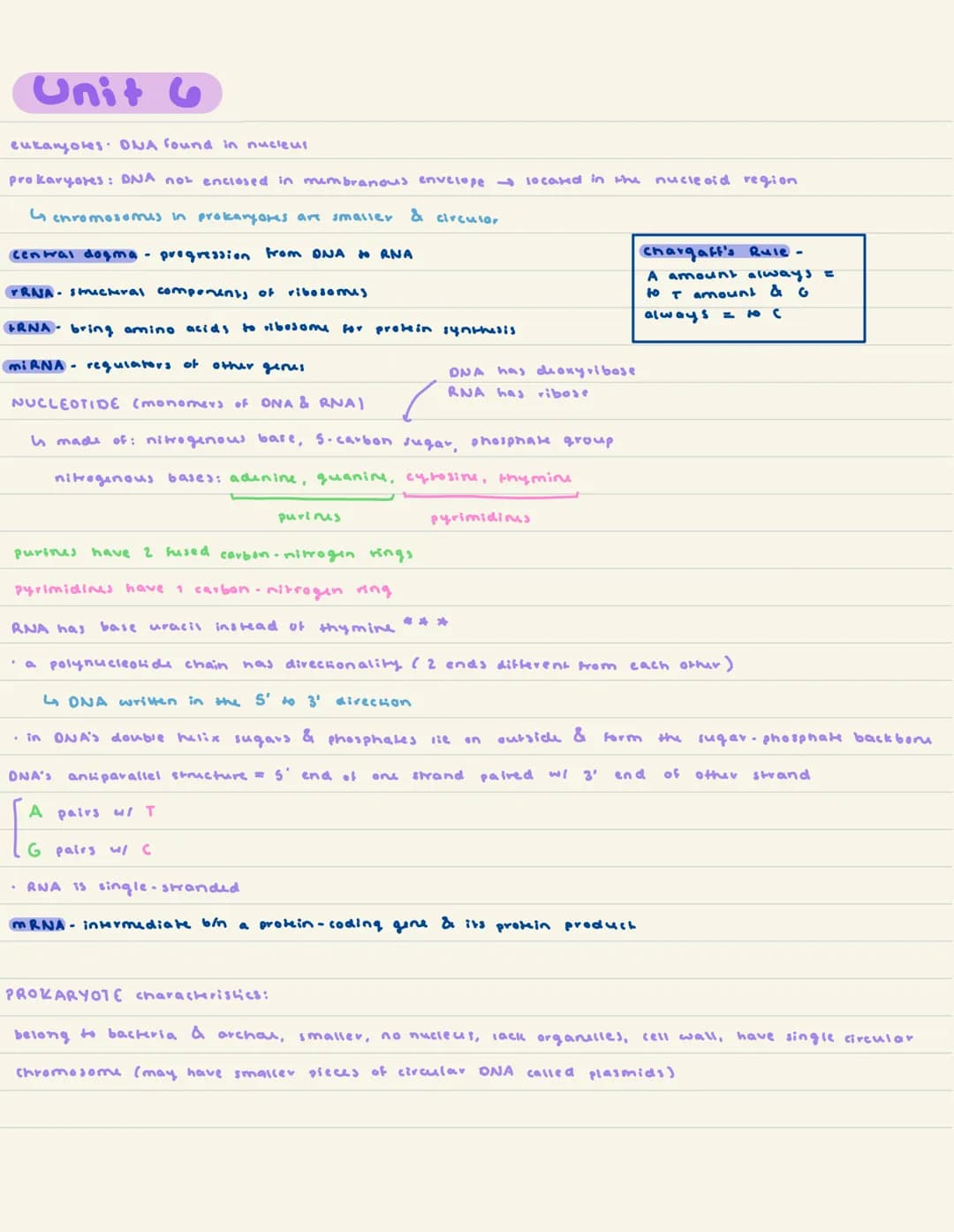

DNA Structure and Cell Types

This section introduces the fundamental differences between eukaryotic and prokaryotic cells, focusing on their DNA organization and cellular structures.

Eukaryotes have their DNA enclosed within a nucleus, while prokaryotes (bacteria and archaea) have their DNA located in the nucleoid region without a membrane envelope. Prokaryotic chromosomes are typically smaller and circular compared to the larger, linear chromosomes found in eukaryotes.

The guide also introduces the central dogma of molecular biology, which describes the flow of genetic information from DNA to RNA to proteins. Various types of RNA are mentioned, including:

  • rRNA: Structural components of ribosomes
  • tRNA: Responsible for bringing amino acids to ribosomes during protein synthesis
  • miRNA: Regulators of other genes

Definition: The central dogma of molecular biology describes the flow of genetic information from DNA to RNA (transcription) and from RNA to proteins (translation).

The structure of nucleotides, the building blocks of DNA and RNA, is explained in detail. Nucleotides consist of a nitrogenous base, a 5-carbon sugar, and a phosphate group. The guide distinguishes between the two types of nitrogenous bases:

  1. Purines (Adenine and Guanine): Have two fused carbon-nitrogen rings
  2. Pyrimidines (Cytosine, Thymine, and Uracil): Have one carbon-nitrogen ring

Highlight: DNA contains the sugar deoxyribose, while RNA contains ribose. RNA uses uracil instead of thymine found in DNA.

The section concludes by discussing the directionality of DNA strands, Chargaff's Rule, and the antiparallel structure of the DNA double helix.

Vocabulary: Chargaff's Rule states that in DNA, the amount of adenine (A) always equals the amount of thymine (T), and the amount of guanine (G) always equals the amount of cytosine (C).

Unit 6
eukaryoles. ONA found in nucleus
pro karyores: DNA not enclosed in membranous envelope located in the nucleoid region
chromosomus in

View
