Advanced Pump Performance Analysis
This section extends the affinity laws calculator concepts by combining diameter and speed changes. The analysis includes practical calculations for industrial applications in chemical engineering lab equipment.
Vocabulary: Demurrage charges - Fees imposed when loading/unloading operations exceed agreed time limits.

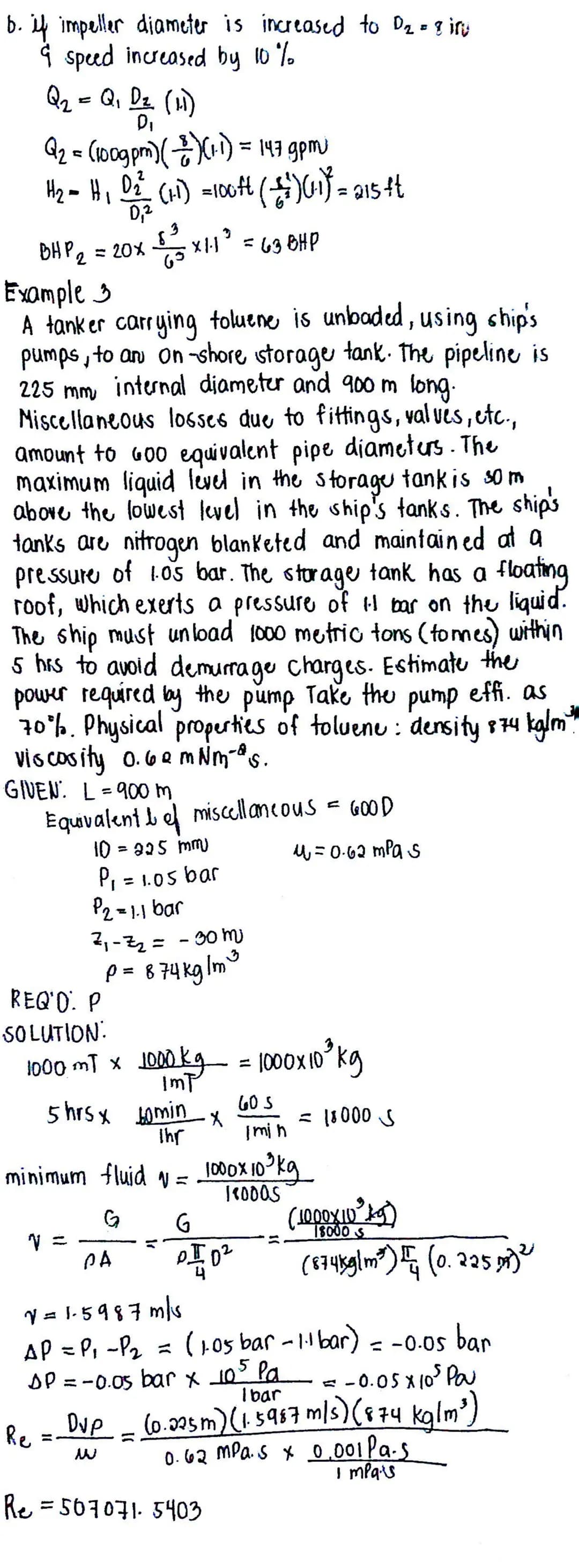

Example: A toluene unloading operation from a ship to shore storage, involving a 225mm diameter pipeline spanning 900m.
Highlight: The calculations incorporate real-world factors such as nitrogen blanketing pressure (1.05 bar) and floating roof pressure (1.1 bar).
2
of 3
Complex Fluid Dynamics Calculations

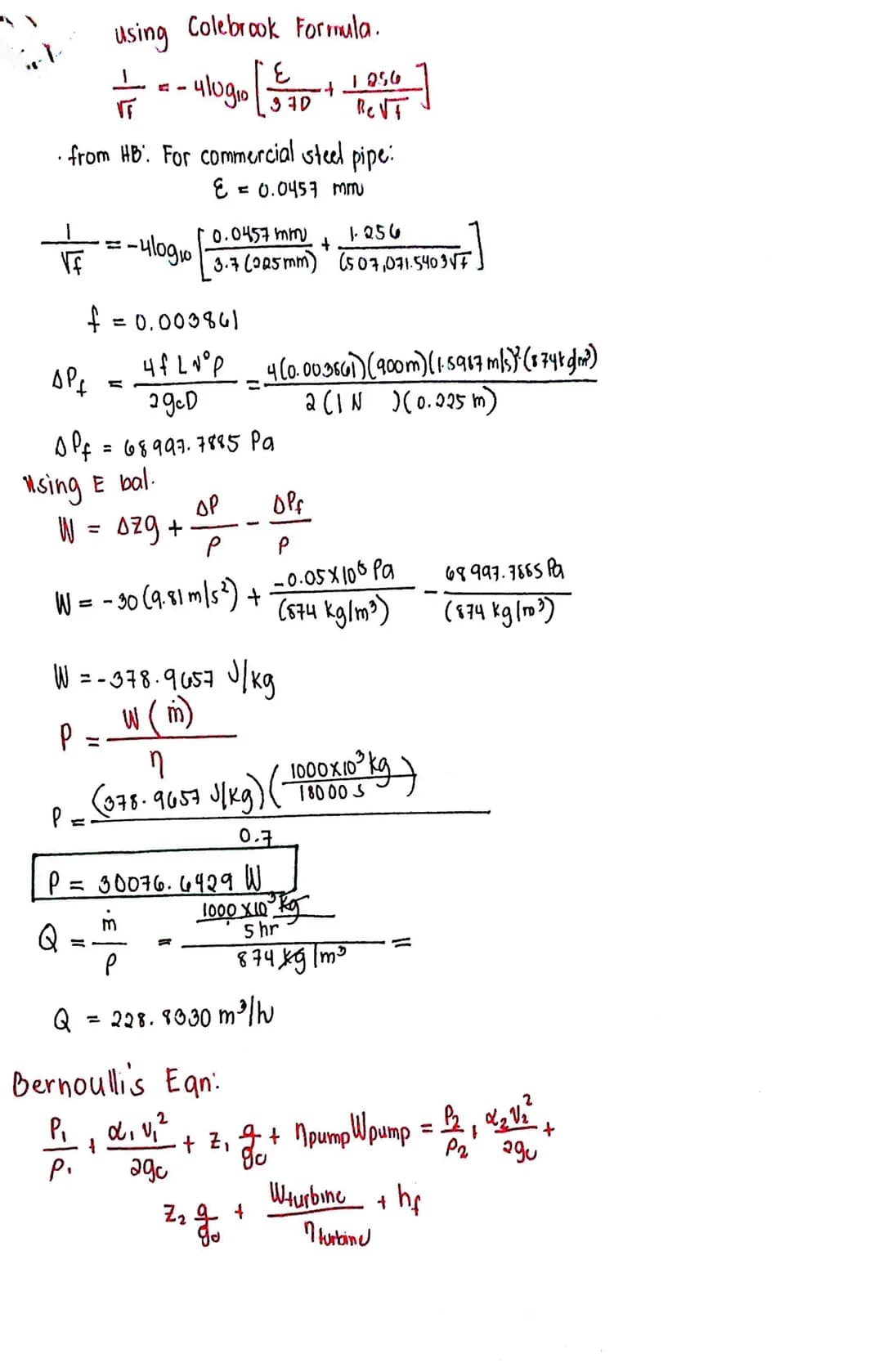

The final section demonstrates advanced calculations for separation equipment in chemical engineering, focusing on fluid transport systems.
Definition: The Colebrook Formula is used to calculate the friction factor in turbulent pipe flow.
Highlight: The calculations incorporate multiple factors including:
- Pipe roughness (0.0457mm for commercial steel)
- Reynolds number calculations
- Comprehensive energy balance equations
Example: The power requirement calculation considers pump efficiency (70%), fluid properties, and system losses to determine the optimal operating conditions.
3
of 3
Pump Affinity Laws Calculations

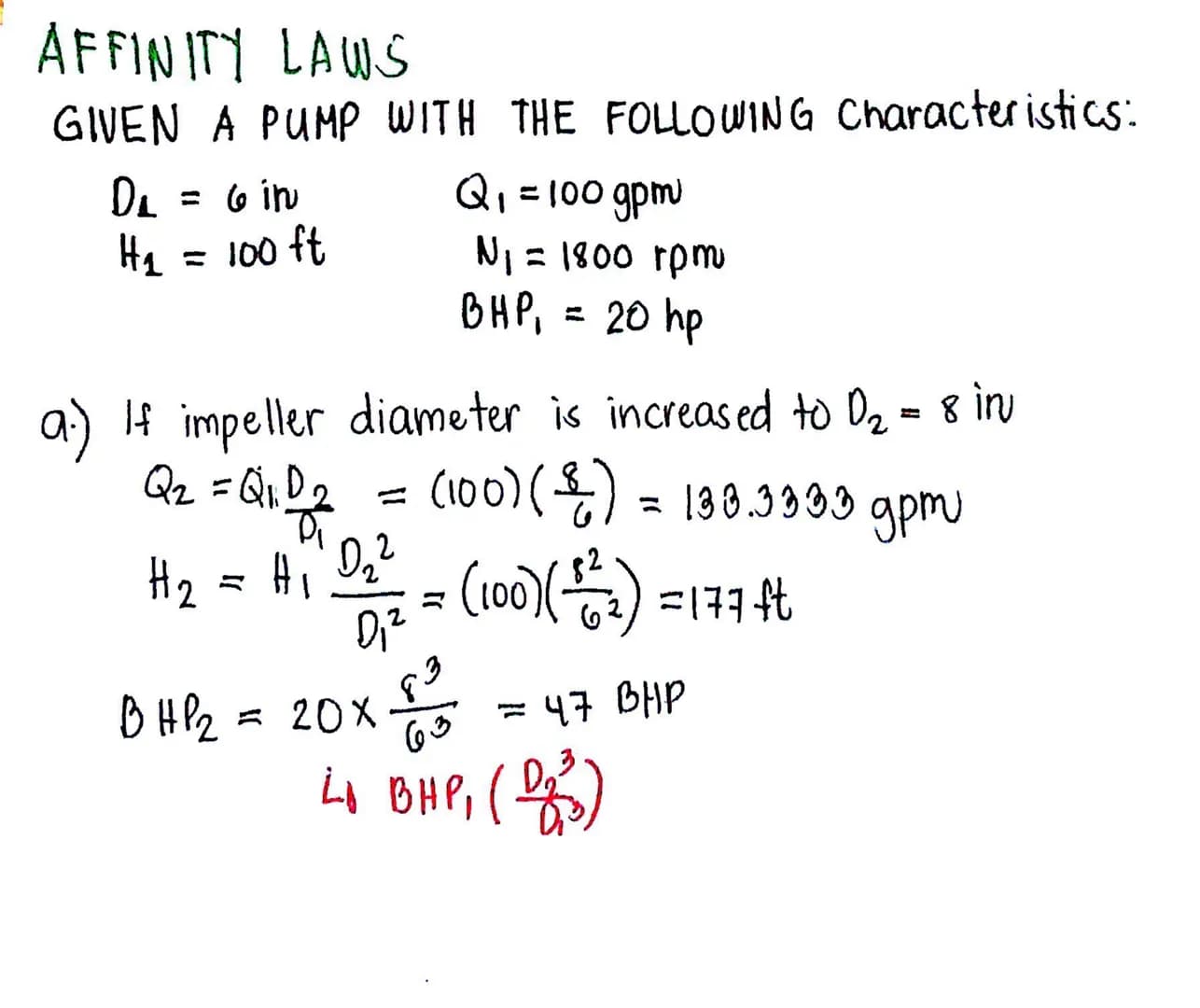

This section explores fundamental pump calculations with detailed analysis of impeller diameter modifications. The calculations demonstrate the relationship between pump parameters using affinity laws formula.
Definition: Affinity laws are mathematical relationships that predict pump performance changes when speed or impeller diameter is modified.
Example: For a pump with initial characteristics of D₁ = 6 inches and H₂ = 100 ft, increasing the impeller diameter to 8 inches results in specific performance changes.
Highlight: The calculations show that increasing impeller diameter from 6 to 8 inches results in flow rate increase to 188.3333 gpm and head increase to 177 ft.
