Understanding Alkanes and Cycloalkanes: Isomers and Conformations

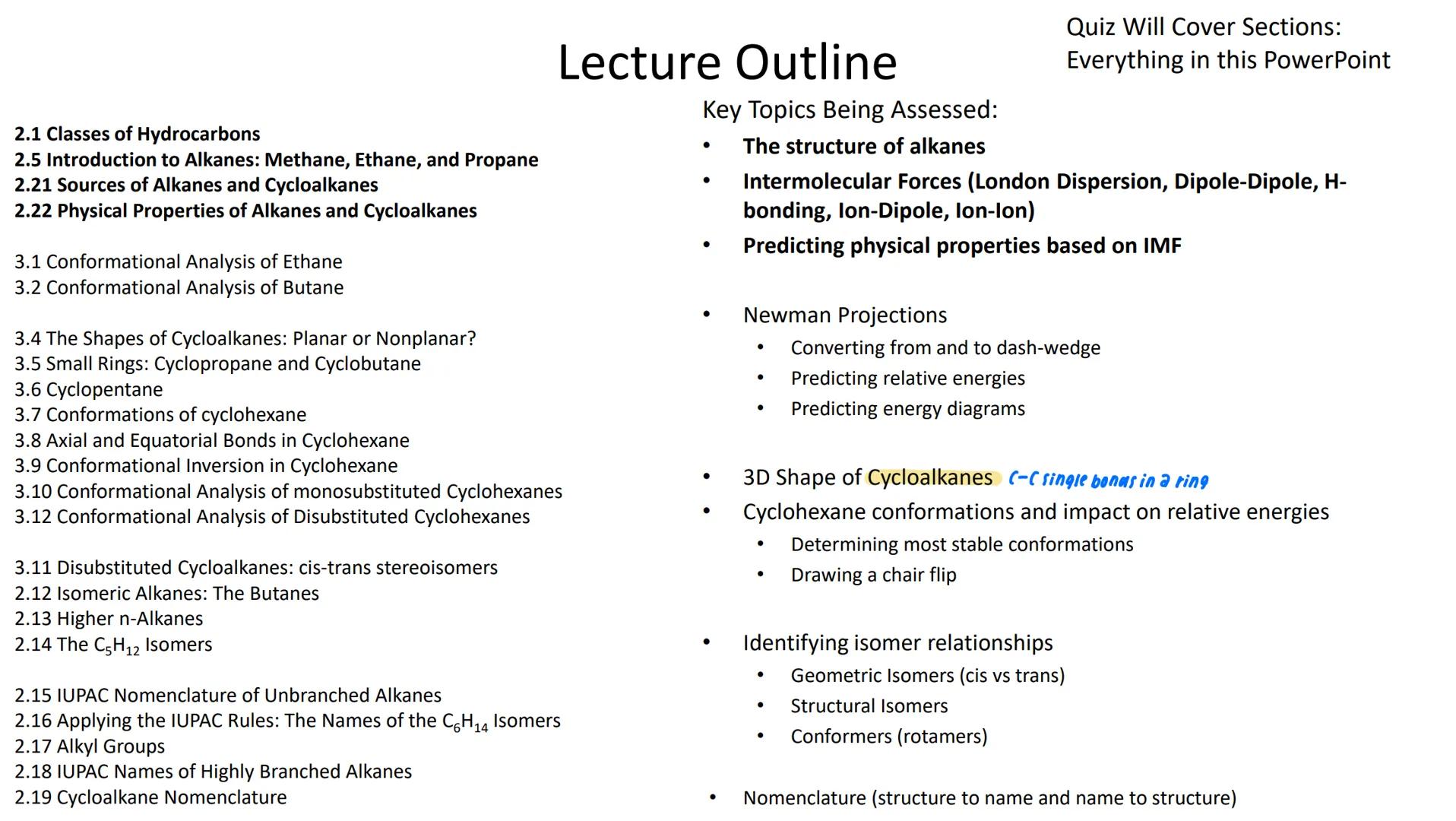

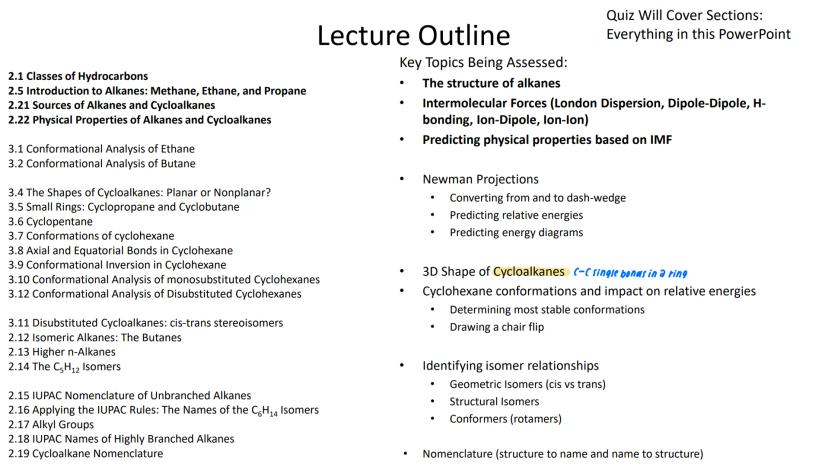

Quiz 3: Alkanes and Cycloalkanes Overview

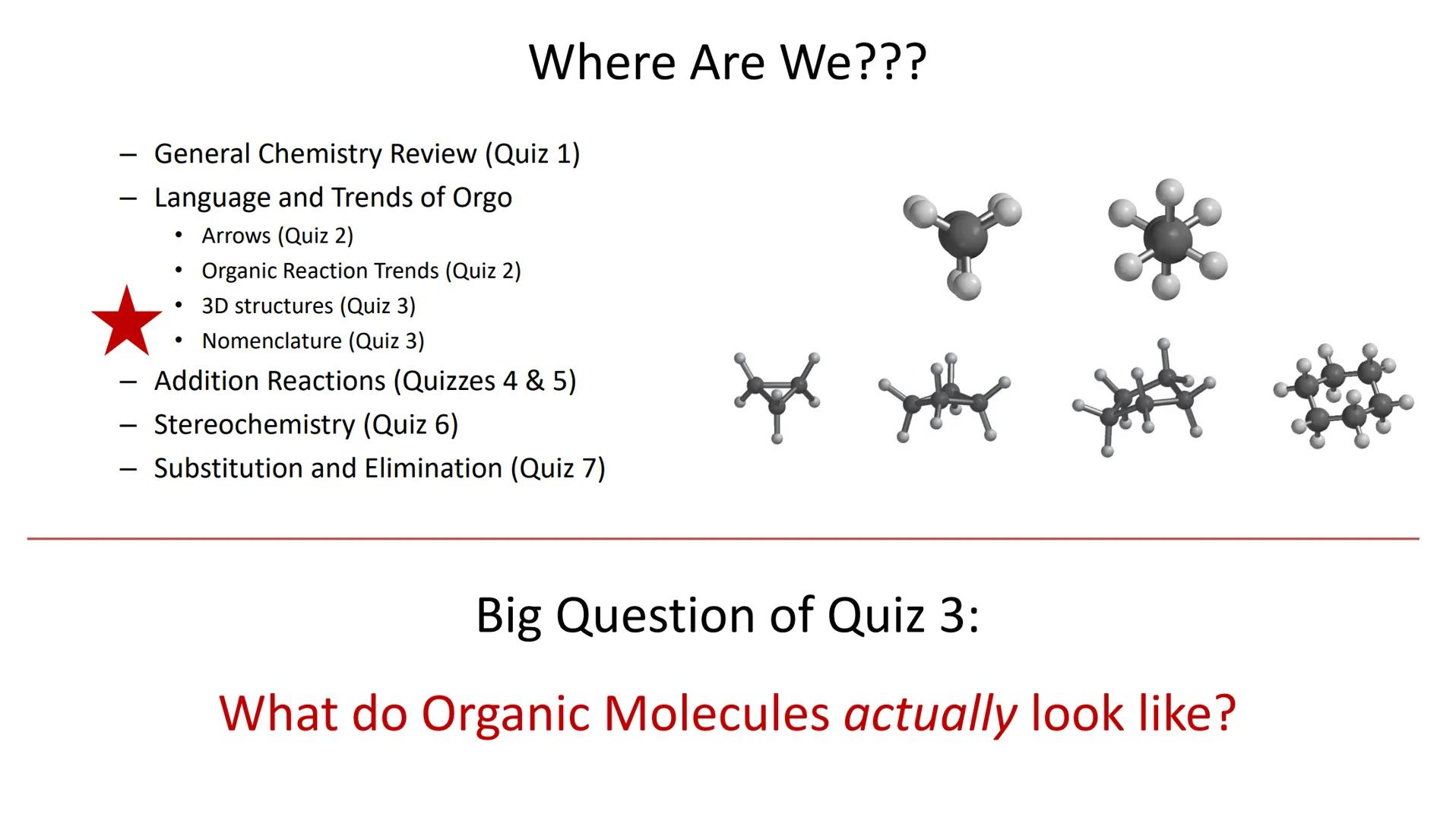

Quiz 3 focuses on the three-dimensional structures and properties of alkanes and cycloalkanes. You'll need to understand how these molecules actually look in space, not just on paper.

The key topics include conformational analysis (how molecules rotate around single bonds), geometric isomerism (different arrangements in space), and the naming conventions for these compounds. This builds on your earlier work with general chemistry concepts and organic reaction trends.

Pro Tip: The way molecules arrange themselves in 3D space directly affects their stability, reactivity, and physical properties—this isn't just abstract theory but explains real-world chemical behavior!

Remember that molecular geometry isn't static—molecules can rotate, flip, and rearrange in ways that minimize their energy while maintaining their basic connectivity.

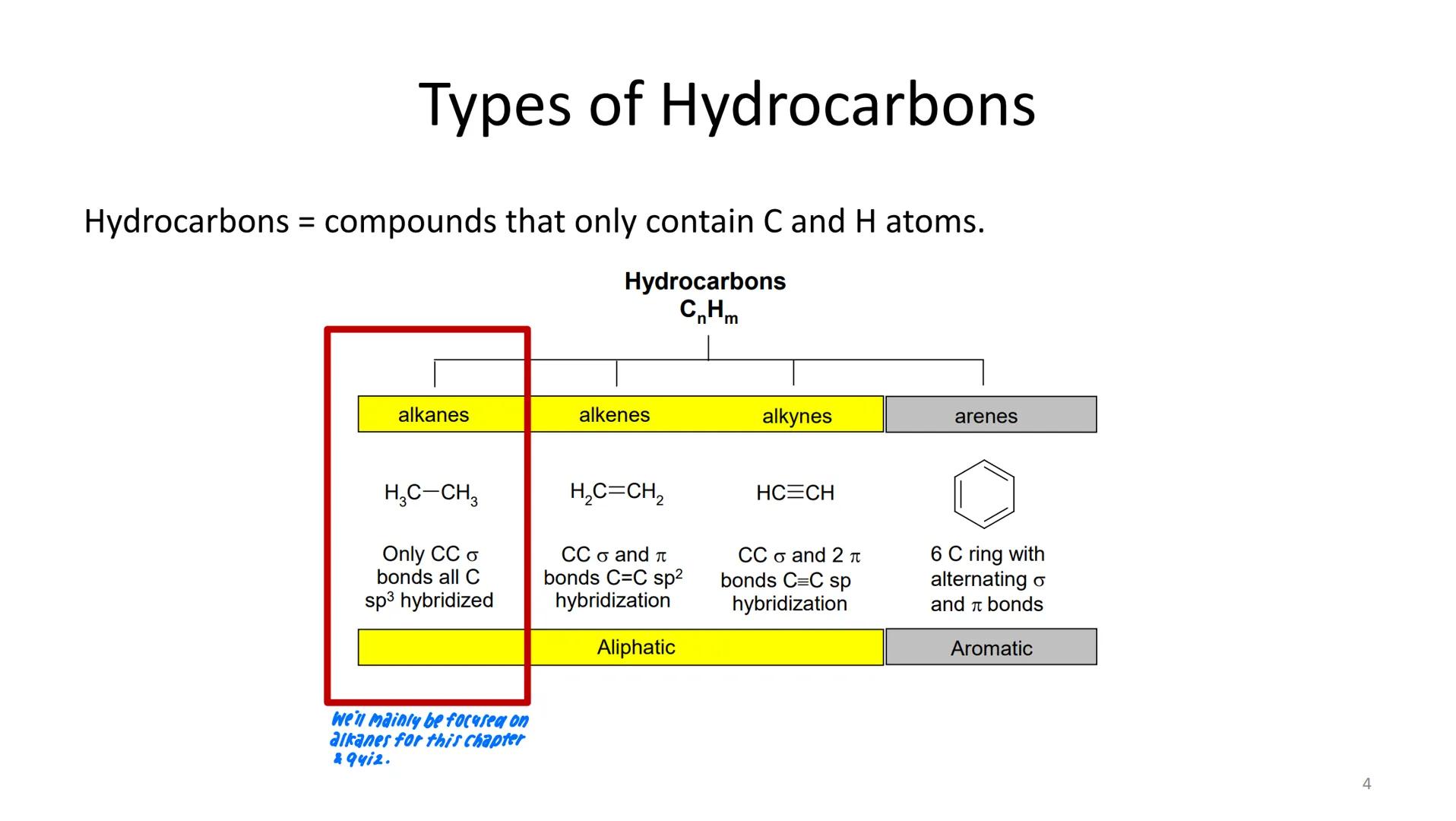

Types of Hydrocarbons

Hydrocarbons are compounds containing only carbon and hydrogen atoms. They come in several major categories:

Alkanes feature only single bonds between carbon atoms $C-C$ and are fully saturated with hydrogen. Each carbon uses sp³ hybridization with tetrahedral geometry and ~109.5° bond angles. These are the most basic organic structures.

Alkenes contain carbon-carbon double bonds $C=C$ with sp² hybridization at these carbons. Alkynes feature carbon-carbon triple bonds (C≡C) with sp hybridization. Both are considered unsaturated hydrocarbons.

Aromatic compounds (arenes) contain a six-carbon ring with alternating single and double bonds, creating a stable, resonance-stabilized structure.

For Quiz 3, we'll focus primarily on alkanes and cycloalkanes—the simplest yet fundamental hydrocarbon structures that demonstrate important 3D structural principles.

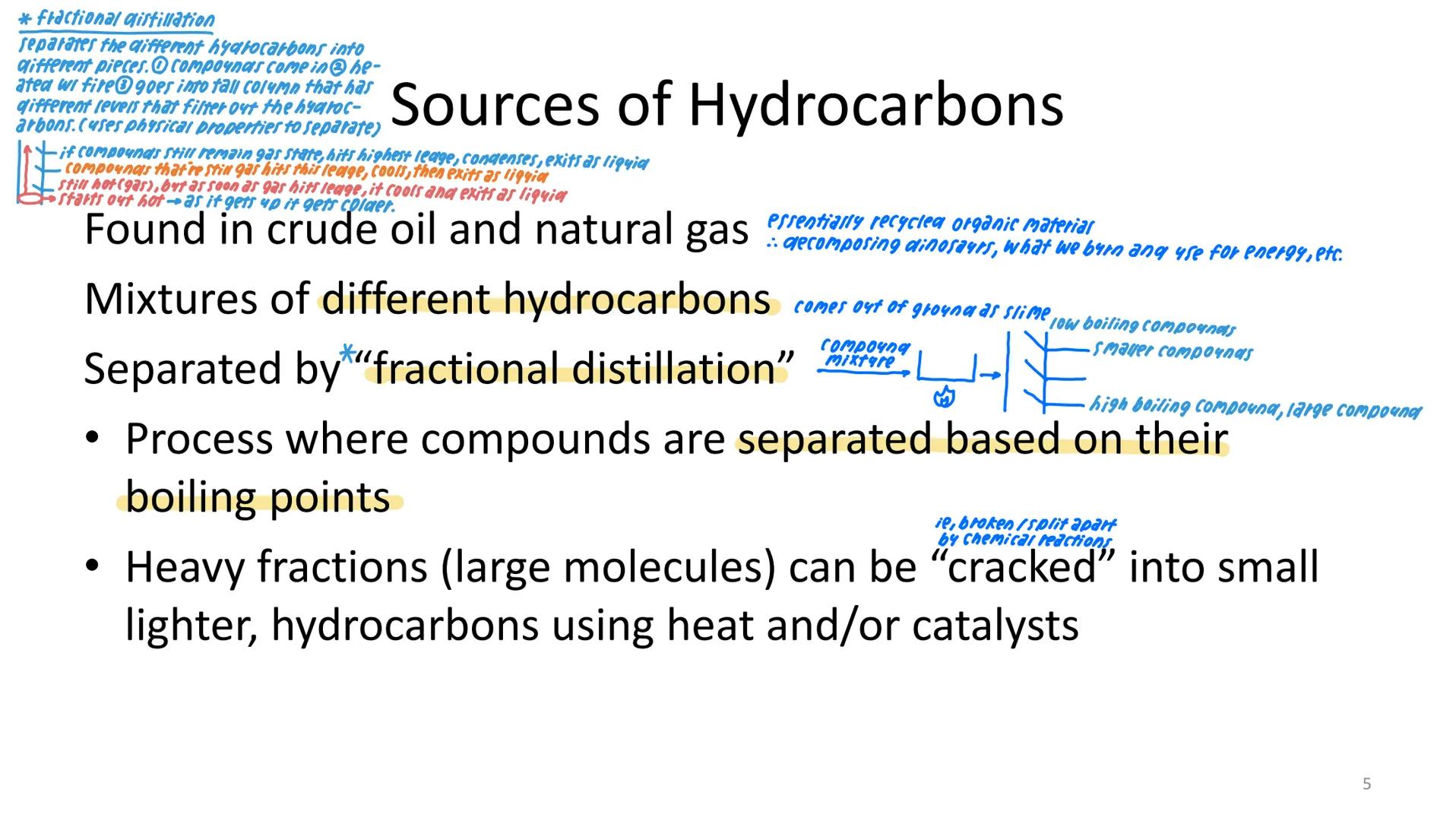

Sources and Physical Properties of Hydrocarbons

Hydrocarbons naturally occur in crude oil and natural gas—essentially recycled organic material that formed over millions of years. These complex mixtures are separated through fractional distillation, where compounds are separated based on their boiling points.

In fractional distillation, the crude oil mixture is heated and enters a tall column with progressively cooler levels. Heavier (larger) molecules condense at higher temperatures near the bottom, while lighter compounds rise higher before condensing.

The physical properties of alkanes depend on intermolecular forces (IMFs), primarily London dispersion forces. As molecular weight increases, so do these forces, leading to higher boiling and melting points. Branched alkanes typically have lower boiling points than straight-chain isomers because their compact shape reduces surface area for intermolecular interactions.

Remember: Physical properties like boiling point and solubility directly reflect the strength of intermolecular forces, not the strength of bonds within the molecule!

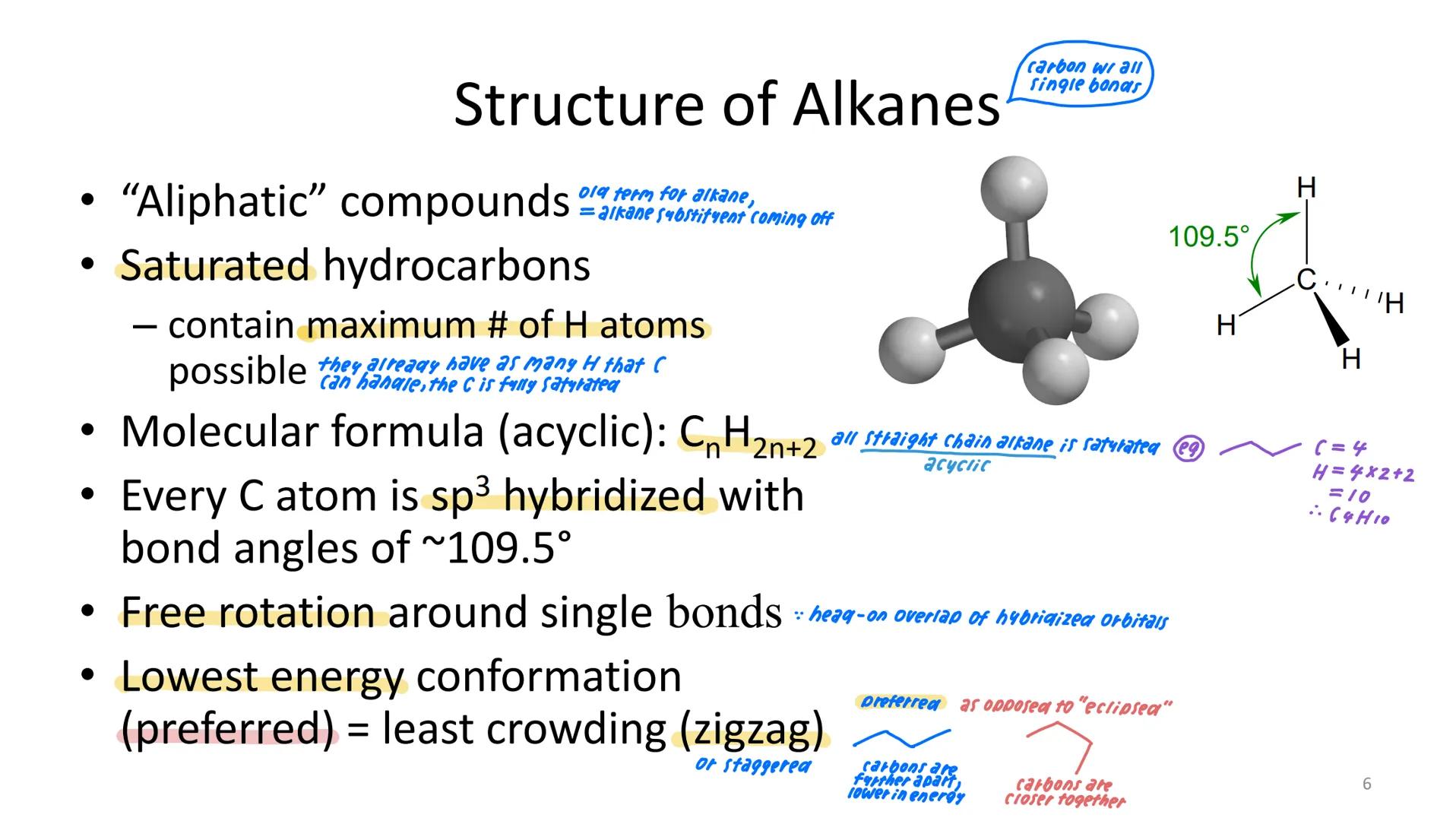

Structure of Alkanes

Alkanes are saturated hydrocarbons, containing the maximum possible number of hydrogen atoms. Their molecular formula for straight-chain (acyclic) alkanes is CₙH₂ₙ₊₂.

Every carbon atom in an alkane is sp³ hybridized with tetrahedral geometry and bond angles of approximately 109.5°. This arrangement minimizes electron repulsion and creates the most stable configuration.

Alkanes feature free rotation around single bonds, which leads to multiple possible 3D arrangements called conformations. The lowest energy conformation is typically staggered, where atoms are positioned as far apart as possible to minimize repulsive interactions.

When drawing alkanes, we often represent them in a zigzag pattern that approximates their actual 3D structure. However, remember that in reality, these molecules are constantly rotating and flexing at room temperature.

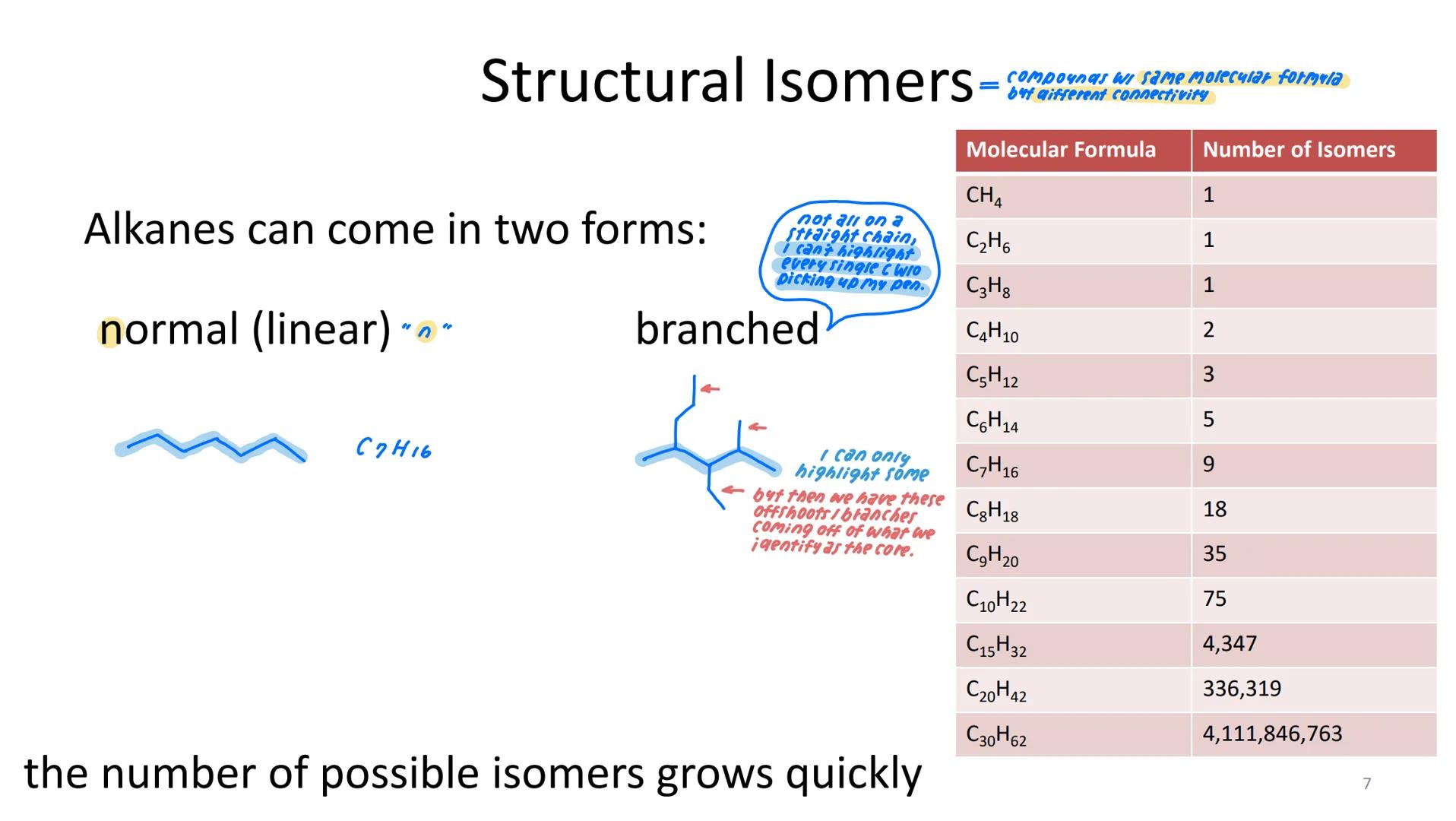

Structural Isomerism in Alkanes

Structural isomers are compounds with the same molecular formula but different connectivity between atoms. As carbon chains get longer, the number of possible isomers increases dramatically.

For example:

• CH₄ (methane) has only 1 possible structure
• C₄H₁₀ has 2 isomers (butane and isobutane)
• C₈H₁₈ has 18 different isomers
• C₃₀H₆₂ has over 4 billion possible isomers!

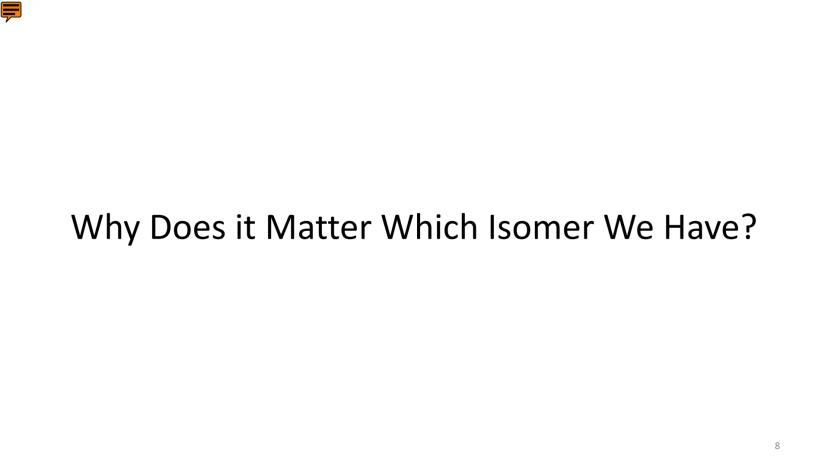

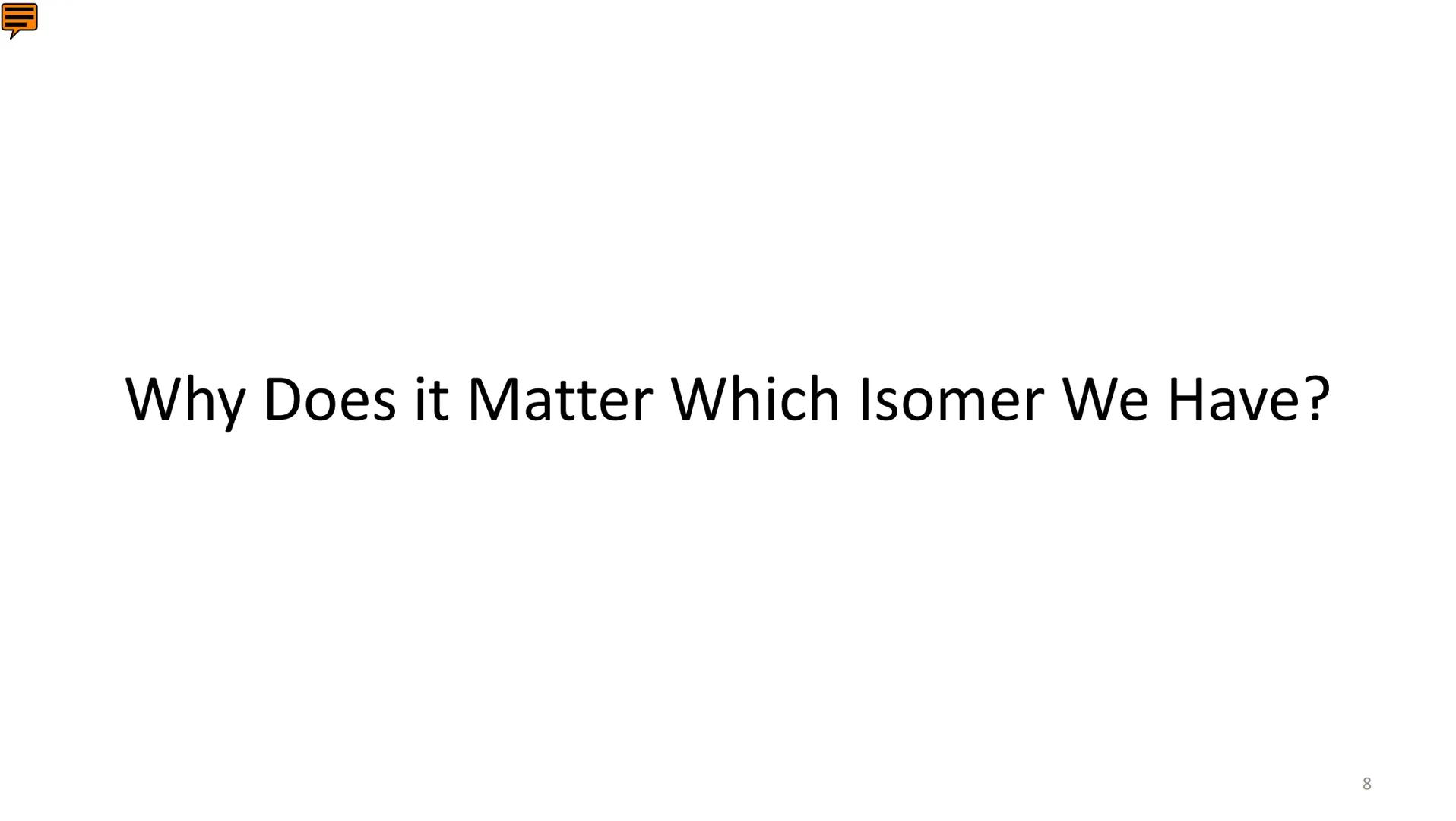

The structure of an isomer significantly impacts its physical and chemical properties. Linear alkanes typically have higher boiling points than their branched counterparts because they have greater surface area for intermolecular forces.

Understanding structural isomerism helps explain why compounds with identical molecular formulas can have remarkably different properties—from gases to liquids to solids at room temperature.

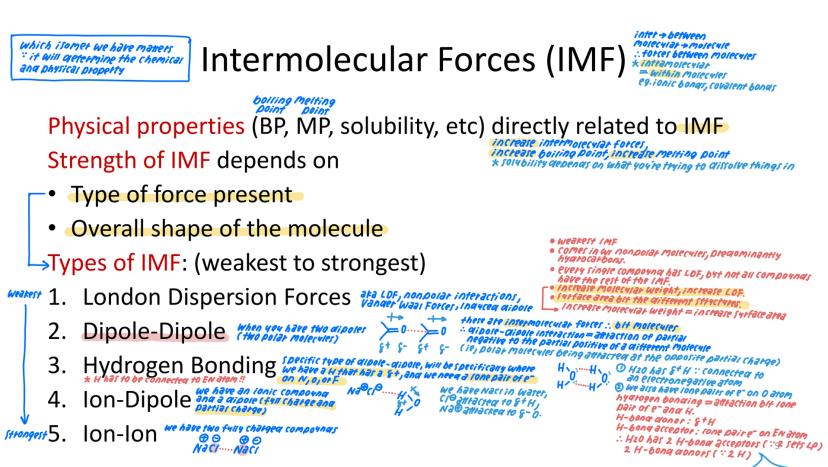

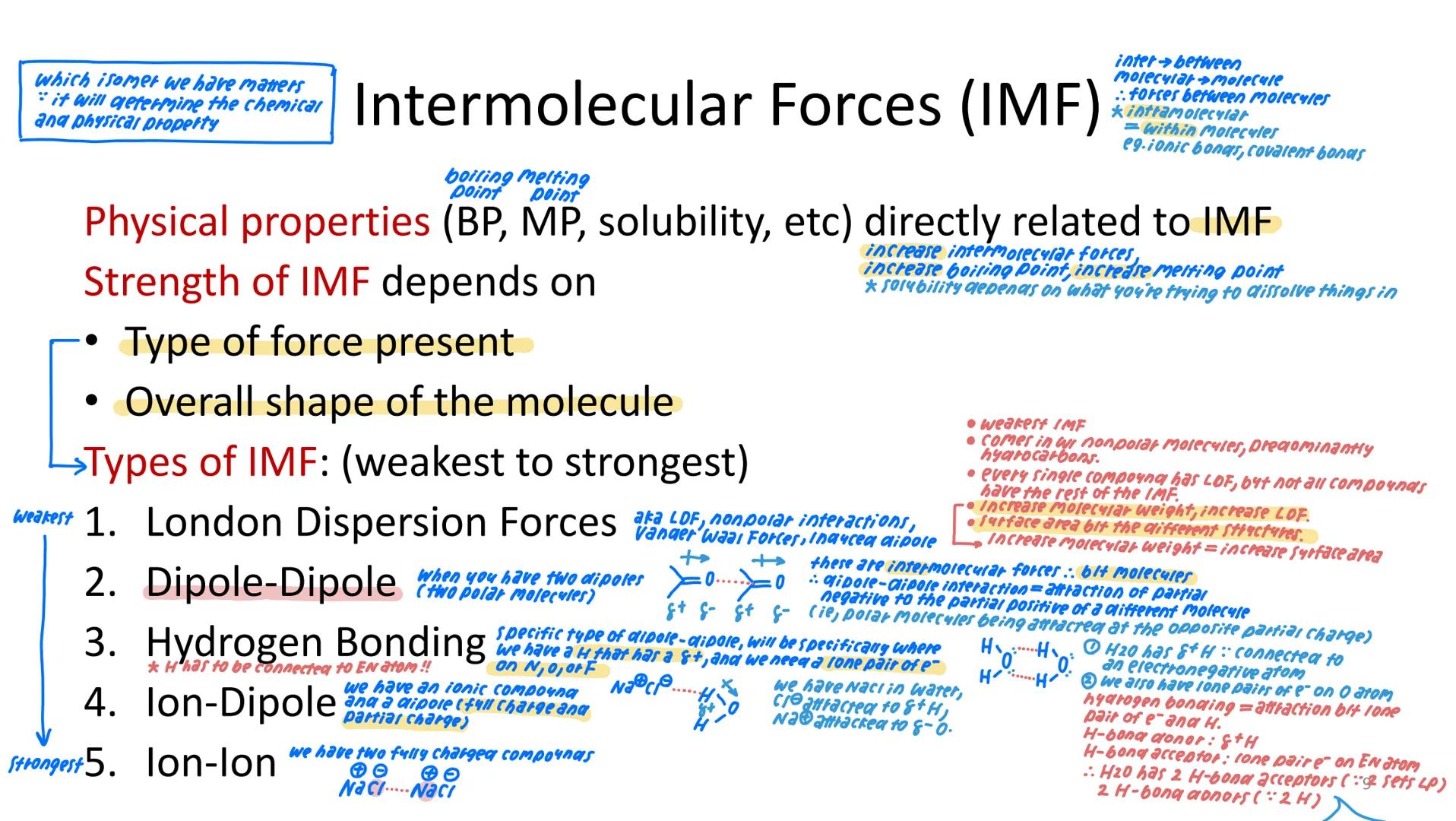

Intermolecular Forces and Physical Properties

Physical properties like boiling point, melting point, and solubility directly depend on the intermolecular forces (IMFs) between molecules.

The types of IMFs in order of increasing strength are:

1. London Dispersion Forces (weakest) - present in all molecules
2. Dipole-Dipole Interactions - between polar molecules
3. Hydrogen Bonding - special case with H bonded to N, O, or F
4. Ion-Dipole - between ions and polar molecules
5. Ion-Ion (strongest) - between ionic compounds

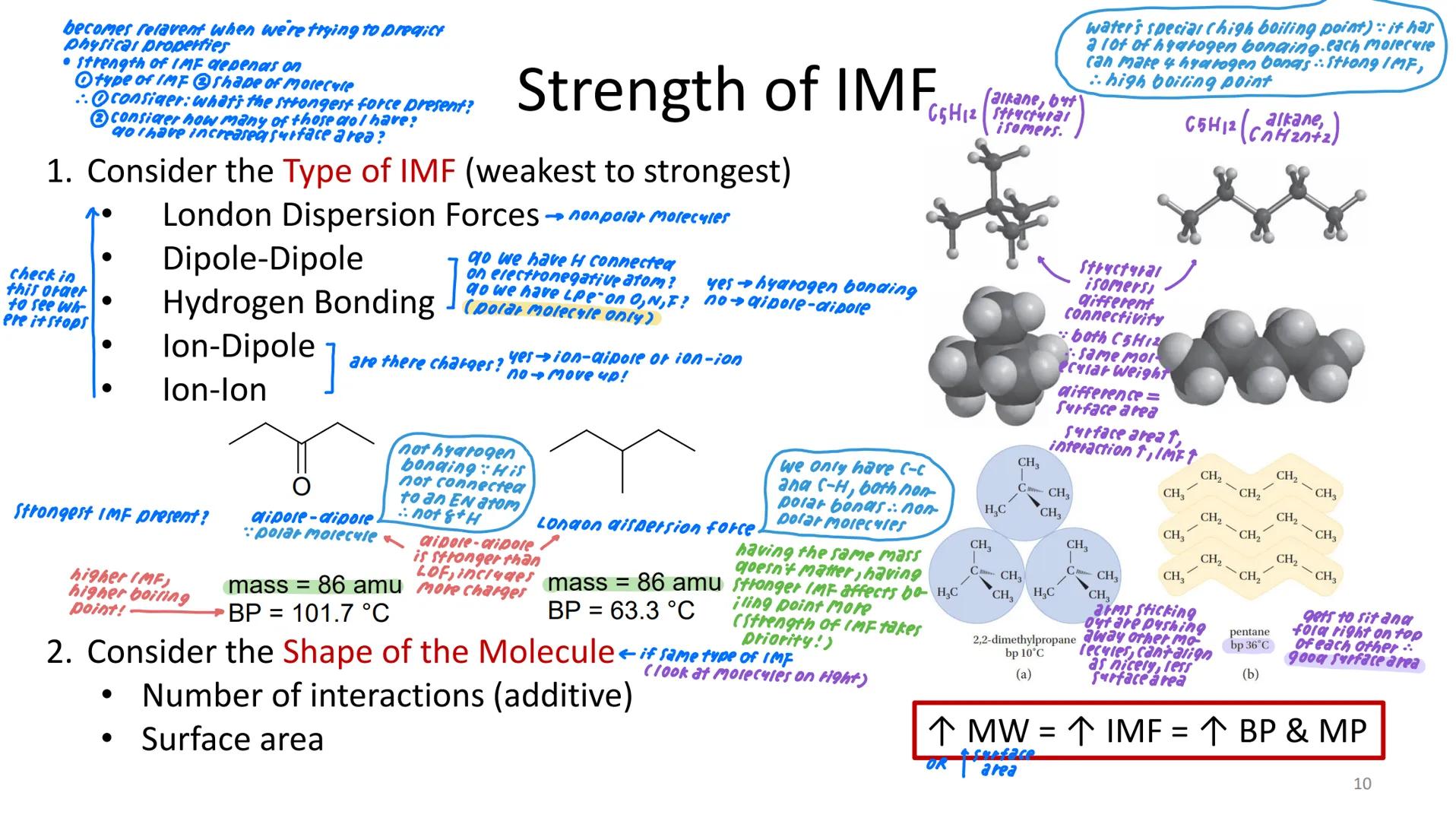

When predicting physical properties:

1. First identify the strongest type of IMF present
2. Then consider the molecule's shape and surface area
3. Finally, account for molecular weight

Key Insight: Even nonpolar hydrocarbons with only London dispersion forces show predictable trends—larger molecules have stronger attractions and higher boiling points.

Branched alkanes typically have lower boiling points than straight-chain isomers because their compact shape reduces surface contact between molecules.

Predicting Solubility

Solubility follows the principle that "like dissolves like"—polar substances dissolve in polar solvents, while nonpolar substances dissolve in nonpolar solvents.

For hydrocarbons:

• They're generally insoluble in water (a polar solvent) because water molecules prefer to hydrogen-bond with each other rather than interact with nonpolar hydrocarbons
• They're soluble in nonpolar solvents like hexane or benzene

When comparing similar compounds, consider:

• The type of intermolecular forces present
• The number of possible interactions
• The surface area available for interaction

For example, alcohols are more soluble in water than ethers of similar size because alcohols can both donate and accept hydrogen bonds, creating stronger interactions with water molecules.

This explains why oil and water don't mix, but also why certain organic molecules with both polar and nonpolar regions (like soaps) can bridge between these different environments.

Conformational Isomers and Newman Projections

Conformational isomers (also called conformers or rotamers) are the same molecule in different 3D arrangements due to rotation around single bonds. Unlike other isomers, these can rapidly interconvert at room temperature.

Newman projections provide a useful way to visualize these rotations by looking directly down a carbon-carbon bond. The two key conformations are:

1. Staggered - atoms on adjacent carbons are as far apart as possible (60° angle)
2. Eclipsed - atoms on adjacent carbons directly align with each other (0° angle)

The staggered conformation is lower in energy (more stable) because it minimizes repulsive interactions between electron clouds—a concept called steric hindrance.

For larger molecules like butane, certain staggered conformations are more favorable than others. The anti conformation (large groups 180° apart) is typically most stable, while gauche conformations (large groups 60° apart) have intermediate stability.

Remember: Energy diagrams for rotation show that molecules spend most of their time in the lowest-energy conformations, briefly passing through higher-energy states.

Cycloalkanes: Structure and Stability

Cycloalkanes are alkanes where the carbon chain forms a ring. Unlike open-chain alkanes, cycloalkanes can't freely rotate around all carbon-carbon bonds without breaking the ring.

The stability of cycloalkanes depends largely on their ring strain:

• Cyclopropane (3-carbon ring): Highly strained with 60° bond angles (far from the ideal 109.5°). This makes it relatively unstable and reactive.

• Cyclobutane (4-carbon ring): Still strained but adopts a slightly "puckered" shape to reduce some strain.

• Cyclopentane (5-carbon ring): Moderately strained, adopts an "envelope" conformation where one carbon pops out of the plane.

• Cyclohexane (6-carbon ring): Virtually strain-free in its "chair" conformation with perfect 109.5° bond angles. This makes cyclohexane particularly stable.

The stability pattern helps explain why six-membered rings are so common in organic chemistry and biochemistry—they represent a "sweet spot" in ring size.

Cyclohexane Conformations

Cyclohexane is the most important cycloalkane to understand because its flexible, strain-free structure appears frequently in organic and biological molecules.

The chair conformation is cyclohexane's most stable arrangement, featuring:

• Two types of bonds: axial (straight up or down) and equatorial (roughly parallel to the ring)
• All bond angles at the ideal 109.5°
• Minimal steric interactions

Cyclohexane can undergo a "chair flip" where all axial positions become equatorial and vice versa. This is not a simple rotation but a complex movement where the ring flexes to invert its shape.

When cyclohexane has substituents, their position matters:

• Equatorial substituents are more stable because they extend outward and avoid steric clashes
• Axial substituents face destabilizing "1,3-diaxial interactions" with other axial groups

Key Concept: Larger substituents strongly prefer the equatorial position. For example, a tert-butyl group will force the entire ring to flip if needed to stay equatorial.
