Understanding Covalent Bonding: Key Ideas and Handwritten Notes

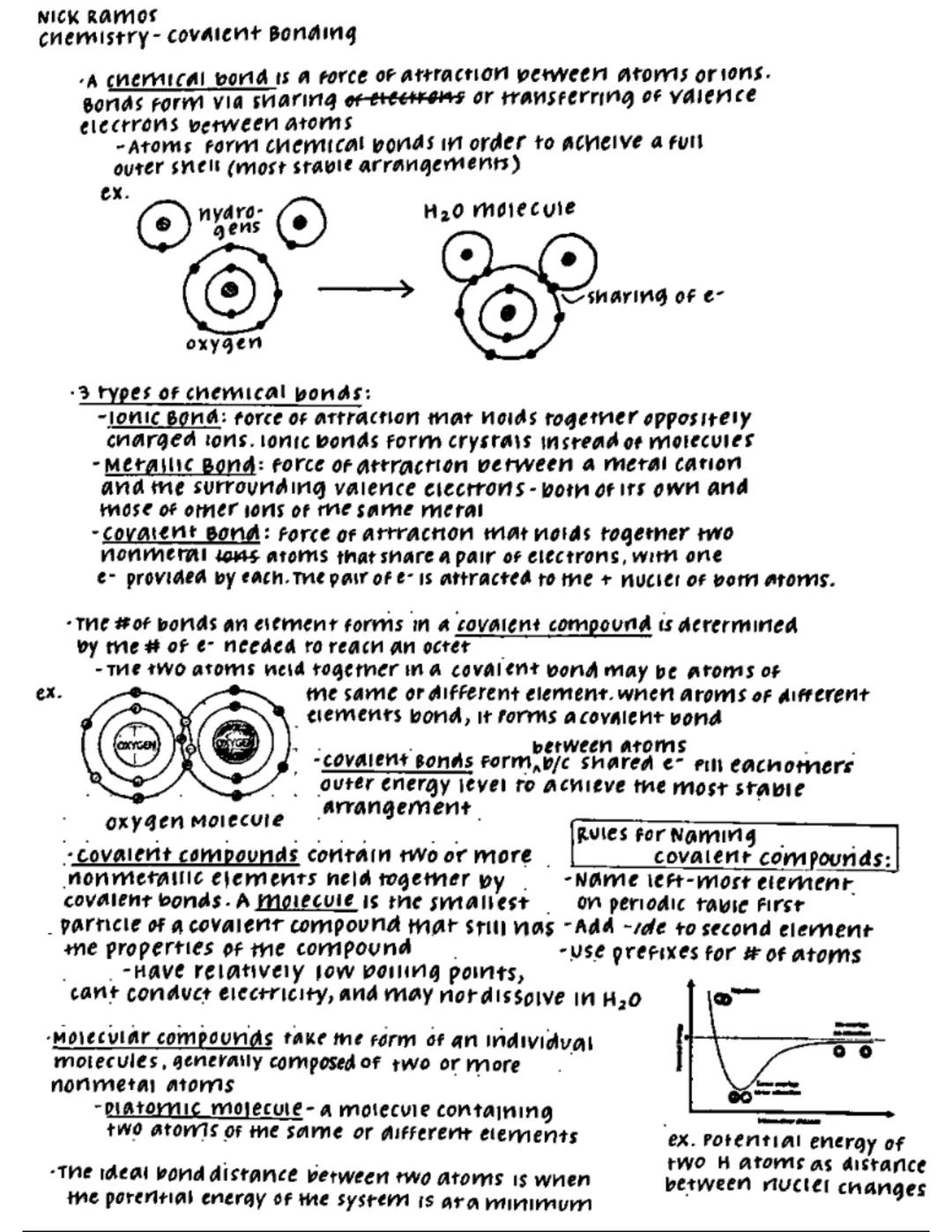

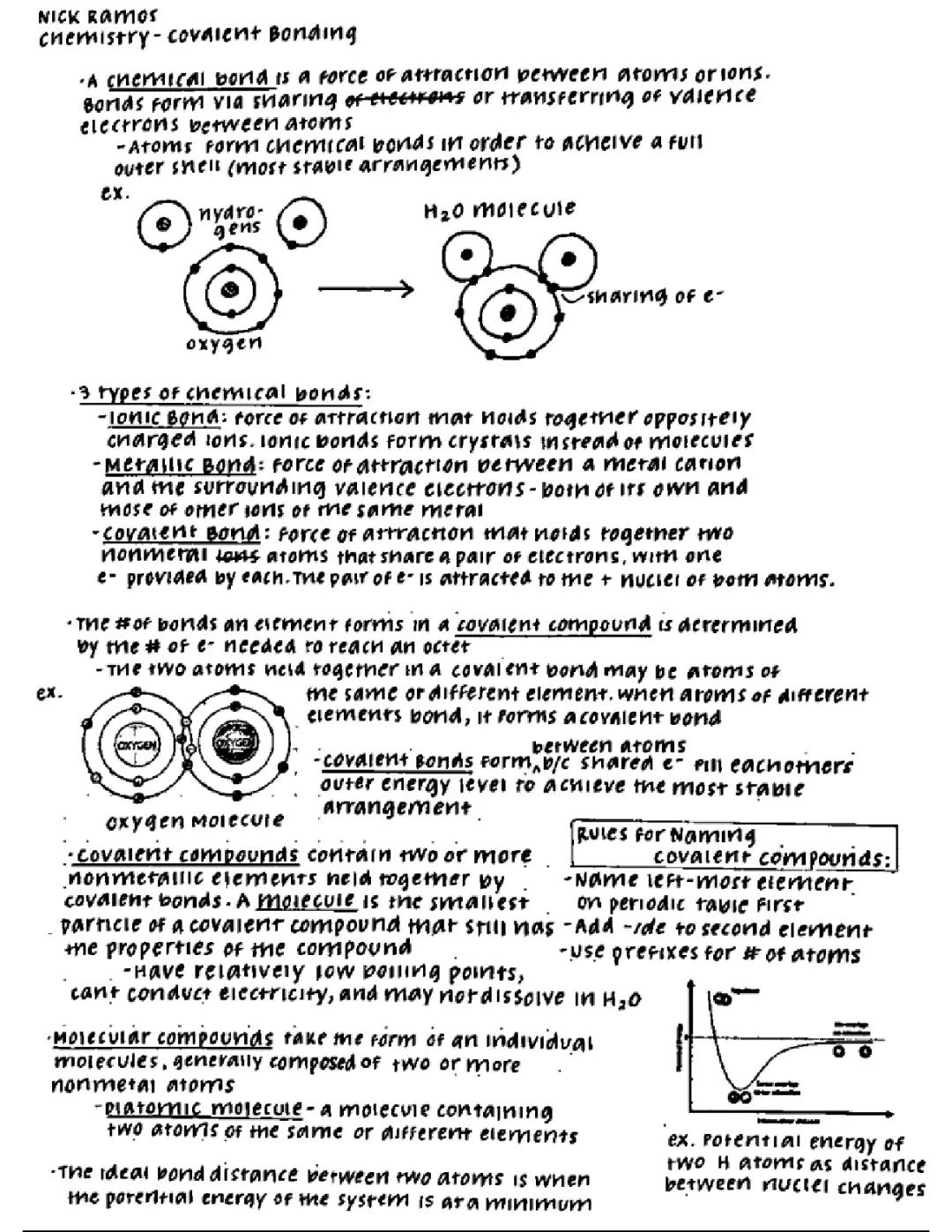

Covalent Bond Basics

Ever wonder why atoms stick together? Chemical bonds form when atoms share or transfer electrons to achieve stability. A covalent bond happens specifically when two nonmetal atoms share a pair of electrons, with each atom contributing one electron to the sharing arrangement.

Unlike ionic bonds (which form between metals and nonmetals) or metallic bonds (between metal atoms), covalent bonds create distinct molecules. When atoms share electrons, they're filling each other's outer energy levels to reach the most stable configuration possible.

Covalent compounds typically have low boiling points, can't conduct electricity, and may not dissolve easily in water. The smallest particle of a covalent compound that still maintains its properties is called a molecule.

Science Insight: When two atoms bond, there's an ideal distance between them where the potential energy is at its minimum - this is when the bond is most stable. Too close and they repel; too far and the attraction weakens!

When naming covalent compounds, start with the leftmost element on the periodic table, add "-ide" to the second element, and use prefixes (mono-, di-, tri-) to indicate how many atoms of each element are present.

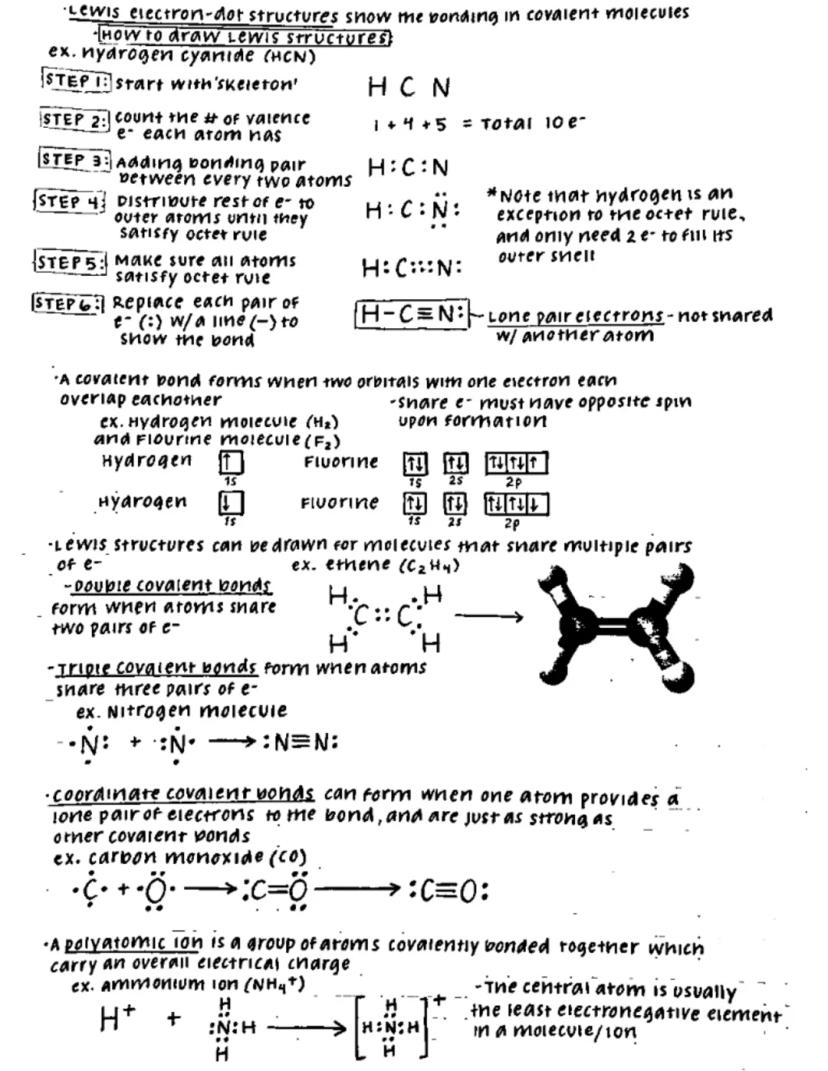

Lewis Structures & Bond Types

Lewis structures are like roadmaps of molecules that show how electrons are arranged in covalent bonds. Drawing these structures helps you visualize where electrons are shared and where they remain as "lone pairs" (electrons not shared with another atom).

To create a Lewis structure, you'll need to count valence electrons, connect atoms with bonds, and distribute remaining electrons to satisfy the octet rule (atoms want 8 valence electrons). Hydrogen is special – it only needs 2 electrons to be stable.

Atoms can share multiple pairs of electrons to form different types of bonds:

• Single bonds: atoms share one pair of electrons
• Double bonds: atoms share two pairs of electrons (like in ethene, C₂H₄)
• Triple bonds: atoms share three pairs of electrons (like in nitrogen, N₂)

A coordinate covalent bond forms when one atom provides both electrons in the shared pair. This type of bond is just as strong as a regular covalent bond! Similarly, polyatomic ions consist of atoms held together by covalent bonds but carry an overall electrical charge.

Quick Tip: The central atom in a molecule is usually the least electronegative element in the compound. This helps you correctly arrange atoms when drawing Lewis structures!

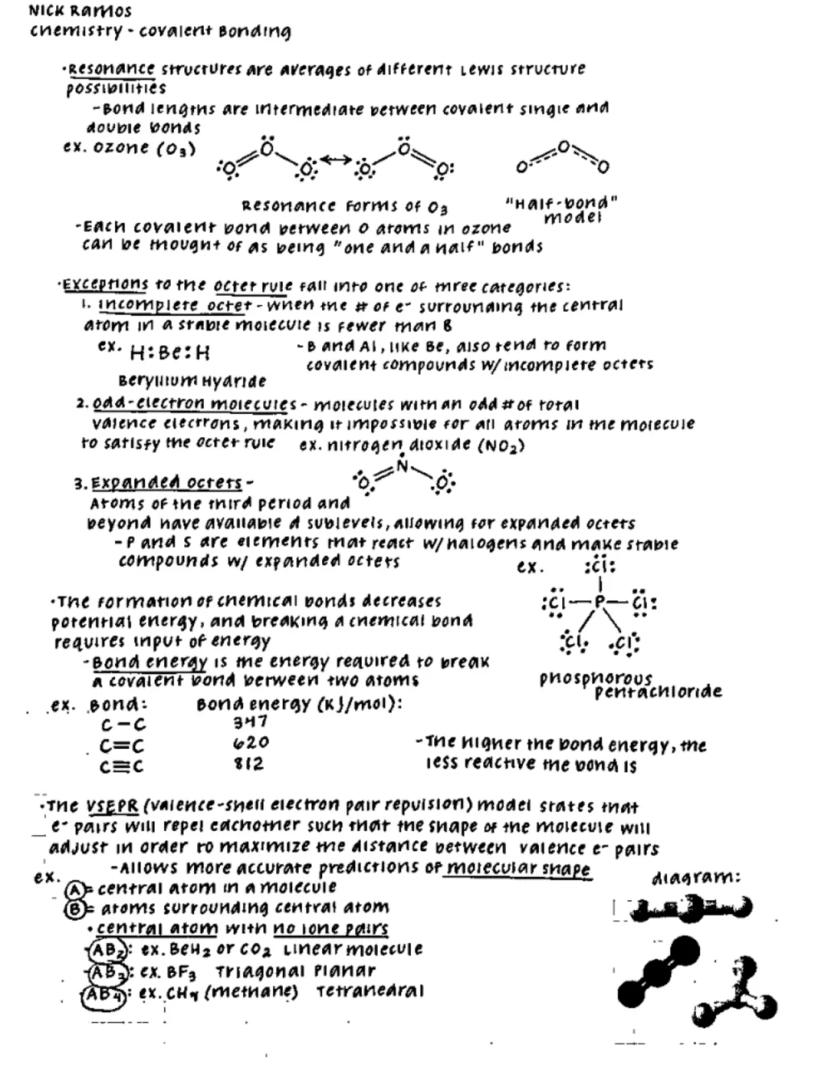

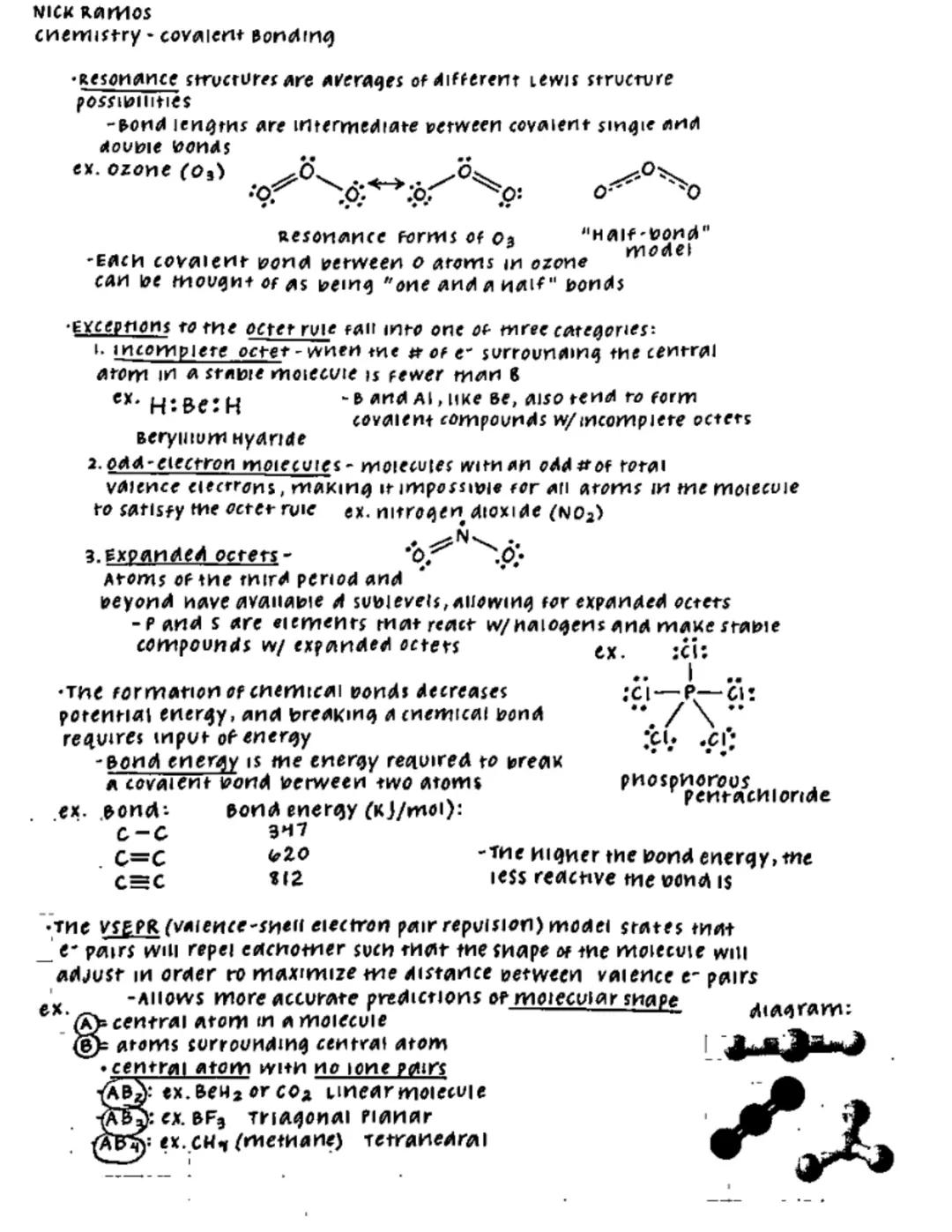

Resonance and Exceptions to the Octet Rule

Sometimes a single Lewis structure can't accurately represent a molecule. In these cases, we use resonance structures – multiple valid Lewis structures that together represent the actual electron distribution. In ozone (O₃), for example, the bonds are somewhere between single and double bonds – sometimes called "one and a half" bonds.

Not all molecules follow the octet rule! There are three main exceptions:

• Incomplete octets: Some elements like beryllium and aluminum form stable molecules with fewer than 8 electrons
• Odd-electron molecules: Molecules with an odd number of electrons, like nitrogen dioxide (NO₂)
• Expanded octets: Elements in period 3 and beyond (like phosphorus and sulfur) can accommodate more than 8 electrons

The strength of a chemical bond is measured by bond energy – the energy required to break it. The higher the bond energy, the more stable and less reactive the bond. Triple bonds have higher bond energies than double bonds, which have higher energies than single bonds.

Remember This: The VSEPR model (Valence Shell Electron Pair Repulsion) helps predict molecular shapes. Electron pairs repel each other and position themselves as far apart as possible, creating specific 3D arrangements like linear, trigonal planar, and tetrahedral.

The shape of a molecule directly influences its properties and how it interacts with other molecules!

Polarity and Intermolecular Forces

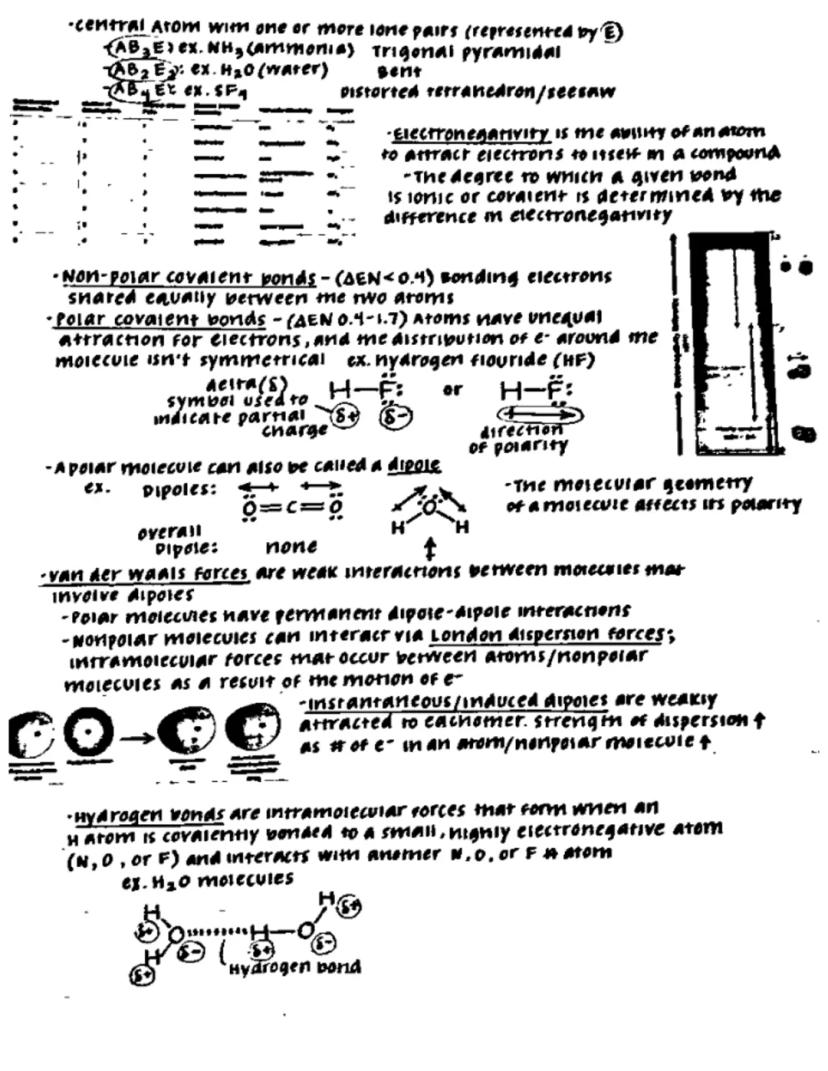

When atoms share electrons unevenly, we get polar covalent bonds. The difference in electronegativity between atoms determines if a bond is non-polar (electrons shared equally) or polar (electrons pulled more toward one atom).

In polar bonds, atoms develop partial charges (shown using δ+ and δ-). When these partial charges exist in a molecule, it's called a dipole. However, the overall shape of the molecule determines if it remains polar – some molecules with polar bonds can be non-polar overall due to their symmetrical arrangement.

Molecules interact with each other through several types of forces:

• Dipole-dipole interactions: Attractions between polar molecules
• London dispersion forces: Weak attractions between all molecules due to temporary electron imbalances
• Hydrogen bonds: Special strong forces that form when hydrogen is bonded to nitrogen, oxygen, or fluorine

Hydrogen bonds are particularly important! They're why water has unusual properties like high boiling point and surface tension. These bonds form when the partially positive hydrogen of one molecule attracts the partially negative oxygen (or N, F) of another molecule.

Real-World Connection: The hydrogen bonds between water molecules are what allow insects to walk on water, plants to pull water up from their roots, and DNA to hold its famous double-helix shape!

Molecular Structure and Bonding Theories

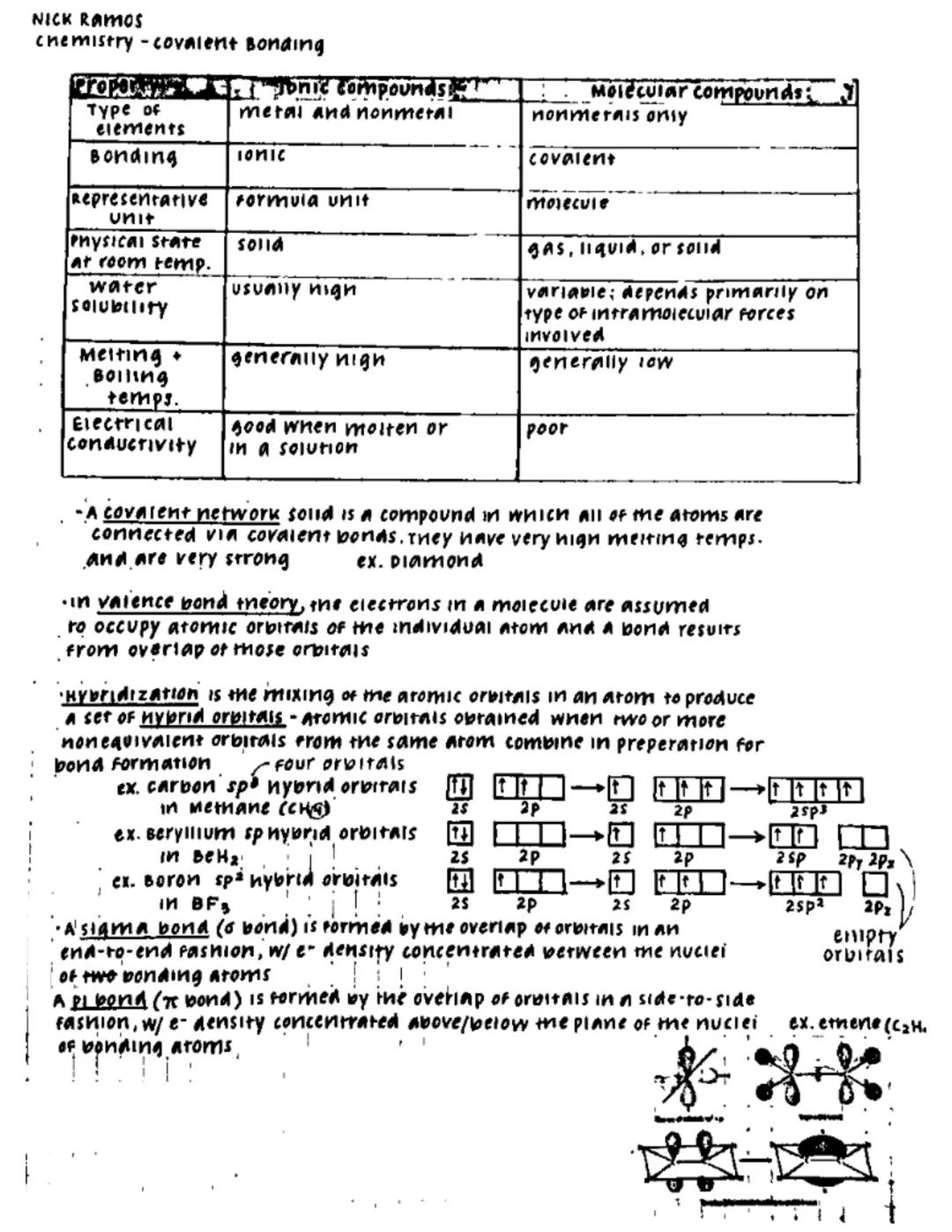

Covalent compounds differ dramatically from ionic compounds. While ionic compounds form solid crystals at room temperature, covalent compounds can be gases, liquids, or solids. They typically have lower melting and boiling points and don't conduct electricity.

Some covalent substances form network solids where all atoms are connected by covalent bonds throughout the entire structure. Diamond is a perfect example—it's incredibly strong with an extremely high melting point because breaking it requires breaking countless strong covalent bonds.

Valence bond theory explains covalent bonding through the overlap of atomic orbitals. But to form bonds in certain orientations, atoms often undergo hybridization – the mixing of atomic orbitals to create new hybrid orbitals with different shapes and orientations:

• sp³ hybridization: Forms four equivalent orbitals (seen in methane)
• sp² hybridization: Forms three equivalent orbitals (seen in boron trifluoride)
• sp hybridization: Forms two equivalent orbitals (seen in beryllium hydride)

The actual bonds formed can be sigma bonds (direct overlap of orbitals between nuclei) or pi bonds (side-to-side overlap above and below the bond axis). Double and triple bonds consist of one sigma bond plus one or two pi bonds.

Success Strategy: When studying molecules like ethene, visualize the sigma bond as the direct connection between atoms, while the pi bond creates electron density above and below that connection. This mental picture makes understanding molecular behavior much easier!
