Efficiency and Additional Concepts

This page delves deeper into the Brayton cycle efficiency and introduces additional problem-solving techniques.

Efficiency Formula

The thermal efficiency of the Brayton cycle is given by:

η = 1 - T1/T2

Example: This formula shows that efficiency increases as the temperature ratio T1/T2 decreases.

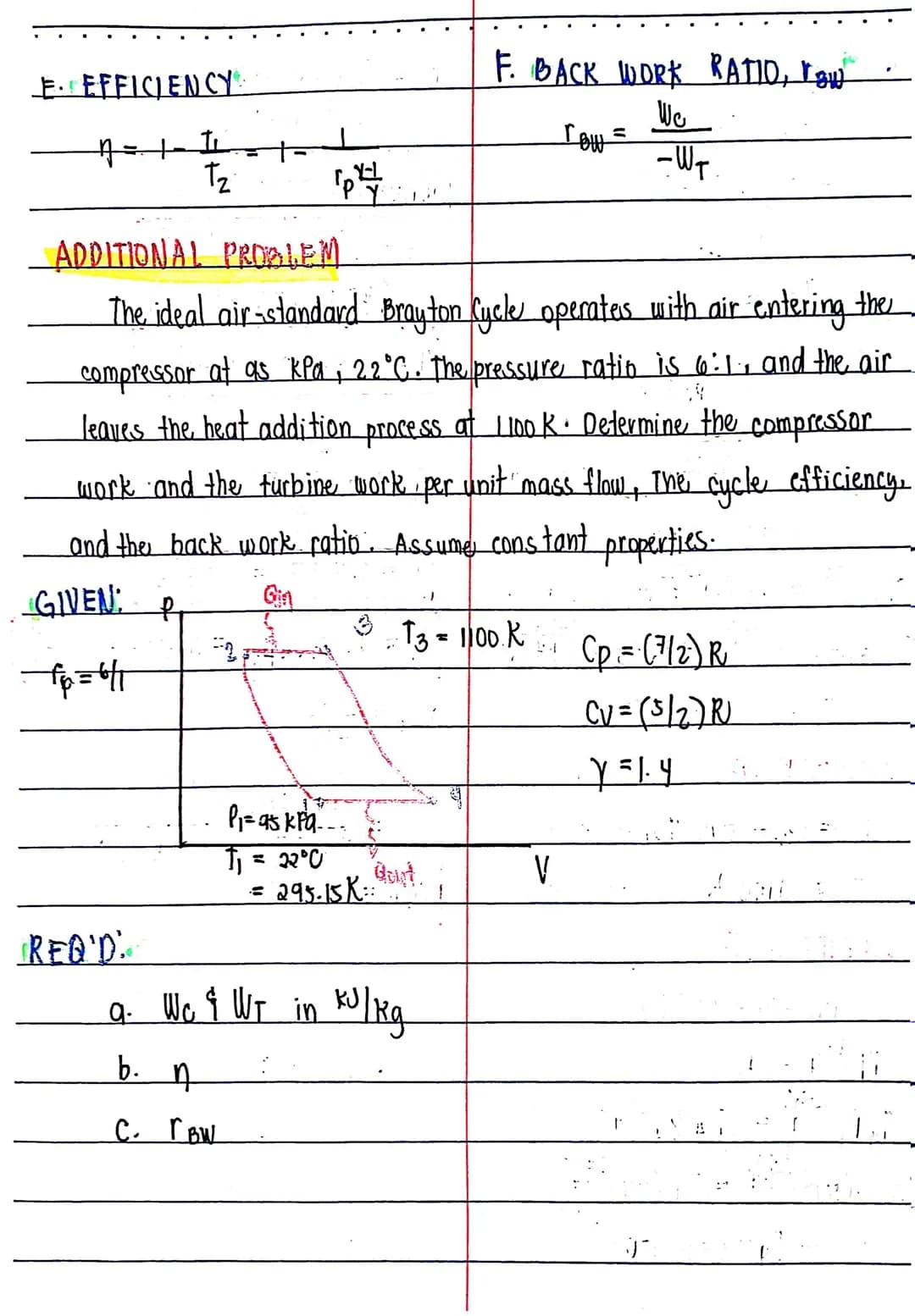

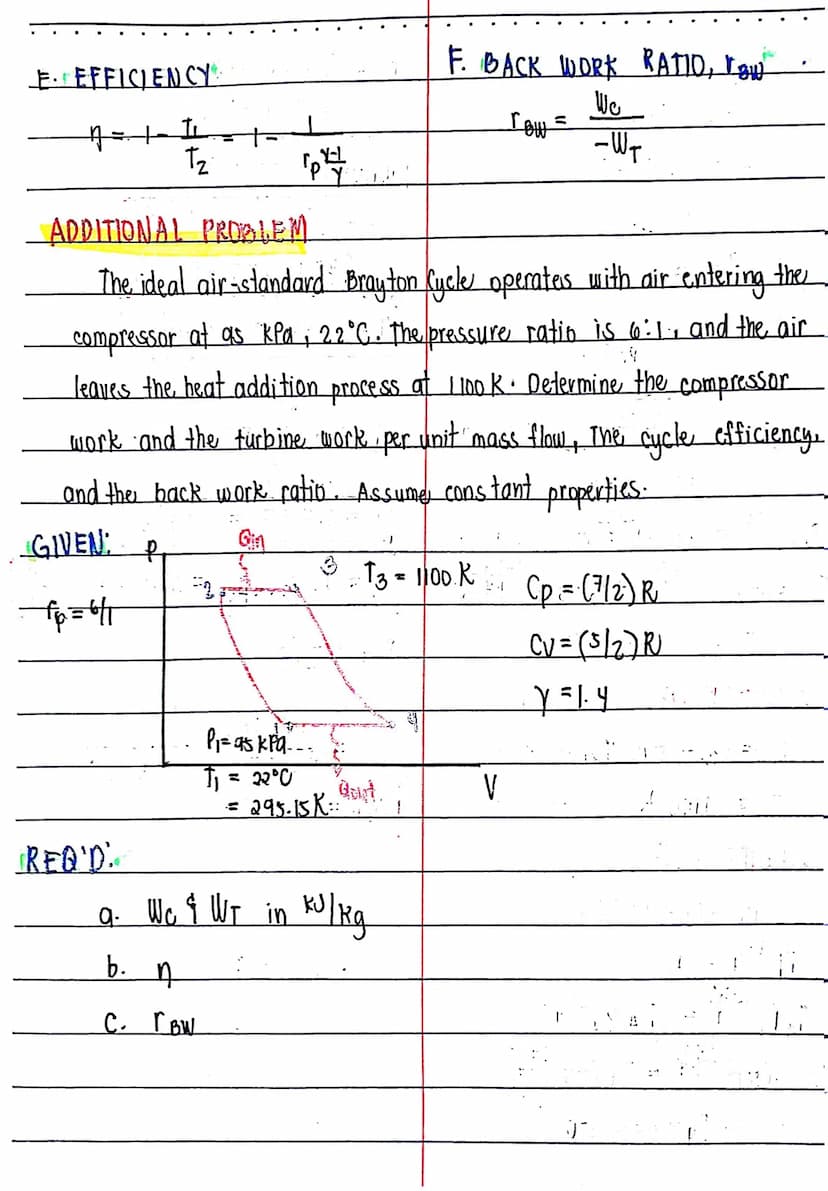

Additional Problem

An example problem is presented to illustrate the application of Brayton cycle principles:

Given:

• Air enters the compressor at 95 kPa, 22°C
• Pressure ratio is 6:1
• Air leaves the heat addition process at 1100K

The problem asks to determine: a. Compressor work and turbine work per unit mass flow b. Cycle efficiency c. Back work ratio

Definition: Back work ratio is the ratio of compressor work to turbine work, indicating the fraction of turbine output used to drive the compressor.

Constant Properties

The problem assumes constant properties, with:

• Cp = $7/2$R
• Cv = $5/2$R
• γ = 1.4

These assumptions simplify calculations while providing a good approximation of cycle performance.

Problem Solution and Calculations

This page provides a detailed solution to the Brayton cycle efficiency calculation problem presented earlier.

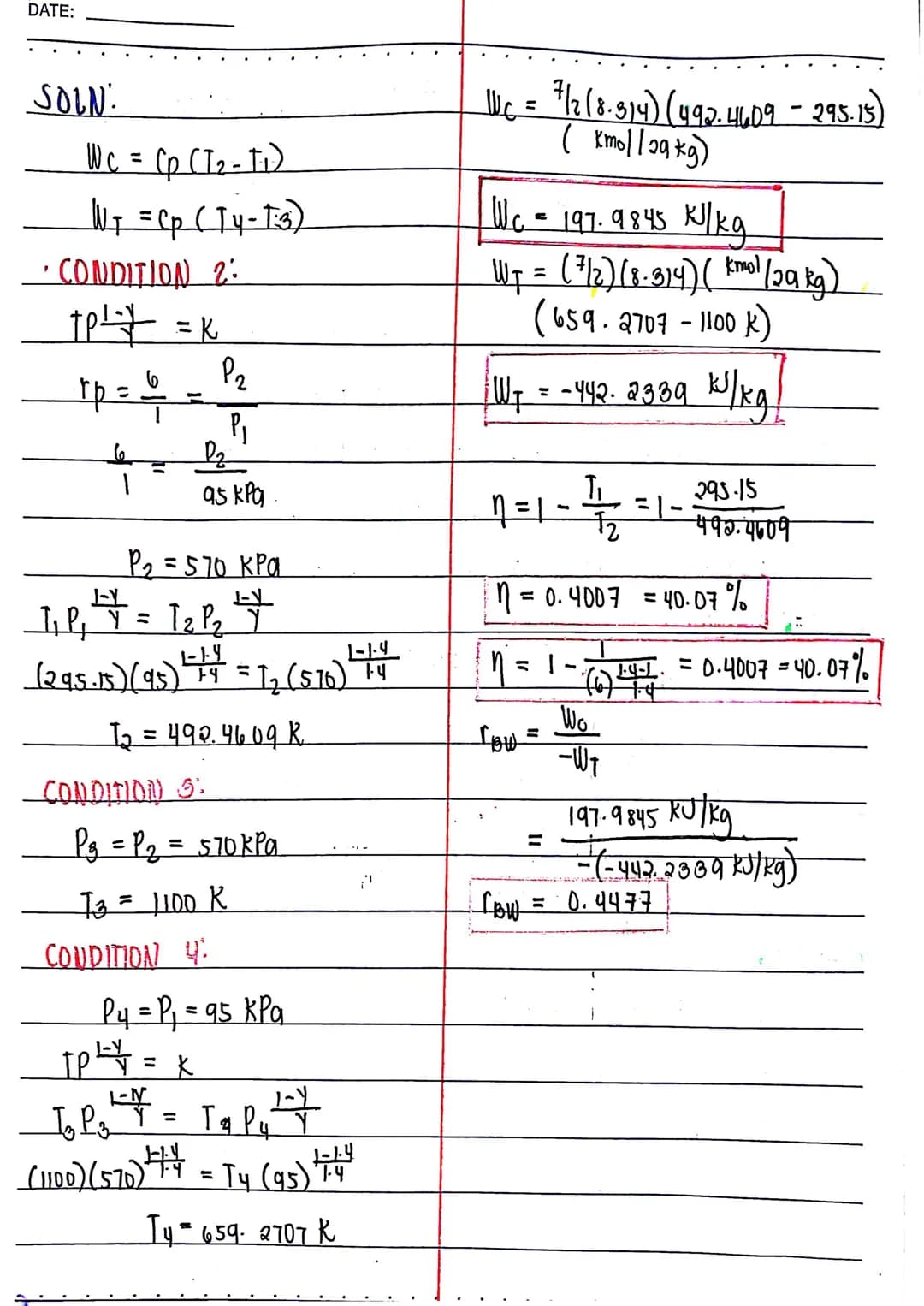

Step-by-Step Solution

1. Calculate T2 using isentropic compression equation: T1P1^$(γ-1)/γ$ = T2P2^$(γ-1)/γ$ T2 = 492.4609 K

2. Calculate T4 using isentropic expansion equation: T3P3^$(γ-1)/γ$ = T4P4^$(γ-1)/γ$ T4 = 659.2707 K

3. Compute compressor work (Wc): Wc = Cp$T2 - T1$ = 197.9845 kJ/kg

4. Compute turbine work (WT): WT = Cp$T3 - T4$ = -442.2339 kJ/kg

5. Calculate cycle efficiency (η): η = 1 - T1/T2 = 0.4007 or 40.07%

6. Determine back work ratio (bwr): bwr = Wc / $-WT$ = 0.4477

Highlight: The negative sign for turbine work indicates energy output from the system.

Key Results

• Compressor work: 197.9845 kJ/kg
• Turbine work: -442.2339 kJ/kg
• Cycle efficiency: 40.07%
• Back work ratio: 0.4477

Example: This problem demonstrates how to apply the Brayton cycle efficiency formula and related equations to analyze gas turbine performance.

These calculations provide valuable insights into the performance characteristics of an ideal Brayton cycle gas turbine engine, showcasing the relationship between pressure ratio, temperatures, and overall cycle efficiency.

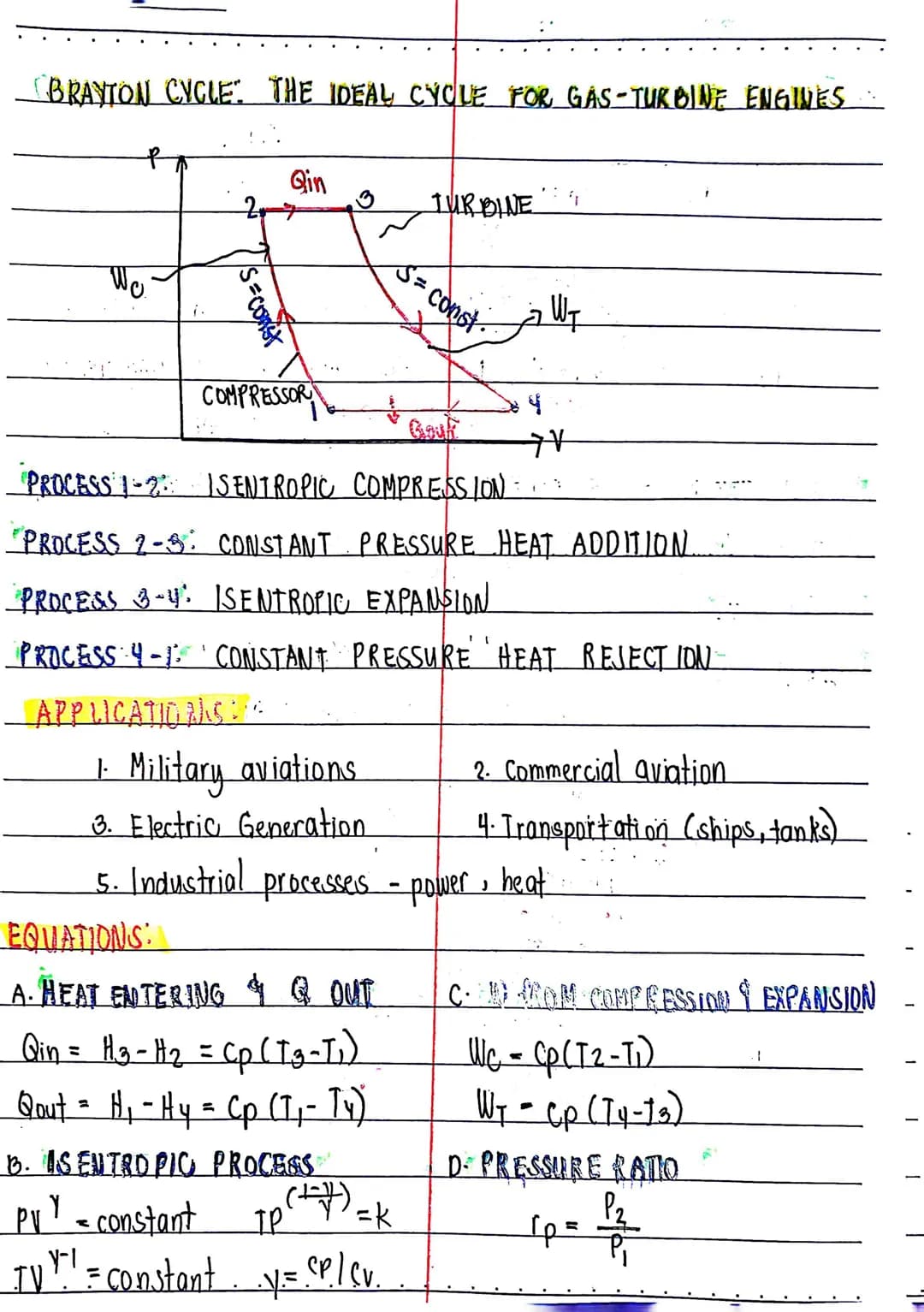

Brayton Cycle: The Ideal Cycle for Gas-Turbine Engines

The Brayton cycle is the ideal thermodynamic cycle for gas turbine engines. This page introduces the cycle's key components, processes, and applications.

Components and Processes

The Brayton cycle consists of four main processes:

1. Isentropic compression $1-2$
2. Constant pressure heat addition $2-3$
3. Isentropic expansion $3-4$
4. Constant pressure heat rejection $4-1$

These processes occur in the compressor, combustion chamber, and turbine of a gas turbine engine.

Vocabulary: Isentropic - A process where entropy remains constant.

Key Equations

The Brayton cycle analysis involves several important equations:

1. Heat entering and exiting:

   • Qin = H3 - H2 = Cp$T3 - T2$
   • Qout = H4 - H1 = Cp$T4 - T1$

2. Work in compression and expansion:

   • Wc = Cp$T2 - T1$
   • WT = Cp$T3 - T4$

3. Pressure ratio: rp = P2 / P1

Definition: Pressure ratio is the ratio of the compressor outlet pressure to the inlet pressure.

Applications

The Brayton cycle has diverse applications, including:

1. Military aviation
2. Commercial aviation
3. Electric power generation
4. Transportation (ships, tanks)
5. Industrial processes

Highlight: The Brayton cycle's versatility makes it crucial in both aerospace and power generation industries.
