Lewis Dot Structures

Lewis dot structures use dots around element symbols to represent valence electrons (outer shell electrons). These diagrams are super helpful for predicting how atoms will interact with each other.

To create a Lewis dot structure, you need to know the element's position on the periodic table. The number of dots equals the number of valence electrons, which you can determine from the group number.

Quick Tip: Remember that atoms want a full outer shell (usually 8 electrons). This "octet rule" drives most chemical bonding!

When drawing Lewis structures, place dots one at a time around the four sides of the element symbol. Elements in the same group will have the same number of dots. For example, all noble gases (Ne, Ar, Kr, Xe) have 8 dots (except helium with 2), while halogens (F, Cl) have 7 dots.

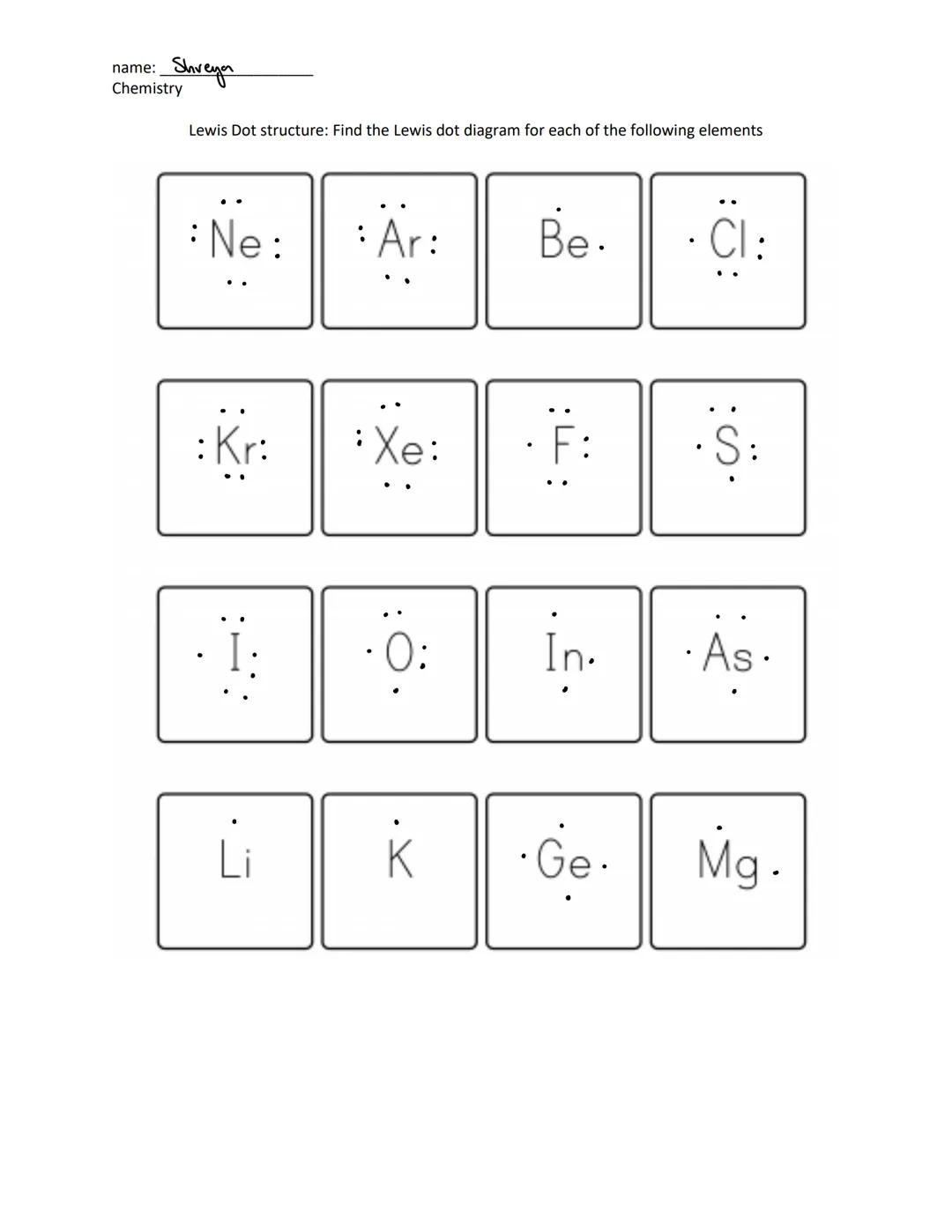

Let's break down some examples from the list:

• Noble gases (Ne, Ar, Kr, Xe): 8 dots (full octet)
• Halogens (F, Cl, I): 7 dots
• Alkaline earth metals (Be, Mg): 2 dots
• Alkali metals (Li, K): 1 dot
• Oxygen family (O, S): 6 dots
