Understanding Quantum Numbers and Electron Configurations: Simple Guide for Kids

Drizzle Hinata

@drizzlehinata

147 Followers

Understanding quantum numbers and electron configurations is crucial for grasping atomic structure and behavior. This comprehensive guide covers the fundamental concepts of quantum mechanics, including the four quantum numbers, Hund's rule, the Pauli exclusion principle, and the Aufbau principle. It also explains how to write and determine electron configurations for elements.

Key points:

Explores theories by Louis deBroglie, Werner Heisenberg, and Erwin Schrödinger
Defines and explains the four quantum numbers: principal, azimuthal, magnetic, and spin
Discusses orbital diagrams and electron configuration models
Covers the Aufbau principle for filling electron orbitals
Explains how to write abbreviated electron configurations using noble gases

2/17/2023

157

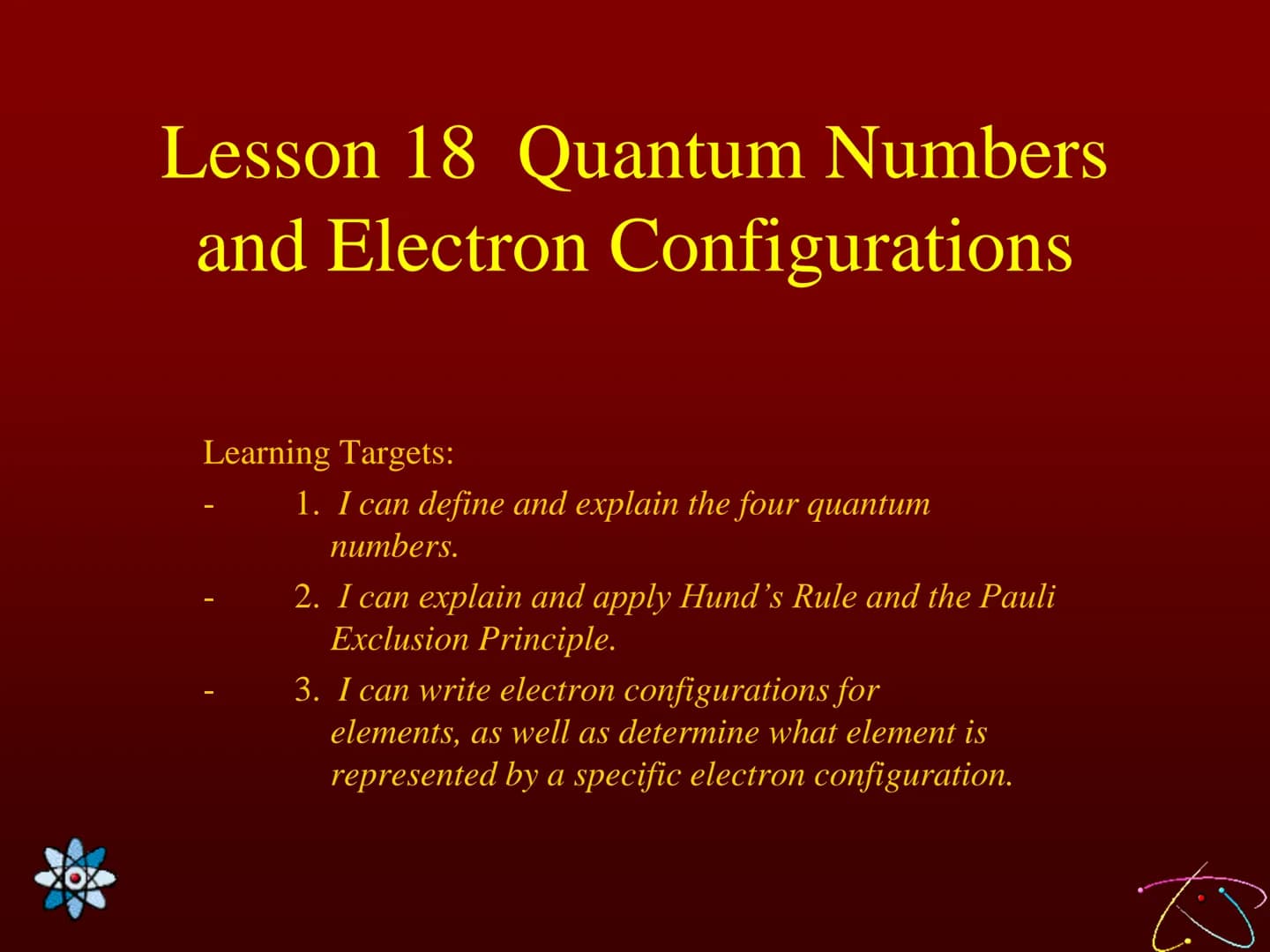

Lesson 18 Quantum Numbers
and Electron Configurations
Learning Targets:
1. I can define and explain the four quantum
numbers.
2. I can expla

View

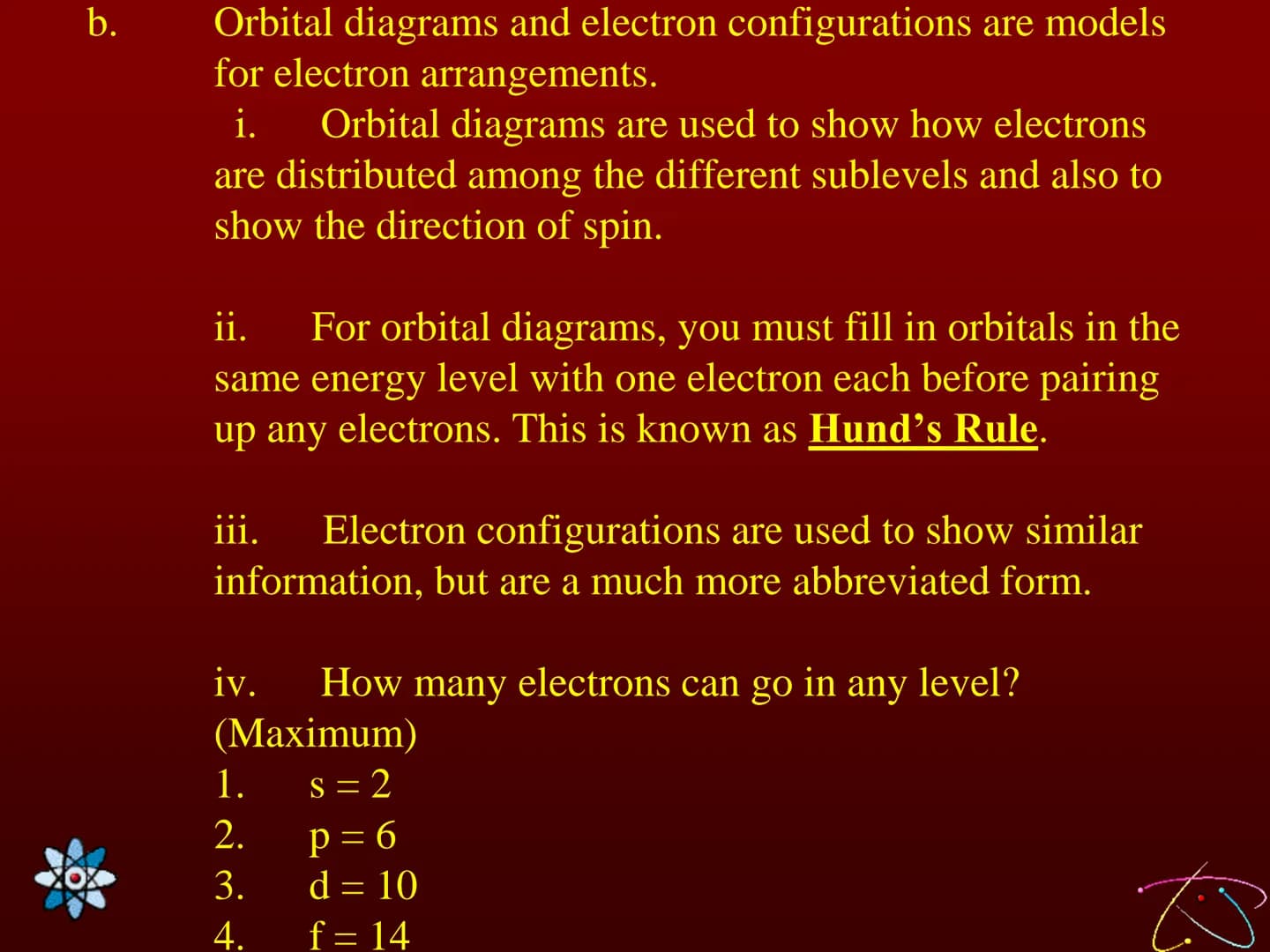

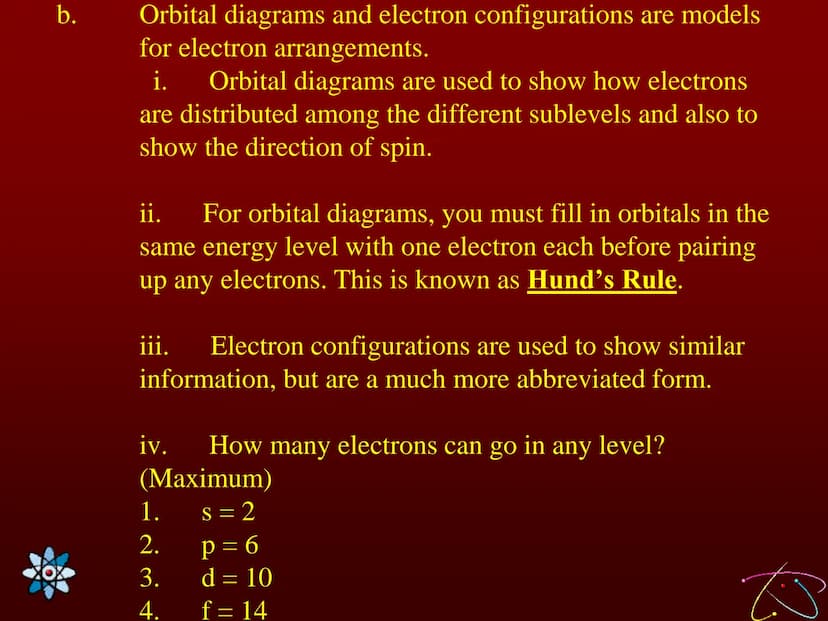

Orbital Diagrams and Electron Configurations

This section introduces orbital diagrams and electron configurations as models for representing electron arrangements in atoms. It also explains Hund's Rule for filling orbitals.

Definition: Orbital diagrams are visual representations showing how electrons are distributed among different sublevels and their spin directions.

Highlight: Hund's Rule states that for orbital diagrams, you must fill in orbitals in the same energy level with one electron each before pairing up any electrons.

Vocabulary: Electron configurations are abbreviated forms of representing electron arrangements in atoms.

Example: The maximum number of electrons that can occupy each sublevel is provided: s = 2, p = 6, d = 10, f = 14.

View

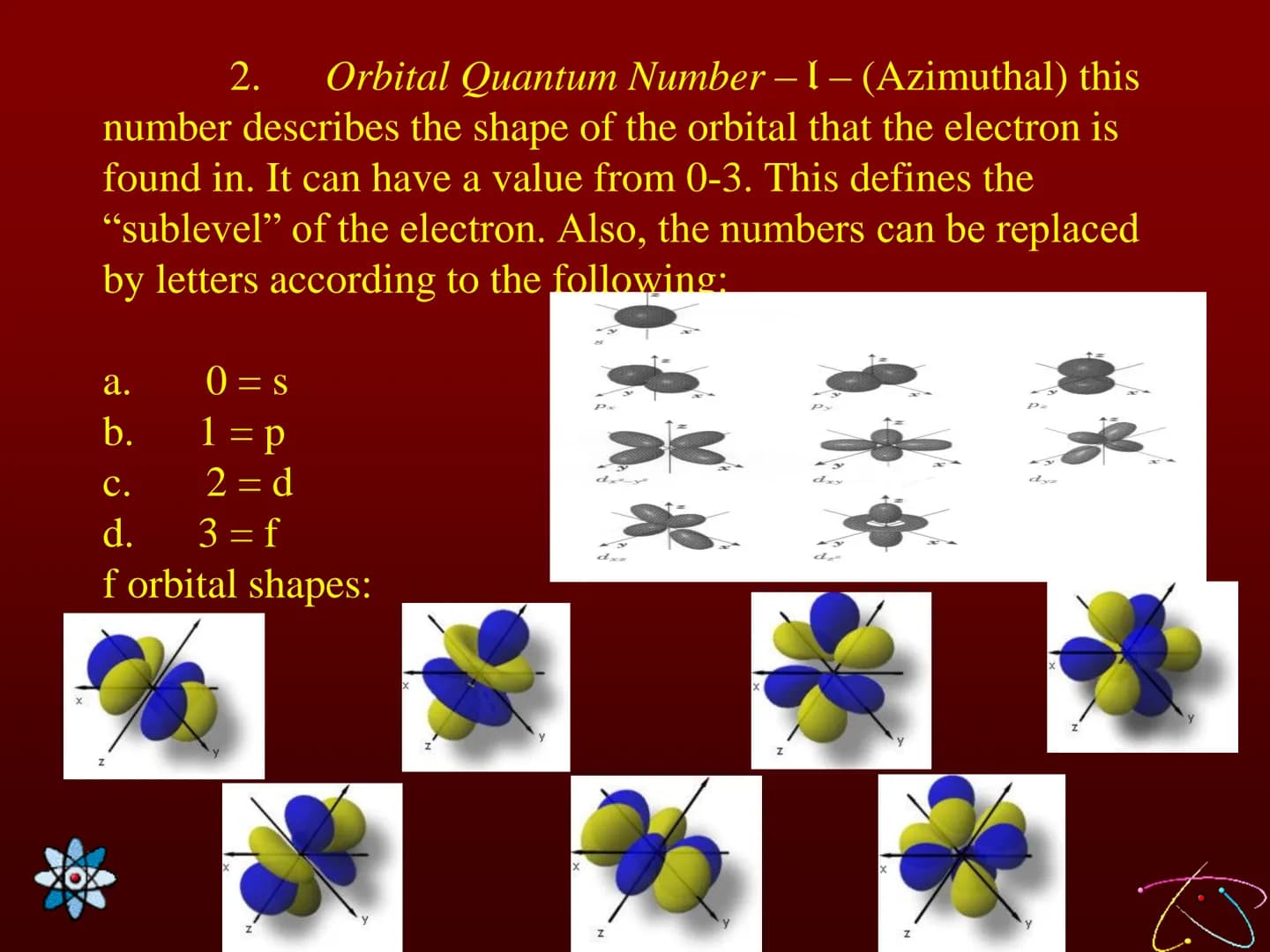

Orbital Quantum Number and Orbital Shapes

This page explains the orbital quantum number (also known as the azimuthal quantum number) and its relationship to orbital shapes. It also introduces the notation used for different sublevels.

Definition: The orbital quantum number (l) describes the shape of the orbital that the electron is found in and can have a value from 0 to 3.

Example: The orbital quantum numbers are often represented by letters: 0 = s, 1 = p, 2 = d, 3 = f.

Highlight: The page includes visual representations of f orbital shapes, illustrating the complex three-dimensional structures of these higher-energy orbitals.

View

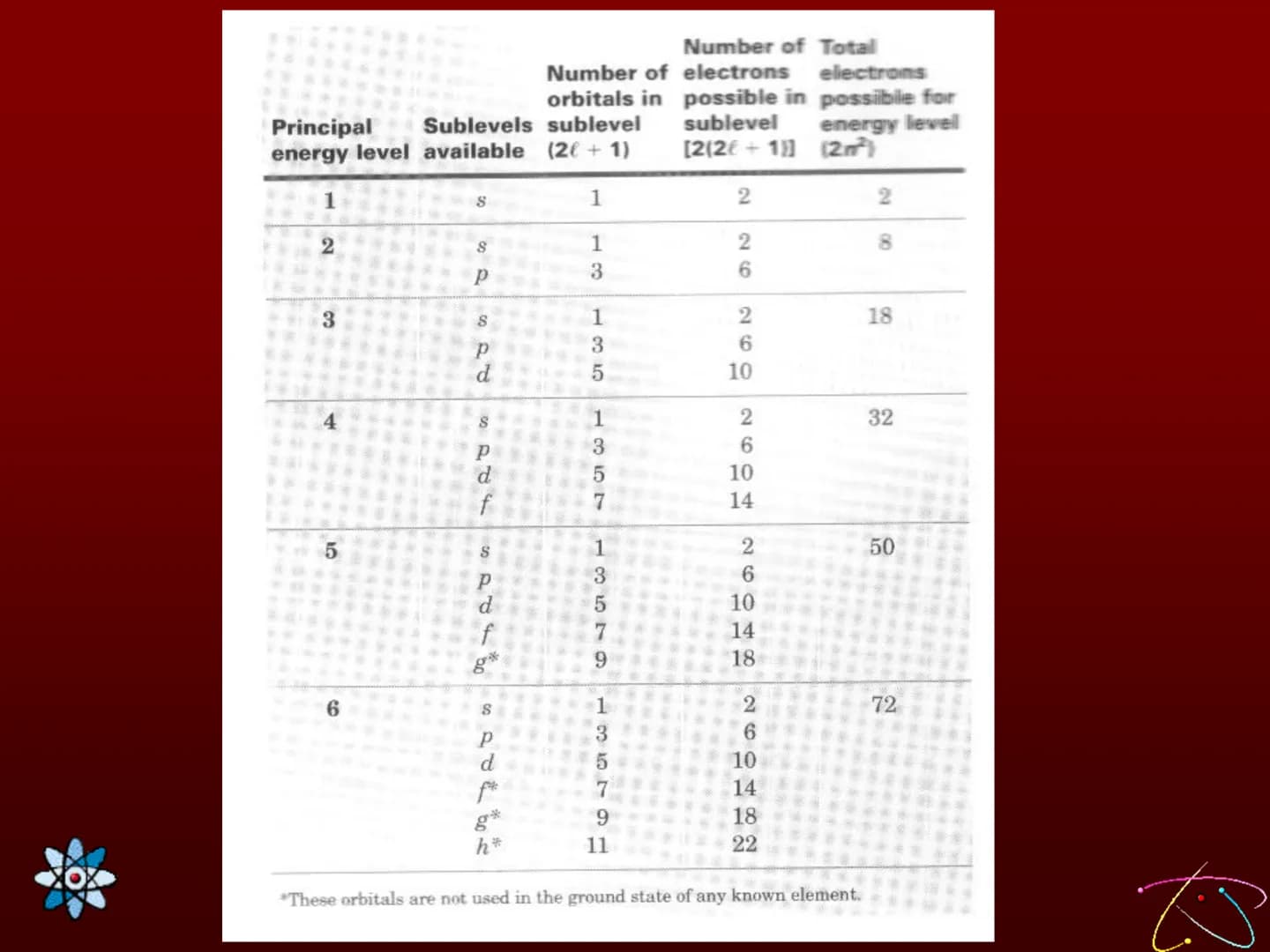

Electron Configuration Table and Pauli Exclusion Principle

This page presents a comprehensive table showing the relationship between principal energy levels, sublevels, and the number of electrons possible in each. It also introduces the Pauli Exclusion Principle.

Highlight: The table provides a clear overview of how electrons are distributed across energy levels and sublevels, showing the maximum number of electrons possible for each configuration.

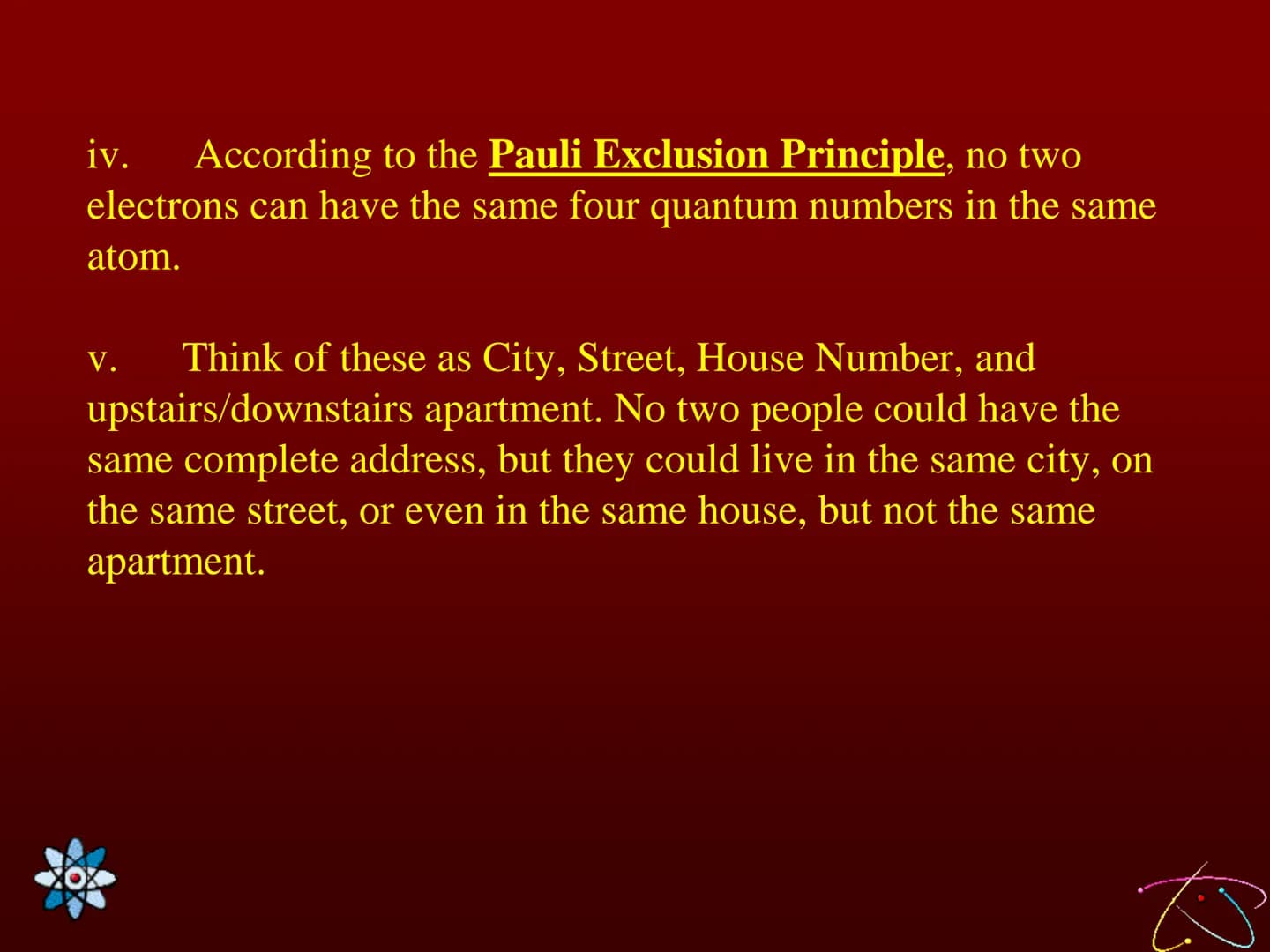

Definition: The Pauli Exclusion Principle states that no two electrons can have the same four quantum numbers in the same atom.

Example: The principle is analogized to a city address system, where no two people can have the same complete address, but they could live in the same city, on the same street, or even in the same house, but not the same apartment.

View

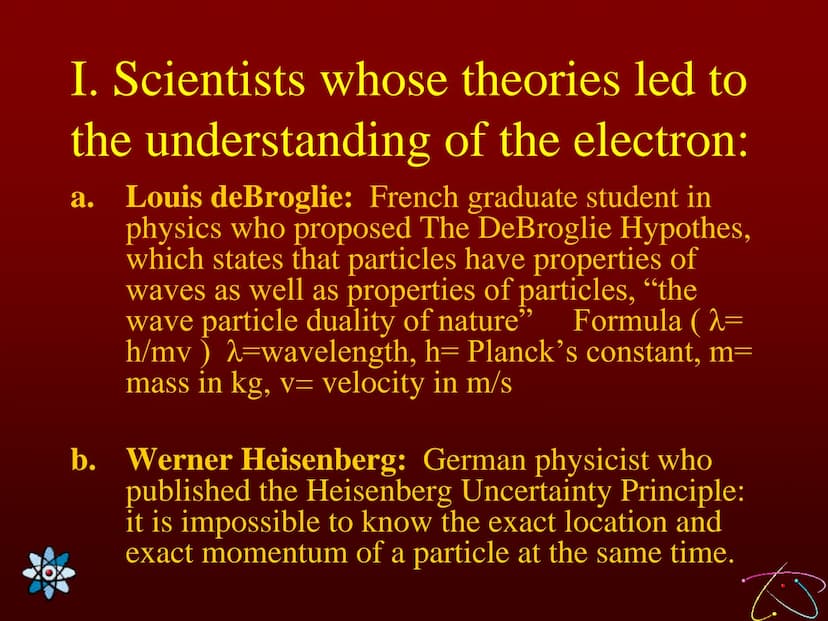

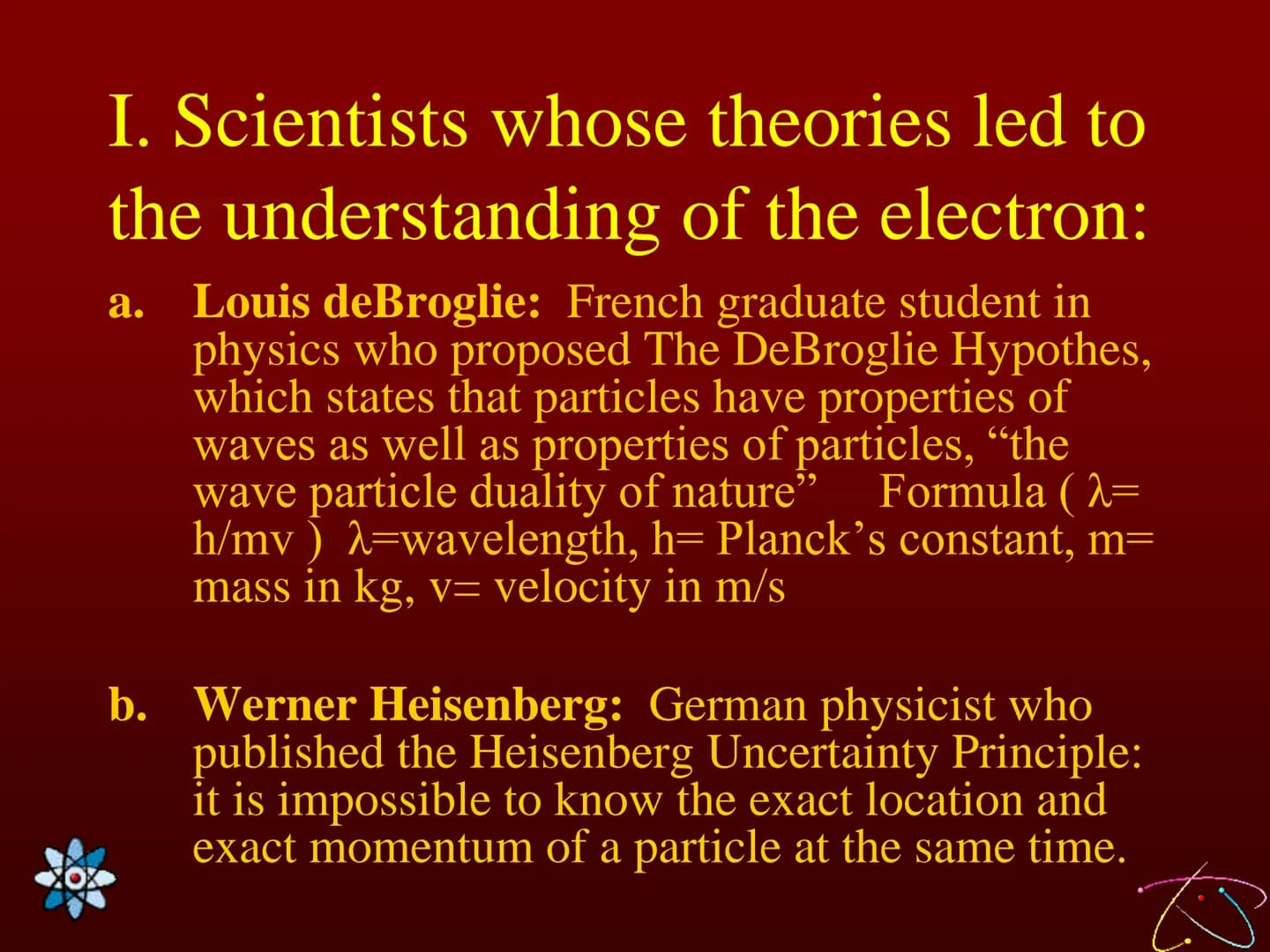

Historical Background: Scientists and Their Theories

This section introduces the key scientists whose theories led to our current understanding of electrons and atomic structure. It highlights the contributions of Louis deBroglie, Werner Heisenberg, and Erwin Schrödinger.

Example: Louis deBroglie proposed the DeBroglie Hypothesis, which states that particles have properties of both waves and particles, expressed by the formula λ = h/mv.

Highlight: Werner Heisenberg's Uncertainty Principle states that it is impossible to know both the exact location and exact momentum of a particle simultaneously.

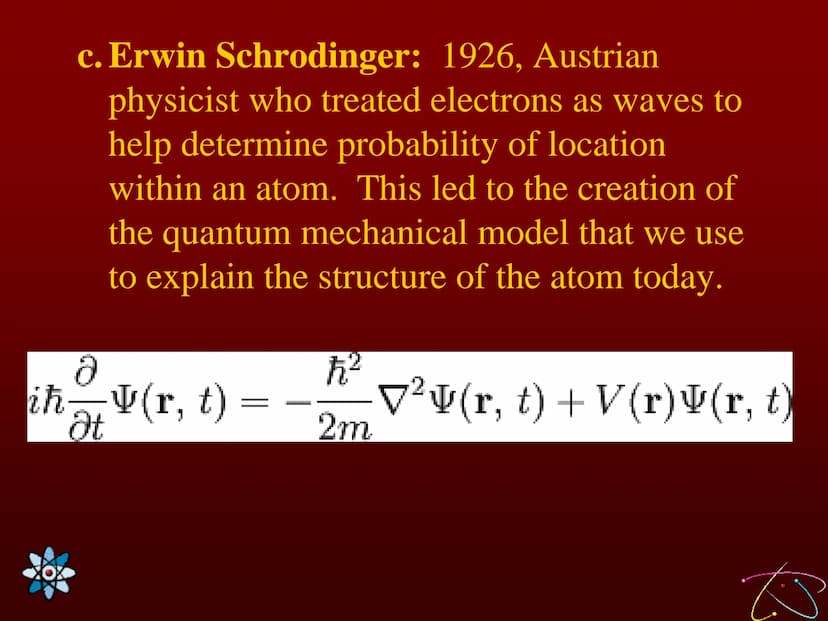

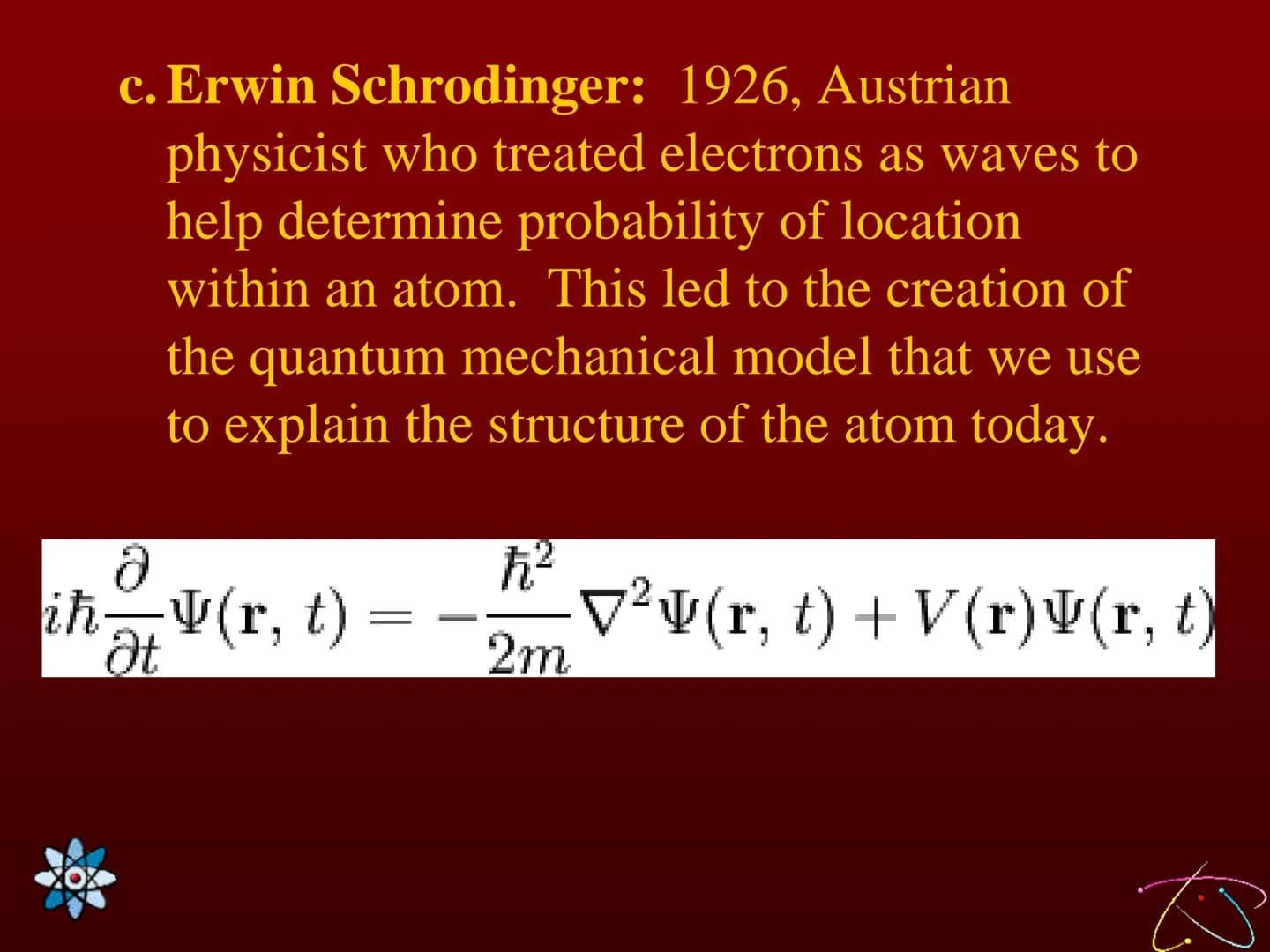

Quote: "Erwin Schrödinger treated electrons as waves to help determine probability of location within an atom, leading to the creation of the quantum mechanical model we use today."

View

Conclusion

The lesson concludes with a brief mention of additional information on electron configurations, suggesting that there is more to learn about this topic in future lessons.

Highlight: The comprehensive coverage of quantum numbers and electron configurations provides a solid foundation for understanding atomic structure and behavior in more advanced chemistry studies.

View

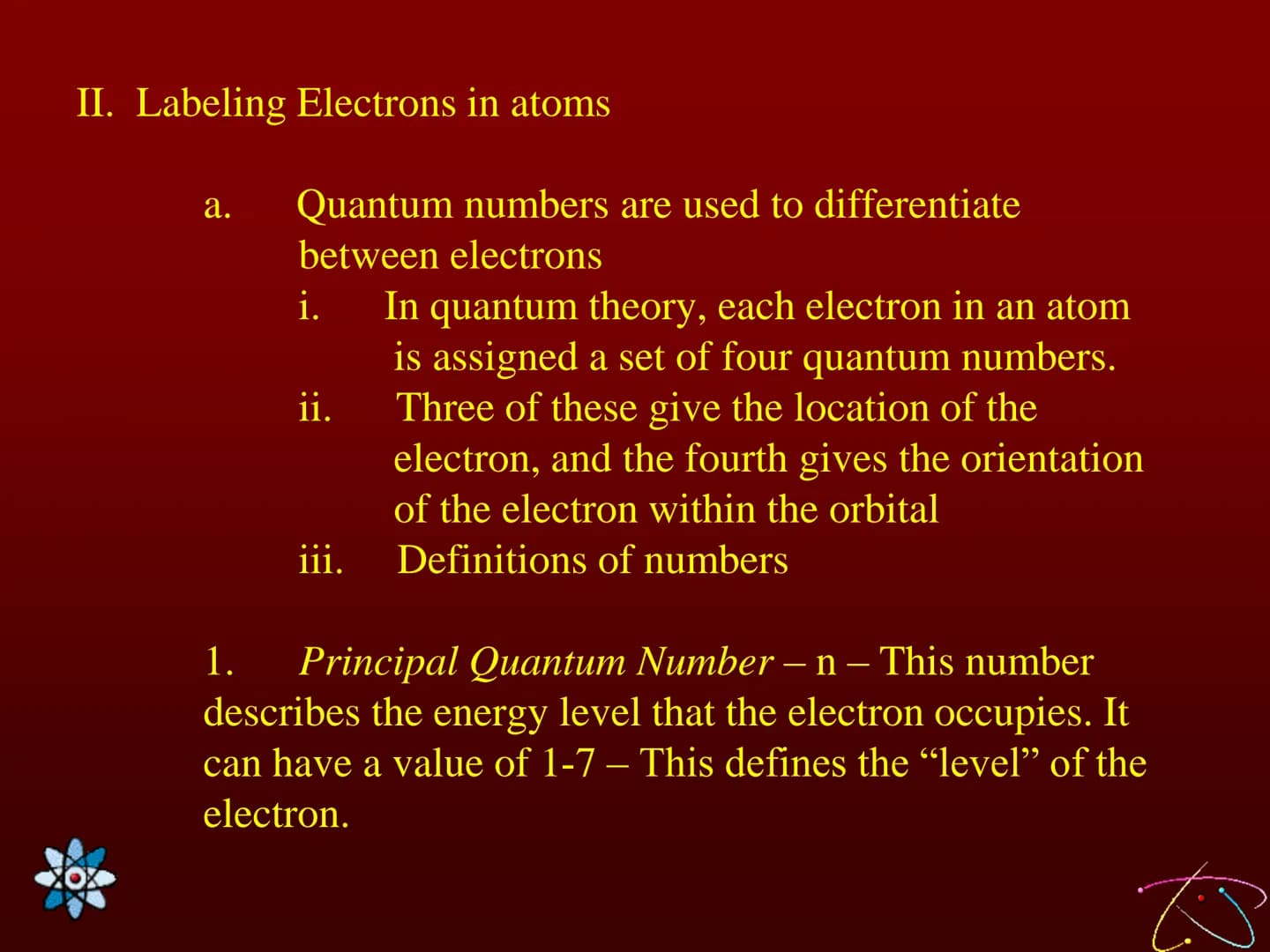

Quantum Numbers: Introduction and Principal Quantum Number

This section introduces the concept of quantum numbers and begins explaining the four quantum numbers used to describe electrons in atoms. It focuses on the principal quantum number.

Definition: Quantum numbers are used to differentiate between electrons and describe their properties within an atom.

Highlight: Each electron in an atom is assigned a set of four quantum numbers, three of which give the location of the electron, and the fourth gives its orientation within the orbital.

Vocabulary: The principal quantum number (n) describes the energy level that the electron occupies and can have a value from 1 to 7.

View

Orbital Filling Diagram and Electron Distribution

This section provides a detailed diagram illustrating the order of filling orbitals and the number of electrons in each sublevel. It visually represents the concepts introduced in the previous page.

Highlight: The diagram offers a clear visual representation of how electrons are distributed across different energy levels and sublevels as atomic number increases.

Example: The diagram shows that the 4s orbital is filled before the 3d orbital, which is an important exception to the general rule of filling lower energy levels first.

View

Abbreviated Electron Configurations Using Noble Gases

The final section introduces a method for writing abbreviated electron configurations using noble gases as a shorthand for inner electron shells.

Definition: Abbreviated electron configurations use the symbol of the nearest noble gas with a smaller atomic number to represent the core electrons, followed by the remaining electron configuration.

Highlight: This method is particularly useful for writing configurations of larger elements, as it significantly reduces the length of the notation.

Example: Only noble gases can be used for this abbreviation method, not any other elements.

View

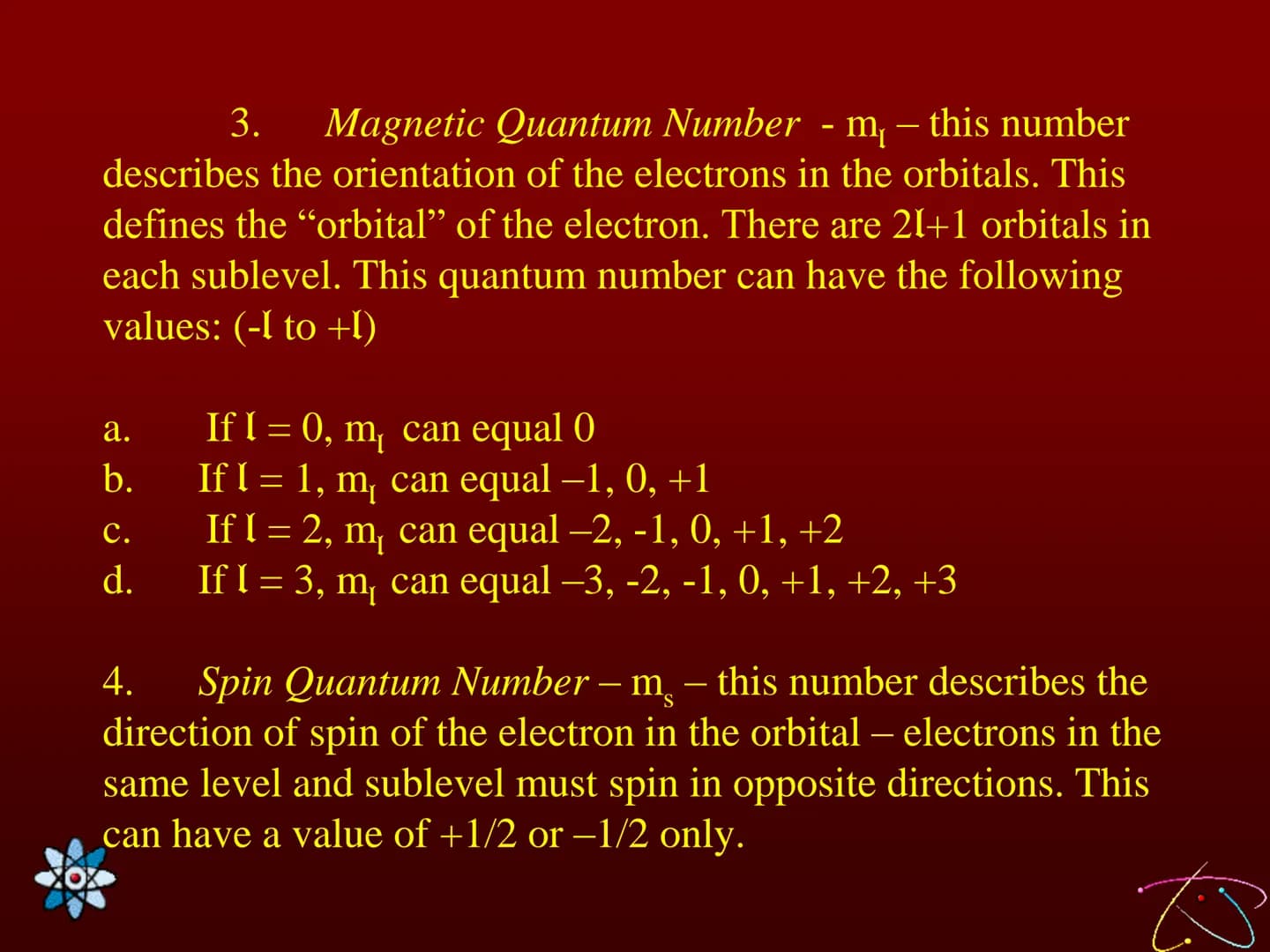

Magnetic Quantum Number and Spin Quantum Number

This section covers the magnetic quantum number and the spin quantum number, completing the explanation of the four quantum numbers used to describe electrons in atoms.

Definition: The magnetic quantum number (m₁) describes the orientation of the electrons in the orbitals and defines the specific orbital of the electron within a sublevel.

Example: For the p sublevel (l = 1), the magnetic quantum number can equal -1, 0, or +1, corresponding to the three p orbitals.

Vocabulary: The spin quantum number (ms) describes the direction of spin of the electron in the orbital and can have a value of +1/2 or -1/2 only.

View

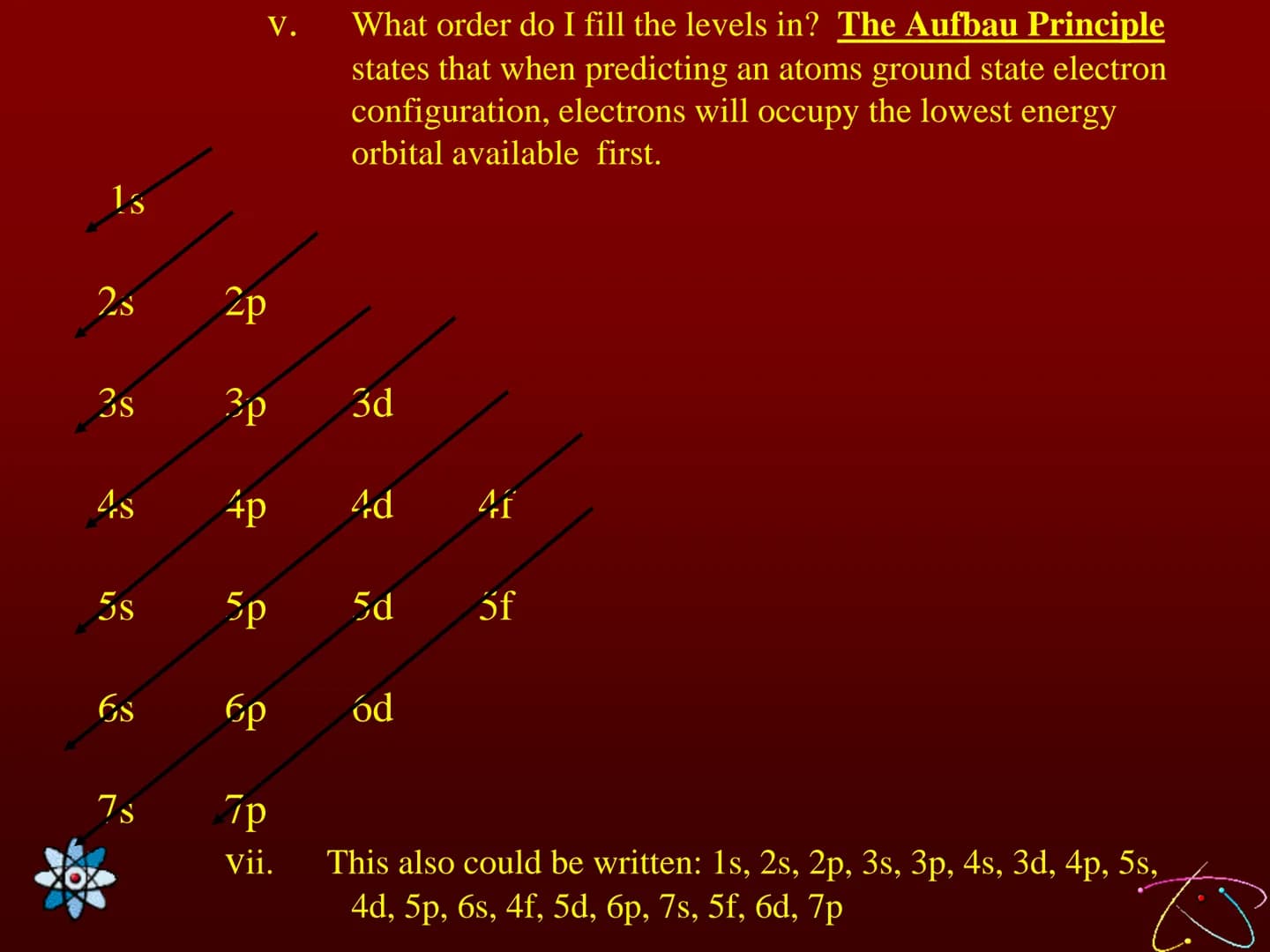

The Aufbau Principle and Orbital Filling Order

This page explains the Aufbau Principle and provides a visual guide for the order of filling electron orbitals in atoms.

Definition: The Aufbau Principle states that when predicting an atom's ground state electron configuration, electrons will occupy the lowest energy orbital available first.

Highlight: The page includes a diagram showing the order of filling orbitals, which is crucial for writing correct electron configurations.

Example: The order of filling orbitals is given as: 1s, 2s, 2p, 3s, 3p, 4s, 3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, 7s, 5f, 6d, 7p.
