Raoult's Law with Examples

Raoult's Law and Antoine Equation Made Easy: Fun PDFs and Notes

This binary mixture of acetonitrile and nitromethane demonstrates the application of Rault's Law in binary systems and uses the Antoine Equation for vapor pressure calculation. The example illustrates how to determine vapor-liquid equilibrium compositions and pressures at different conditions.

Key points:
• Raoult's Law relates vapor and liquid phase compositions in ideal mixtures
• Antoine equation calculates pure component vapor pressures
• Bubble point and dew point calculations determine equilibrium conditions
Liquid phase composition using Rault's Law allows finding mole fractions

...

2/25/2023

22

RA OULT'S LAW
• Ass umptions
4) Vapor phase is in the ideal gas state
2) Liquid phase is in ideal
solution
Application
1) LOW to moderate pr

View

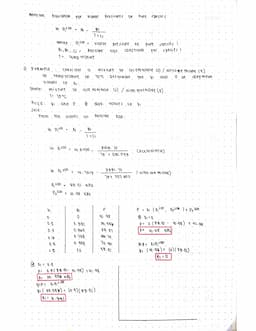

Antoine Equation and Raoult's Law Calculations

This page focuses on the Antoine equation for calculating vapor pressures and provides a detailed example of Raoult's law calculations for a binary mixture.

The Antoine equation is used to calculate vapor pressures of pure species:

ln Pᵢˢᵃᵗ = Aᵢ - Bᵢ / T+CiT + Cᵢ

Where Aᵢ, Bᵢ, and Cᵢ are Antoine constants specific to each species, and T is the temperature.

Example: The page presents a detailed example of Raoult's law calculations for a mixture of acetonitrile 11 and nitromethane 22 at 75°C.

Given:

  • Temperature: 75°C
  • Antoine constants for both species

The example demonstrates how to:

  1. Calculate pure component vapor pressures using the Antoine equation
  2. Determine vapor-phase compositions yiyᵢ and total pressure PP for different liquid-phase compositions xixᵢ

For instance, at x₁ = 0.2:

  • P₁ˢᵃᵗ = 83.21 kPa
  • P₂ˢᵃᵗ = 41.98 kPa
  • P = x₁P₁ˢᵃᵗ + x₂P₂ˢᵃᵗ = 50.226 kPa
  • y₁ = x₁P₁ˢᵃᵗ / P = 0.331

Highlight: This example illustrates the practical application of Raoult's law for vapor pressure calculations and demonstrates how composition affects the total pressure and vapor-phase composition in a binary mixture.

The page includes a table showing calculated values for different liquid-phase compositions, providing a comprehensive view of how the mixture behaves across its entire composition range.

RA OULT'S LAW
• Ass umptions
4) Vapor phase is in the ideal gas state
2) Liquid phase is in ideal
solution
Application
1) LOW to moderate pr

View

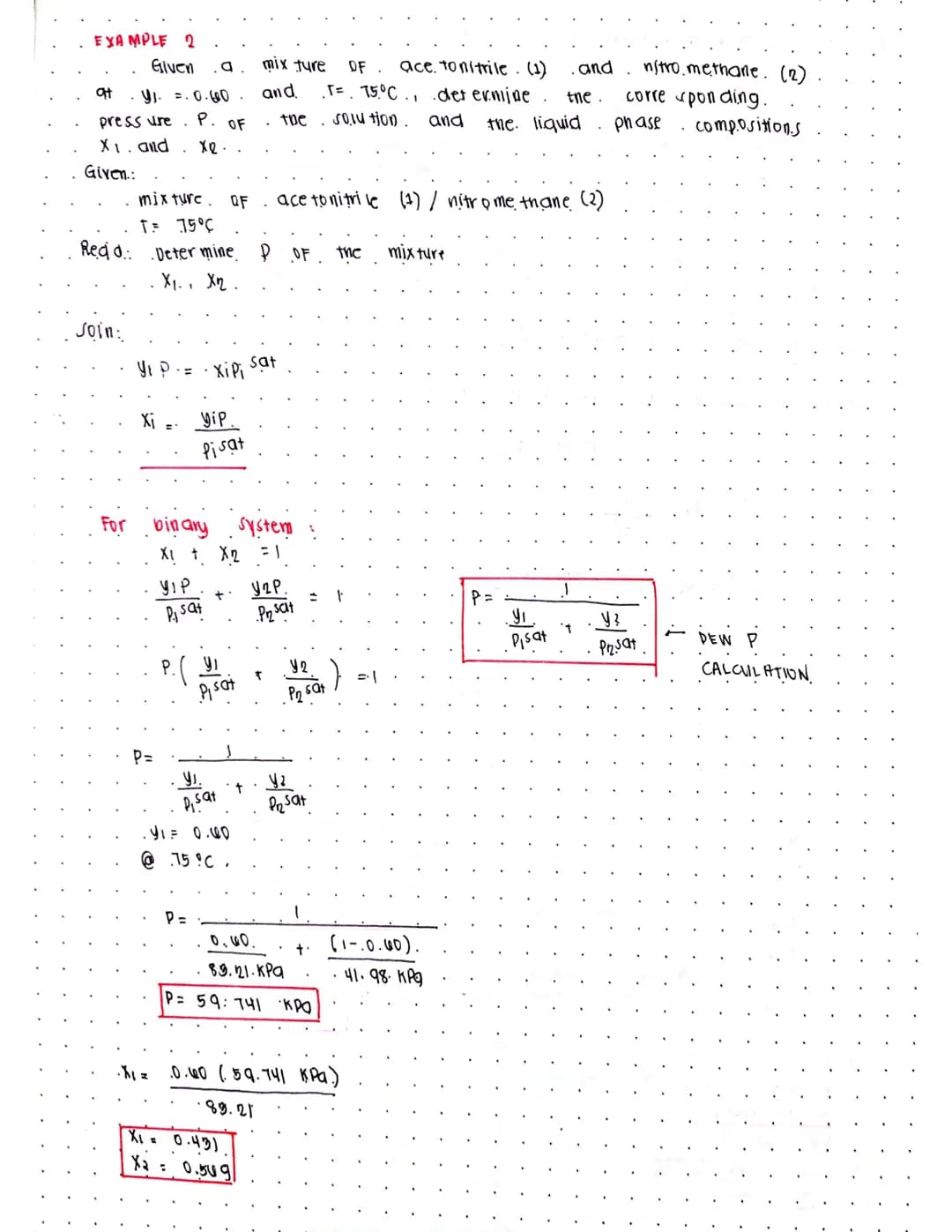

Dew Point Calculations Using Raoult's Law

This page focuses on dew point calculations using Raoult's law, presenting a detailed example for a binary mixture of acetonitrile and nitromethane.

Example: The problem involves determining the liquid-phase compositions x1andx2x₁ and x₂ and total pressure PP for a mixture of acetonitrile 11 and nitromethane 22 at 75°C, given a vapor-phase composition of y₁ = 0.600.

The solution approach involves the following steps:

  1. Use Raoult's law equation: y₁P = x₁P₁ˢᵃᵗ
  2. Rearrange to solve for x₁: x₁ = y₁P / P₁ˢᵃᵗ
  3. Use the fact that for a binary system, x₁ + x₂ = 1
  4. Substitute known values and solve for P

Given:

  • y₁ = 0.600
  • T = 75°C
  • P₁ˢᵃᵗ = 83.21 kPa acetonitrileacetonitrile
  • P₂ˢᵃᵗ = 41.98 kPa nitromethanenitromethane

Calculations yield:

  • P = 59.741 kPa
  • x₁ = 0.431
  • x₂ = 0.569

Highlight: This example demonstrates the application of Raoult's law for dew point calculations, which are crucial in understanding phase behavior and designing separation processes.

The page emphasizes the importance of using the correct form of Raoult's law equation for dew point calculations, where the vapor-phase composition is known, and the liquid-phase composition and total pressure are to be determined.

Vocabulary: Dew point - The temperature at which vapor begins to condense into liquid at a given pressure.

This example provides valuable insight into how Raoult's law can be applied to solve practical problems in chemical engineering and thermodynamics, particularly in the analysis of vapor-liquid equilibria.

Can't find what you're looking for? Explore other subjects.

Knowunity is the # 1 ranked education app in five European countries

Knowunity was a featured story by Apple and has consistently topped the app store charts within the education category in Germany, Italy, Poland, Switzerland and United Kingdom. Join Knowunity today and help millions of students around the world.

Ranked #1 Education App

Download in

Google Play

Download in

App Store

Knowunity is the # 1 ranked education app in five European countries

4.9+

Average App Rating

21 M

Students use Knowunity

#1

In Education App Charts in 17 Countries

950 K+

Students uploaded study notes

Still not sure? Look at what your fellow peers are saying...

iOS User

I love this app so much [...] I recommend Knowunity to everyone!!! I went from a C to an A with it :D

Stefan S, iOS User

The application is very simple and well designed. So far I have found what I was looking for :D

SuSSan, iOS User

Love this App ❤️, I use it basically all the time whenever I'm studying



Chemistry

22

Feb 25, 2023

3 pages

Raoult's Law and Antoine Equation Made Easy: Fun PDFs and Notes

This binary mixture of acetonitrile and nitromethane demonstrates the application of Rault's Law in binary systems and uses the Antoine Equation for vapor pressure calculation. The example illustrates how to determine vapor-liquid equilibrium compositions and pressures at different conditions.... Show more

RA OULT'S LAW
• Ass umptions
4) Vapor phase is in the ideal gas state
2) Liquid phase is in ideal
solution
Application
1) LOW to moderate pr

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

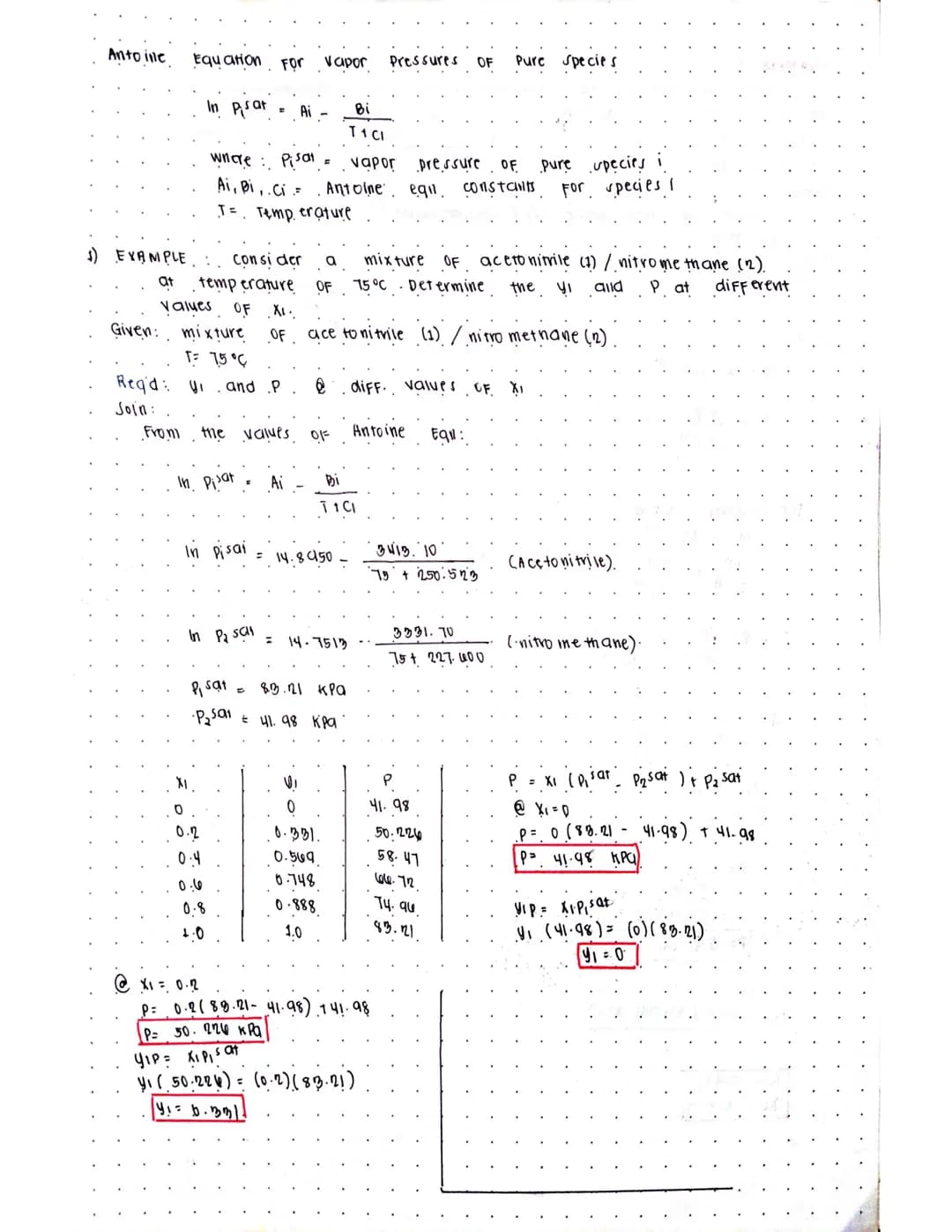

Antoine Equation and Raoult's Law Calculations

This page focuses on the Antoine equation for calculating vapor pressures and provides a detailed example of Raoult's law calculations for a binary mixture.

The Antoine equation is used to calculate vapor pressures of pure species:

ln Pᵢˢᵃᵗ = Aᵢ - Bᵢ / T+CiT + Cᵢ

Where Aᵢ, Bᵢ, and Cᵢ are Antoine constants specific to each species, and T is the temperature.

Example: The page presents a detailed example of Raoult's law calculations for a mixture of acetonitrile 11 and nitromethane 22 at 75°C.

Given:

  • Temperature: 75°C
  • Antoine constants for both species

The example demonstrates how to:

  1. Calculate pure component vapor pressures using the Antoine equation
  2. Determine vapor-phase compositions yiyᵢ and total pressure PP for different liquid-phase compositions xixᵢ

For instance, at x₁ = 0.2:

  • P₁ˢᵃᵗ = 83.21 kPa
  • P₂ˢᵃᵗ = 41.98 kPa
  • P = x₁P₁ˢᵃᵗ + x₂P₂ˢᵃᵗ = 50.226 kPa
  • y₁ = x₁P₁ˢᵃᵗ / P = 0.331

Highlight: This example illustrates the practical application of Raoult's law for vapor pressure calculations and demonstrates how composition affects the total pressure and vapor-phase composition in a binary mixture.

The page includes a table showing calculated values for different liquid-phase compositions, providing a comprehensive view of how the mixture behaves across its entire composition range.

RA OULT'S LAW
• Ass umptions
4) Vapor phase is in the ideal gas state
2) Liquid phase is in ideal
solution
Application
1) LOW to moderate pr

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

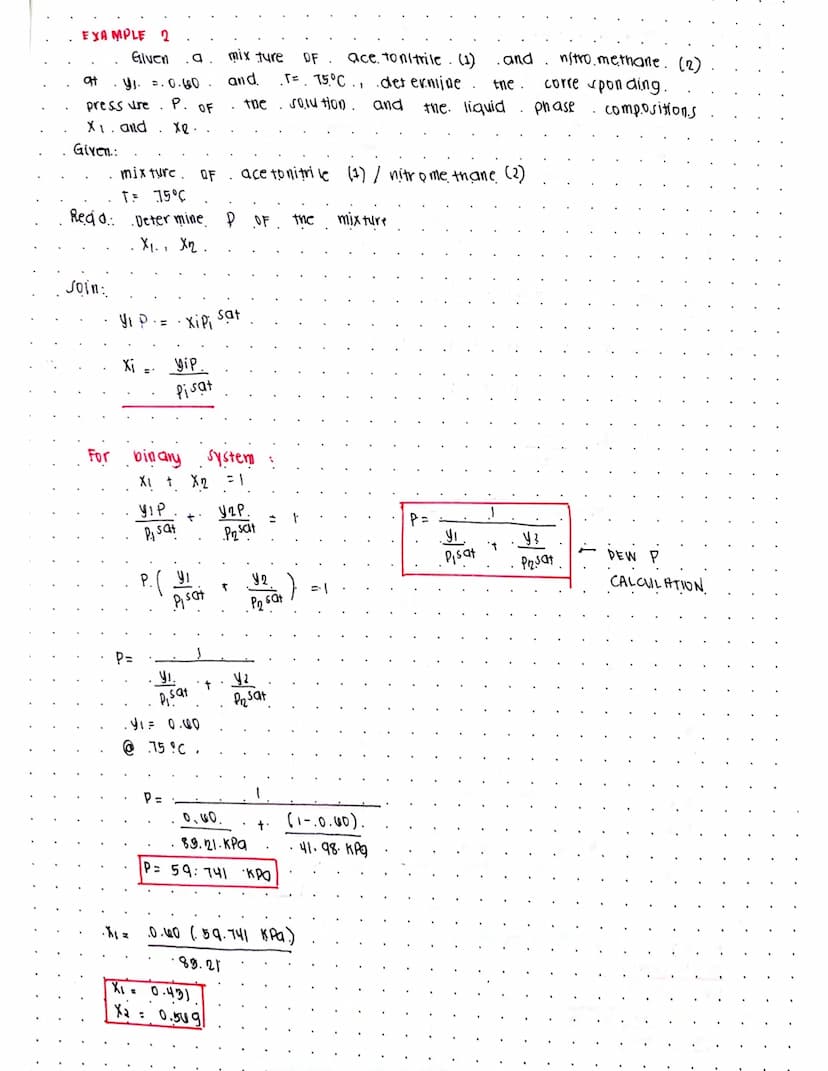

Dew Point Calculations Using Raoult's Law

This page focuses on dew point calculations using Raoult's law, presenting a detailed example for a binary mixture of acetonitrile and nitromethane.

Example: The problem involves determining the liquid-phase compositions x1andx2x₁ and x₂ and total pressure PP for a mixture of acetonitrile 11 and nitromethane 22 at 75°C, given a vapor-phase composition of y₁ = 0.600.

The solution approach involves the following steps:

  1. Use Raoult's law equation: y₁P = x₁P₁ˢᵃᵗ
  2. Rearrange to solve for x₁: x₁ = y₁P / P₁ˢᵃᵗ
  3. Use the fact that for a binary system, x₁ + x₂ = 1
  4. Substitute known values and solve for P

Given:

  • y₁ = 0.600
  • T = 75°C
  • P₁ˢᵃᵗ = 83.21 kPa acetonitrileacetonitrile
  • P₂ˢᵃᵗ = 41.98 kPa nitromethanenitromethane

Calculations yield:

  • P = 59.741 kPa
  • x₁ = 0.431
  • x₂ = 0.569

Highlight: This example demonstrates the application of Raoult's law for dew point calculations, which are crucial in understanding phase behavior and designing separation processes.

The page emphasizes the importance of using the correct form of Raoult's law equation for dew point calculations, where the vapor-phase composition is known, and the liquid-phase composition and total pressure are to be determined.

Vocabulary: Dew point - The temperature at which vapor begins to condense into liquid at a given pressure.

This example provides valuable insight into how Raoult's law can be applied to solve practical problems in chemical engineering and thermodynamics, particularly in the analysis of vapor-liquid equilibria.

RA OULT'S LAW
• Ass umptions
4) Vapor phase is in the ideal gas state
2) Liquid phase is in ideal
solution
Application
1) LOW to moderate pr

Sign up to see the contentIt's free!

Access to all documents

Improve your grades

Join milions of students

By signing up you accept Terms of Service and Privacy Policy

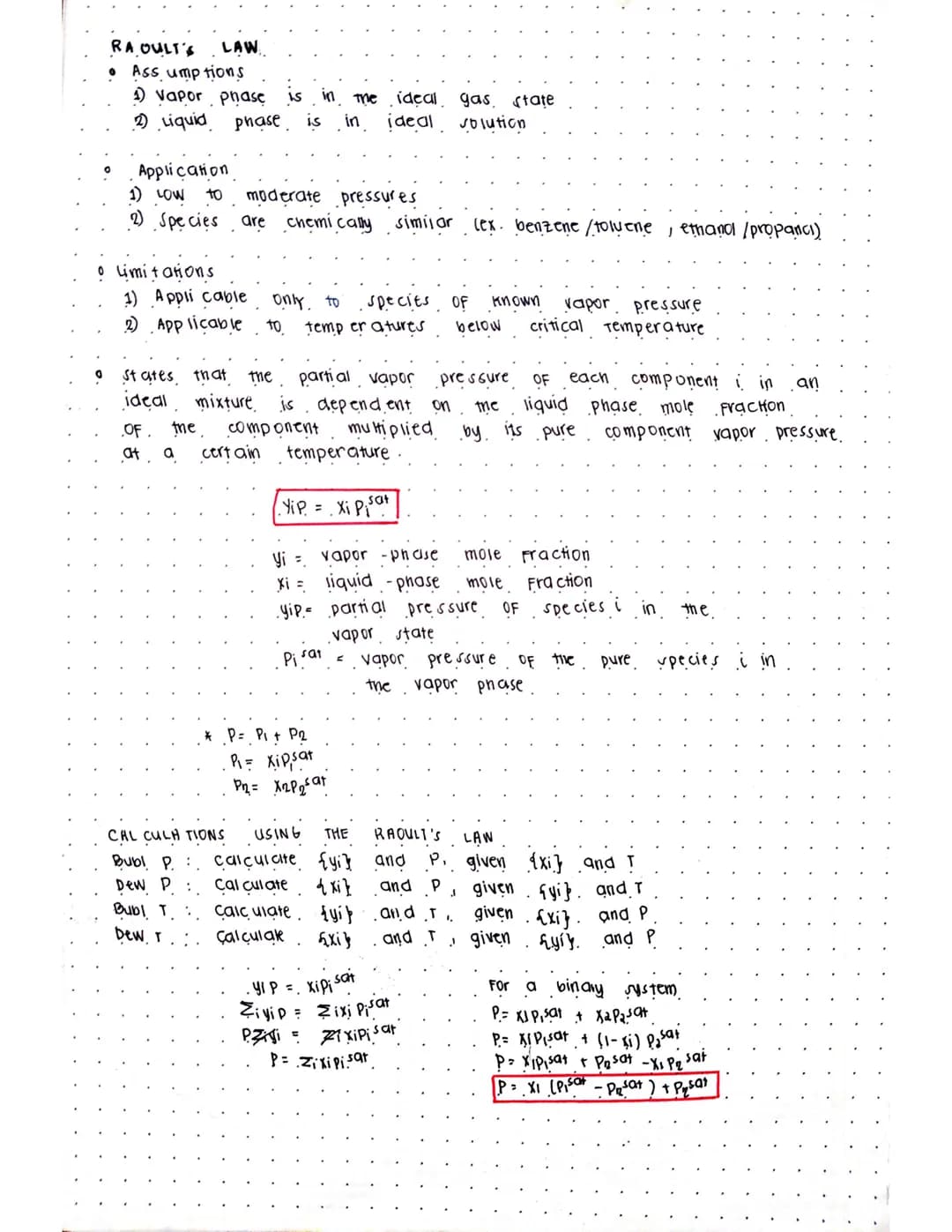

Raoult's Law: Assumptions, Applications, and Calculations

This page introduces Raoult's law, its assumptions, applications, and limitations. It also provides the mathematical formulation of the law and outlines various calculations that can be performed using it.

Definition: Raoult's law states that the partial vapor pressure of each component in an ideal mixture is dependent on the liquid-phase mole fraction of the component multiplied by its pure component vapor pressure at a certain temperature.

The law is expressed mathematically as:

yᵢP = xᵢPᵢˢᵃᵗ

Where:

  • yᵢ is the vapor-phase mole fraction
  • xᵢ is the liquid-phase mole fraction
  • P is the total pressure
  • Pᵢˢᵃᵗ is the vapor pressure of pure species i

Highlight: Raoult's law is applicable only to species below their critical temperature and at low to moderate pressures.

The page also outlines various calculations that can be performed using Raoult's law, including:

  1. Bubble Point Pressure BublPBubl P: Calculate {yᵢ} and P given {xᵢ} and T
  2. Dew Point Pressure DewPDew P: Calculate {xᵢ} given {yᵢ} and P
  3. Bubble Point Temperature BublTBubl T: Calculate {yᵢ} and T given {xᵢ} and P
  4. Dew Point Temperature DewTDew T: Calculate {xᵢ} and T given {yᵢ} and P

For a binary system, the total pressure can be calculated using:

P = x₁P₁ˢᵃᵗ + x₂P₂ˢᵃᵗ

Example: This equation can be rearranged to express pressure in terms of x₁: P = x₁P1satP2satP₁ˢᵃᵗ - P₂ˢᵃᵗ + P₂ˢᵃᵗ

This formulation is particularly useful for Raoult's law vapor pressure calculations in binary mixtures.
