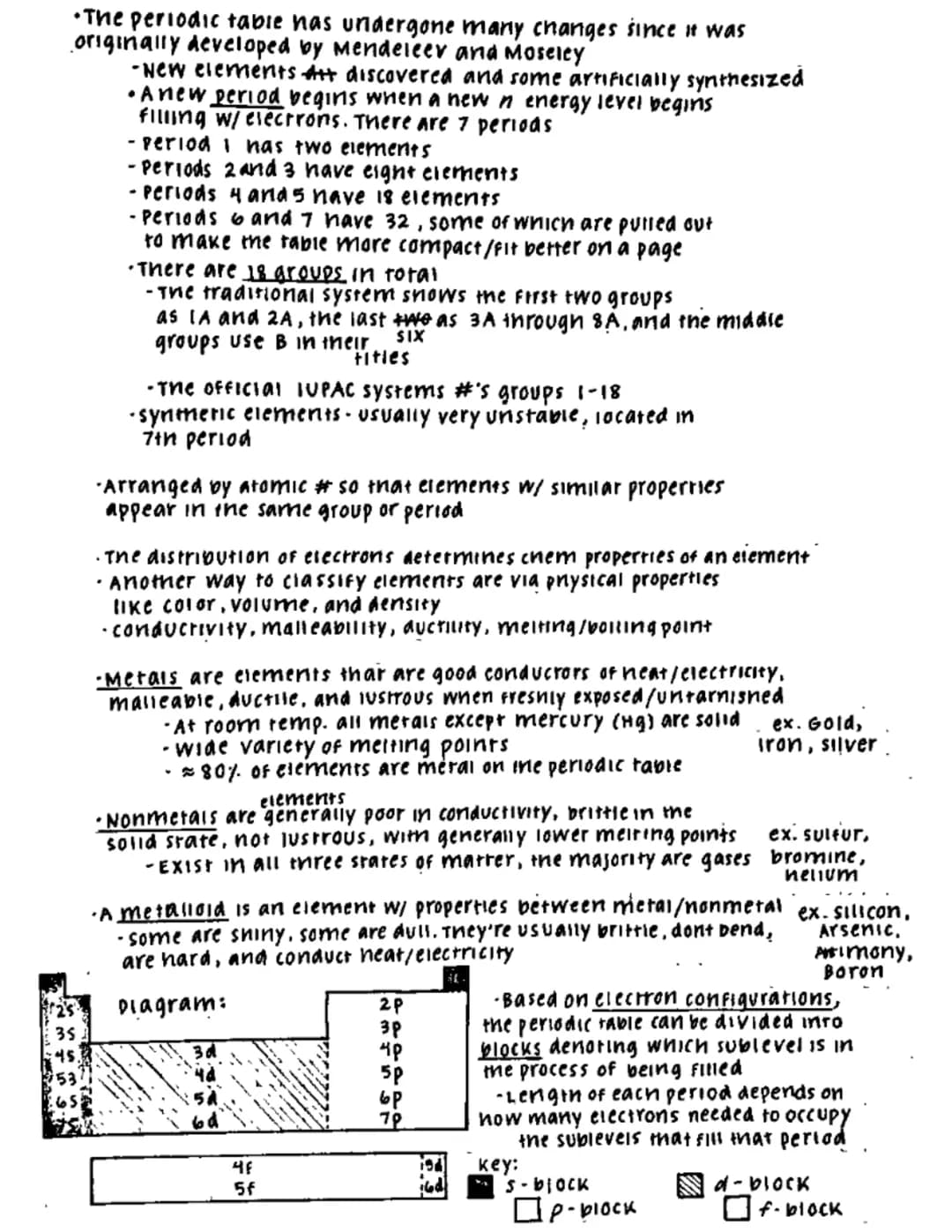

Structure and Organization of the Modern Periodic Table

The modern periodic table has undergone numerous changes since its original development by Mendeleev and Moseley. This evolution reflects the discovery of new elements and advancements in our understanding of atomic structure.

The table is organized into periods and groups, each providing important information about element properties:

• Periods are horizontal rows that represent the number of electron shells (principal quantum number or energy levels) in an atom.
• There are seven periods in total, with varying numbers of elements:
  • Period 1 has two elements
  • Periods 2 and 3 have eight elements each
  • Periods 4 and 5 have 18 elements each
  • Periods 6 and 7 have 32 elements, some of which are displayed separately to maintain the table's compact format

Highlight: The number of elements in each period corresponds to the electron configuration of atoms, with longer periods accommodating more complex electron arrangements.

Groups are vertical columns that represent the number of valence electrons in an atom. There are 18 groups in total, with two main naming systems:

1. The traditional system labels the first two groups as IA and IIA, the last six as IIIA through VIIIA, and uses B for the middle groups.
2. The official IUPAC system simply numbers the groups from 1 to 18.

Vocabulary: Valence electrons are the electrons in the outermost shell of an atom, which are involved in chemical bonding and determine many of an element's chemical properties.

The periodic table also classifies elements based on their physical properties:

• Metals: Good conductors of heat and electricity, malleable, ductile, and lustrous. They comprise about 80% of the elements and are generally solid at room temperature (except for mercury).
• Nonmetals: Poor conductors, brittle in solid state, not lustrous, with lower melting points. They exist in all three states of matter, with many being gases.
• Metalloids: Elements with properties between metals and nonmetals. They may be shiny or dull, are usually brittle and hard, and have some conductive properties.

Example: Gold, iron, and silver are examples of metals; sulfur, bromine, and helium are nonmetals; silicon, arsenic, and boron are metalloids.

The periodic table is further divided into blocks based on electron configurations:

• s-block
• p-block
• d-block
• f-block

These blocks indicate which sublevel is in the process of being filled and determine the length of each period.

Definition: The blocks of the periodic table (s, p, d, f) correspond to the type of orbital being filled with electrons in each element's highest energy level.

This organization of the periodic table provides a wealth of information about element properties and trends, making it an invaluable tool for chemists and students alike. The table's structure reflects the underlying principles of atomic structure and electron configuration, allowing for predictions and comparisons of element behavior across the table.

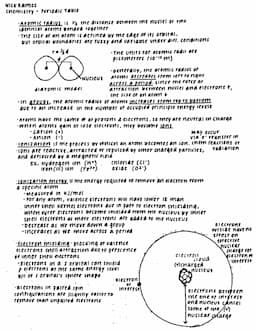

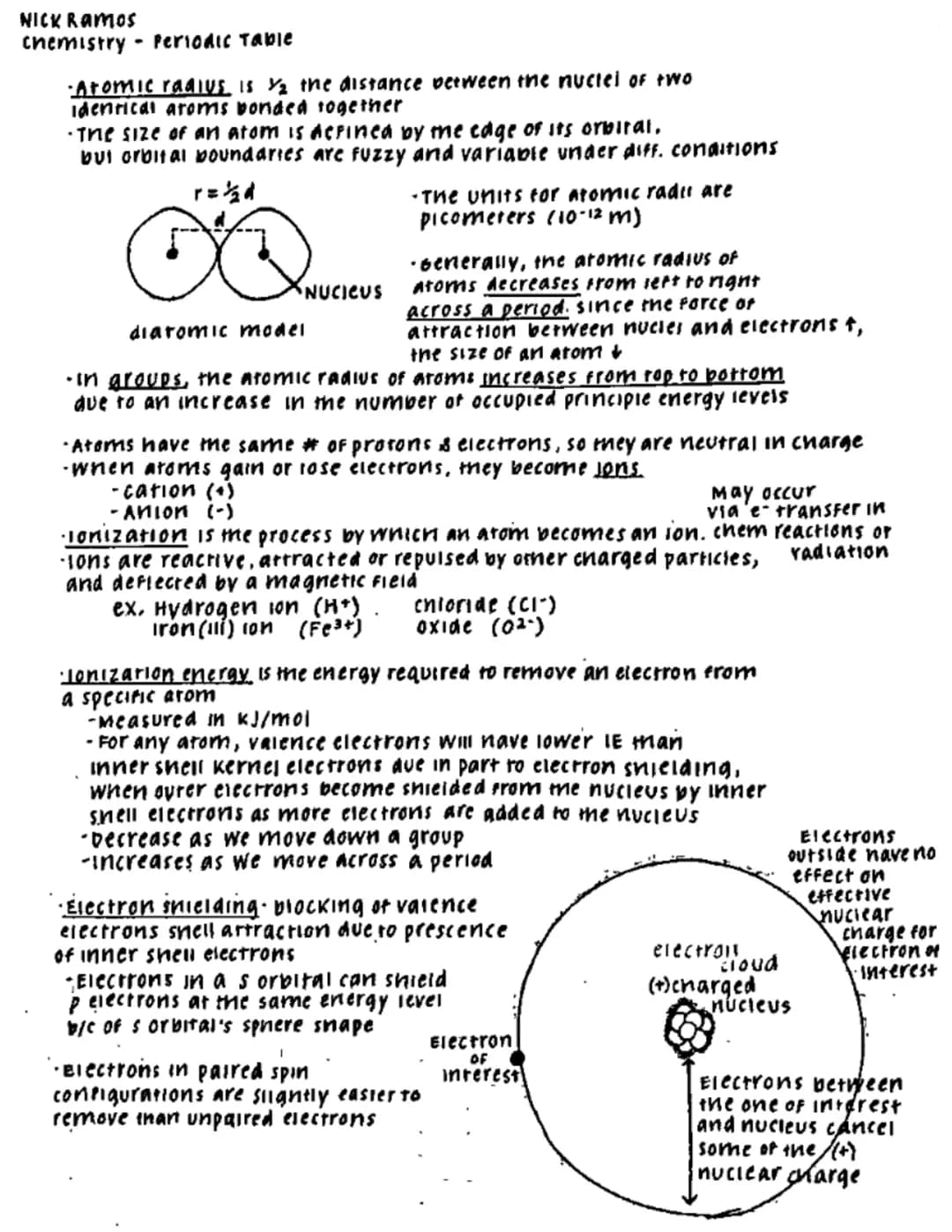

Atomic Structure and Periodic Trends

Understanding atomic structure is crucial for comprehending the periodic trends observed in the periodic table. This page delves into key concepts related to atomic size and ionization.

Atomic radius is a fundamental property that influences many chemical and physical characteristics of elements. It is defined as half the distance between the nuclei of two identical atoms bonded together.

Definition: Atomic radius is half the distance between the nuclei of two identical atoms bonded together, typically measured in picometers $10^-12 m$.

The size of an atom is determined by the edge of its outermost orbital. However, it's important to note that orbital boundaries are not sharply defined and can vary under different conditions.

Highlight: The fuzzy nature of orbital boundaries makes precise measurement of atomic size challenging, but comparative measurements reveal important trends across the periodic table.

Periodic trends in atomic radius:

1. Across a period (left to right): Atomic radius generally decreases. This is due to the increasing nuclear charge attracting electrons more strongly, causing the electron cloud to contract.

2. Down a group (top to bottom): Atomic radius increases. This is because each new element adds an additional electron shell, increasing the overall size of the atom.

Example: In Group 1 (alkali metals), the atomic radius increases from lithium to francium as you move down the group, with each element having a larger electron configuration.

Ionization is another crucial concept in understanding periodic trends. When atoms gain or lose electrons, they become ions:

• Cations (+): Formed when atoms lose electrons. They are smaller than their parent atoms due to increased effective nuclear charge on the remaining electrons.
• Anions (-): Formed when atoms gain electrons. They are larger than their parent atoms due to increased electron-electron repulsion.

Vocabulary: Ionization energy is the energy required to remove an electron from an atom in its gaseous state.

The periodic table helps predict trends in ionization energy:

• Ionization energy generally increases from left to right across a period due to increasing nuclear charge.
• It generally decreases down a group due to increased shielding and distance from the nucleus.

Understanding these atomic properties and their trends across the periodic table is essential for predicting and explaining chemical behavior. The periodic table's organization reflects these underlying principles, making it a powerful tool for chemical analysis and prediction.

Quote: "The distribution of electrons determines the chemical properties of an element."

This statement underscores the importance of electron configuration in determining an element's behavior, a principle that is fundamental to the organization and utility of the periodic table.

By exploring these concepts of atomic structure and periodic trends, chemists can better understand and predict the properties and behaviors of elements across the periodic table. This knowledge is crucial for applications in various fields of chemistry and materials science.

Atomic Properties and Periodic Trends

Understanding atomic properties is crucial for predicting chemical behavior and reactivity patterns.

Definition: Atomic radius is half the distance between the nuclei of two identical bonded atoms.

Vocabulary: Ionization - the process by which an atom becomes an ion through gaining or losing electrons.

Example: Atomic radius generally decreases from left to right across a period due to increased nuclear attraction.

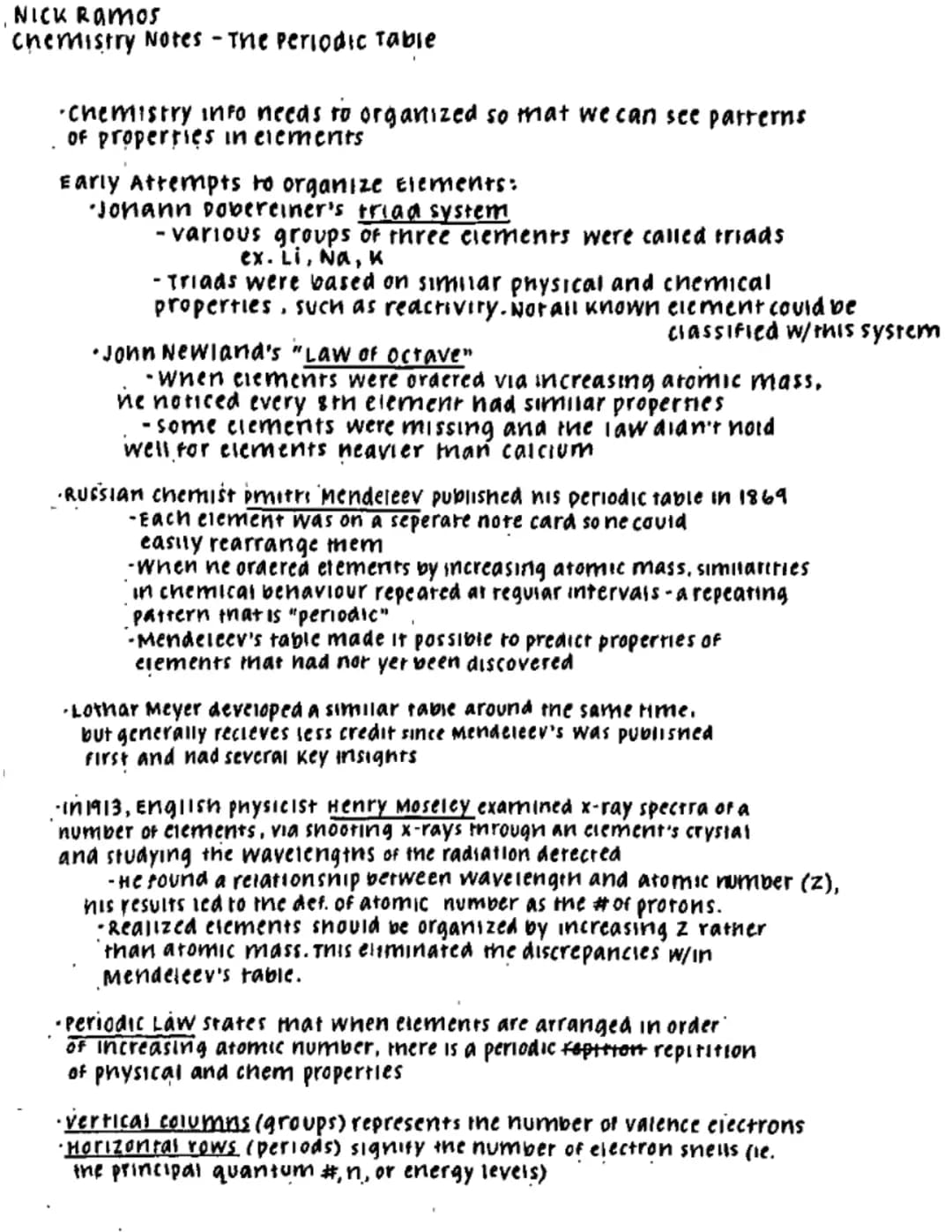

The Early Development of the Periodic Table

The periodic table's evolution began with early attempts to organize chemical elements based on their properties. These initial efforts laid the groundwork for the more sophisticated systems that followed.

Johann Dobereiner introduced the triad system, grouping elements with similar physical and chemical properties in sets of three. For example, lithium, sodium, and potassium formed one such triad. However, this system was limited as it couldn't classify all known elements.

John Newland proposed the "Law of Octaves," noting that when elements were arranged by increasing atomic mass, every eighth element displayed similar properties. This approach, while innovative, had limitations, particularly for elements heavier than calcium.

Highlight: The early attempts to organize elements, such as Dobereiner's triads and Newland's Law of Octaves, were important steps towards the development of the modern periodic table.

Russian chemist Dmitri Mendeleev made a significant breakthrough in 1869 with his periodic table. His method involved writing element properties on separate cards and arranging them by increasing atomic mass. Mendeleev observed that chemical behaviors repeated at regular intervals, establishing the concept of periodicity.

Vocabulary: Periodicity refers to the repeating pattern of chemical properties observed when elements are arranged by increasing atomic mass or atomic number.

Mendeleev's table was revolutionary because it allowed for the prediction of properties of yet-undiscovered elements. Around the same time, Lothar Meyer developed a similar table but received less recognition as Mendeleev's work was published first.

Example: Mendeleev's table accurately predicted the properties of elements like gallium and germanium before they were discovered.

In 1913, English physicist Henry Moseley made another crucial contribution. By examining the X-ray spectra of various elements, he established a relationship between wavelength and atomic number. This led to the definition of atomic number as the number of protons in an atom's nucleus.

Definition: Atomic number is the number of protons in an atom's nucleus, which determines the element's identity.

Moseley's work resulted in the reorganization of the periodic table based on increasing atomic number rather than atomic mass, resolving discrepancies in Mendeleev's table.

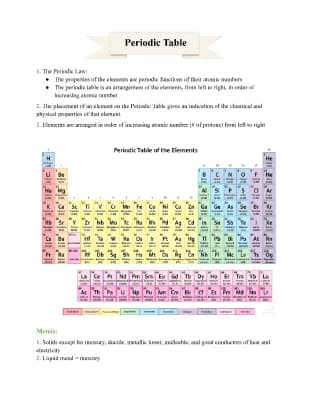

The Periodic Law, a fundamental principle in chemistry, states that when elements are arranged in order of increasing atomic number, there is a periodic repetition of physical and chemical properties.

Quote: "The Periodic Law states that when elements are arranged in order of increasing atomic number, there is a periodic repetition of physical and chemical properties."

This page provides a comprehensive overview of the historical development of the periodic table, highlighting the contributions of key scientists like Dmitri Mendeleev and Henry Moseley. It emphasizes how the organization of elements evolved from early attempts to the more refined system based on atomic number, setting the stage for understanding the modern periodic table's structure and significance in chemistry.
