Exploring Electromagnetic Waves and Radiation

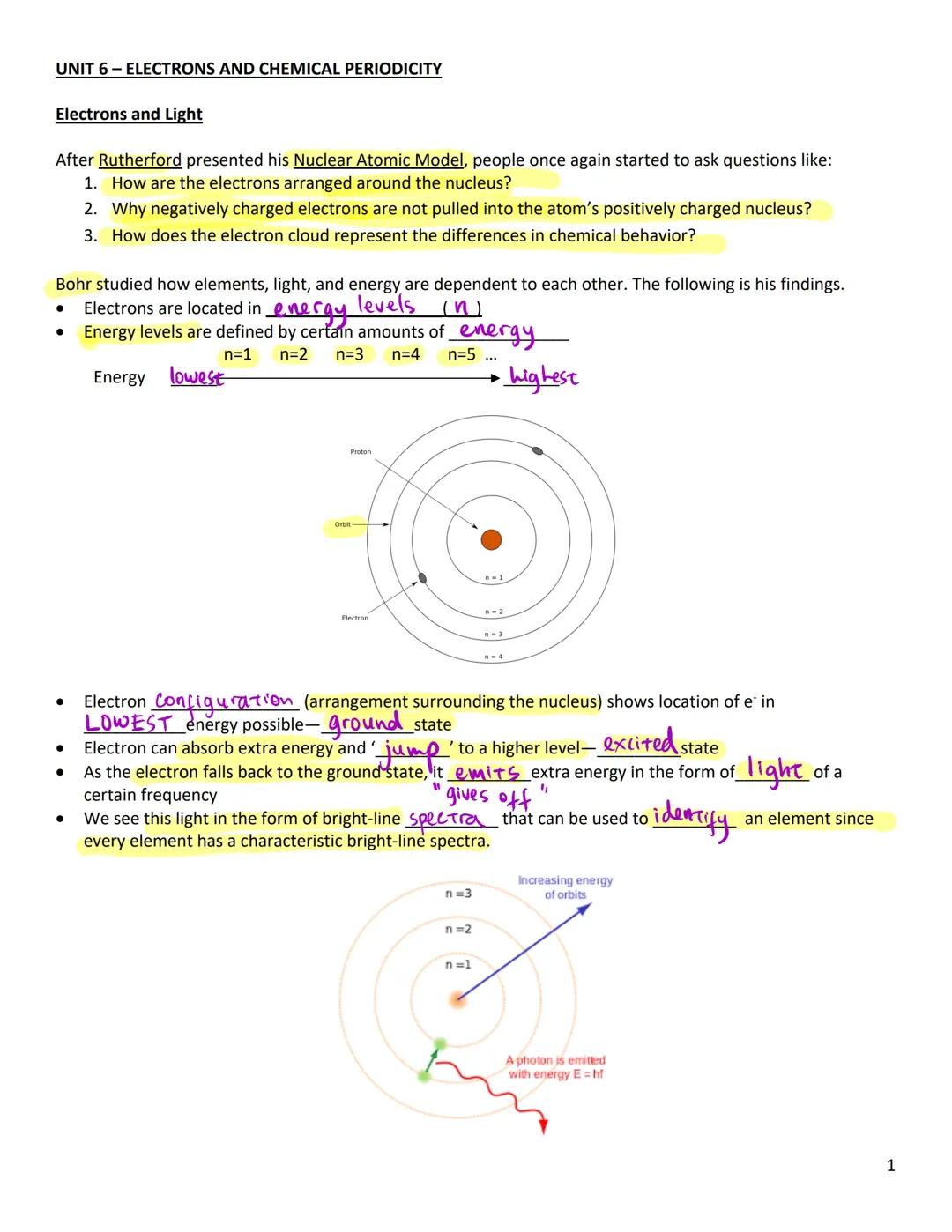

Electrons and Light

Ever wonder why elements emit different colors when heated? It's all about electrons and their energy levels!

Bohr discovered that electrons exist in specific energy levels $n$ around the nucleus. When in their lowest possible energy (the ground state), electrons are stable. But they can absorb energy and jump to higher levels, entering an excited state.

Here's the cool part: when excited electrons fall back to lower energy levels, they release energy as light with specific frequencies. This creates unique bright-line spectra for each element - like a fingerprint we can use to identify elements, even in distant stars!

💡 Think of energy levels like stairs - electrons can jump up stairs (absorb energy) or fall down stairs (emit energy as light), but they can never stand between steps.

This electron behavior explains why fireworks have different colors and how scientists can determine what elements exist in stars billions of light-years away!

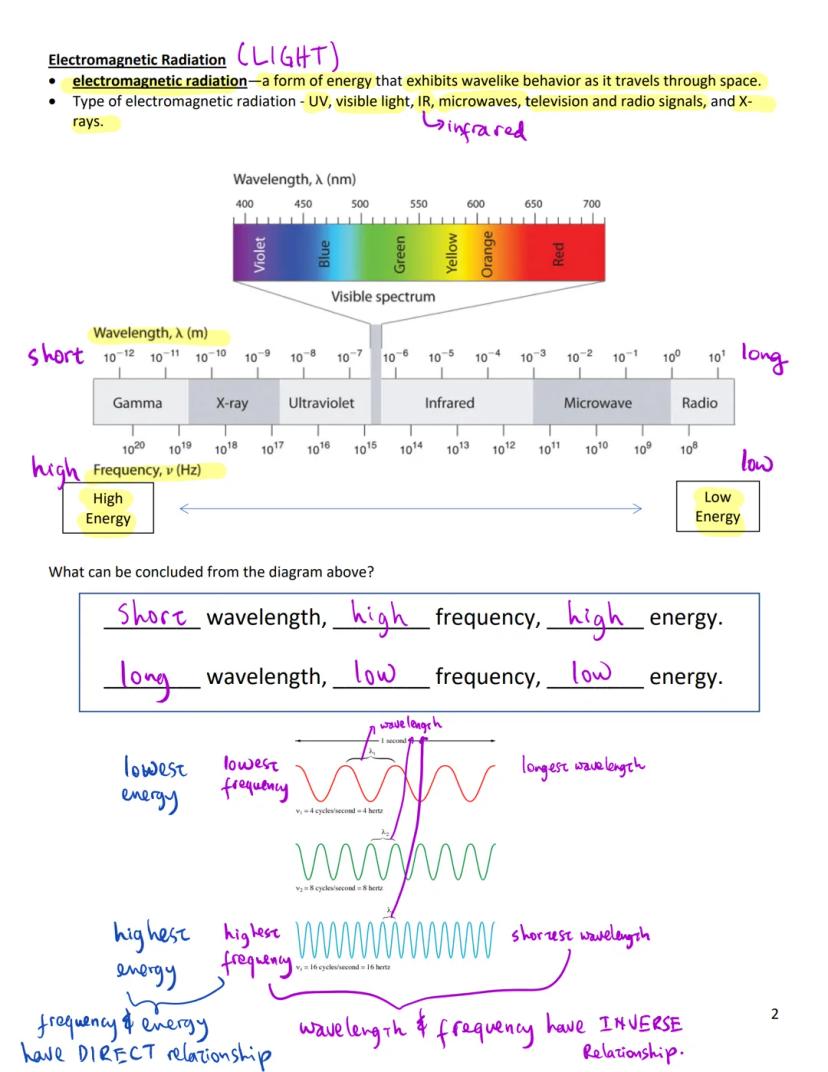

Electromagnetic Radiation

Light is actually a form of electromagnetic radiation - energy that travels through space as waves. This includes not just visible light, but also ultraviolet, infrared, microwaves, radio waves, and X-rays!

These waves have three important properties:

• Wavelength (λ) - the distance between wave peaks
• Frequency $f$ - how many waves pass a point per second
• Energy (E) - how much power the wave carries

The relationships between these properties are crucial:

• Wavelength and frequency have an inverse relationship: when one increases, the other decreases
• Frequency and energy have a direct relationship: they increase or decrease together

This means that shorter wavelengths (like X-rays and gamma rays) have higher frequencies and higher energies, making them more dangerous. Meanwhile, longer wavelengths (like radio waves) have lower frequencies and lower energies.

🔍 Remember this pattern: short wavelength = high frequency = high energy; long wavelength = low frequency = low energy.

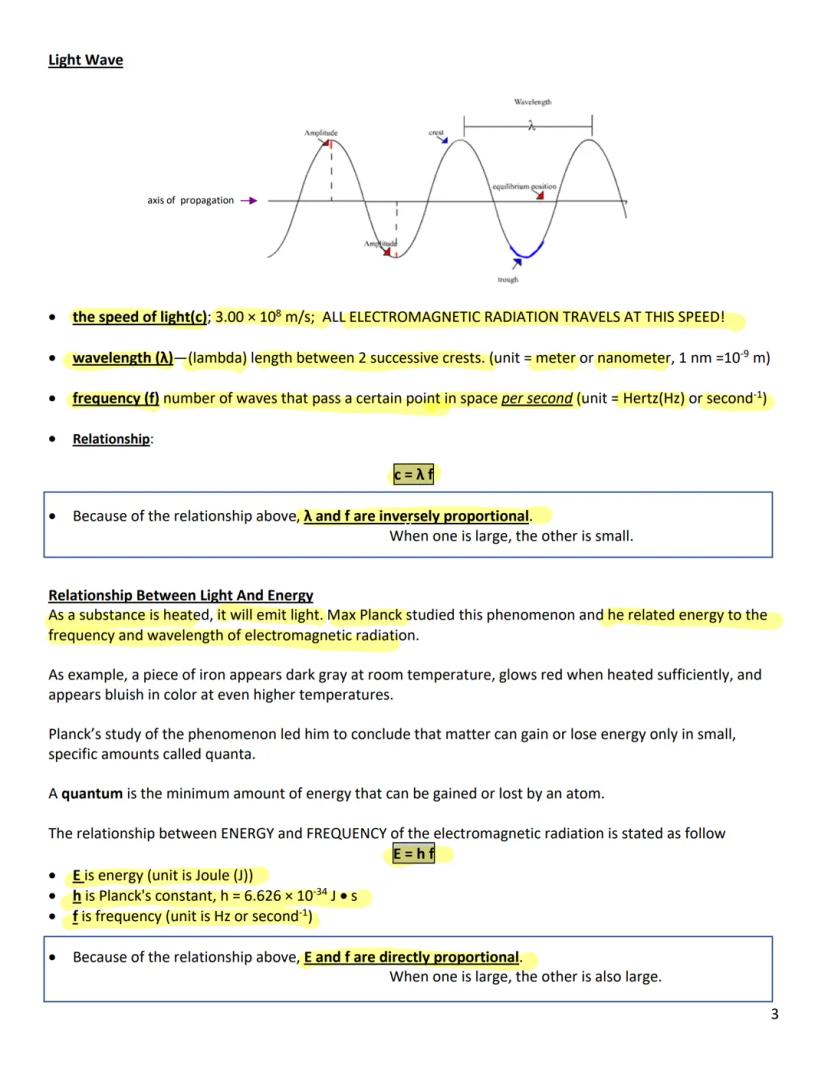

Light and Energy

Light waves travel at an incredible speed of 3.00 × 10^8 m/s - that's the speed of light, which all electromagnetic radiation moves at regardless of its wavelength or frequency!

The relationship between these properties is given by the equation: c = λf where:

• c is the speed of light
• λ (lambda) is wavelength in meters
• f is frequency in Hertz (Hz)

When Max Planck studied how heated objects emit light, he made a revolutionary discovery: energy isn't released continuously but in small, specific amounts called quanta. A quantum is the minimum amount of energy an atom can gain or lose.

The relationship between energy and frequency is given by: E = hf where:

• E is energy in Joules (J)
• h is Planck's constant $6.626 × 10^-34 J·s$
• f is frequency in Hertz (Hz)

This means energy and frequency are directly proportional - the higher the frequency of light, the more energy it carries. This explains why blue flames are hotter than red flames, and why UV rays can damage your skin while visible light doesn't.

🔥 When you see a piece of iron change from dark gray to red to bluish as it's heated, you're watching it emit electromagnetic radiation with increasingly higher frequencies and energies!

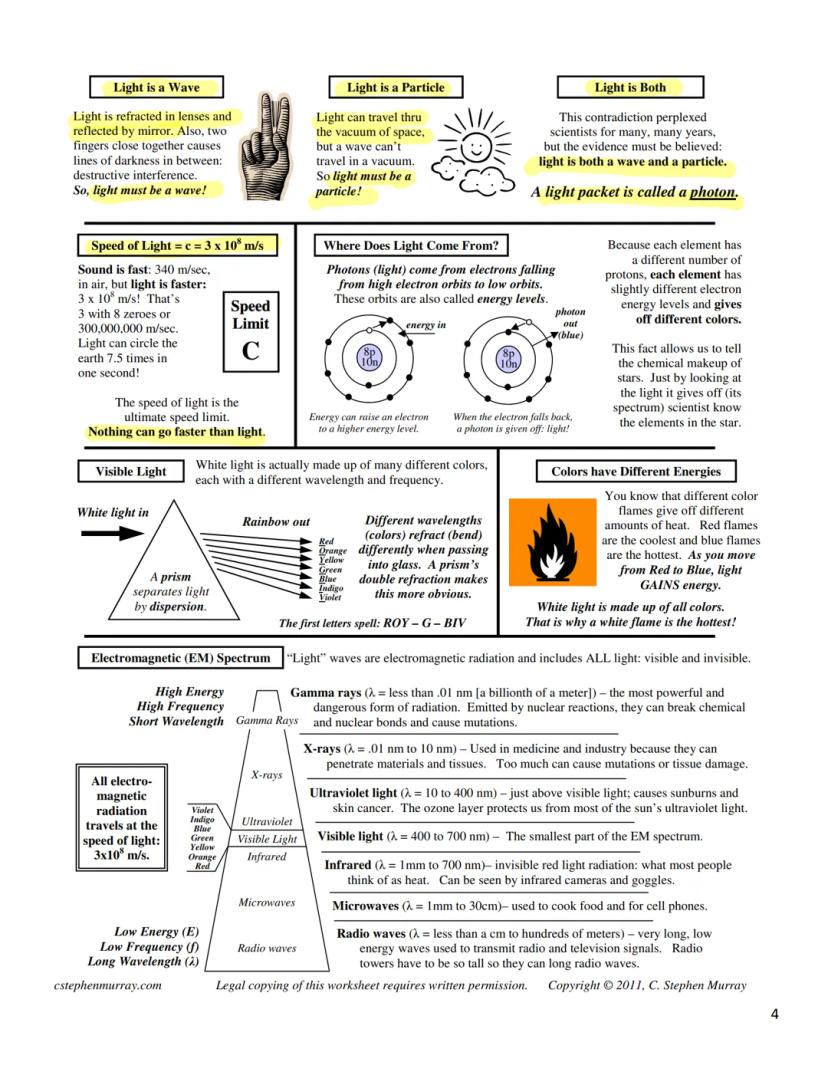

The Dual Nature of Light

Light has puzzled scientists for centuries because it behaves in seemingly contradictory ways - it's both a wave and a particle at the same time!

As a wave, light:

• Gets refracted (bent) by lenses
• Reflects off mirrors
• Creates interference patterns

As a particle, light:

• Travels through the vacuum of space
• Comes in discrete packets called photons

This wave-particle duality is essential to understanding how light works. The energy of each photon depends on its wavelength and frequency.

The electromagnetic spectrum includes all possible wavelengths of light:

• Gamma rays: Highest energy, shortest wavelength; produced by nuclear reactions
• X-rays: High energy; can penetrate tissues and materials
• Ultraviolet light: Just beyond violet light; causes sunburns
• Visible light: The narrow range we can see (ROY G BIV)
• Infrared: Heat radiation
• Microwaves: Used for cooking and communications
• Radio waves: Lowest energy, longest wavelength

🌈 White light contains all colors. When it passes through a prism, it separates into the visible spectrum because each color has a different wavelength and bends differently.

Light is produced when electrons fall from higher to lower energy levels, releasing photons with specific energies. Since each element has unique electron arrangements, they produce distinct colors when energized!

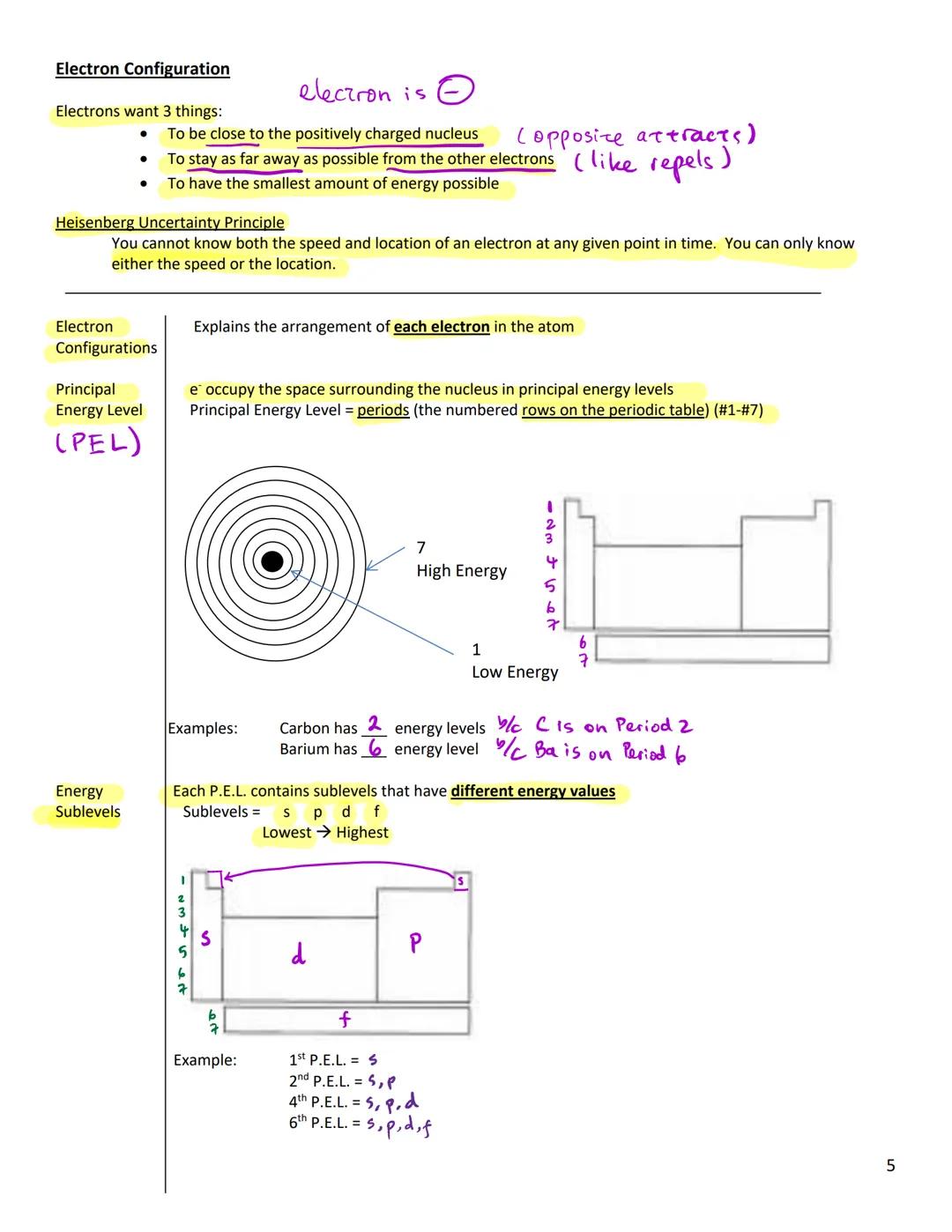

Electron Configuration

Electrons are like tiny, picky roommates - they want very specific arrangements! Three things drive their behavior:

1. They're attracted to the positively charged nucleus
2. They want to stay far from other electrons (due to repulsion)
3. They prefer having the lowest possible energy

According to the Heisenberg Uncertainty Principle, we can never know both an electron's speed and location simultaneously - we can only know one or the other.

Electrons occupy principal energy levels (PEL) around the nucleus. These match the periods on the periodic table:

• Carbon (C) has 2 energy levels → Period 2
• Barium (Ba) has 6 energy levels → Period 6

Each principal energy level contains sublevels with different energies:

• s-sublevel (lowest energy)
• p-sublevel (medium energy)
• d-sublevel (higher energy)
• f-sublevel (highest energy)

The number of sublevels increases with each principal energy level:

• 1st PEL has only s
• 2nd PEL has s and p
• 4th PEL has s, p, and d
• 6th PEL has s, p, d, and f

🧠 You can quickly calculate how many electrons fit in any energy level using the formula 2n², where n is the energy level number. For example, energy level 2 can hold 2(2²) = 8 electrons.

Orbitals and Electron Arrangements

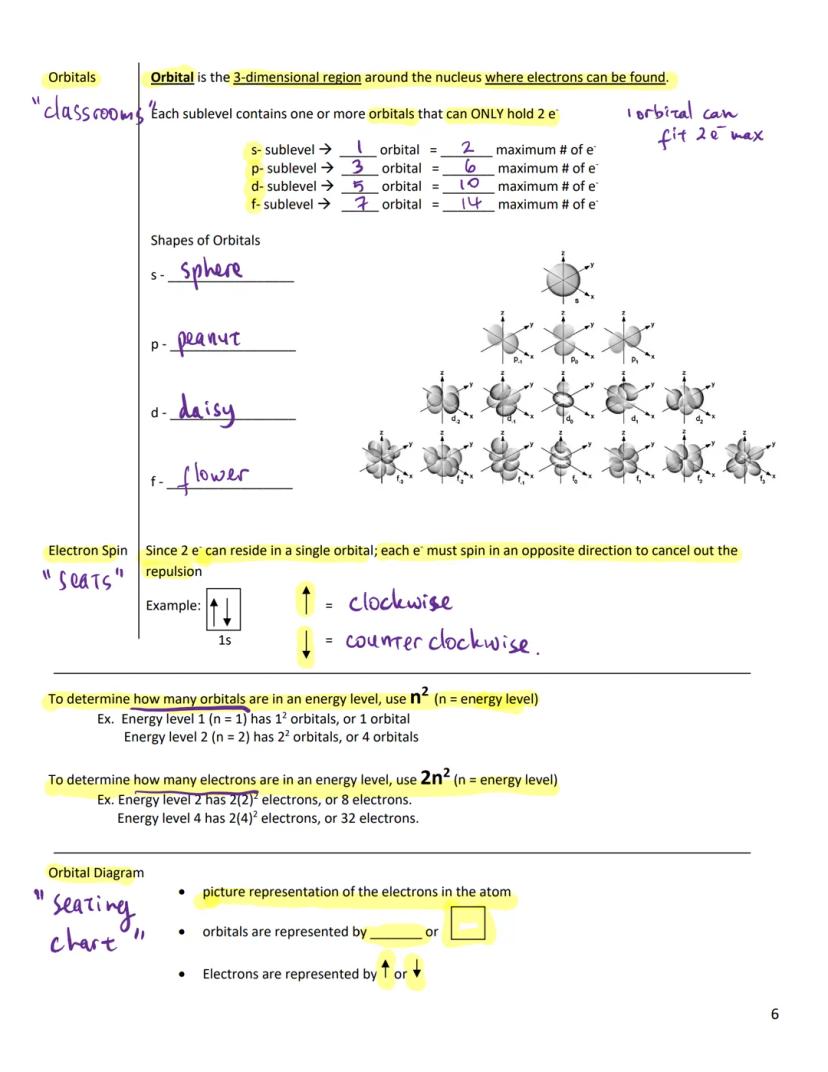

Orbitals are 3D regions around the nucleus where electrons are likely to be found. Think of them as "classrooms" that electrons occupy.

Each sublevel contains different numbers of orbitals:

• s-sublevel: 1 orbital (holds 2 electrons maximum)
• p-sublevel: 3 orbitals (holds 6 electrons maximum)
• d-sublevel: 5 orbitals (holds 10 electrons maximum)
• f-sublevel: 7 orbitals (holds 14 electrons maximum)

Orbitals have distinctive shapes:

• s-orbitals are spherical (like a ball)
• p-orbitals are shaped like peanuts
• d-orbitals look like daisies
• f-orbitals resemble flowers

When two electrons share an orbital, they must spin in opposite directions (↑↓) to balance each other out. We represent electron arrangements using orbital diagrams - visual "seating charts" showing where electrons are located.

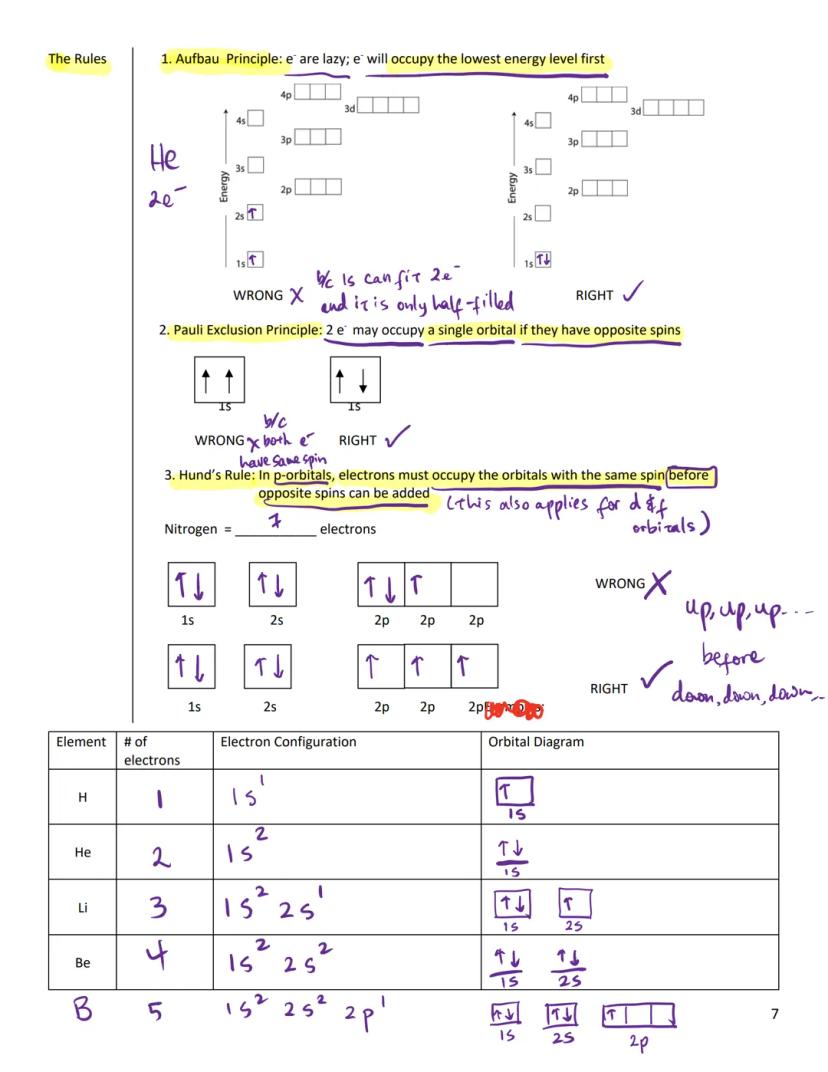

To fill orbitals correctly, we follow three important rules:

1. Aufbau Principle: Electrons first occupy the lowest energy levels available
2. Pauli Exclusion Principle: Only two electrons can occupy a single orbital, and they must have opposite spins
3. Hund's Rule: For p, d, and f orbitals, electrons spread out into separate orbitals before pairing up

⚠️ Common mistake: Putting electrons into higher energy levels before lower ones are filled, or pairing electrons too soon in p, d, and f orbitals.

Electron Configuration Rules

When writing electron configurations, you need to follow all three key rules to get it right. Let's see what happens when these rules are violated:

If you leave a lower energy level empty while putting electrons in higher levels, you're breaking the Aufbau Principle - electrons always fill the lowest energy levels first. It's like skipping the ground floor of a building to sit on the second floor!

If you put two electrons with the same spin (↑↑) in one orbital, you're violating the Pauli Exclusion Principle - two electrons in the same orbital must have opposite spins.

If you pair up electrons in p, d, or f orbitals before filling each orbital with one electron, you're breaking Hund's Rule. Electrons prefer to spread out before pairing up due to repulsion.

Writing electron configurations is straightforward once you understand the pattern:

• Begin with 1s and work your way up in energy
• For the d-sublevel, use $n-1$d where n is the principal energy level
• For f-sublevel, use $n-2$f

Examples:

• Hydrogen (1 electron): 1s¹
• Helium (2 electrons): 1s²
• Lithium (3 electrons): 1s²2s¹
• Boron (5 electrons): 1s²2s²2p¹
• Iron (26 electrons): 1s²2s²2p⁶3s²3p⁶4s²3d⁶

💡 An excited state configuration occurs when an electron jumps to a higher energy level than it would normally occupy in the ground state - this happens when the atom absorbs energy.

Writing Electron Configurations

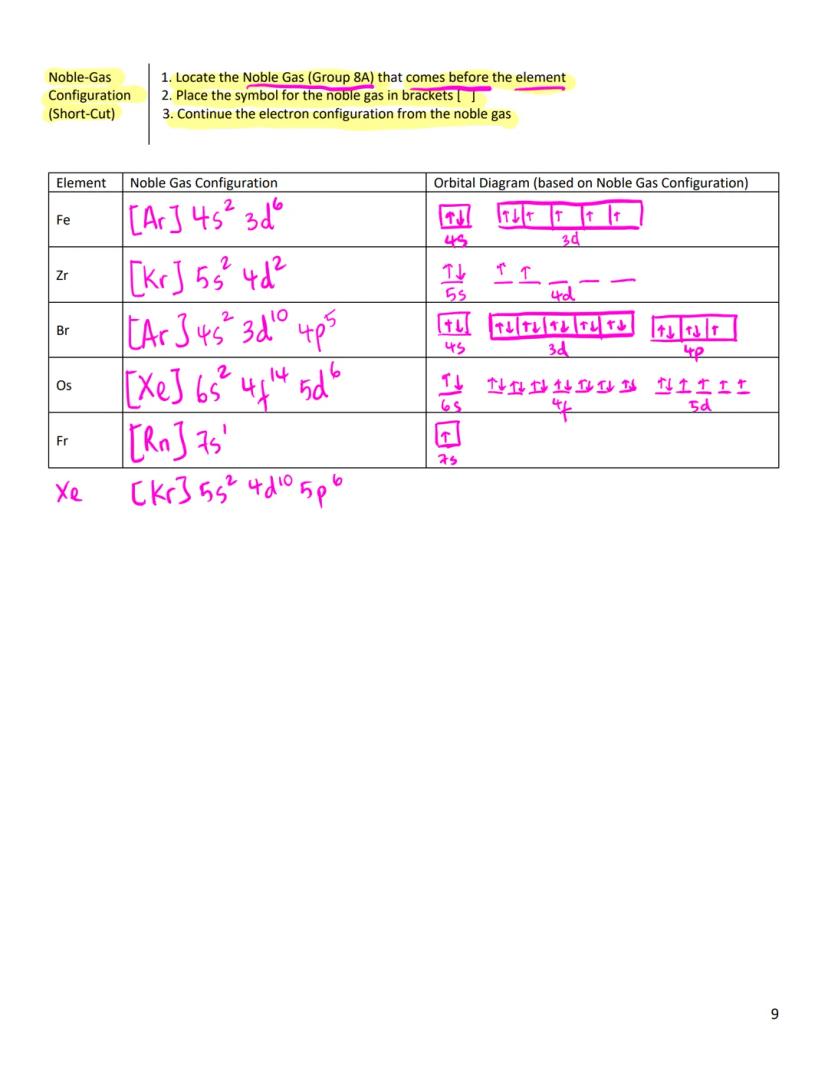

As we move to larger atoms, writing full electron configurations becomes tedious. Luckily, there's a shortcut called noble gas configuration:

1. Find the noble gas (Group 8A) that comes before your element
2. Put the noble gas symbol in brackets [ ]
3. Continue the configuration from there

For example, instead of writing 1s²2s²2p⁶3s²3p⁶4s²3d⁶ for iron (Fe), we can write [Ar]4s²3d⁶

This works because noble gases have complete electron shells, making them a convenient reference point. Other examples:

• Zirconium (Zr): [Kr]5s²4d²
• Bromine (Br): [Ar]4s²3d¹⁰4p⁵
• Osmium (Os): [Xe]6s²4f¹⁴5d⁶
• Francium (Fr): [Rn]7s¹

When writing configurations for the d-block elements (transition metals), remember the $n-1$ rule:

• 4th energy level → 3d
• 5th energy level → 4d

For f-block elements (inner transition metals), use the $n-2$ rule:

• 6th energy level → 4f
• 7th energy level → 5f

🧩 Think of electron configurations as addresses that tell you exactly where each electron lives in an atom. The noble gas shortcut is like saying "start at this landmark, then follow these directions" instead of giving turn-by-turn directions from the beginning.

Noble Gas Configuration Shortcut

The noble gas configuration shortcut saves time when writing electron configurations for larger atoms. Let's see how it works in practice:

For iron (Fe, 26 electrons):

• Full configuration: 1s²2s²2p⁶3s²3p⁶4s²3d⁶
• Noble gas before Fe is Argon (Ar): 1s²2s²2p⁶3s²3p⁶
• Noble gas shorthand: [Ar]4s²3d⁶

For bromine (Br, 35 electrons):

• Full configuration: 1s²2s²2p⁶3s²3p⁶4s²3d¹⁰4p⁵
• Noble gas shorthand: [Ar]4s²3d¹⁰4p⁵

For osmium (Os, 76 electrons):

• Full configuration: 1s²2s²2p⁶3s²3p⁶4s²3d¹⁰4p⁶5s²4d¹⁰5p⁶6s²4f¹⁴5d⁶
• Noble gas shorthand: [Xe]6s²4f¹⁴5d⁶

For francium (Fr, 87 electrons):

• Full configuration: 1s²2s²2p⁶3s²3p⁶4s²3d¹⁰4p⁶5s²4d¹⁰5p⁶6s²4f¹⁴5d¹⁰6p⁶7s¹
• Noble gas shorthand: [Rn]7s¹

For xenon (Xe, 54 electrons):

• Full configuration: 1s²2s²2p⁶3s²3p⁶4s²3d¹⁰4p⁶5s²4d¹⁰5p⁶
• Noble gas shorthand: [Kr]5s²4d¹⁰5p⁶

When creating orbital diagrams from noble gas configurations, you only need to show the electrons beyond the noble gas.

💡 This shortcut is especially helpful when working with elements in periods 4-7, where writing the full configuration would be quite lengthy.

Electron Configuration Diagram

When assigning electron configurations, it helps to have a visual guide for the order in which orbitals are filled. This diagram shows the proper filling order:

The diagram organizes orbitals by increasing energy level:

• 1s (lowest energy)
• 2s, 2p
• 3s, 3p
• 4s, 3d, 4p
• 5s, 4d, 5p
• 6s, 4f, 5d, 6p
• 7s, 5f, 6d, 7p

Notice how the 4s orbital fills before the 3d orbital, even though 3 is a lower number than 4. This is because the 4s orbital actually has slightly lower energy than the 3d orbital.

For transition metals (d-block), electrons fill the d-orbitals of the previous principal energy level. For example, scandium (Sc) fills 3d orbitals even though it's in period 4.

For inner transition metals (f-block), electrons fill the f-orbitals from two principal energy levels back. For lanthanides in period 6, the 4f orbitals are filled.

🔍 This "diagonal rule" for filling orbitals might seem strange at first, but it follows the actual energy ordering of orbitals in atoms. When writing electron configurations, always follow this diagram rather than assuming orbitals fill in numerical order.
