Phase Diagrams Explained: States of Matter and Conditions
calista ๐ชป
@urstrulycalista
1 / 5

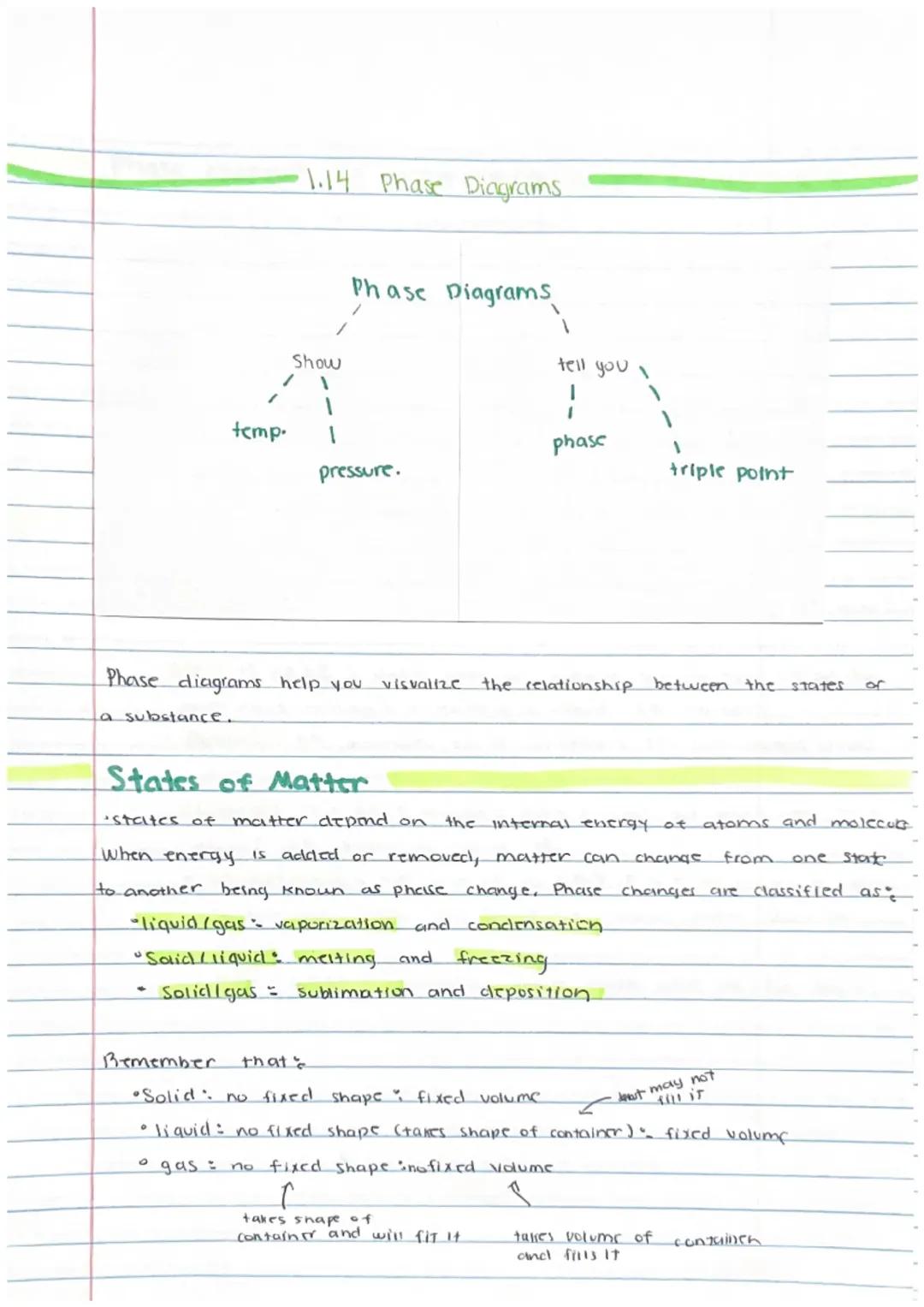

Understanding Phase Diagrams
Phase diagrams help you visualize the relationship between different states of matter and the conditions that cause changes between them. They show how temperature and pressure determine whether a substance exists as a solid, liquid, or gas.
States of matter depend on the balance between internal energy of atoms and molecules. When energy is added or removed, matter undergoes a phase change. These changes have specific names: melting/freezing , vaporization/condensation , and sublimation/deposition .
Each state of matter has distinct properties. Solids have a fixed volume and shape. Liquids have a fixed volume but take the shape of their container. Gases have neither fixed volume nor shape - they expand to fill whatever container they're in.
๐ก Think of states of matter as a competition between forces: the kinetic energy (motion) of molecules versus the intermolecular forces holding them together. Which force wins determines the state!
Energy and Phase Changes
Phase changes involve energy transfer. When a substance melts or vaporizes, it absorbs energy from its surroundings. When it freezes or condenses, it releases energy to its surroundings.
The state of any substance represents a balance between intermolecular forces (IF) and kinetic energy (KE). As energy is added to ice, for example, molecules initially vibrate within their crystal structure. When enough energy is added, KE increases until the crystal breaks apart at melting. In the liquid phase, molecules move around but stay close together.
As more energy is added to a liquid, molecules move faster until some gain enough energy to escape into the vapor phase (vaporization). In the gas phase, KE greatly exceeds IF, allowing molecules to move rapidly and spread far apart.
๐ Remember this pattern: Solid (IFโซKE) โ Liquid (IF>KE) โ Gas (KEโซIF). Each transition requires energy to overcome the forces holding molecules together.
Temperature, Pressure and Phase Changes
Phase changes depend on both temperature and pressure. Temperature directly affects kinetic energy - adding thermal energy increases KE. Pressure affects the strength of intermolecular forces by controlling how close molecules are to each other.
At high pressures, molecules are forced closer together, strengthening intermolecular forces (IF>KE). At low pressures, molecules spread farther apart, weakening these forces (IF<KE). This is why pressure changes can cause phase changes even without temperature changes.
Phase diagrams show three important curves: the fusion curve (solid to liquid), the vaporization curve (liquid to gas), and the sublimation curve (solid to gas). These curves intersect at the triple point - the specific temperature and pressure where all three phases coexist in equilibrium.
๐งช The vaporization curve ends at a special place called the "critical point." Beyond this point, the distinction between liquid and gas disappears completely - they become a single fluid phase!
Reading Phase Diagrams
Phase diagrams let you predict what state a substance will be in under specific conditions. To use them, simply find the temperature on the horizontal axis and pressure on the vertical axis, then see which region (solid, liquid, or gas) contains that point.
The lines between regions represent conditions where two phases exist in equilibrium. For example, at any point along the fusion curve (blue), the substance exists as both solid and liquid. Similarly, the sublimation curve (red) shows conditions where solid and gas coexist.
Interestingly, the path a substance takes through a phase diagram depends on both temperature AND pressure. At 300 kPa, increasing temperature from 10ยฐC to 80ยฐC causes Substance X to change from solid to liquid to gas. However, at 100 kPa, the same temperature change causes it to go directly from solid to gas (sublimation).
๐๏ธ When reading phase diagrams, pay special attention to the triple point - it's the only condition where all three states exist simultaneously. This is a common test question!
Phase Diagrams in Action
Phase diagrams summarize how states of matter depend on the balance between intermolecular forces and kinetic energy. Temperature changes alter kinetic energy, while pressure changes affect intermolecular forces - both can trigger phase changes.
Water's phase diagram reveals some unusual properties. Unlike most substances, water's solid phase (ice) is less dense than its liquid phase, which is why ice floats. This unique property is reflected in its phase diagram, which shows the solid-liquid boundary line tilting to the left rather than right.
The triple point of water occurs at 0.01ยฐC and a very low pressure (0.006 atmospheres), while its critical point occurs at 374ยฐC and high pressure. At normal atmospheric pressure (100 kPa), water melts at 0ยฐC (normal melting point) and boils at 100ยฐC (normal boiling point).
๐ Water's unusual phase behavior is essential for life on Earth! If ice sank instead of floated, lakes and oceans would freeze from the bottom up, potentially killing aquatic life during cold winters.
