Understanding Waves: A Simple Guide

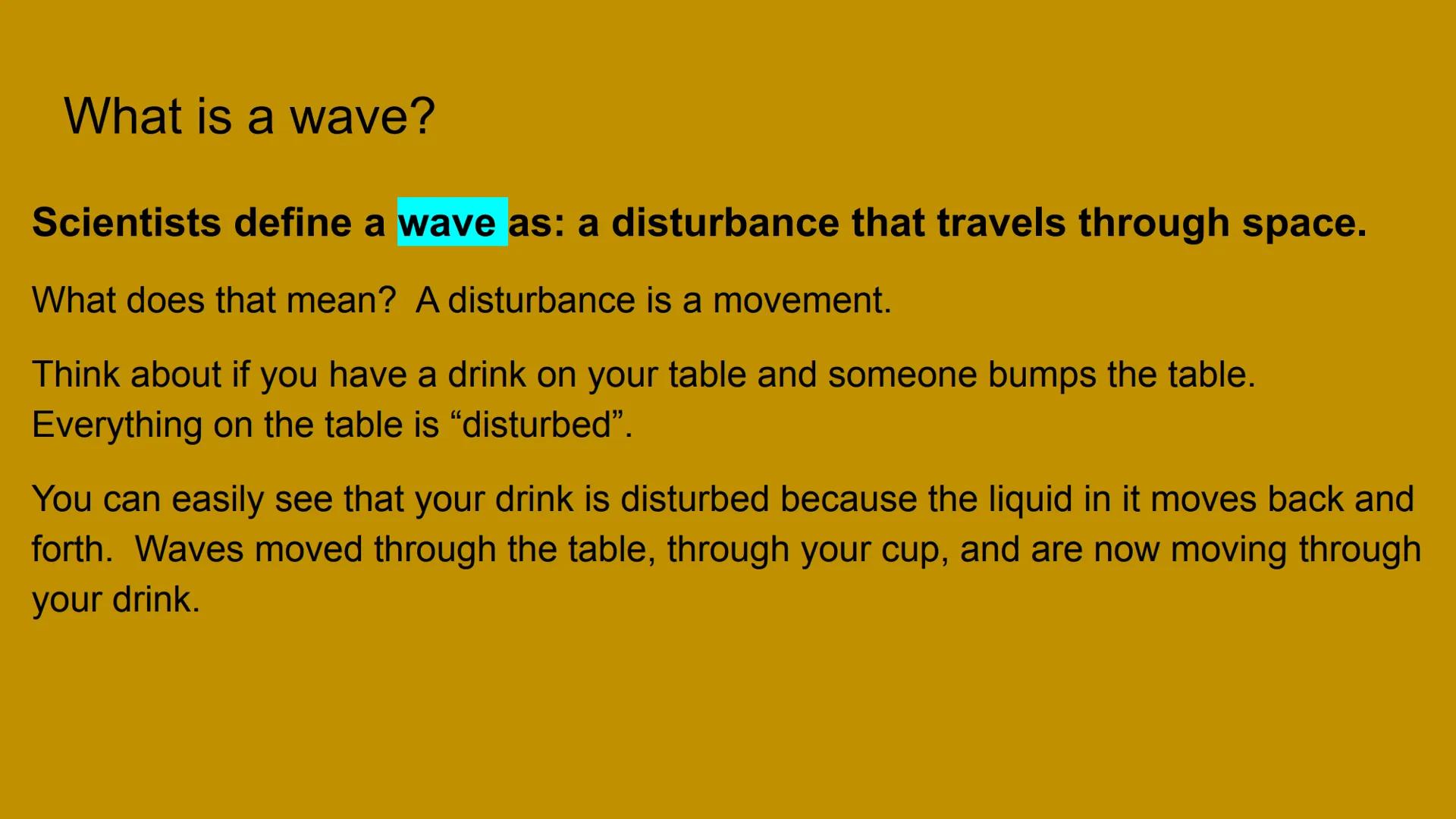

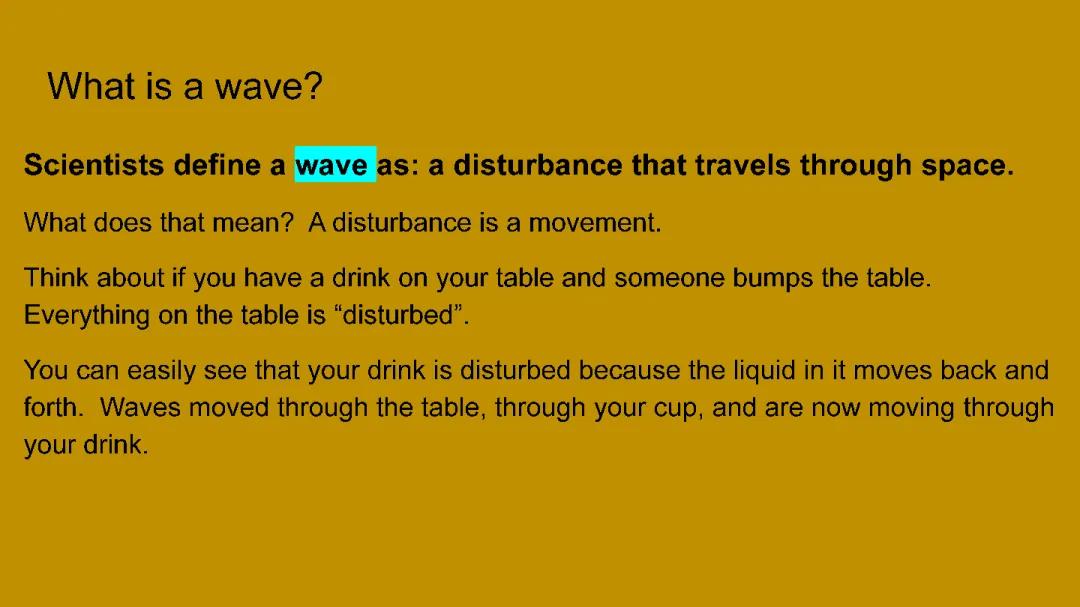

What is a Wave?

A wave is a disturbance that travels through space. This might sound complicated, but it's something you experience every day!

Think about what happens when someone bumps a table with your drink on it. The bump creates a disturbance that travels through the table, through your cup, and into your drink, making the liquid move back and forth. That movement is a wave in action!

Try This! Place a pencil on water in a bowl and make small waves with your finger. Watch how the pencil moves up and down but doesn't travel across the bowl—the wave energy moves, but the water mostly stays in place!

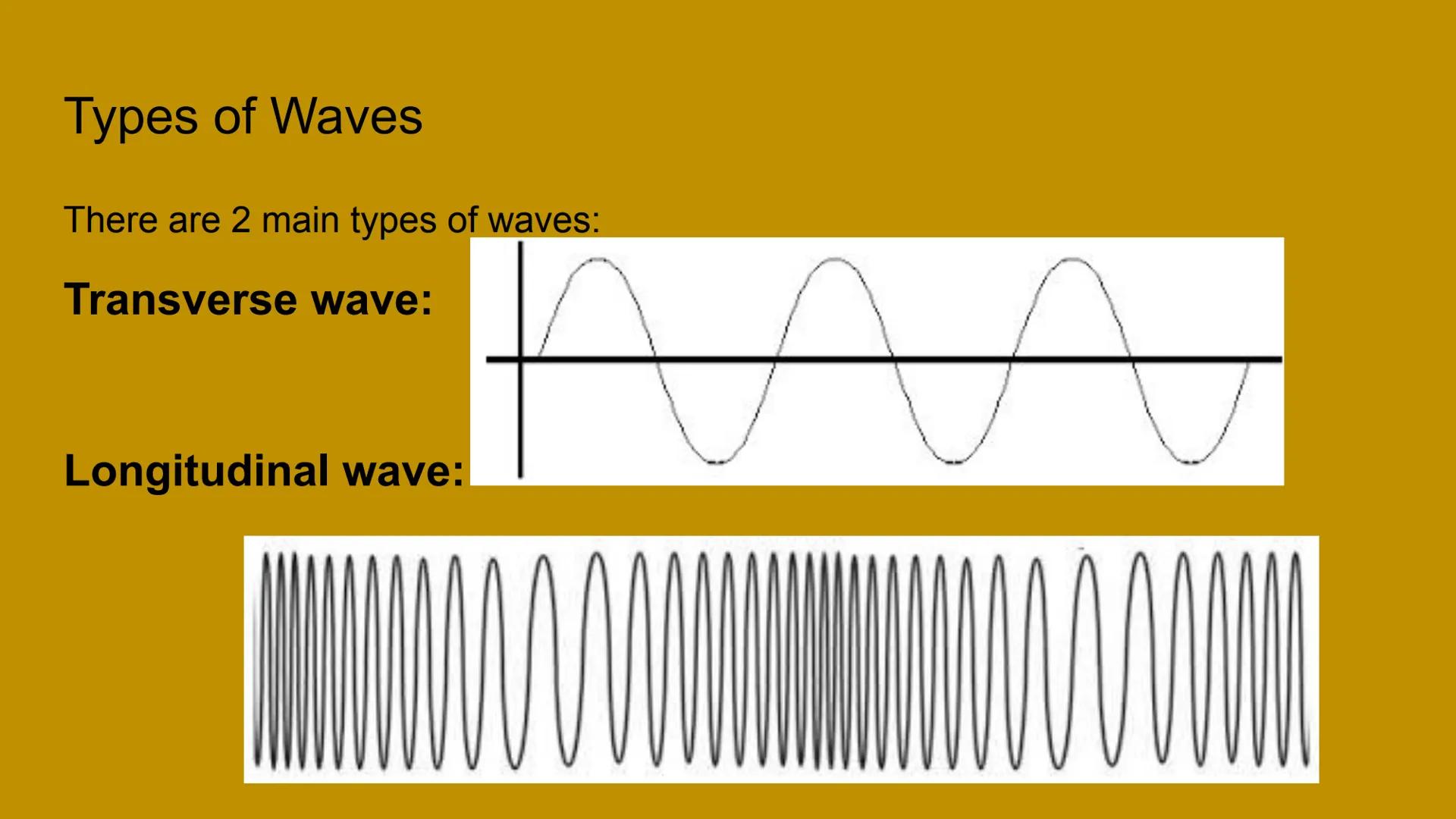

Types of Waves

There are two main types of waves you'll encounter in science: transverse waves and longitudinal waves.

In a transverse wave, the particles move perpendicular (at right angles) to the direction the wave travels. Ocean waves are a good example—the water moves up and down while the wave itself moves horizontally.

In a longitudinal wave, particles move parallel to the direction the wave travels. Sound waves work this way—air molecules move back and forth in the same direction the sound is traveling.

Remember: The key difference is in how the particles move relative to the wave's direction!

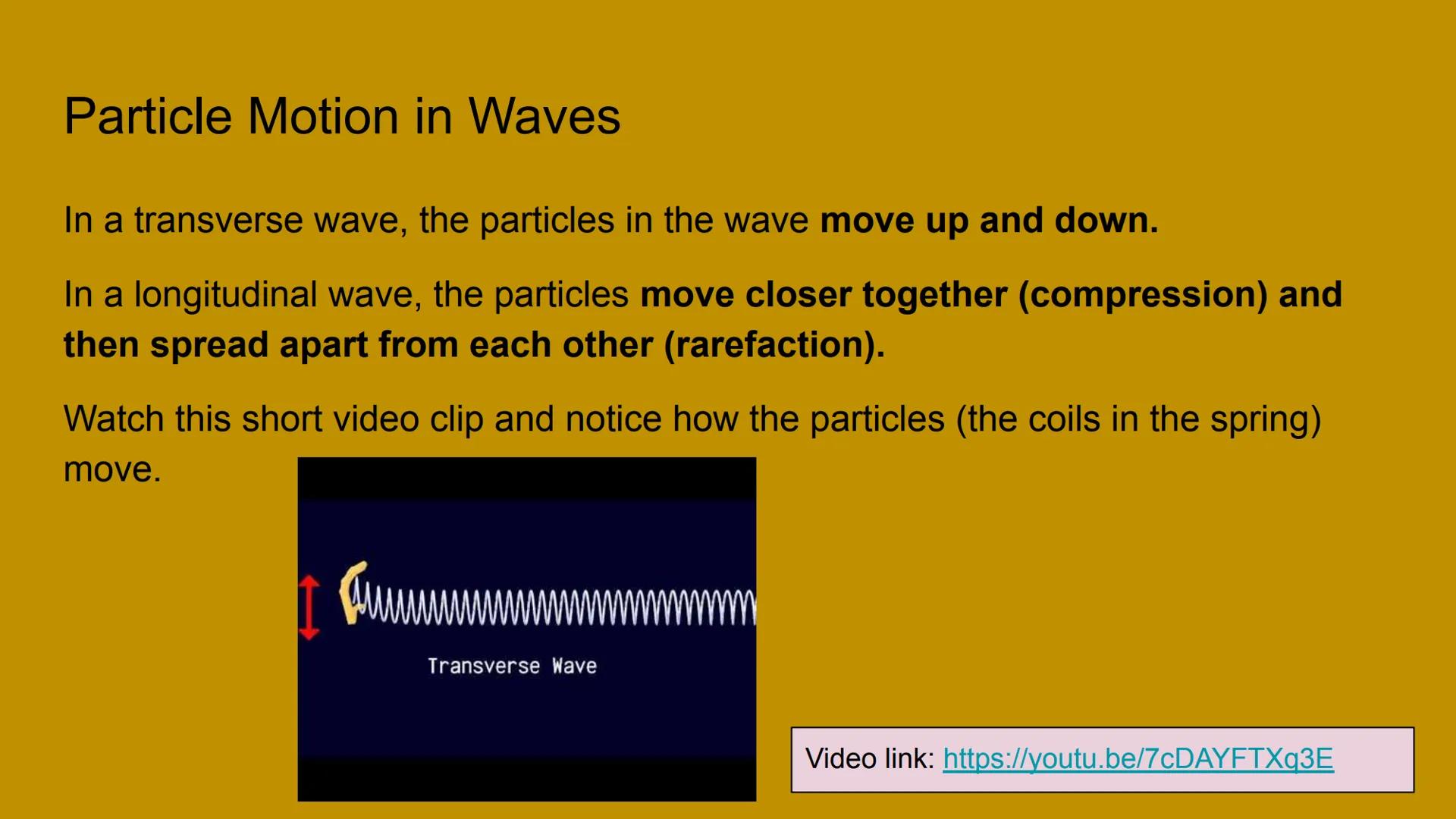

Particle Motion in Waves

In transverse waves, particles move up and down (or side to side) while the wave itself moves forward. Imagine doing "the wave" at a sports game—you stand up and sit down, but you don't leave your seat!

Longitudinal waves work differently. Particles bunch together in compressions (high-pressure areas) and spread apart in rarefactions (low-pressure areas). Think of a spring toy that gets squeezed in some parts and stretched in others.

Visualization Tip: Picture a spring toy—in a transverse wave, the coils move up and down; in a longitudinal wave, they bunch together and spread apart like an accordion.

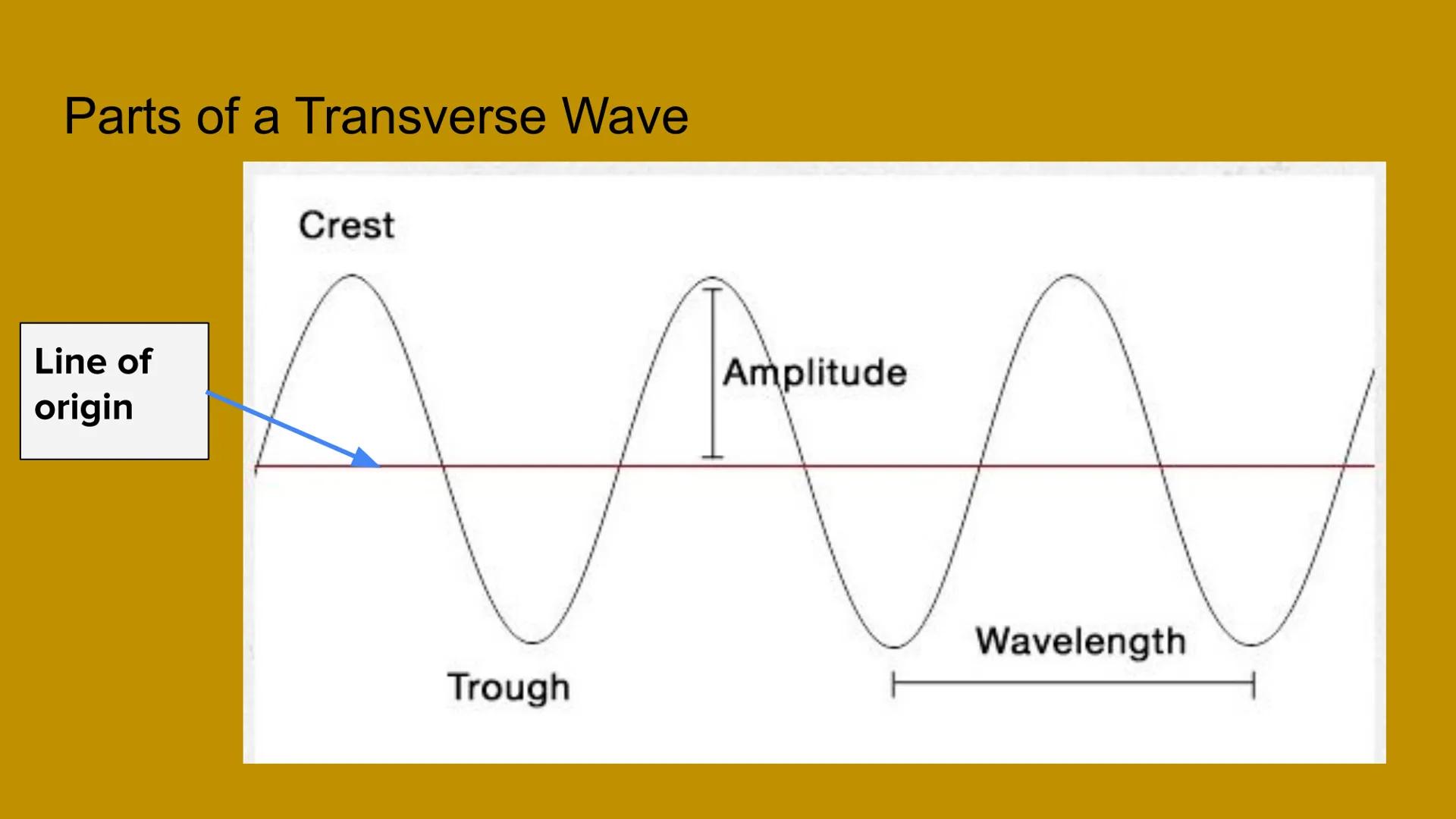

Parts of a Transverse Wave

Transverse waves have several important parts that help us measure and describe them. The main components include the crest, trough, line of origin, amplitude, and wavelength.

The shape of a transverse wave resembles a series of hills and valleys. Each hill represents energy moving through the medium, and the complete pattern repeats itself over and over.

Understanding these parts helps scientists measure waves and predict how they'll behave in different situations.

Real-World Connection: The parts of waves explain everything from how sunlight travels to Earth to how your favorite songs travel to your ears!

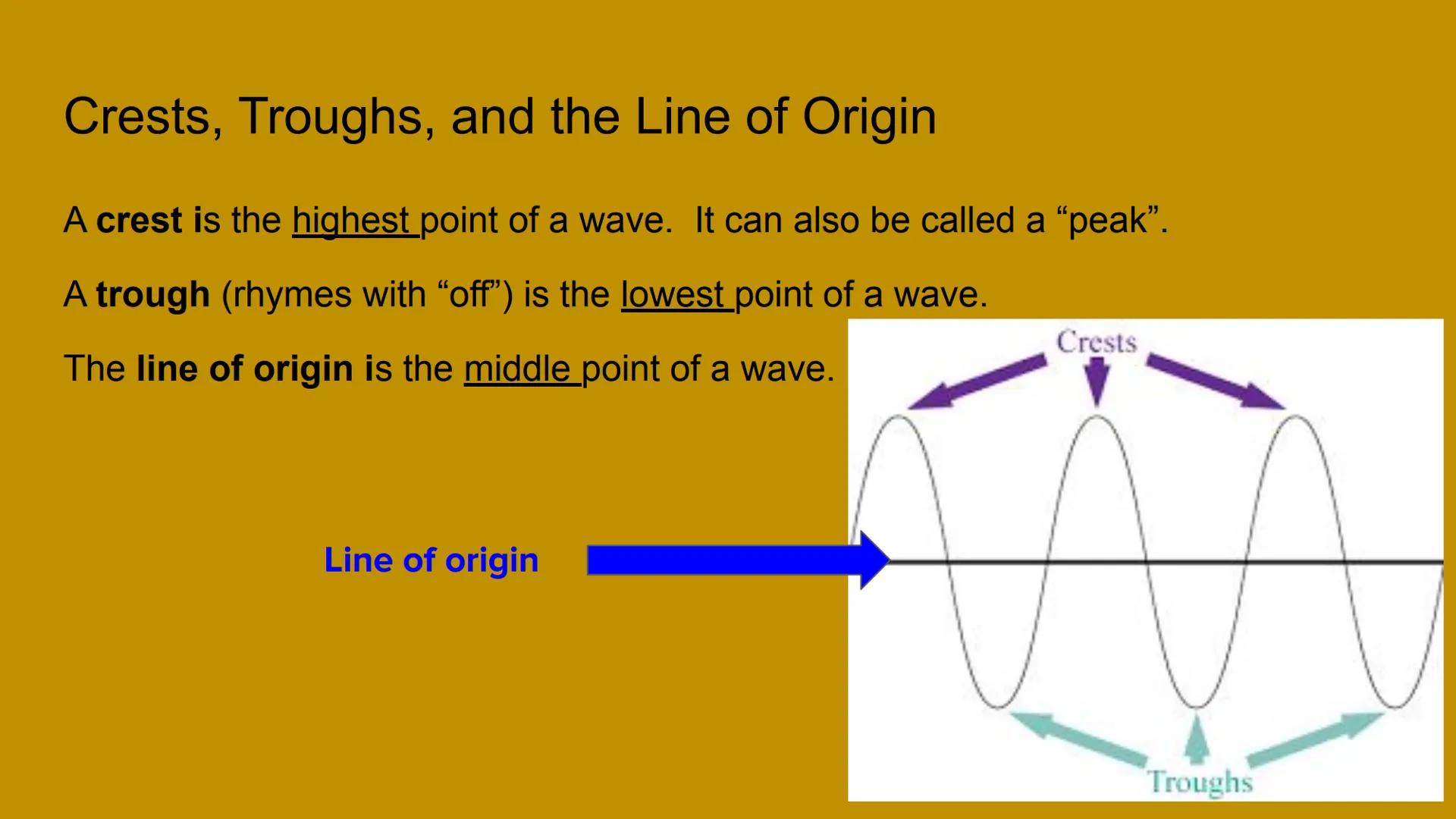

Crests, Troughs, and the Line of Origin

The crest is the highest point of a wave—think of it as the "peak" or top of the hill. When you see ocean waves, the crests are the parts that can crash over you!

The trough (rhymes with "off") is the lowest point of a wave—the bottom of the valley. In water waves, troughs are the low points between the wave peaks.

The line of origin is the middle reference point of a wave. It represents the position of particles when they're at rest, not being disturbed by the wave.

Quick Check: When drawing a wave, always start with the line of origin (like the "equator" of your wave), then add crests above and troughs below it.

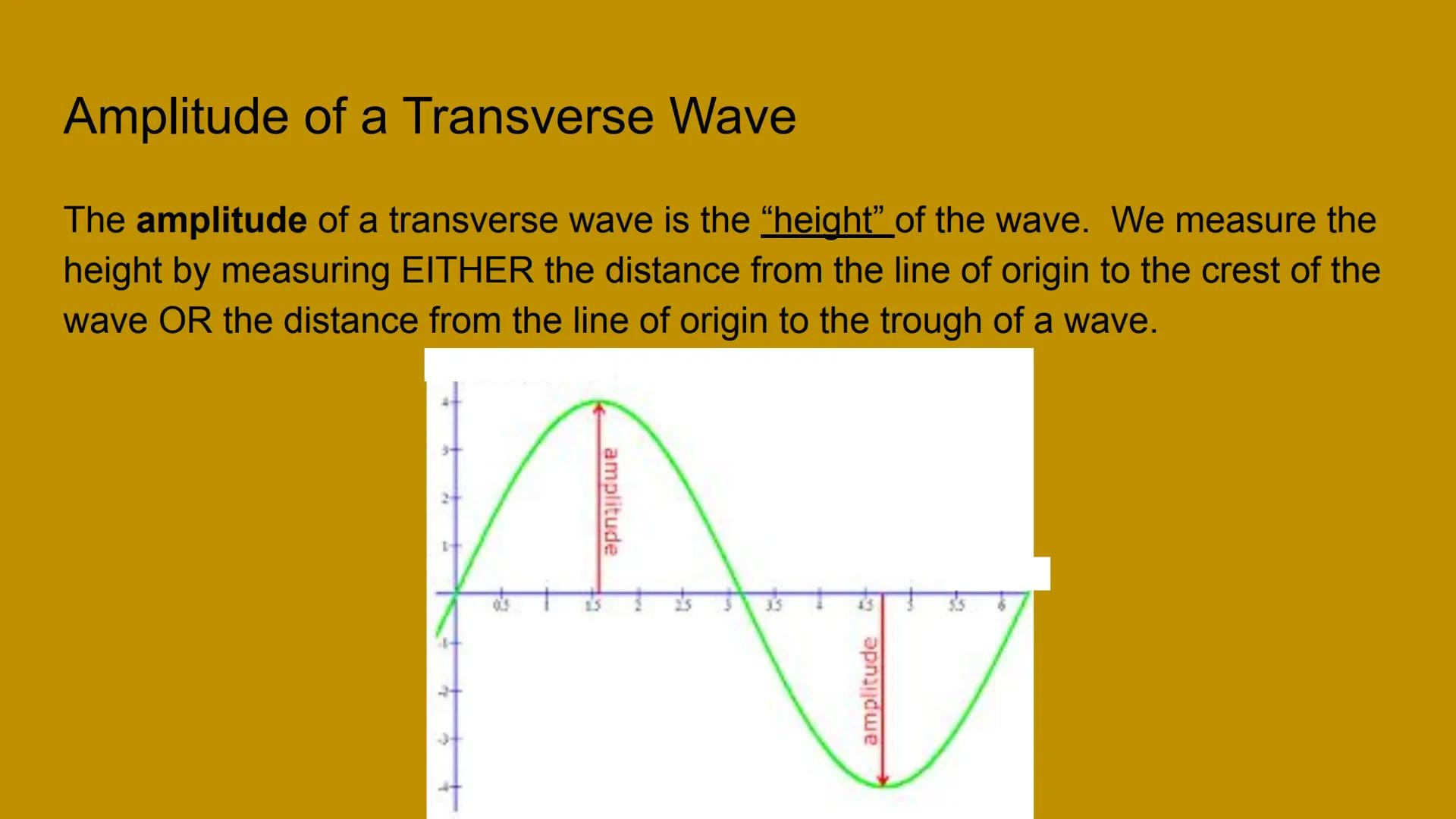

Amplitude of a Transverse Wave

The amplitude of a transverse wave measures how "tall" the wave is. It's the distance from the line of origin to either a crest or a trough.

Amplitude is directly related to the energy of a wave. Waves with larger amplitudes carry more energy than waves with smaller amplitudes.

You can measure amplitude by finding the distance from the middle (line of origin) to the highest point (crest) OR from the middle to the lowest point (trough).

Energy Connection: Amplitude determines how much energy a wave carries. A high-amplitude sound wave is louder, and a high-amplitude light wave appears brighter!

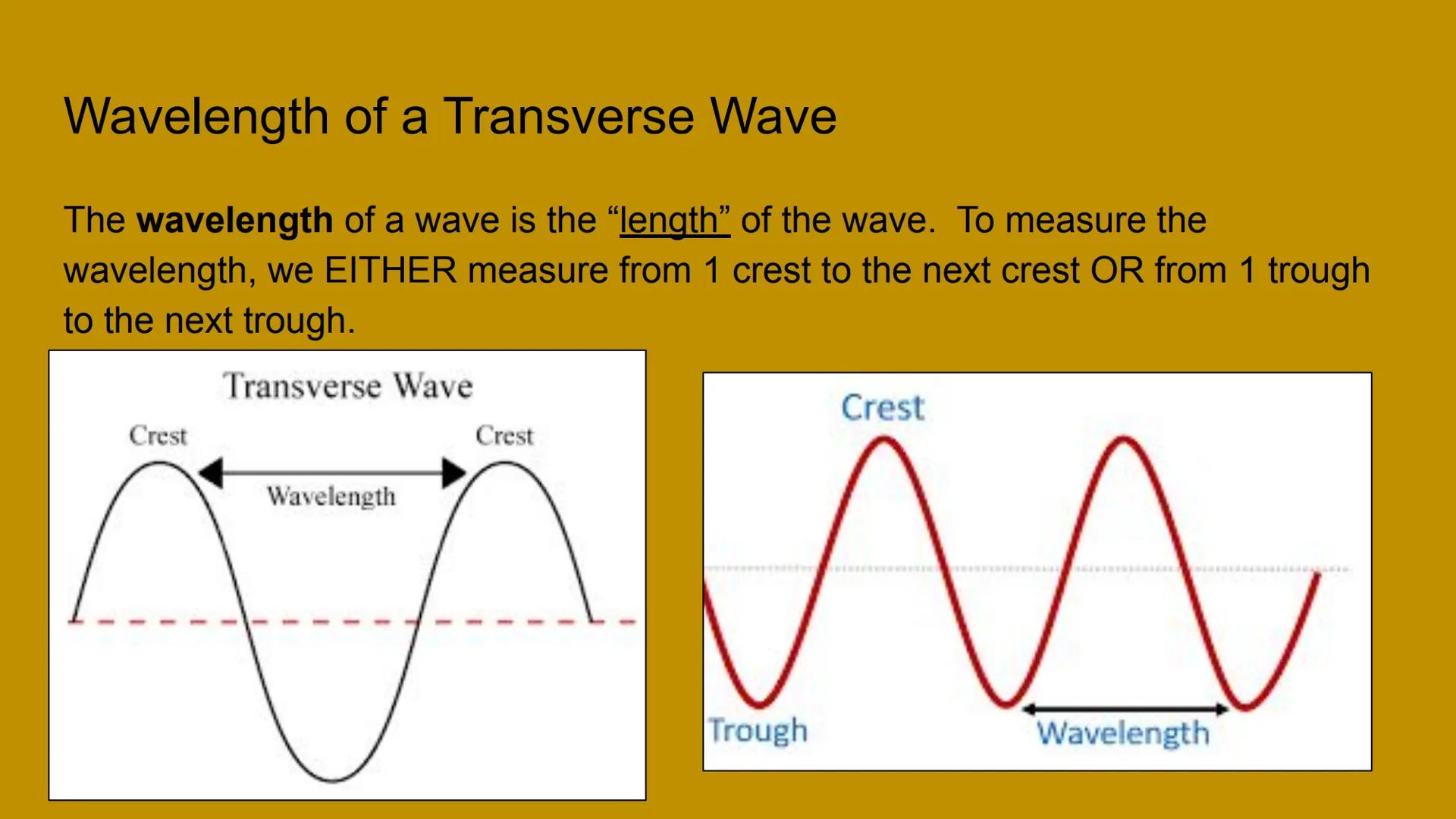

Wavelength of a Transverse Wave

The wavelength measures the "length" of one complete wave cycle. It tells us how long a wave is from one point to the same point on the next wave.

You can measure wavelength by finding the distance from one crest to the next crest OR from one trough to the next trough. Both measurements will give you the same result.

Wavelength is related to the frequency of a wave—shorter wavelengths typically have higher frequencies, while longer wavelengths have lower frequencies.

Visualization Tip: If you drew a wave on paper, the wavelength would be the distance it takes for the pattern to repeat itself exactly.

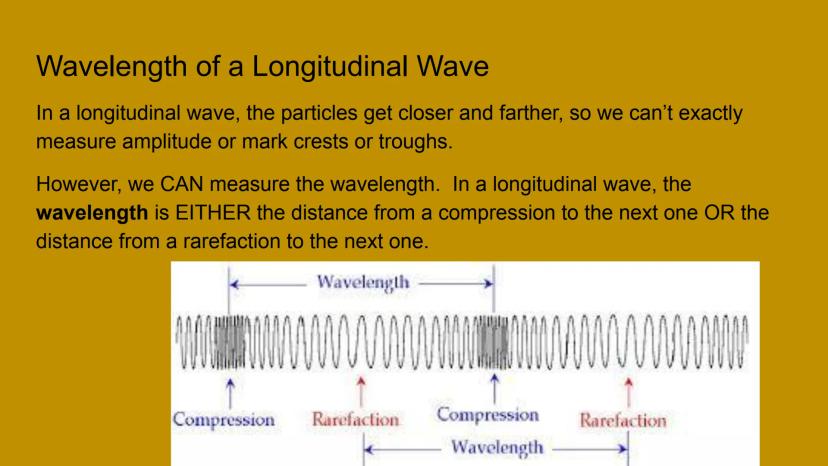

Wavelength of a Longitudinal Wave

Longitudinal waves don't have visible crests and troughs like transverse waves do, making them look different but they still have wavelengths!

In a longitudinal wave, the wavelength is measured as either the distance from one compression to the next compression OR from one rarefaction to the next rarefaction.

Compressions are areas where particles are bunched together, while rarefactions are areas where particles are spread apart. These patterns repeat at regular intervals as the wave travels.

Sound Connection: Sound waves are longitudinal—when you speak, your vocal cords create compressions and rarefactions in air that travel to listeners' ears!
