Geometry is all about understanding shapes, spaces, and their properties....
Geometry338 views·Updated Aug 12, 2026·3 pagesUnderstanding Geometry: Key Concepts of Points, Lines, and Planes
D
Darilynn Fisher@darilynn_fisher
1 / 3
1
of 3
Geometry Basics: Points, Lines & Planes

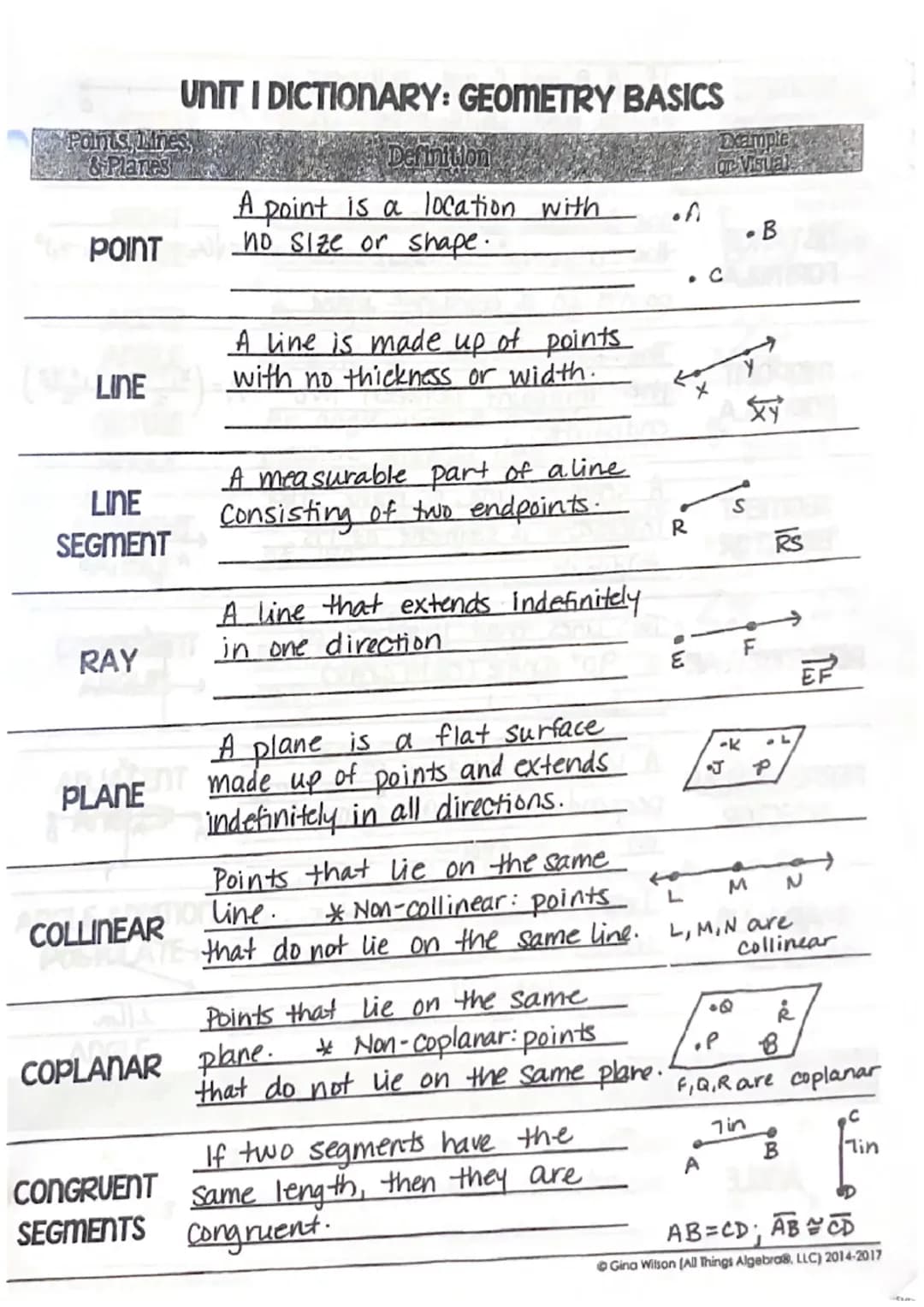

Imagine geometry as a language with its own vocabulary. A point is simply a location with no size or shape, usually labeled with a capital letter like A, B, or C. When points connect, they form a line that extends infinitely in both directions.
Sometimes we only need part of a line, which is where line segments come in. These have two endpoints and a measurable length. A ray is different - it has one endpoint and extends infinitely in one direction (think of a flashlight beam).
A plane is a flat surface that extends infinitely in all directions. Points can be collinear (lying on the same line) or coplanar (lying on the same plane). When line segments have the same length, we say they're congruent segments.
Think of it this way: Points are like stars, lines are like laser beams that go on forever, and planes are like endless sheets of paper that stretch in all directions!
2
of 3
Measuring and Positioning in Geometry

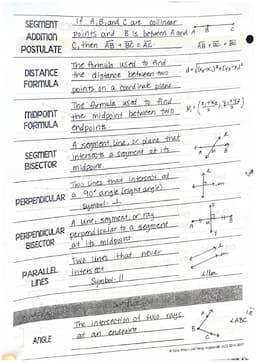

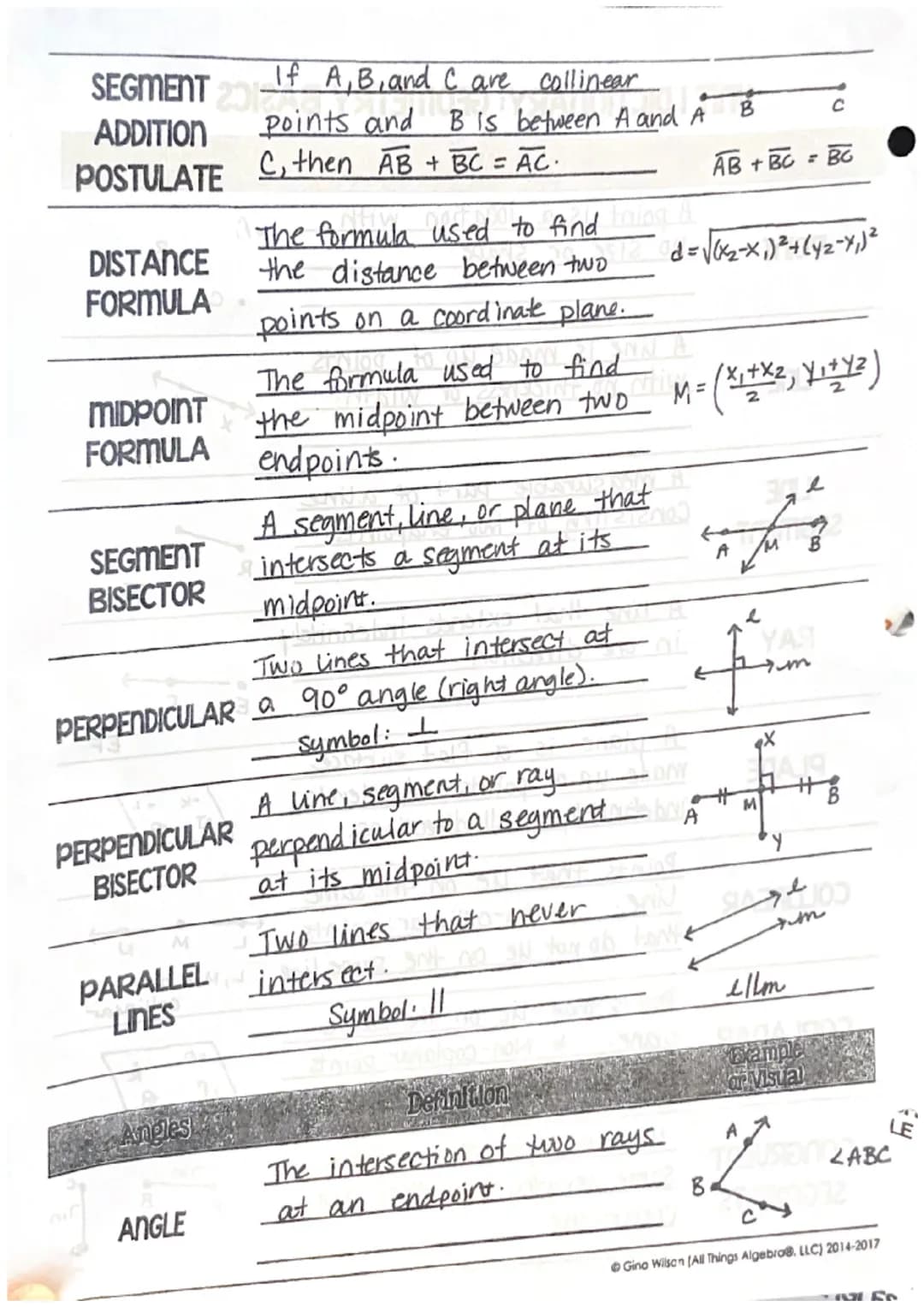

The Segment Addition Postulate tells us that if point B lies between points A and C on a line, then AB + BC = AC. This makes intuitive sense - the whole distance equals the sum of its parts!
When working with coordinates, the distance formula helps find the length between two points: d = √. Need to find the exact middle of a line segment? The midpoint formula gives you that point: M = .
A segment bisector cuts a line segment into two equal parts at its midpoint. When lines meet at 90° angles, they're perpendicular (shown by the ⊥ symbol). A perpendicular bisector combines these ideas - it's perpendicular to a segment at its midpoint.
Pro tip: Parallel lines (shown by the || symbol) never intersect, no matter how far you extend them - like railroad tracks that appear to meet in the distance but never actually do!
3
of 3
All About Angles

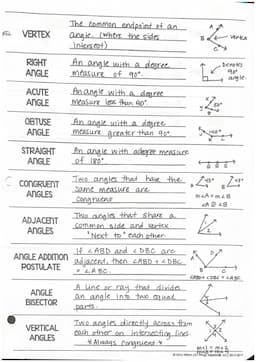

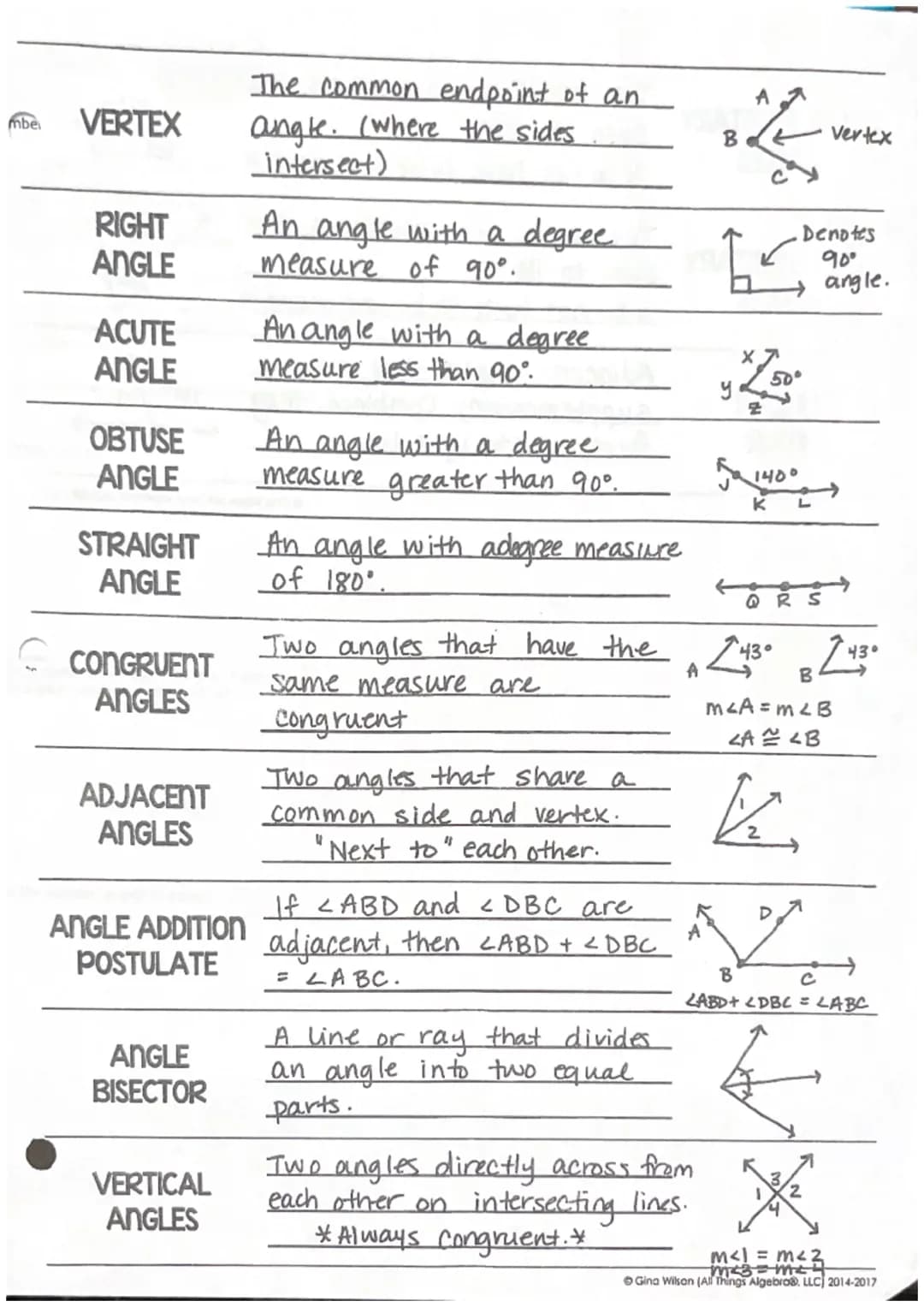

An angle forms when two rays meet at a common endpoint called the vertex. Angles come in different sizes: right angles measure exactly 90°, acute angles are less than 90°, obtuse angles are greater than 90°, and straight angles measure 180°.
When two angles have the same measure, they're congruent angles. Adjacent angles share both a common side and vertex - they're right next to each other. The Angle Addition Postulate states that if angles are adjacent, their measures add together to form the larger angle they create.
An angle bisector divides an angle into two equal parts. When lines intersect, they create pairs of vertical angles across from each other. Here's something cool: vertical angles are always congruent!
Remember this: You can identify angle types by thinking about a clock - right angle is at 3:00 (90°), acute is before 3:00 (less than 90°), and obtuse is after 3:00 but before 6:00 (between 90° and 180°).
