Ready to master surface area and volume calculations? This unit...
Geometry264 views·Updated Jul 27, 2026·4 pagesMastering Surface Area and Volume: Test Prep
Ethan Richards@ethanrichards_howi
1 / 4
1
of 4

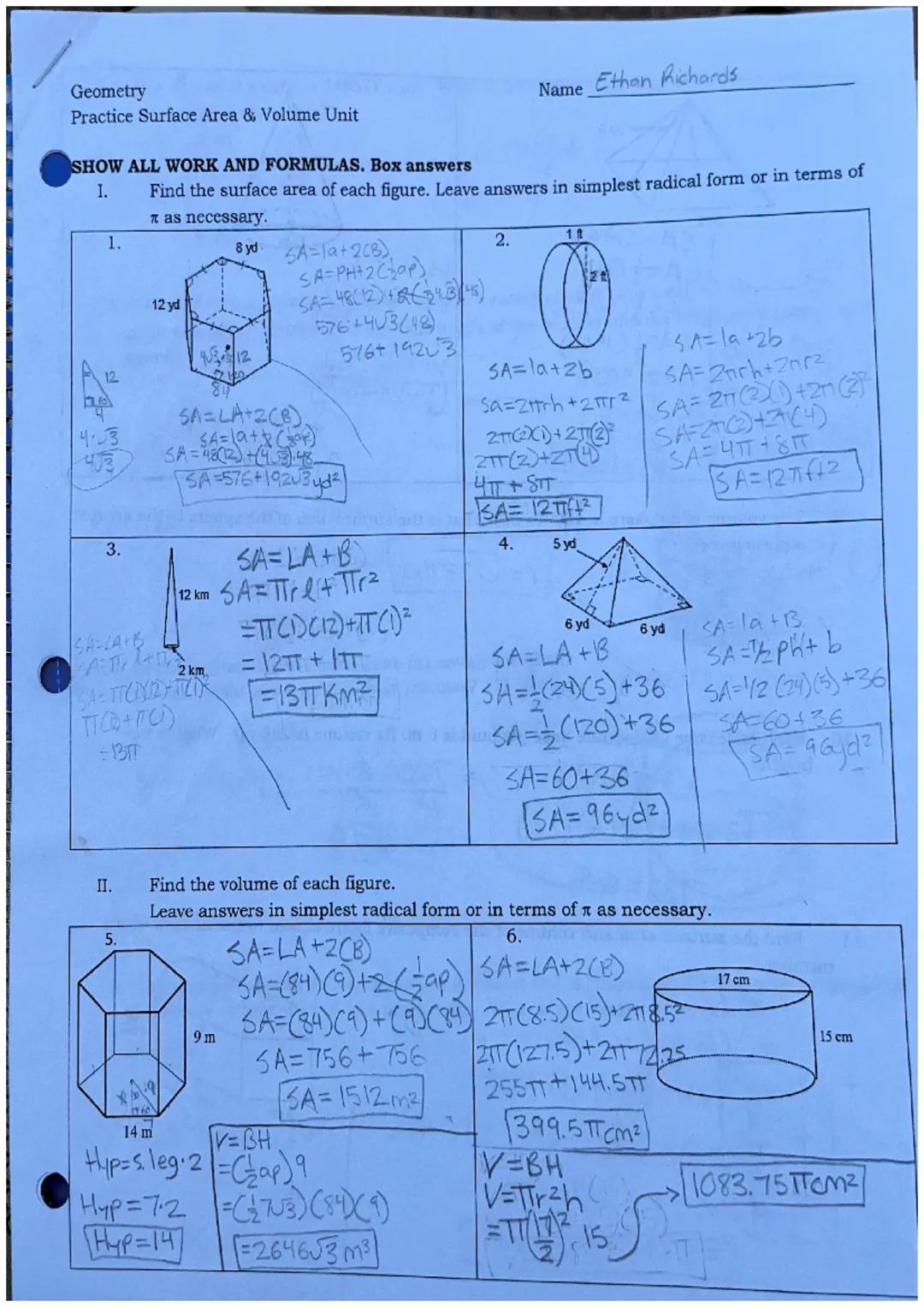

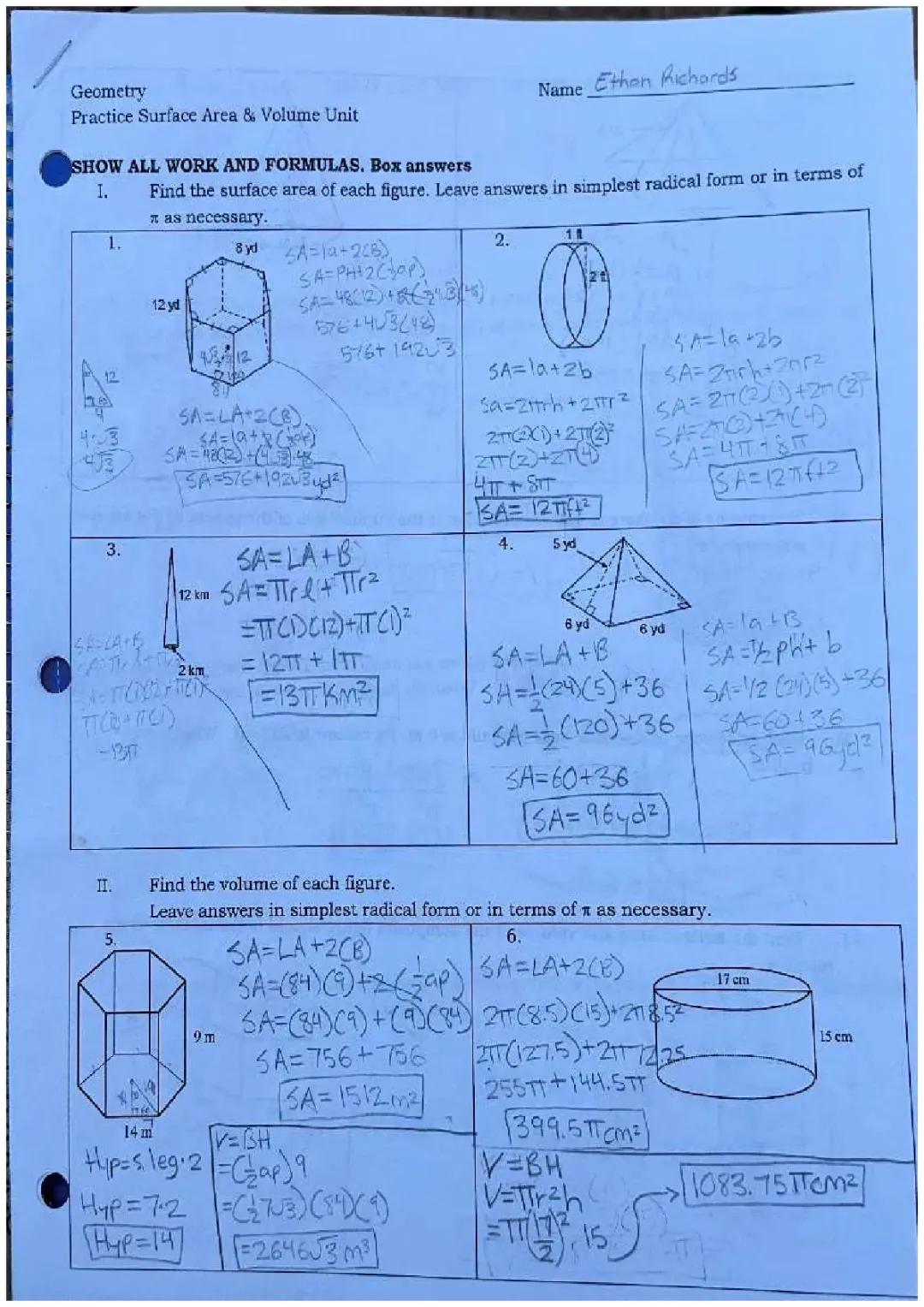

Surface Area & Volume Calculations
Figuring out surface area means adding up all the external faces of a 3D shape. For a hexagonal prism, you'll need to find the lateral area (LA) plus the area of the two bases. The formula typically looks like: SA = LA + 2B, where B represents the base area.
For a cylinder, the surface area calculation combines the curved surface (2πrh) and the two circular ends (2πr²), giving us SA = 2πr. Problems like the one with a 2-foot height and 1-foot radius demonstrate this, resulting in 12π ft².
Volume calculations determine the space inside a 3D shape. For pyramids, the formula is V = ⅓BH, where B is the base area and H is the height. For cylinders, it's V = πr²h, as shown in the problem with a 15 cm diameter cylinder.
💡 When working with composite figures (shapes made of multiple 3D objects), break down the problem by finding the surface area or volume of each part separately, then combine them appropriately.
2
of 4

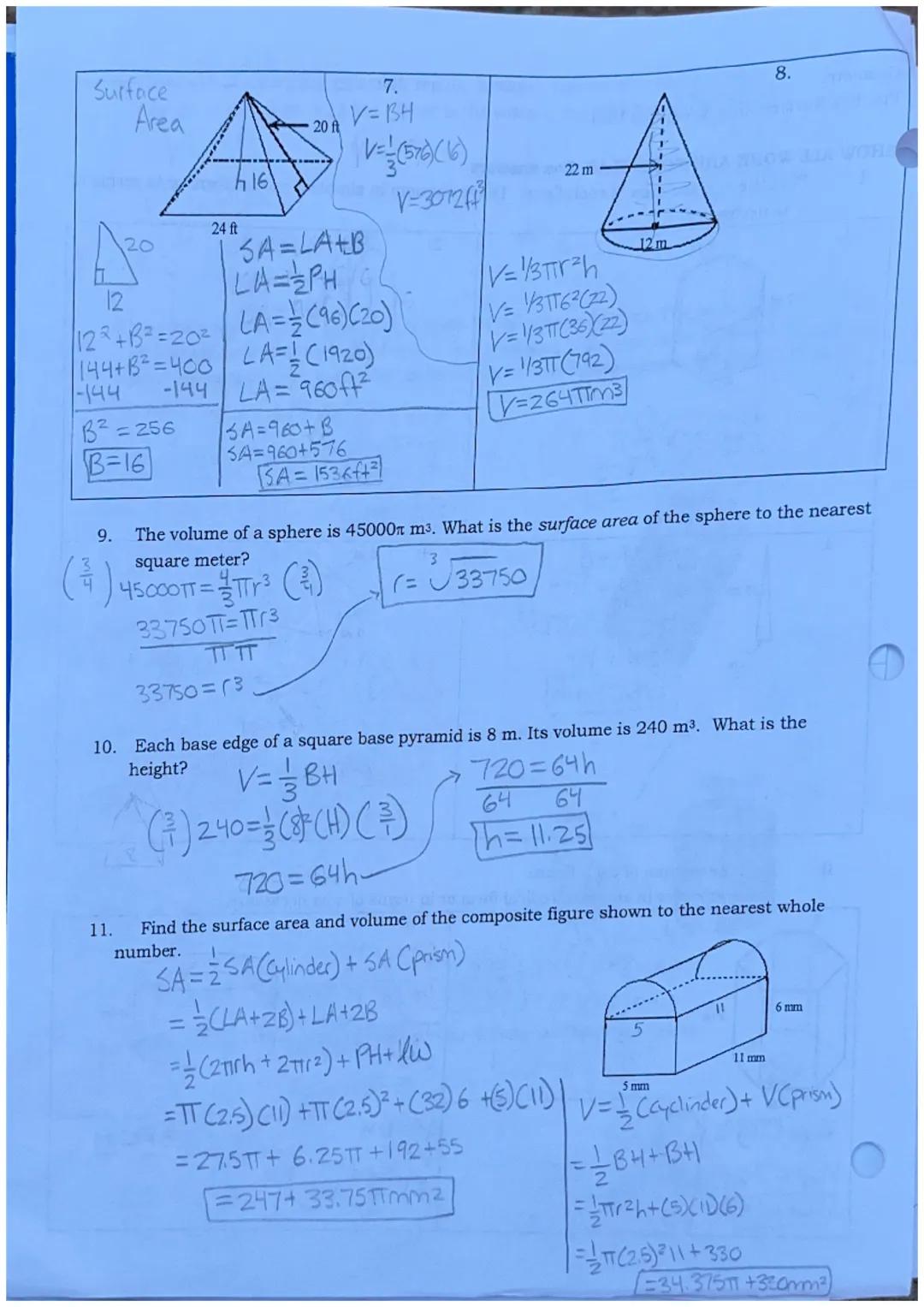

Complex Surface Area & Volume Problems
When tackling complex figures like a square pyramid, remember that you need to find the slant height to calculate the lateral area. The lateral area is half the perimeter times the slant height (LA = ½PH), which is then added to the base area for total surface area.
For a cone, the volume formula is V = ⅓πr²h. This is similar to a pyramid's formula but adjusted for a circular base. In problem 8, a cone with radius 12 m and height 22 m has a volume of 264π m³.
Composite figures require breaking the shape into familiar parts. In problem 11, we see a half-cylinder combined with a rectangular prism. The solution involves calculating half the surface area of the cylinder plus the surface area of the prism, and similarly for volume.
🔍 When a problem gives you the volume and asks for surface area (or vice versa), you'll often need to work backwards by finding the radius or height first, then using that measurement in the other formula.
3
of 4

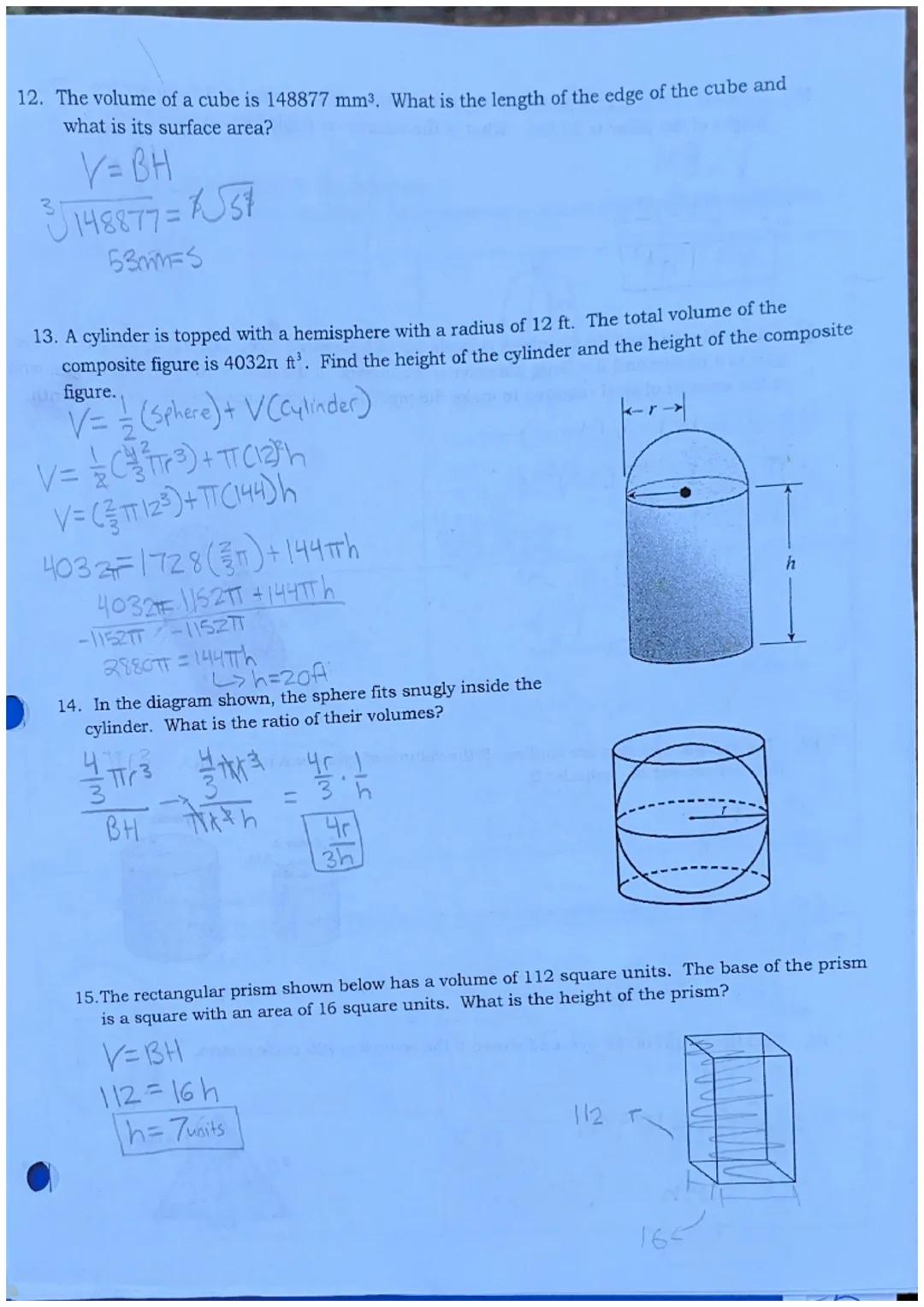

Working Backwards with Volume & Surface Area
Sometimes you'll need to determine dimensions when given volume or surface area. For a cube with volume 148,877 mm³, you can find the edge length by taking the cube root: 53 mm. The surface area is then 6 times the square of this edge length.
When dealing with composite shapes like a cylinder topped with a hemisphere, break down the volume formula into parts. The hemisphere contributes ⅔πr³ (half the volume of a sphere), while the cylinder adds πr²h. Using these together lets you solve for unknown dimensions.
Understanding geometric relationships is crucial. In problem 14, comparing a sphere inside a cylinder reveals an important volume ratio. This type of comparison helps you recognize patterns that can simplify complex calculations.
🧩 When solving for missing dimensions, always identify what you know and what formula connects it to what you need. This systematic approach makes seemingly complex problems manageable.
4
of 4

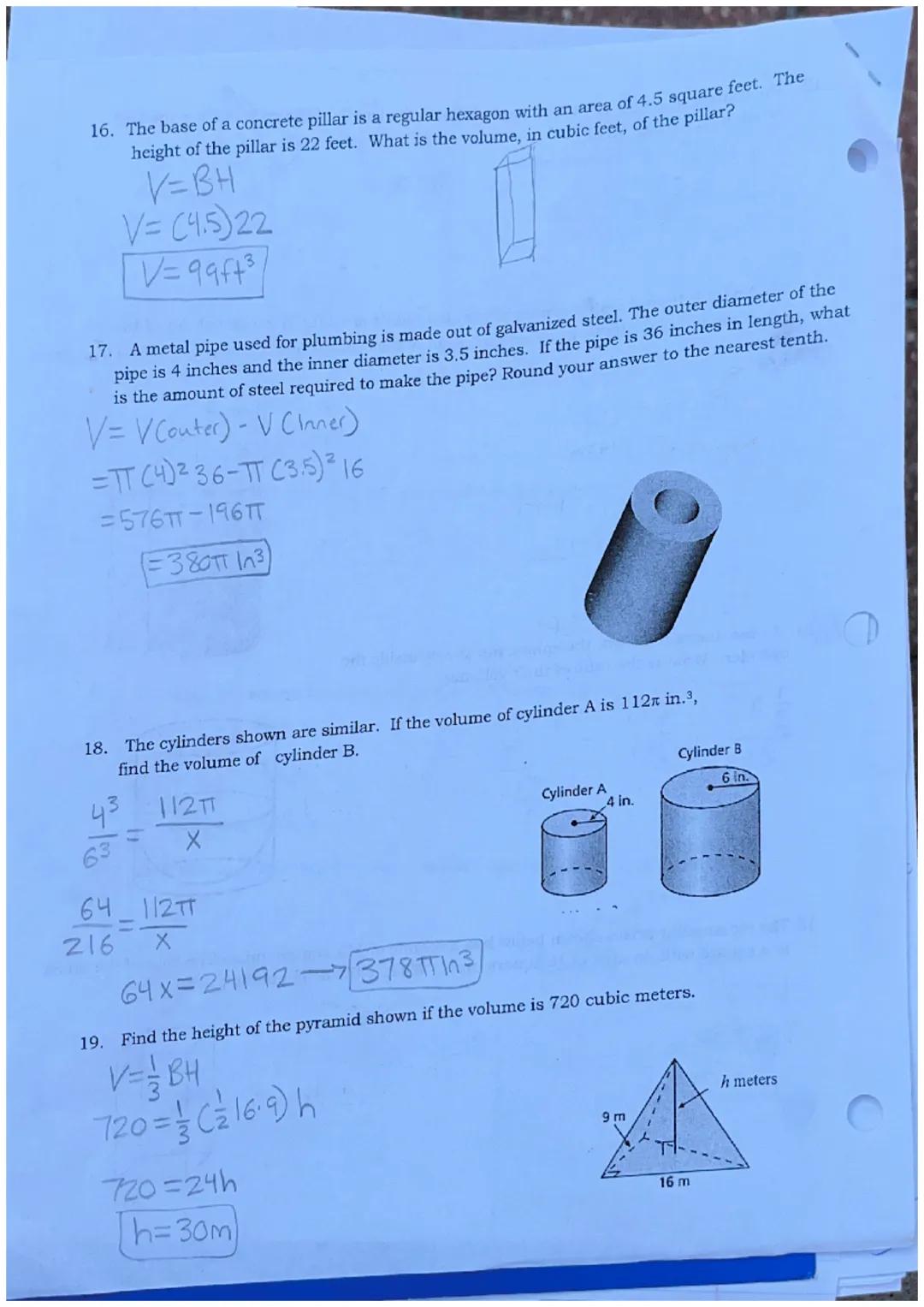

Application Problems & Similar Figures
Real-world applications often involve regular polygons as bases. A concrete pillar with a hexagonal base demonstrates this: simply multiply the base area (4.5 square feet) by the height (22 feet) to find the volume of 99 cubic feet.
Hollow objects, like metal pipes, require finding the difference between two volumes. For a pipe with outer diameter 4 inches and inner diameter 3.5 inches, calculate the volume of the outer cylinder and subtract the volume of the empty inner space.
When working with similar figures, like the cylinders in problem 18, remember that the ratio of volumes is equal to the cube of the ratio of corresponding linear measurements. For cylinders with heights in a 4:6 ratio, the volumes have a 64:216 ratio.
🔧 Many real-world applications involve composite shapes or hollow objects. Breaking these down into basic geometric components makes them much easier to analyze and calculate.
