Understanding 30-60-90 and 45-45-90 Triangles: Examples, Theorems, and Calculators

Understanding Triangle Theorems and Properties

The Pythagorean Theorem and its related concepts form the foundation of triangle geometry. When working with right triangles, we encounter special cases like 30-60-90 triangles and 45-45-90 triangles that have unique properties worth exploring in detail.

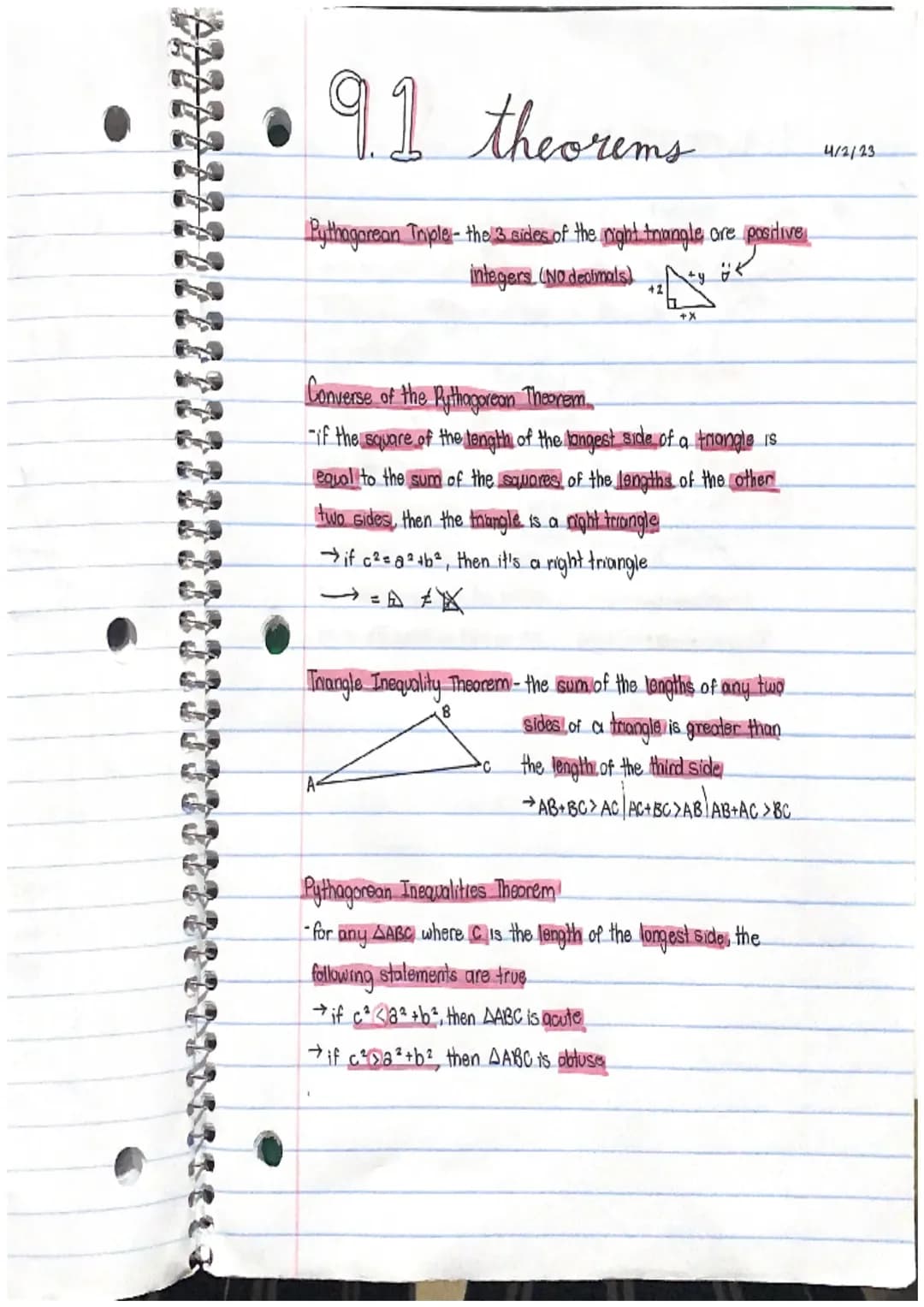

Definition: The Pythagorean Theorem states that in a right triangle, the square of the hypotenuse equals the sum of squares of the other two sides $a² + b² = c²$.

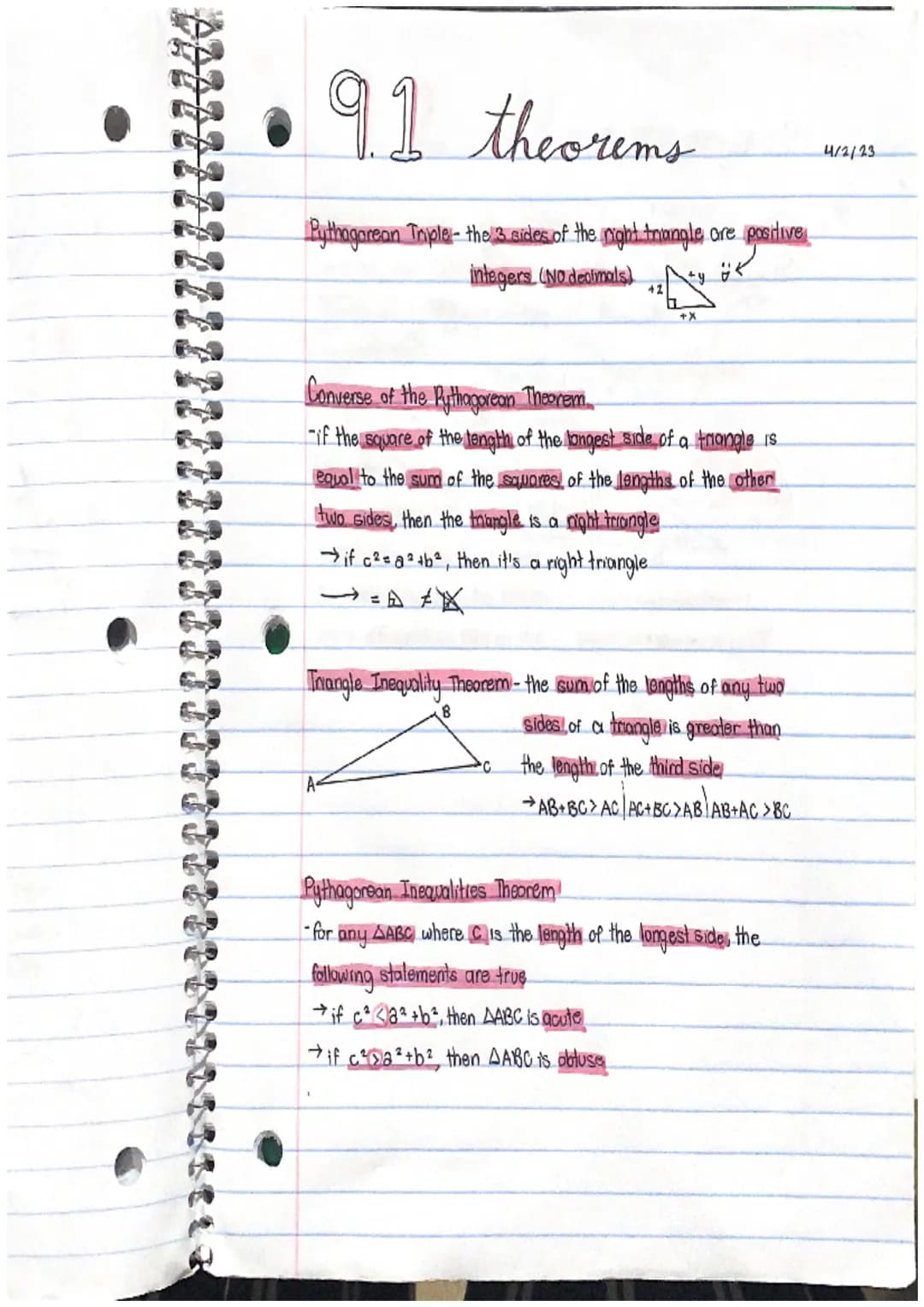

The Triangle Inequality Theorem provides fundamental rules about triangle side lengths. For any triangle, the sum of any two sides must be greater than the third side. This principle helps us determine whether given lengths can form a valid triangle.

Highlight: The Pythagorean Inequalities help determine triangle types:

• If c² < a² + b², the triangle is acute
• If c² > a² + b², the triangle is obtuse
• If c² = a² + b², the triangle is right

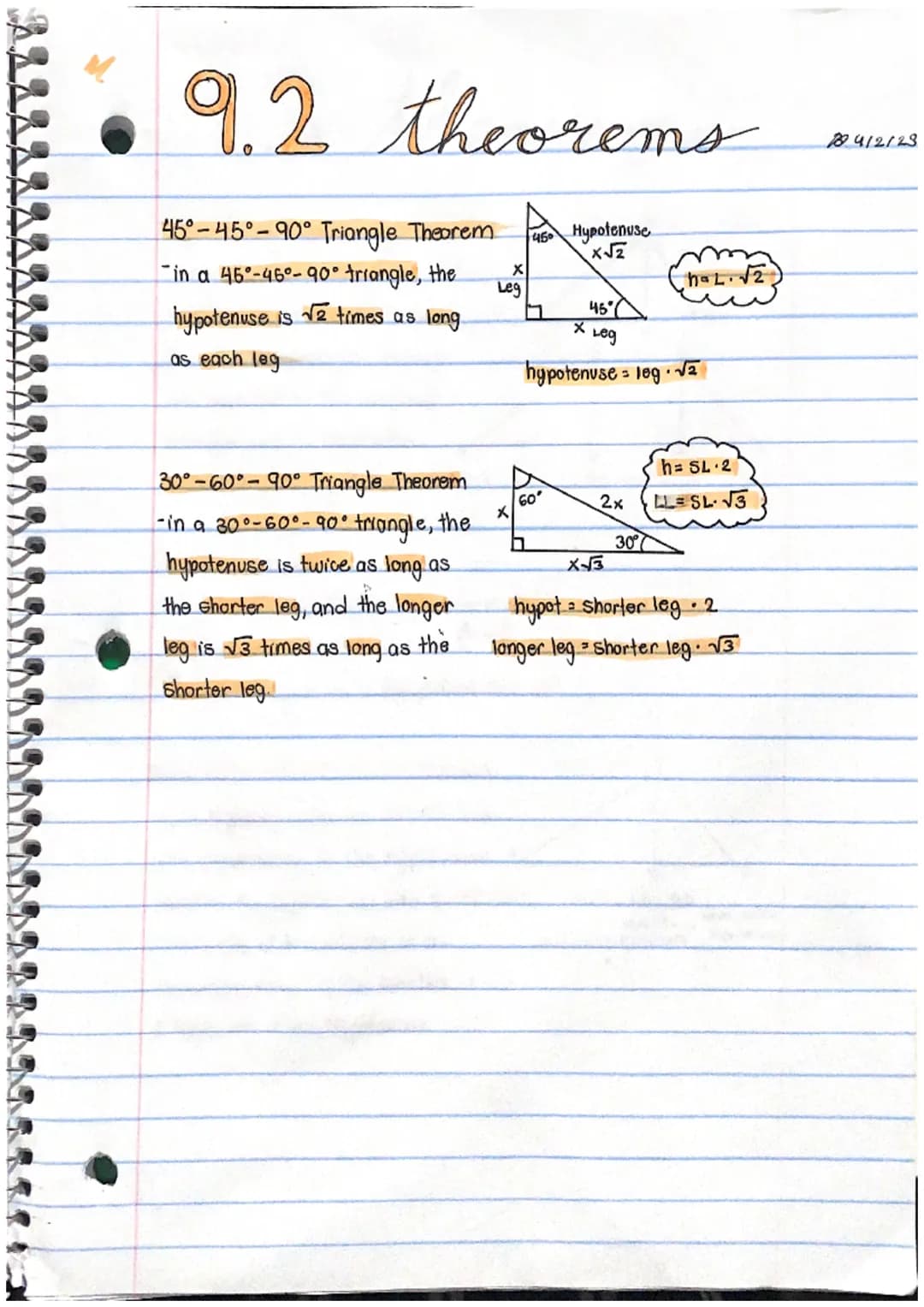

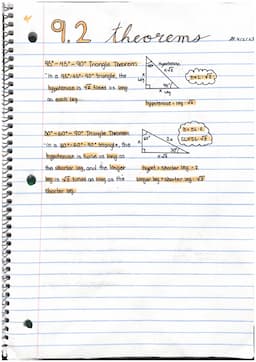

Special Right Triangles: 45-45-90 and 30-60-90

The 45-45-90 triangle has special properties due to its equal base angles. In these triangles, both legs are equal, and the 45-45-90 triangle hypotenuse is √2 times the length of a leg.

Example: In a 45-45-90 triangle, if the legs are 5 units each, the hypotenuse would be 5√2 units.

The 30-60-90 triangle Theorem describes another special right triangle where:

• The hypotenuse is twice the length of the shorter leg
• The longer leg is √3 times the shorter leg
• The angles are 30°, 60°, and 90°

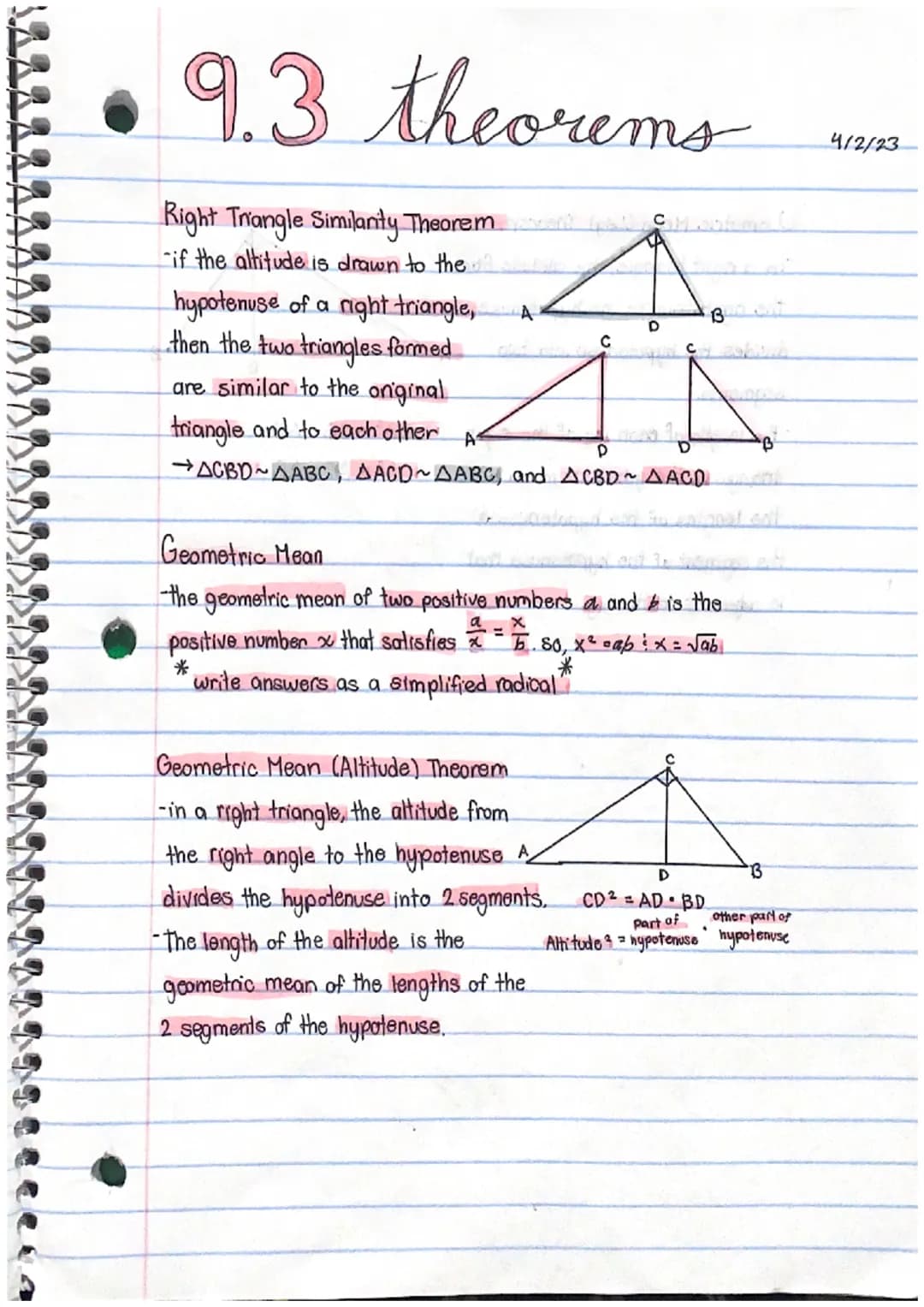

Geometric Mean and Right Triangle Similarity

The Geometric mean theorem in right triangles connects the altitude to the hypotenuse with proportional segments. When the altitude is drawn to the hypotenuse, it creates similar triangles and establishes important relationships.

Vocabulary: The Geometric mean of two numbers a and b is the positive number x where x² = ab.

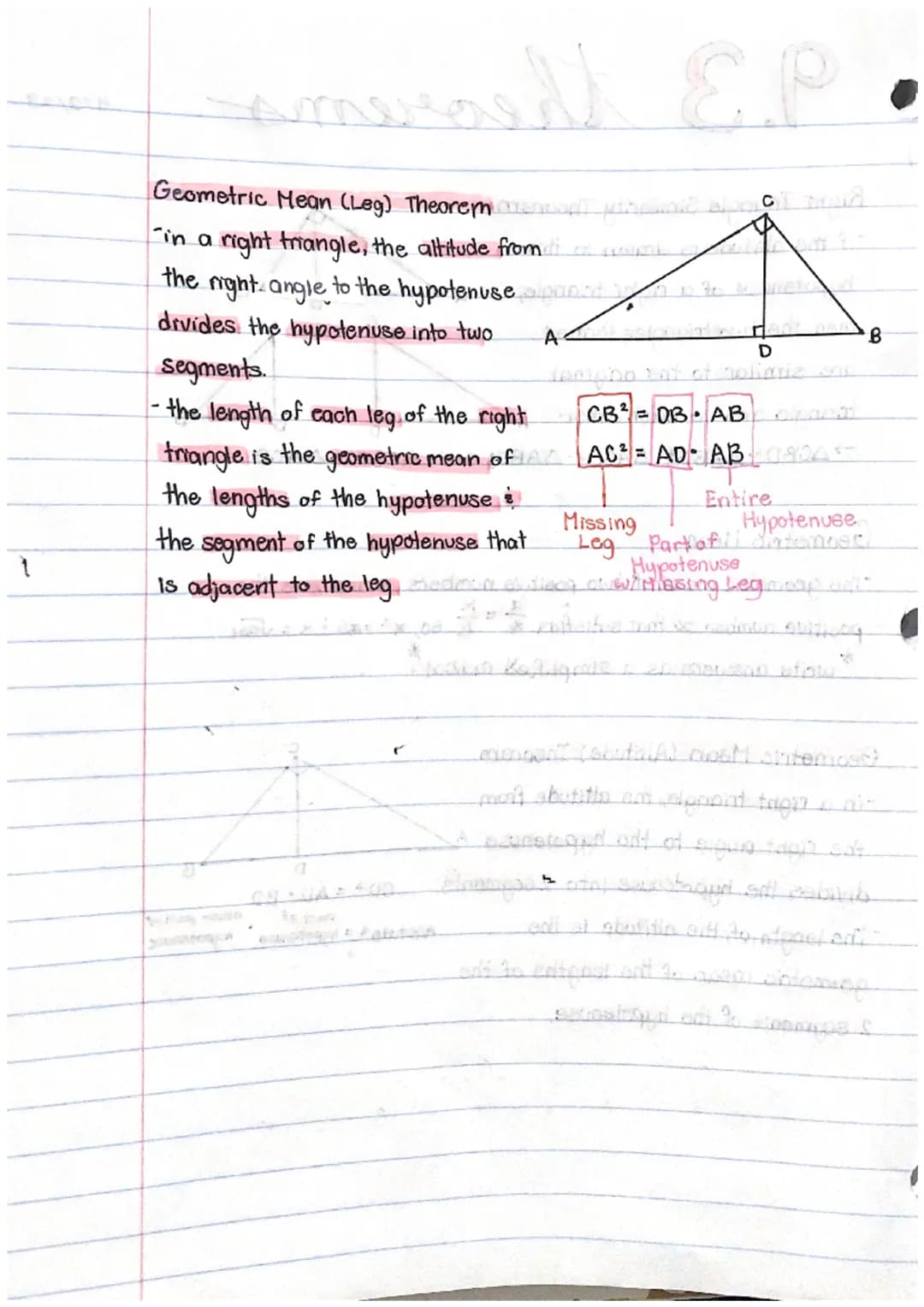

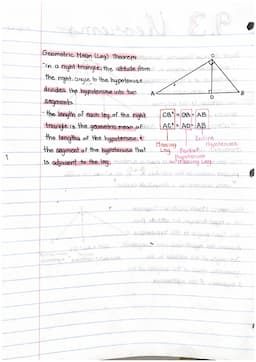

The Geometric mean theorem proof shows that when the altitude is drawn to the hypotenuse:

• The altitude length is the geometric mean of the hypotenuse segments
• Each leg is the geometric mean of the hypotenuse and its adjacent segment

Applications of Geometric Mean in Right Triangles

The Geometric mean leg theorem has practical applications in geometry and real-world problems. This theorem helps solve for missing sides in right triangles and understand proportional relationships.

Example: If a right triangle's hypotenuse is 10 units and one segment is 4 units, the leg adjacent to that segment would be √(40) units.

Understanding these relationships allows us to:

• Find missing sides in right triangles
• Verify triangle similarity
• Solve complex geometric problems
• Apply proportional reasoning in practical situations

The geometric mean theorems connect algebra and geometry, demonstrating how mathematical concepts interrelate and build upon each other.

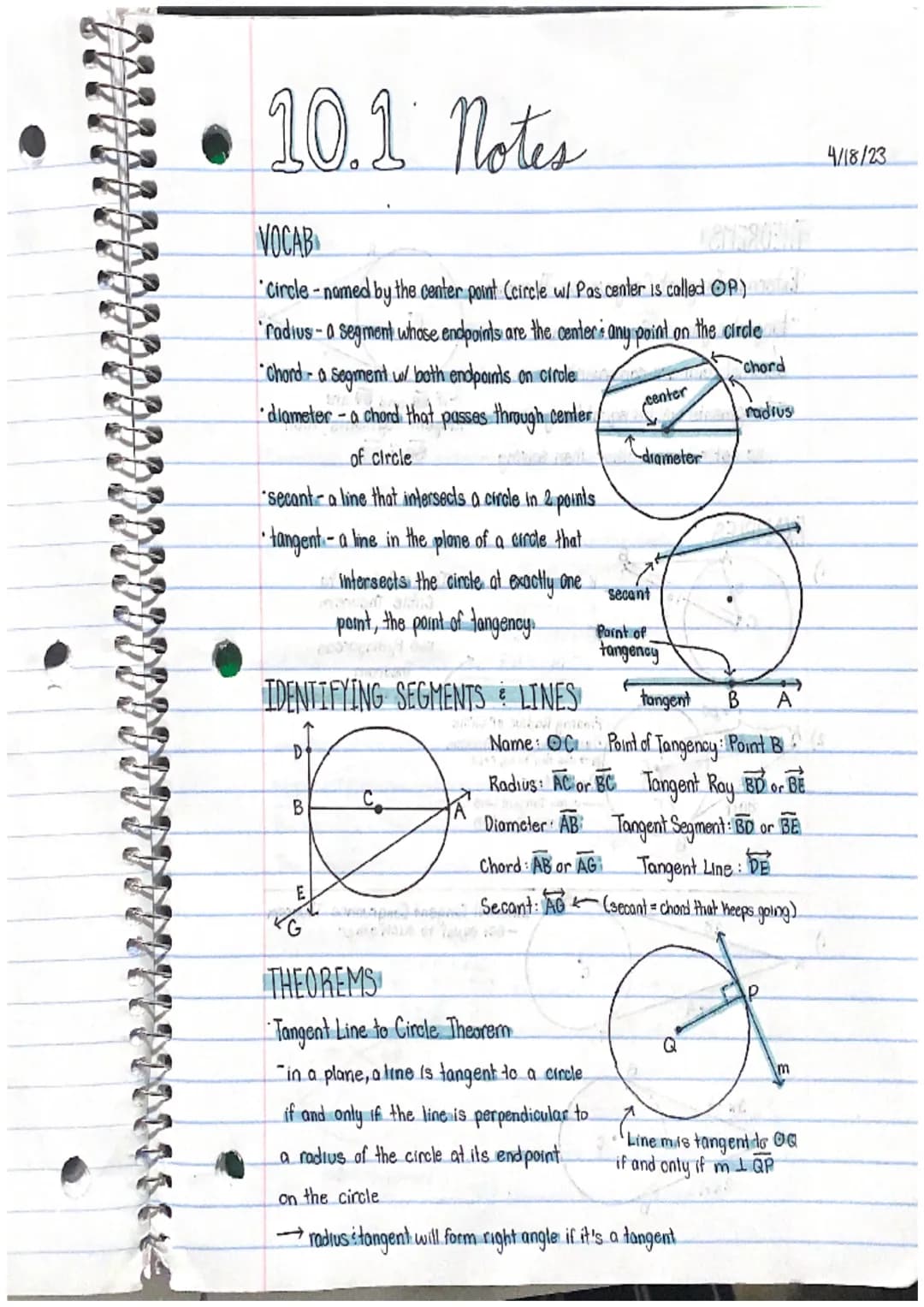

Understanding Circle Geometry: Tangents, Chords, and Theorems

The fundamental concepts of circle geometry involve several key elements that form the basis for understanding more complex geometric relationships. A circle is defined by its center point, with various components extending from or intersecting with it.

Vocabulary: A radius is a segment extending from the center to any point on the circle, while a chord is any segment with both endpoints on the circle. A diameter is a special chord that passes through the center, and a tangent is a line that intersects the circle at exactly one point.

The Tangent Line to Circle Theorem states that a line is tangent to a circle if and only if it is perpendicular to the radius at the point of intersection. This creates a right angle between the radius and tangent line at the point of tangency. Understanding this relationship is crucial for solving problems involving tangent lines and circles.

Example: When working with tangent lines, you can use the Pythagorean Theorem to find unknown measurements. For instance, if you have a circle with radius r and a tangent line forming a right triangle with measurements of 50 feet and 80 feet, you can solve for the radius using the equation r² + 80² = $r + 50$².

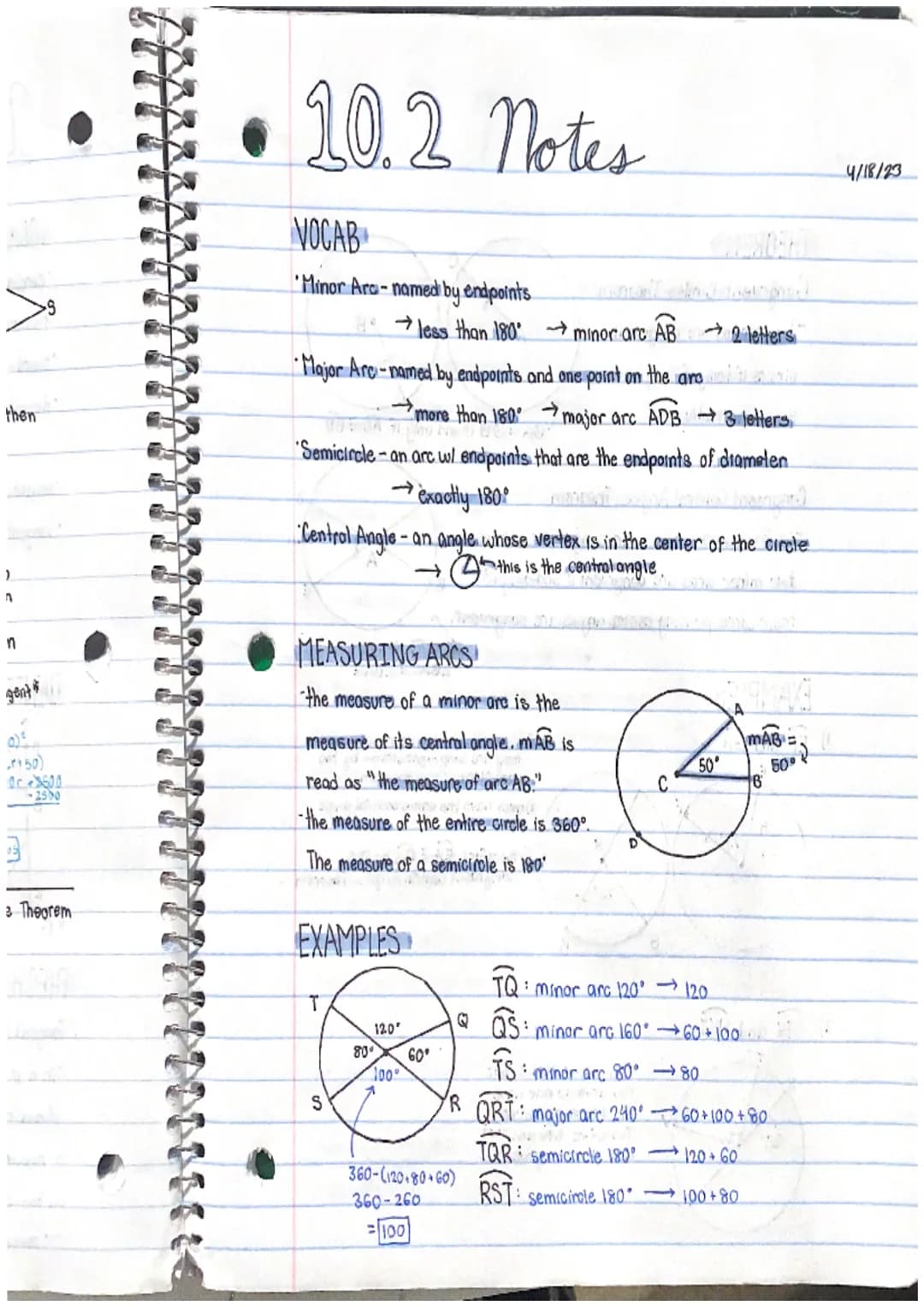

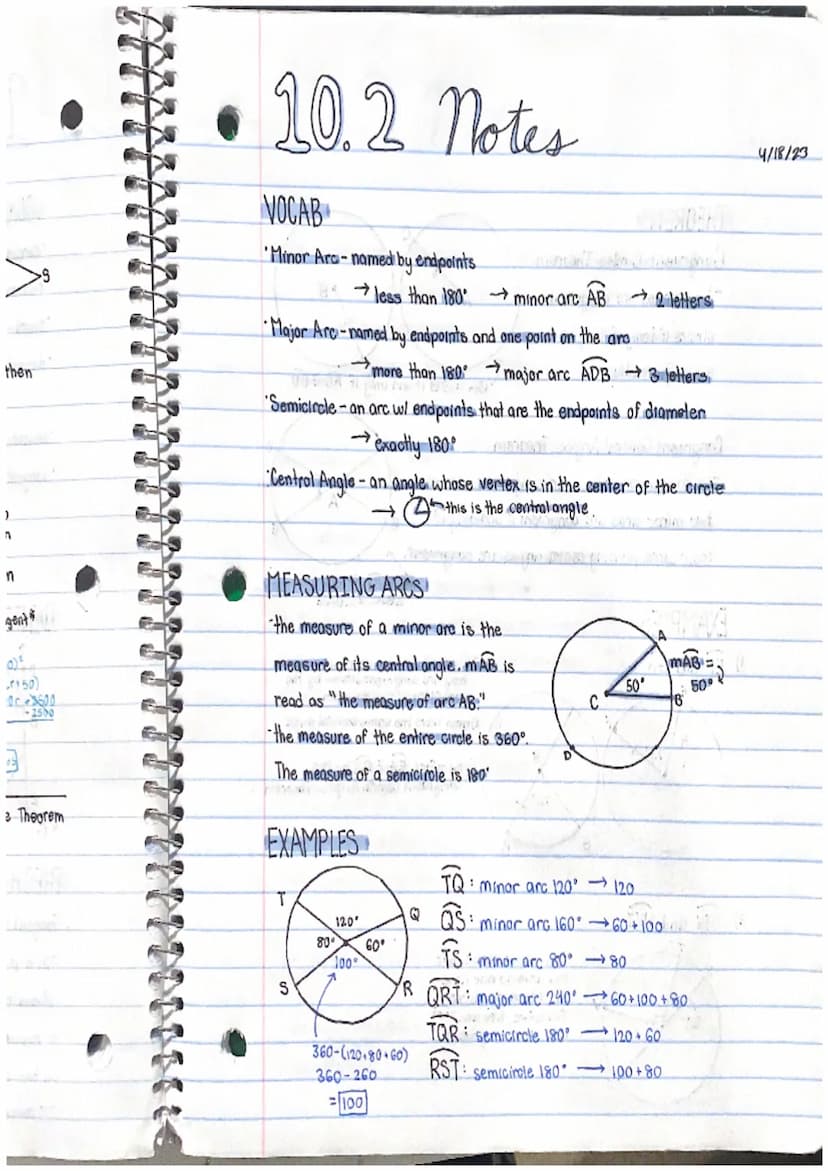

Circle Arcs and Central Angles

Understanding arc measurements and their relationship to central angles is essential in circle geometry. Arcs can be classified as minor arcs (less than 180°), major arcs (greater than 180°), or semicircles (exactly 180°).

Definition: A central angle is an angle whose vertex is at the center of the circle. The measure of a minor arc is equal to the measure of its corresponding central angle.

The complete circle measures 360°, and this fundamental fact helps in calculating unknown arc measures. When working with multiple arcs, you can find missing measurements by subtracting known arc measures from 360° or by using relationships between complementary and supplementary arcs.

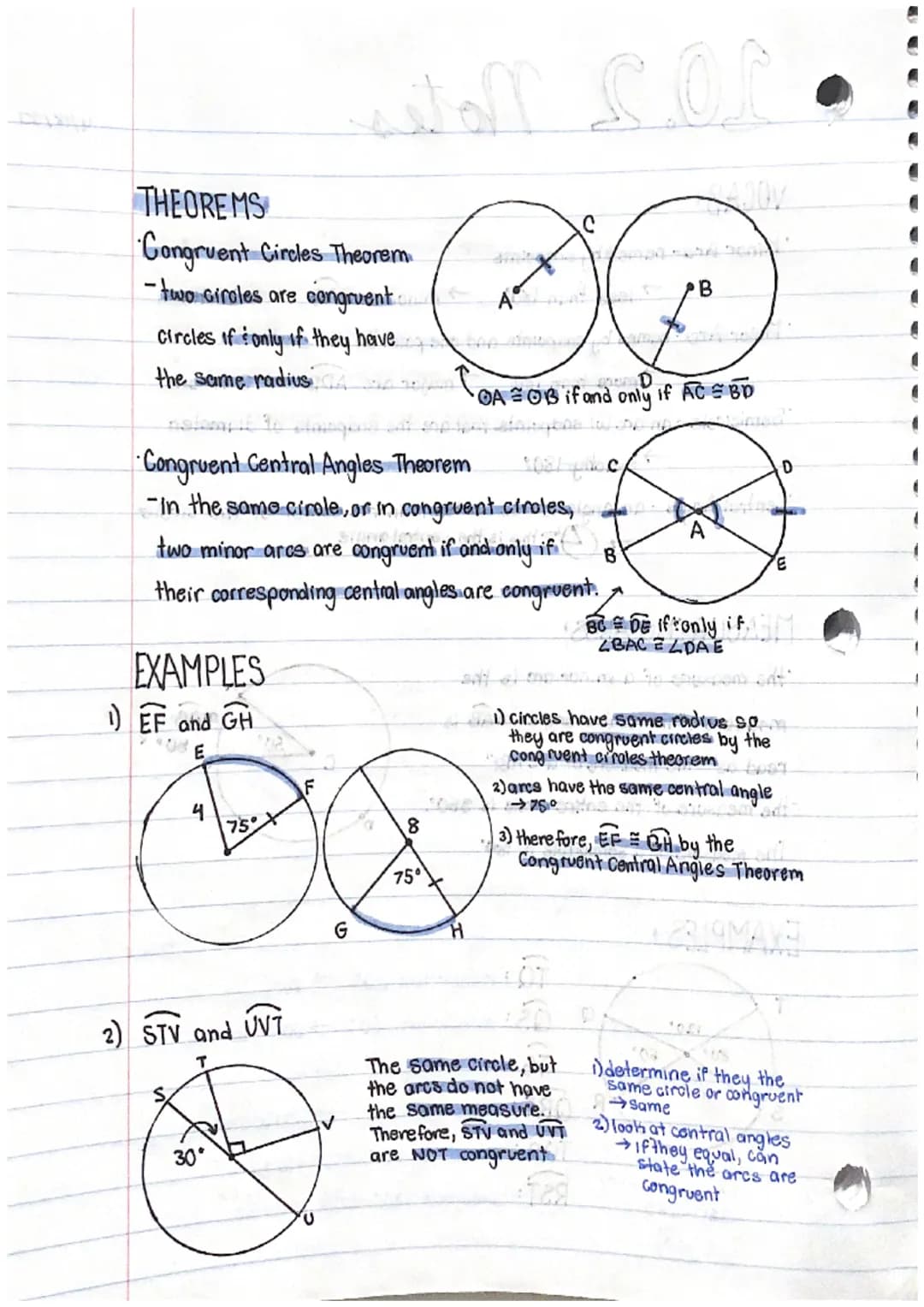

Highlight: In the same circle or congruent circles, two minor arcs are congruent if and only if their corresponding central angles are congruent. This principle is known as the Congruent Central Angles Theorem.

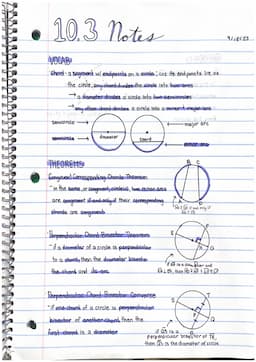

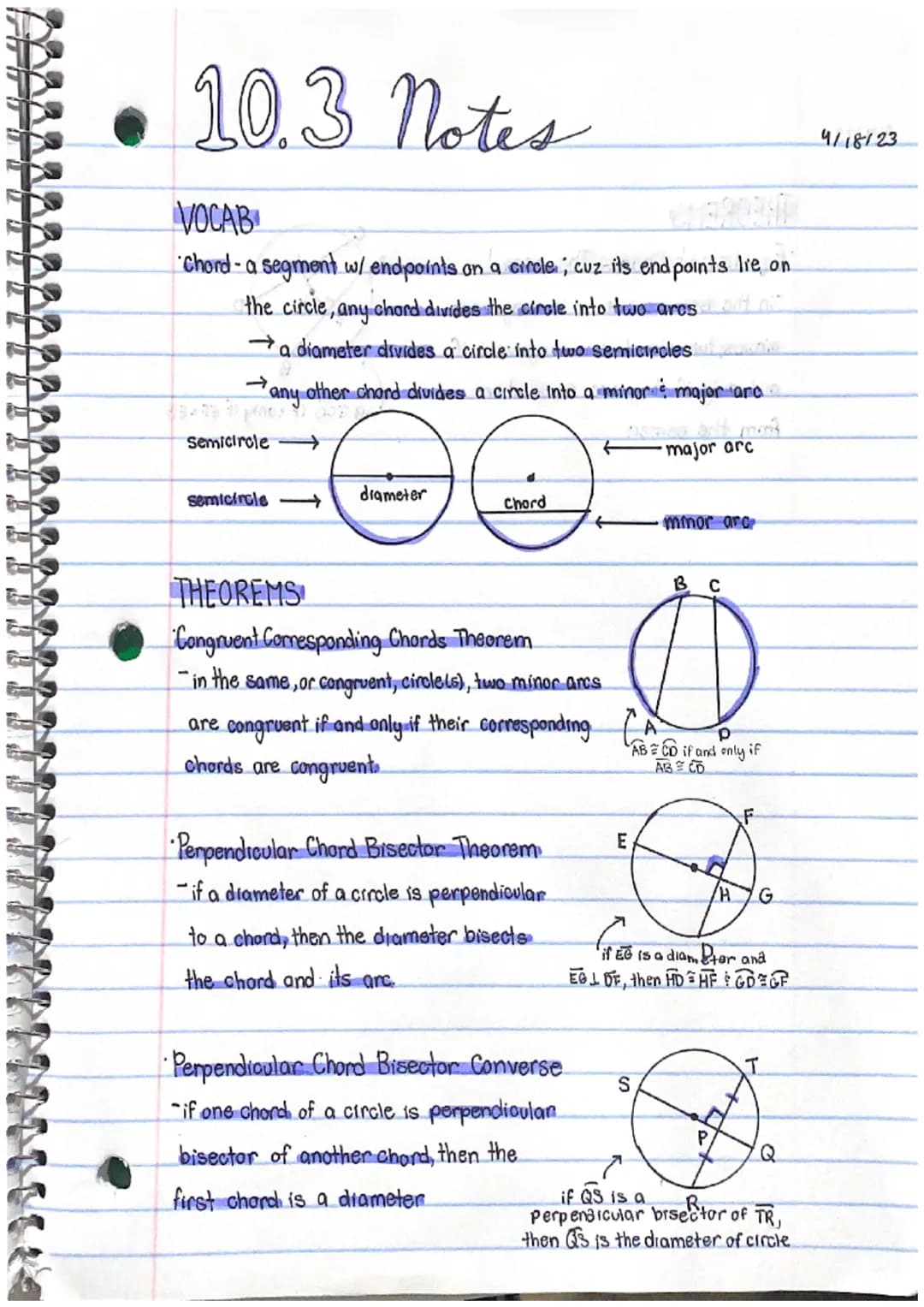

Chord Properties and Relationships

Chords play a vital role in circle geometry, creating important relationships with arcs and other circle components. The Congruent Corresponding Chords Theorem establishes that in the same or congruent circles, two minor arcs are congruent if and only if their corresponding chords are congruent.

Definition: A chord divides a circle into two arcs - if it's a diameter, it creates two semicircles; otherwise, it creates one minor and one major arc.

The Perpendicular Chord Bisector Theorem states that if a diameter is perpendicular to a chord, it bisects both the chord and its corresponding arc. This relationship works both ways - if one chord perpendicularly bisects another chord, the first chord must be a diameter.

Example: If a diameter EG is perpendicular to chord HF at point D, then HD = DF and the arcs on either side of the diameter are congruent.

Applications of Circle Theorems

The practical applications of circle theorems extend to various real-world scenarios and problem-solving situations. Understanding these relationships helps in solving complex geometric problems and constructing proofs.

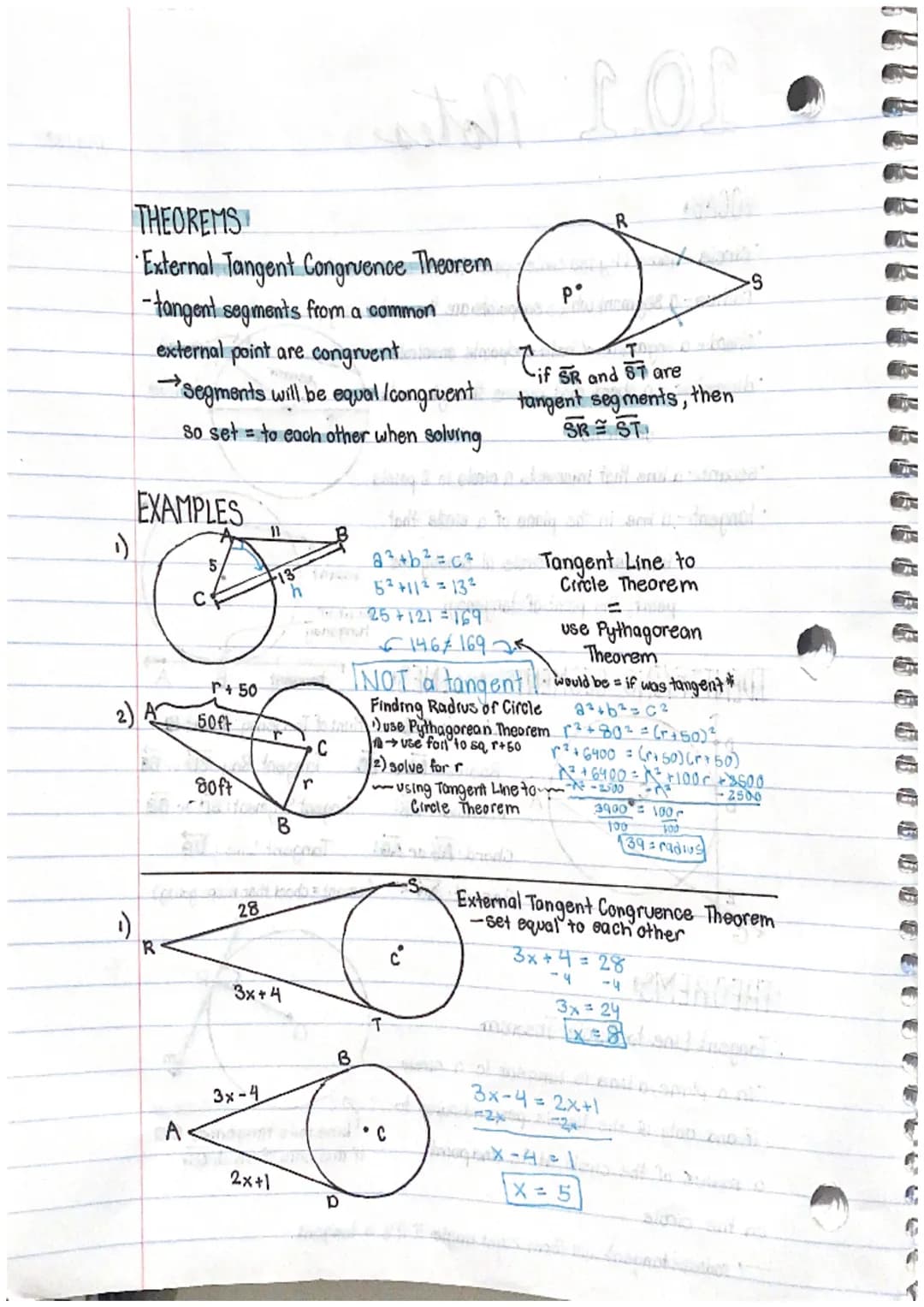

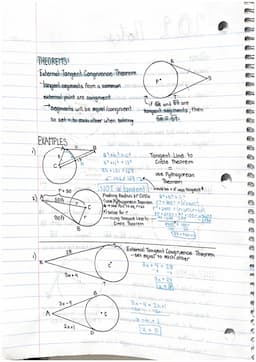

Highlight: When working with tangent lines and circles, remember that tangent segments from an external point to a circle are always congruent. This property, known as the External Tangent Congruence Theorem, is frequently used in construction and engineering applications.

The combination of these theorems provides powerful tools for analyzing circular objects and solving geometric problems. Whether calculating distances, proving congruence, or determining unknown measurements, these principles form the foundation of circular geometry.

Example: In architectural design, understanding chord relationships helps in creating symmetrical structures with circular elements, while tangent properties are crucial in designing roads and railway curves.

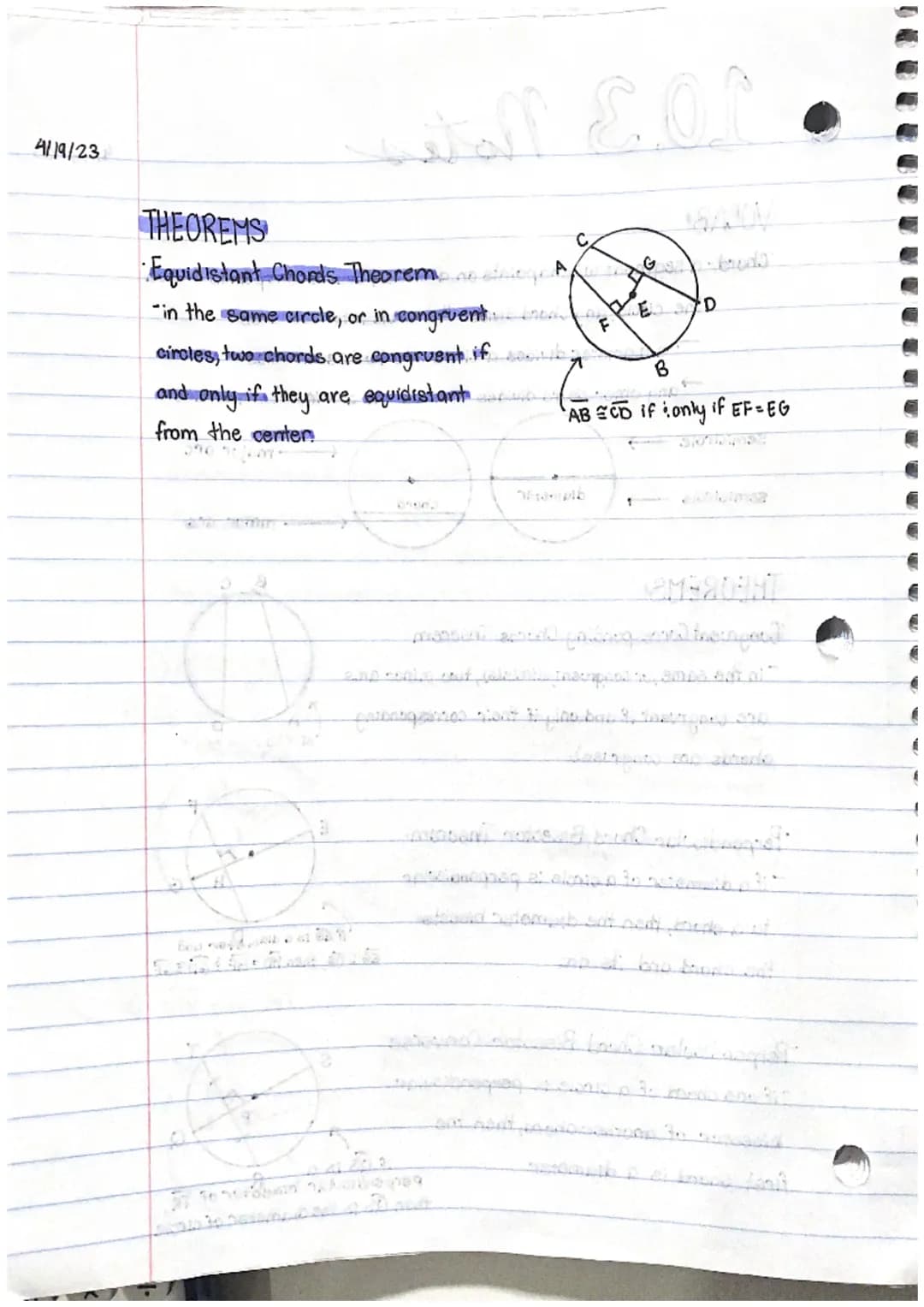

Understanding Equidistant Chords in Circle Geometry

The relationship between chord length and distance from the center of a circle represents one of the fundamental theorems in circle geometry. When exploring congruent chords and their distances from the center, we discover an important bi-conditional relationship that helps us understand circle properties more deeply.

Definition: Equidistant chords are chords that are located at equal distances from the center of a circle. The distance is measured as the perpendicular line from the center to each chord.

In circles, whether the same circle or congruent circles, two chords are congruent (equal in length) if and only if they are equidistant from the center. This bi-conditional relationship means that if two chords are congruent, they must be equidistant from the center, and conversely, if two chords are equidistant from the center, they must be congruent. This property holds true regardless of where the chords are positioned within the circle.

To understand this concept practically, consider a circle with center E and two chords AB and CD. If we draw perpendicular lines from center E to these chords (EF and EG respectively), these perpendicular distances serve as our measure of how far each chord lies from the center. The theorem states that AB = CD (chords are congruent) if and only if EF = EG (distances from center are equal). This relationship provides a powerful tool for proving chord congruence without directly measuring the chords themselves.

Example: If in a circle with center E, chord AB = 8 units and chord CD = 8 units, then the perpendicular distances EF and EG from the center to these chords must be equal. Conversely, if we know that EF = EG = 5 units, we can conclude that chords AB and CD must be equal in length.

Applications and Implications of the Equidistant Chords Theorem

The Equidistant Chords Theorem has significant practical applications in geometry and real-world scenarios. This theorem serves as a foundation for more complex geometric proofs and constructions involving circles and their properties.

Highlight: The bi-conditional nature of this theorem means it works both ways: equal chords imply equal distances from the center, and equal distances from the center imply equal chords.

Understanding this theorem helps in solving various geometric problems, particularly those involving circle measurements and constructions. For instance, when designing circular structures or patterns, knowing that congruent elements must be equidistant from the center ensures symmetry and stability. This principle is often applied in architecture, engineering, and design where circular symmetry is crucial.

The theorem also connects to other important circle properties, such as the relationship between a chord's length and its distance from the center. As the distance from the center to a chord decreases, the chord length increases, and vice versa. This inverse relationship helps us understand why the diameter, which passes through the center, is always the longest chord in a circle.

Vocabulary: The perpendicular distance from the center of a circle to a chord is called the apothem of the chord. The apothem is crucial in determining the relationship between chord lengths and their distances from the center.
