Trigonometry connects angles and sides of triangles through special ratios. These mathematical relationships help us solve real-world problems involving distances, heights, and angles that would be difficult to measure directly.
Angle of Elevation and Depression – page 1

Sign up to see the content.
It's free!

Trigonometric Ratios and Angle Calculations

Trigonometry begins with understanding the three basic ratios: sine, cosine, and tangent. These ratios help us find unknown angles and sides in right triangles.

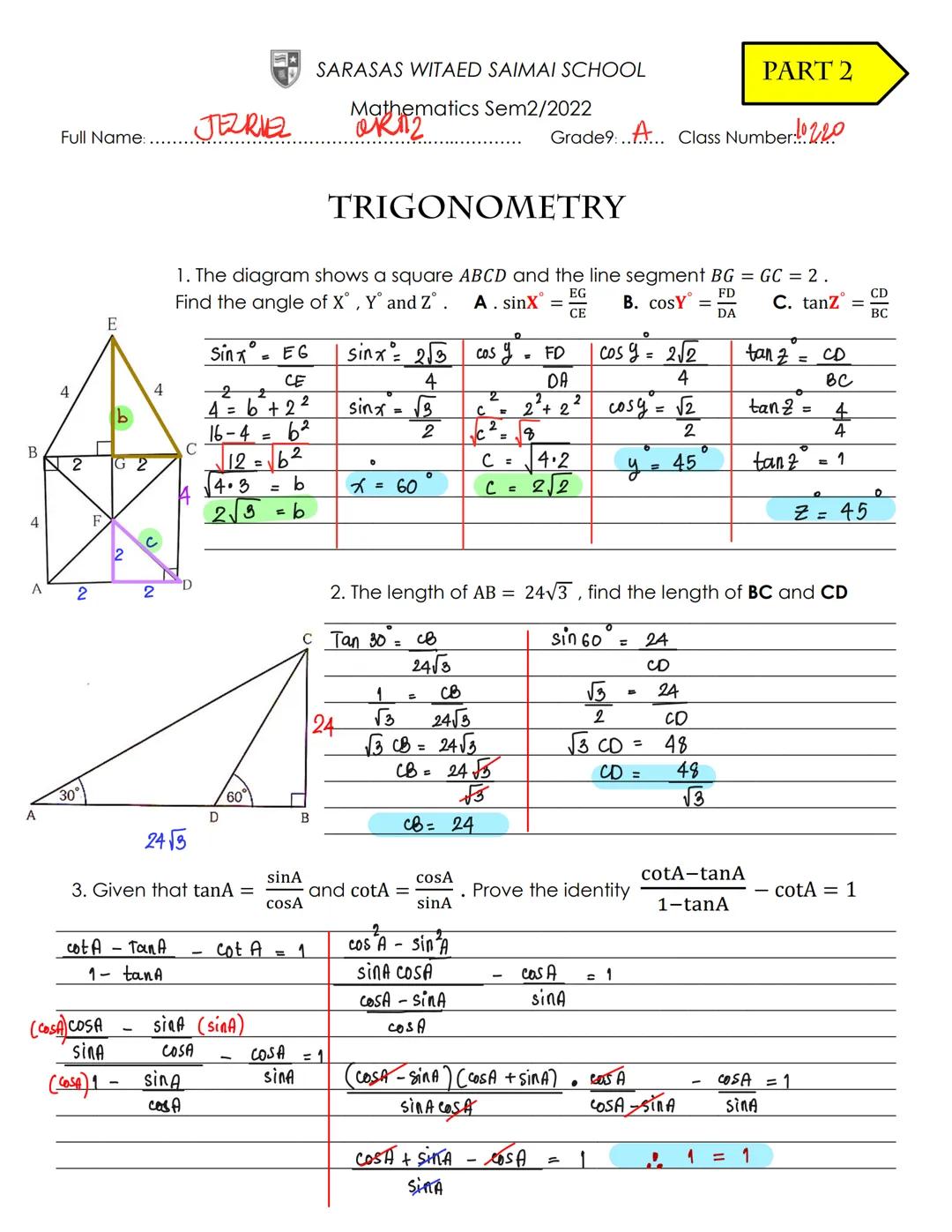

For example, when we have a square with certain measurements, we can find unknown angles by applying trigonometric ratios. In one problem, we discovered that if sinx=32sin x = \frac{\sqrt{3}}{2}, then x = 60°, and when cosy=22cos y = \frac{\sqrt{2}}{2}, y = 45°.

When working with triangles, we can find missing sides using the appropriate ratios. If we know that a triangle has one side measuring 24324\sqrt{3} and specific angles, we can determine other sides like BC = 24 by using the tangent ratio.

Remember This! The core trigonometric ratios are always: sine = opposite/hypotenuse, cosine = adjacent/hypotenuse, and tangent = opposite/adjacent. These are your keys to solving most trigonometry problems.

Angle of Elevation and Depression – page 2

Sign up to see the content.
It's free!

Important Trigonometric Values and Applications

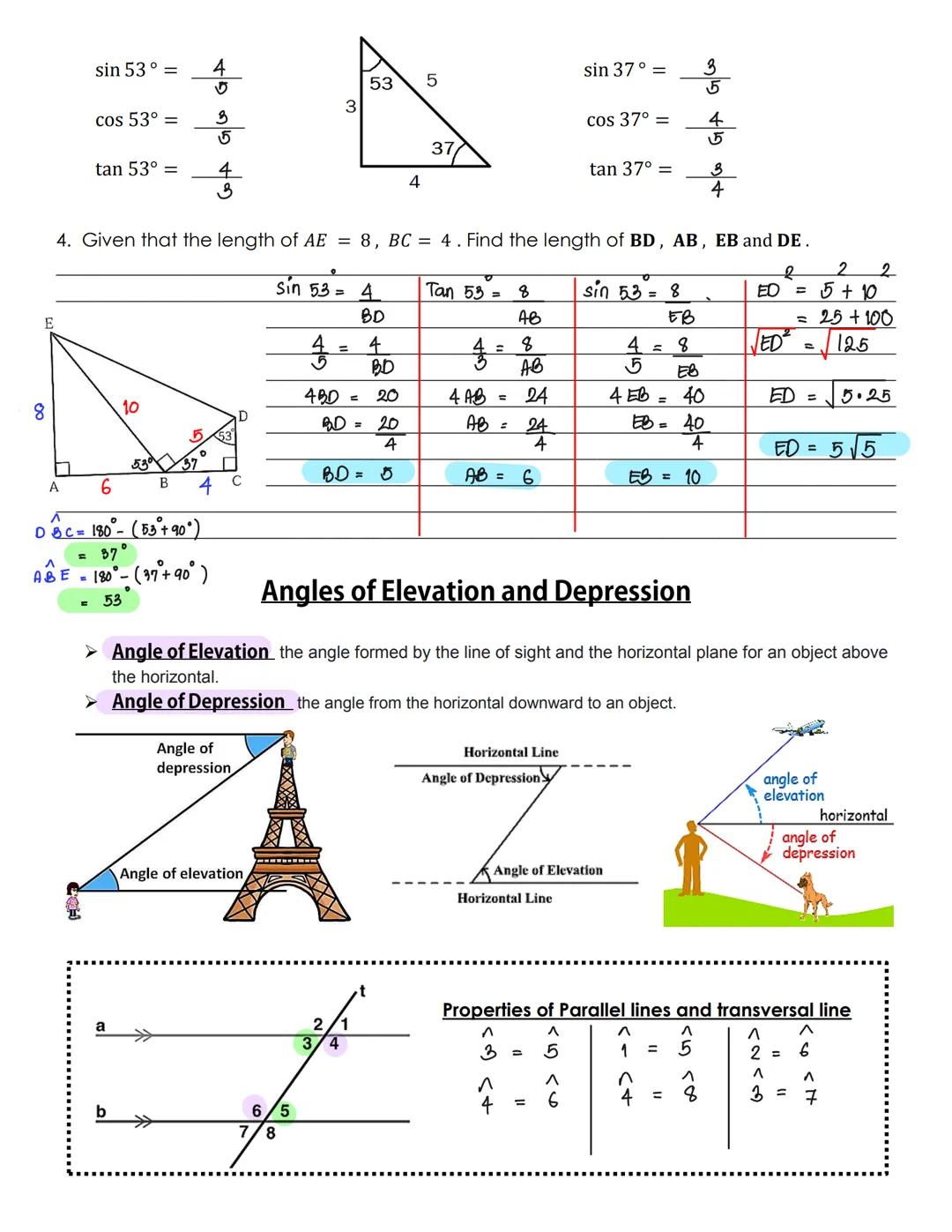

Certain trigonometric values are worth memorizing to solve problems faster. For angles like 37° and 53°, knowing that sin 37° = 3/5 and sin 53° = 4/5 can save you calculation time.

When solving multi-step problems involving triangles, start by identifying what you know and what you need to find. For instance, if you know AE = 8 and BC = 4, you can use trigonometric ratios to find other lengths like BD = 5 and AB = 6.

The angle of elevation is the upward angle from the horizontal to an object above you, while the angle of depression is the downward angle from the horizontal to an object below. These concepts are crucial for solving real-world height and distance problems.

Helpful Tip: When working with parallel lines crossed by a transversal, the corresponding ratios often create proportions that can help you solve for unknown values.

Angle of Elevation and Depression – page 3

Sign up to see the content.
It's free!

Applying Trigonometry to Real-World Problems

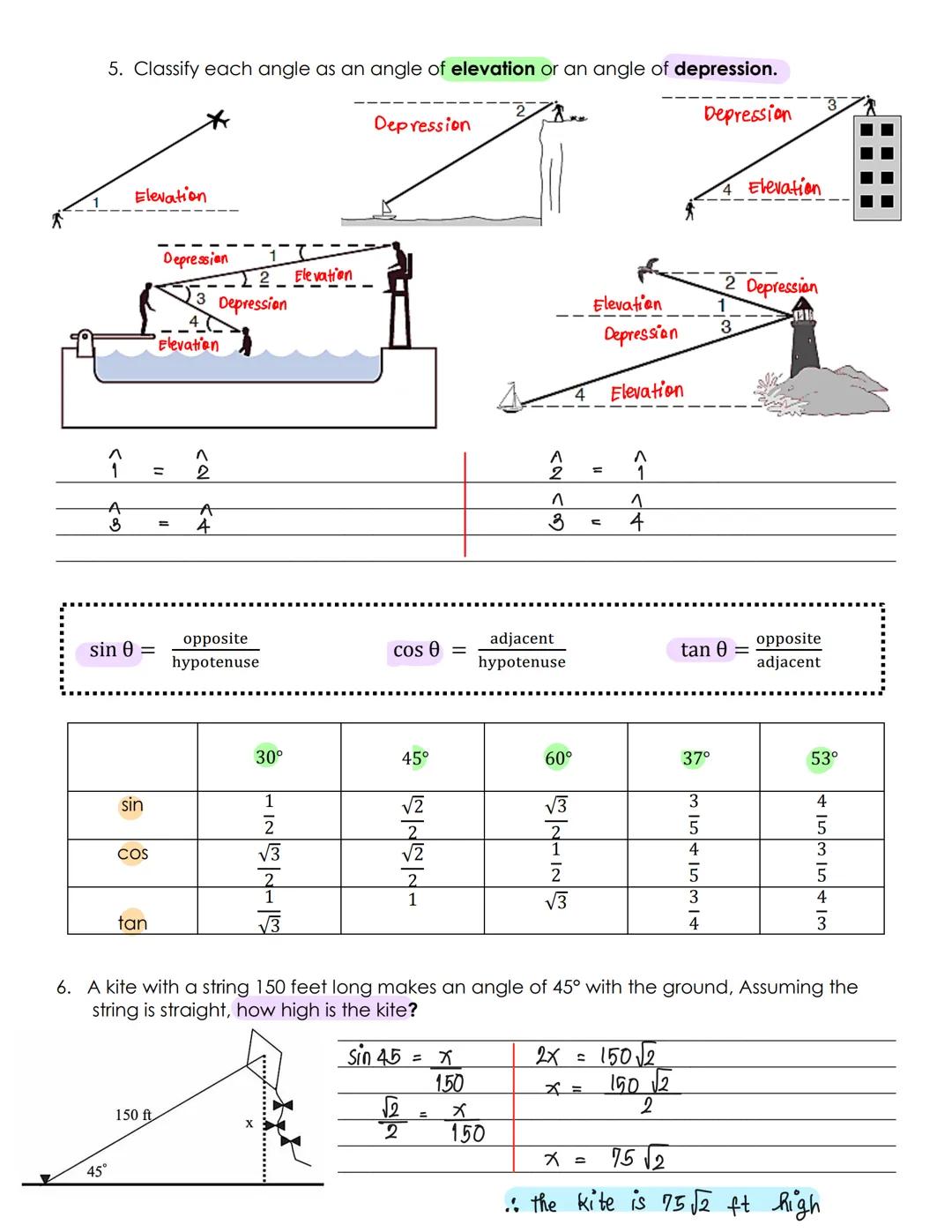

Learning to classify angles as elevation or depression helps you set up problems correctly. This skill is essential when dealing with situations involving heights, like buildings or kites, or depths, like valleys or underwater objects.

The trigonometric values for common angles are worth memorizing. For instance, sin 30° = 1/2, sin 45° = √2/2, and sin 60° = √3/2. Knowing these values speeds up your calculations considerably.

When solving real-world problems, draw a diagram first. For example, with a kite problem, we know the string is 150 feet long at a 45° angle. By using sin 45° = x/150, we can calculate that the kite is 75√2 feet high.

Try This Approach: When tackling a trigonometry word problem, always start by drawing a clear diagram and labeling what you know and what you're trying to find. This makes the math much easier!
