Ready to solve real-world problems using trigonometry? These problems show... Show more
Trigonometry127 views·Updated May 24, 2026·3 pagesCalculating Elevation and Depression Angles Easily
1 / 3
1
of 3

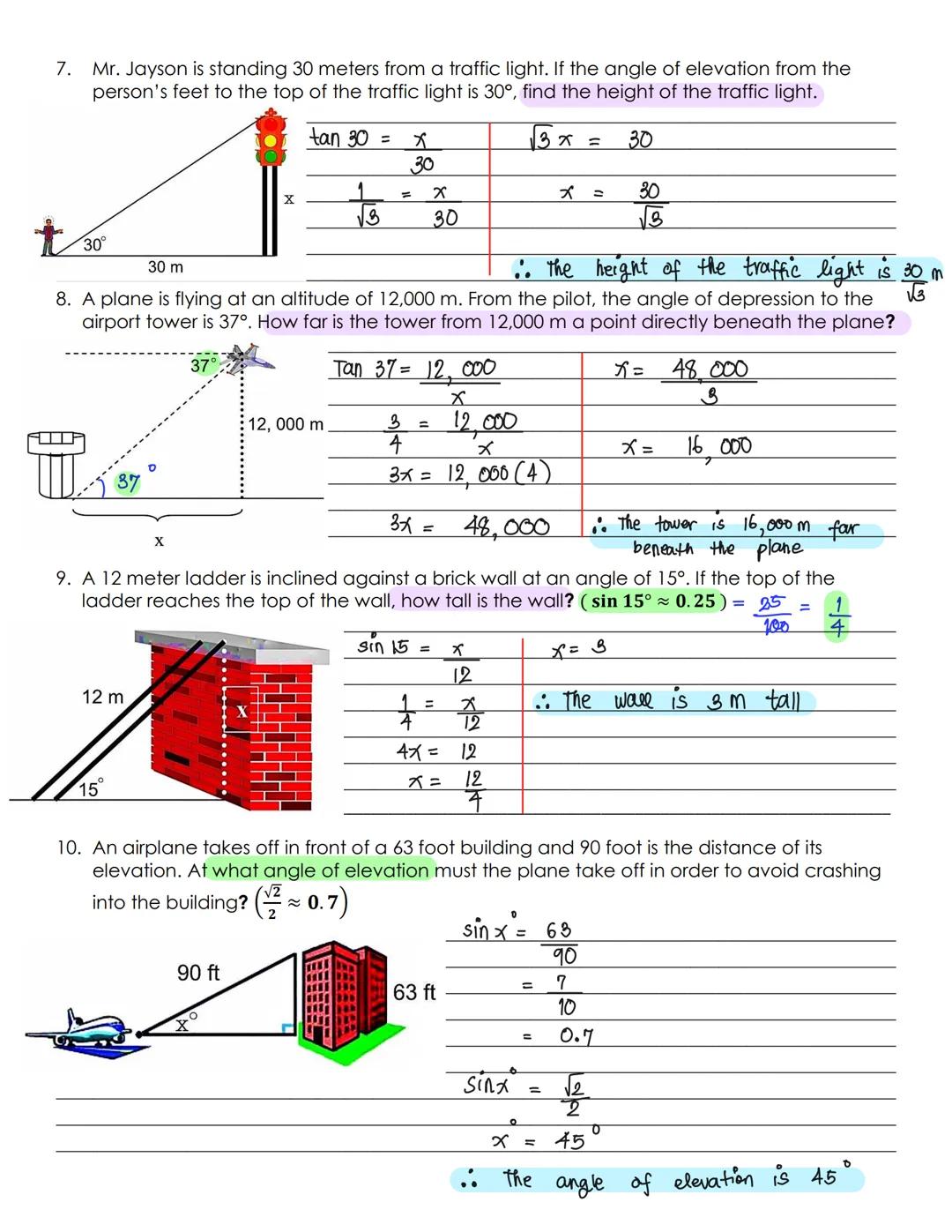

Solving Height and Distance Problems with Trigonometry
When you need to find the height of something tall without measuring it directly, trigonometry comes to the rescue! In problem 7, we used the tangent ratio to find a traffic light's height. When the angle of elevation is 30° from 30 meters away, we simply use tan 30° = height/30 to solve for the height.
For situations involving airplanes, like problem 8, we use the angle of depression (the downward angle from horizontal). When a plane flies at 12,000 meters and sees an airport tower at a 37° depression angle, we calculate the horizontal distance using tangent again.
Problem 9 shows a practical application with a ladder. When a 12-meter ladder leans against a wall at a 15° angle, we use sine to find the wall's height: sin 15° = wall height/12. This gives us a wall height of 3 meters.
Quick Tip: Remember that angles of elevation look up from horizontal, while angles of depression look down. Both types of problems use the same trigonometric ratios!
In problem 10, we find the minimum takeoff angle for an airplane to clear a building. By using the sine ratio with the building's height and the distance, we can determine the plane needs a 45° angle of elevation to safely clear the 63-foot building.
2
of 3

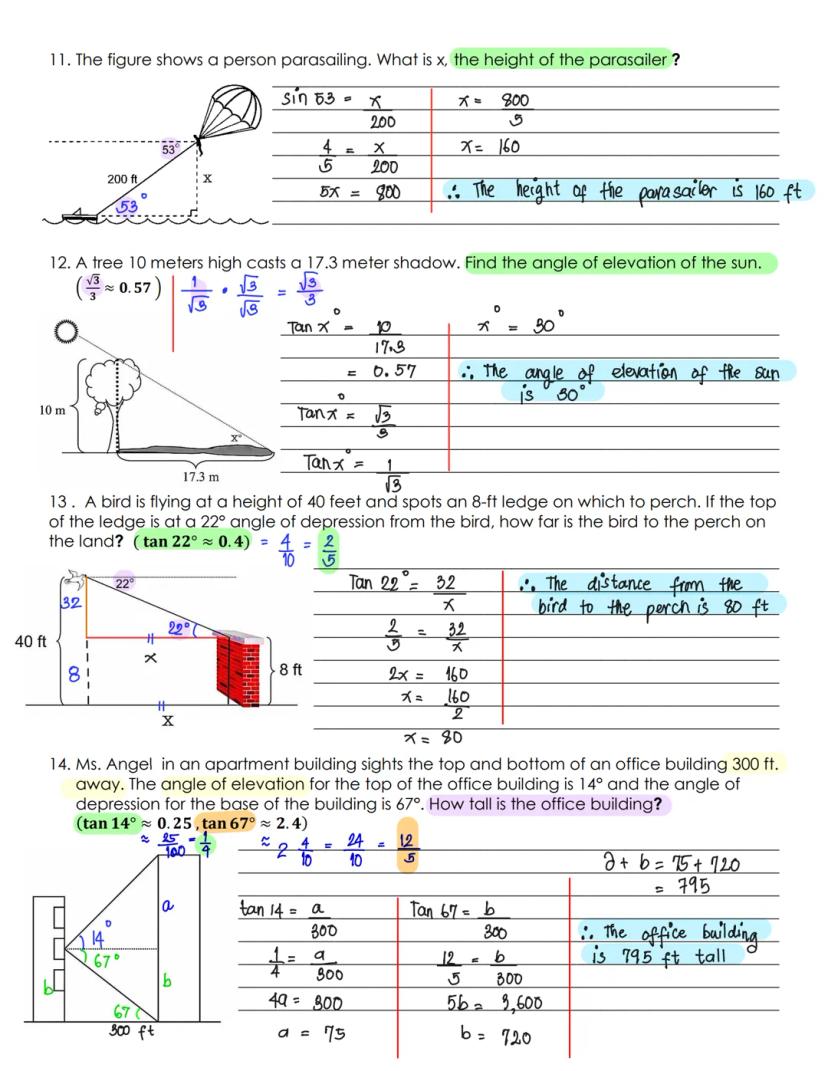

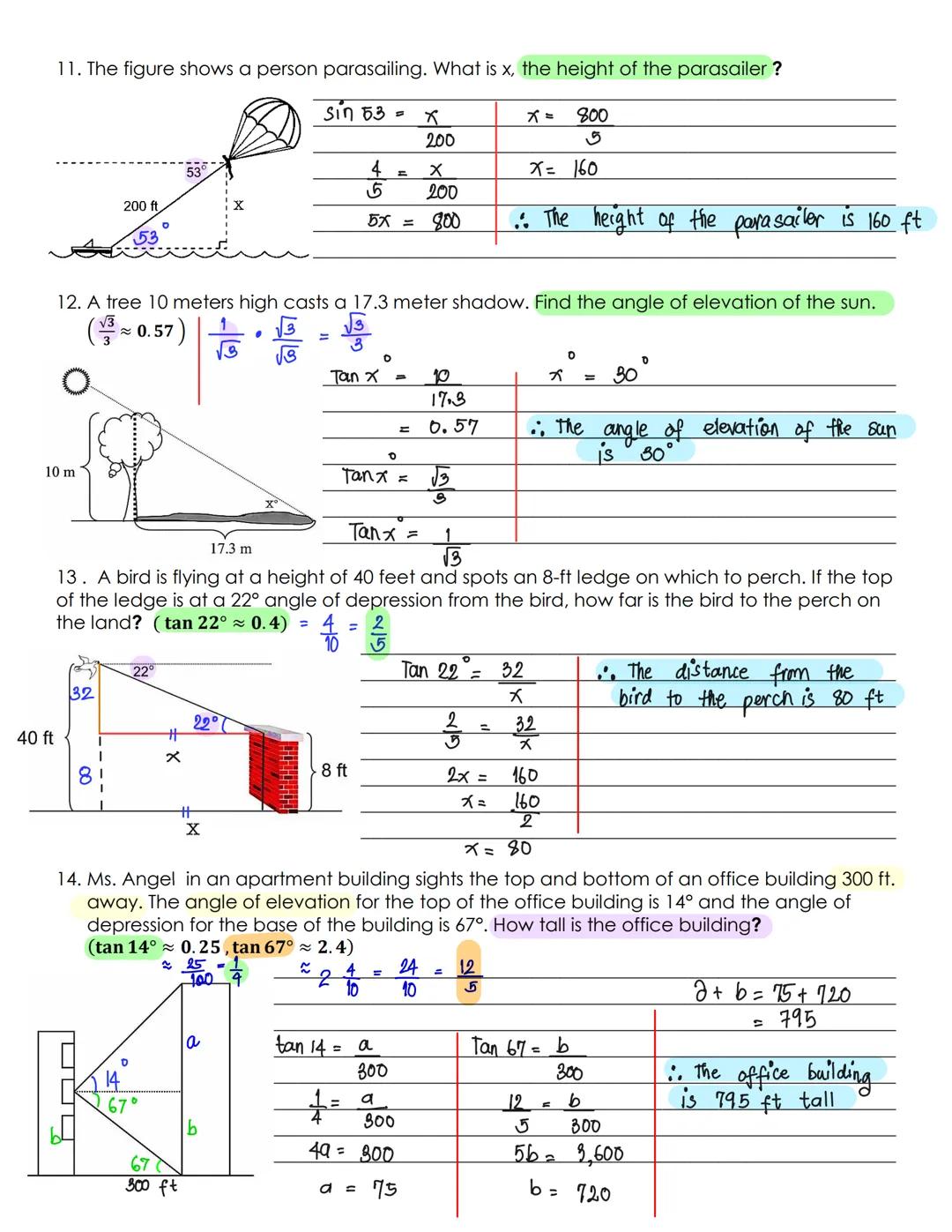

More Applications of Trigonometric Ratios
Parasailing provides a perfect example of trigonometry in action! In problem 11, we can find a parasailer's height when we know they're connected by a 200-foot line at a 53° angle using sine: sin 53° = height/200. This gives us a height of 160 feet.
The sun's position creates shadows that change throughout the day. In problem 12, when a 10-meter tree casts a 17.3-meter shadow, we can determine the sun's angle of elevation using tangent: tan x = 10/17.3. The calculation reveals the sun is 30° above the horizon.
Problem 13 presents a bird flying scenario where we need to find the horizontal distance. With the bird at 40 feet high, eyeing a perch on an 8-foot ledge at a 22° angle of depression, we calculate that the bird is 80 feet away horizontally.
Visualization Tip: Draw these problems to scale on paper to help you see which ratio (sine, cosine, or tangent) makes the most sense for solving each problem.
In problem 14, we calculate a building's height using two angles. When Ms. Angel sees the building's top at a 14° angle of elevation and its base at a 67° angle of depression from 300 feet away, we find the total height by calculating both vertical distances separately. This gives us a surprisingly tall 795-foot building!
3
of 3

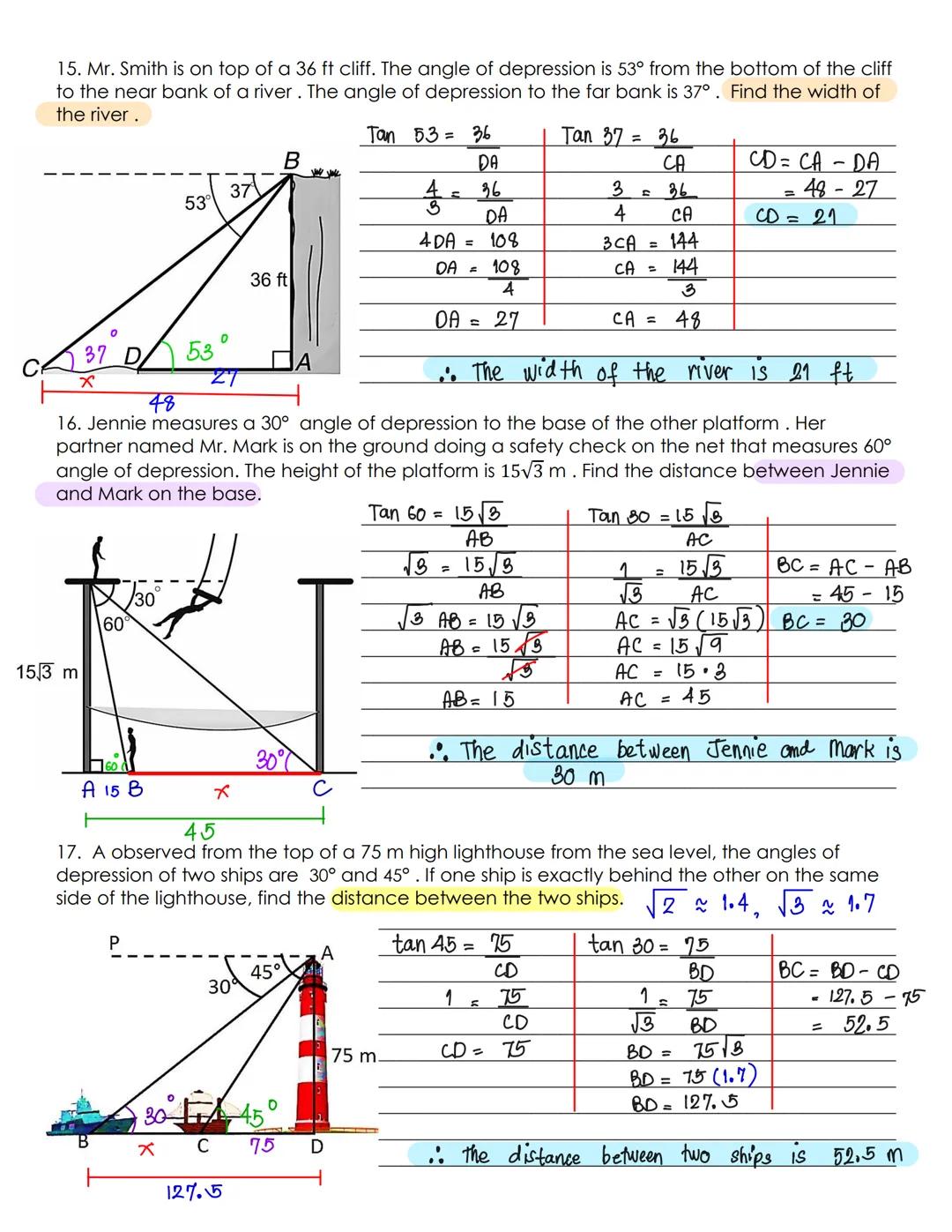

Complex Applications with Multiple Angles
Rivers, platforms, and lighthouses offer interesting trigonometry challenges! In problem 15, Mr. Smith stands on a 36-foot cliff and sees two river banks at different angles of depression (53° and 37°). By calculating the distance to each bank and finding the difference, we determine the river is 21 feet wide.
Problem 16 involves two people at different positions. Jennie stands on a platform 15√3 meters high and sees the base of another platform at a 30° angle of depression. Meanwhile, Mark stands on the ground where Jennie sees him at a 60° angle of depression. By calculating both distances from the platform and finding their difference, we determine they're 30 meters apart.
Lighthouses were historically crucial for navigation, and problem 17 shows why! From a 75-meter lighthouse, an observer spots two ships at angles of depression of 30° and 45°. When both ships are in the same line from the lighthouse, we can calculate their horizontal distances and find the distance between them is 52.5 meters.
Real-world Connection: These trigonometric calculations are essential in navigation, construction, astronomy, and engineering. Modern GPS systems use similar principles to determine locations!
Each of these problems follows a pattern: identify what you know, determine the appropriate trigonometric ratio (usually sine, cosine, or tangent), set up an equation, and solve for the unknown value.
