Physics may seem intimidating, but kinematics in one dimension is...
Physics92 views·Updated Aug 14, 2026·4 pagesPhysics Chapter 2: 1D Kinematics Overview
Rachael Murphy@writcha
1 / 4
1
of 4

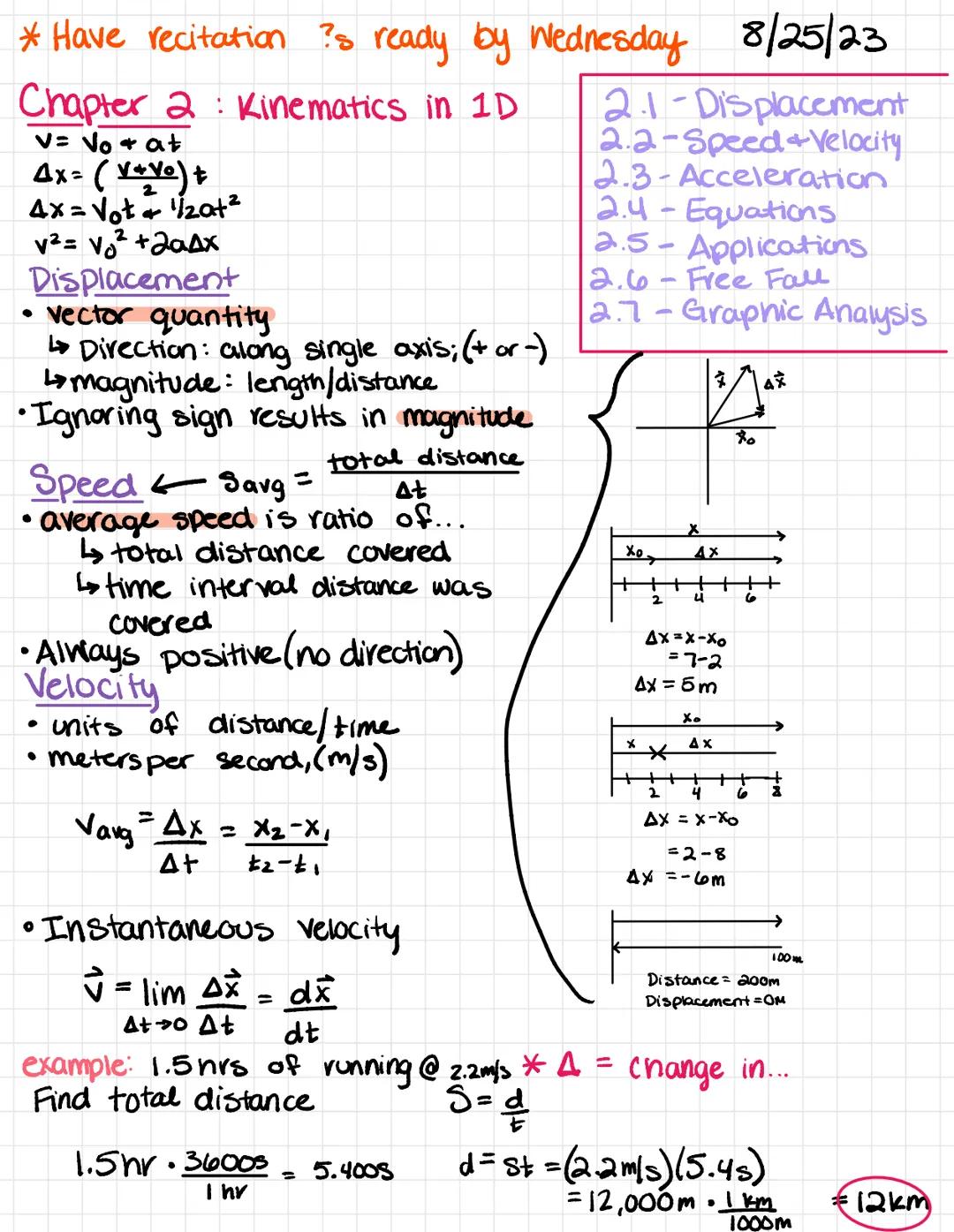

Displacement, Speed, and Velocity
Motion starts with displacement, a vector quantity that includes both distance and direction. When moving along a single axis, direction is indicated by positive or negative signs, while magnitude represents the length traveled.
Speed focuses on distance only, without considering direction. Average speed equals total distance divided by time and is always positive. This differs from velocity, which accounts for direction and is calculated as displacement divided by time interval (Vₐᵥg = Δx/Δt).
Instantaneous velocity describes motion at a specific moment, calculated as the limit of Δx/Δt as Δt approaches zero (dx/dt). The units for both speed and velocity are distance per time, typically meters per second (m/s).
Quick Tip: Remember that when calculating total distance traveled, use speed. When determining how far something has moved from its starting point, use velocity.
2
of 4

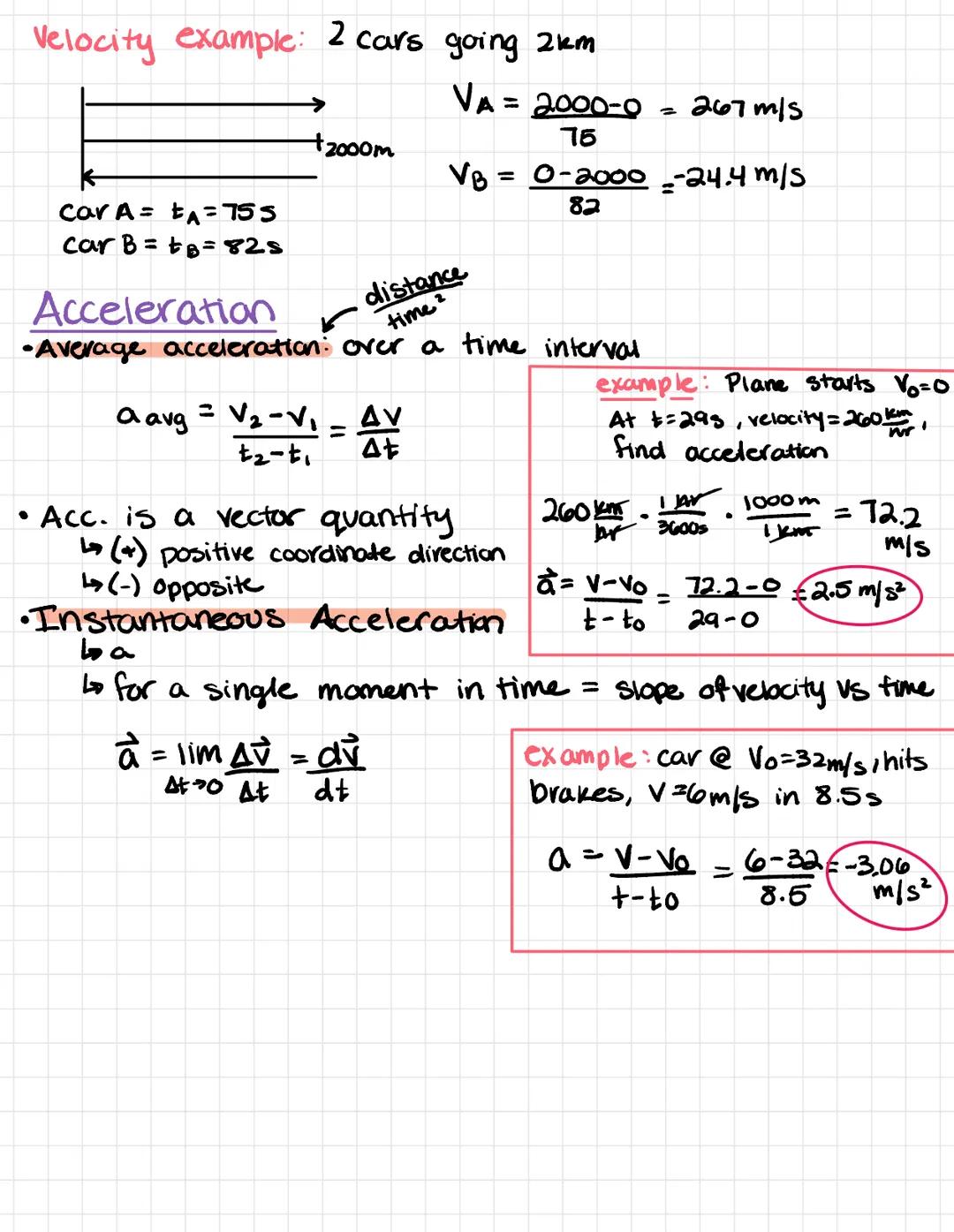

Understanding Acceleration
When velocity changes, we experience acceleration. Average acceleration measures this change over a time interval, calculated as Aₐᵥg = / = ΔV/Δt. Like velocity, acceleration is a vector quantity, with positive values indicating acceleration in the coordinate direction and negative values indicating the opposite.
Instantaneous acceleration measures the rate of velocity change at a precise moment, found by taking the limit as Δt approaches zero. Graphically, this equals the slope of the velocity-time curve at that moment.
Calculating acceleration requires careful unit conversion. For example, when a plane accelerates from rest to 260 km/hr in 29 seconds, we must first convert to 72.2 m/s, then calculate acceleration as /29 = 2.5 m/s². Similarly, when a car decelerates from 32 m/s to 6 m/s in 8.5 seconds, its acceleration is /8.5 = -3.06 m/s².
Remember: Negative acceleration doesn't always mean slowing down—it depends on the direction of motion. A negative acceleration means the velocity is changing in the negative direction.
3
of 4

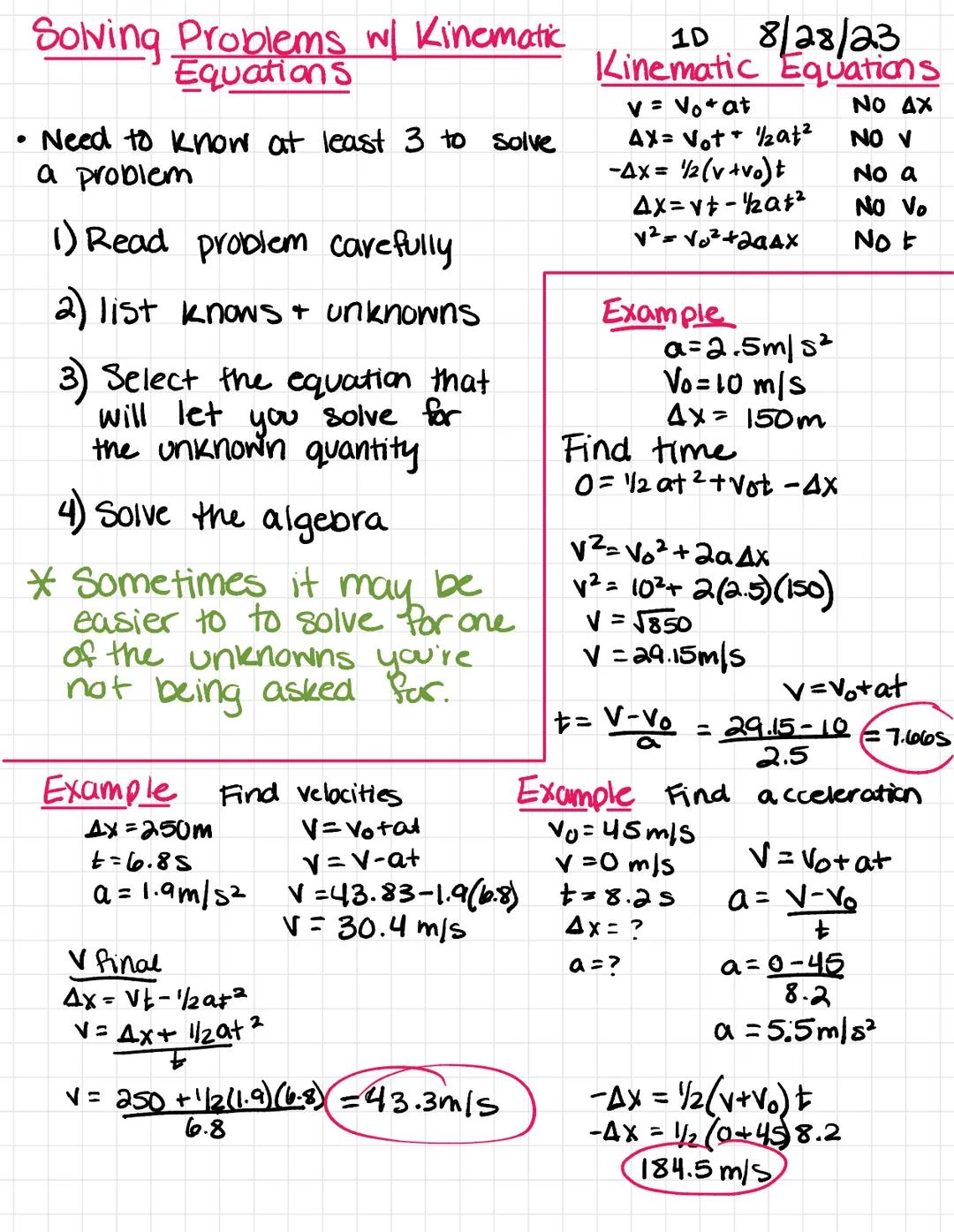

Kinematic Equations and Problem Solving
Mastering kinematic equations gives you powerful tools for predicting motion. The five key equations relate displacement (Δx), initial velocity (Vₒ), final velocity (V), acceleration , and time . To solve problems, you need to know at least three of these variables.
Follow a structured approach: carefully read the problem, list known and unknown values, select the appropriate equation, and solve the algebra. Sometimes solving for an intermediate value (even if not asked for) provides a pathway to the final answer.
For example, to find final velocity given displacement (250 m), time (6.8 s), and acceleration , we can use Δx = Vₒt + ½at² and solve for V. First find Vₒ using V = Vₒ + at, then substitute back. Alternatively, we can use Δx = ½t directly.
Problem-Solving Strategy: Start by identifying which kinematic variables you know and which you need to find. This will guide you to the correct equation to use—each equation is missing one of the five variables.
4
of 4

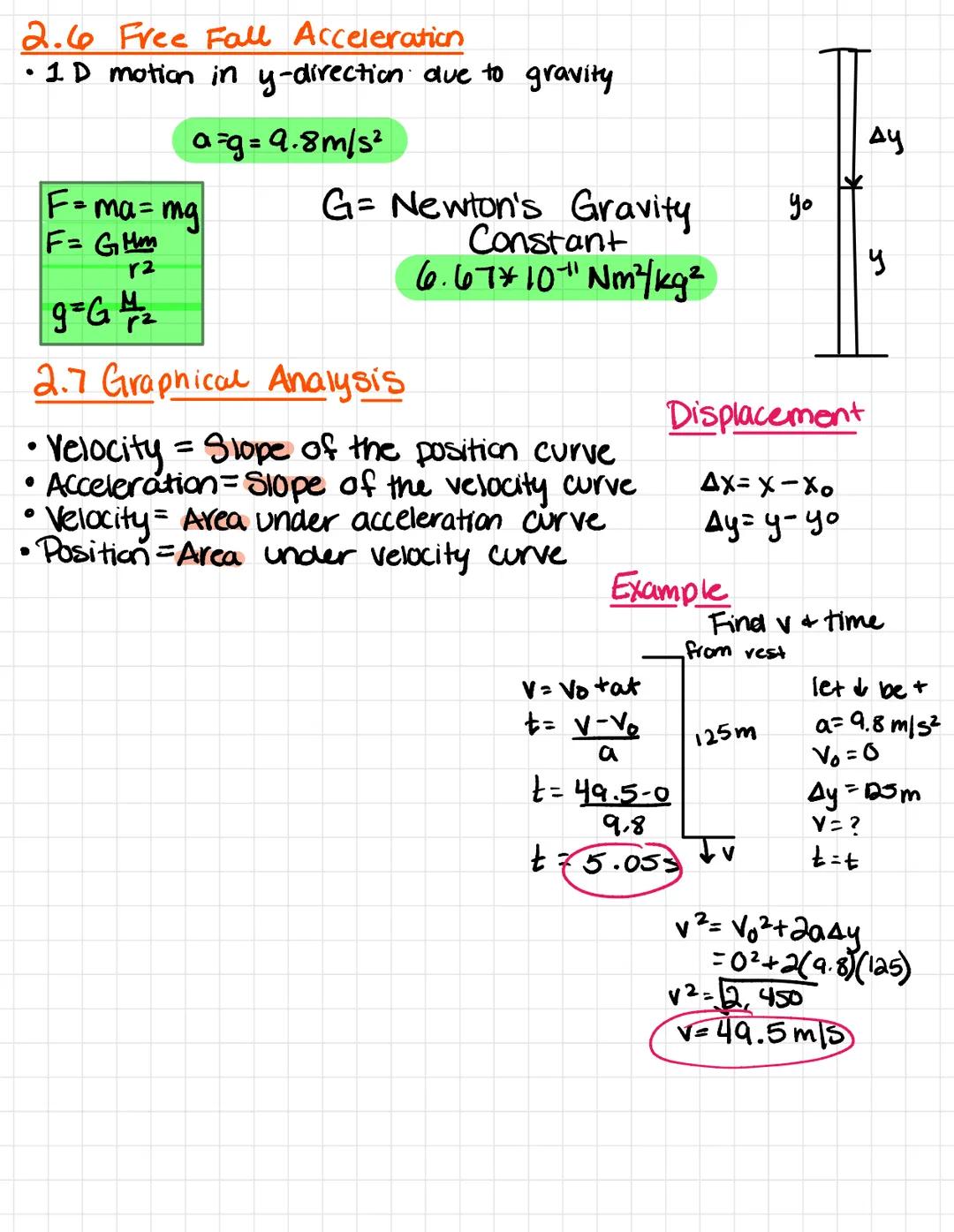

Free Fall and Graphical Analysis
Free fall describes motion under gravity's influence alone. On Earth, all objects accelerate downward at approximately g = 9.8 m/s². This value comes from Newton's Law of Universal Gravitation, where g = GM/r², with G being the gravitational constant (6.67×10⁻¹¹ Nm²/kg²).
When solving free fall problems, establish a coordinate system (typically positive downward) and apply the standard kinematic equations with a = g. For example, to find velocity after falling 125 meters from rest, use v² = Vₒ² + 2aΔy = 0² + 2(9.8)(125) = 2,450, giving v = 49.5 m/s.
Graphical analysis provides powerful insights into motion. The slope of a position-time graph gives velocity, while the slope of a velocity-time graph represents acceleration. Conversely, the area under an acceleration-time curve equals the change in velocity, and the area under a velocity-time curve equals displacement.
Visual Connection: Think of position, velocity, and acceleration graphs as a family—each one is related to the others through slopes and areas. This relationship makes it possible to reconstruct the complete motion story from any one graph.
