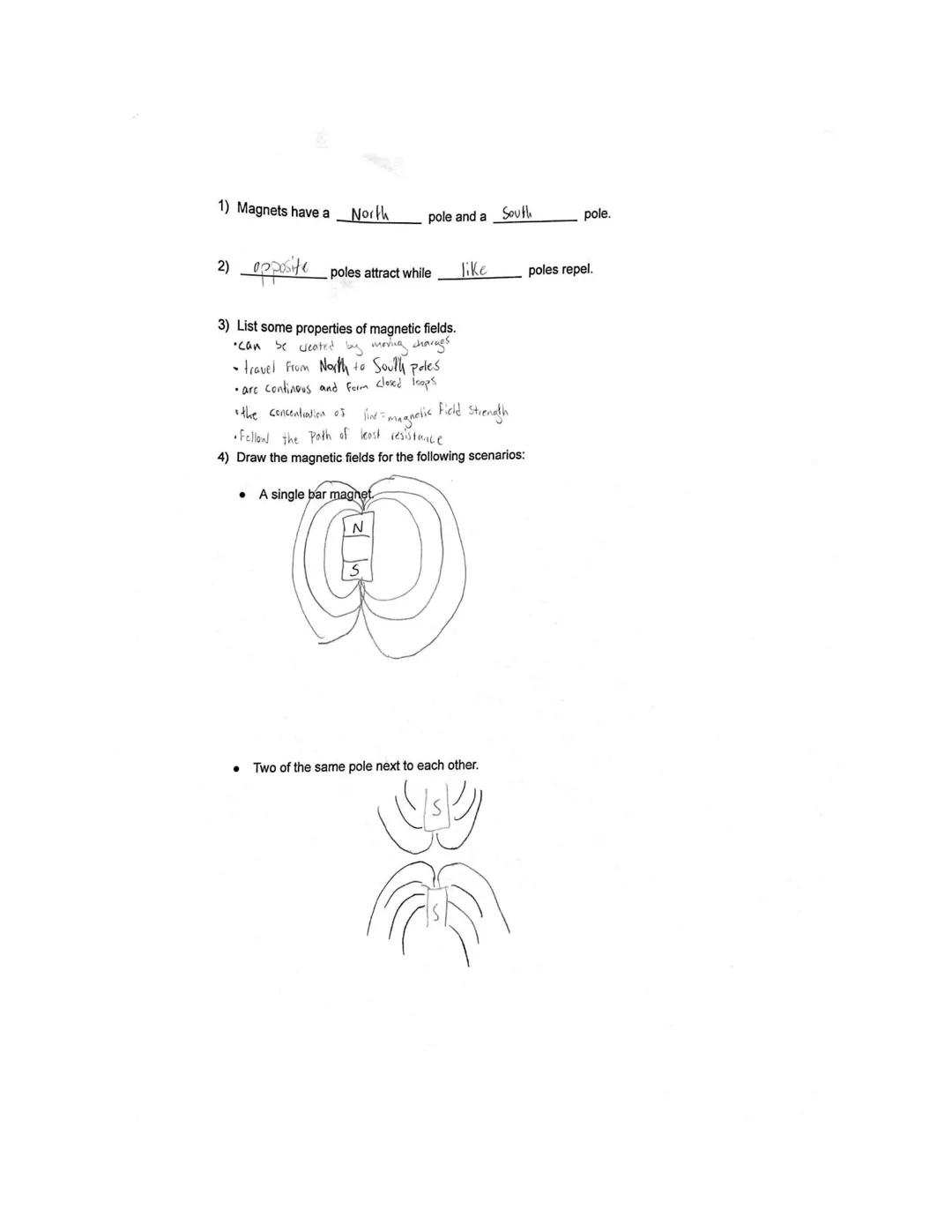

Understanding Magnetic Fields in Physics
Magnetism is a fascinating force that powers everything from compass navigation to powerful electromagnets. In this summary, we'll explore the fundamental properties of magnets, magnetic fields, and how they interact with charged particles.

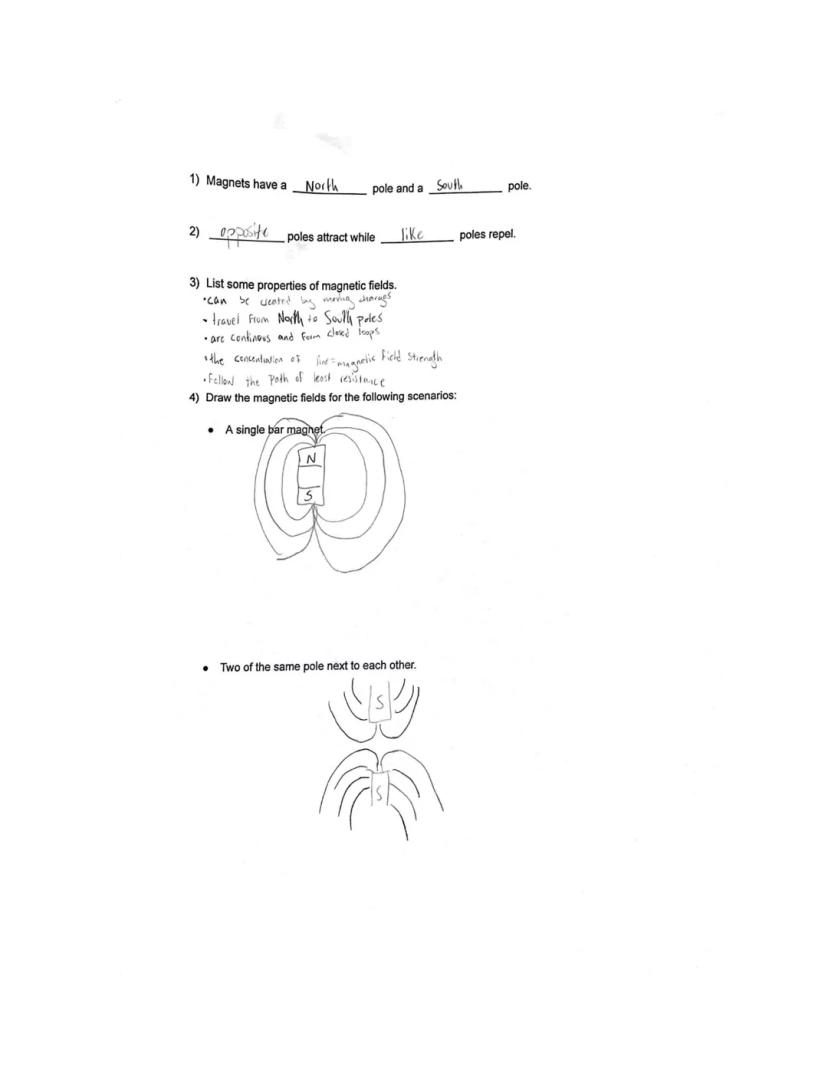

Magnetic Basics and Field Properties
Magnets always have two poles: a North pole and a South pole. These poles follow a simple rule of interaction - opposite poles attract each other (like N and S), while like poles repel each other (N and N, or S and S).
Magnetic fields have several important properties that define how they work. They can be created by moving charges and always travel from North to South poles. These fields form continuous, closed loops that naturally follow the path of least resistance. The concentration of field lines indicates magnetic field strength - more lines means a stronger field!
Think About It: Magnetic fields are invisible but powerful forces. Even though you can't see them, they're constantly at work in devices all around you, from your phone to your headphones!
When drawing magnetic fields, we represent them as lines showing the path a North pole would follow. For a single bar magnet, field lines emerge from the North pole and curve around to enter the South pole. When two like poles are placed near each other, the field lines push away from each other, visually representing the repulsion force.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

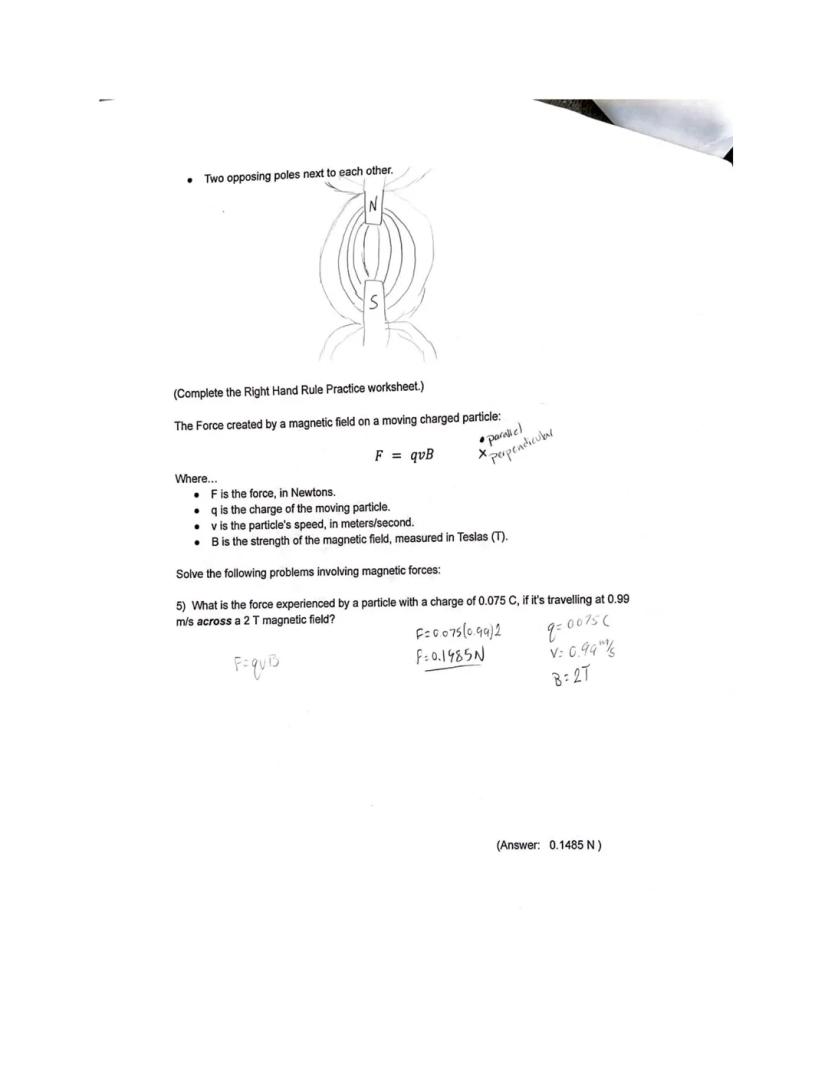

Magnetic Forces on Moving Charges
When two opposing poles (North and South) are placed near each other, their magnetic field lines connect directly between them, showing the attractive force pulling them together.
A moving charged particle experiences a force when it travels through a magnetic field. This force is calculated using the equation: F = qvB, where F is the force (in Newtons), q is the particle's charge, v is its velocity (in meters per second), and B is the magnetic field strength (in Teslas).
For example, a particle with 0.075 C charge moving at 0.99 m/s through a 2 Tesla magnetic field experiences a force of 0.1485 N. We calculate this by simply multiplying all three values together: F = 0.075 C × 0.99 m/s × 2 T = 0.1485 N.
Pro Tip: The direction of this force can be determined using the "Right Hand Rule" - a technique that helps visualize the 3D relationships between charge movement, magnetic fields, and the resulting force.
Sign up to see the contentIt's free!
Access to all documents
Improve your grades
Join milions of students
By signing up you accept Terms of Service and Privacy Policy

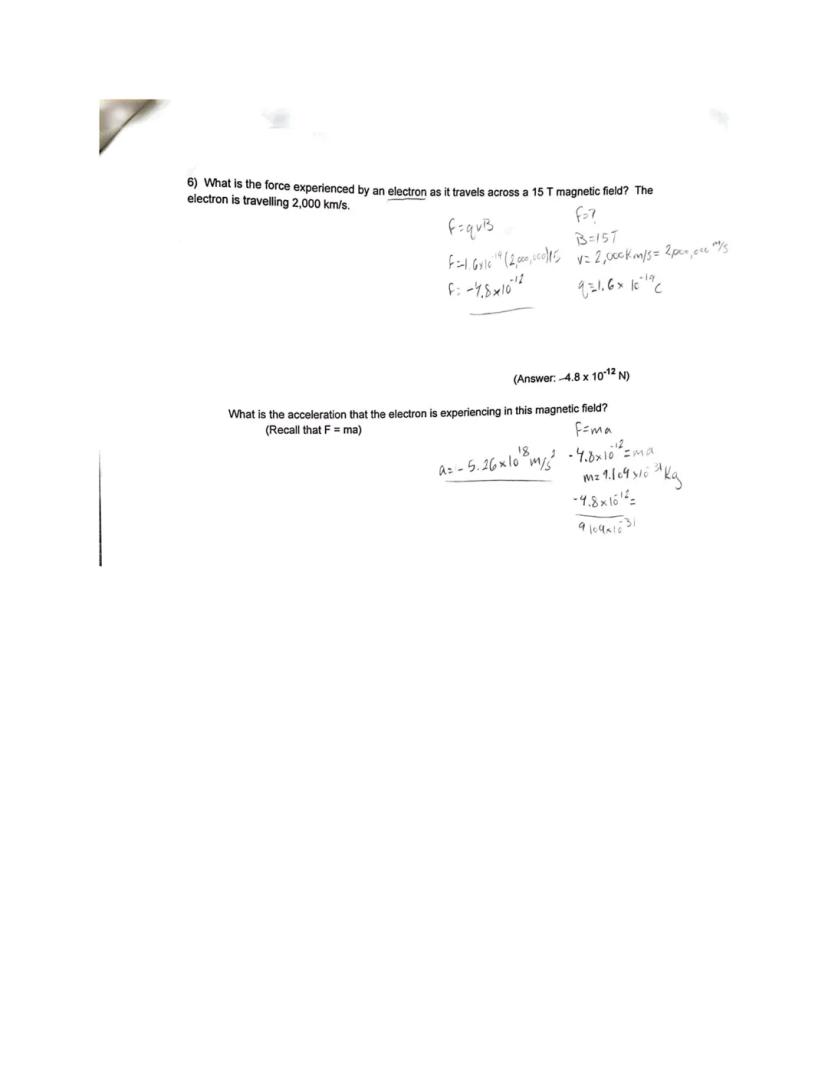

Electron Movement in Magnetic Fields
When an electron (with charge 1.6×10⁻¹⁹ C) travels through a stronger magnetic field, the force is much smaller but still follows the same principle. For an electron moving at 2,000 km/s through a 15 Tesla field, we calculate F = (1.6×10⁻¹⁹ C) × × 15 T = -4.8×10⁻¹² N.
The negative sign indicates the direction of the force (electrons have negative charge). Although this force seems tiny, it has significant effects at the atomic scale!
We can determine the acceleration of the electron by using Newton's Second Law . Since we know the force and the mass of an electron (9.11×10⁻³¹ kg), we calculate: a = F/m = (-4.8×10⁻¹²)/9.11×10⁻³¹ = -5.26×10¹⁸ m/s². This enormous acceleration explains why electrons move in curved paths in magnetic fields.
Amazing Fact: The acceleration an electron experiences in a strong magnetic field can be trillions of times stronger than Earth's gravity! This is how particle accelerators and TV screens control electron movement.
