Essential Study Notes on Civil Engineering Basics

Introduction to Civil Engineering: Bridges

Bridges are essential infrastructure that connect communities and facilitate transportation across natural barriers. In civil engineering, understanding different bridge types and their applications is fundamental to designing safe, efficient structures.

This lecture explores the key concepts of bridge engineering, including structural components, design considerations, and various bridge types. You'll learn how engineers select appropriate bridge designs based on span length, environmental factors, and functional requirements.

Whether spanning mighty rivers or creating highway overpasses, bridges represent some of engineering's greatest achievements, combining technical precision with architectural beauty.

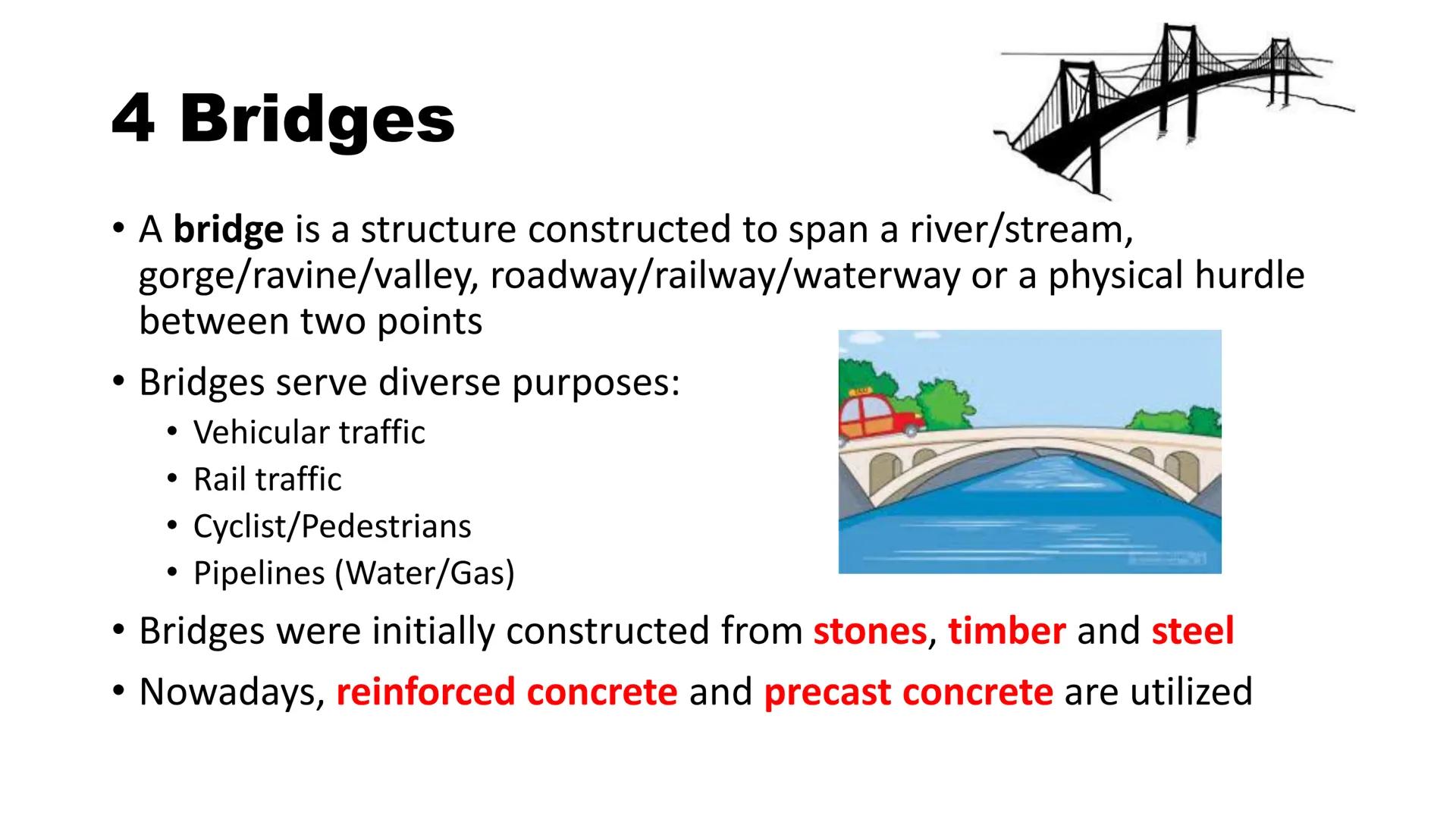

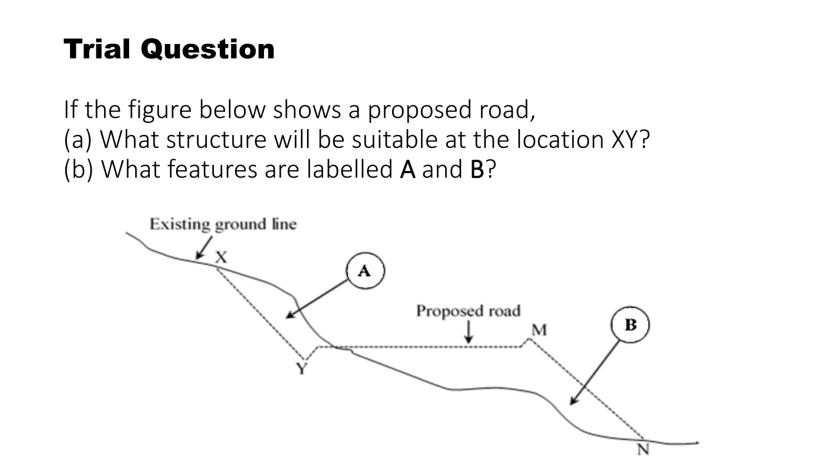

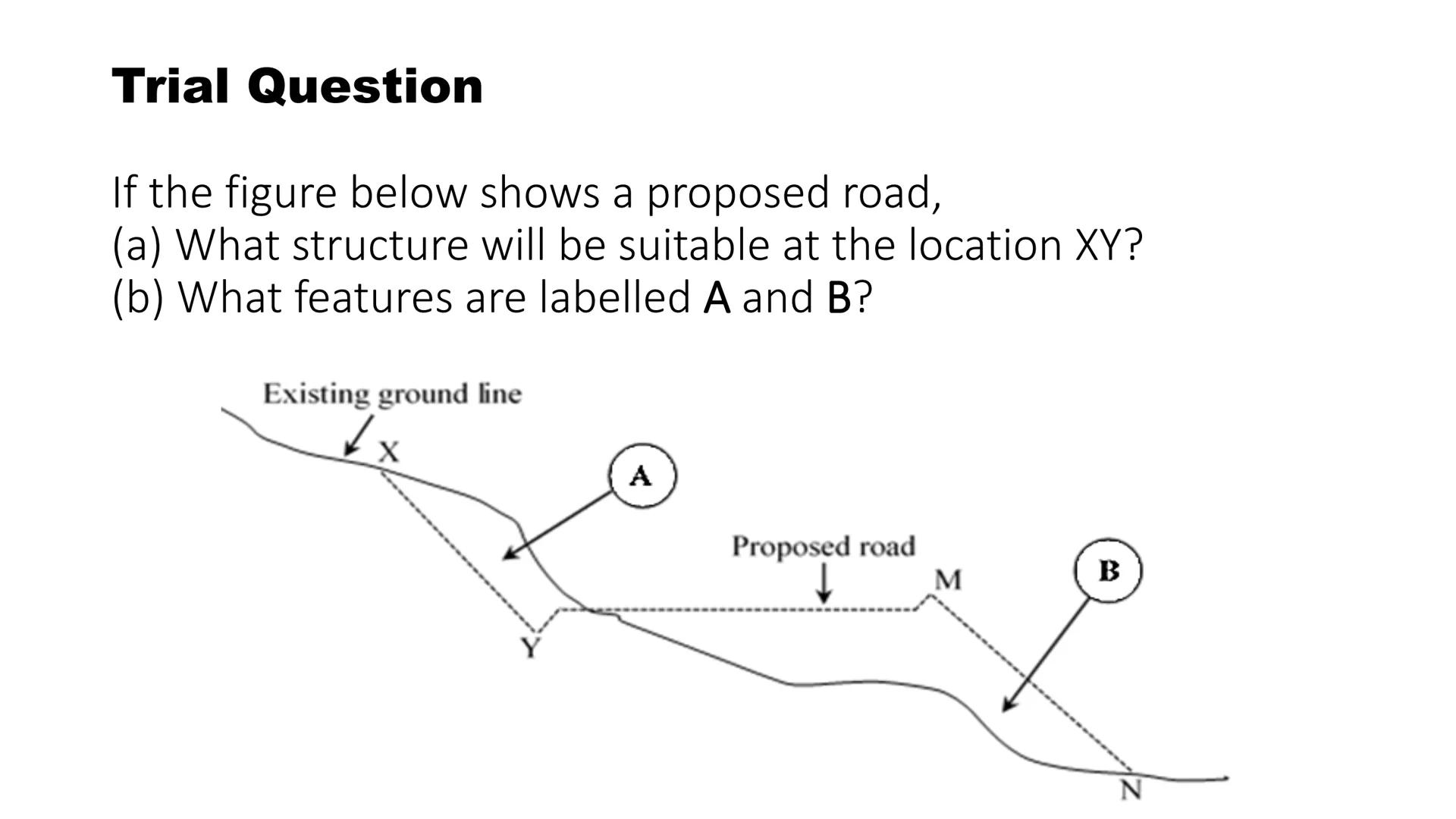

What Are Bridges?

Bridges are structures built to span physical obstacles such as rivers, valleys, roadways, or railways, creating a passage over these barriers. They serve multiple purposes beyond just carrying vehicles—bridges can transport rail traffic, provide paths for pedestrians and cyclists, or even support pipelines.

The materials used in bridge construction have evolved significantly over time. Historically, bridges were primarily built using stones, timber, and steel. Modern bridge engineering has expanded to include reinforced concrete and precast concrete components, offering greater strength and design flexibility.

Did You Know? The earliest bridges were likely fallen trees across streams or simple stone structures. Today's bridges can span thousands of meters and withstand enormous loads!

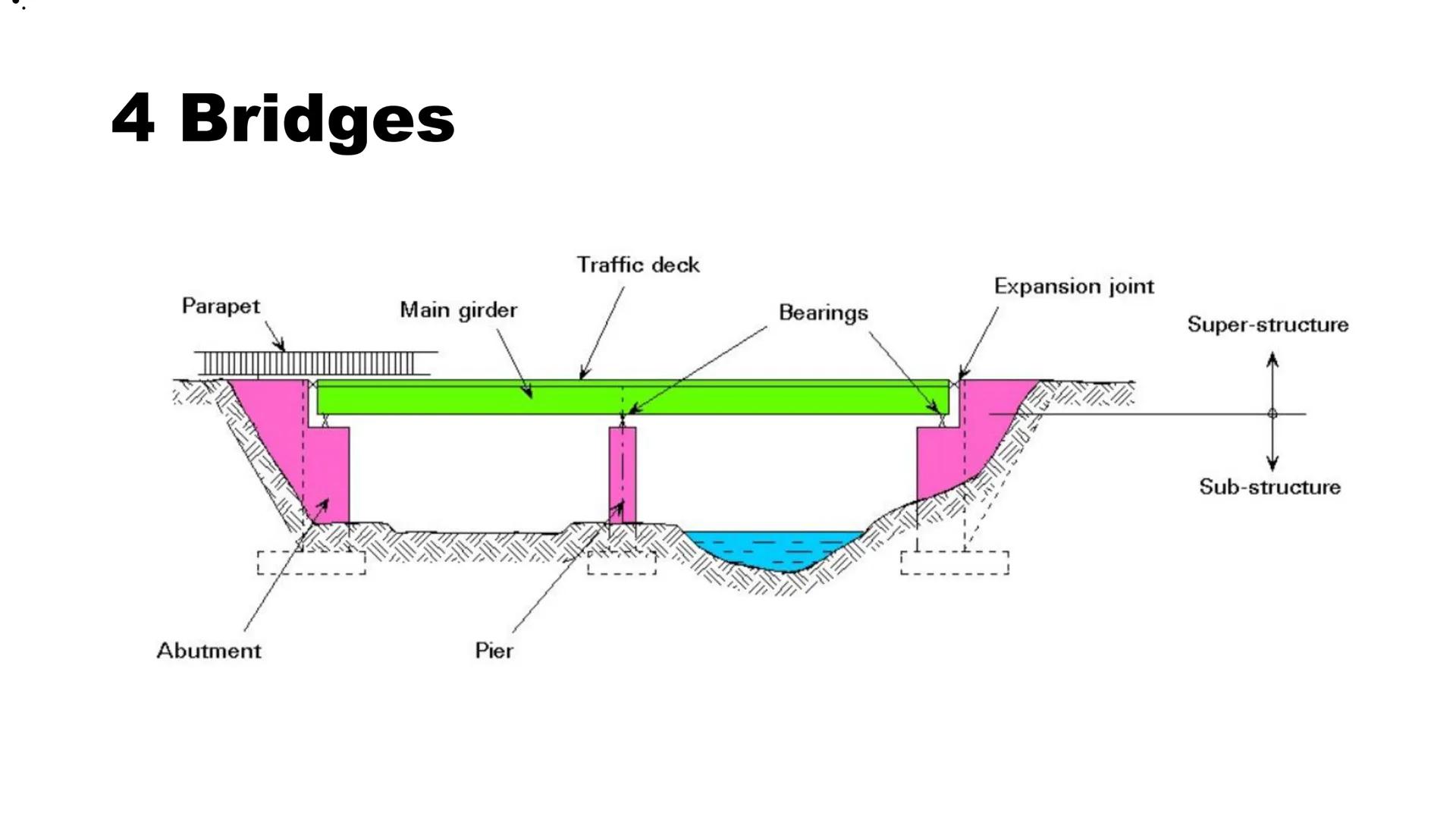

Bridge Components

Bridges consist of two main structural sections: the superstructure and substructure. The superstructure includes all elements above the supports, while the substructure provides the foundation below.

The superstructure contains components like the traffic deck (the roadway surface), expansion joints that allow for temperature movement, parapets (protective barriers), main girders that support the deck, and bearings that transfer loads.

The substructure includes abutments (the end supports) and piers (intermediate supports) that transfer the bridge's weight and traffic loads to the ground. These components work together to create a stable, durable structure.

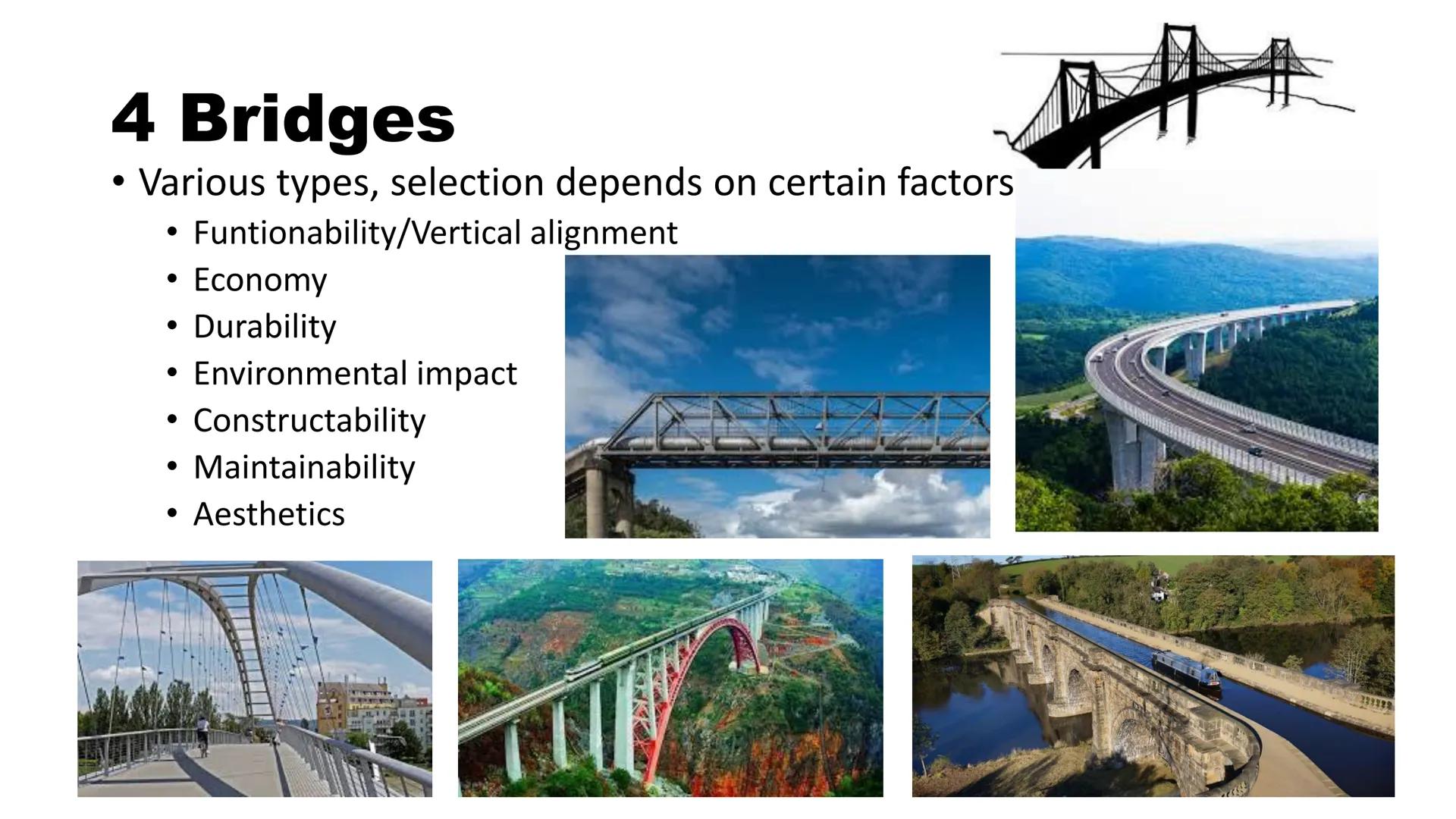

Bridge Design Considerations

When designing bridges, engineers must balance multiple factors to create an optimal structure. Functionality and vertical alignment are primary concerns—the bridge must efficiently carry its intended traffic while maintaining proper clearance.

Economy and durability are equally important factors. Engineers must design cost-effective structures that will withstand decades of use and environmental exposure. Additionally, constructability and maintainability ensure the bridge can be built efficiently and serviced throughout its lifespan.

Environmental impact and aesthetics also play crucial roles in modern bridge design. A well-designed bridge should harmonize with its surroundings while minimizing disruption to ecosystems and local communities.

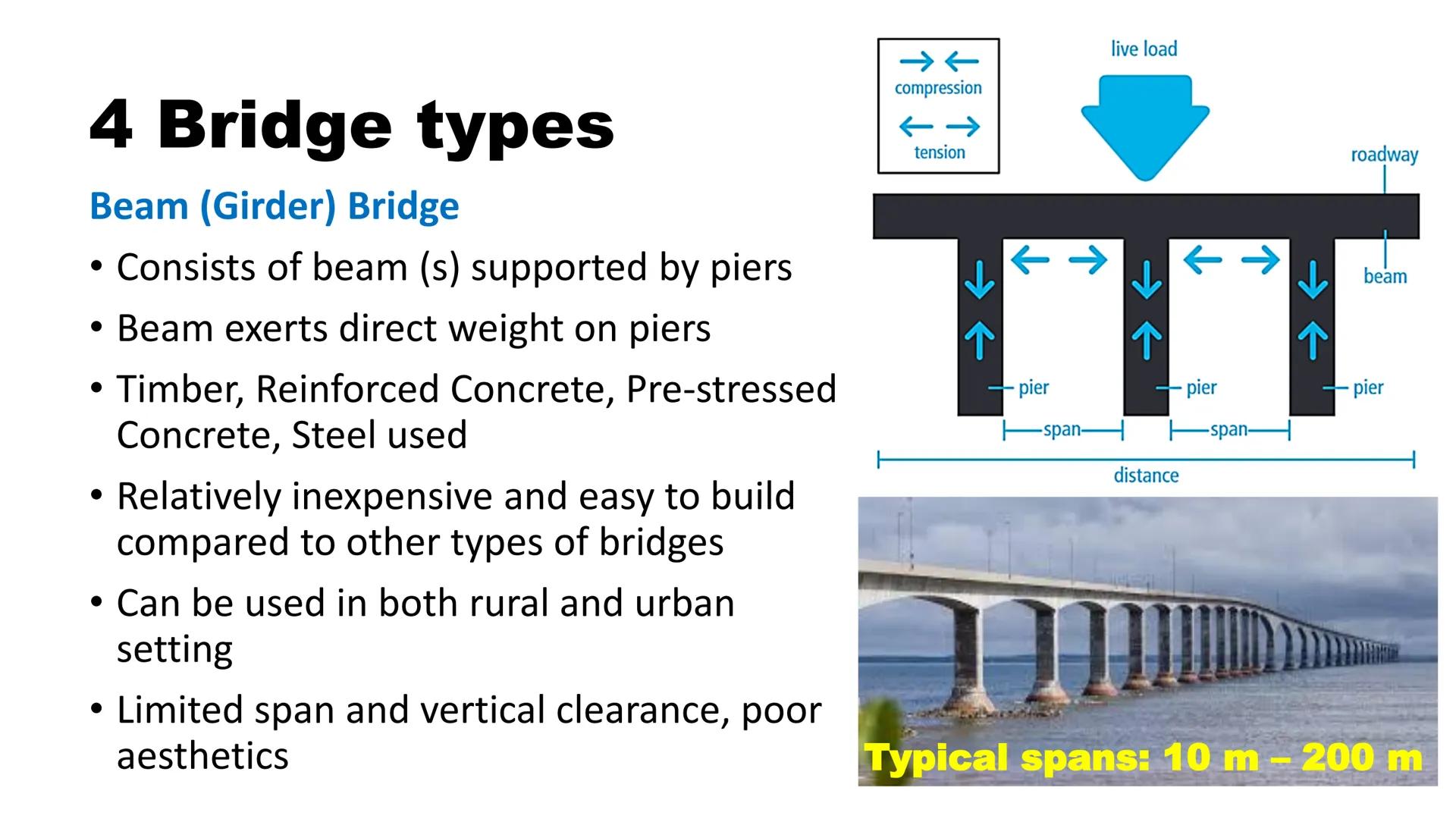

Beam (Girder) Bridges

Beam bridges are the simplest and most common bridge type you'll encounter. These straightforward structures consist of horizontal beams supported by piers at each end, with the beam directly transferring weight to these supports.

These bridges can be constructed from various materials including timber, reinforced concrete, pre-stressed concrete, or steel. The main advantage of beam bridges is their relatively low cost and ease of construction compared to other bridge types, making them suitable for both rural and urban settings.

However, beam bridges have limitations. They typically have restricted span lengths (usually 10-200 meters) and provide less vertical clearance than other designs. They're also considered less aesthetically pleasing than arches or suspension bridges.

Engineering Insight: In a beam bridge, the top portion experiences compression forces while the bottom undergoes tension when loaded—this is why reinforcement is crucial in concrete beam bridges!

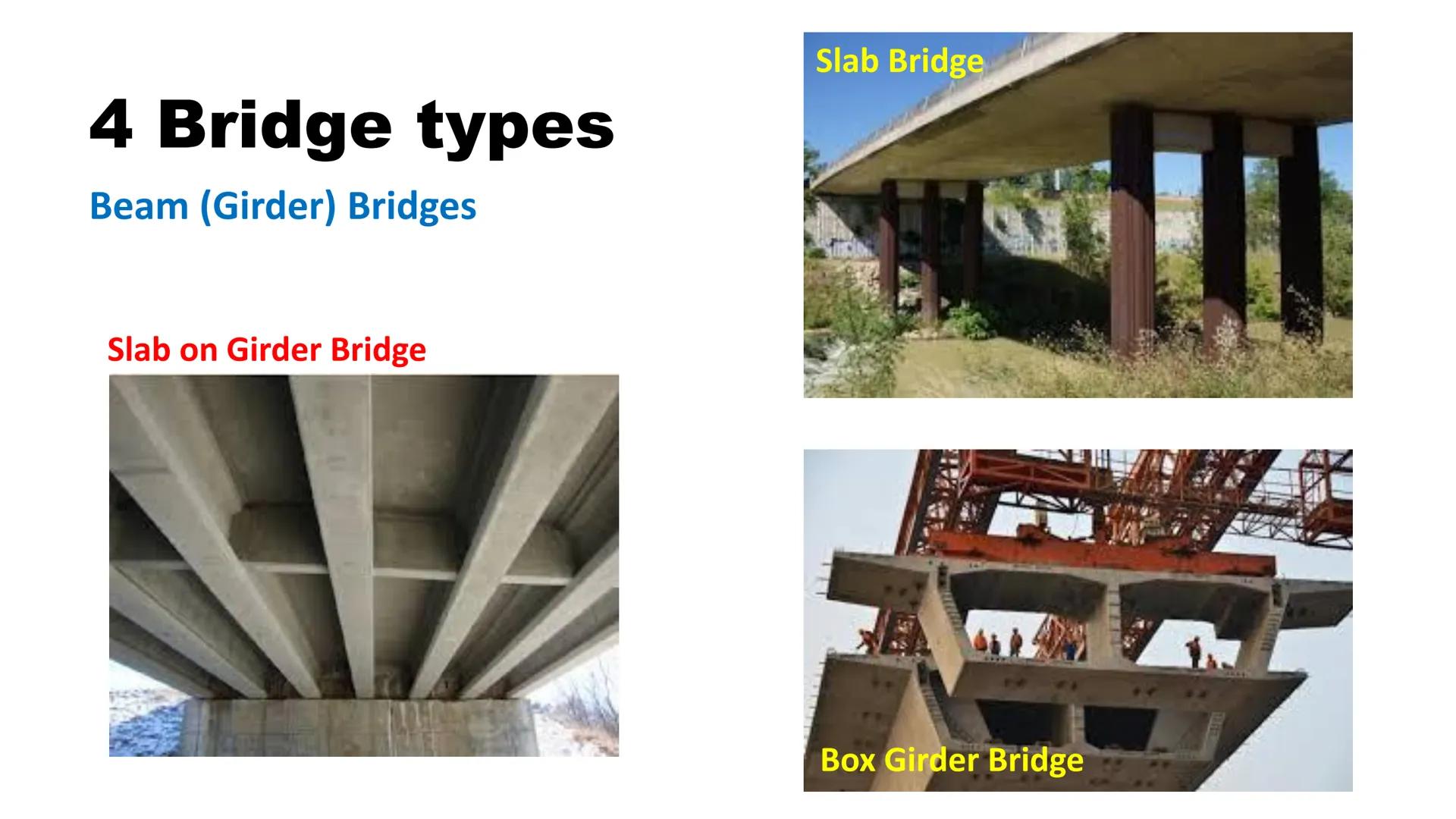

Types of Beam (Girder) Bridges

Beam bridges come in several specialized variations to suit different situations and load requirements. Each type offers specific advantages depending on the crossing needs.

Slab bridges use a simple reinforced concrete slab as the main structural element, ideal for very short spans. Slab on girder bridges combine a concrete deck slab supported by multiple parallel girders underneath, creating a stronger system for medium spans.

Box girder bridges utilize hollow box-shaped cross-sections that provide excellent torsional rigidity and strength-to-weight ratios. This design is particularly useful for curved bridges or those requiring greater span lengths than typical beam bridges can provide.

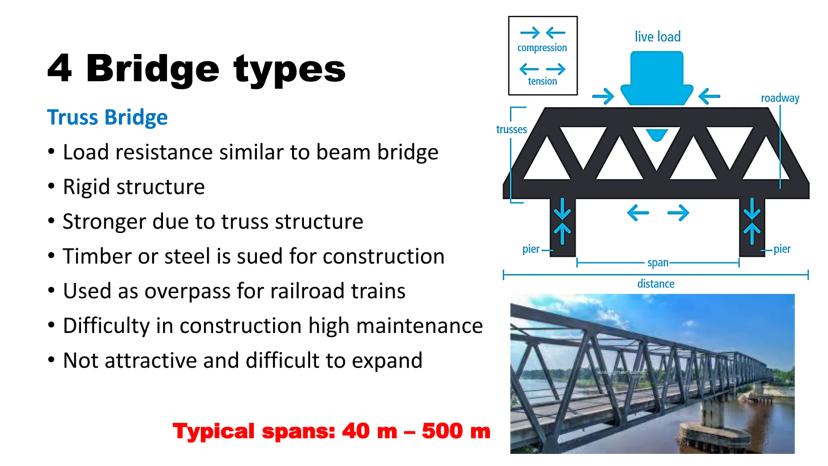

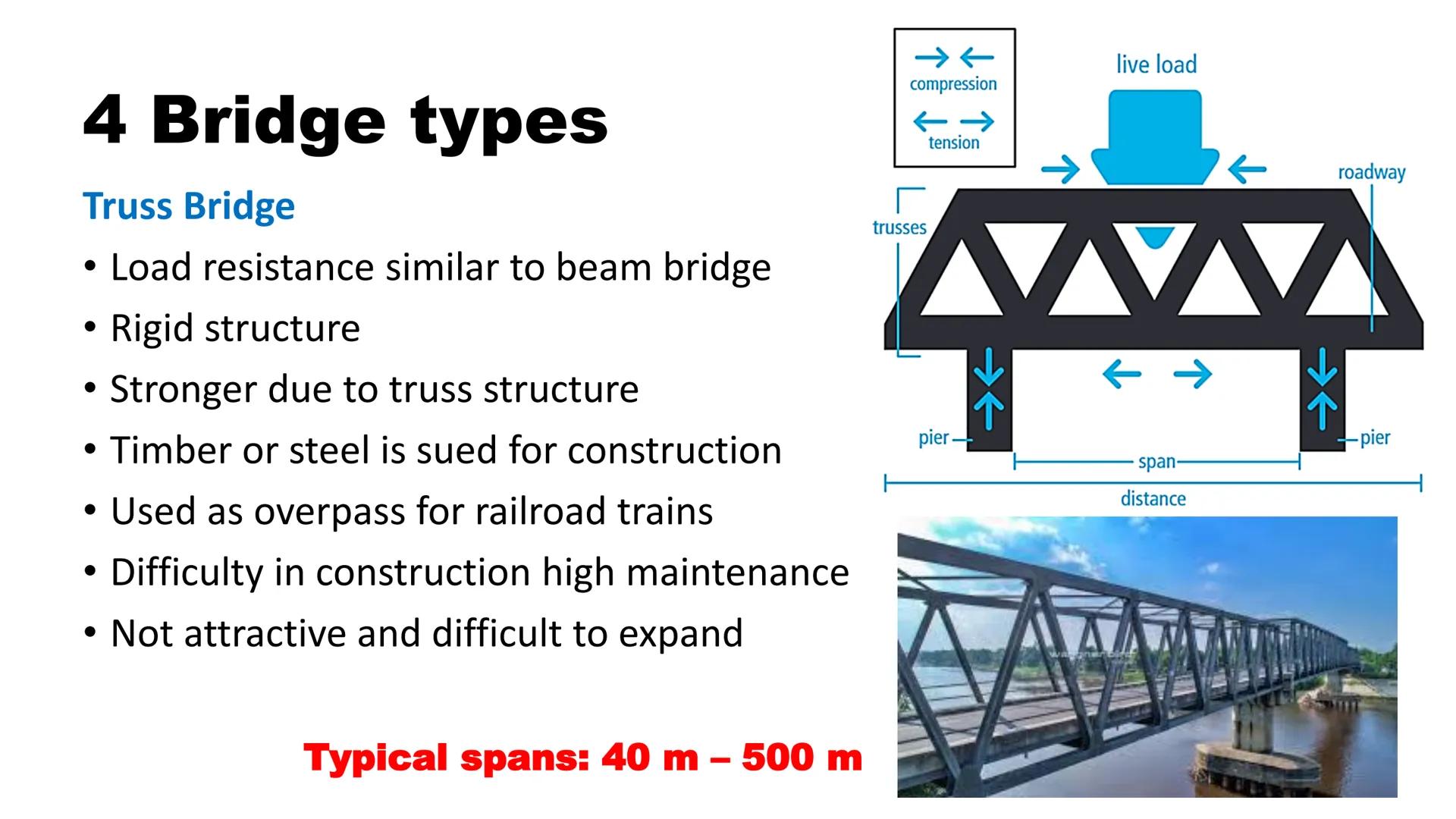

Truss Bridges

Truss bridges rely on a framework of connected triangular units that distribute forces efficiently throughout the structure. While they function similarly to beam bridges in transferring loads to supports, their rigid truss structure provides significantly greater strength.

Typically constructed from timber or steel, truss bridges excel at spanning medium distances (40-500 meters). They're commonly used as railroad overpasses where their strength-to-weight ratio is particularly advantageous.

Despite their structural efficiency, truss bridges present challenges. They require more complex construction techniques and higher maintenance than simpler designs. Their exposed framework, while functional, isn't as visually appealing as other bridge types and can be difficult to widen if traffic needs increase.

Historical Note: Many iconic truss bridges were built during America's railroad expansion era in the late 19th century, with some still in use today!

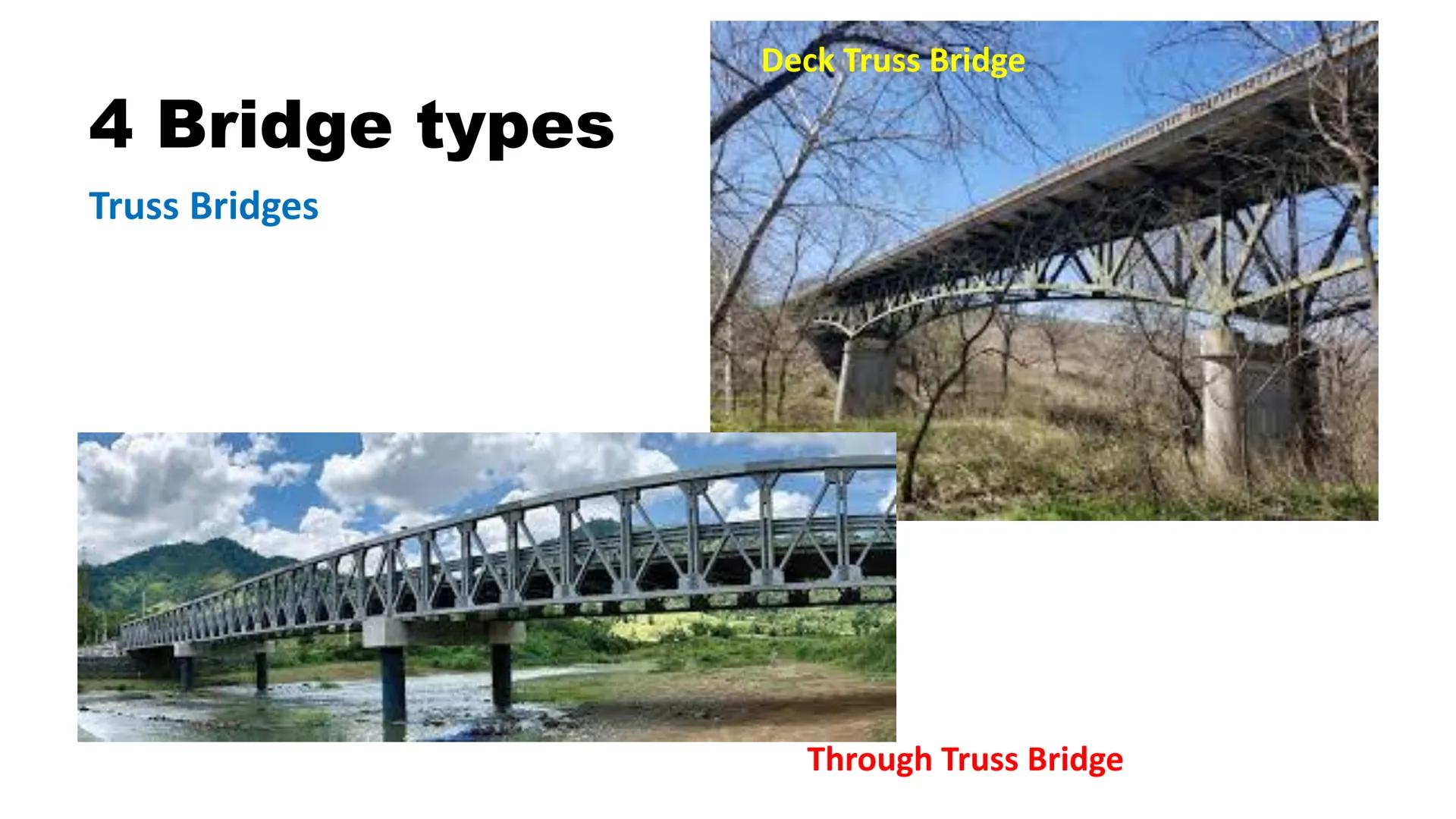

Types of Truss Bridges

Truss bridges are categorized based on the positioning of the roadway relative to the truss structure. The two main configurations serve different functional purposes.

In a deck truss bridge, the roadway sits on top of the truss structure. This design provides an unobstructed roadway with no overhead elements, making it ideal for situations where vertical clearance above the bridge is limited, but it requires adequate support beneath.

Through truss bridges place the roadway between the trusses, with cross-bracing above. This creates a tunnel-like appearance where vehicles pass "through" the truss structure. This design is excellent when foundation depth is limited but vertical clearance is available.

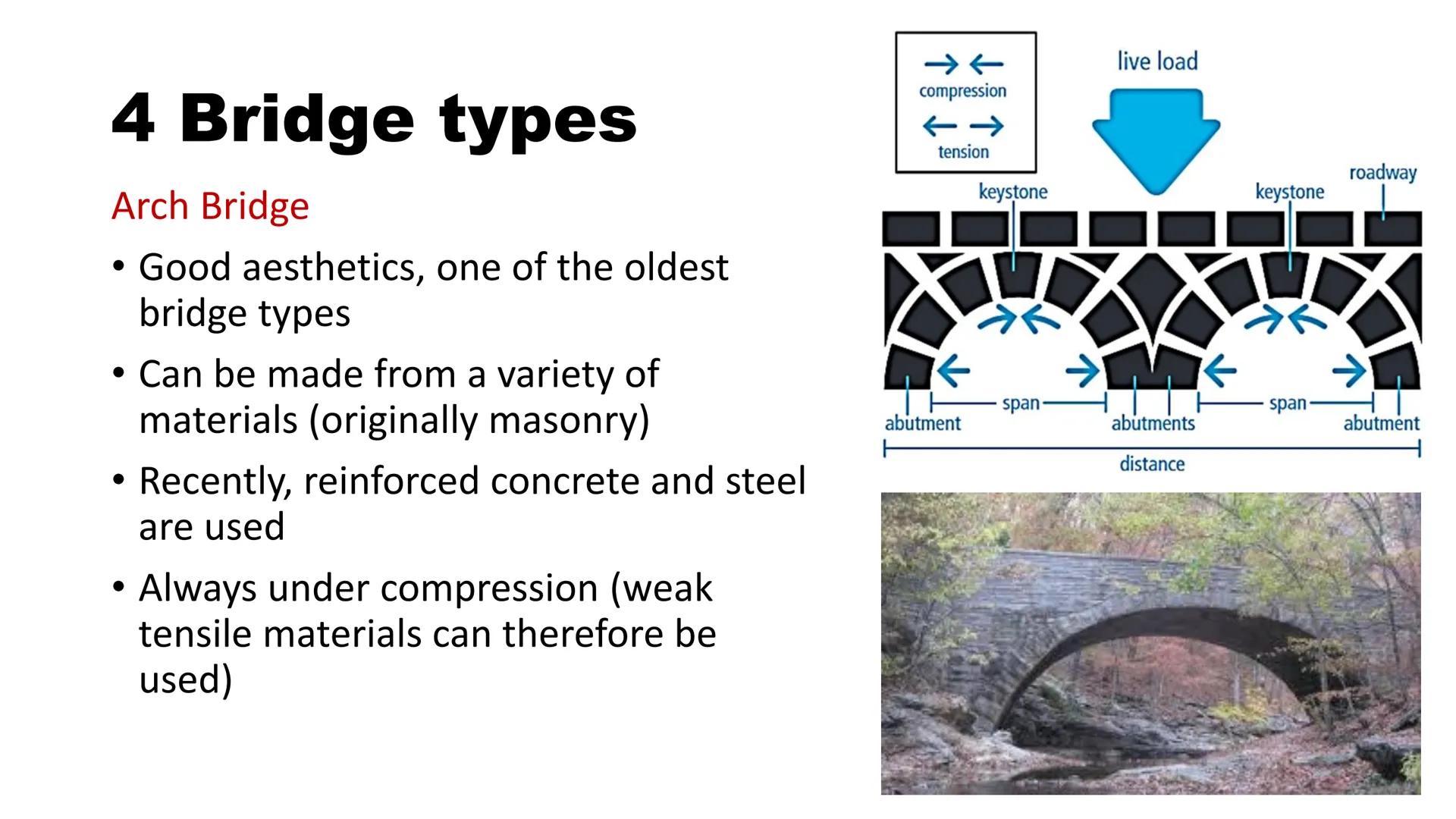

Arch Bridges

Arch bridges are among the oldest bridge designs in engineering history, recognized for their elegant appearance and efficient structural form. Originally built with masonry, modern arch bridges now utilize reinforced concrete and steel to achieve greater spans.

The defining characteristic of arch bridges is their curved structure. This shape naturally channels forces into compression rather than tension, which made them ideal when using traditional materials like stone that perform well under compression but poorly under tension.

The keystone at the arch's center is crucial to the structure—it locks the arch pieces together and transfers forces outward and downward. This creates a self-supporting structure where each element helps maintain the overall form.

Engineering Marvel: The Romans mastered arch bridge technology over 2,000 years ago, and some of their stone bridges still stand today—proving the incredible durability of this design!

Arch Bridge Mechanics

Arch bridges transfer loads differently than beam bridges. When a load is applied to an arch bridge, the force travels through the arch to the abutments at each end, which must be extremely strong to resist these outward and downward forces.

This unique load transfer makes arch bridges relatively expensive compared to simpler designs. They require substantial foundations capable of withstanding the significant horizontal thrust forces generated by the arch.

Site selection for arch bridges is critical. They need very stable ground conditions to support the large forces at the arch bases, which limits possible locations. Valleys with solid rock on both sides provide ideal natural abutments for arch bridges.
