The H-R Diagram shows stars mapped according to their brightness and temperature. Stars are scattered across the diagram in specific patterns rather than randomly.

The vertical axis shows luminosity (measured relative to our Sun), while the horizontal axis shows temperature in Kelvin. Unlike typical graphs, temperature increases from right to left on an H-R Diagram.

Major groups of stars appear in distinct regions - like the diagonal band of main sequence stars where our Sun sits, and areas for giants, supergiants, and white dwarfs.

Fun Fact: Just by looking at where a star sits on the H-R Diagram, astronomers can tell its size, age, and even predict its future!

Essential Questions About the H-R Diagram

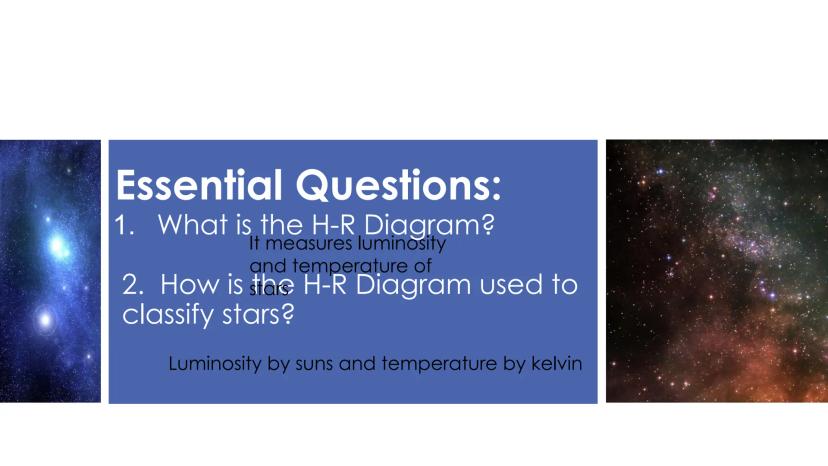

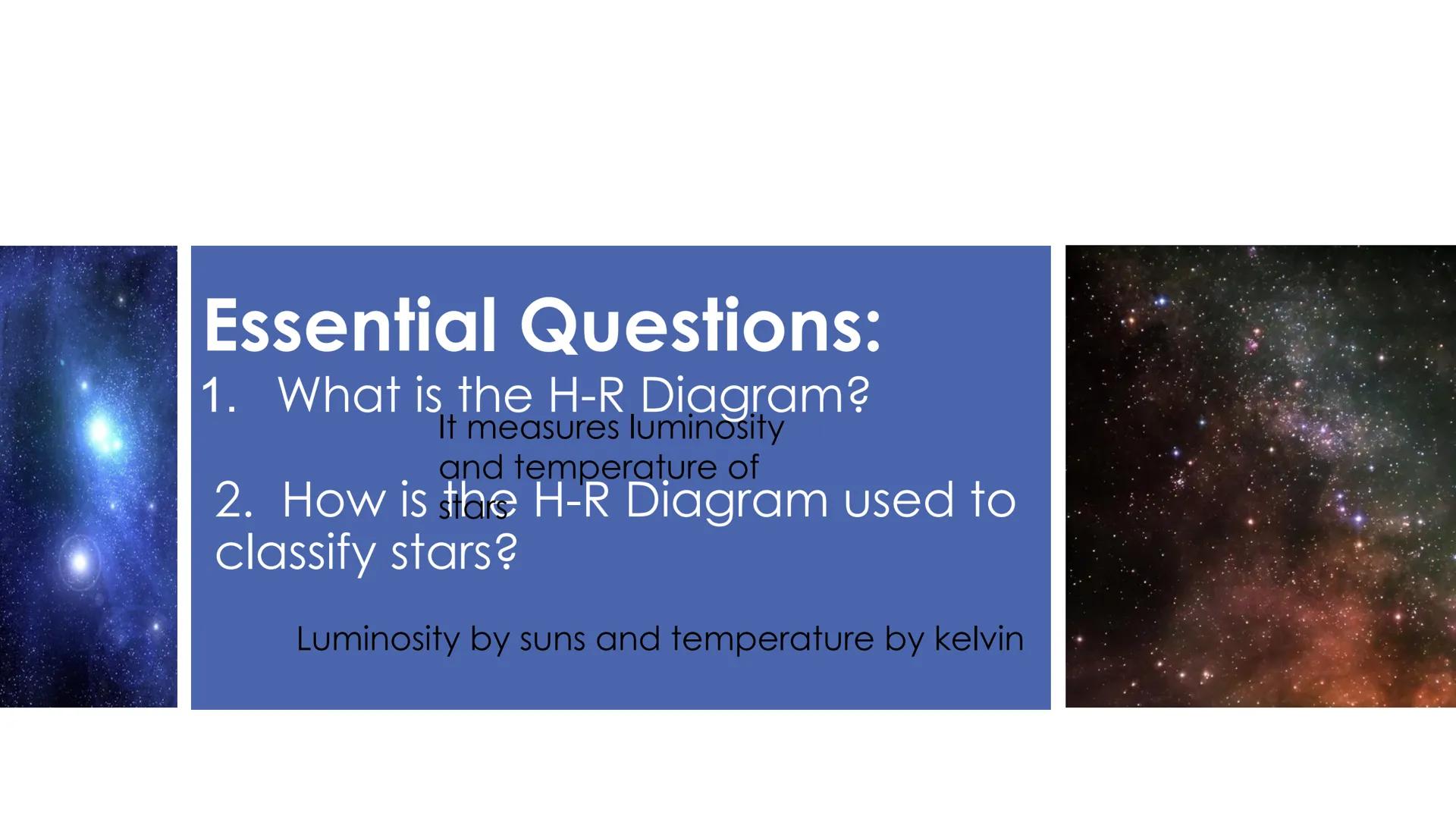

The H-R Diagram helps answer key questions about stars by organizing them visually. It measures both how bright stars are and how hot they are.

When classifying stars, astronomers use the H-R Diagram to compare luminosity (measured relative to our Sun) and temperature (measured in Kelvin). These two properties tell us a lot about a star's nature.

By seeing where a star falls on the diagram, we can immediately identify what type of star it is - whether it's a main sequence star like our Sun, a giant, a supergiant, or a dwarf star.

Creating Your Own H-R Diagram

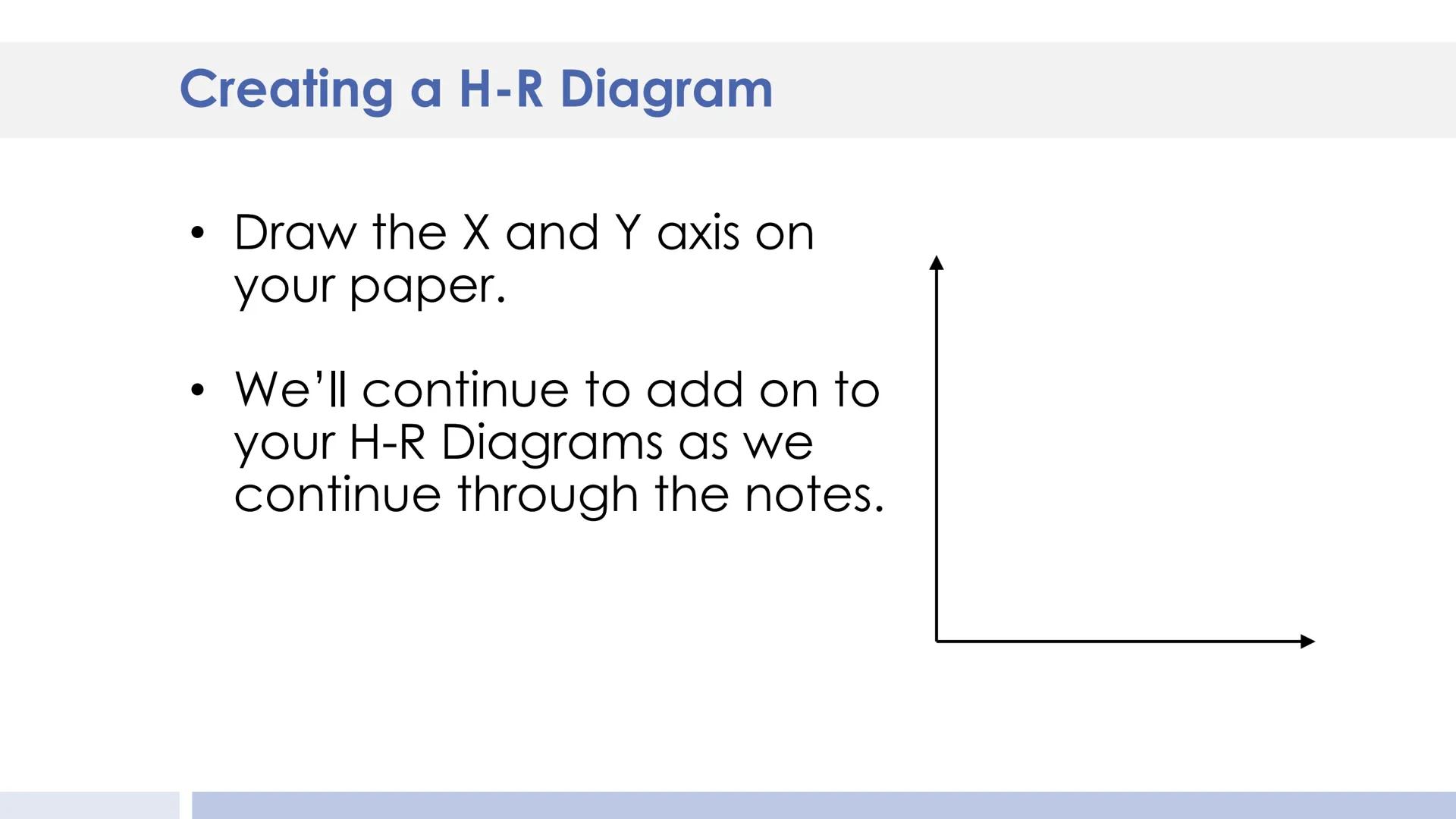

Making your own H-R Diagram starts with drawing the X and Y axes on your paper. The X-axis will show temperature, and the Y-axis will show luminosity.

As you learn more about stars, you'll add different regions to your diagram. This visual representation helps you understand how stars relate to each other.

Building your diagram step by step makes it easier to understand the complex relationships between different types of stars. Think of it like creating a map of the universe's star types!

Learning Tip: Use colored pencils to mark different star types on your diagram - this makes the patterns easier to remember.

H-R Diagram Basics

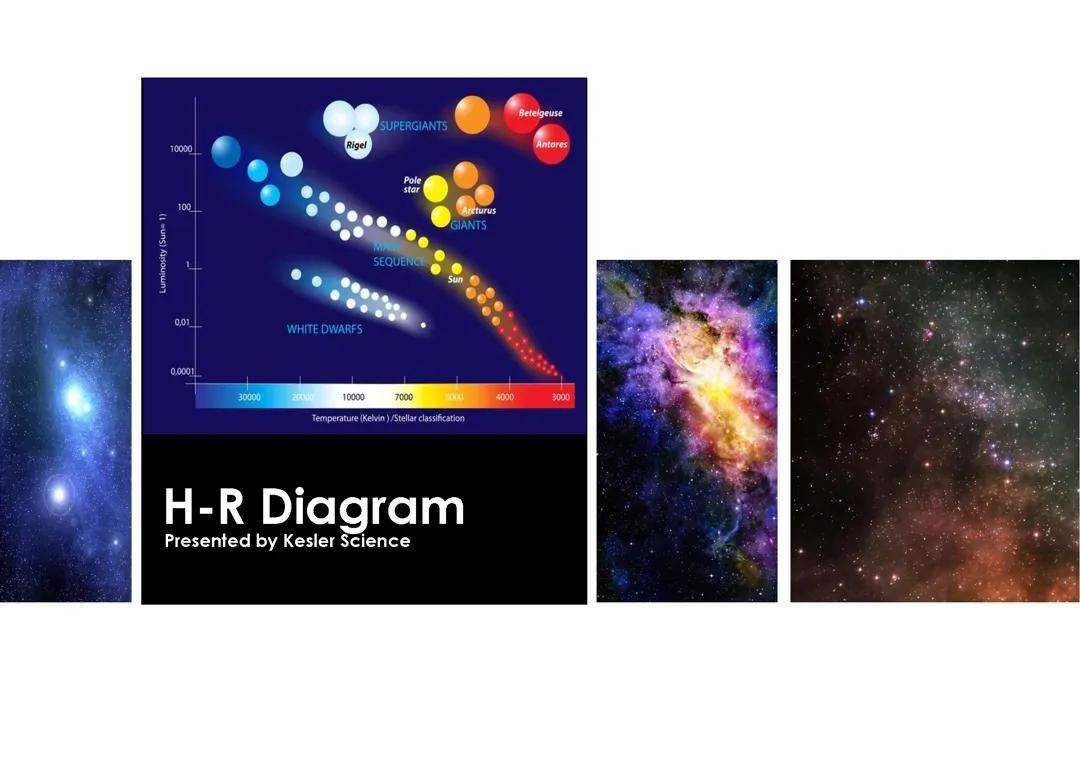

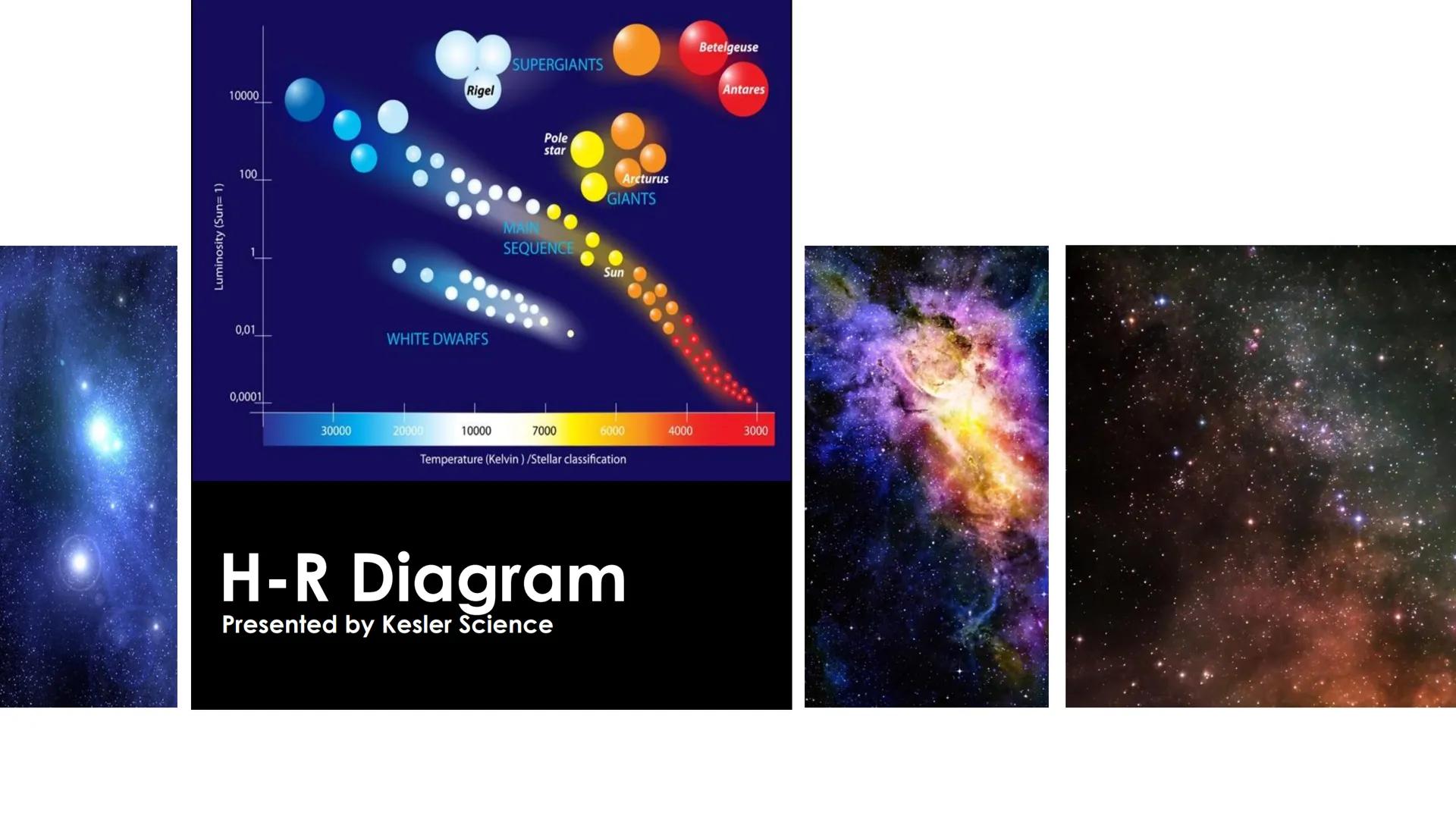

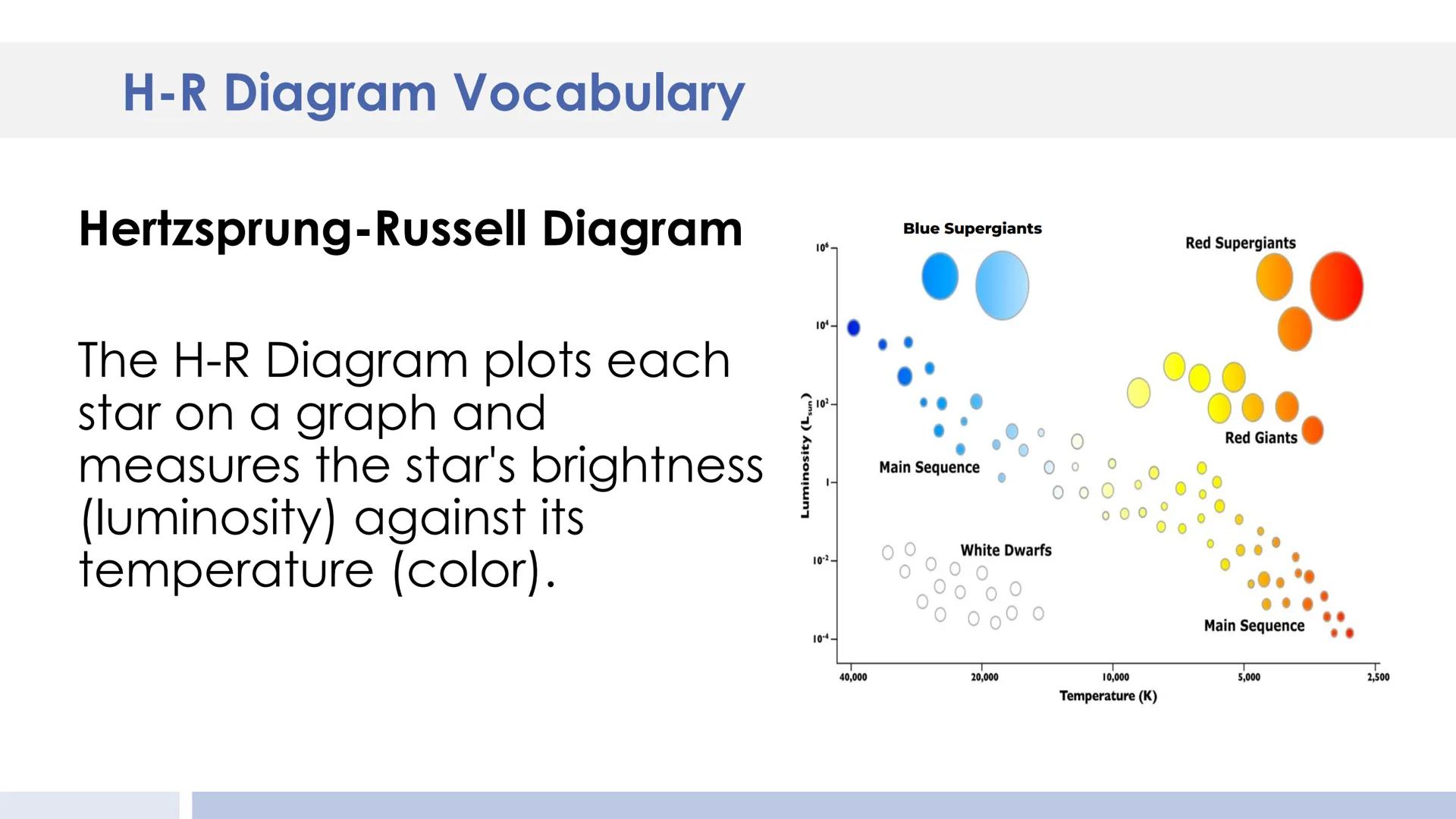

The Hertzsprung-Russell Diagram plots stars by comparing their brightness (luminosity) against their temperature (which determines color). This powerful tool helps astronomers classify the billions of stars in our universe.

On an H-R Diagram, you'll notice distinct regions where different types of stars cluster. The main sequence runs diagonally across the middle, with super-bright supergiants at the top and dim white dwarfs at the bottom.

Most stars, including our Sun, fall along the main sequence. Other regions show stars at different stages of their life cycles, like red giants and white dwarfs.

Understanding Temperature on the H-R Diagram

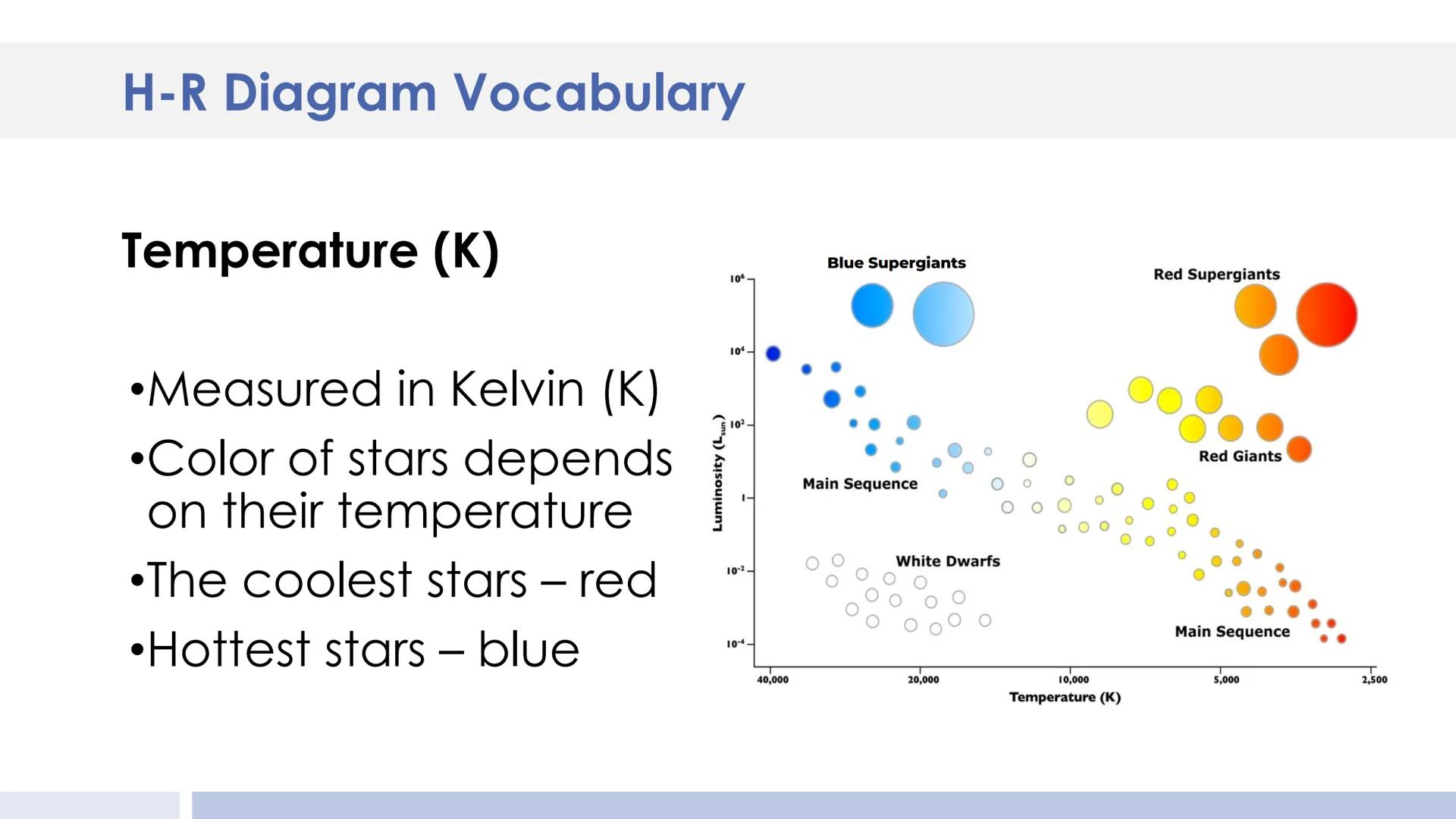

The temperature of stars is measured in Kelvin (K) and determines their color. This relationship between temperature and color gives us important clues about stars.

The coolest stars appear red (around 2,500 K), while the hottest stars glow blue (around 40,000 K). Our Sun, at about 5,500 K, appears yellow.

Looking at the diagram, you can see how temperature affects where stars appear. Red supergiants are cooler but extremely bright, while main sequence stars show a range of temperatures.

Remember: In astronomy, color directly tells us temperature - blue stars are always hotter than red stars!

The Unusual Temperature Scale

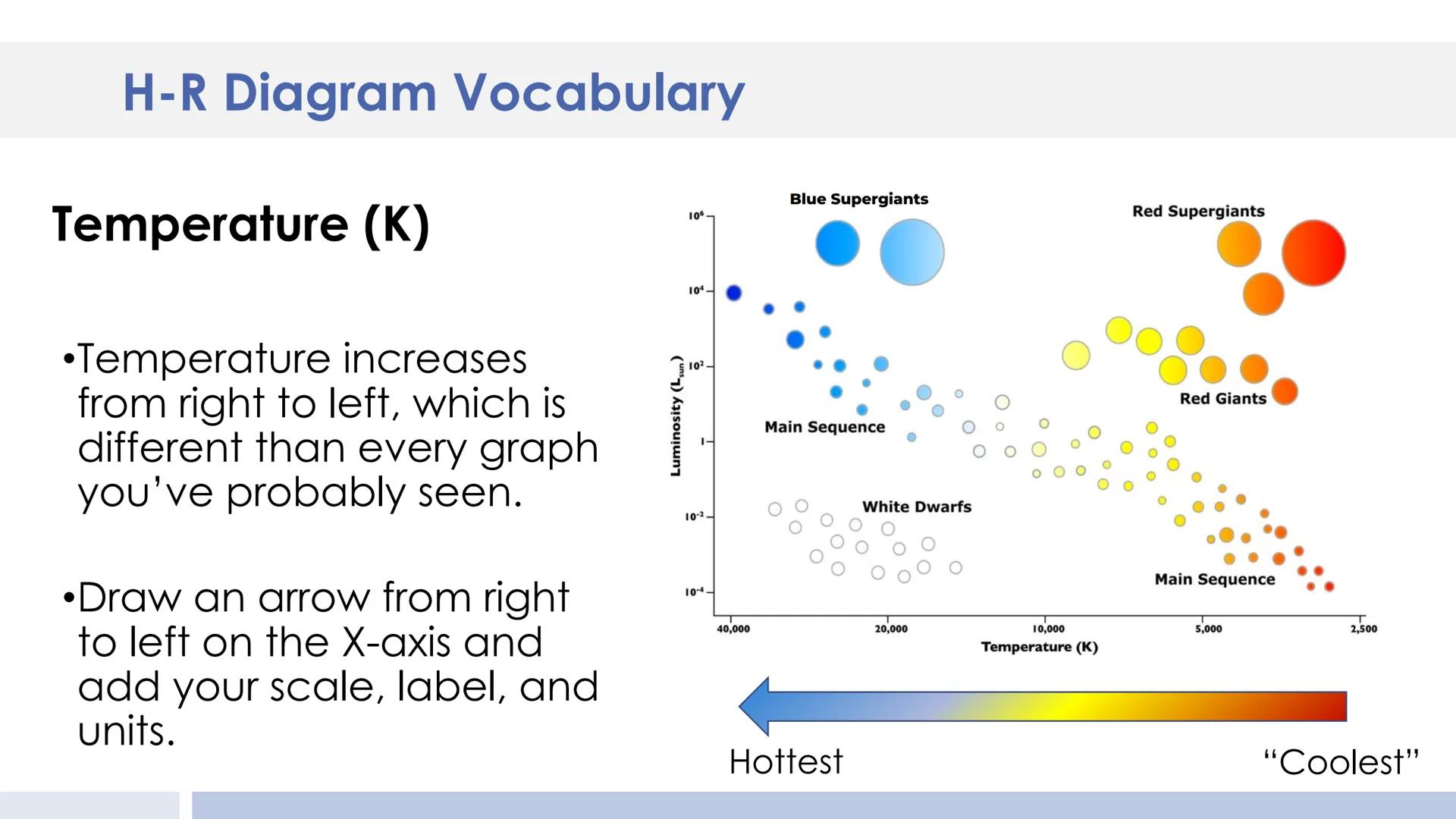

One tricky thing about the H-R Diagram is that temperature increases from right to left on the X-axis. This is opposite from most graphs you've used before!

When adding temperature to your own H-R Diagram, draw an arrow from right to left showing that the hottest stars (around 40,000K) are on the left side, while the coolest stars (around 2,500K) are on the right.

This reversed scale takes some getting used to, but it's the standard way astronomers have organized the H-R Diagram since it was created in the early 1900s.

Understanding Luminosity

Luminosity measures the total amount of energy a star emits as light. It tells us how bright a star truly is, regardless of distance.

On the H-R Diagram, luminosity increases as you move up the Y-axis. It's typically measured relative to our Sun's brightness (Lsun), with values ranging from 10^-4 (much dimmer than the Sun) to 10^6 (a million times brighter).

When creating your own diagram, draw an arrow pointing upward on the Y-axis to show increasing luminosity. This scale helps us compare stars of vastly different brightness levels.

Perspective Check: Some supergiants are over 100,000 times brighter than our Sun - imagine how our night sky would look if we orbited one of those!

Apparent Magnitude: How Bright Stars Look

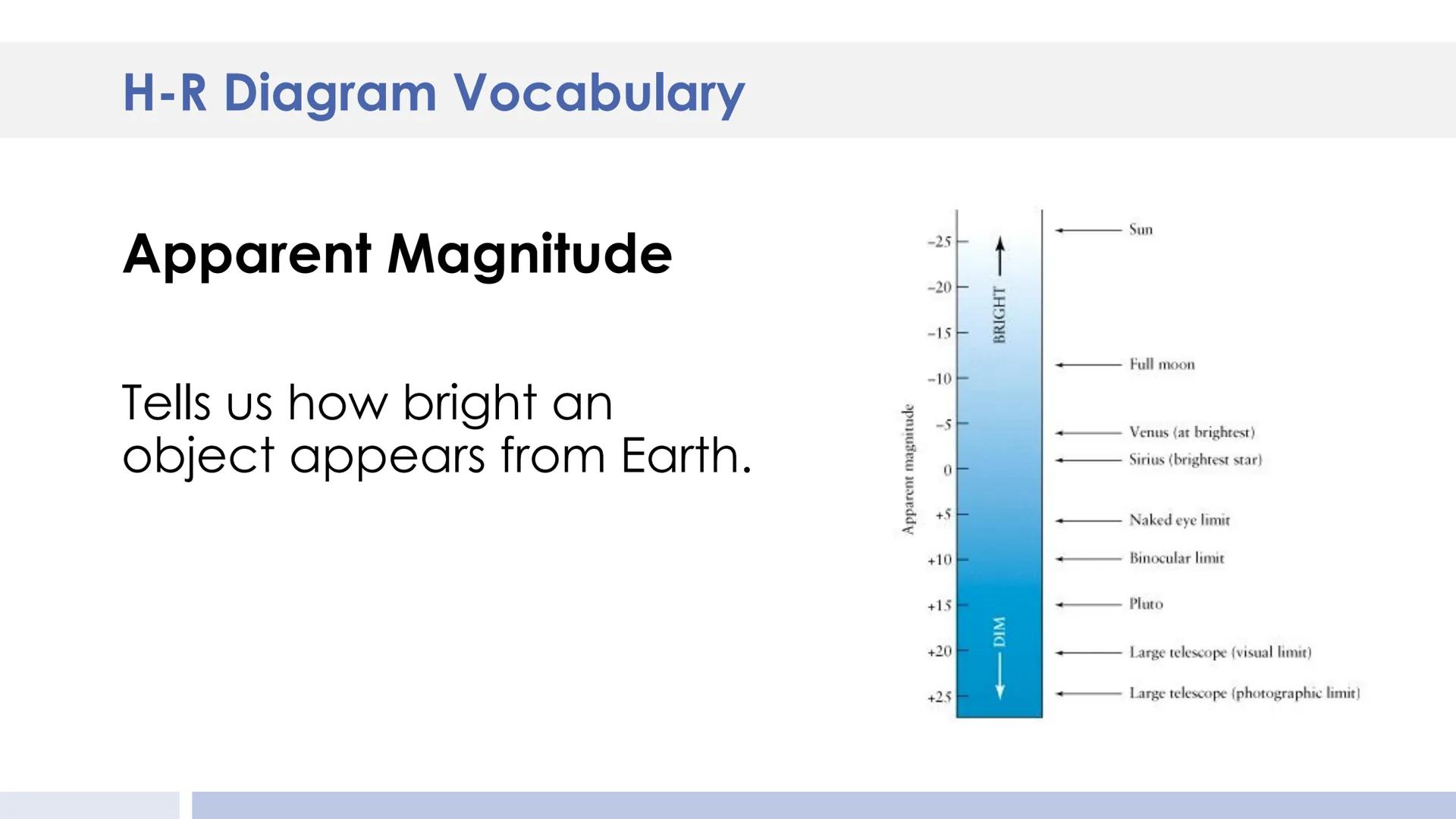

Apparent magnitude measures how bright a star looks from Earth, regardless of its actual luminosity. This scale ranges from negative numbers (very bright) to positive numbers (very dim).

The brightest objects have the lowest values—the Sun has an apparent magnitude of -25, while the dimmest stars visible to the naked eye have a magnitude of about +6.

With binoculars, you can see stars to about +10 magnitude, while large telescopes can detect objects all the way to +25 magnitude. This scale helps astronomers describe what we can actually see when we look up.

Absolute Magnitude: True Brightness

Absolute magnitude tells us how bright a star would appear if it were placed at a standard distance of exactly 32.6 light years from Earth. This allows for fair brightness comparisons between stars.

Unlike apparent magnitude (how bright a star looks from Earth), absolute magnitude eliminates the distance factor. Our Sun has an absolute magnitude of 4.83.

This standardized measurement helps astronomers compare the true brightness of stars without being fooled by how close or far away they are from us.

Cool Connection: A star might look bright in our sky simply because it's close, but its absolute magnitude reveals its true brightness compared to other stars.

Spectral Classes of Stars

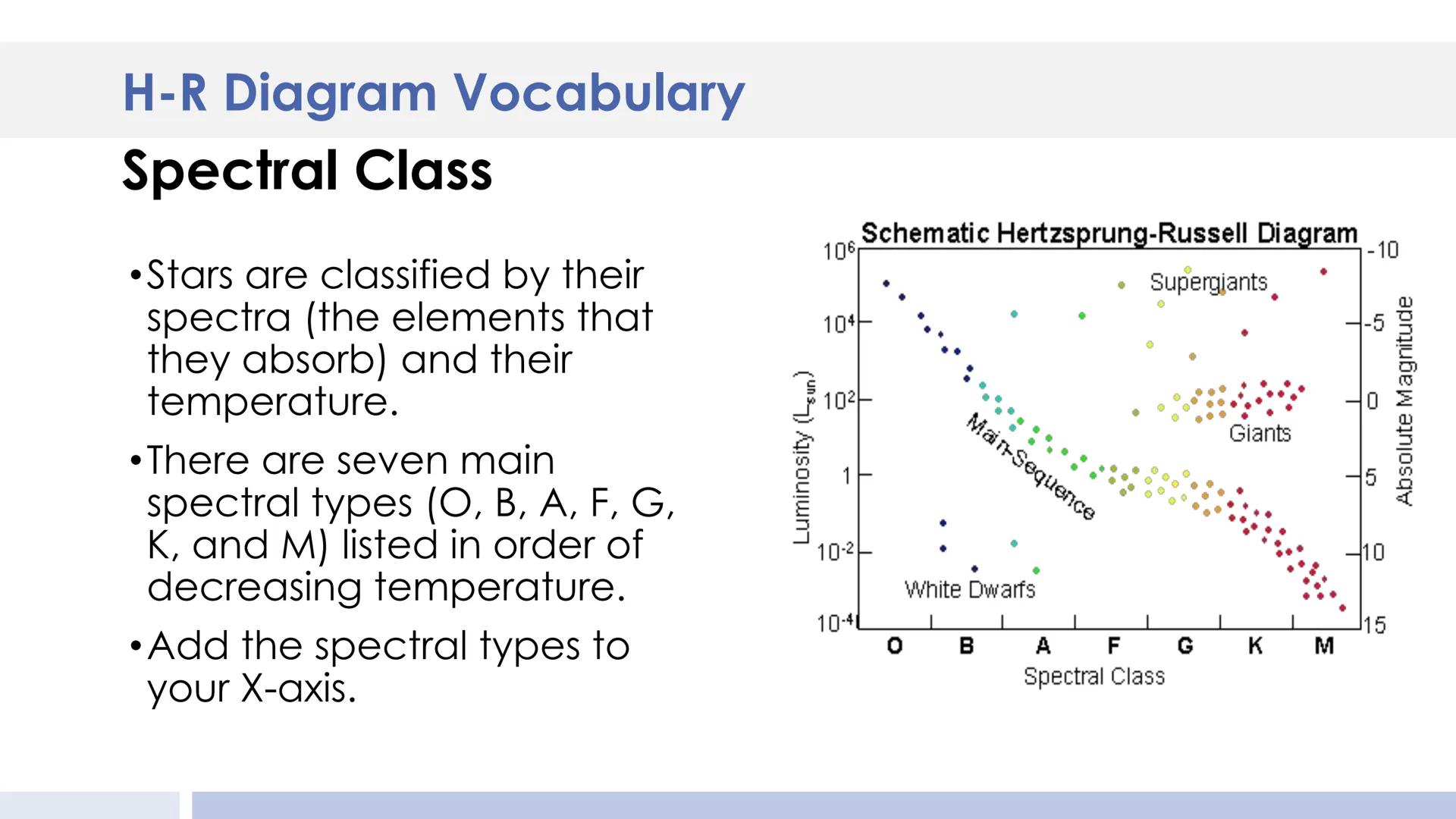

Stars are classified into seven main spectral types: O, B, A, F, G, K, and M. This classification is based on the elements they absorb and their temperature.

The hottest stars are type O (blue), while the coolest are type M (red). Our Sun is a type G (yellow) star. An easy way to remember the order is the phrase "Oh Be A Fine Girl/Guy, Kiss Me."

When adding spectral types to your H-R Diagram, place them along the X-axis with O-type stars on the left (hottest) and M-type stars on the right (coolest). This classification helps astronomers communicate about star types using a standard system.
